Page 1831 of 3171
LAN-54
[CAN]
CAN SYSTEM (TYPE 1)

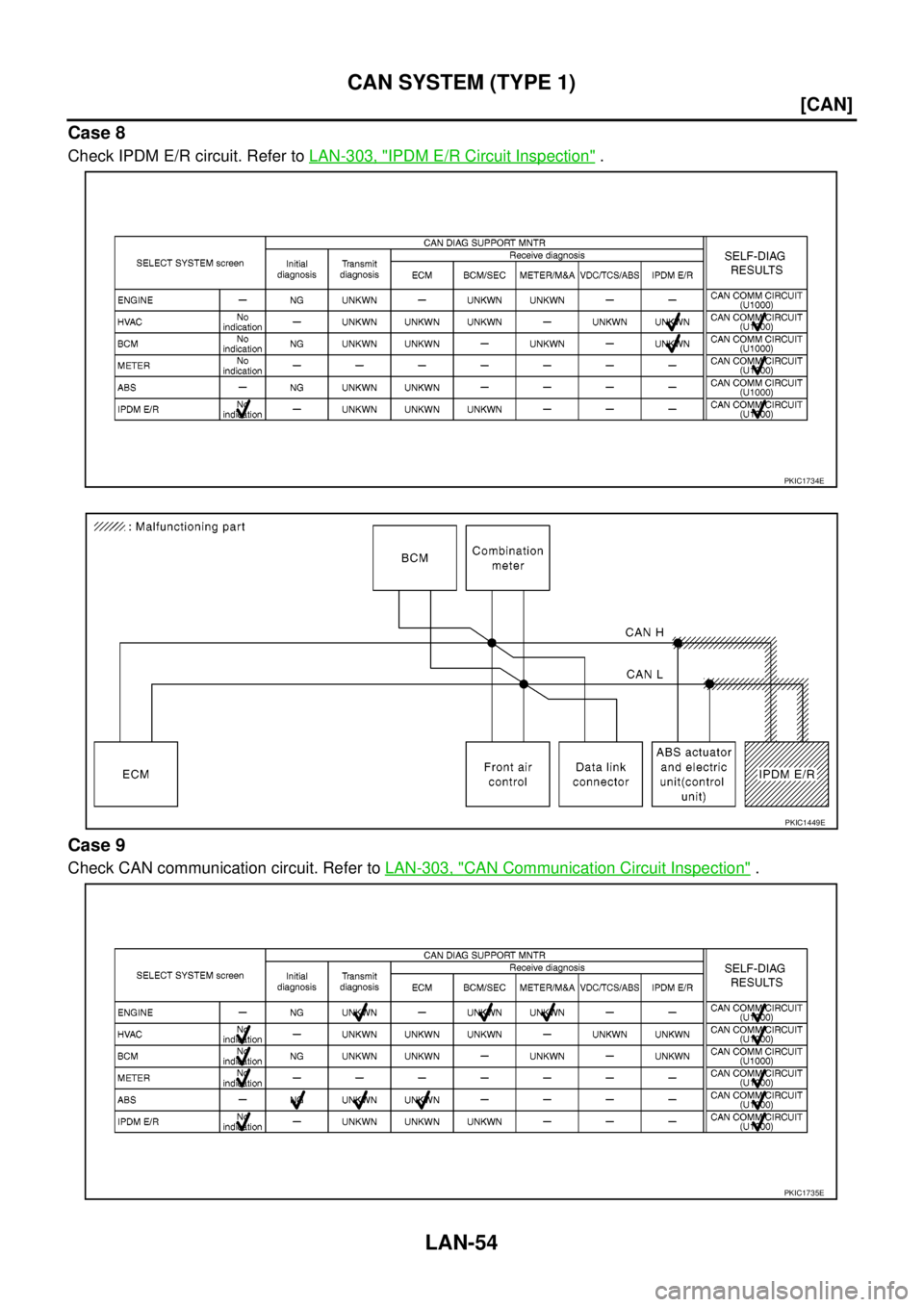

Case 8
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 9
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1734E
PKIC1449E
PKIC1735E
Page 1832 of 3171
CAN SYSTEM (TYPE 1)
LAN-55
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

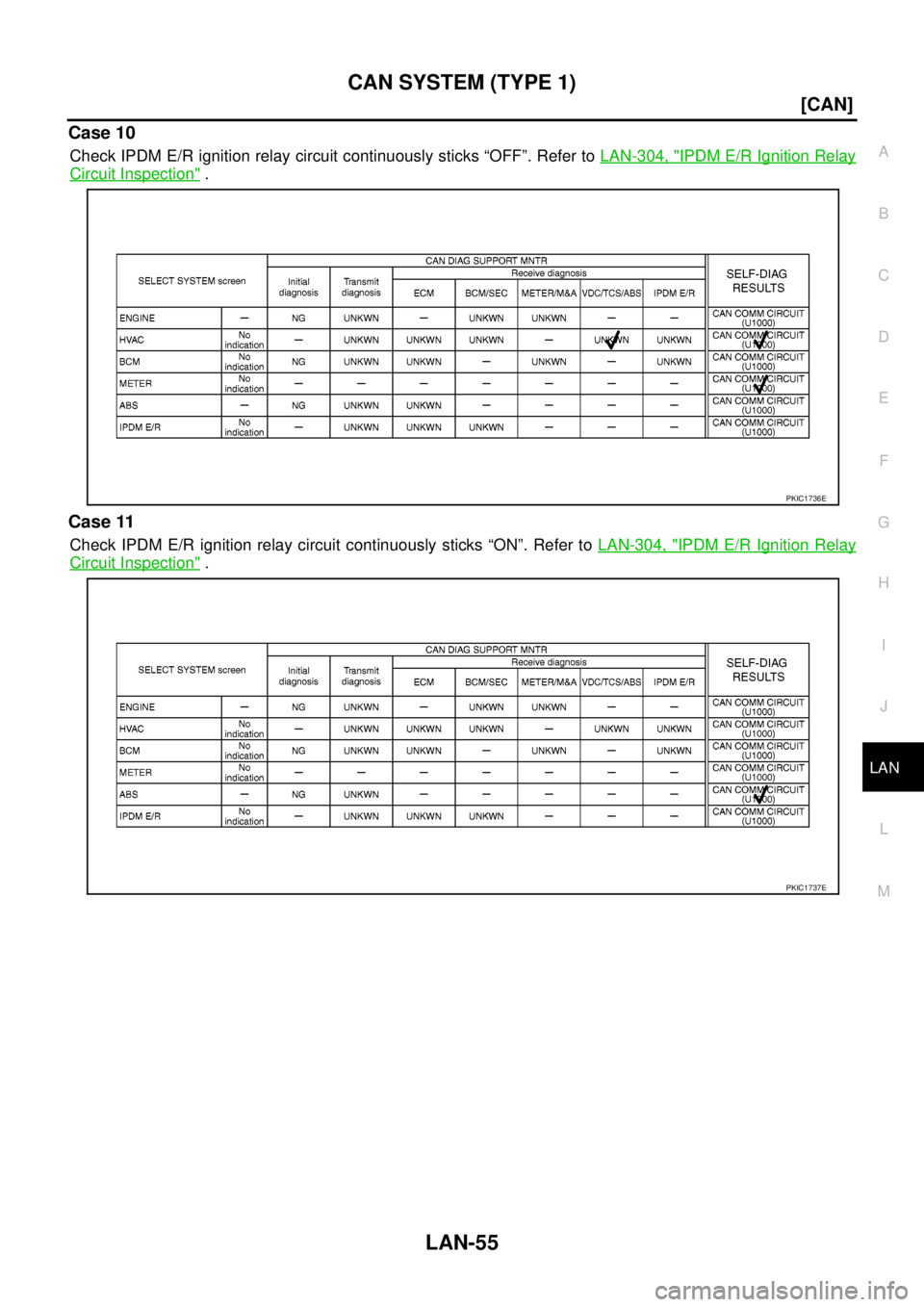

Case 10
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 11
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1736E
PKIC1737E
Page 1833 of 3171
LAN-56
[CAN]
CAN SYSTEM (TYPE 2)
CAN SYSTEM (TYPE 2)
PFP:23710
Component Parts and Harness Connector LocationEKS00OKJ
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OKK
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OKL
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 1834 of 3171
CAN SYSTEM (TYPE 2)
LAN-57
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

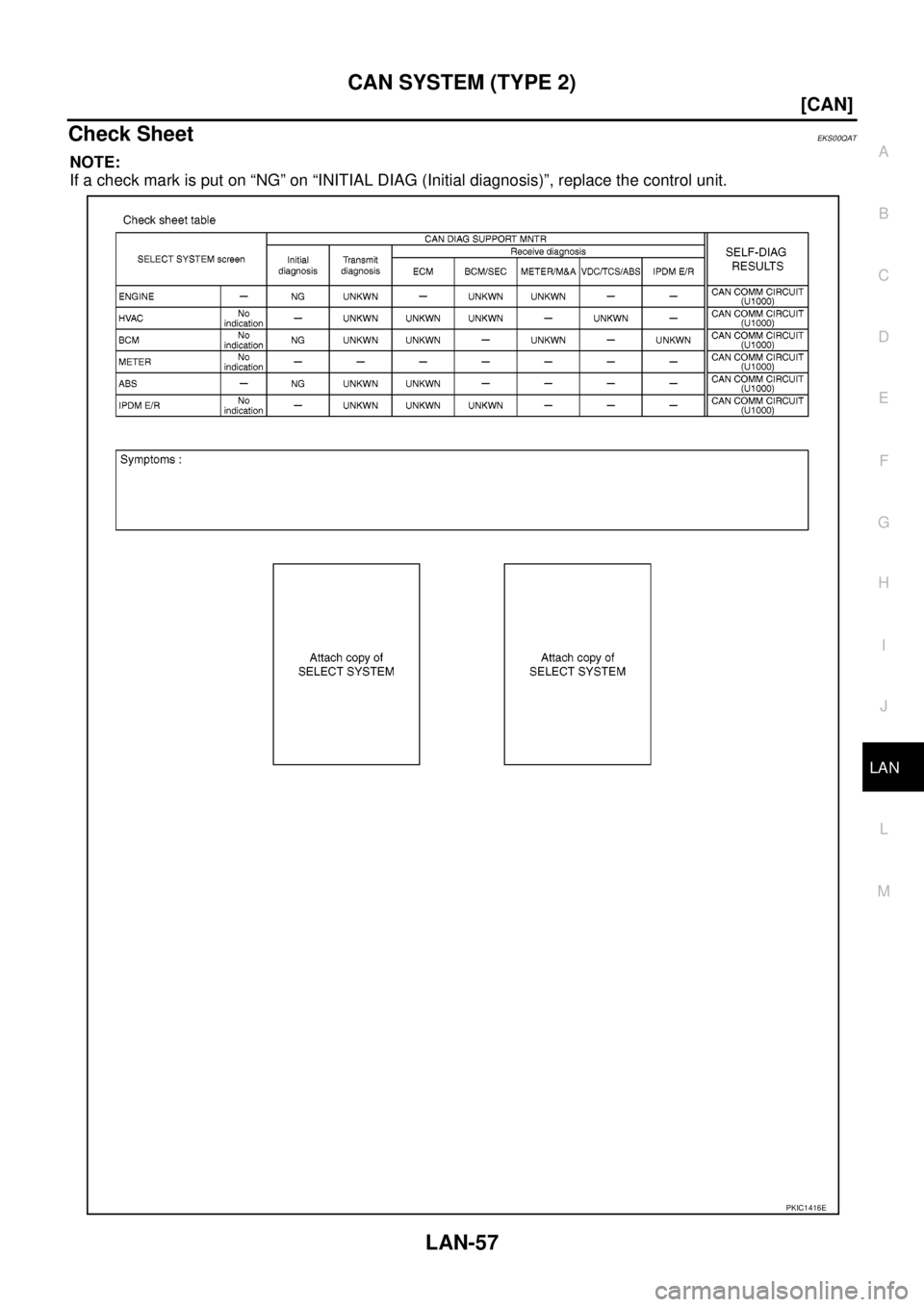

Check SheetEKS00QAT
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1416E
Page 1835 of 3171
LAN-58
[CAN]
CAN SYSTEM (TYPE 2)
PKIC1591E
Page 1836 of 3171
CAN SYSTEM (TYPE 2)
LAN-59
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

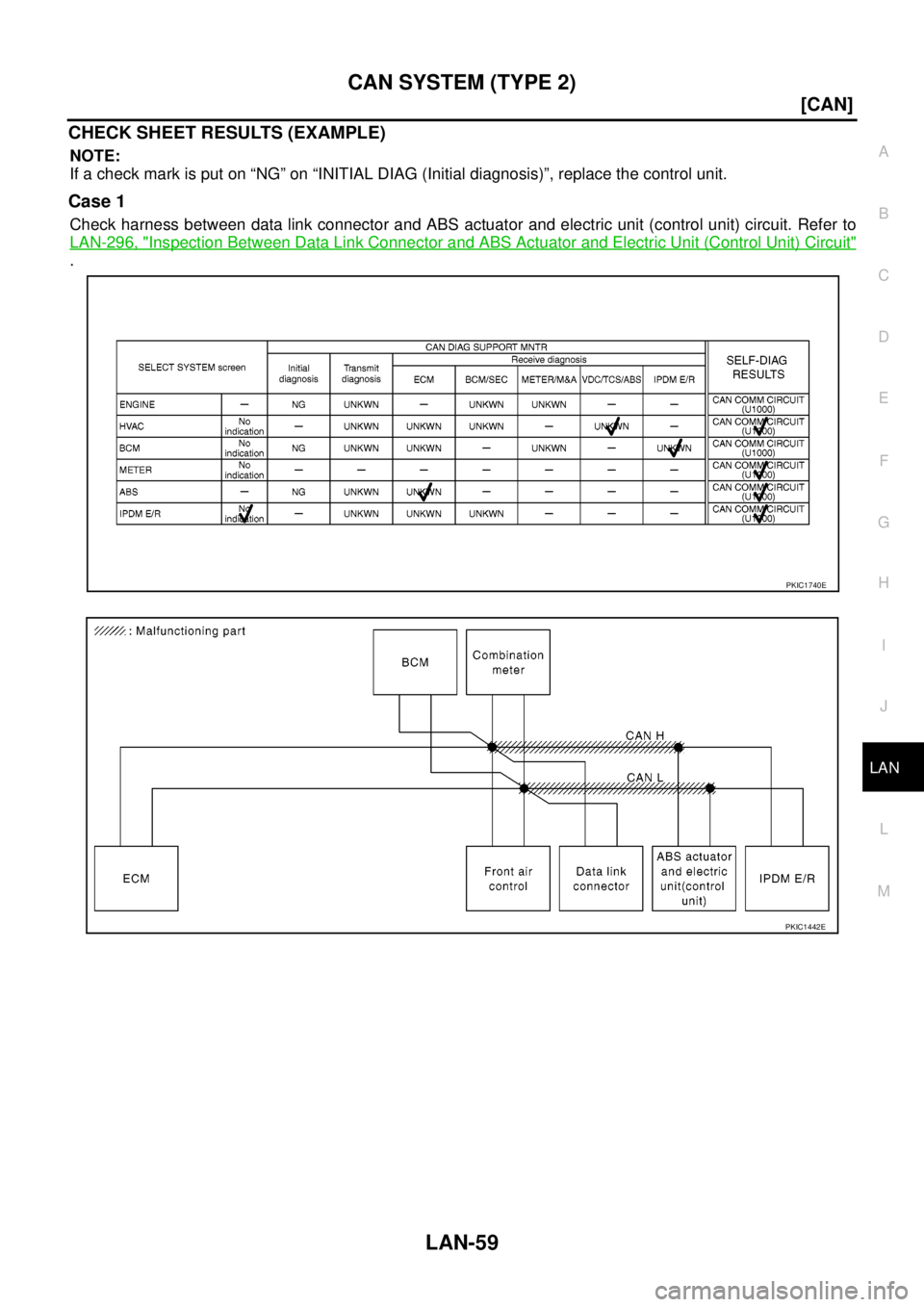

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1740E
PKIC1442E
Page 1837 of 3171
LAN-60
[CAN]
CAN SYSTEM (TYPE 2)
Case 2
Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models".
PKIC1741E
PKIC1443E
Page 1838 of 3171
CAN SYSTEM (TYPE 2)
LAN-61
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

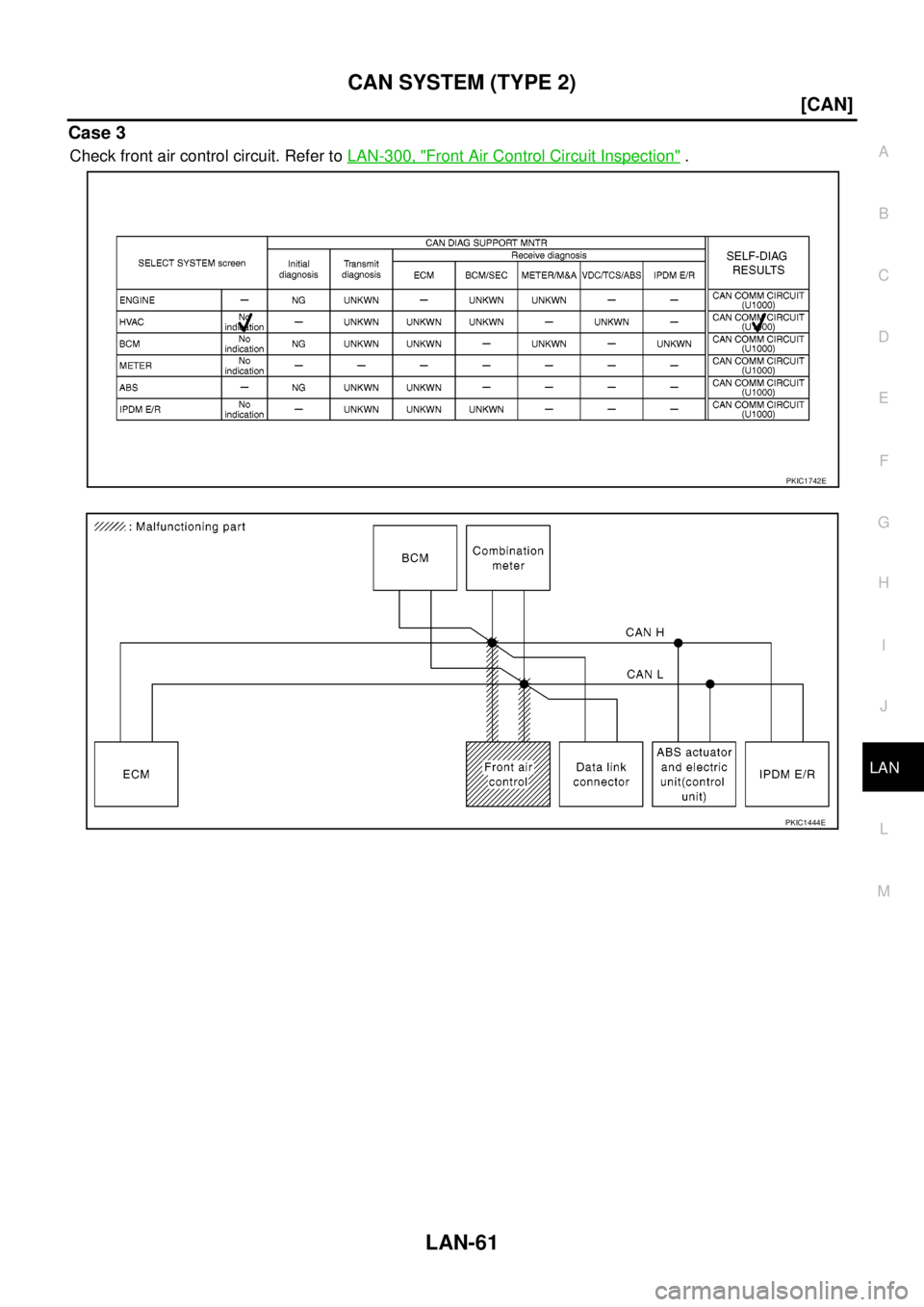

Case 3
Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1742E
PKIC1444E
Page 1839 of 3171
LAN-62
[CAN]
CAN SYSTEM (TYPE 2)

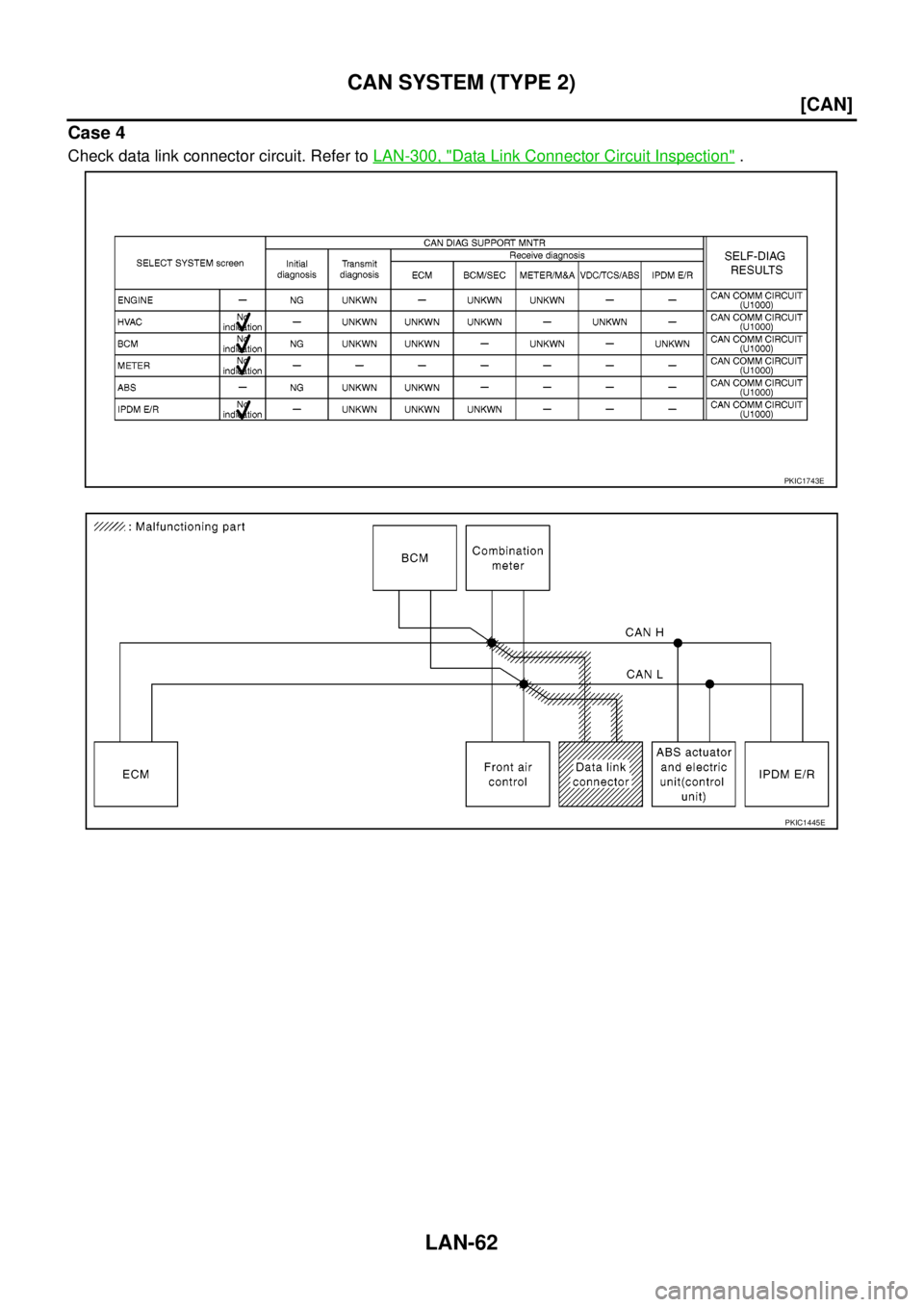

Case 4
Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1743E
PKIC1445E
Page 1840 of 3171
CAN SYSTEM (TYPE 2)
LAN-63
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

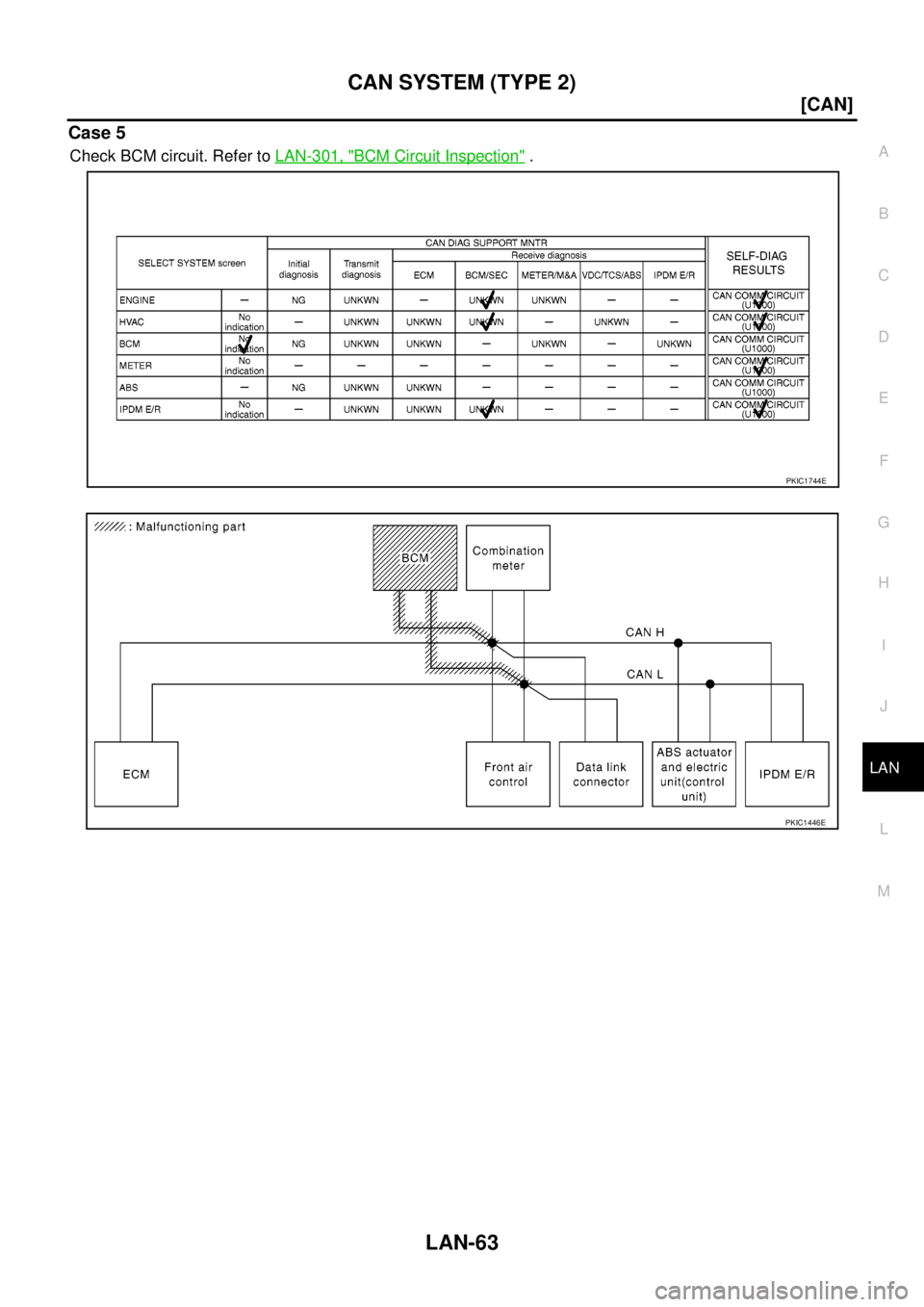

Case 5
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1744E
PKIC1446E
