Page 1841 of 3171
LAN-64
[CAN]
CAN SYSTEM (TYPE 2)

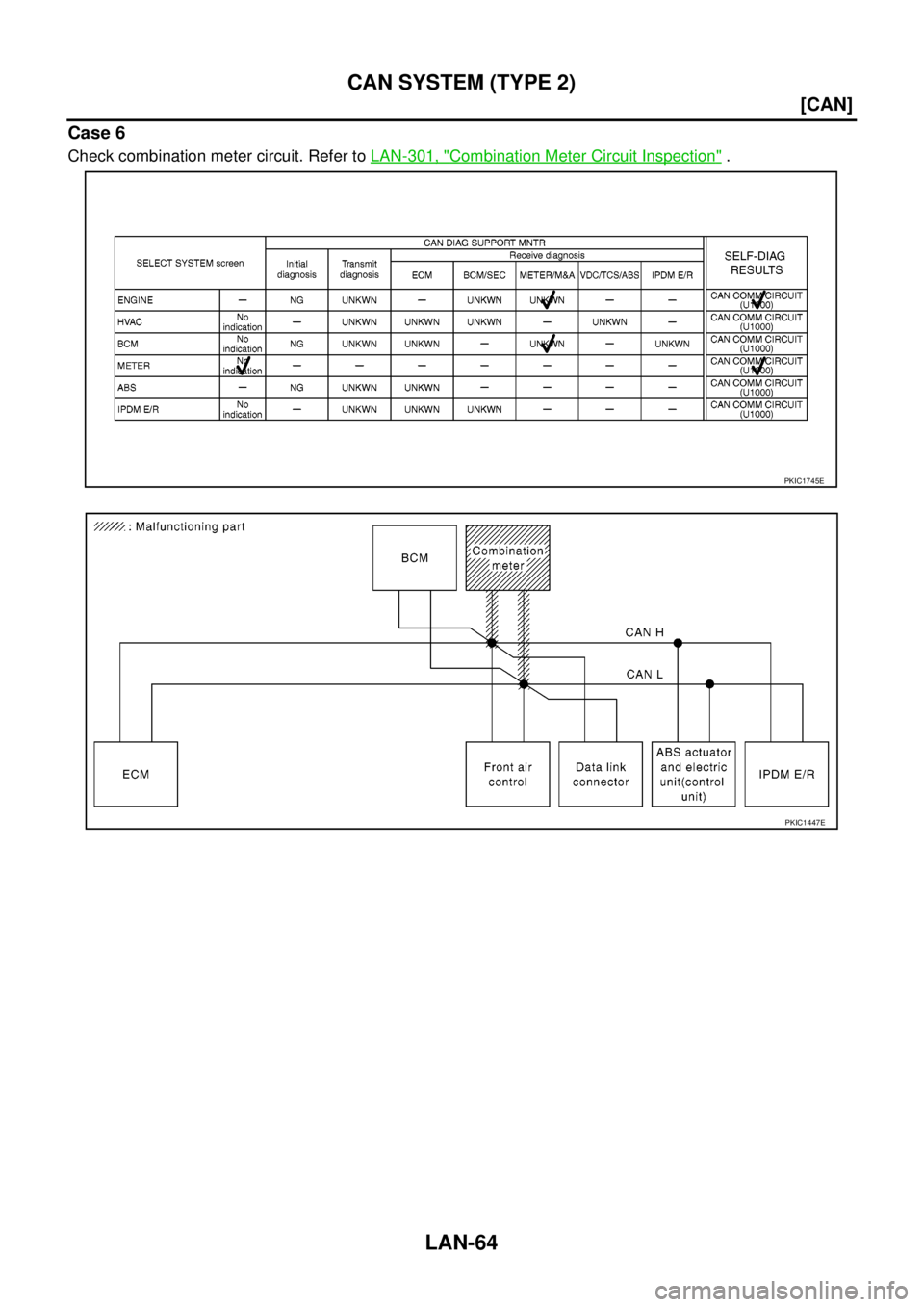

Case 6
Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1745E
PKIC1447E
Page 1842 of 3171
CAN SYSTEM (TYPE 2)
LAN-65
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

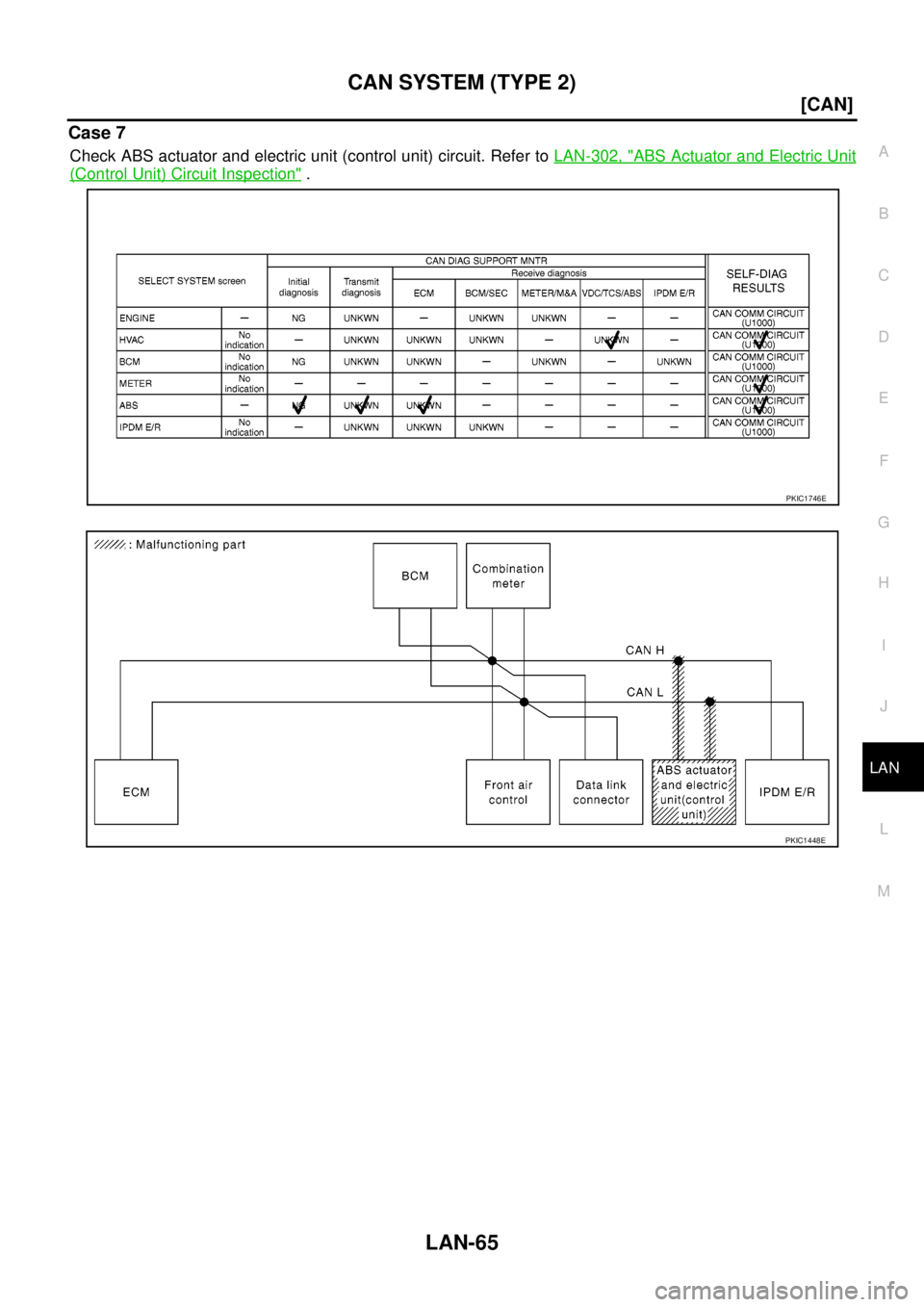

Case 7
Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1746E
PKIC1448E
Page 1843 of 3171
LAN-66
[CAN]
CAN SYSTEM (TYPE 2)

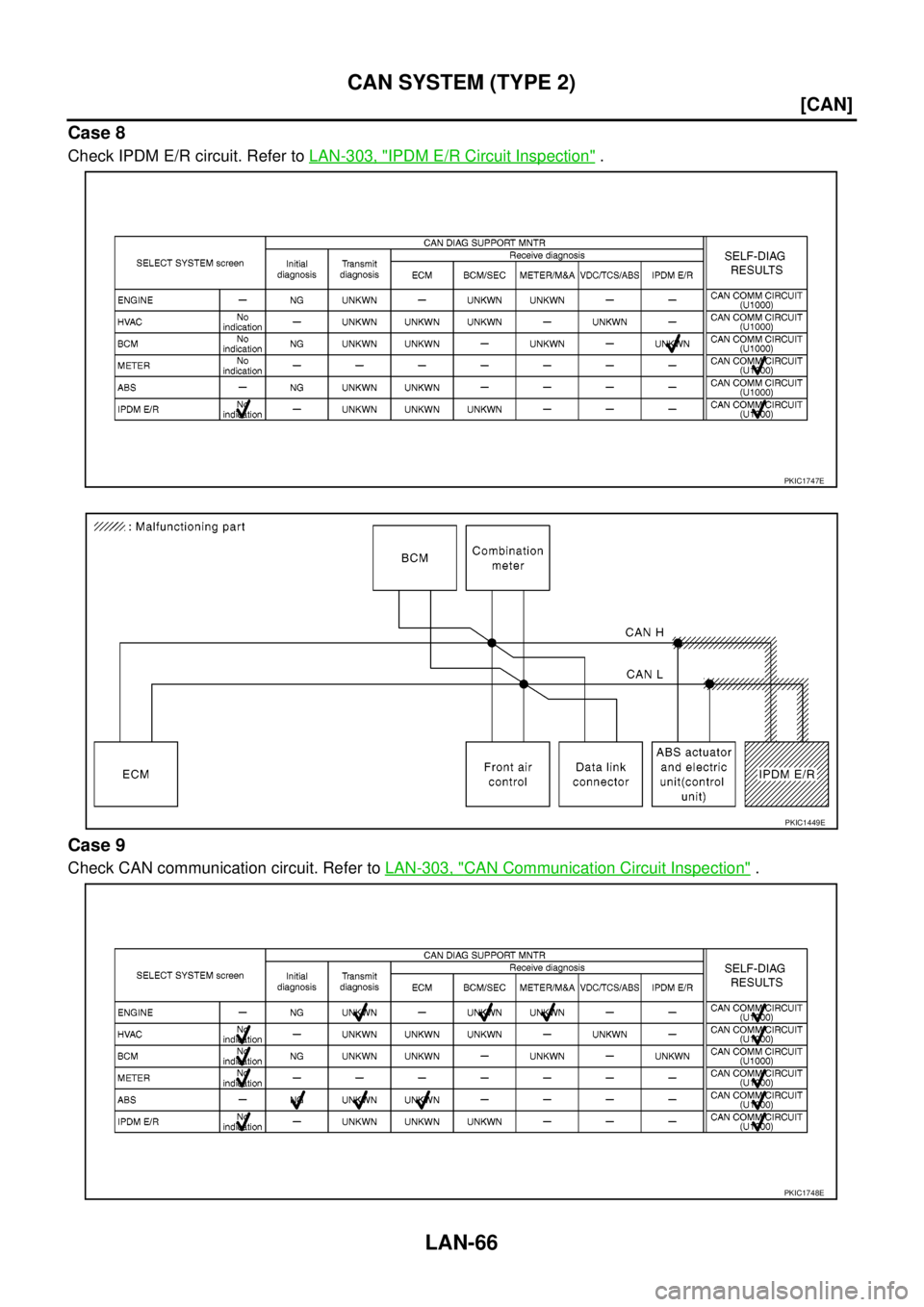

Case 8
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 9
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1747E
PKIC1449E
PKIC1748E
Page 1844 of 3171
CAN SYSTEM (TYPE 2)
LAN-67
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

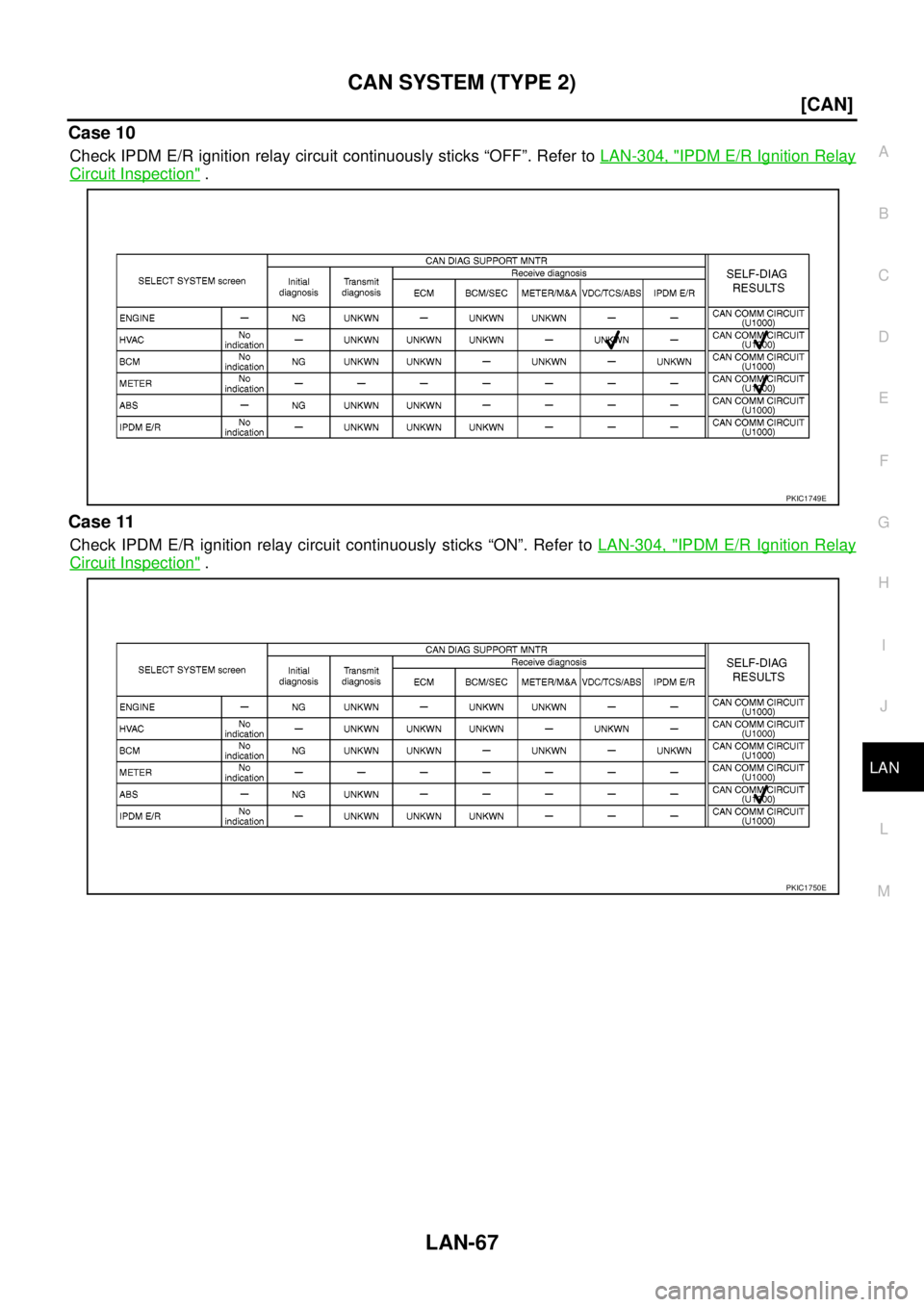

Case 10
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 11
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1749E
PKIC1750E
Page 1845 of 3171
LAN-68
[CAN]
CAN SYSTEM (TYPE 3)
CAN SYSTEM (TYPE 3)
PFP:23710
Component Parts and Harness Connector LocationEKS00OKF
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00OKG
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00OKH
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 1846 of 3171
CAN SYSTEM (TYPE 3)
LAN-69
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

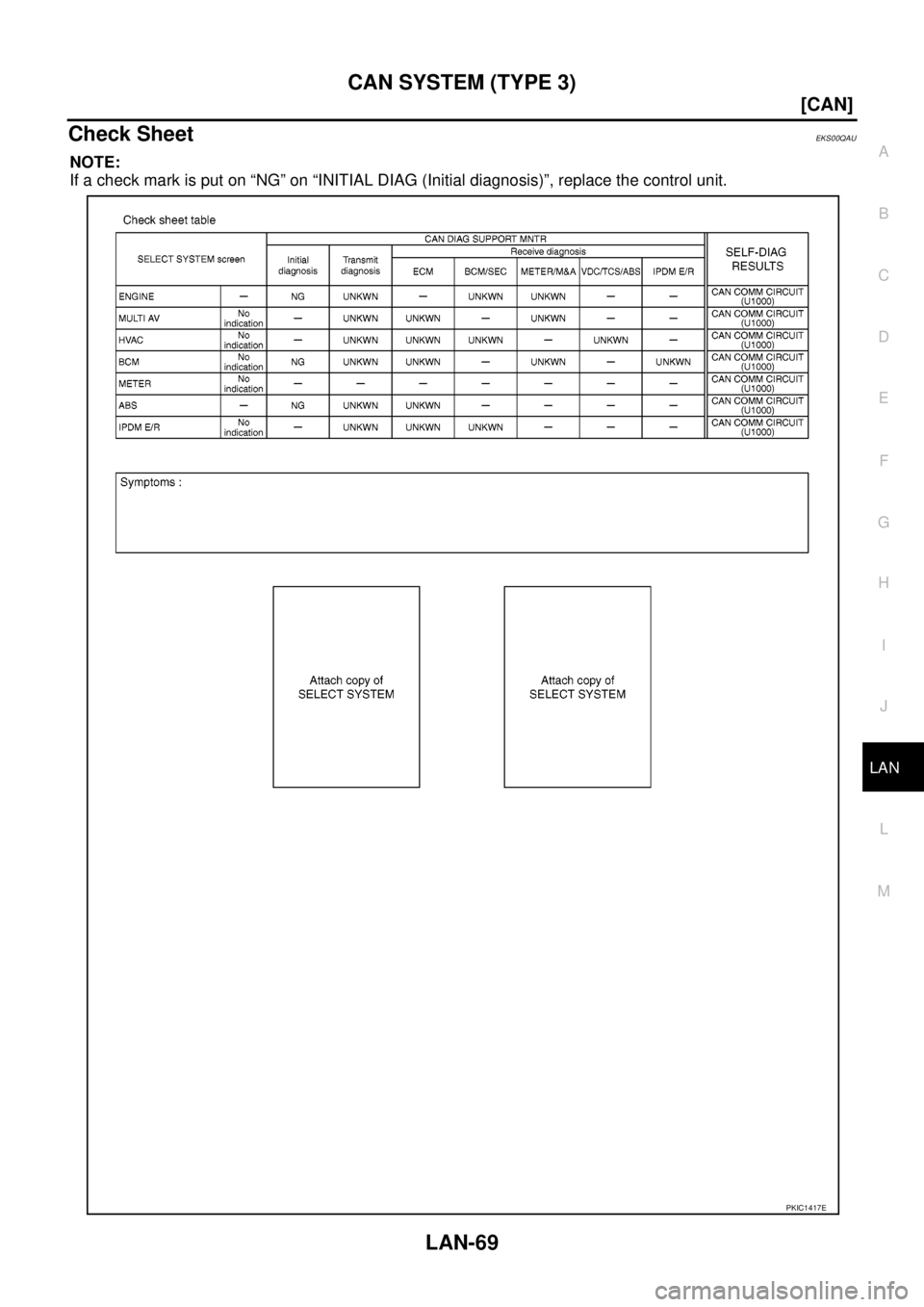

Check SheetEKS00QAU
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1417E
Page 1847 of 3171

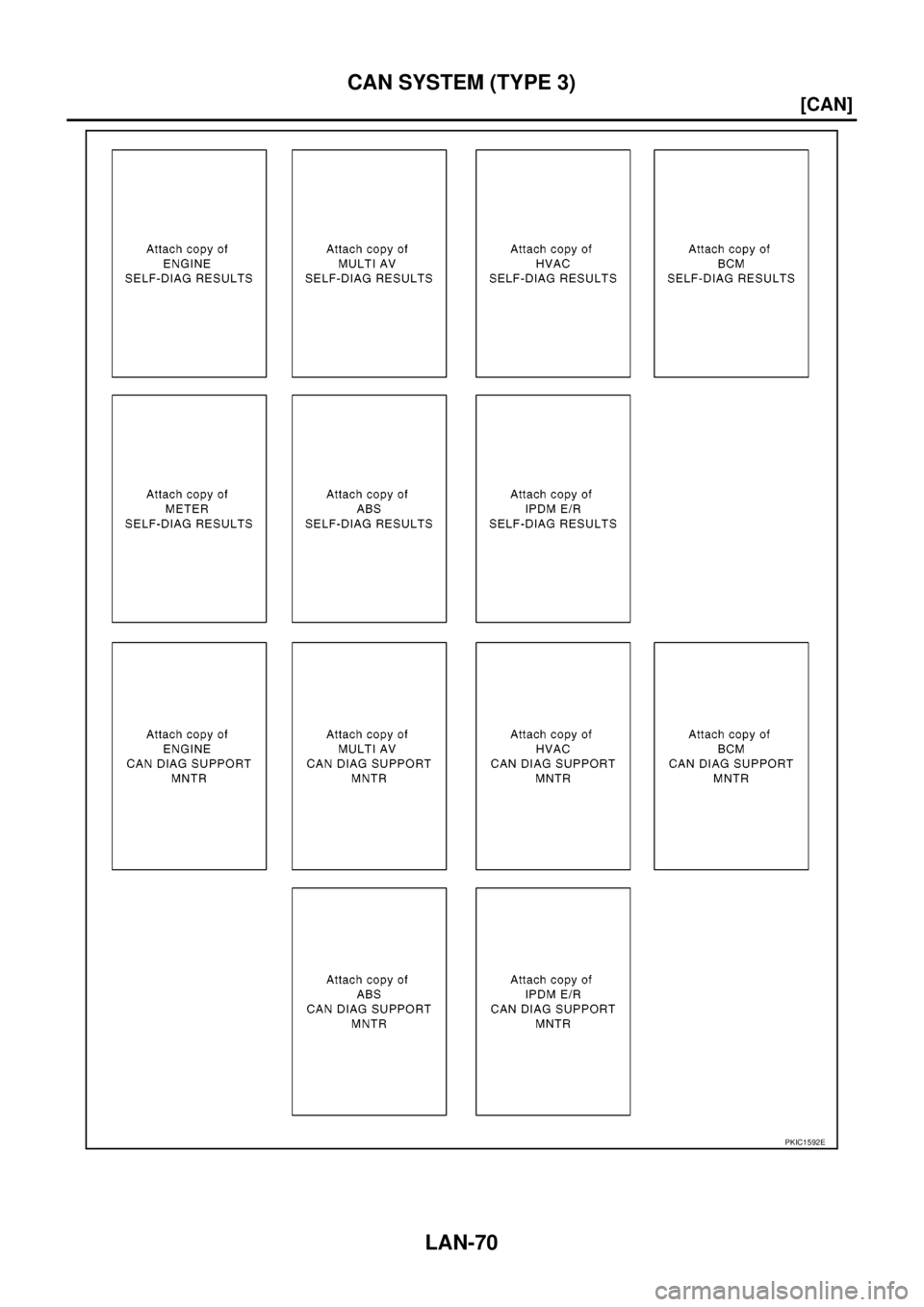

LAN-70
[CAN]
CAN SYSTEM (TYPE 3)
PKIC1592E
Page 1848 of 3171
CAN SYSTEM (TYPE 3)
LAN-71
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

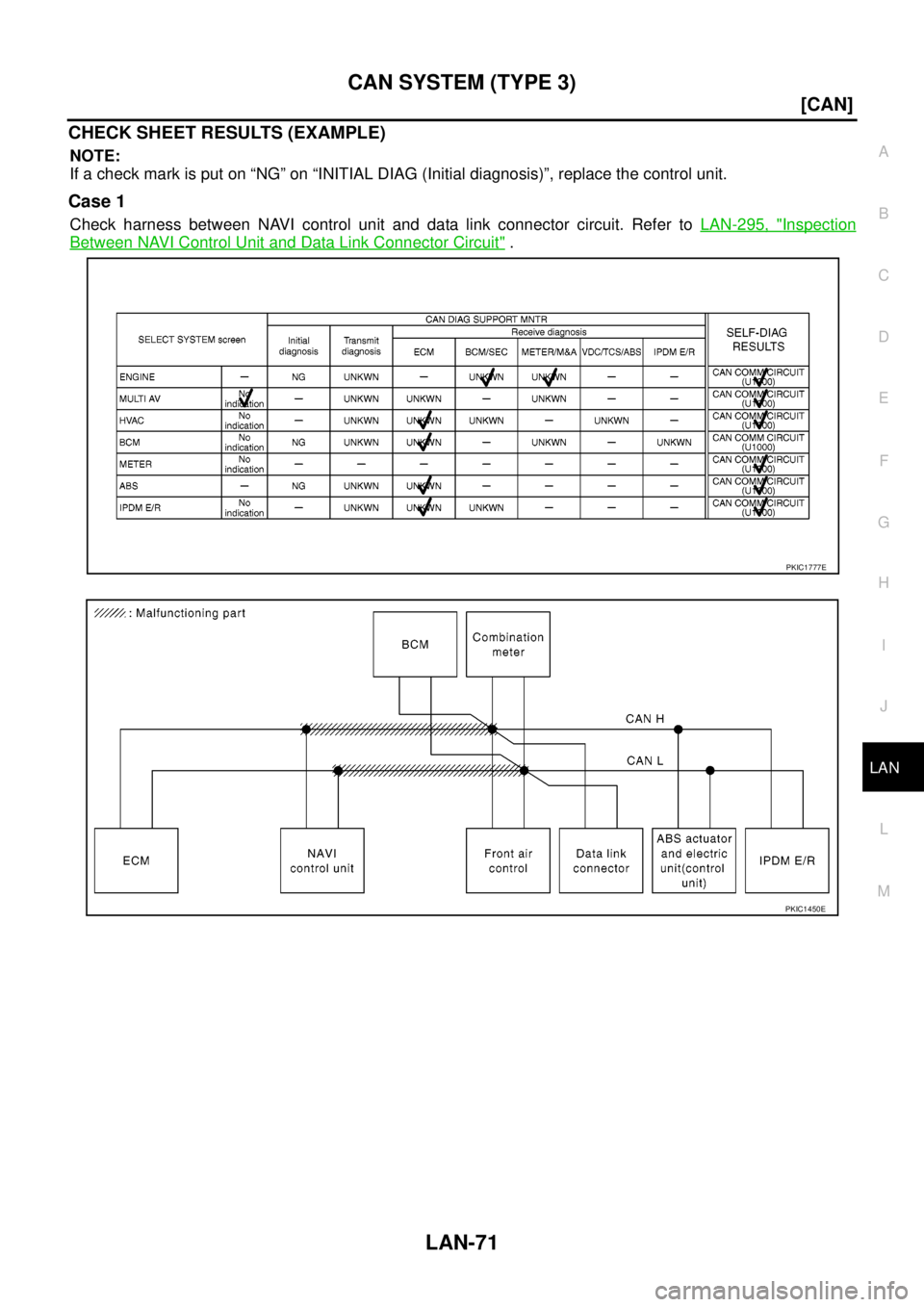

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between NAVI control unit and data link connector circuit. Refer toLAN-295, "Inspection
Between NAVI Control Unit and Data Link Connector Circuit".
PKIC1777E
PKIC1450E
Page 1849 of 3171
LAN-72
[CAN]
CAN SYSTEM (TYPE 3)

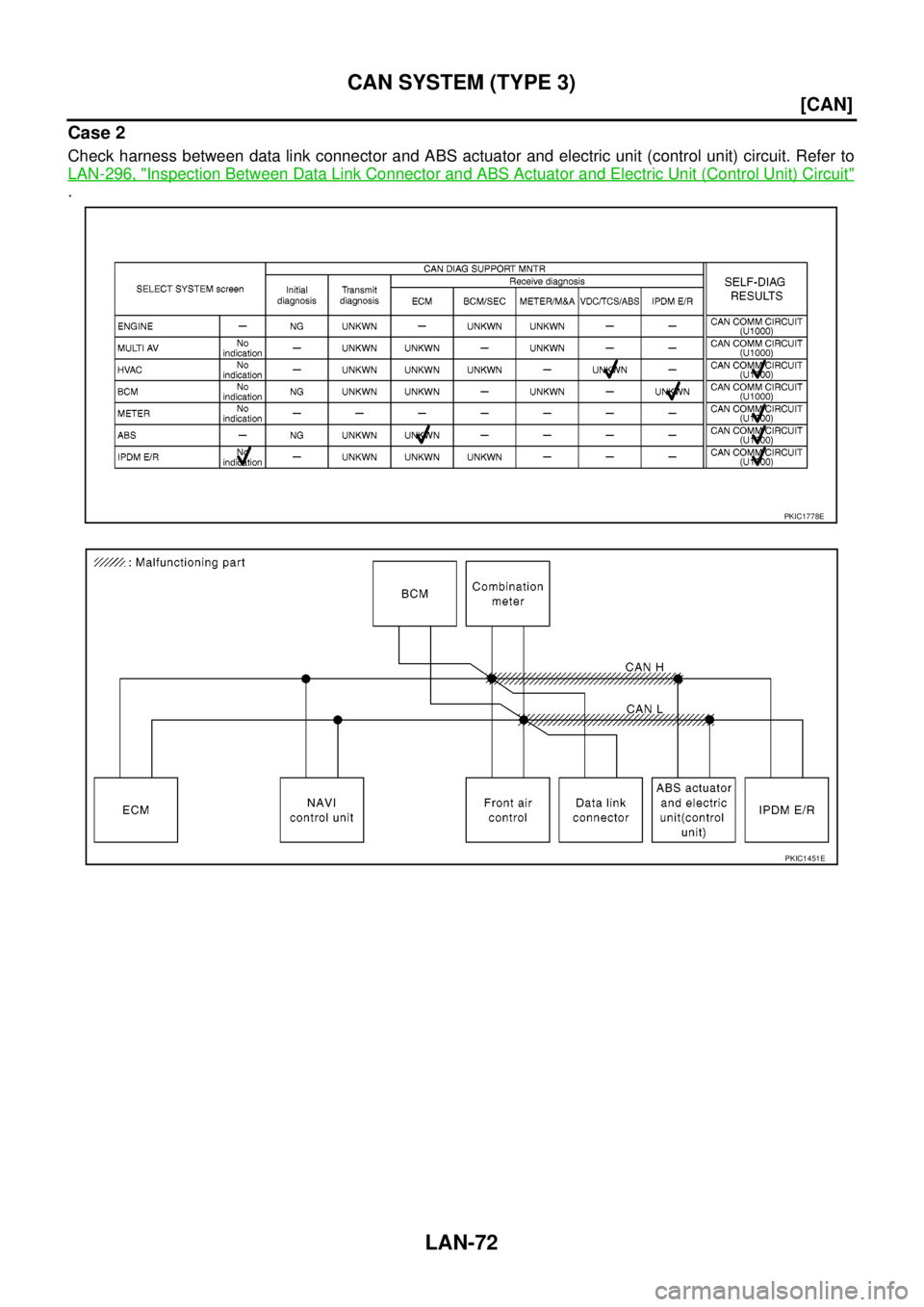

Case 2
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1778E
PKIC1451E
Page 1850 of 3171
CAN SYSTEM (TYPE 3)
LAN-73
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

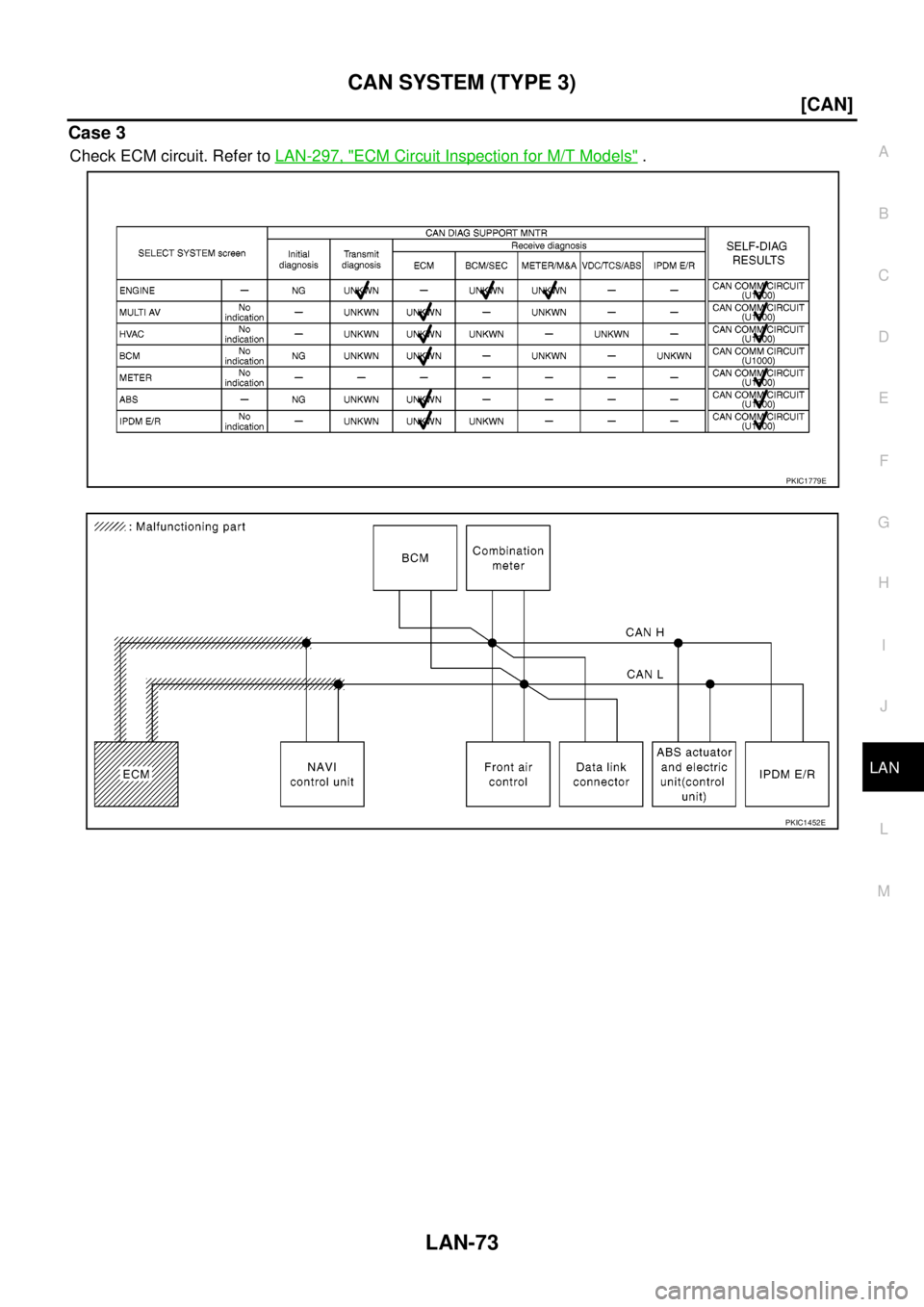

Case 3
Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models".
PKIC1779E
PKIC1452E
