NISSAN NAVARA 2005 Repair Workshop Manual

LAN-24
[CAN]

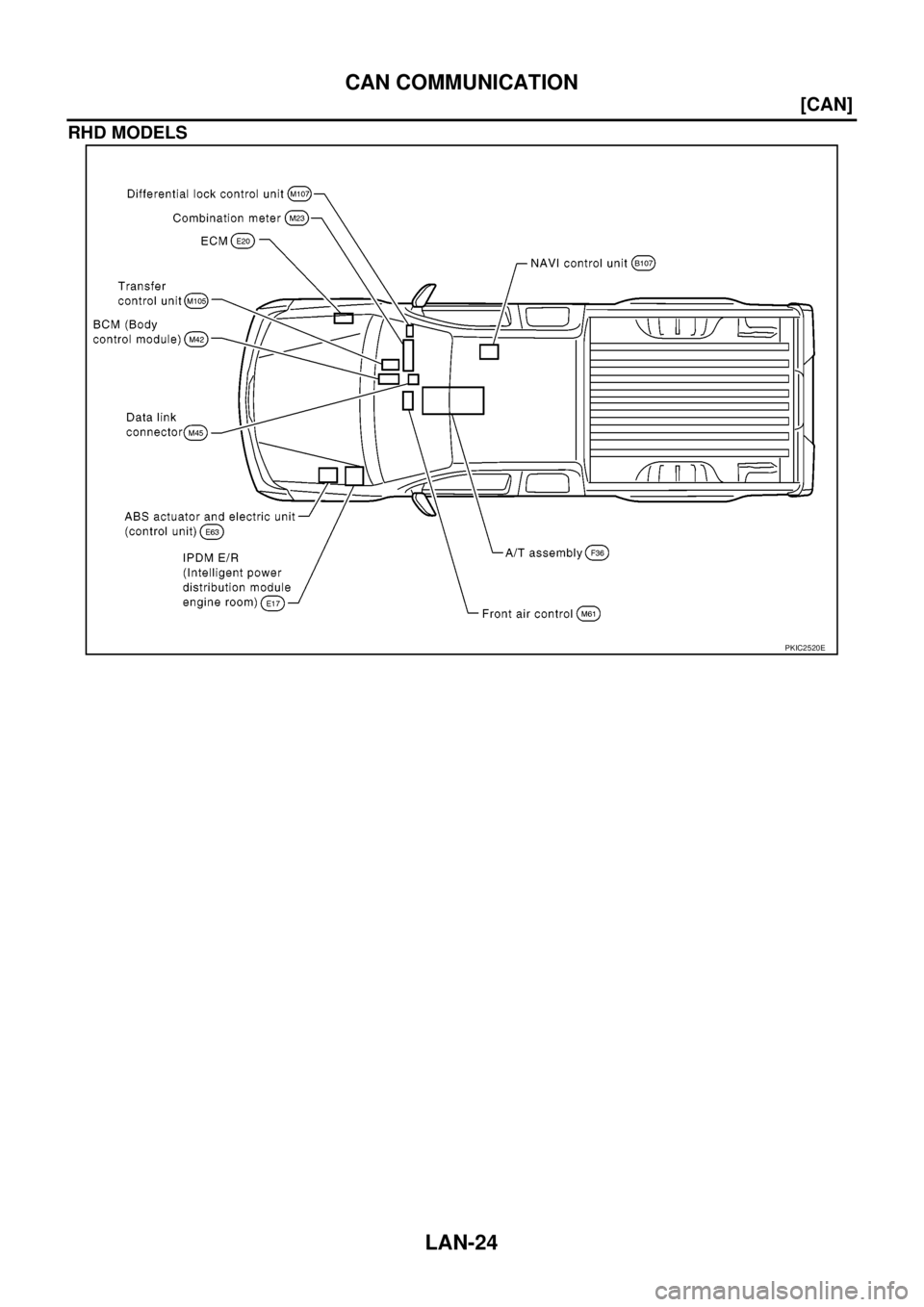

CAN COMMUNICATION
RHD MODELS
PKIC2520E

CAN COMMUNICATION
LAN-25
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

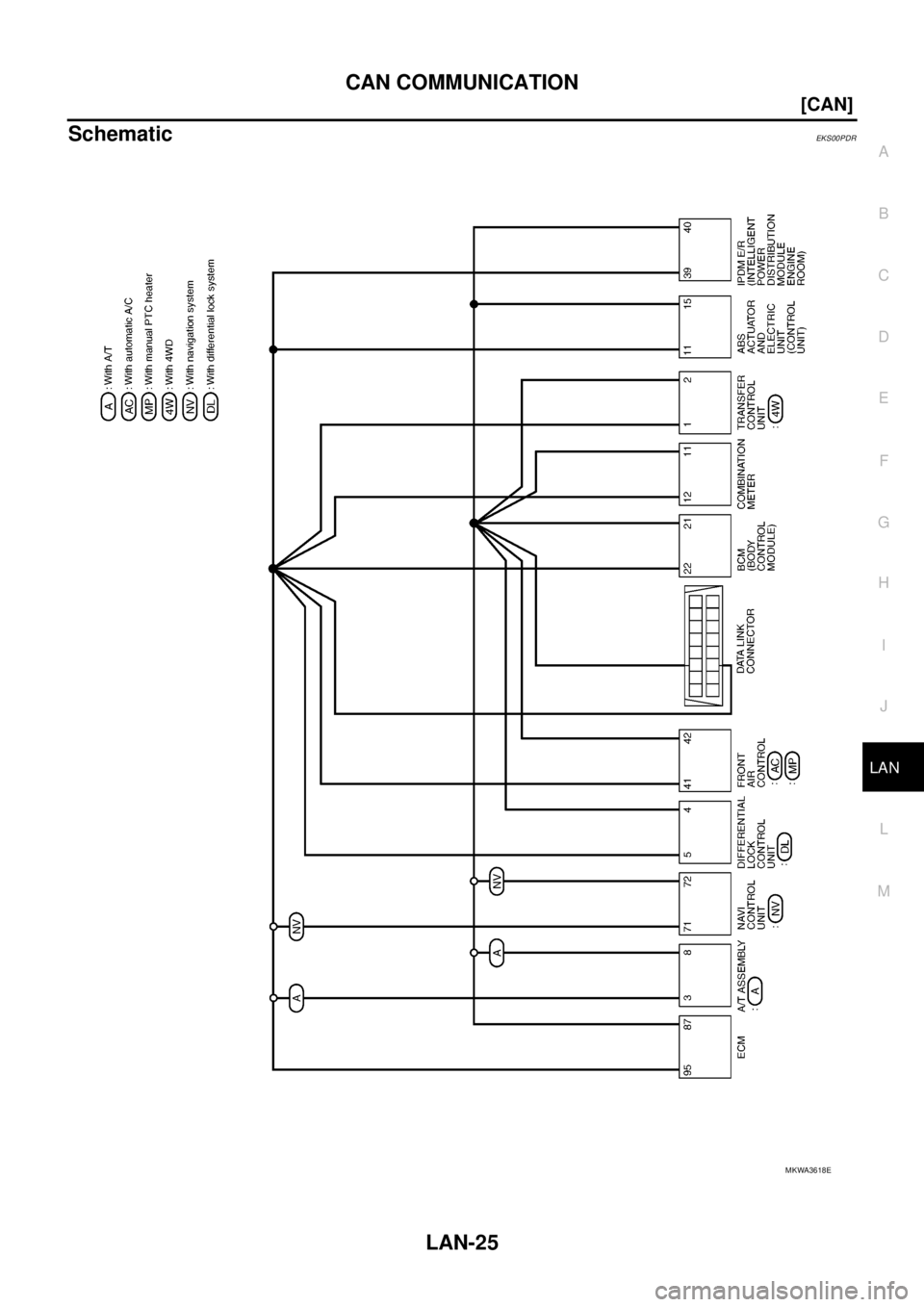

SchematicEKS00PDR
MKWA3618E

LAN-26
[CAN]
CAN COMMUNICATION

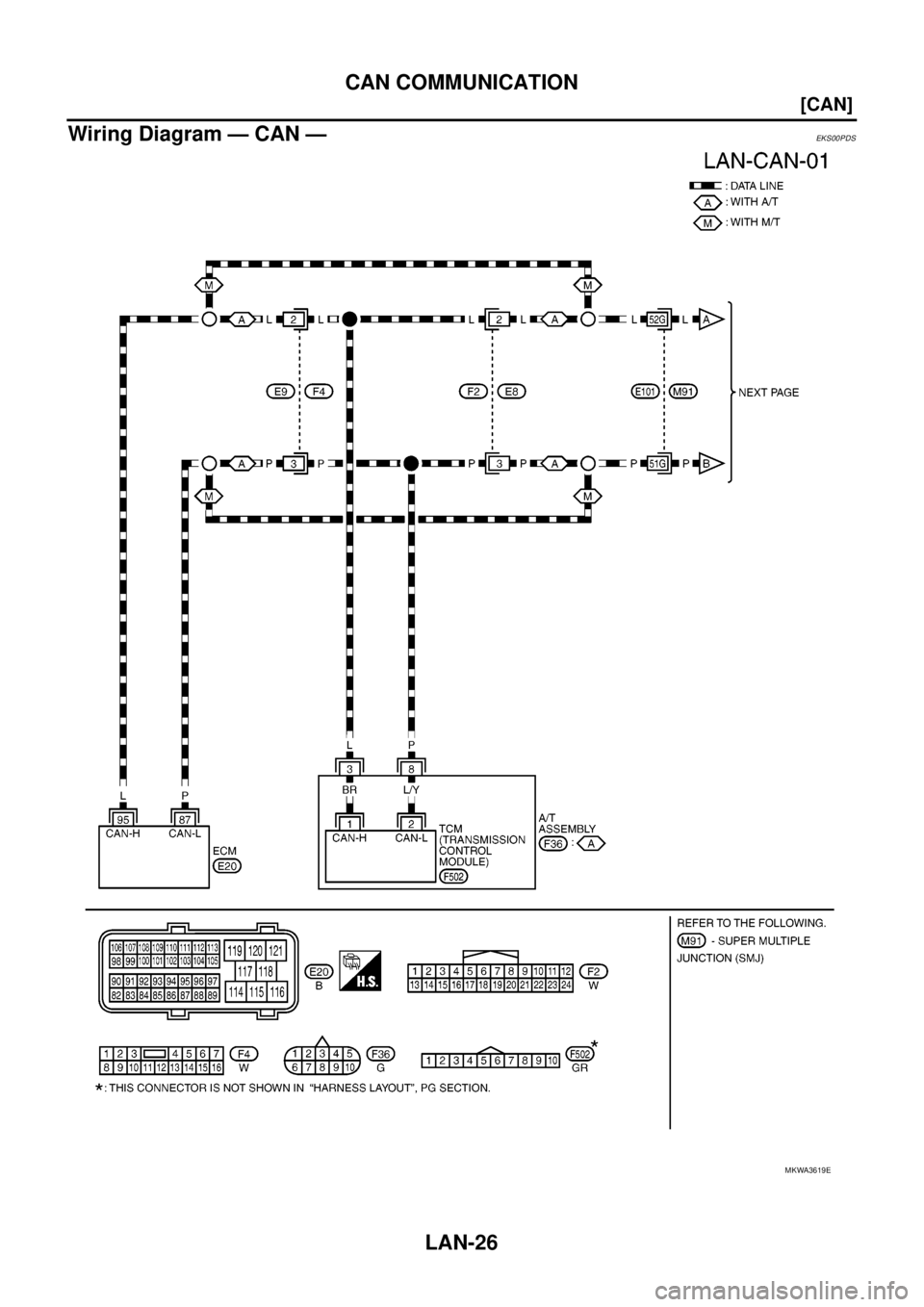

Wiring Diagram — CAN —
EKS00PDS
MKWA3619E

CAN COMMUNICATION
LAN-27
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

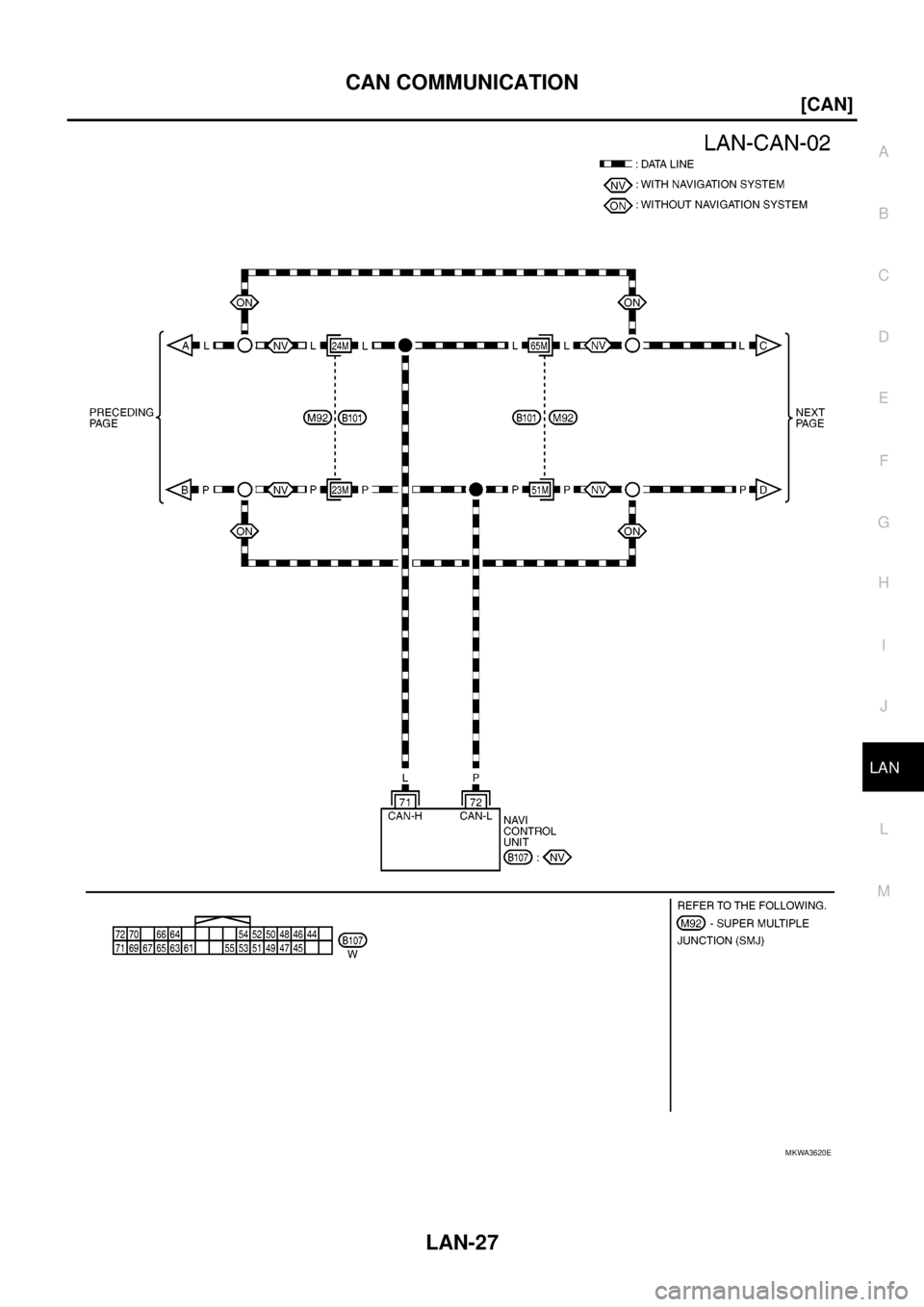

MKWA3620E

LAN-28
[CAN]
CAN COMMUNICATION

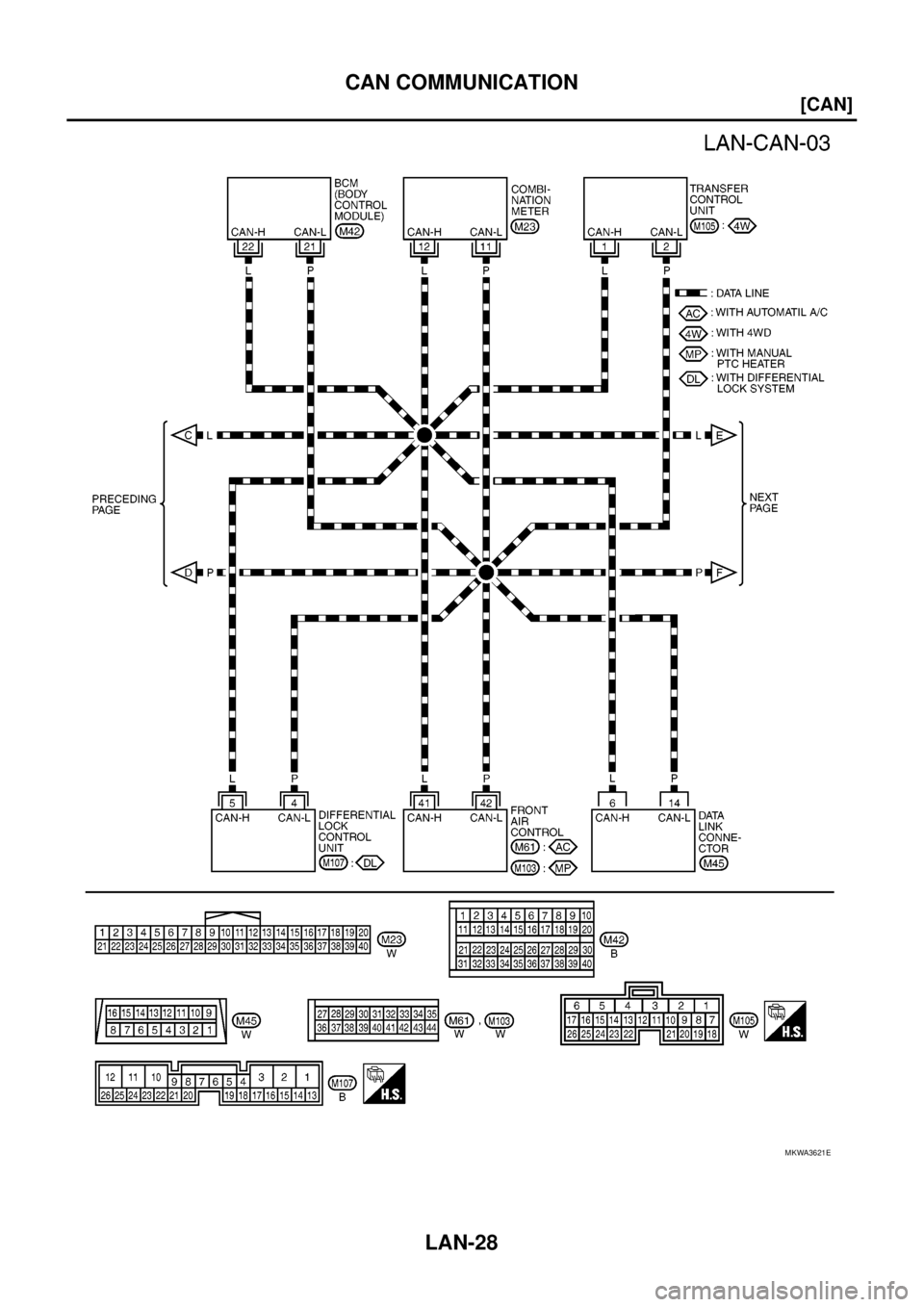

MKWA3621E

CAN COMMUNICATION
LAN-29
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

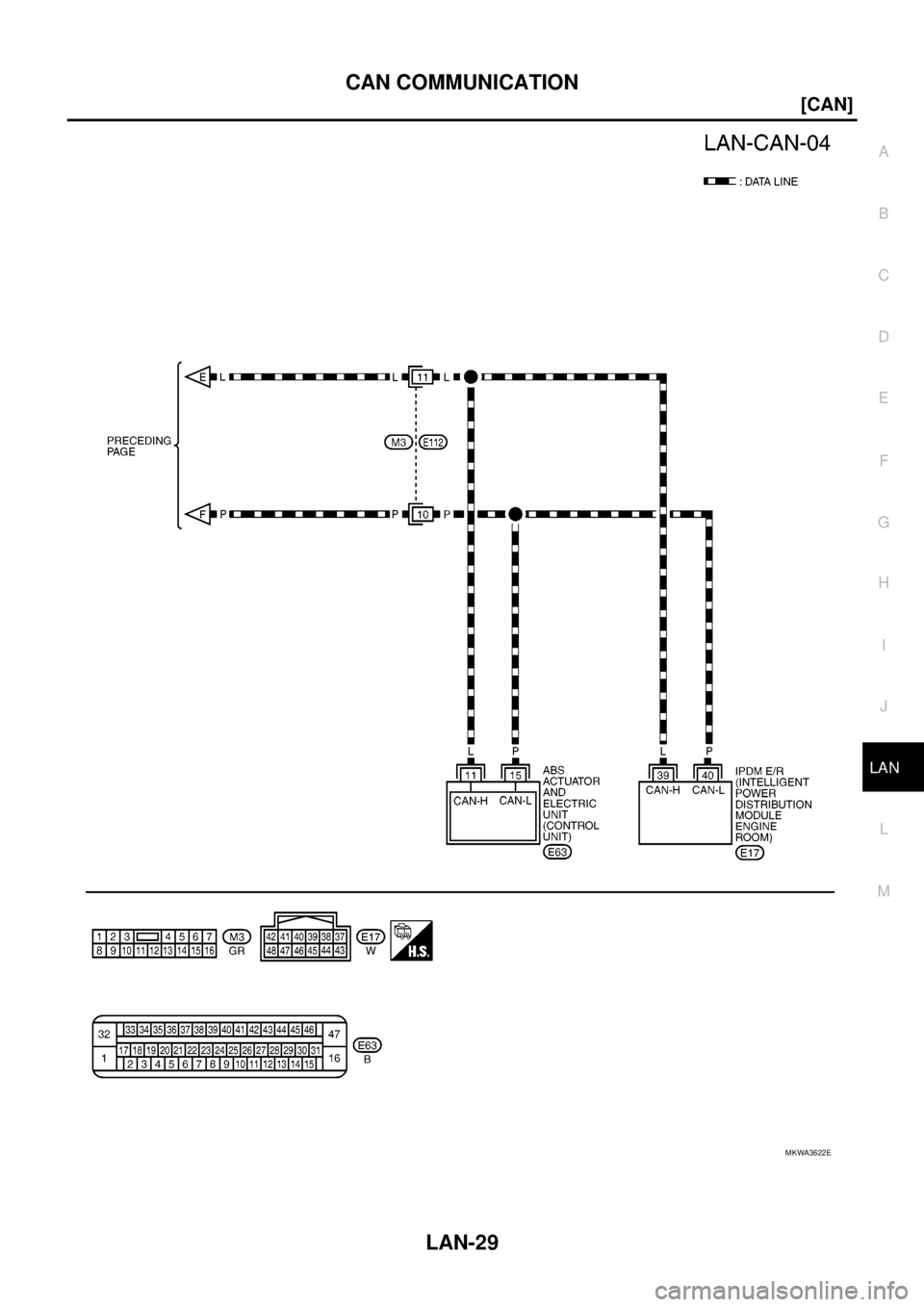

MKWA3622E

LAN-30
[CAN]
CAN COMMUNICATION
CAN Communication Unit
EKS00PDT
Go to CAN system, when selecting your CAN system type from the following table.
´: Applicable
NOTE:
Confirming the presence of the following items helps to identify CAN system type.
lWith automatic air conditioner
lWith electronic locking rear differential
Body type Truck
Axle 2WD 4WD
Engine YD25DDTi
Transmission M/T A/T M/T A/T
Brake control ABS
Automatic air conditioner´´´´ ´´´´´´´´
Electronic locking rear
differential´´´´´
Navigation system´´ ´´ ´´
CAN system
typeLHD1234567
8 9 10 11 12 13 14 15
RHD–––––1617
CAN system
trouble diagnosisLHDLAN
-44
LAN
-56
LAN
-68
LAN
-82
LAN
-96
LAN
-112
LAN
-125LAN
-139
LAN
-152
LAN
-166
LAN
-181
LAN
-198
LAN
-213
LAN
-230
LAN
-248RHD–––––LAN-267
LAN
-279
PKIC2534E
PKIC2535E

CAN COMMUNICATION
LAN-31
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
lWith navigation system
PKIC0177E

LAN-32
[CAN]
CAN COMMUNICATION
TYPE 1/ TYPE 2/ TYPE 3

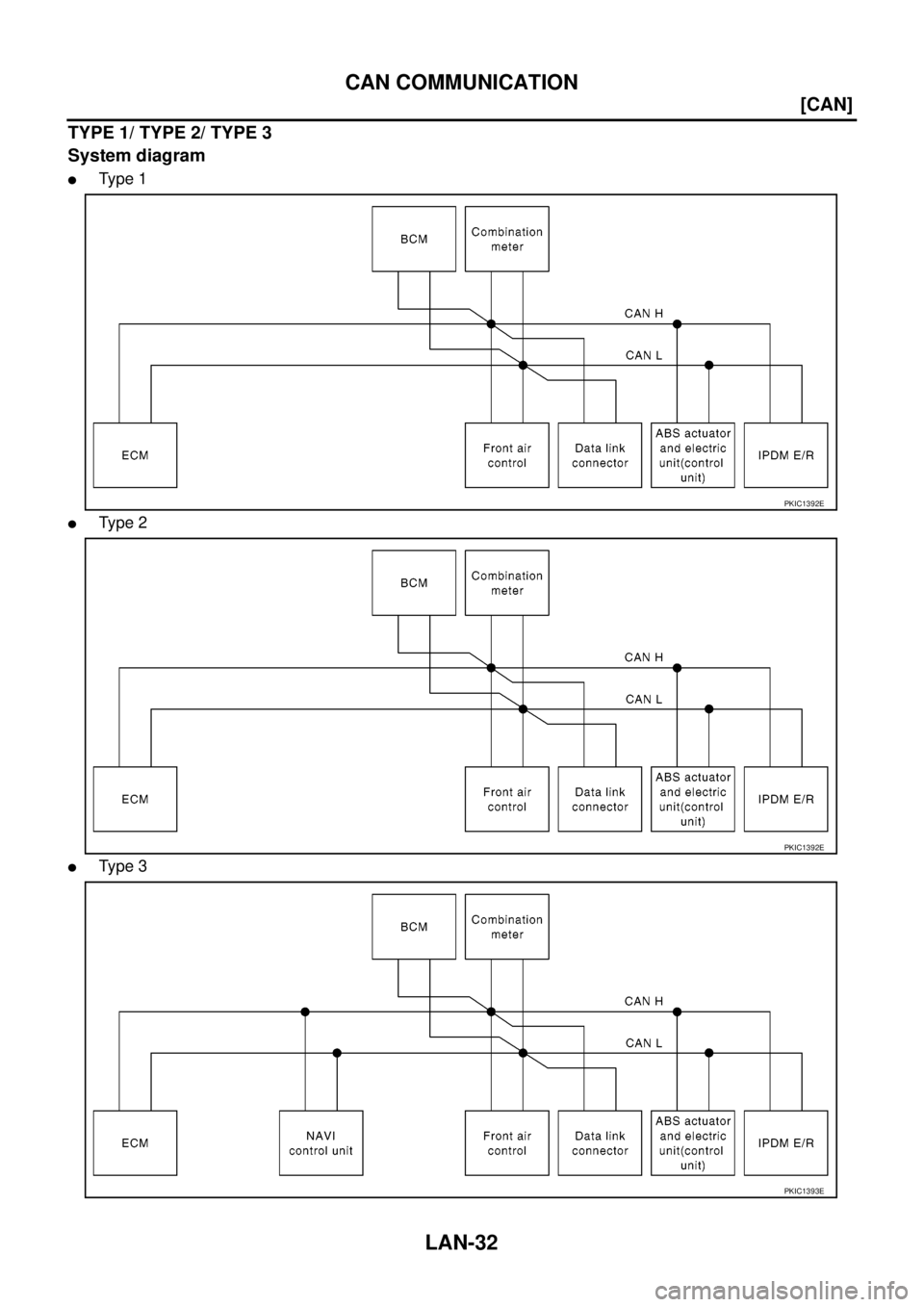

System diagram
lTy p e 1
lTy p e 2
lTy p e 3
PKIC1392E
PKIC1392E
PKIC1393E

CAN COMMUNICATION
LAN-33
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Input/output signal chart
T: Transmit R: Receive
Signals ECMNAVI con-
trol unitFront air
controlBCMCombina-
tion meterABS actua-
tor and
electric unit
(control
unit)IPDM E/R
A/C compressor request signal TR
ASCD CRUISE lamp signal T R
ASCD SET lamp signal T R
Cooling fan speed request signal TR
Engine coolant temperature signal T R R
Engine speed signal T R R
Engine status signal T R R
Fuel consumption monitor signalTR
RT
Glow indicator signal T R
Glow relay signal T R
Malfunction indicator signal T R
A/C switch/indicator signal T
R
*
PTC heater signal R T
A/C switch signal R
R
*T
Buzzer output signal T R
Day time running light request signal R T R R
Door switch signal T R R
Front fog light request signal R T R R
Front wiper request signal T R
High beam request signal T R R
Horn chirp signal T R
Low beam request signal T R
Position light request signal T R R
Rear fog light request signal R T R
Rear window defogger switch signal
R
*TR
Sleep wake up signal T R R
Theft warning horn request signal T R
Trailer lamp signal T R
Turn indicator signal T R
Distance to empty signal R T
Fuel level low warning signal R T
ABS warning lamp signalRT
Vehicle speed signalR
*RT
RR
R
*RT
Front wiper stop position signal R T
Hood switch signal R T
Oil pressure switch signalRT
Rear window defogger control signal R T
