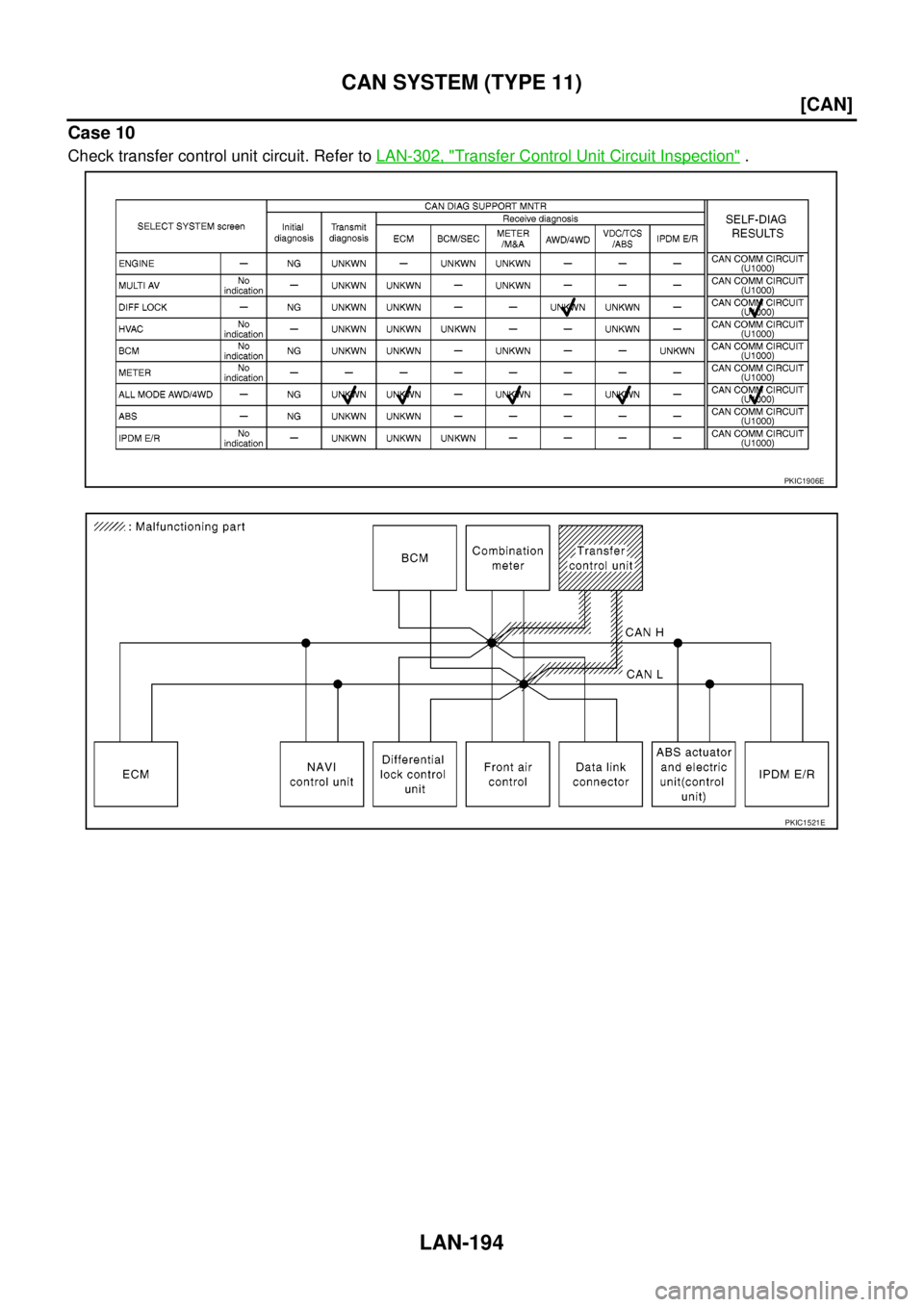

NISSAN NAVARA 2005 Repair Workshop Manual LAN-194 [CAN] CAN SYSTEM (TYPE 11) Case 10 Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection". PKIC1906E PKIC1521E

Page 1972 of 3171

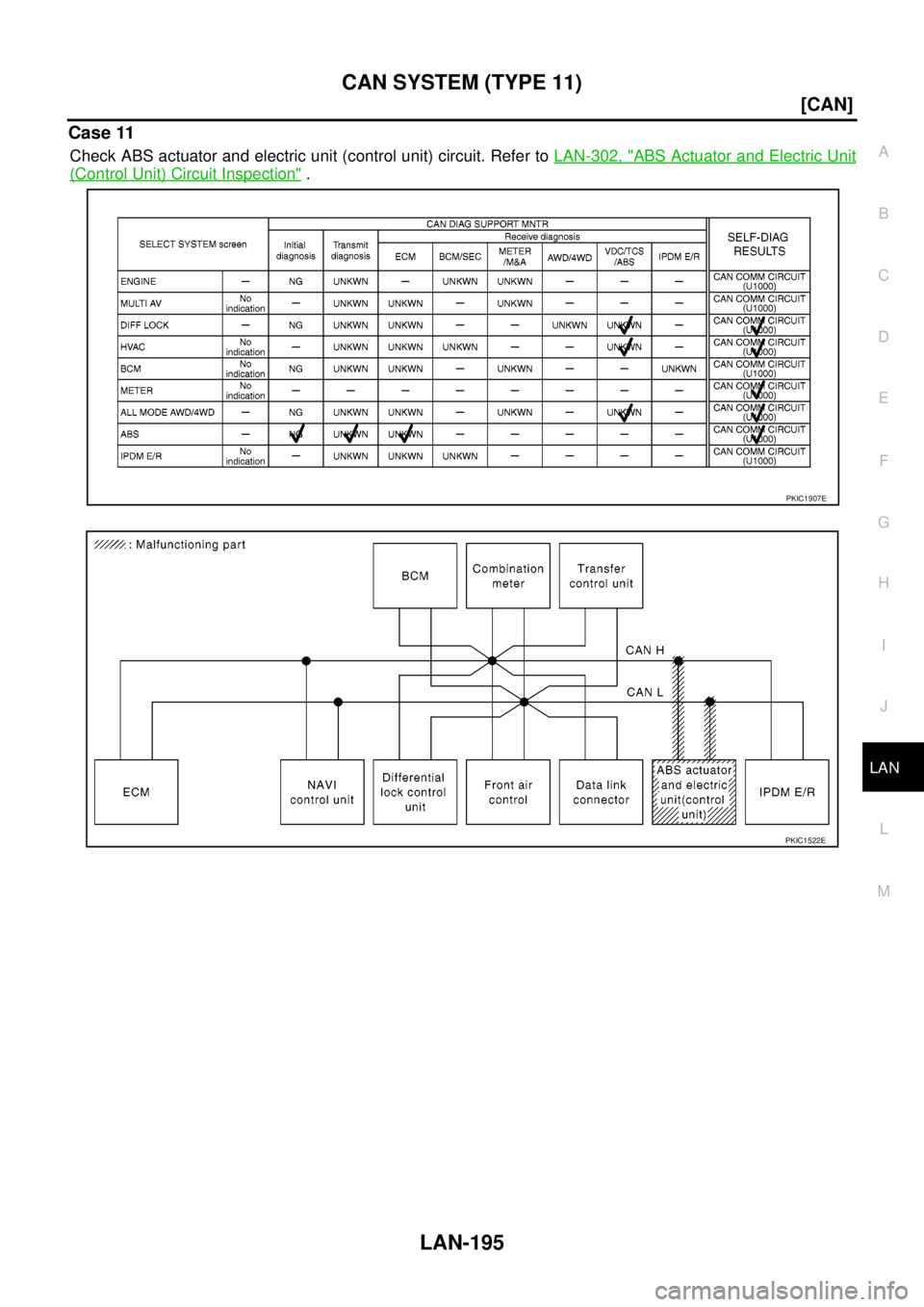

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 11) LAN-195 [CAN] C D E F G H I J L MA B LAN Case 11 Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit (Control Unit) Circu

Page 1973 of 3171

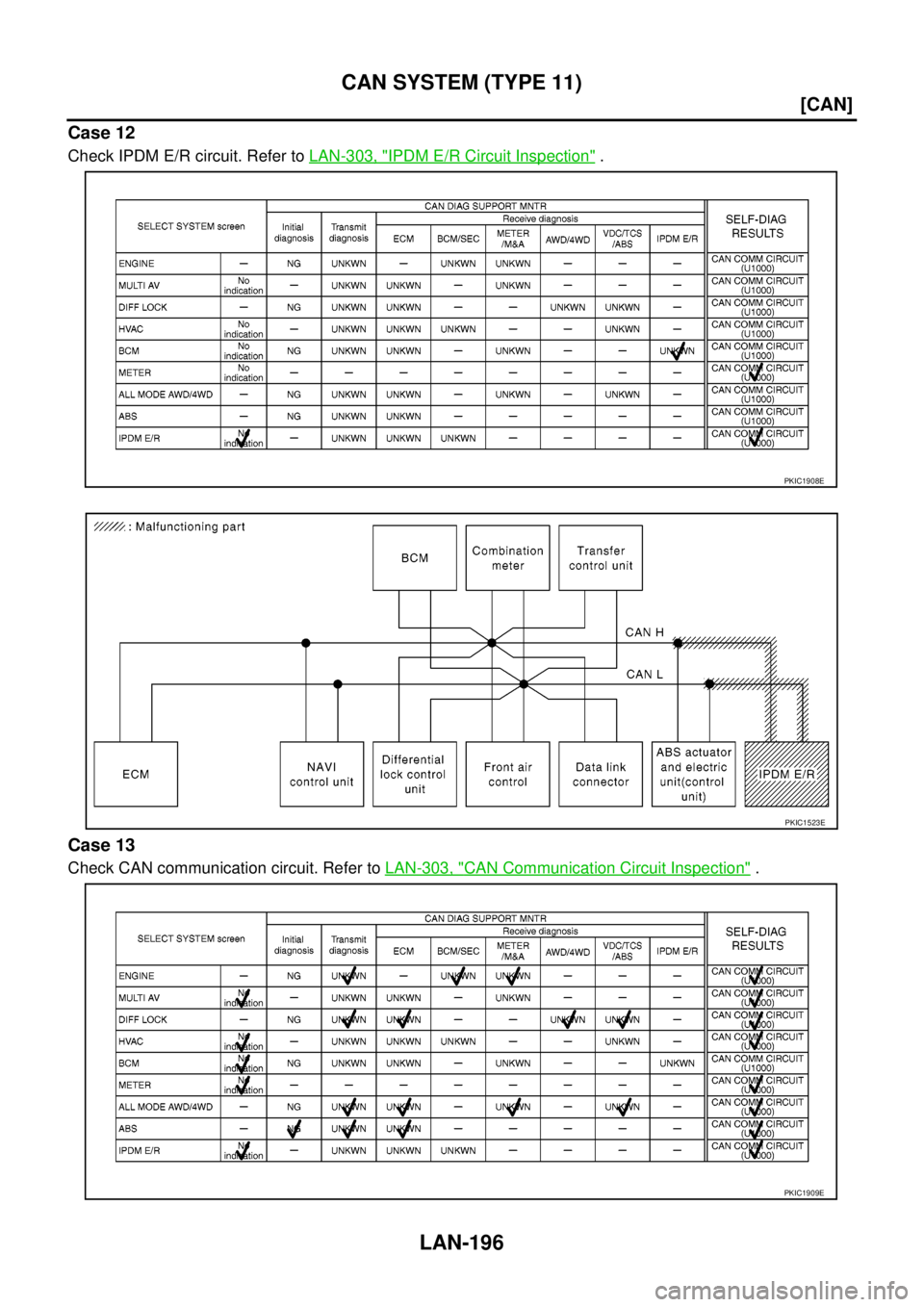

NISSAN NAVARA 2005 Repair Workshop Manual LAN-196 [CAN] CAN SYSTEM (TYPE 11) Case 12 Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection". Case 13 Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit

Page 1974 of 3171

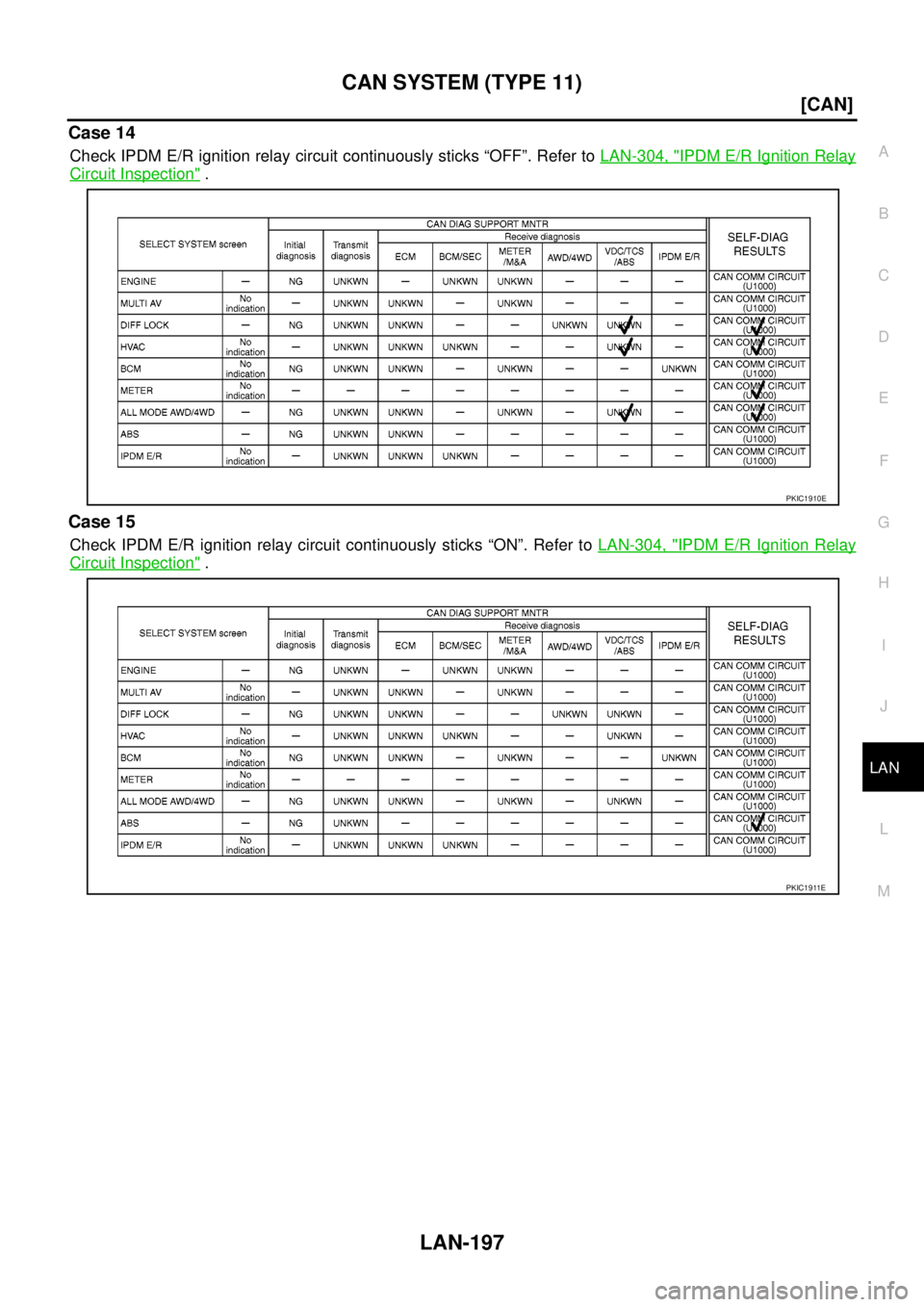

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 11) LAN-197 [CAN] C D E F G H I J L MA B LAN Case 14 Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay Circuit Inspection"

Page 1975 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-198 [CAN] CAN SYSTEM (TYPE 12) CAN SYSTEM (TYPE 12) PFP:23710 Component Parts and Harness Connector LocationEKS00OEZ Refer toLAN-23, "Component Parts and Harness Connector Location". SchematicEKS0

Page 1976 of 3171

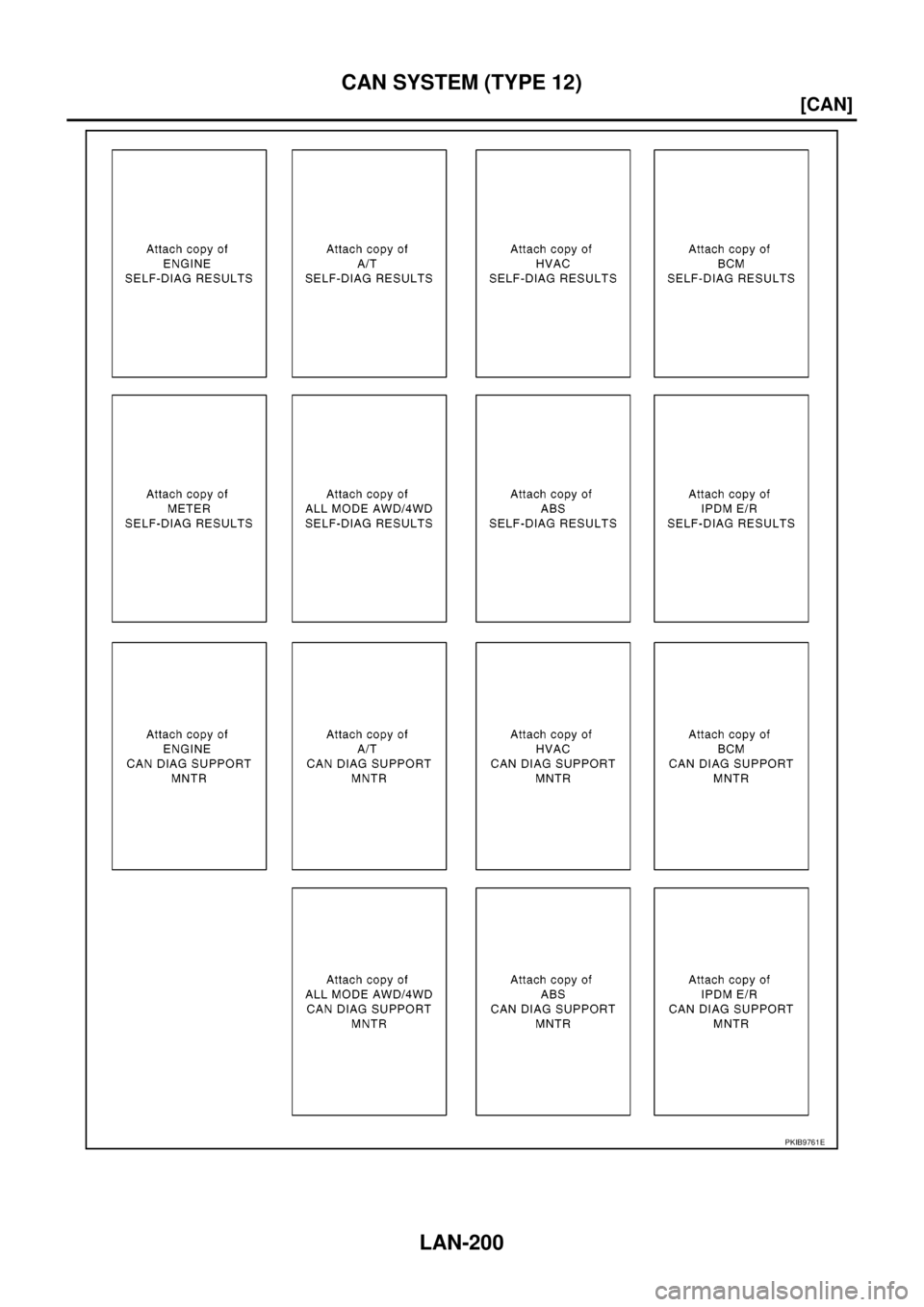

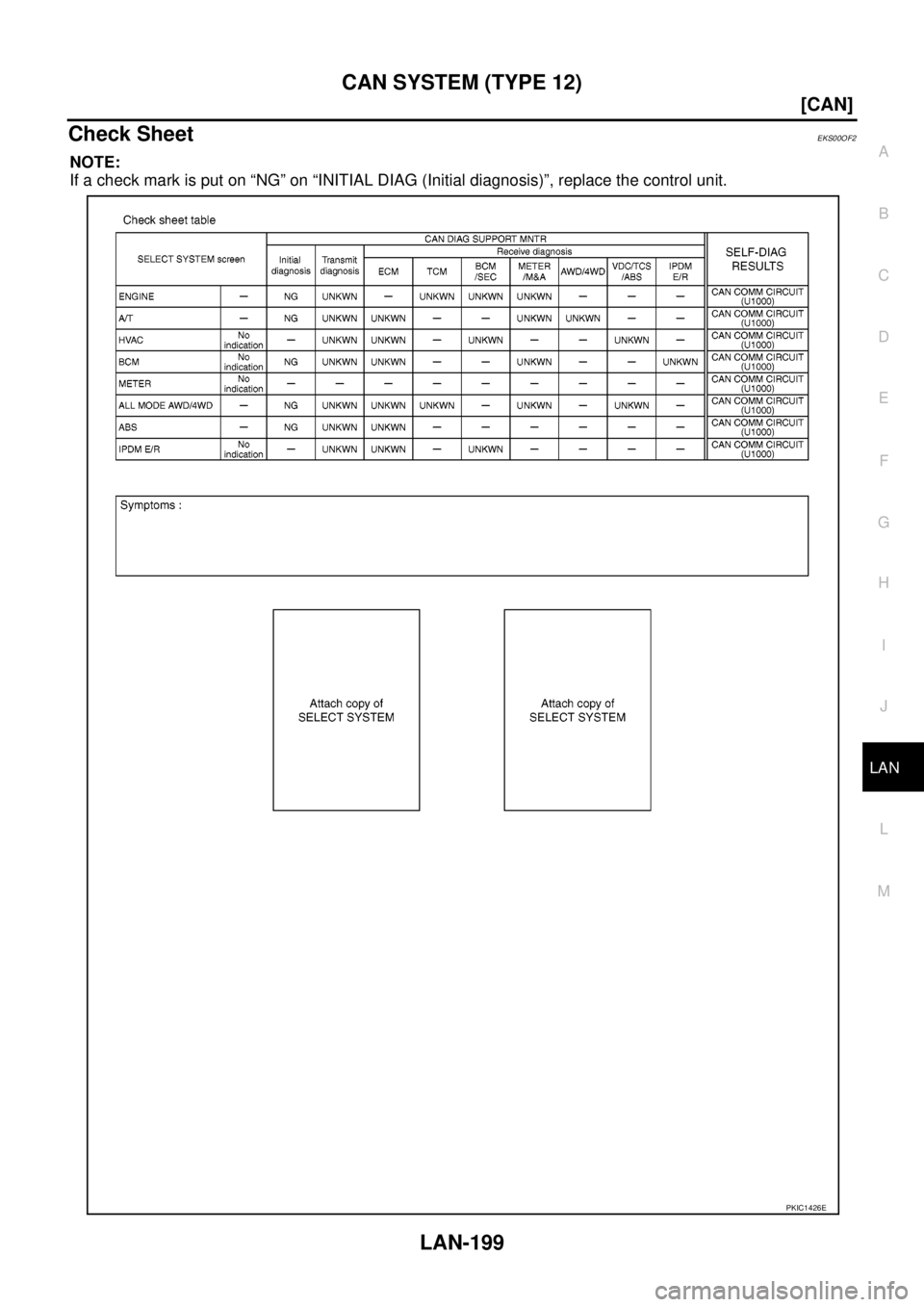

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 12) LAN-199 [CAN] C D E F G H I J L MA B LAN Check SheetEKS00OF2 NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. PKIC1426

Page 1977 of 3171

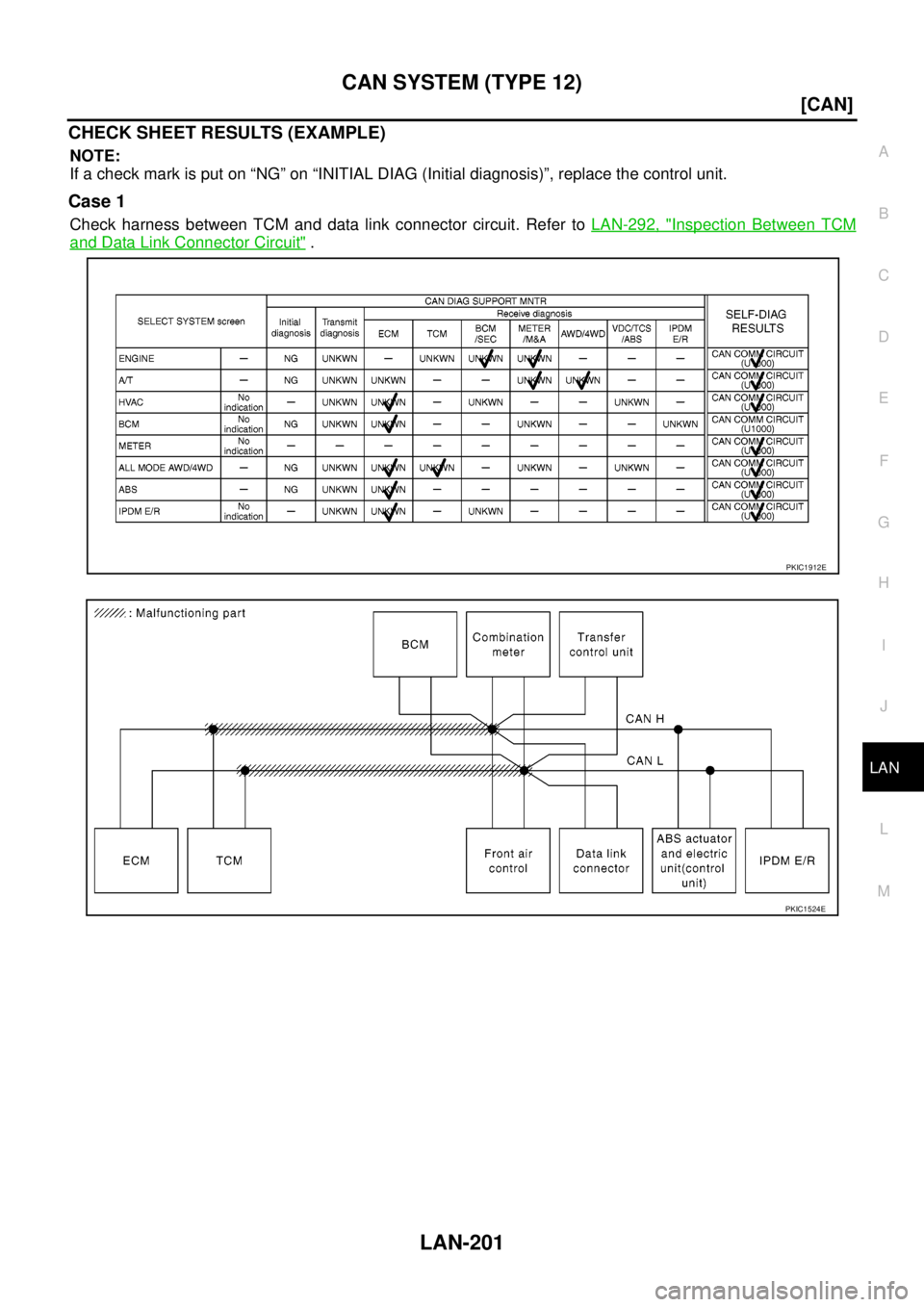

NISSAN NAVARA 2005 Repair Workshop Manual LAN-200 [CAN] CAN SYSTEM (TYPE 12) PKIB9761E

Page 1978 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 12) LAN-201 [CAN] C D E F G H I J L MA B LAN CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit

Page 1979 of 3171

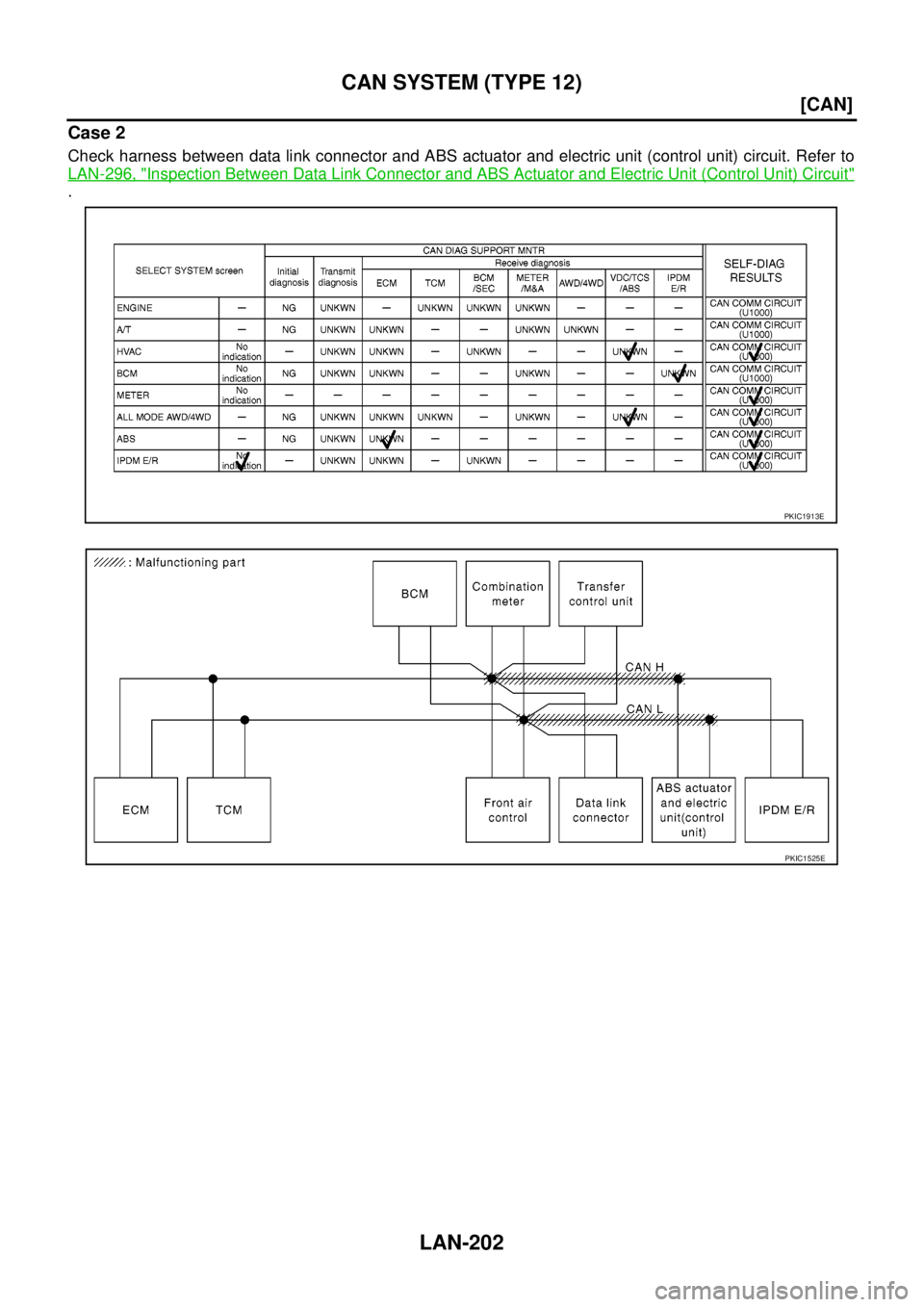

NISSAN NAVARA 2005 Repair Workshop Manual LAN-202 [CAN] CAN SYSTEM (TYPE 12) Case 2 Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to LAN-296, " Inspection Between Data Link Connecto

Page 1980 of 3171

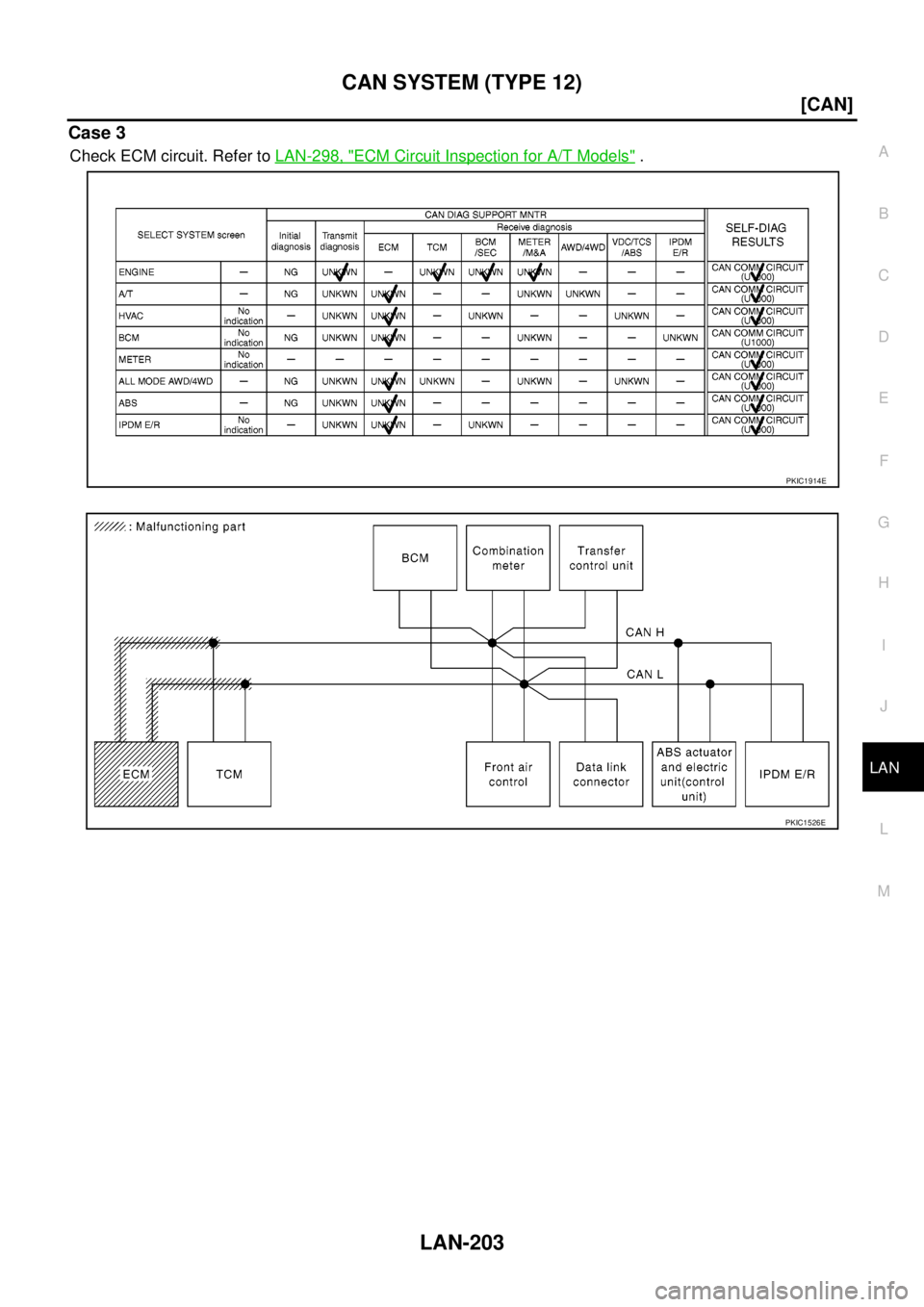

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 12) LAN-203 [CAN] C D E F G H I J L MA B LAN Case 3 Check ECM circuit. Refer toLAN-298, "ECM Circuit Inspection for A/T Models". PKIC1914E PKIC1526E
