LAN-204
[CAN]
CAN SYSTEM (TYPE 12)
Case 4
Check TCM circuit. Refer toLAN-298, "TCM Circuit Inspection".
PKIC1915E
PKIC1527E
Page 1982 of 3171
CAN SYSTEM (TYPE 12)
LAN-205
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 5
Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1916E
PKIC1528E
Page 1983 of 3171
LAN-206
[CAN]
CAN SYSTEM (TYPE 12)

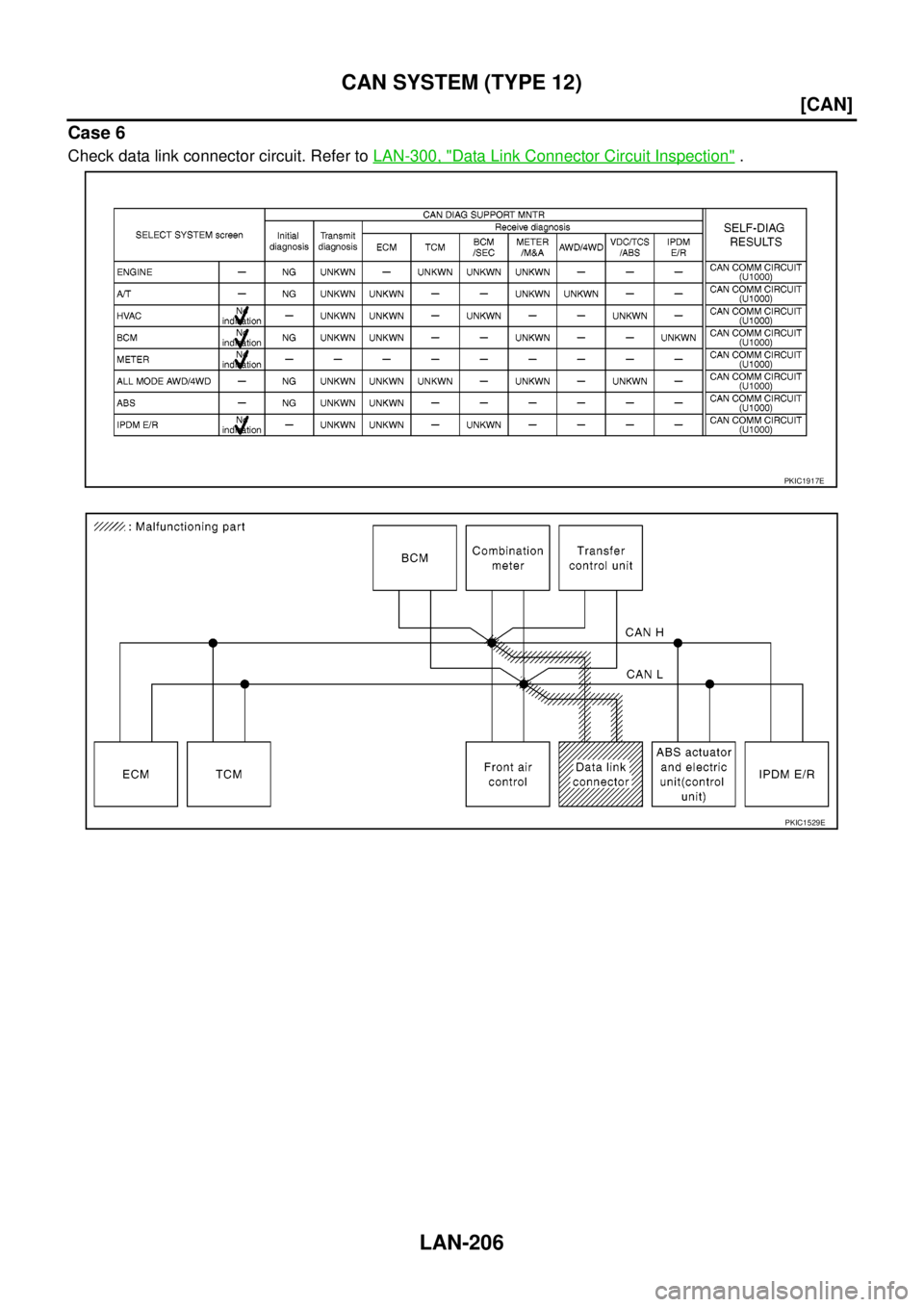

Case 6
Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1917E
PKIC1529E
Page 1984 of 3171
CAN SYSTEM (TYPE 12)
LAN-207
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

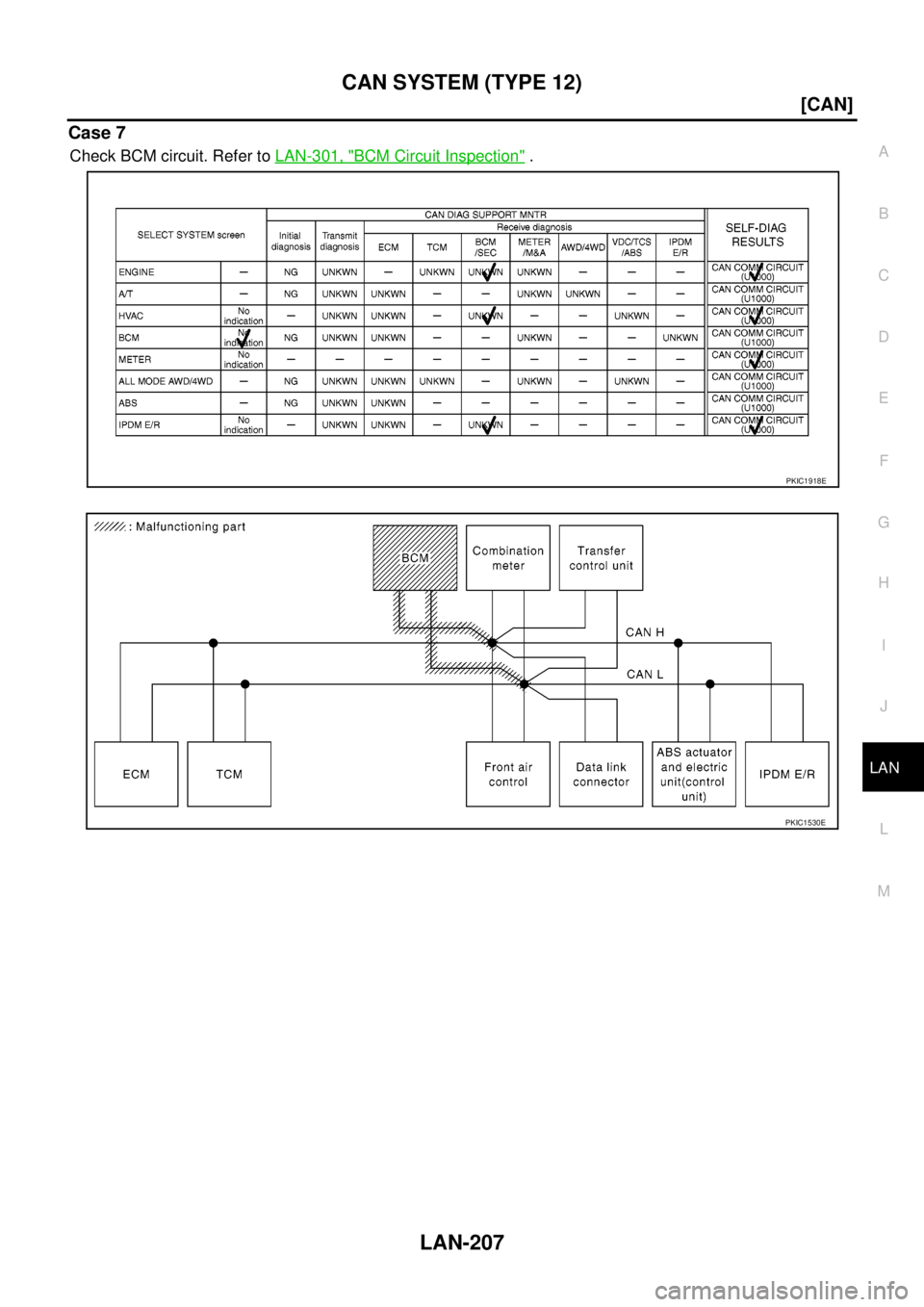

Case 7
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1918E
PKIC1530E
Page 1985 of 3171
LAN-208
[CAN]
CAN SYSTEM (TYPE 12)

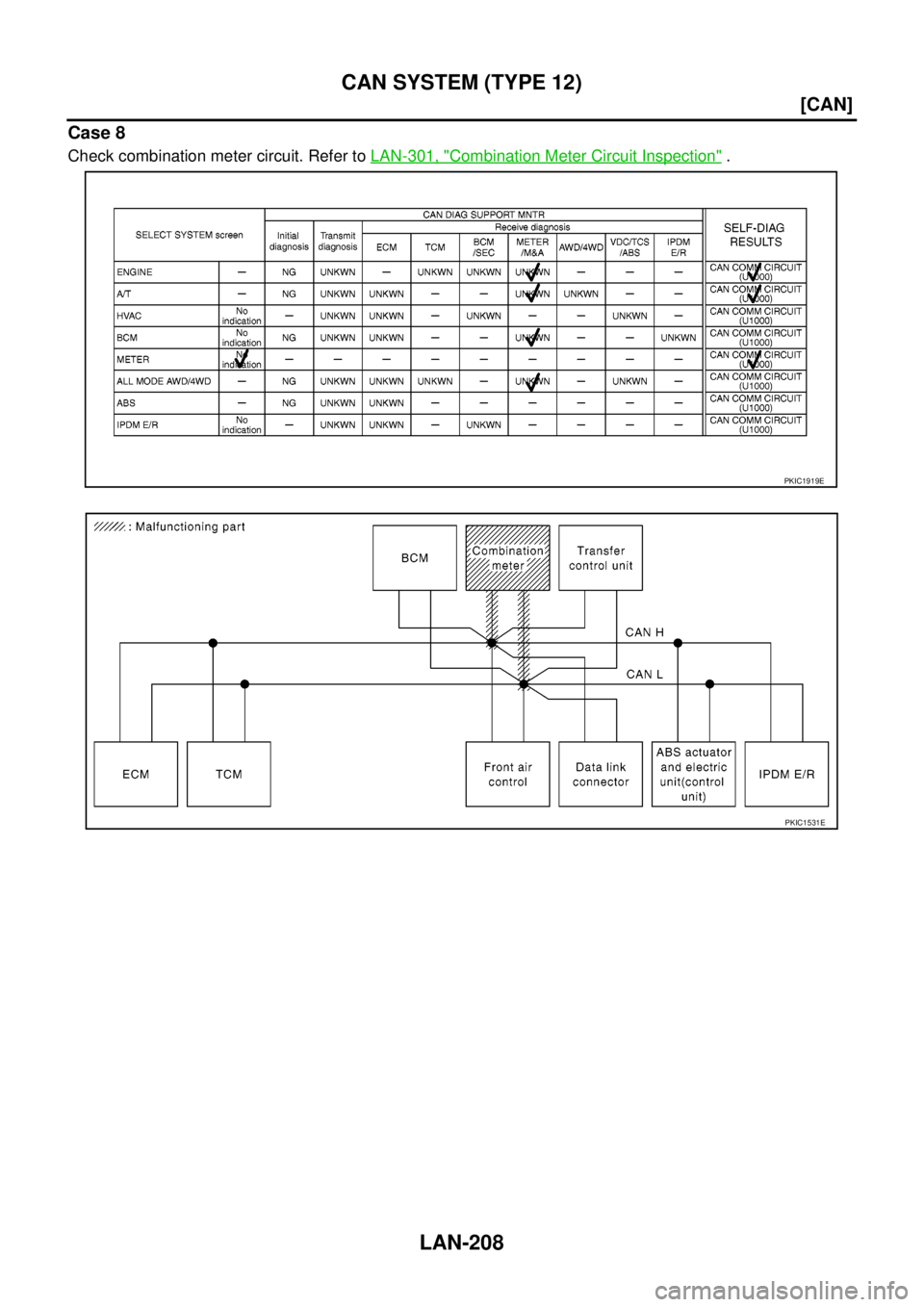

Case 8
Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1919E
PKIC1531E
Page 1986 of 3171
CAN SYSTEM (TYPE 12)
LAN-209
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

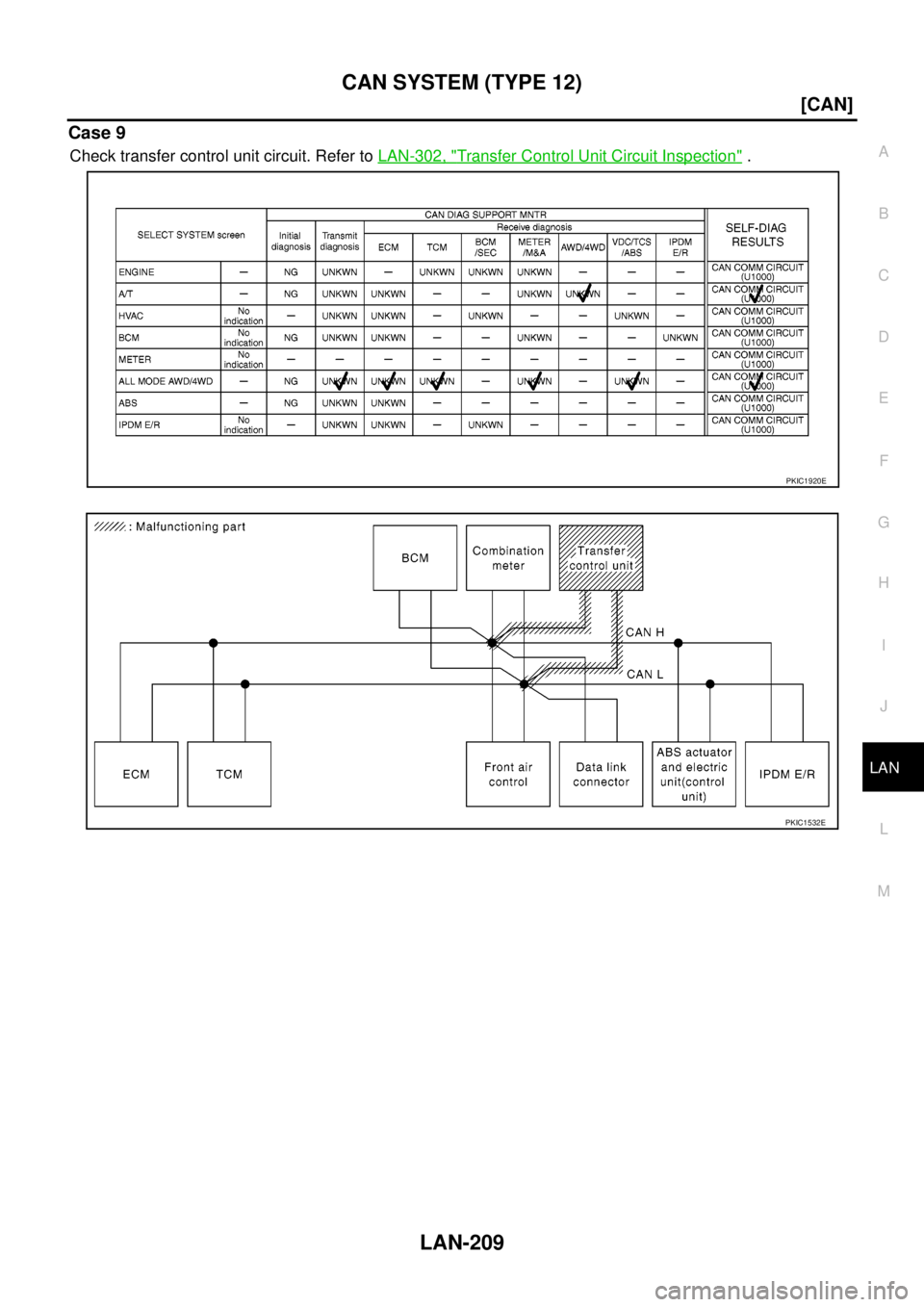

Case 9
Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection".
PKIC1920E
PKIC1532E
Page 1987 of 3171
LAN-210
[CAN]
CAN SYSTEM (TYPE 12)

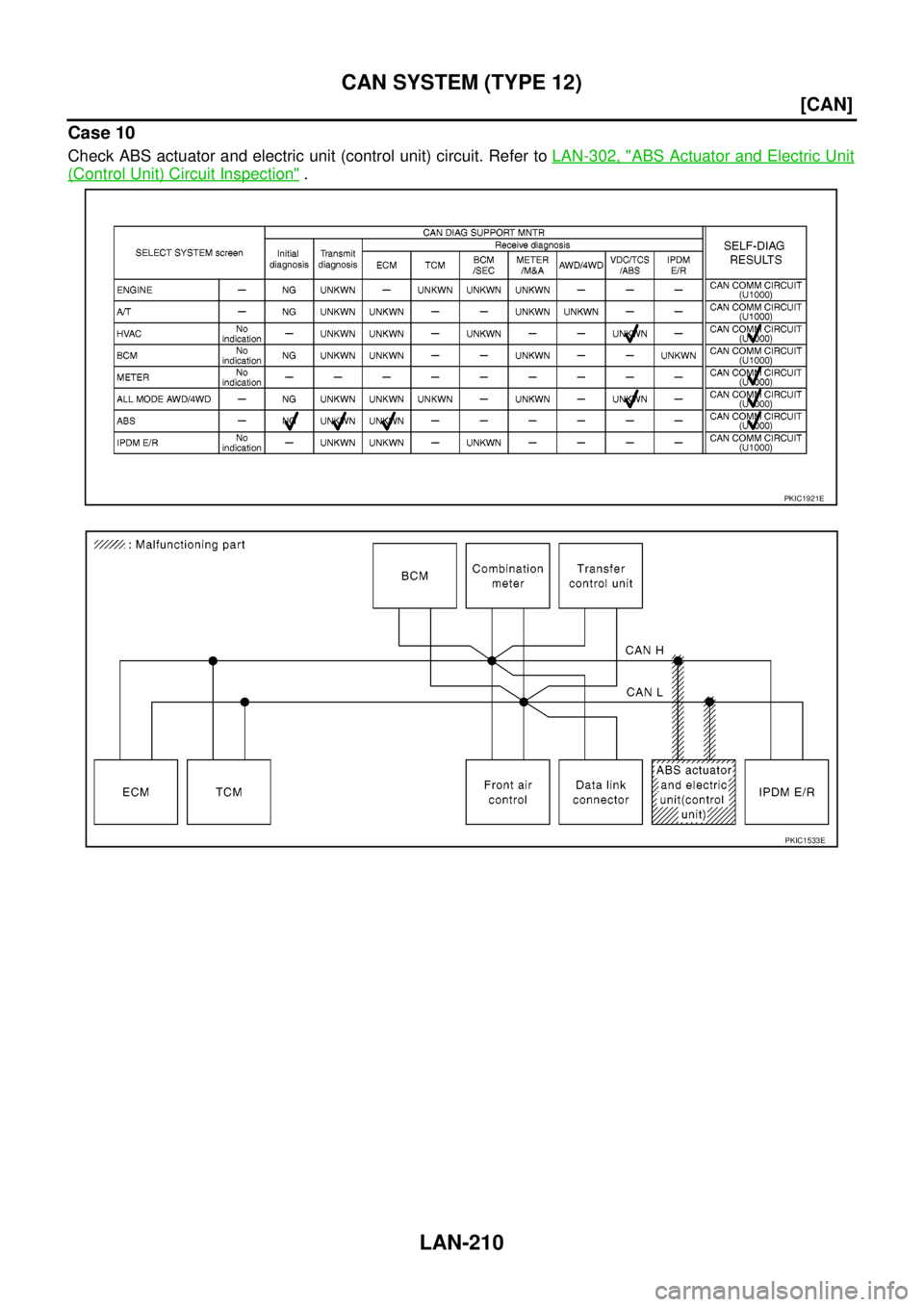

Case 10
Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit
(Control Unit) Circuit Inspection".
PKIC1921E
PKIC1533E
Page 1988 of 3171
CAN SYSTEM (TYPE 12)
LAN-211
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

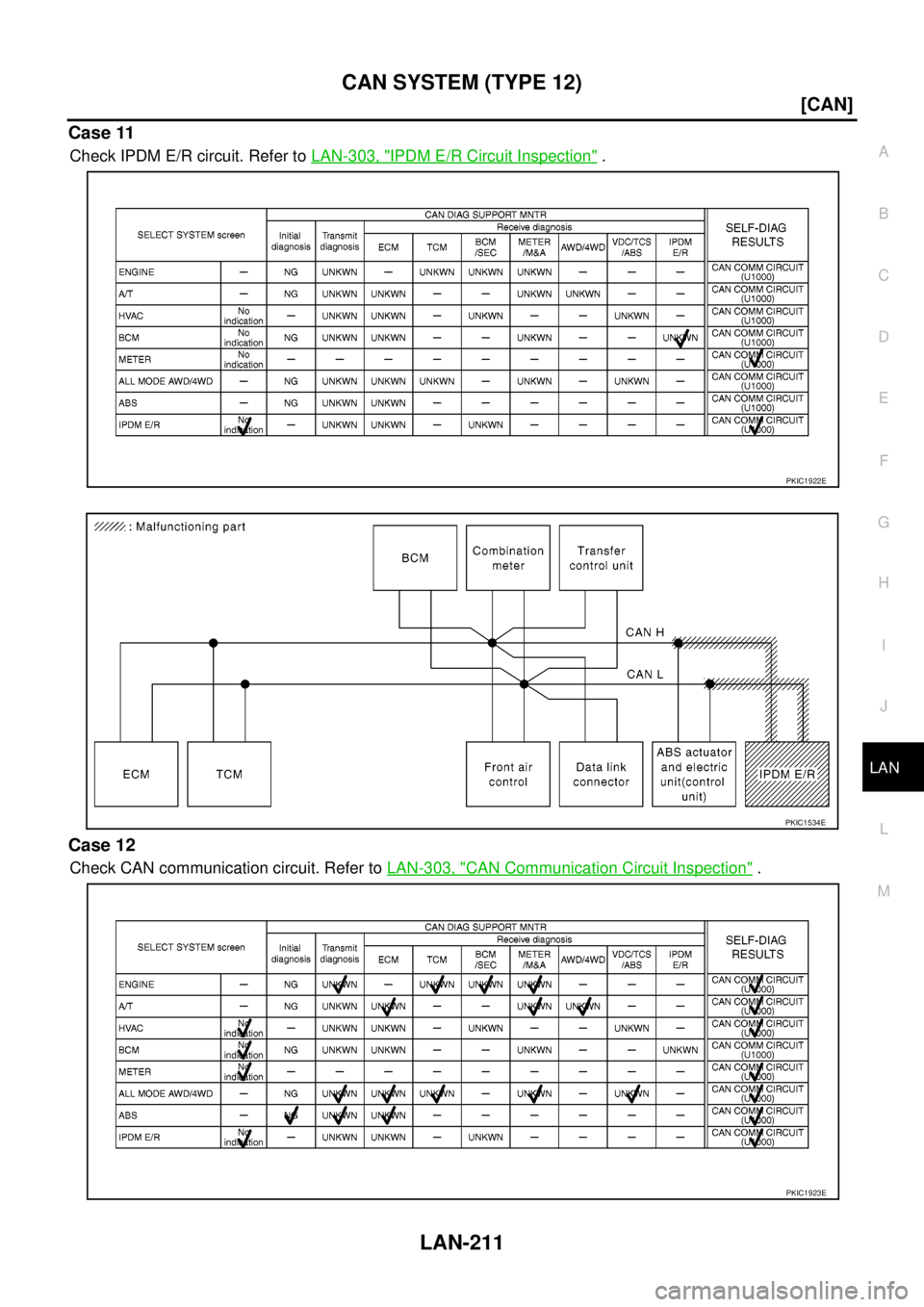

Case 11
Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection".
Case 12
Check CAN communication circuit. Refer toLAN-303, "CAN Communication Circuit Inspection".
PKIC1922E
PKIC1534E
PKIC1923E
Page 1989 of 3171
LAN-212
[CAN]
CAN SYSTEM (TYPE 12)

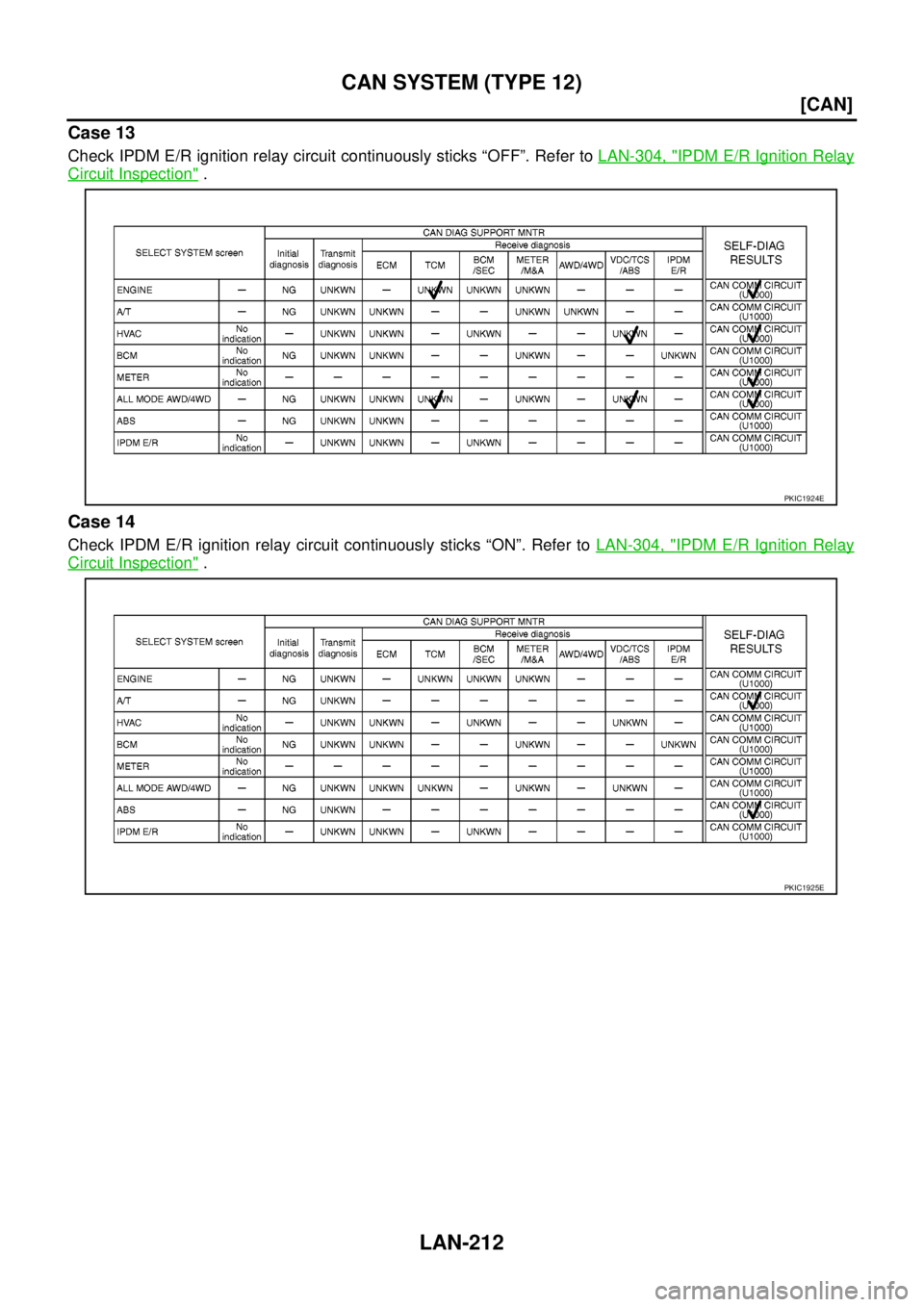

Case 13
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
Case 14
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer toLAN-304, "IPDM E/R Ignition Relay
Circuit Inspection".
PKIC1924E
PKIC1925E
Page 1990 of 3171
CAN SYSTEM (TYPE 13)
LAN-213
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CAN SYSTEM (TYPE 13)PFP:23710
Component Parts and Harness Connector LocationEKS00ODE
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00ODF
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00ODG
Refer toLAN-26, "Wiring Diagram—CAN—".
