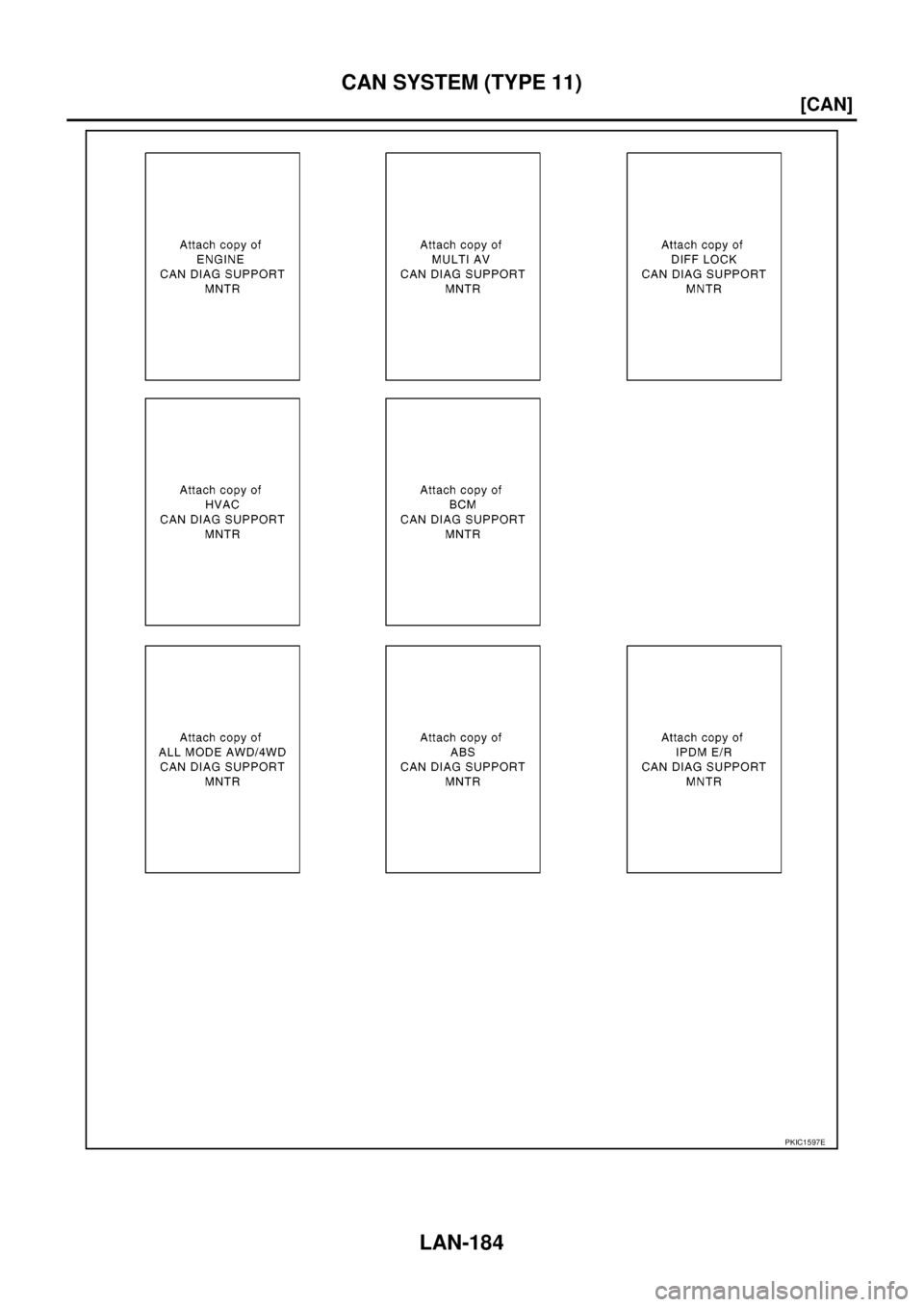

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1

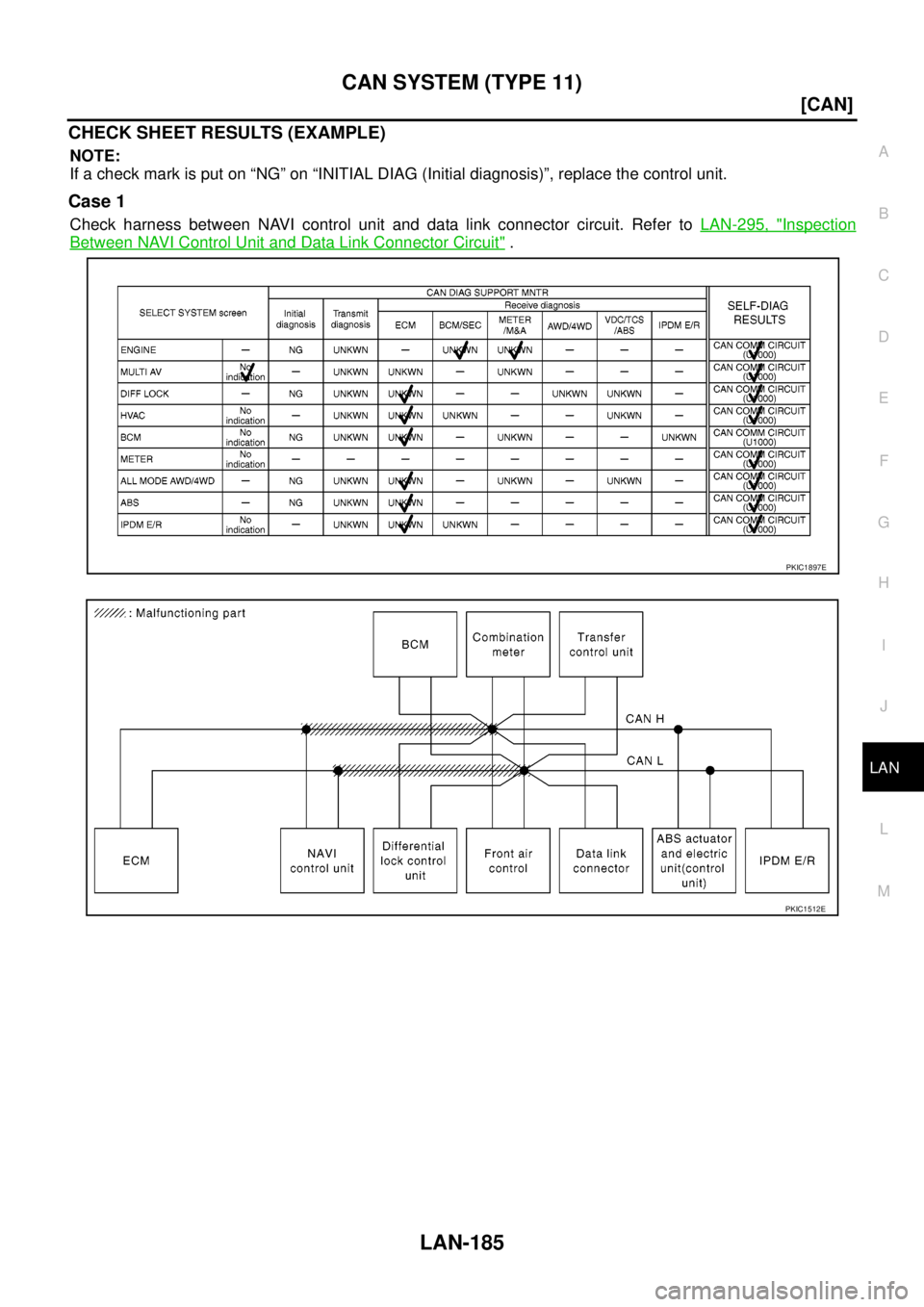

Check harness between NAVI control unit and data link connector circuit. Refer toLAN-295, "Inspection
Between NAVI Control Unit and Data Link Connector Circuit".
PKIC1897E
PKIC1512E

LAN-186
[CAN]
CAN SYSTEM (TYPE 11)
Case 2

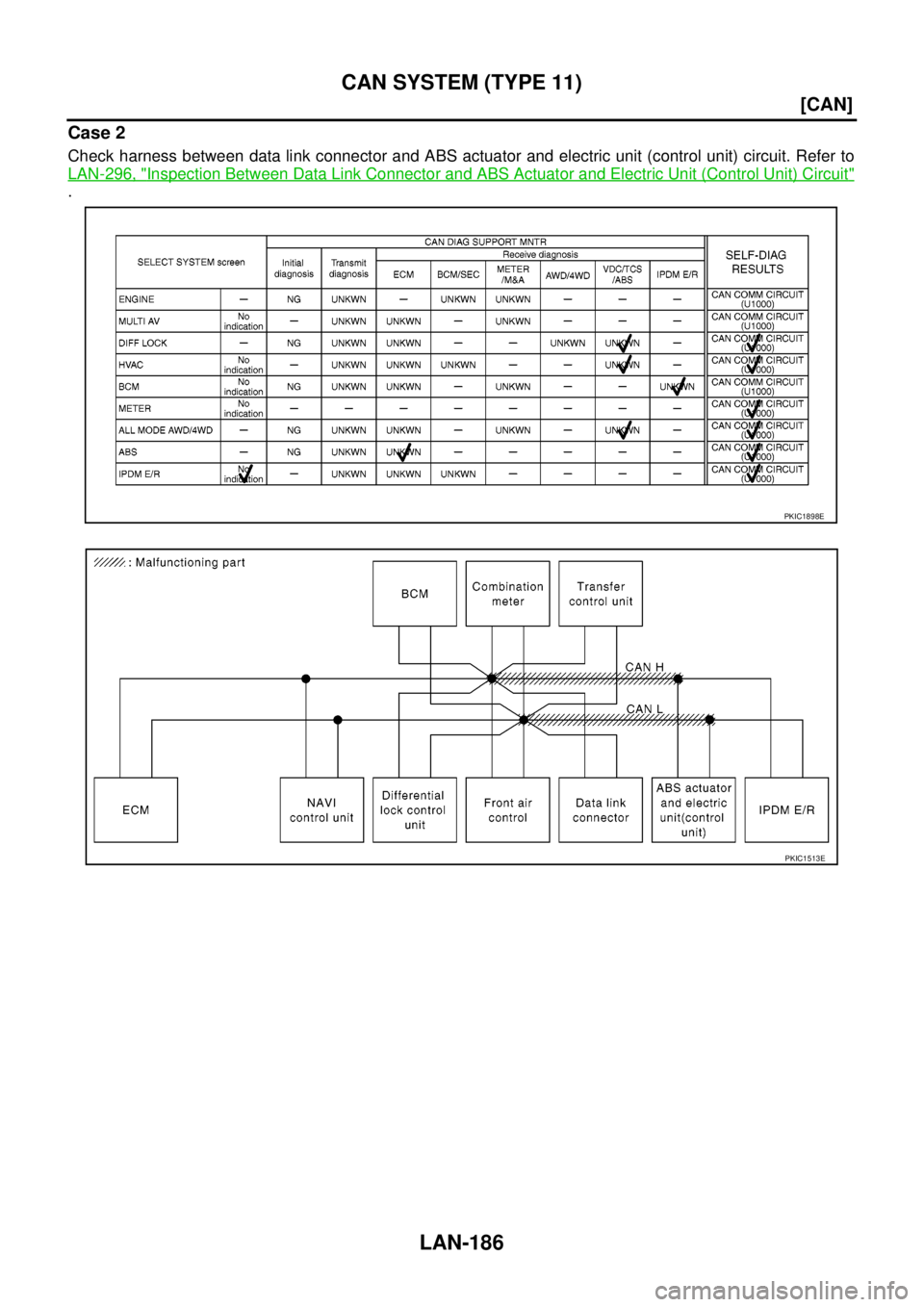

Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1898E
PKIC1513E

CAN SYSTEM (TYPE 11)
LAN-187
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 3

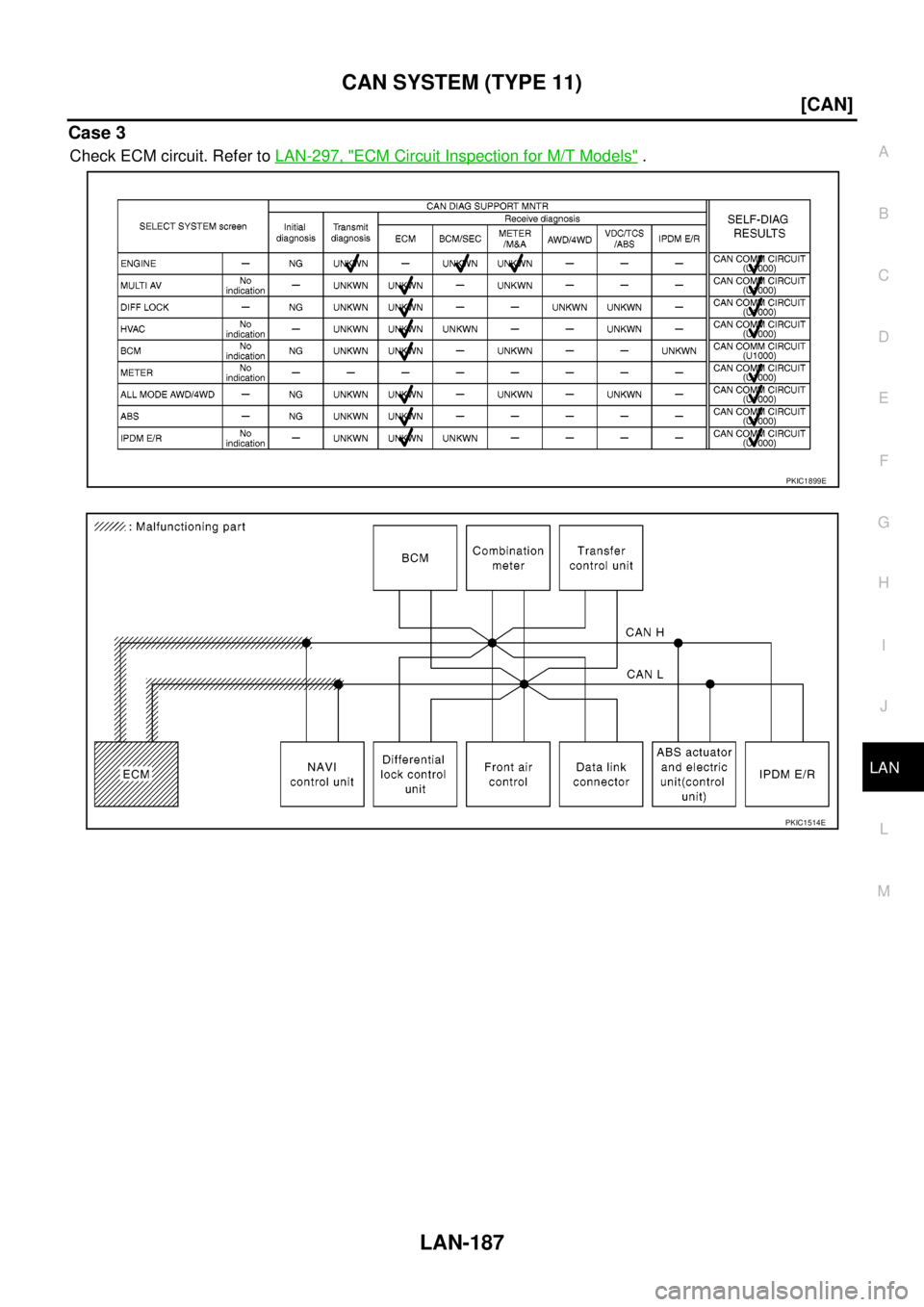

Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models".
PKIC1899E
PKIC1514E

LAN-188
[CAN]
CAN SYSTEM (TYPE 11)
Case 4

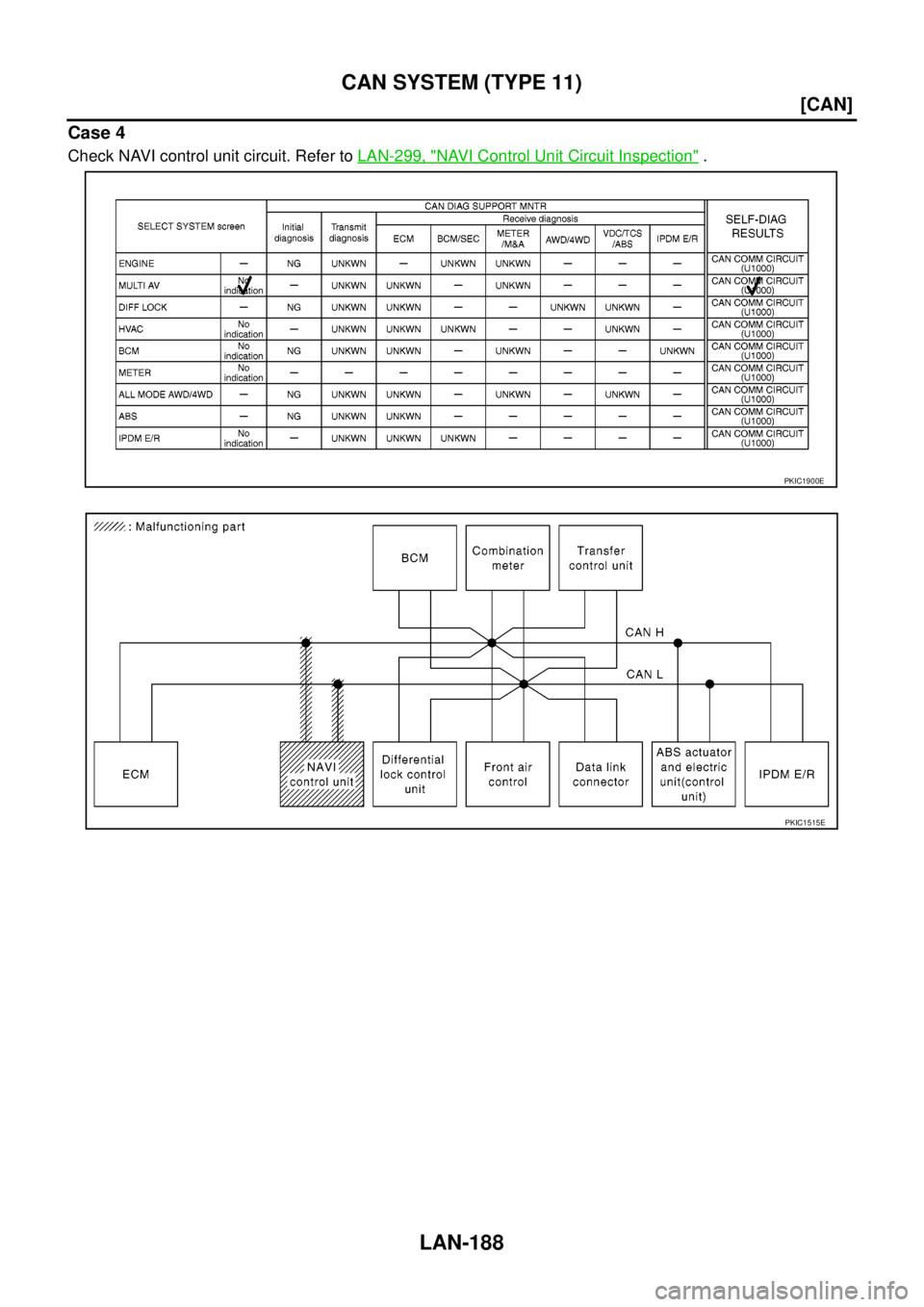

Check NAVI control unit circuit. Refer toLAN-299, "NAVI Control Unit Circuit Inspection".
PKIC1900E
PKIC1515E

CAN SYSTEM (TYPE 11)
LAN-189
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 5

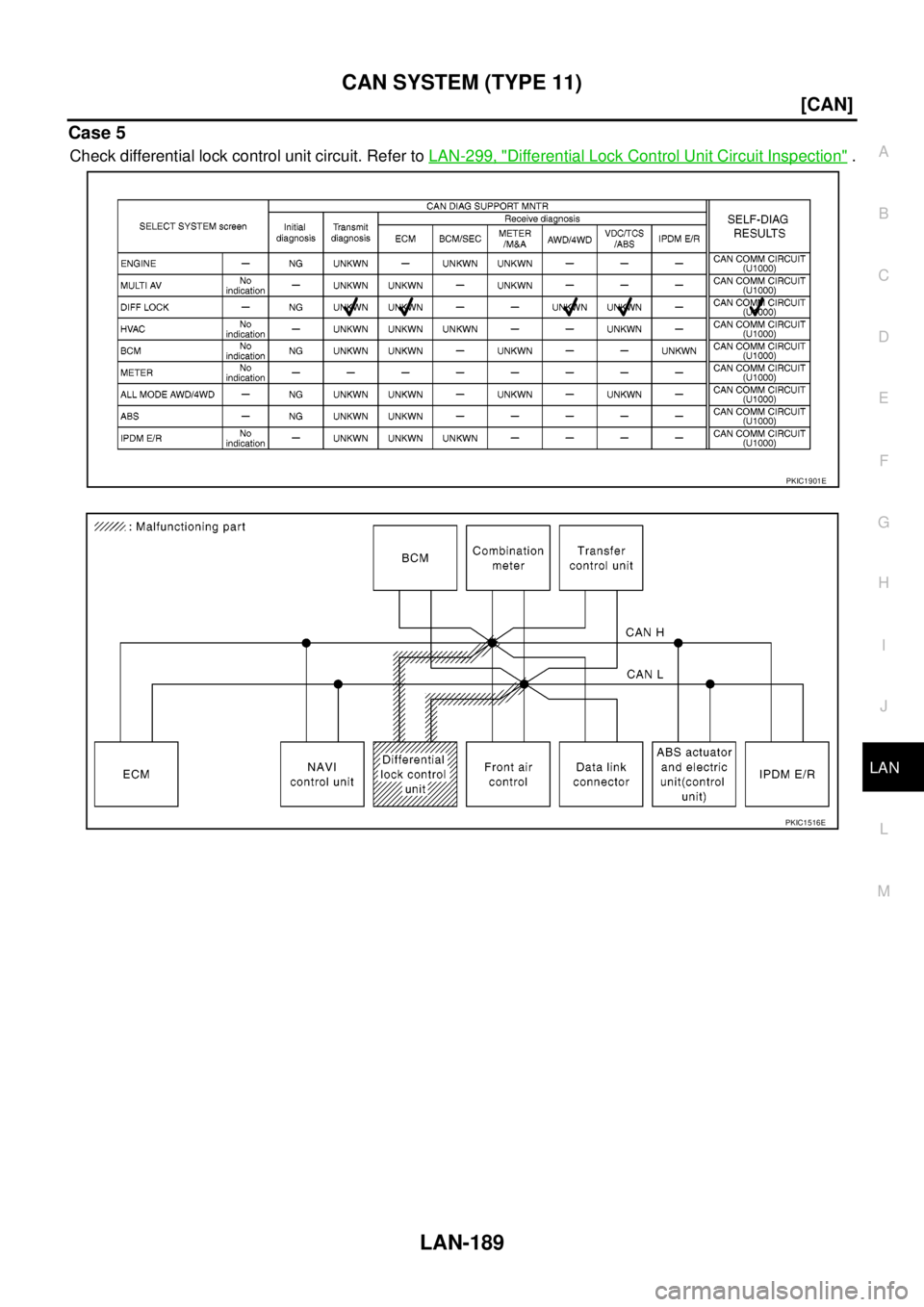

Check differential lock control unit circuit. Refer toLAN-299, "Differential Lock Control Unit Circuit Inspection".
PKIC1901E
PKIC1516E

LAN-190
[CAN]
CAN SYSTEM (TYPE 11)
Case 6

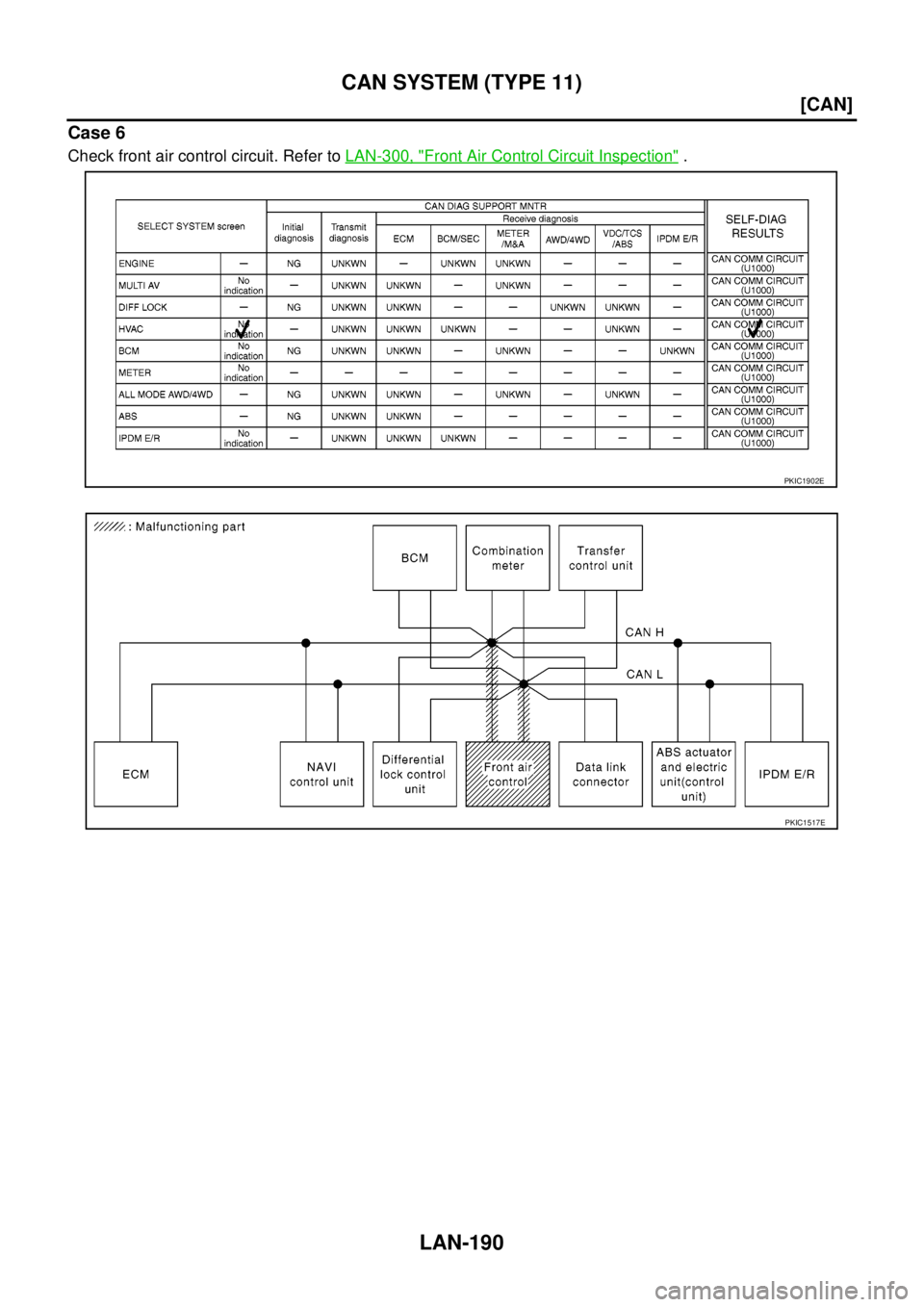

Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1902E
PKIC1517E

CAN SYSTEM (TYPE 11)
LAN-191
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 7

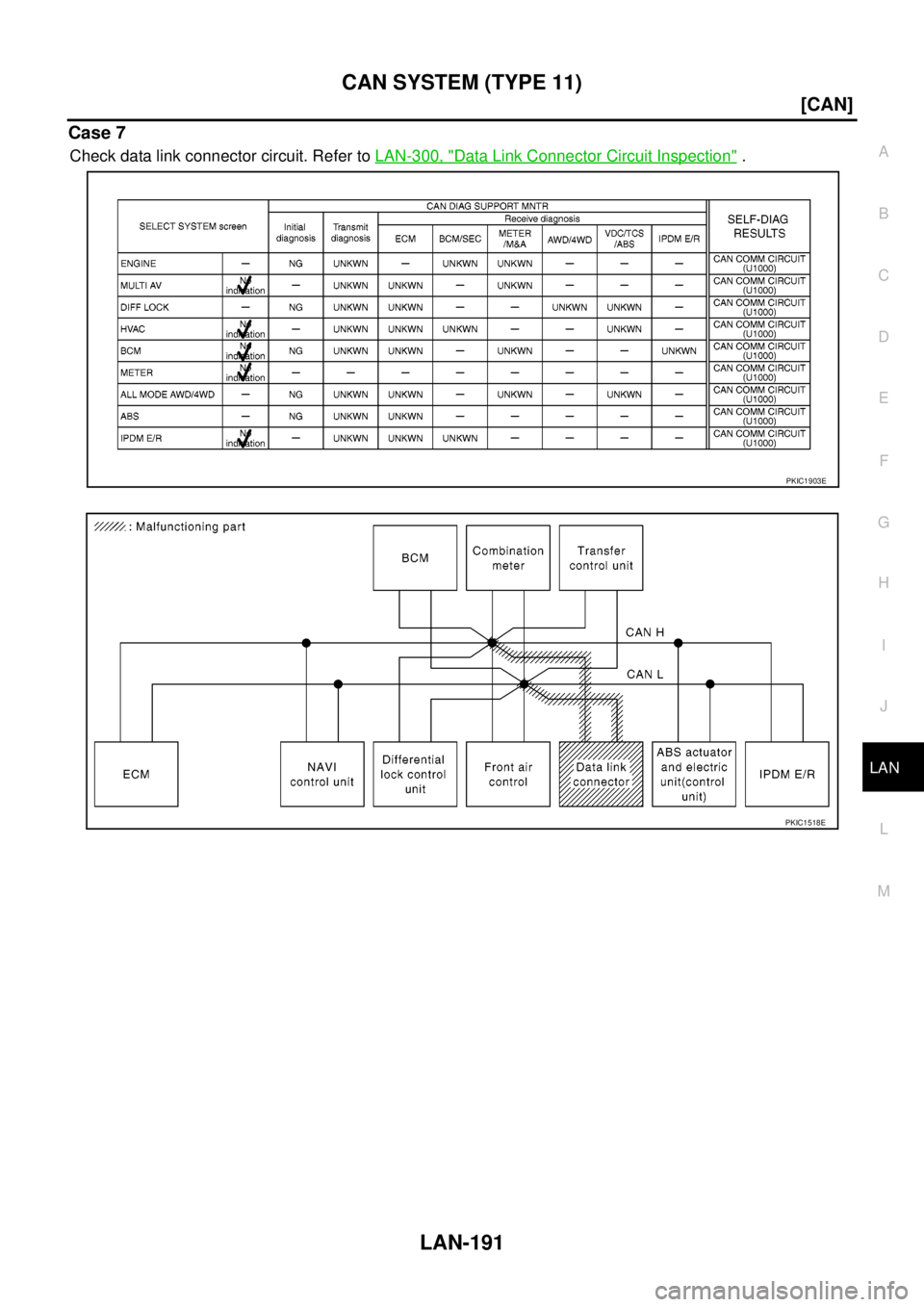

Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1903E
PKIC1518E

LAN-192
[CAN]
CAN SYSTEM (TYPE 11)
Case 8

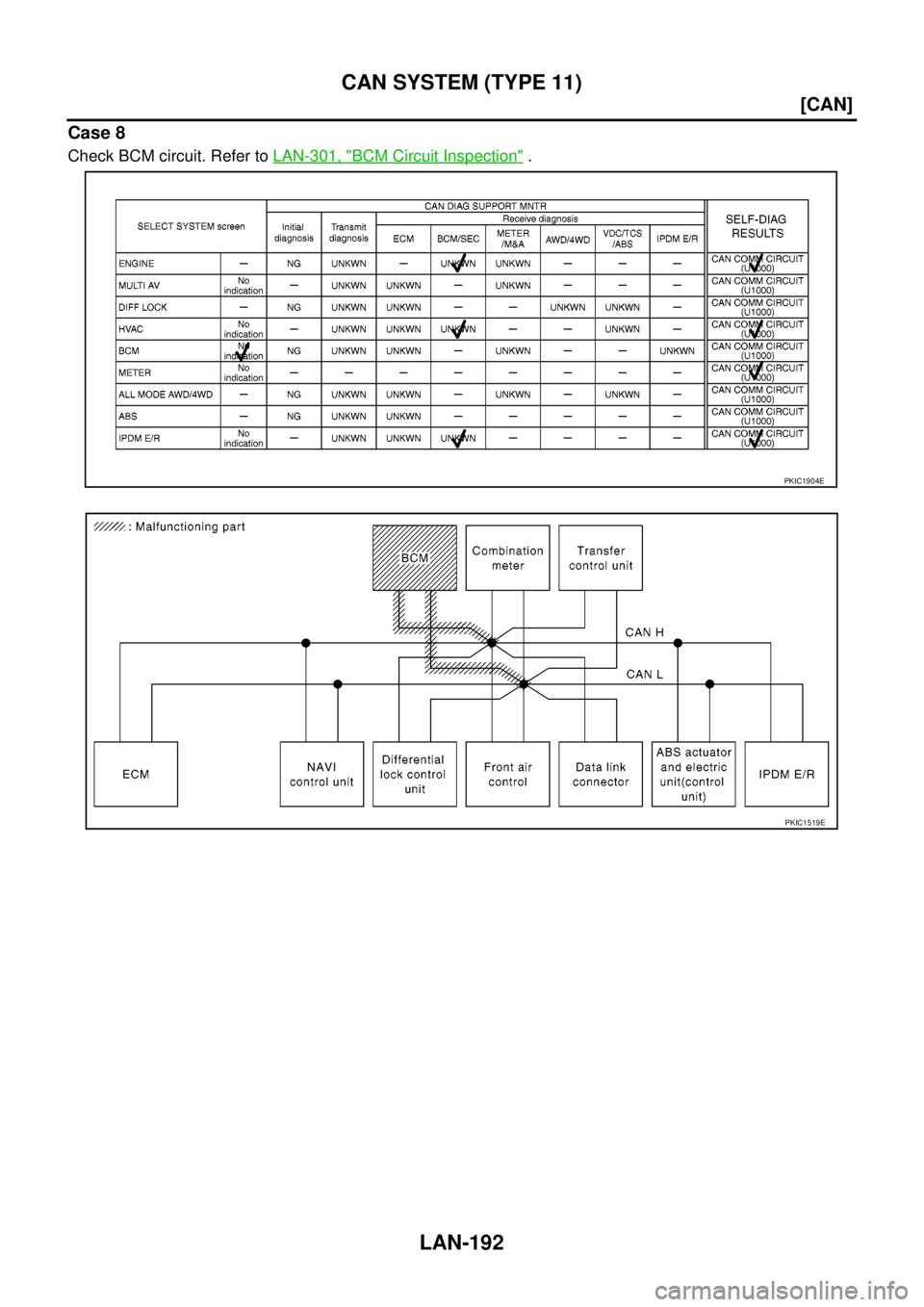

Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1904E
PKIC1519E

CAN SYSTEM (TYPE 11)
LAN-193
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

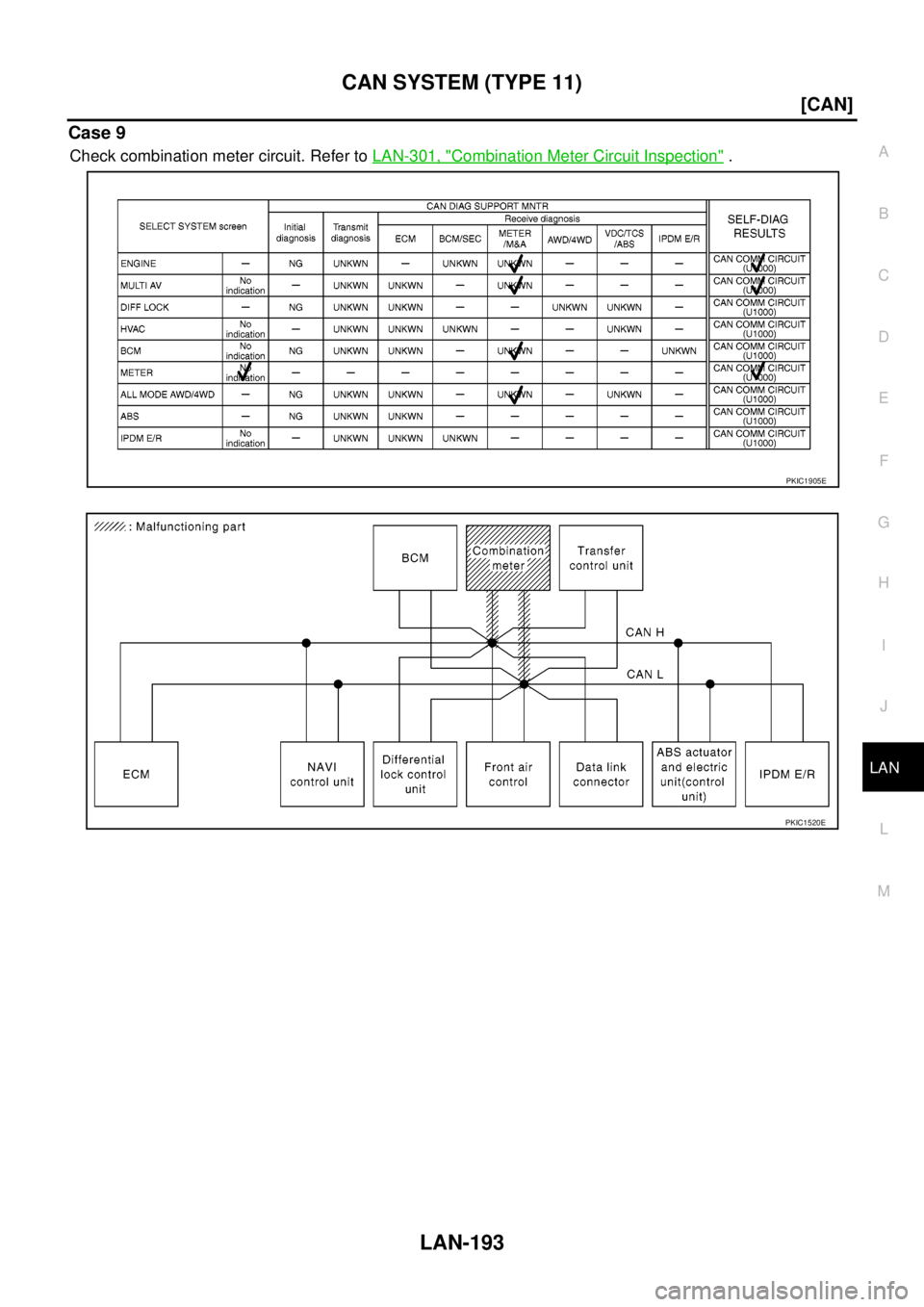

Case 9
Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection".
PKIC1905E
PKIC1520E
