![NISSAN NOTE 2016 Service Repair Manual BCS-80
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
Combination Switch Circuit (Without Variable Intermittent Wipers)
OUTLINE
• BCM reads the status of the combination switch (light NISSAN NOTE 2016 Service Repair Manual BCS-80
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
Combination Switch Circuit (Without Variable Intermittent Wipers)
OUTLINE
• BCM reads the status of the combination switch (light](/img/5/57363/w960_57363-340.png)
BCS-80
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
Combination Switch Circuit (Without Variable Intermittent Wipers)
OUTLINE
• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the
status of each switch.
• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a
maximum of 20 switch states.

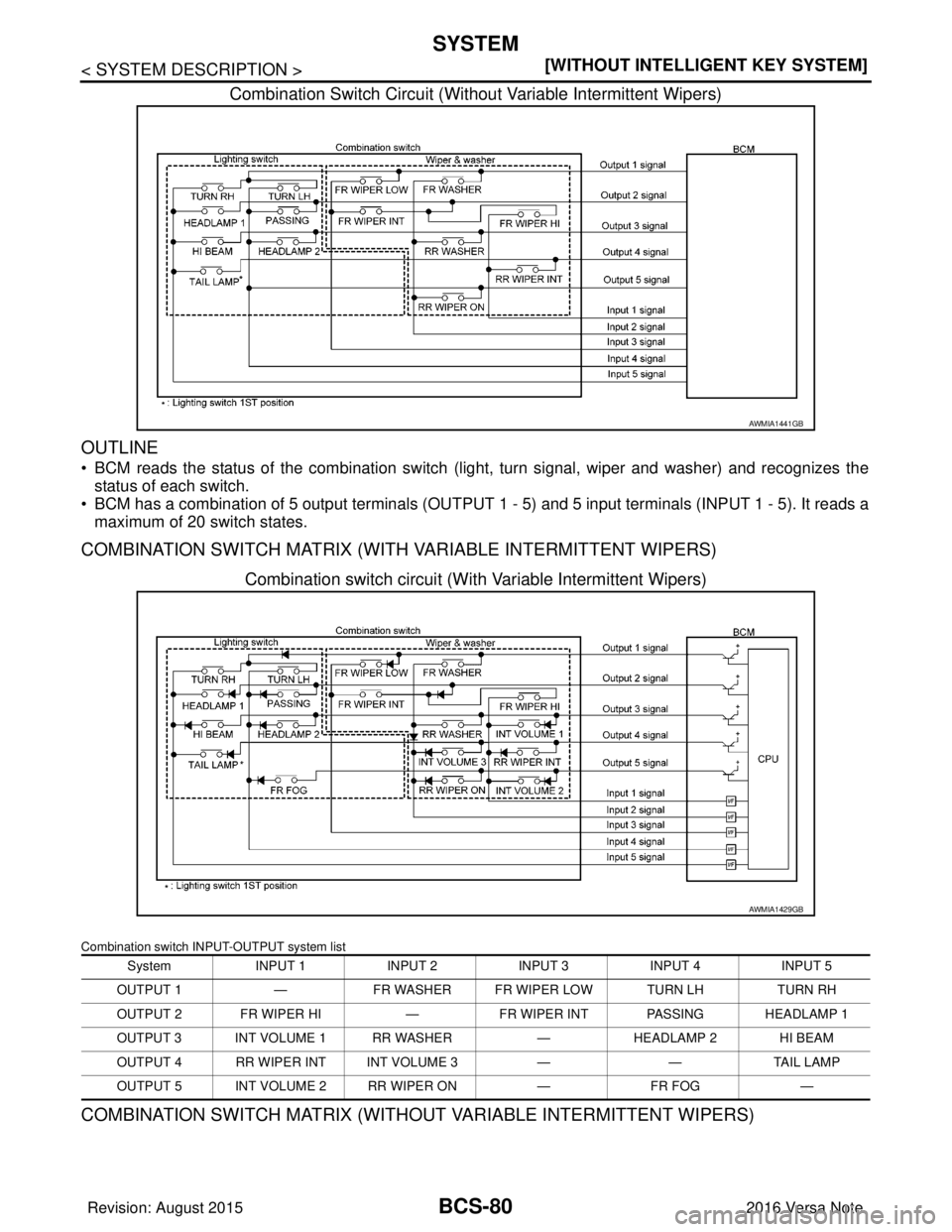

COMBINATION SWITCH MATRIX (WITH VARIABLE INTERMITTENT WIPERS)
Combination switch circuit (With Variable Intermittent Wipers)
Combination switch INPUT-OUTPUT system list
COMBINATION SWITCH MATRIX (WITHOUT VARIABLE INTERMITTENT WIPERS)
AWMIA1441GB
SystemINPUT 1 INPUT 2INPUT 3INPUT 4 INPUT 5
OUTPUT 1 —FR WASHER FR WIPER LOW TURN LH TURN RH
OUTPUT 2 FR WIPER HI —FR WIPER INT PASSING HEADLAMP 1
OUTPUT 3 INT VOLUME 1 RR WASHER —HEADLAMP 2 HI BEAM
OUTPUT 4 RR WIPER INT INT VOLUME 3 ——TAIL LAMP
OUTPUT 5 INT VOLUME 2 RR WIPER ON —FR FOG —
AWMIA1429GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 342 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-81
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
Combination Switch Circuit (Without Variable Intermittent Wipers)
Combination switch INPUT-OUTPUT NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-81
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
Combination Switch Circuit (Without Variable Intermittent Wipers)
Combination switch INPUT-OUTPUT](/img/5/57363/w960_57363-341.png)
BCS
SYSTEMBCS-81
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N

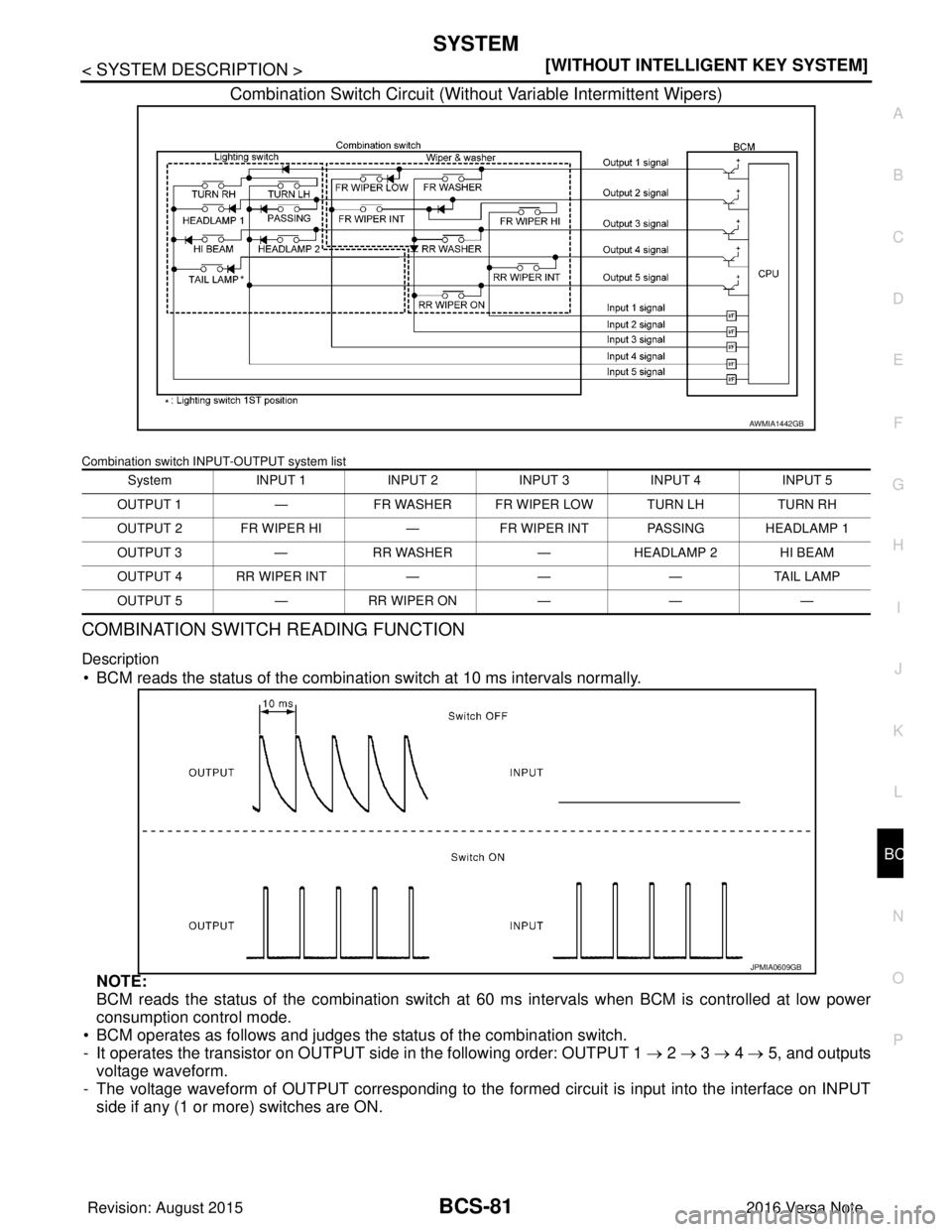

Combination Switch Circuit (Without Variable Intermittent Wipers)
Combination switch INPUT-OUTPUT system list
COMBINATION SWITCH READING FUNCTION
Description
• BCM reads the status of the combinat
ion switch at 10 ms intervals normally.
NOTE:
BCM reads the status of the combination switch at 60 ms intervals when BCM is controlled at low power
consumption control mode.
• BCM operates as follows and judges the status of the combination switch.
- It operates the transistor on OUTPUT si de in the following order: OUTPUT 1 → 2 → 3 → 4 → 5, and outputs
voltage waveform.
- The voltage waveform of OUTPUT corresponding to the formed circuit is input into the interface on INPUT side if any (1 or more) switches are ON.
System INPUT 1 INPUT 2 INPUT 3INPUT 4INPUT 5
OUTPUT 1 —FR WASHER FR WIPER LOW TURN LH TURN RH
OUTPUT 2 FR WIPER HI —FR WIPER INT PASSING HEADLAMP 1
OUTPUT 3 —RR WASHER —HEADLAMP 2 HI BEAM
OUTPUT 4 RR WIPER INT ———TAIL LAMP
OUTPUT 5 —RR WIPER ON ———
AWMIA1442GB
JPMIA0609GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 343 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS-82
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
- It reads this change of the voltage as the
status signal of the combination switch.
Operation Example
In the following operation NISSAN NOTE 2016 Service Repair Manual BCS-82
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
- It reads this change of the voltage as the
status signal of the combination switch.
Operation Example
In the following operation](/img/5/57363/w960_57363-342.png)
BCS-82
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
- It reads this change of the voltage as the
status signal of the combination switch.

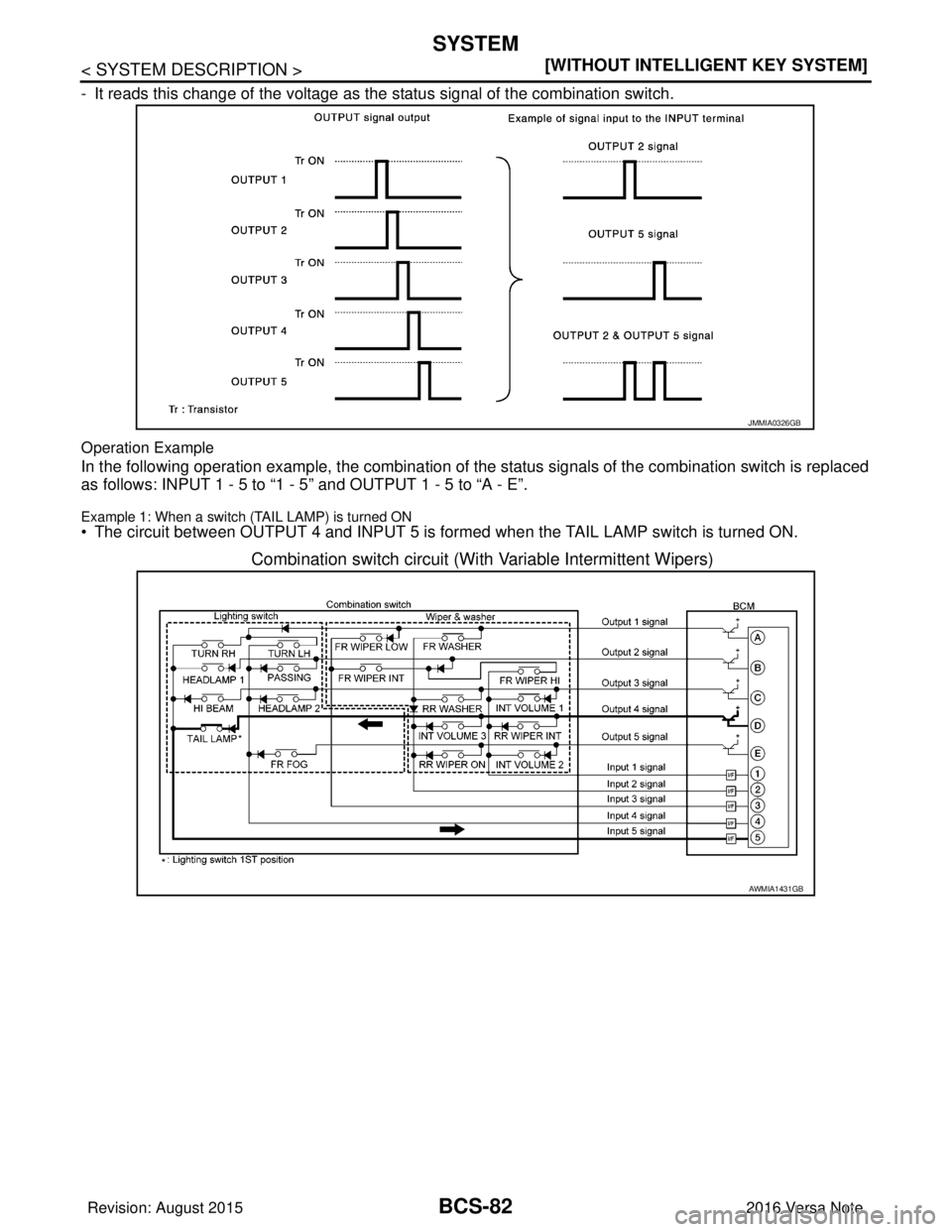

Operation Example
In the following operation example, the combination of the status signals of the combination switch is replaced
as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.
Example 1: When a switch (TAIL LAMP) is turned ON• The circuit between OUTPUT 4 and INPUT 5 is formed when the TAIL LAMP switch is turned ON.
Combination switch circuit (With Variable Intermittent Wipers)
JMMIA0326GB
AWMIA1431GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 344 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-83
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
Combination switch circuit (Without Variable Intermittent Wipers)
• BCM detects the combination NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-83
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
Combination switch circuit (Without Variable Intermittent Wipers)
• BCM detects the combination](/img/5/57363/w960_57363-343.png)
BCS
SYSTEMBCS-83
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N

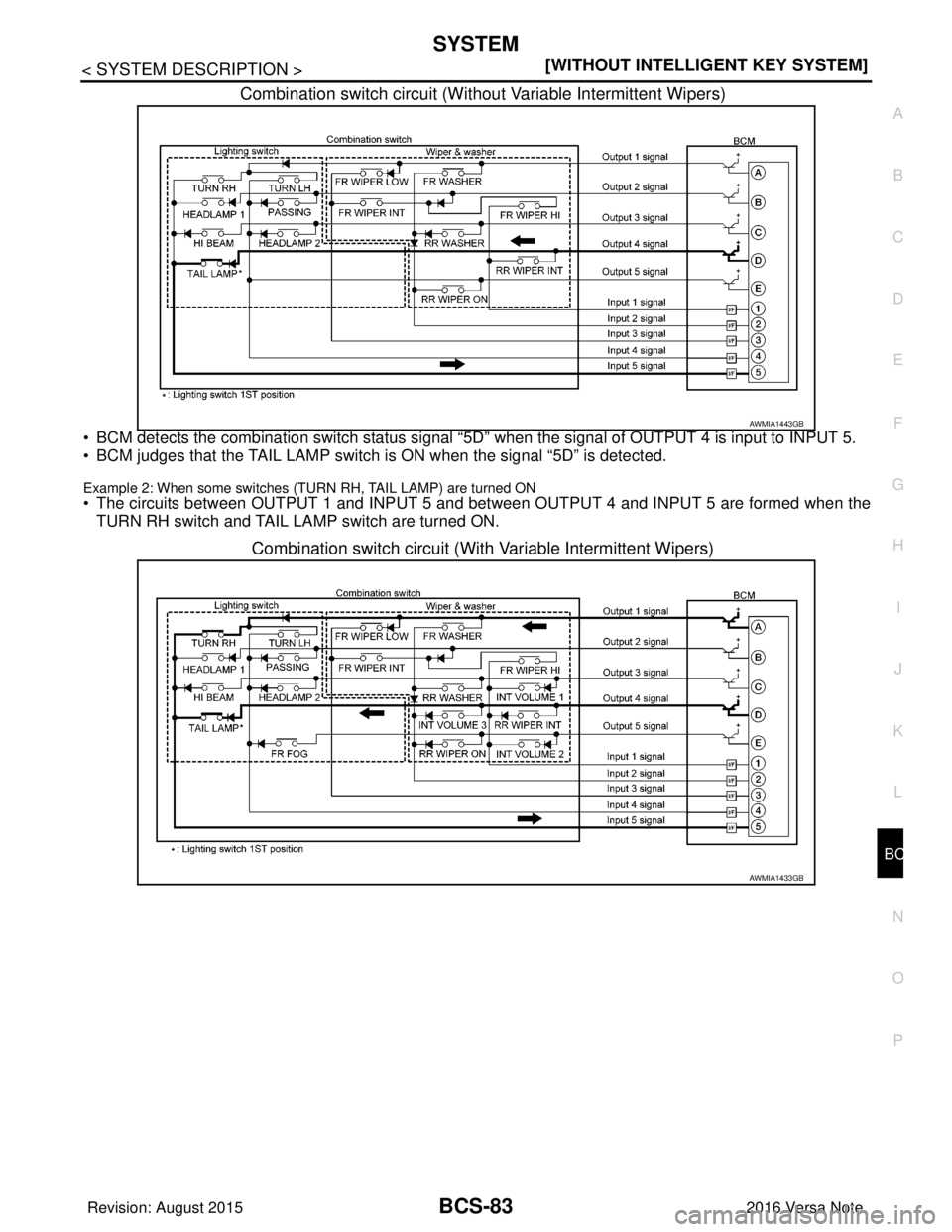

Combination switch circuit (Without Variable Intermittent Wipers)
• BCM detects the combination switch status signal “5
D” when the signal of OUTPUT 4 is input to INPUT 5.
• BCM judges that the TAIL LAMP switch is ON when the signal “5D” is detected.
Example 2: When some switches (TURN RH, TAIL LAMP) are turned ON
• The circuits between OUTPUT 1 and INPUT 5 and bet ween OUTPUT 4 and INPUT 5 are formed when the
TURN RH switch and TAIL LAMP switch are turned ON.
Combination switch circuit (With Variable Intermittent Wipers)
AWMIA1443GB
AWMIA1433GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 345 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS-84
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
Combination switch circuit (Withou
t Variable Intermittent Wipers)
• BCM detects the combination switch status signal “5AD” w NISSAN NOTE 2016 Service Repair Manual BCS-84
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
Combination switch circuit (Withou
t Variable Intermittent Wipers)
• BCM detects the combination switch status signal “5AD” w](/img/5/57363/w960_57363-344.png)
BCS-84
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM

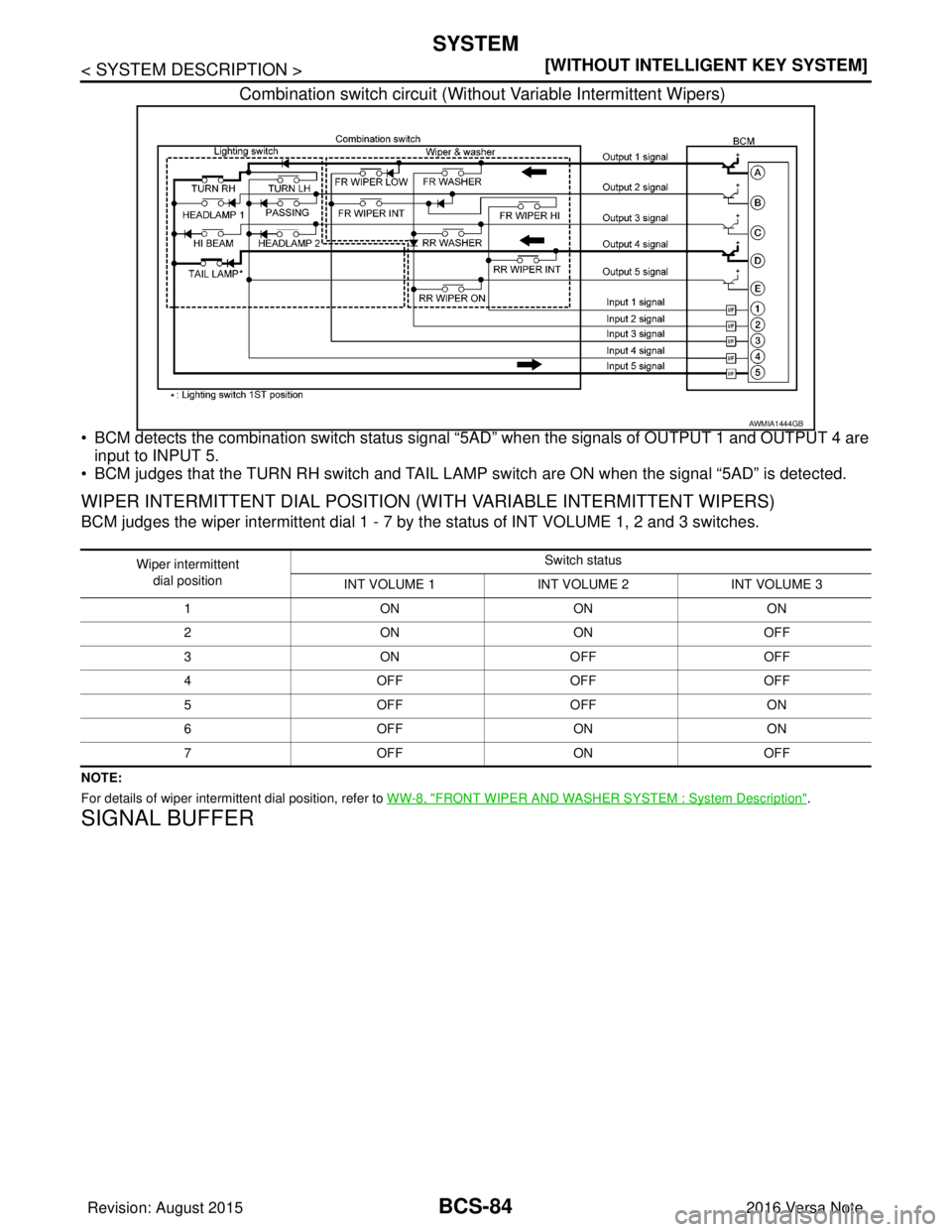

Combination switch circuit (Withou
t Variable Intermittent Wipers)
• BCM detects the combination switch status signal “5AD” when the signals of OUTPUT 1 and OUTPUT 4 are
input to INPUT 5.
• BCM judges that the TURN RH switch and TAIL LAMP switch are ON when the signal “5AD” is detected.
WIPER INTERMITTENT DIAL POSITION (WITH VARIABLE INTERMITTENT WIPERS)
BCM judges the wiper intermittent dial 1 - 7 by the status of INT VOLUME 1, 2 and 3 switches.
NOTE:
For details of wiper intermittent dial position, refer to WW-8, "
FRONT WIPER AND WASHER SYSTEM : System Description".
SIGNAL BUFFER
AWMIA1444GB
Wiper intermittent
dial position Switch status
INT VOLUME 1 INT VOLUME 2INT VOLUME 3
1O NONO N
2O NONOFF
3O NOFFO FF
4 OFF OFFOFF
5O FFO FFO N
6 OFF ONON
7 OFF ONOFF
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 346 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-85
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SIGNAL BUFFER : System DescriptionINFOID:0000000012432366
SYSTEM DIAGRAM
OUTLINE
BCM has the sign NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-85
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SIGNAL BUFFER : System DescriptionINFOID:0000000012432366
SYSTEM DIAGRAM
OUTLINE
BCM has the sign](/img/5/57363/w960_57363-345.png)
BCS
SYSTEMBCS-85
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SIGNAL BUFFER : System DescriptionINFOID:0000000012432366

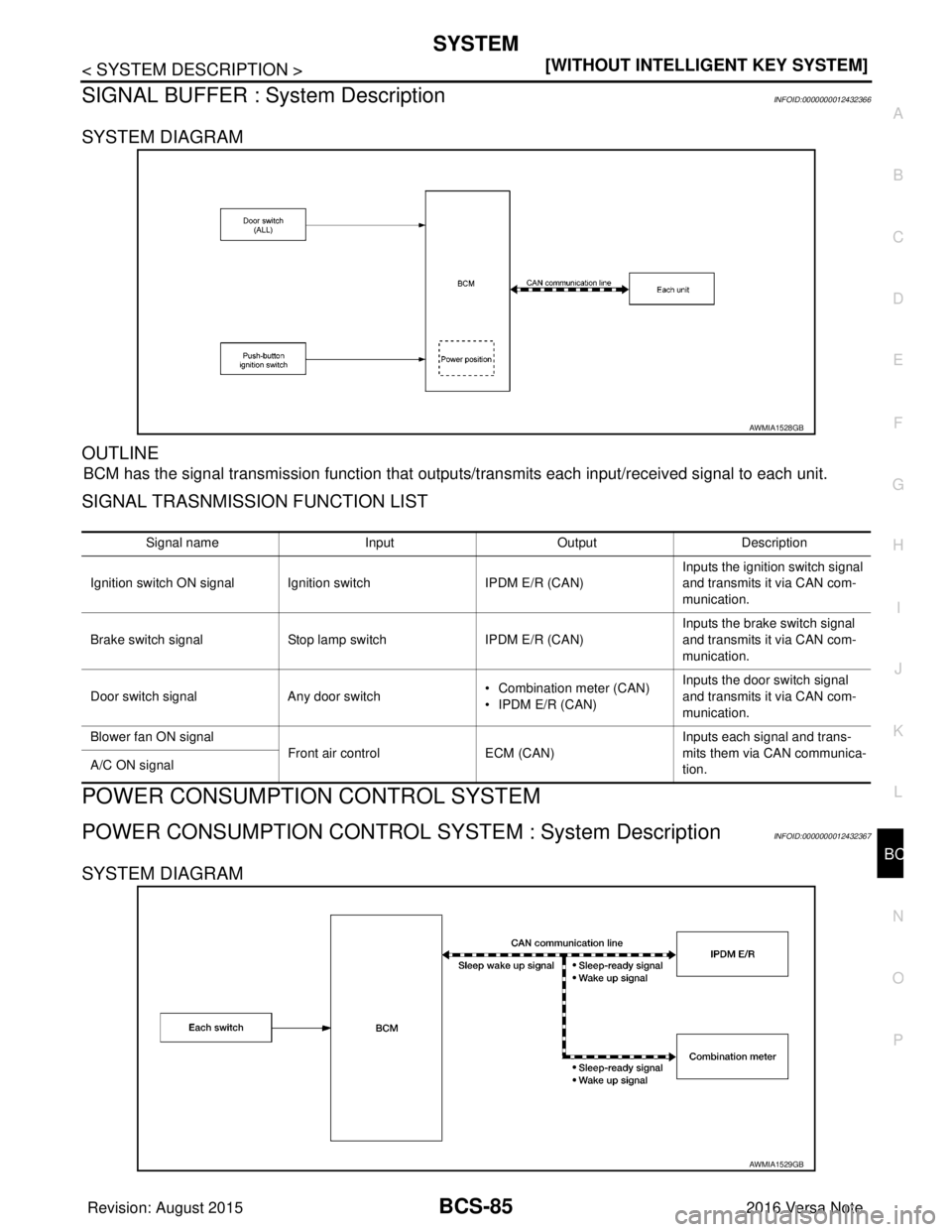

SYSTEM DIAGRAM
OUTLINE
BCM has the signal transmission function that output
s/transmits each input/received signal to each unit.
SIGNAL TRASNMISSION FUNCTION LIST
POWER CONSUMPTION CONTROL SYSTEM
POWER CONSUMPTION CONTROL SYSTEM : System DescriptionINFOID:0000000012432367
SYSTEM DIAGRAM
AWMIA1528GB
Signal nameInputOutputDescription
Ignition switch ON signal Ignition switch IPDM E/R (CAN)Inputs the ignition switch signal
and transmits it via CAN com-
munication.
Brake switch signal Stop lamp switch IPDM E/R (CAN)Inputs the brake switch signal
and transmits it via CAN com-
munication.
Door switch signal Any door switch • Combination meter (CAN)
• IPDM E/R (CAN)Inputs the door switch signal
and transmits it via CAN com-
munication.
Blower fan ON signal Front air control ECM (CAN)Inputs each signal and trans-
mits them via CAN communica-
tion.
A/C ON signal
AWMIA1529GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 347 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS-86
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
OUTLINE
• BCM incorporates a power saving control function t
hat reduces the power consumption according to the
vehicle status.
NISSAN NOTE 2016 Service Repair Manual BCS-86
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
OUTLINE
• BCM incorporates a power saving control function t
hat reduces the power consumption according to the
vehicle status.](/img/5/57363/w960_57363-346.png)
BCS-86
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
OUTLINE
• BCM incorporates a power saving control function t
hat reduces the power consumption according to the
vehicle status.
• BCM switches the status (control mode) by itself wit h the power saving control function. It performs the sleep
request to each unit (IPDM E/R and combination mete r) that operates with the ignition switch OFF.
Normal mode (wake-up)- CAN communication is normally performed with other units
- Each control with BCM is operating properly
CAN communication sleep mode (CAN sleep)- CAN transmission is stopped
- Control with BCM only is operating
Low power consumption mode (BCM sleep)- Low power consumption control is active
- CAN transmission is stopped
LOW POWER CONSUMPTION CONTROL WITH BCM
BCM reduces the power consumption with the following operation in the low power consumption mode.
• The reading interval of each switch changes from 10 ms interval to 60 ms interval.
SLEEP MODE ACTIVATION
• BCM receives the sleep-ready signal (ready) from IPDM E/R and combination meter via CAN communica-
tion.
• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful- filled.
• Each unit stops the transmission of CAN communication with the sleep wake-up signal. BCM is in CAN com- munication sleep mode.
• BCM is in the low power consumption mode and perform s the low power consumption control when all of the
BCM sleep conditions are fulfilled with CAN sleep condition.
Sleep condition
WAKE-UP OPERATION
• BCM transmits the sleep wake up signal (wake up) to each unit when any of the wake-up conditions are ful- filled. It changes from the low power consumption mode to the normal mode.
• Each unit starts the transmission of CAN communica tion with the sleep wake up signal. Each unit transmits
the wake up signal to BCM via CAN communication to report the CAN communication start.
CAN sleep condition BCM sleep condition
• Receiving the sleep-ready signal (ready) from all units
• Ignition switch: OFF
• Vehicle security system alarm: No operation
• Warning lamp: Not operation
• Stop lamp switch: OFF
• Turn signal indicator lamp: No operation
• Exterior lamp: OFF
• Door lock status: No change
• CONSULT communication status: No communication
• Door switch status: No change
• Rear window defogger: OFF
• Driver door lock status: No change
• Key switch status: No change • Interior room lamp battery saver: Time out
• RAP system: OFF
• Nissan Vehicle Immobilizer System (NVIS) - NATS: No opera-
tion
• Remote keyless entry receiver communication status: No com- munication
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 348 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-87
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SHIPPING MODE CONTROL SYSTEM
SHIPPING MODE CONTROL SYSTEM : System DescriptionINFOID:000000001243 NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-87
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SHIPPING MODE CONTROL SYSTEM
SHIPPING MODE CONTROL SYSTEM : System DescriptionINFOID:000000001243](/img/5/57363/w960_57363-347.png)
BCS
SYSTEMBCS-87
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SHIPPING MODE CONTROL SYSTEM
SHIPPING MODE CONTROL SYSTEM : System DescriptionINFOID:0000000012432368

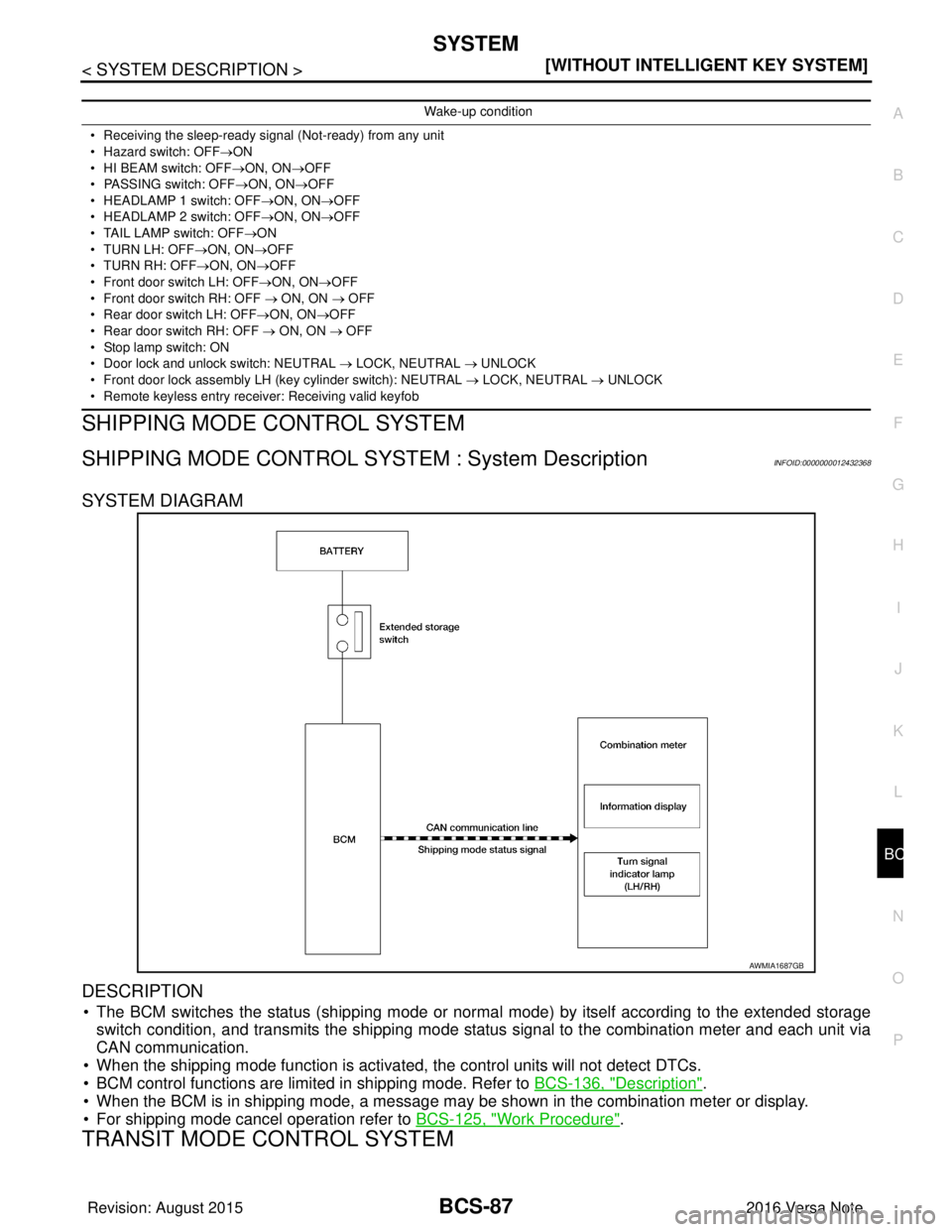

SYSTEM DIAGRAM
DESCRIPTION
• The BCM switches the status (shipping mode or norma
l mode) by itself according to the extended storage
switch condition, and transmits the shipping mode status signal to the combination meter and each unit via
CAN communication.
• When the shipping mode function is activated, the control units will not detect DTCs.
• BCM control functions are limited in shipping mode. Refer to BCS-136, "
Description".
• When the BCM is in shipping mode, a message may be shown in the combination meter or display.
• For shipping mode cancel operation refer to BCS-125, "
Work Procedure".
TRANSIT MODE CONTROL SYSTEM
Wake-up condition
• Receiving the sleep-ready signal (Not-ready) from any unit
• Hazard switch: OFF →ON
• HI BEAM switch: OFF →ON, ON→OFF
• PASSING switch: OFF→ ON, ON→OFF
• HEADLAMP 1 switch: OFF →ON, ON→OFF
• HEADLAMP 2 switch: OFF →ON, ON→OFF
• TAIL LAMP switch: OFF →ON
• TURN LH: OFF →ON, ON→OFF
• TURN RH: OFF →ON, ON→OFF
• Front door switch LH: OFF→ON, ON →OFF
• Front door switch RH: OFF → ON, ON → OFF
• Rear door switch LH: OFF→ON, ON→OFF
• Rear door switch RH: OFF → ON, ON → OFF
• Stop lamp switch: ON
• Door lock and unlock switch: NEUTRAL → LOCK, NEUTRAL → UNLOCK
• Front door lock assembly LH (key cylinder switch): NEUTRAL → LOCK, NEUTRAL → UNLOCK
• Remote keyless entry receiver: Receiving valid keyfob
AWMIA1687GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 349 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS-88
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
TRANSIT MODE CONTROL SYST EM : System Description
INFOID:0000000012432369
DESCRIPTION
Transit mode is a BCM function that disables NISSAN NOTE 2016 Service Repair Manual BCS-88
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
TRANSIT MODE CONTROL SYST EM : System Description
INFOID:0000000012432369
DESCRIPTION
Transit mode is a BCM function that disables](/img/5/57363/w960_57363-348.png)
BCS-88
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
TRANSIT MODE CONTROL SYST EM : System Description
INFOID:0000000012432369
DESCRIPTION
Transit mode is a BCM function that disables several elec trical functions such as door lock/unlock by remote,
back door open by remote, panic alarm, anti-theft alarm, etc. Vehicles are shipped with the BCM in transit
mode to help prevent the battery from becoming discharged during dealer storage.
DETERMINING TRANSIT MODE STATUS
Use the table below to determine the transit mode status.
CANCELING TRANSIT MODE
NOTE:
Transit mode can only be canceled. Once transit mode has been canceled, it cannot be activated again.
To cancel transit mode, refer to BCS-126, "
Work Procedure".
Status Symptom
Transit Mode When ignition switch is turned from OFF to ON, turn signal indicators will illuminate for 1 minute.
Normal Mode (not in transit mode) When ignition switch is turned from OFF to ON, turn signal indicators stay OFF (do not illumi-
nate).
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 350 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS
DIAGNOSIS SYSTEM (BCM)BCS-89
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON I NISSAN NOTE 2016 Service Repair Manual BCS
DIAGNOSIS SYSTEM (BCM)BCS-89
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON I](/img/5/57363/w960_57363-349.png)
BCS
DIAGNOSIS SYSTEM (BCM)BCS-89
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)INFOID:0000000012432370
APPLICATION ITEM
CONSULT performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions.
Direct Diagnostic Mode
Description
ECU Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration • The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication is displayed.
System Sub System Direct Diagnostic Mode
ECU Identification
Self Diagnostic Result
Data Monitor
Active Test
Work support
Configuration
CAN DIAG SUPPORT MNTR
Door lock
DOOR LOCK ×××
Rear window defogger REAR DEFOGGER ××
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Remote keyless entry system MULTI REMOTE ENT ×××
Exterior lamp HEAD LAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ××
Air conditioner AIR CONDITIONER ×
Combination switch COMB SW ×
BCM BCM× × ×××
Immobilizer IMMU ×××
Interior room lamp battery saver BATTERY SAVER ×××
Vehicle security system THEFT ALM ××
RAP system RETAINED PWR ××
Signal buffer system SIGNAL BUFFER ×
TPMS AIR PRESSURE MONITOR ××××
Panic alarm system PANIC ALARM ×
Revision: August 2015 2016 Versa Note
cardiagn.com
