NISSAN NOTE 2016 Service Repair Manual

BCS-110
< ECU DIAGNOSIS INFORMATION >[WITHOUT INTELLIGENT KEY SYSTEM]
BCM
331
(V)Ground Output 4 signal Output
Combination
switchOFF
7.0 - 8.0 V
TA I L L A M P
1.2 V
Wiper intermittent dial 1
Wiper intermittent dial 5
Wiper intermittent dial 6
RR WIPER INT
33
2
(V) Ground Output 4 signal Output
Combination
switchOFF
7.0 - 8.0 V
TA I L L A M P
1.2 V
RR WIPER INT
34
1
(W) Ground Output 3 signal Output
Combination
switchOFF
7.0 - 8.0 V
HI BEAM
1.2 V
HEADLAMP 2
RR WASHER
Wiper intermittent dial 1
Wiper intermittent dial 2
Wiper intermittent dial 3
Te r m i n a l N o .
(Wire color) Description
Condition Va l u e
(Approx.)
Signal name Input/
Output
+ −
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS
BCM

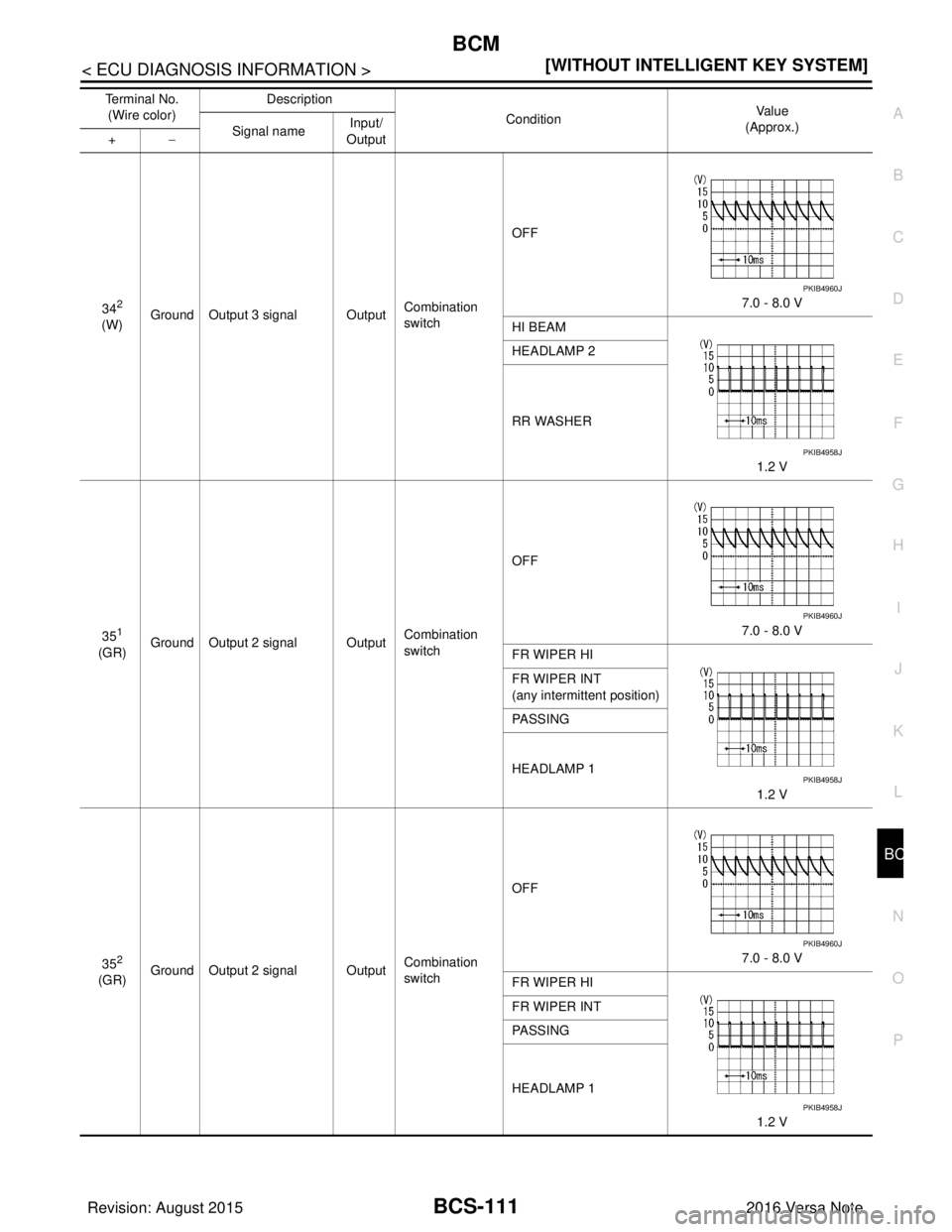

BCS-111
< ECU DIAGNOSIS INFORMATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
342
(W)
Ground Output 3 signal Output
Combination
switchOFF
7.0 - 8.0 V
HI BEAM
1.2 V
HEADLAMP 2
RR WASHER
35
1
(GR) Ground Output 2 signal Output
Combination
switchOFF
7.0 - 8.0 V
FR WIPER HI
1.2 V
FR WIPER INT
(any intermittent position)
PASSING
HEADLAMP 1
35
2
(GR) Ground Output 2 signal Output
Combination
switchOFF
7.0 - 8.0 V
FR WIPER HI
1.2 V
FR WIPER INT
PASSING
HEADLAMP 1
Terminal No.
(Wire color) Description
Condition Va l u e
(Approx.)
Signal name Input/
Output
+ −
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
Revision: August 2015 2016 Versa Note

cardiagn.com

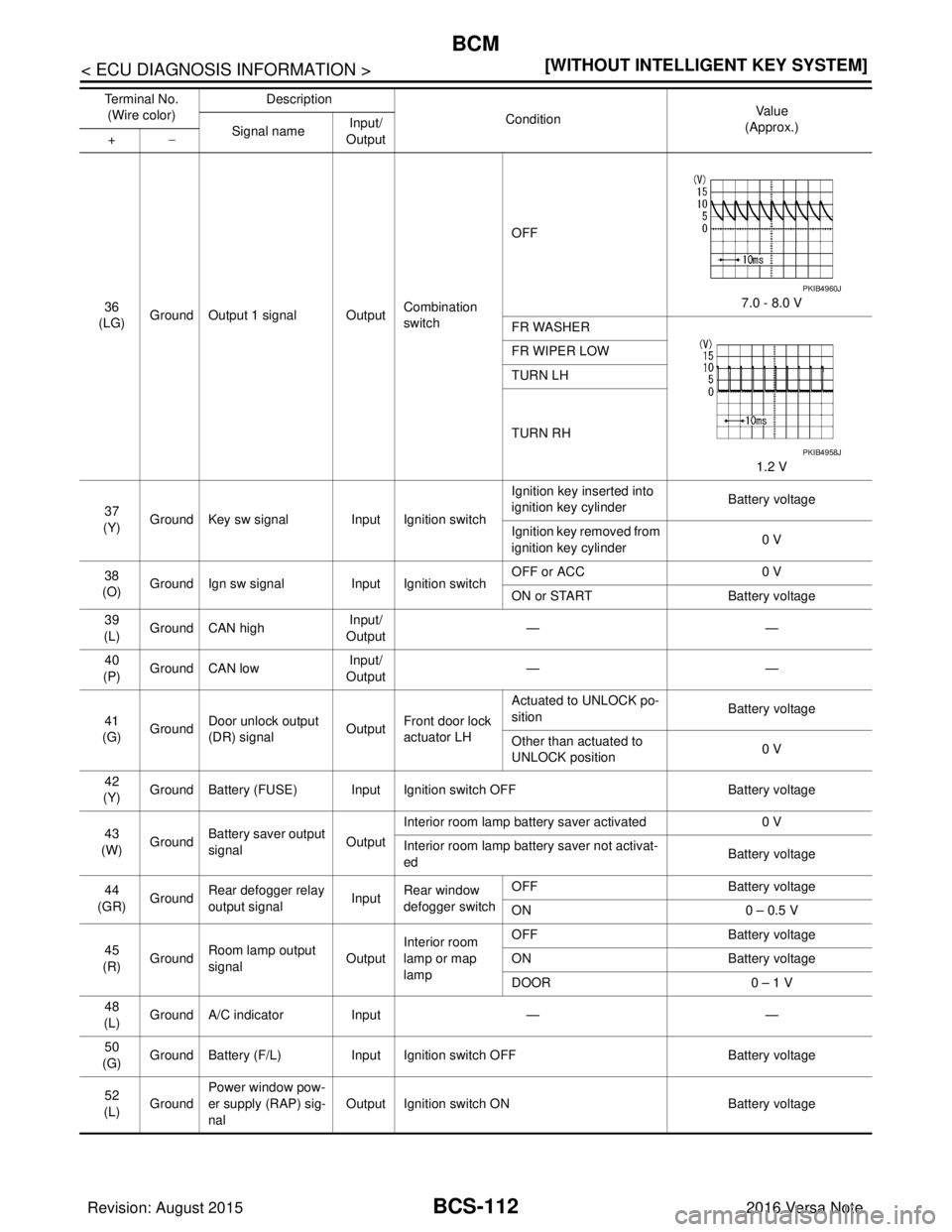

BCS-112
< ECU DIAGNOSIS INFORMATION >[WITHOUT INTELLIGENT KEY SYSTEM]
BCM
36
(LG) Ground Output 1 signal Output
Combination
switchOFF
7.0 - 8.0 V
FR WASHER
1.2 V
FR WIPER LOW
TURN LH
TURN RH
37
(Y) Ground Key sw signal Input Ignition switch Ignition key inserted into
ignition key cylinder
Battery voltage
Ignition key removed from
ignition key cylinder 0 V
38
(O) Ground Ign sw signal
Input Ignition switchOFF or ACC
0 V
ON or START Battery voltage
39
(L) Ground CAN high
Input/
Output ——
40
(P) Ground CAN low Input/
Output ——
41
(G) Ground Door unlock output
(DR) signal OutputFront door lock
actuator LH Actuated to UNLOCK po-
sition
Battery voltage
Other than actuated to
UNLOCK position 0 V
42
(Y) Ground Battery (FUSE) Input Ignition switch OFF
Battery voltage
43
(W) Ground Battery saver output
signal
OutputInterior room lamp battery saver activated
0 V
Interior room lamp battery saver not activat-
ed Battery voltage
44
(GR) Ground Rear defogger relay
output signal InputRear window
defogger switch OFF
Battery voltage
ON 0 – 0.5 V
45
(R) Ground Room lamp output
signal OutputInterior room
lamp or map
lamp OFF
Battery voltage
ON Battery voltage
DOOR 0 – 1 V
48
(L) Ground A/C indicator
Input— —
50
(G) Ground Battery (F/L)
Input Ignition switch OFF Battery voltage
52
(L) Ground Power window pow-
er supply (RAP) sig-
nal Output Ignition switch ON
Battery voltage
Te r m i n a l N o .
(Wire color) Description
Condition Va l u e
(Approx. )
Sign al

name Input/
Output
+ −
PKIB4960J
PKIB4958J
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS
BCM

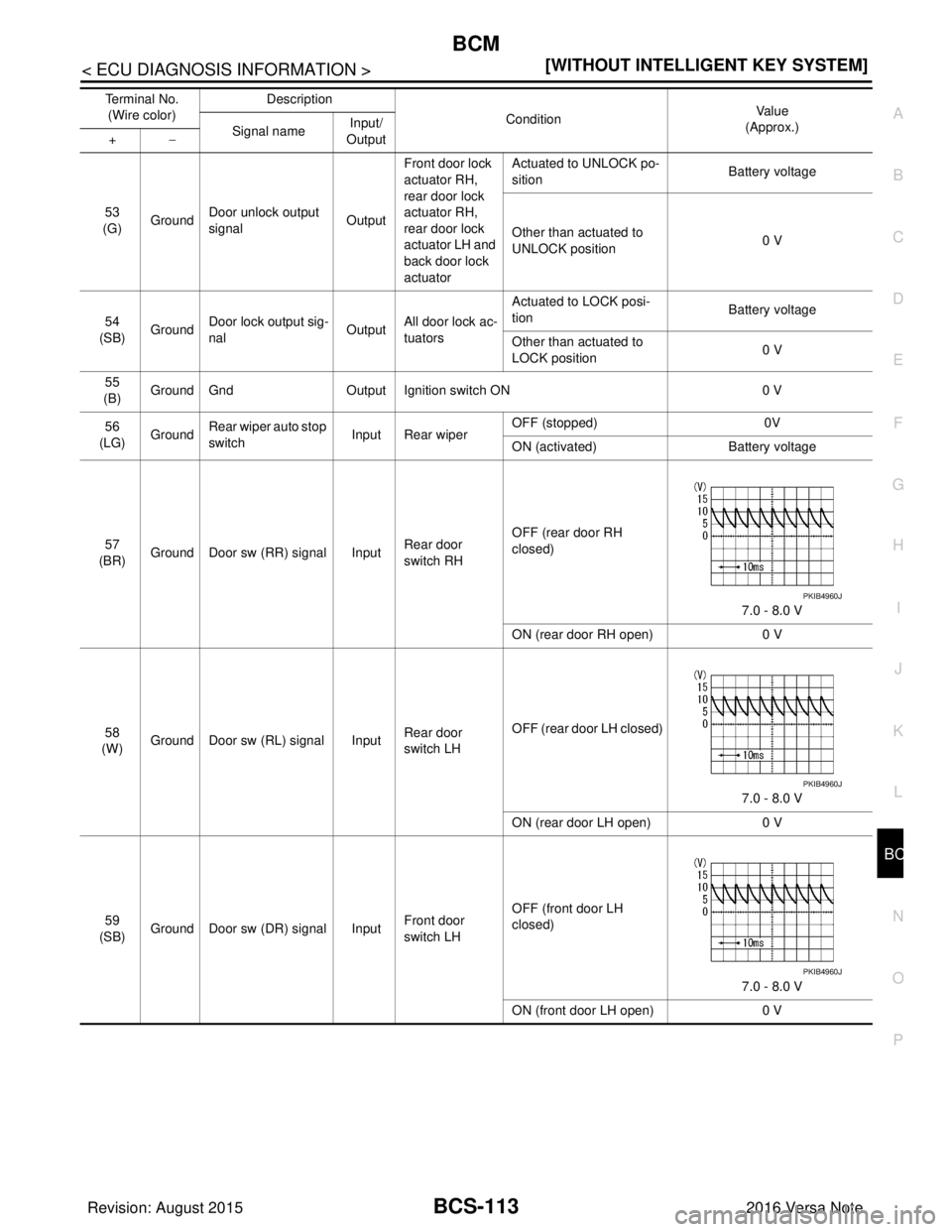

BCS-113
< ECU DIAGNOSIS INFORMATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
53
(G) Ground Door unlock output
signal
OutputFront door lock
actuator RH,
rear door lock
actuator RH,
rear door lock
actuator LH and
back door lock
actuator Actuated to UNLOCK po-
sition
Battery voltage
Other than actuated to
UNLOCK position 0 V
54
(SB) Ground Door lock output sig-
nal
OutputAll door lock ac-
tuators Actuated to LOCK posi-
tion
Battery voltage
Other than actuated to
LOCK position 0 V
55
(B) Ground Gnd
Output Ignition switch ON 0 V
56
(LG) Ground Rear wiper auto stop
switch Input Rear wiper OFF (stopped)
0V
ON (activated) Battery voltage
57
(BR) Ground Door sw (RR) signal Input Rear door
switch RHOFF (rear door RH
closed)
7.0 - 8.0 V
ON (rear door RH open) 0 V
58
(W) Ground Door sw (RL) signal Input Rear door
switch LHOFF (rear door LH closed)
7.0 - 8.0 V
ON (rear door LH open) 0 V
59
(SB) Ground Door sw (DR) signal Input Front door
switch LHOFF (front door LH
closed)
7.0 - 8.0 V
ON (front door LH open) 0 V
Terminal No.
(Wire color) Description
Condition Va l u e
(Approx.)
Signal name Input/
Output
+ −
PKIB4960J
PKIB4960J
PKIB4960J
Revision: August 2015 2016 Versa Note

cardiagn.com

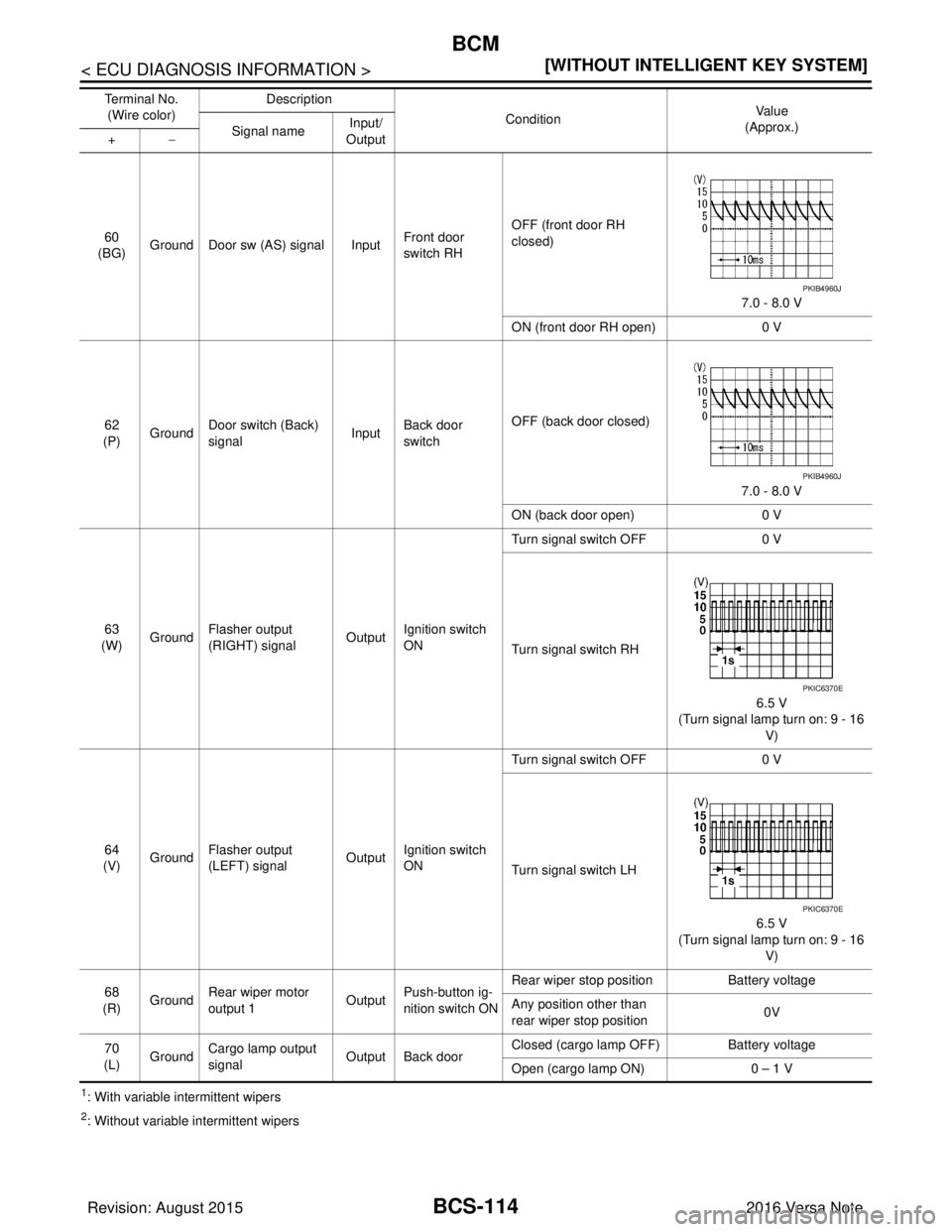

BCS-114
< ECU DIAGNOSIS INFORMATION >[WITHOUT INTELLIGENT KEY SYSTEM]
BCM
1: With variable intermittent wipers
2: Without variable intermittent wipers60
(BG) Ground Door sw (AS) signal Input Front door
switch RHOFF (front door RH
closed)
7.0 - 8.0 V
ON (front door RH open) 0 V
62
(P) Ground Door switch (Back)
signal InputBack door
switch OFF (back door closed)
7.0 - 8.0 V
ON (back door open) 0 V
63
(W) Ground Flasher output
(RIGHT) signal
OutputIgnition switch
ON Turn signal switch OFF
0 V
Turn signal switch RH 6.5 V
(Turn signal lamp turn on: 9 - 16
V)
64
(V) Ground
Flasher output
(LEFT) signal Output
Ignition switch
ON Turn signal switch OFF
0 V
Turn signal switch LH 6.5 V
(Turn signal lamp turn on: 9 - 16 V)
68
(R) Ground Rear wiper motor
output 1
OutputPush-button ig-
nition switch ON Rear wiper stop position
Battery voltage
Any position other than
rear wiper stop position 0V
70
(L) Ground
Cargo lamp output
signal Output Back door Closed (cargo lamp OFF)
Battery voltage
Open (cargo lamp ON) 0 – 1 V
Te r m i n a l N o .
(Wire color) Description
Condition Va l u e
(Approx.)
Signal name Input/
Output
+ −
PKIB4960J
PKIB4960J
PKIC6370E
PKIC6370E
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS
BCM
BCS-115
< ECU DIAGNOSIS INFORMATION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
Fail-safeINFOID:0000000012432390
FAIL-SAFE CONTROL BY DTC
BCM performs fail-safe control when any DTC are detected.
FAIL-SAFE CONTROL OF COMBINATION SWIT
CH READING FUNCTION CAUSED BY LOW
POWER SUPPLY VOLTAGE
If voltage of battery power supply lower, BCM maintains combination switch reading to the status when input
voltage is less than approximately 9 V.
NOTE:
When voltage of battery power supply is approximately 9 V or more, combination switch reading function
returns to normal operation.
DTC Inspection Priority ChartINFOID:0000000012432391
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
DTC IndexINFOID:0000000012432392
NOTE: Details of time display
• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni- tion switch OFF → ON again.
• 1 - 39: Displayed if any previous ma lfunction is present when current conditi on is normal. It increases like 1
→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter
remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF → ON after returning to the normal condi tion if the malfunction is detected again.
Display contents of CONSULT Fail-safe Cancellation
B2190: NATS ANTENNA AMP Inhibit engine cranking Erase DTC
B2191: DIFFERENCE OF KEY Inhibit engine cranking Erase DTC
B2192: ID DISCORD BCM-ECM Inhibit engine cranking Erase DTC
B2193: CHAIN OF BCM-ECM Inhibit engine cranking Erase DTC
B2195: ANTI SCANNING Inhibit engine cranking Ignition switch ON → OFF
B2196: DONGLE NG Inhibit engine cranking Erase DTC
Priority DTC
1 • U1000: CAN COMM
• U1010: CONTROL UNIT (CAN)
2 • B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
• B2195: ANTI SCANNING
• B2196: DONGLE NG
3 • C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1716: [PRESS DATA ERR] FL
• C1717: [PRESS DATA ERR] FR
• C1718: [PRESS DATA ERR] RR
• C1719: [PRESS DATA ERR] RL
• C1729: VHCL SPEED SIG ERR
Revision: August 2015
2016 Versa Note

cardiagn.com

BCS-116
< ECU DIAGNOSIS INFORMATION >[WITHOUT INTELLIGENT KEY SYSTEM]
BCM
CONSULT display
Fail-safeTire pressure monitor
warning lamp ON Reference
U1000: CAN COMM ——BCS-127
U1010: CONTROL UNIT (CAN) ——BCS-128
B2190: NATS ANTENNA AMP ×—SEC-144
B2191: DIFFERENCE OF KEY ×—SEC-147
B2192: ID DISCORD BCM-ECM ×—SEC-148
B2193: CHAIN OF BCM-ECM ×—SEC-150
B2195: ANTI SCANNING ×—SEC-151
B2196: DONGLE NG ×—SEC-152
C1704: LOW PRESSURE FL —×
WT-25
C1705: LOW PRESSURE FR —×
C1706: LOW PRESSURE RR —×
C1707: LOW PRESSURE RL —×
C1708: [NO DATA] FL —×
WT-27
C1709: [NO DATA] FR —×
C1710: [NO DATA] RR —×
C1711: [NO DATA] RL —×
C1716: [PRESS DATA ERR] FL —×
WT-30
C1717: [PRESS DATA ERR] FR —×
C1718: [PRESS DATA ERR] RR —×
C1719: [PRESS DATA ERR] RL —×
C1729: VHCL SPEED SIG ERR —×WT-32
Revision: August 2015 2016 Versa Note

cardiagn.com

BCS
BCM
BCS-117
< WIRING DIAGRAM > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
WIRING DIAGRAM
BCM

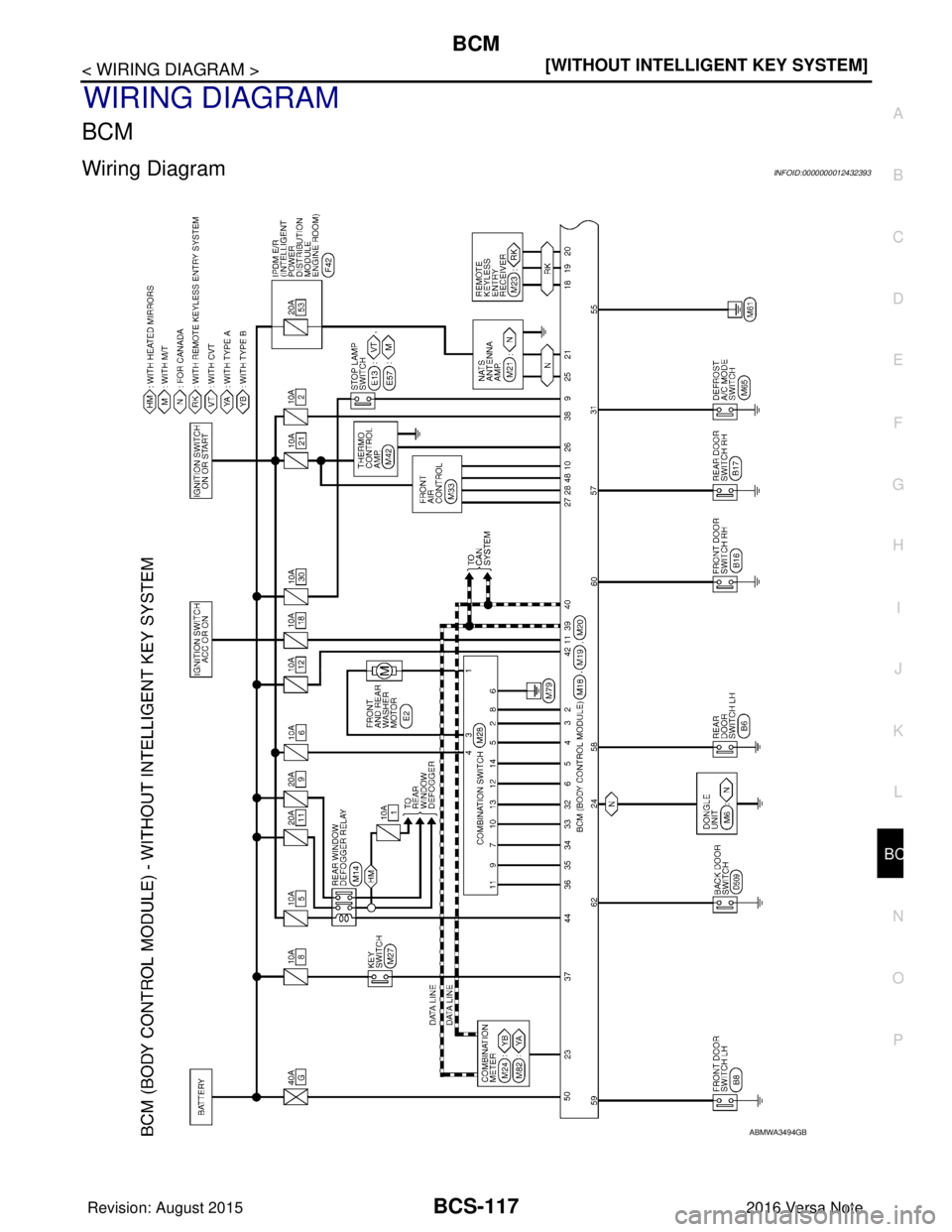

Wiring DiagramINFOID:0000000012432393
ABMWA3494GB
Revision: August 2015
2016 Versa Note

cardiagn.com

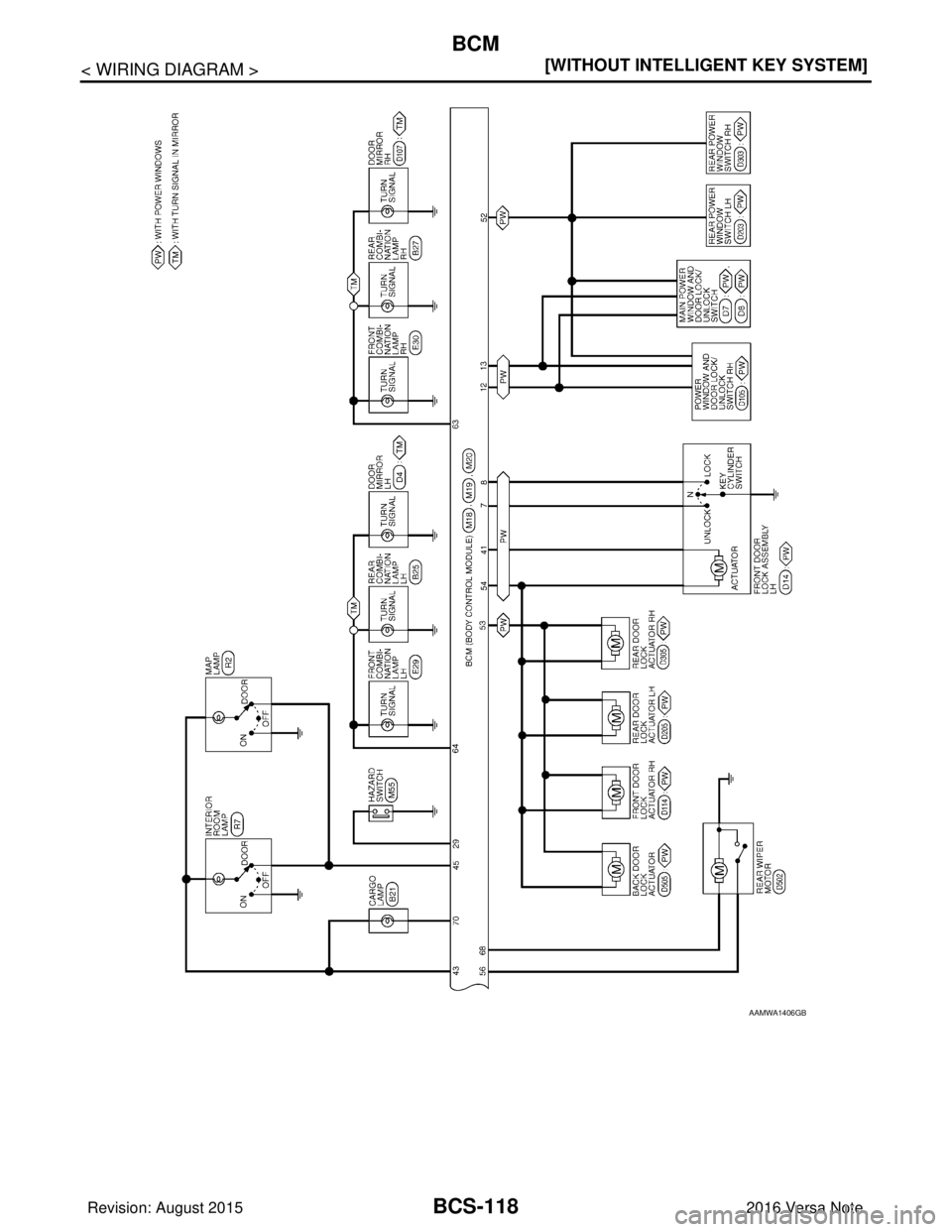

BCS-118
< WIRING DIAGRAM >[WITHOUT INTELLIGENT KEY SYSTEM]
BCM
AAMWA1406GB
Revision: August 2015
2016 Versa Note

cardiagn.com

BCS
BCM
BCS-119
< WIRING DIAGRAM > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N

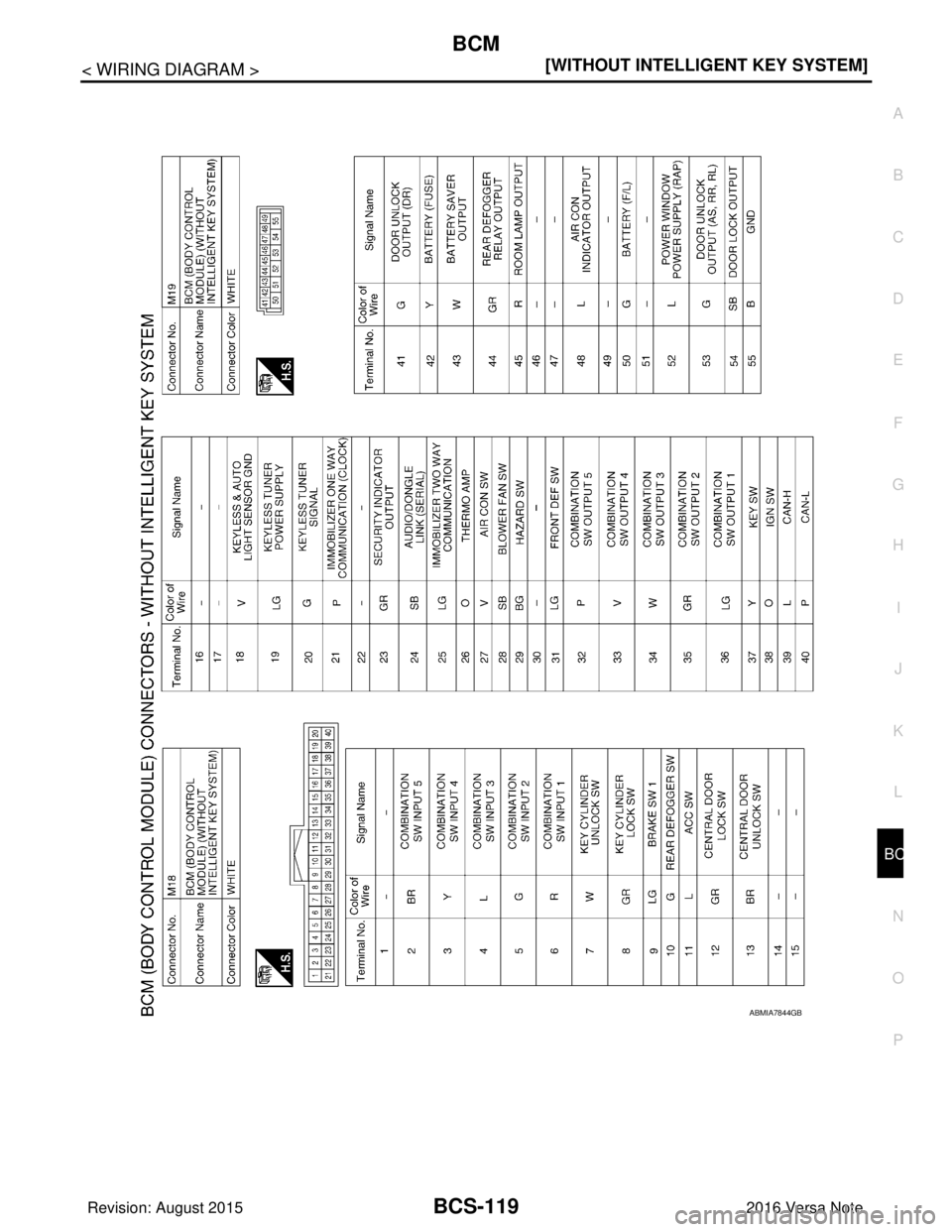

ABMIA7844GB
Revision: August 2015
2016 Versa Note

cardiagn.com
