BCS-70
< DTC/CIRCUIT DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
COMBINATION SWITCH OUTPUT CIRCUIT
COMBINATION SWITCH OUTPUT CIRCUIT
Diagnosis ProcedureINFOID:0000000012432355
Regarding Wiring Diagram information, refer to
BCS-52, "Wiring Diagram".
1.CHECK OUTPUT 1 - 5 CIRCUIT FOR OPEN
1. Turn ignition switch OFF.
2. Disconnect BCM and combination switch connectors.
3. Check continuity between BCM connector and combination switch connector.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair harness or connectors.
2.CHECK OUTPUT 1 - 5 CIRCUIT FOR SHORT
Check for continuity between BCM connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair harness or connectors.
3.CHECK BCM INPUT SIGNAL
1. Connect BCM and combination switch connectors.
2. Turn ON any switch in the system that is malfunctioning.
3. Check voltage between BCM connector and ground.
Combination switch signal BCM
Combination switch
Continuity
Connector TerminalConnector Terminal
OUTPUT 1
M976
M28 12
Ye s
OUTPUT 2
514
OUTPUT 3 45
OUTPUT 4 32
OUTPUT 5 28
Combination switch
signal BCM
GroundContinuity
Connector Terminal
OUTPUT 1
M976
No
OUTPUT 2
5
OUTPUT 3 4
OUTPUT 4 3
OUTPUT 5 2
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 332 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS
COMBINATION SWITCH OUTPUT CIRCUITBCS-71
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
Is the inspection result normal?
Yes >> Replace BCM. Refer to
BCS-74, NISSAN NOTE 2016 Service Repair Manual BCS
COMBINATION SWITCH OUTPUT CIRCUITBCS-71
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
Is the inspection result normal?
Yes >> Replace BCM. Refer to
BCS-74,](/img/5/57363/w960_57363-331.png)
BCS
COMBINATION SWITCH OUTPUT CIRCUITBCS-71
< DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
Is the inspection result normal?
Yes >> Replace BCM. Refer to
BCS-74, "Removal and Installation".
No >> Replace combination switch. Refer to BCS-75, "
Removal and Installation".
BCM signal Te r m i n a l s
Voltag e
(+)
(− )
BCM
Ground
Connector
Terminal
INPUT 1
M976
Refer to BCS-30, "
Refer-
ence Value".
INPUT 2
5
INPUT 3 4
INPUT 4 3
INPUT 5 2
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 333 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS-72
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
COMBINATION SWITCH SYSTEM SYMPTOMS
SYMPTOM DIAGNOSIS
COMBINATION SWITCH SYSTEM SYMPTOMS
Symptom TableINFOID:0000000012432356
1. Perform the da NISSAN NOTE 2016 Service Repair Manual BCS-72
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
COMBINATION SWITCH SYSTEM SYMPTOMS
SYMPTOM DIAGNOSIS
COMBINATION SWITCH SYSTEM SYMPTOMS
Symptom TableINFOID:0000000012432356
1. Perform the da](/img/5/57363/w960_57363-332.png)
BCS-72
< SYMPTOM DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
COMBINATION SWITCH SYSTEM SYMPTOMS
SYMPTOM DIAGNOSIS
COMBINATION SWITCH SYSTEM SYMPTOMS
Symptom TableINFOID:0000000012432356
1. Perform the data monitor of CONSULT
to check for any malfunctioning item.
2. Check the malfunction combinations.
Malfunction item: ×
3. Identify the malfunctioning part from the agreed combination and repair or replace the part.
Malfunction combination Data monitor item
FR WIPER HI
FR WIPER LOW
FR WASHER SW FR WIPER INTINT VOLUME
RR WIPER ON
RR WIPER INT
RR WASHER SW TURN SIGNAL RTURN SIGNAL L TAIL LAMP SW HI BEAM SW
HEAD LAMP SW 1
HEAD LAMP SW 2 PASSING SWFR FOG SW
A ×× ××
B ×× ××
C ×× ××
D ×××
E ×× ×
F ×× ×
G ××××
H ××
I ××××
J × ×××
K All Items
L If only one item is detected or the item is not applicable to the combinations A to K
Malfunction
combination Malfunctioning part
Repair or replace
A Combination switch INPUT 1 circuit
Inspect the combination switch input circuit applicable to the malfunctioning
part. Refer to BCS-68, "
Diagnosis Procedure".
B Combination switch INPUT 2 circuit
C Combination switch INPUT 3 circuit
D Combination switch INPUT 4 circuit E Combination switch INPUT 5 circuitF Combination switch OUTPUT 1 circuit
Inspect the combination switch output circuit applicable to the malfunction-
ing part. Refer to BCS-70, "
Diagnosis Procedure".
G Combination switch OUTPUT 2 circuit
H Combination switch OUTPUT 3 circuit I Combination switch OUTPUT 4 circuit
J Combination switch OUTPUT 5 circuit
K BCM Replace BCM. Refer to BCS-74, "
Removal and Installation".
L Combination switch Replace the combination switch. Refer to
BCS-75, "
Removal and Installa-
tion".
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 334 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS
NORMAL OPERATING CONDITIONBCS-73
< SYMPTOM DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
NORMAL OPERATING CONDITION
DescriptionINFOID:0000000012432357
SHIPPING MODE
• S NISSAN NOTE 2016 Service Repair Manual BCS
NORMAL OPERATING CONDITIONBCS-73
< SYMPTOM DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
NORMAL OPERATING CONDITION
DescriptionINFOID:0000000012432357
SHIPPING MODE
• S](/img/5/57363/w960_57363-333.png)
BCS
NORMAL OPERATING CONDITIONBCS-73
< SYMPTOM DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
NORMAL OPERATING CONDITION
DescriptionINFOID:0000000012432357
SHIPPING MODE
• Shipping mode inhibits battery power consumption during transportation or storage of the vehicle. Vehicle is
set to shipping mode before being shipped from the factory.
• When ignition switch is OFF, BCM operates shipping mode.
• BCM control function is limited in shipping mode. Re mote keyless entry function does not operate in ship-
ping mode.
• For shipping mode cancel operation, refer to BCS-61, "
Work Procedure".
NOTE:
Do not cancel shipping mode during storage of the v ehicle. Shipping mode should not be canceled until just
prior to customer delivery.
TRANSIT MODE
• BCM is in transit mode if turn signal indicators in combination meter illuminate for 1 minute when ignition
switch is turned from OFF to ON.
• In this case, cancel operation must be performed.
• For transit mode cancel operation, refer to BCS-62, "
Work Procedure".
NOTE:
Do not cancel transit mode during storage of the vehicl e. Transit mode should not be canceled until just prior
to customer delivery.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 335 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS-74
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
BCM (BODY CONTROL MODULE)
REMOVAL AND INSTALLATION
BCM (BODY CONTROL MODULE)
Removal and InstallationINFOID:0000000012432358
REMOVAL
CA NISSAN NOTE 2016 Service Repair Manual BCS-74
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
BCM (BODY CONTROL MODULE)
REMOVAL AND INSTALLATION
BCM (BODY CONTROL MODULE)
Removal and InstallationINFOID:0000000012432358
REMOVAL
CA](/img/5/57363/w960_57363-334.png)
BCS-74
< REMOVAL AND INSTALLATION >[WITH INTELLIGENT KEY SYSTEM]
BCM (BODY CONTROL MODULE)
REMOVAL AND INSTALLATION
BCM (BODY CONTROL MODULE)
Removal and InstallationINFOID:0000000012432358
REMOVAL
CAUTION:
Before replacing BCM, perform “READ CONFIGURATI
ON” to save or print current vehicle specifica-
tion. Refer to BCS-59, "
Description".
1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
2. Remove instrument lower panel LH. Refer to IP-24, "
Removal and Installation".
3. Remove screws (A) and remove the BCM (1) from the steering member and position aside.
: Front
4. Disconnect the harness connectors from the BCM.
5. Remove relays from relay bracket.
6. Remove relay bracket from BCM to transfer to new BCM.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• Perform “CONFIGURATION (BCM)” when replacing BCM. Refer to BCS-59, "
Description".
• Make sure to perform the system initialization (NATS) (if equipped) when replacing BCM. Refer to
BCS-58, "
Description".
• When replacing BCM, if new BCM does not come wi th keyfobs attached, all existing keyfobs must be
re-registered.
• For initialization and registration of Intelligent Key, refer to CONSULT Immobilizer mode and fol- lowthe on-screen instructions.

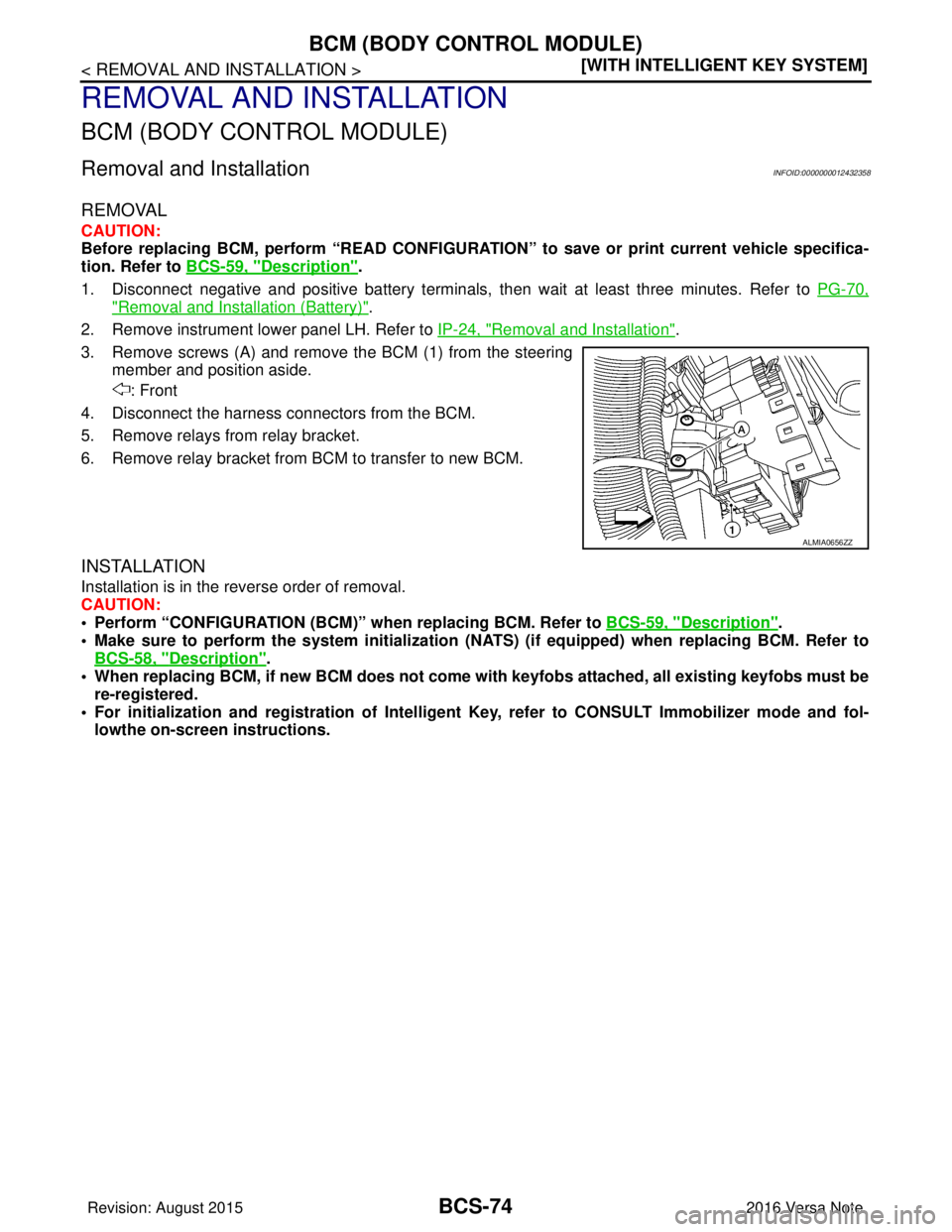

ALMIA0656ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 336 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS
COMBINATION SWITCHBCS-75
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
COMBINATION SWITCH
Removal and InstallationINFOID:0000000012432359
CAUTION:
• Be NISSAN NOTE 2016 Service Repair Manual BCS
COMBINATION SWITCHBCS-75
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
COMBINATION SWITCH
Removal and InstallationINFOID:0000000012432359
CAUTION:
• Be](/img/5/57363/w960_57363-335.png)
BCS
COMBINATION SWITCHBCS-75
< REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
COMBINATION SWITCH
Removal and InstallationINFOID:0000000012432359
CAUTION:
• Before servicing, turn the ignition
switch OFF, disconnect both battery terminals and wait at least
three minutes.
• Do not use air or electric tools when remo ving or installing the combination switch.
REMOVAL
1. Disconnect the negative and positive bat tery terminals, then wait at least three minutes. Refer to PG-70,
"Removal and Installation (Battery)".
2. Remove the steering column covers. Refer to IP-17, "
Removal and Installation".
3. Rotate steering wheel clockwise to access first combination switch screw (A) and remove.
4. Rotate steering wheel counter-clockwise to access second com- bination switch screw (A) and remove.
5. Disconnect the harness connector (B) from the combination switch (1) and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• After the work is completed, make sure no system malfunction is detected by air bag warning lamp.
• In case a malfunction is detected by the air bag wa rning lamp, reset with the self-diagnosis function
and delete the memory with CONSULT.
• If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunc-
tions. Refer to BCS-58, "
Description".

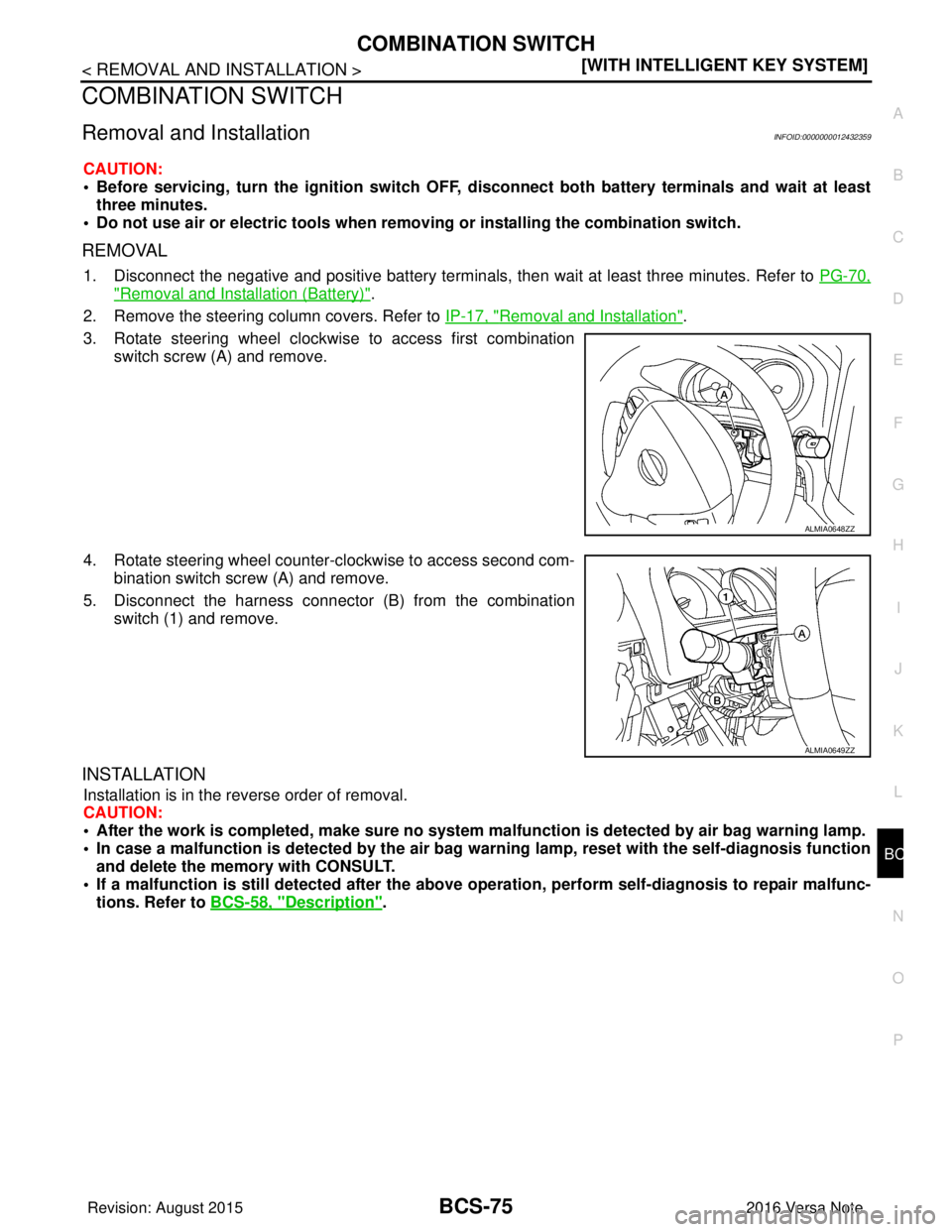

ALMIA0648ZZ
ALMIA0649ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 337 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS-76
< PRECAUTION >[WITHOUT INTELLIGENT KEY SYSTEM]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint Syst
em (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:00000000124 NISSAN NOTE 2016 Service Repair Manual BCS-76
< PRECAUTION >[WITHOUT INTELLIGENT KEY SYSTEM]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint Syst
em (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:00000000124](/img/5/57363/w960_57363-336.png)
BCS-76
< PRECAUTION >[WITHOUT INTELLIGENT KEY SYSTEM]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint Syst
em (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012432360
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 338 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS
COMPONENT PARTSBCS-77
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SYSTEM DESCRIPTION
COMPONENT PARTS
BODY CONTROL SYSTEM
BODY CONTROL SYSTEM :
Component NISSAN NOTE 2016 Service Repair Manual BCS
COMPONENT PARTSBCS-77
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SYSTEM DESCRIPTION
COMPONENT PARTS
BODY CONTROL SYSTEM
BODY CONTROL SYSTEM :
Component](/img/5/57363/w960_57363-337.png)
BCS
COMPONENT PARTSBCS-77
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
SYSTEM DESCRIPTION
COMPONENT PARTS
BODY CONTROL SYSTEM
BODY CONTROL SYSTEM :

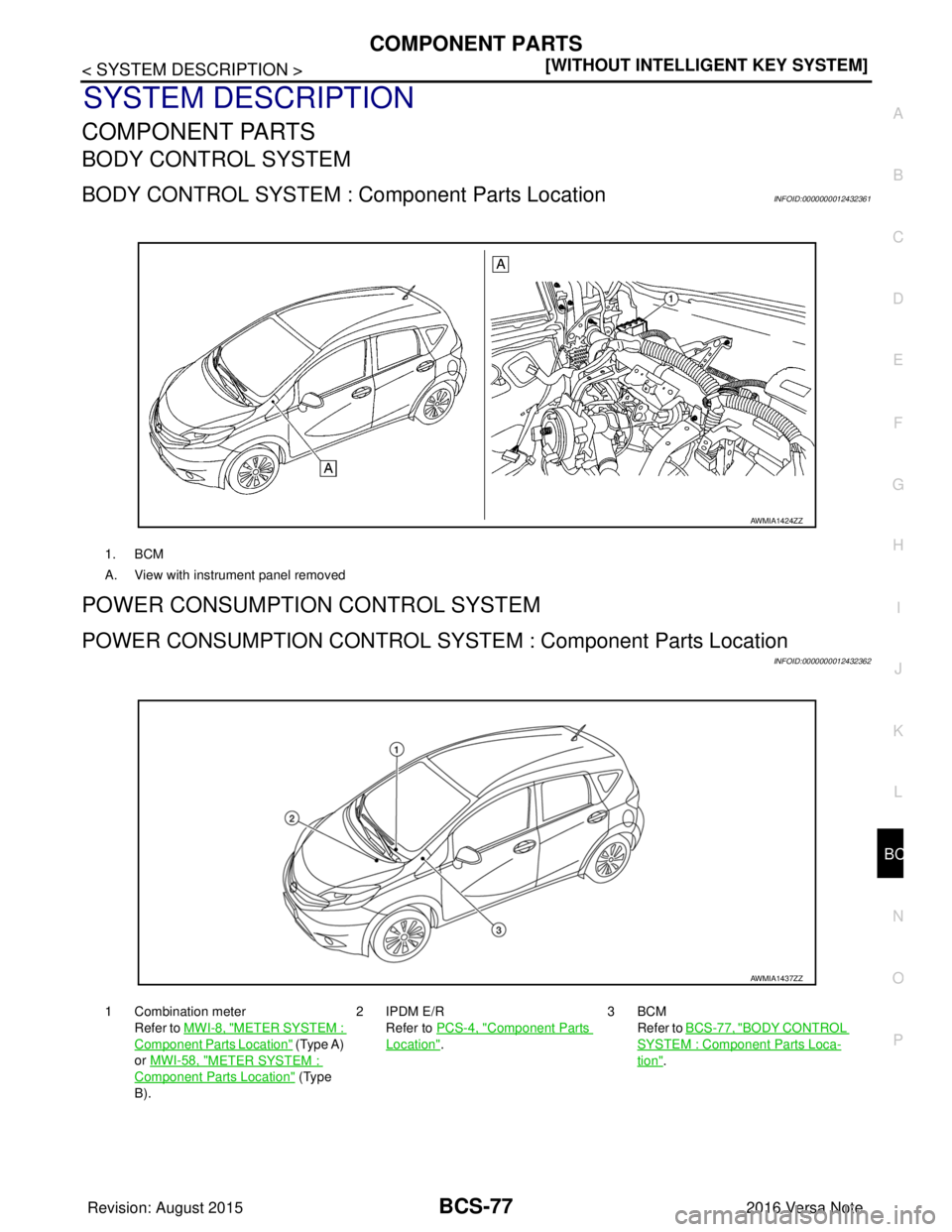

Component Parts LocationINFOID:0000000012432361
POWER CONSUMPTION CONTROL SYSTEM
POWER CONSUMPTION CONTROL SYSTEM : Component Parts Location
INFOID:0000000012432362
1. BCM
A. View with instrument panel removed
AWMIA1424ZZ
1 Combination meter
Refer to MWI-8, "
METER SYSTEM :
Component Parts Location" (Type A)
or MWI-58, "
METER SYSTEM :
Component Parts Location" (Type
B). 2IPDM E/R
Refer to PCS-4, "
Component Parts
Location". 3BCM
Refer to BCS-77, "
BODY CONTROL
SYSTEM : Compon ent Parts Loca-
tion".
AWMIA1437ZZ
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 339 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS-78
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
SYSTEM
BODY CONTROL SYSTEM
BODY CONTROL SYSTEM : System DescriptionINFOID:0000000012432363
OUTLINE
• BCM (Body Control Module) co NISSAN NOTE 2016 Service Repair Manual BCS-78
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
SYSTEM
BODY CONTROL SYSTEM
BODY CONTROL SYSTEM : System DescriptionINFOID:0000000012432363
OUTLINE
• BCM (Body Control Module) co](/img/5/57363/w960_57363-338.png)
BCS-78
< SYSTEM DESCRIPTION >[WITHOUT INTELLIGENT KEY SYSTEM]
SYSTEM
SYSTEM
BODY CONTROL SYSTEM
BODY CONTROL SYSTEM : System DescriptionINFOID:0000000012432363
OUTLINE
• BCM (Body Control Module) controls the various elec
trical components. It inputs the information required to
the control from CAN communication and the signal received from each switch and sensor.
• BCM has combination switch reading function for reading the operation status of combination switches (light,
turn signal, wiper and washer) in addition to a function for controlling the operation of various electrical com-
ponents. It also has the signal transmission function as the passed point of signal and the power saving con-
trol function that reduces the power c onsumption with the ignition switch OFF.
• BCM is equipped with the diagnosis function that performs the diagnosis with CONSULT and various set- tings.
BCM CONTROL FUNCTION LIST
System Reference
Combination switch reading system BCS-79, "
COMBINATION SWITCH READING SYSTEM :
System Description"
Signal buffer system
BCS-85, "SIGNAL BUFFER : System Description"
Power consumption control systemBCS-85, "POWER CONSUMPTION CONTROL SYSTEM :
System Description"
Shipping mode control systemBCS-87, "SHIPPING MODE CONTROL SYSTEM : System
Description"
Transit mode control systemBCS-88, "TRANSIT MODE CONTROL SYSTEM : System
Description"
Headlamp system
EXL-8, "HEADLAMP SYSTEM : System Description"
Daytime running light system (if equipped)EXL-9, "DAYTIME RUNNING LIGHT SYSTEM : System De-
scription"
Turn signal and hazard warning lamp systemEXL-10, "TURN SIGNAL AND HAZARD WARNING LAMP
SYSTEM : System Description"
Parking, license plate and tail lamps systemEXL-11, "PARKING, LICENSE PLATE AND TAIL LAMP SYS-
TEM : System Description"
Front fog lamp system (if equipped)
EXL-10, "FRONT FOG LAMP SYSTEM : System Descrip-
tion"
Exterior lamp battery saver system
EXL-8, "HEADLAMP SYSTEM : System Description"
Interior room lamp control systemINL-7, "INTERIOR ROOM LAMP CONTROL SYSTEM : Sys-
tem Description"
Interior room lamp battery saver systemINL-7, "INTERIOR ROOM LAMP CONTROL SYSTEM : Sys-
tem Description"
Front wiper and washer system
WW-8, "FRONT WIPER AND WASHER SYSTEM : System
Description"
Rear wiper and washer systemWW-10, "REAR WIPER AND WASHER SYSTEM : System
Description"
Rear window defogger system
DEF-6, "System Description"
Manual air conditioning systemHAC-11, "System Description"
Warning chime systemWCS-7, "WARNING CHIME SYSTEM : System Description"
Power door lock systemDLK-198, "POWER DOOR LOCK SYSTEM : System De-
scription"
Nissan vehicle immobilizer system (NVIS)
SEC-123, "NISSAN VEHICLE IMMOBILIZER SYSTEM-
NATS : System Description"
Power window system
PWC-8, "System Description"
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 340 of 3641
![NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-79
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
BODY CONTROL SYSTEM : Fail-safeINFOID:0000000012432364
FAIL-SAFE CONTROL BY DTC
BCM performs fail NISSAN NOTE 2016 Service Repair Manual BCS
SYSTEMBCS-79
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
BODY CONTROL SYSTEM : Fail-safeINFOID:0000000012432364
FAIL-SAFE CONTROL BY DTC
BCM performs fail](/img/5/57363/w960_57363-339.png)
BCS
SYSTEMBCS-79
< SYSTEM DESCRIPTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
K L
B A
O P
N
BODY CONTROL SYSTEM : Fail-safeINFOID:0000000012432364
FAIL-SAFE CONTROL BY DTC
BCM performs fail-safe control when any DTC are detected.
FAIL-SAFE CONTROL OF COMBINATION SWIT
CH READING FUNCTION CAUSED BY LOW
POWER SUPPLY VOLTAGE
If voltage of battery power supply lower, BCM maintains combination switch reading to the status when input
voltage is less than approximately 9 V.
NOTE:
When voltage of battery power supply is approximately 9 V or more, combination switch reading function
returns to normal operation.
COMBINATION SWITCH READING SYSTEM
COMBINATION SWITCH READING SYSTEM : System DescriptionINFOID:0000000012432365

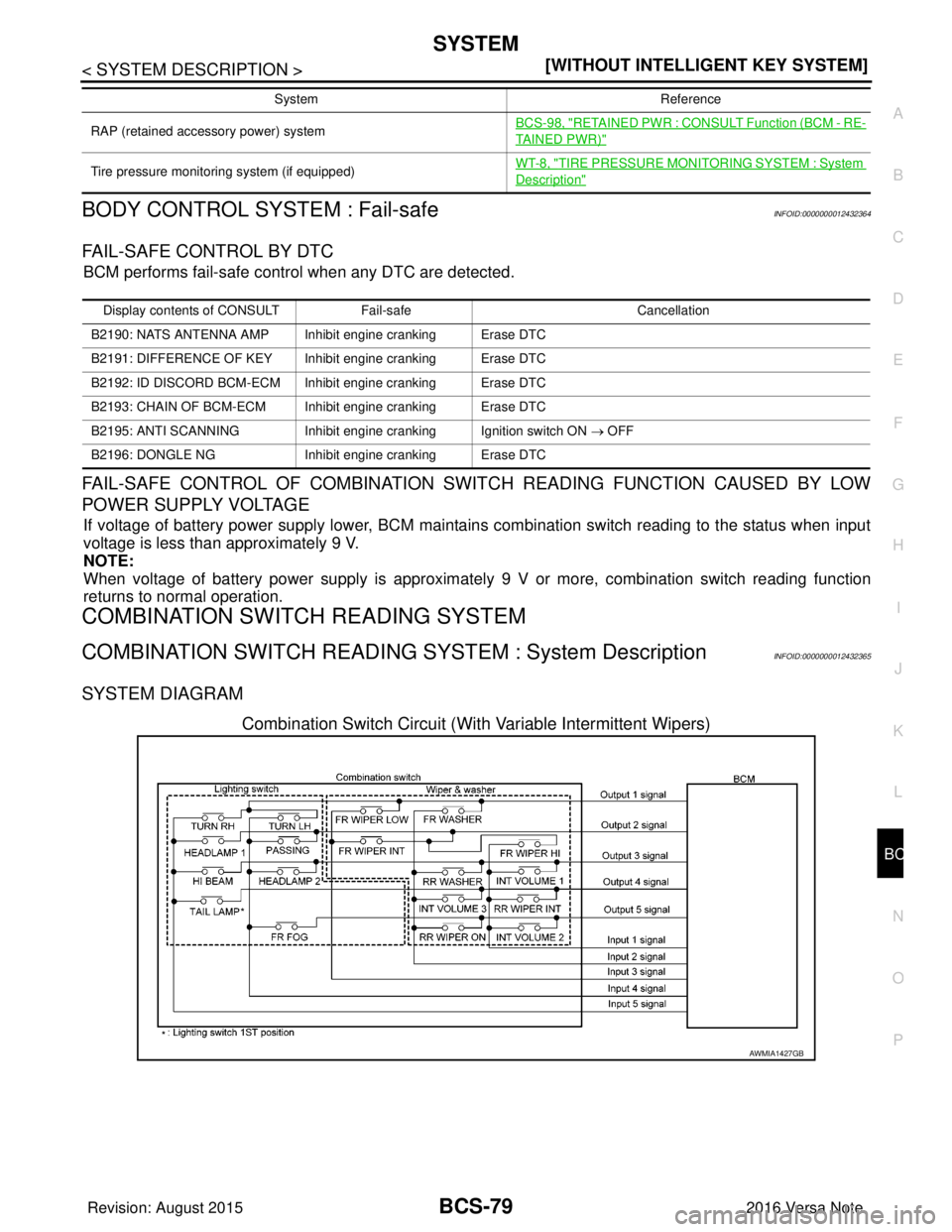

SYSTEM DIAGRAM
Combination Switch Circuit (With Variable Intermittent Wipers)
RAP (retained accessory power) system BCS-98, "RETAINED PWR : CONSULT Function (BCM - RE-
TAINED PWR)"
Tire pressure monitoring system (if equipped)WT-8, "TIRE PRESSURE MONITORING SYSTEM : System
Description"
System
Reference
Display contents of CONSULTFail-safe Cancellation
B2190: NATS ANTENNA AMP Inhibit engine cranking Erase DTC
B2191: DIFFERENCE OF KEY Inhibit engine cranking Erase DTC
B2192: ID DISCORD BCM-ECM Inhibit engine cranking Erase DTC
B2193: CHAIN OF BCM-ECM Inhibit engine cranking Erase DTC
B2195: ANTI SCANNING Inhibit engine cranking Ignition switch ON → OFF
B2196: DONGLE NG Inhibit engine cranking Erase DTC
AWMIA1427GB
Revision: August 2015 2016 Versa Note
cardiagn.com
