NISSAN NOTE 2016 Service Repair Manual

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)BRC-43
< ECU DIAGNOSIS INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
DTC IndexINFOID:0000000012430846
DTC Items (CONSULT screen terms) Reference
C1101 RR RH SENSOR-1
BRC-58, "
DTC Description"C1102RR LH SENSOR-1
C1103 FR RH SENSOR-1
C1104 FR LH SENSOR-1
C1105 RR RH SENSOR-2
BRC-63, "
DTC Description"C1106RR LH SENSOR-2
C1107 FR RH SENSOR-2
C1108 FR LH SENSOR-2
C1109 BATTERY VOLTAGE [ABNORMAL] BRC-70, "
DTC Description"
C1110CONTROLLER FAILURE BRC-72, "DTC Description"
C 1111P U M P M O T O R BRC-74, "DTC Description"
C1115ABS SENSOR [ABNORMAL SIGNAL] BRC-77, "DTC Description"
C1116STOP LAMP SW BRC-84, "DTC Description"
C1120FR LH IN ABS SOL BRC-88, "DTC Description"
C1121FR LH OUT ABS SOL BRC-90, "DTC Description"
C1122FR RH IN ABS SOL BRC-88, "DTC Description"
C1123FR RH OUT ABS SOL BRC-90, "DTC Description"
C1124RR LH IN ABS SOL BRC-88, "DTC Description"
C1125RR LH OUT ABS SOL BRC-90, "DTC Description"
C1126RR RH IN ABS SOL BRC-88, "DTC Description"
C1127RR RH OUT ABS SOL BRC-90, "DTC Description"
C1130ENGINE SIGNAL 1 BRC-92, "DTC Description"
C1140ACTUATOR RLY BRC-94, "DTC Description"
C1142PRESS SEN CIRCUIT BRC-96, "DTC Description"
C1143ST ANG SEN CIRCUIT BRC-99, "DTC Description"
C1144ST ANG SEN SIGNAL BRC-103, "DTC Description"
C1145YAW RATE SENSOR
BRC-105, "DTC Description"C1146SIDE G-SEN CIRCUIT
C1153 EMERGENCY BRAKE BRC-72, "
DTC Description"
C1154PNP POSI SIG BRC-106, "DTC Description"
C1155BR FLUID LEVEL LOW BRC-108, "DTC Description"
C1164CV 1
BRC-112, "DTC Description"C1165CV 2
C1166 SV 1
BRC-114, "
DTC Description"C1167SV 2
C1170 VARIANT CODING BRC-116, "
DTC Description"
U1000CAN COMM CIRCUIT BRC-117, "DTC Description"
U1002SYSTEM COMM (CAN) BRC-118, "DTC Description"
U1010CONTROL UNIT (CAN) BRC-120, "DTC Description"
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-44
< WIRING DIAGRAM >[VDC/TCS/ABS]
BRAKE CONTROL SYSTEM

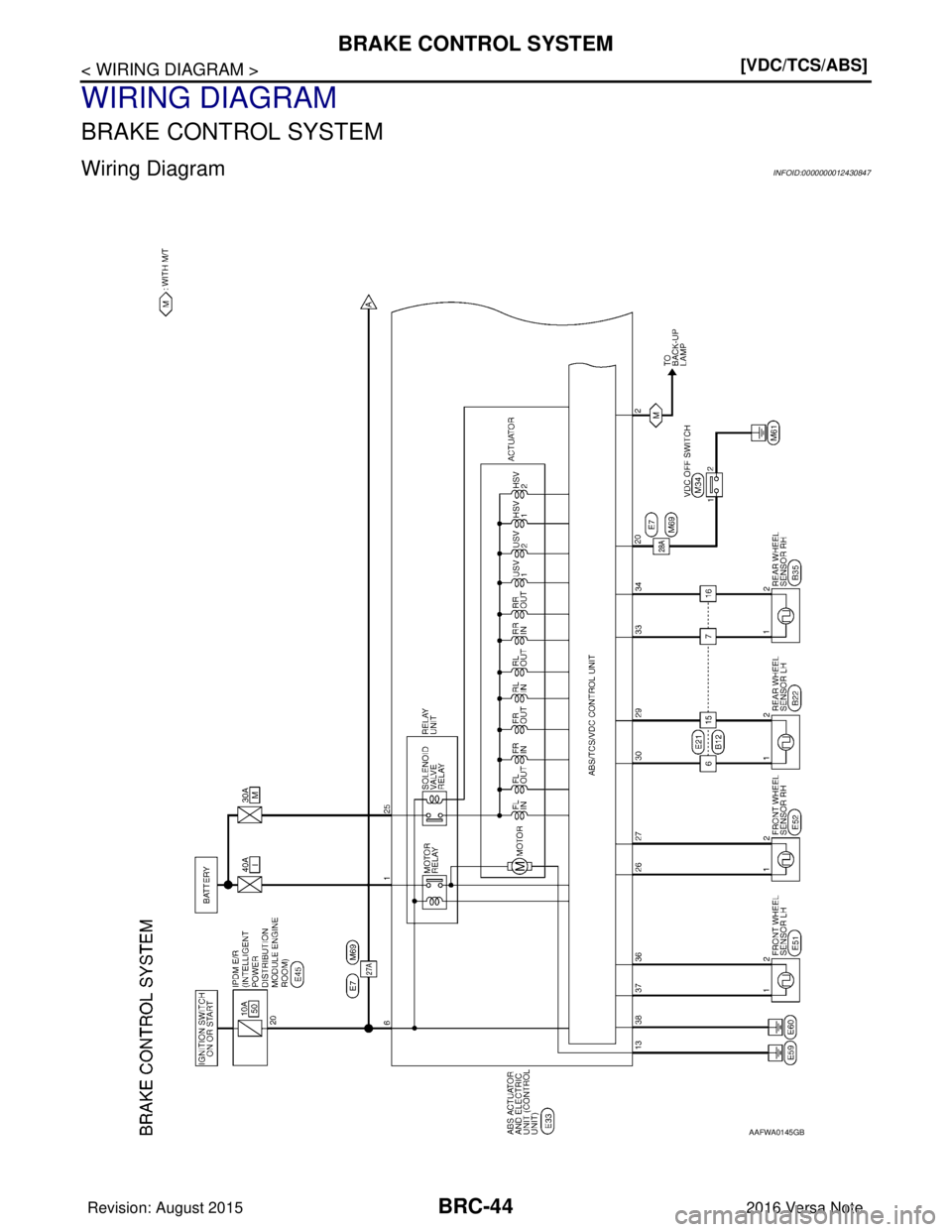

WIRING DIAGRAM
BRAKE CONTROL SYSTEM
Wiring DiagramINFOID:0000000012430847
AAFWA0145GB
Revision: August 2015
2016 Versa Note

cardiagn.com

BRAKE CONTROL SYSTEMBRC-45
< WIRING DIAGRAM > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ABFWA0503GB
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-46
< WIRING DIAGRAM >[VDC/TCS/ABS]
BRAKE CONTROL SYSTEM

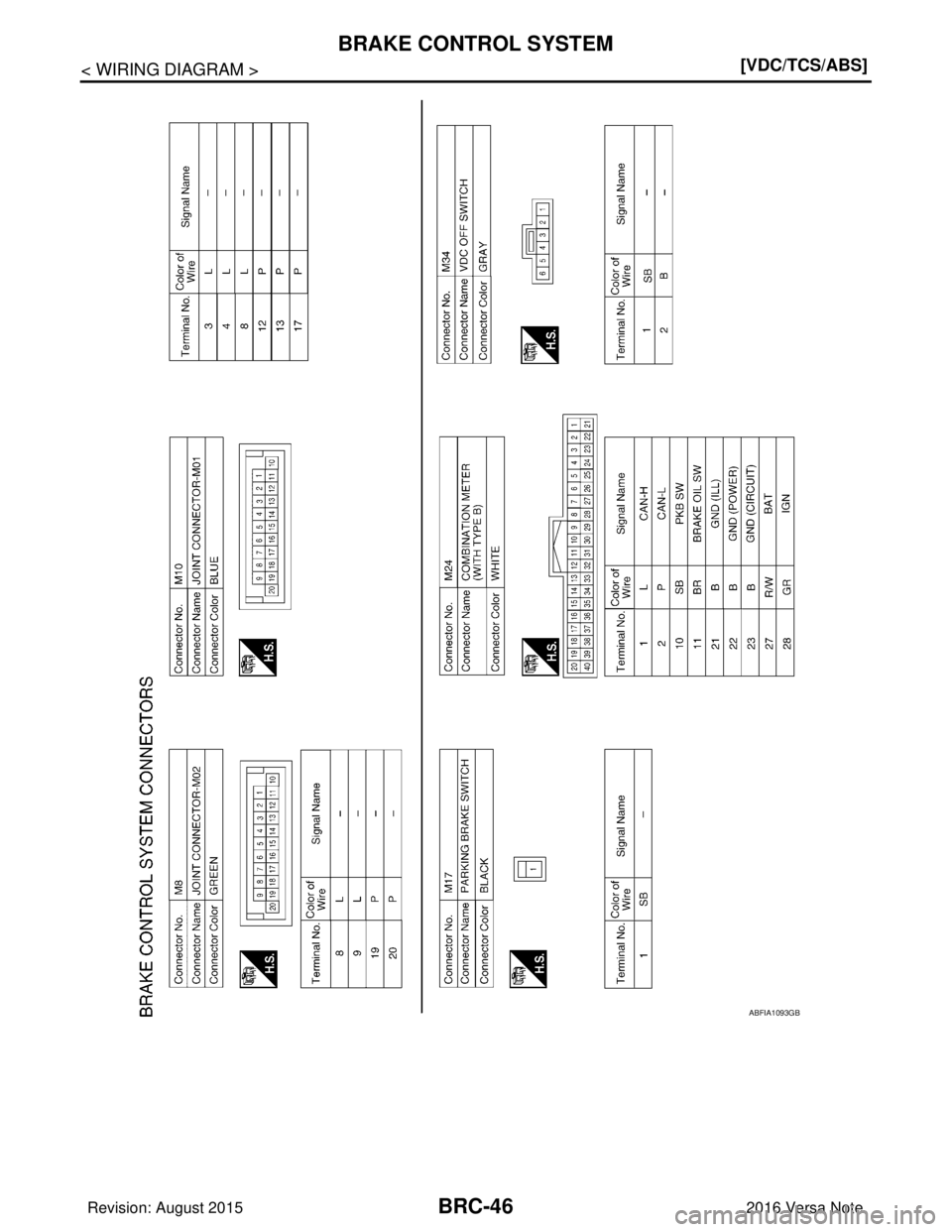

ABFIA1093GB
Revision: August 2015
2016 Versa Note

cardiagn.com

BRAKE CONTROL SYSTEMBRC-47
< WIRING DIAGRAM > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

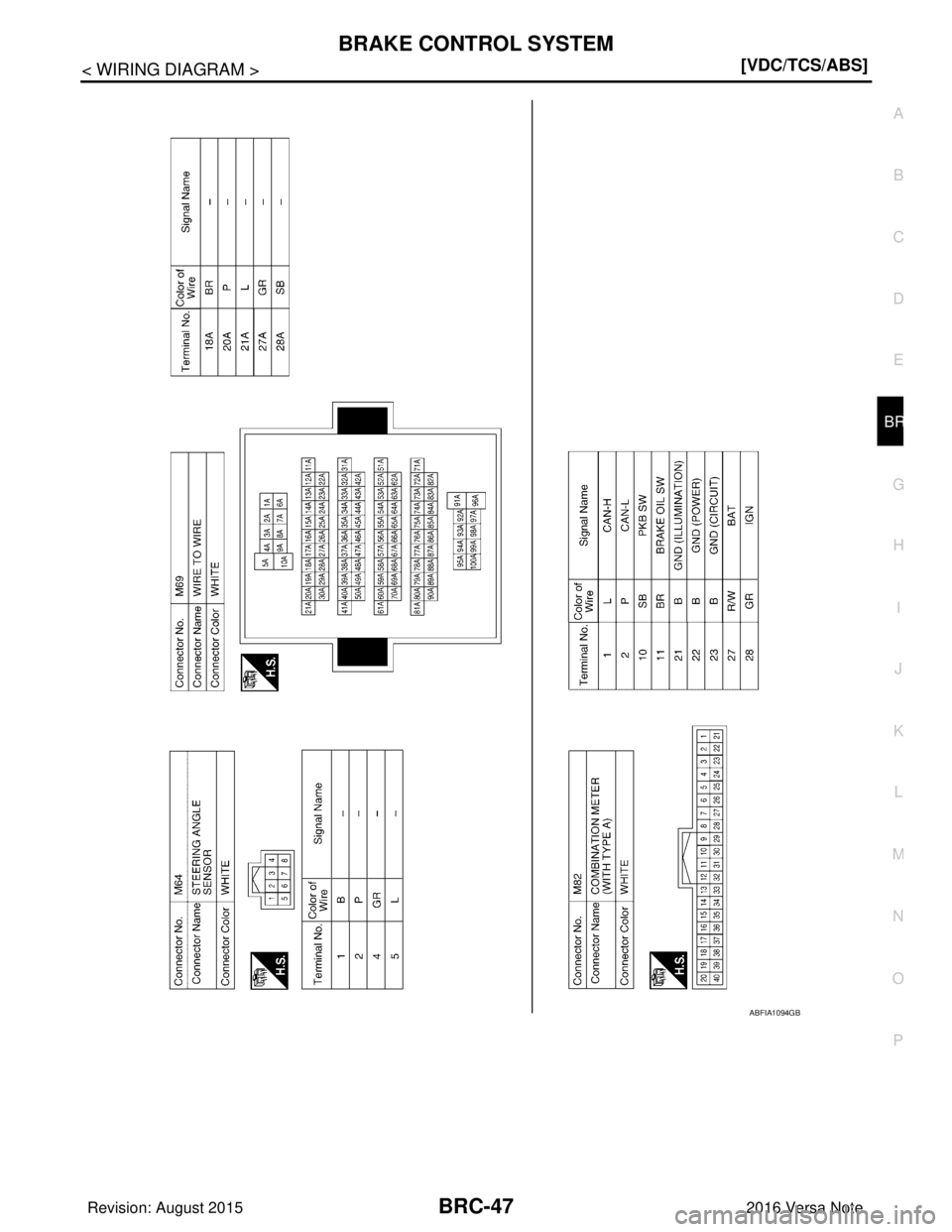

ABFIA1094GB
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-48
< WIRING DIAGRAM >[VDC/TCS/ABS]
BRAKE CONTROL SYSTEM

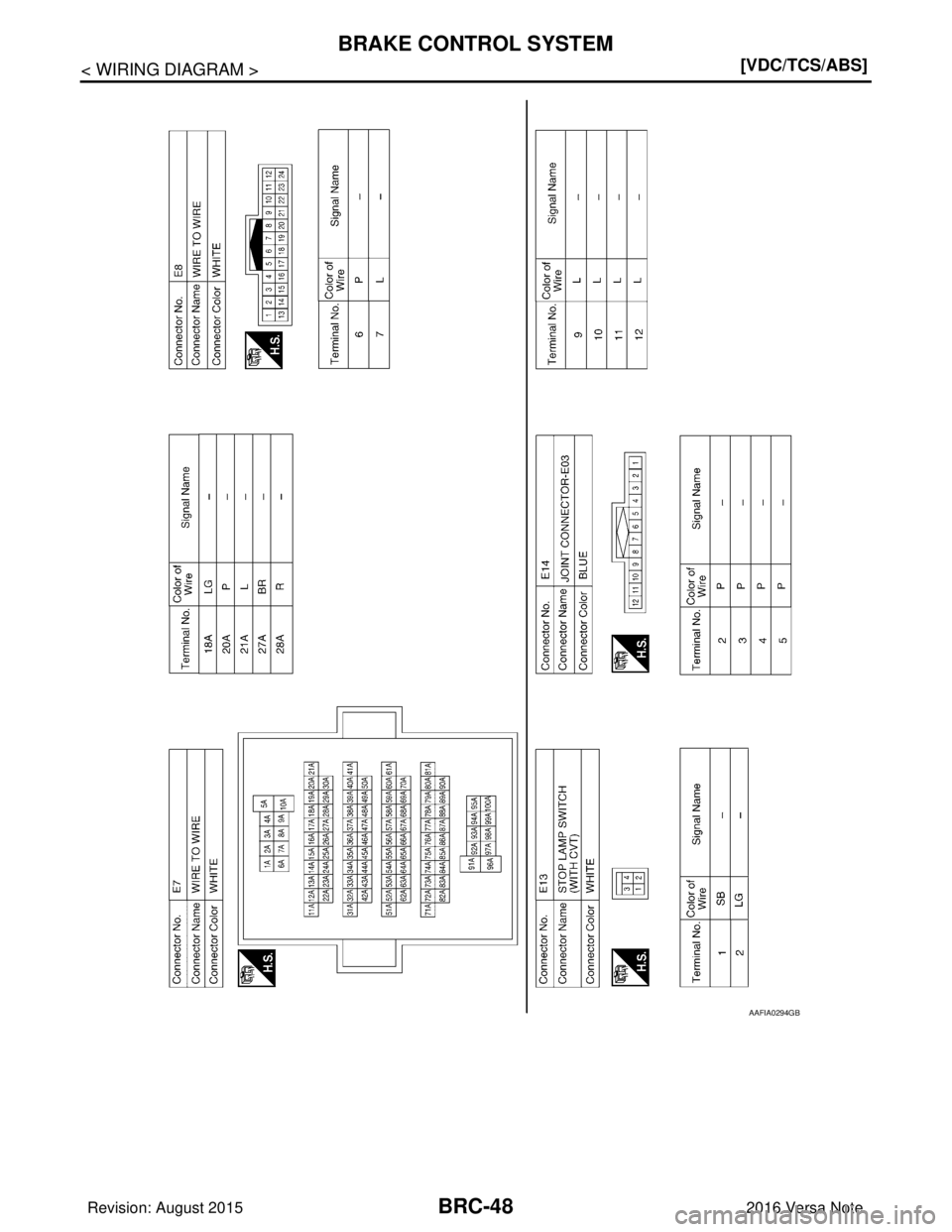

AAFIA0294GB
Revision: August 2015
2016 Versa Note

cardiagn.com

BRAKE CONTROL SYSTEMBRC-49
< WIRING DIAGRAM > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

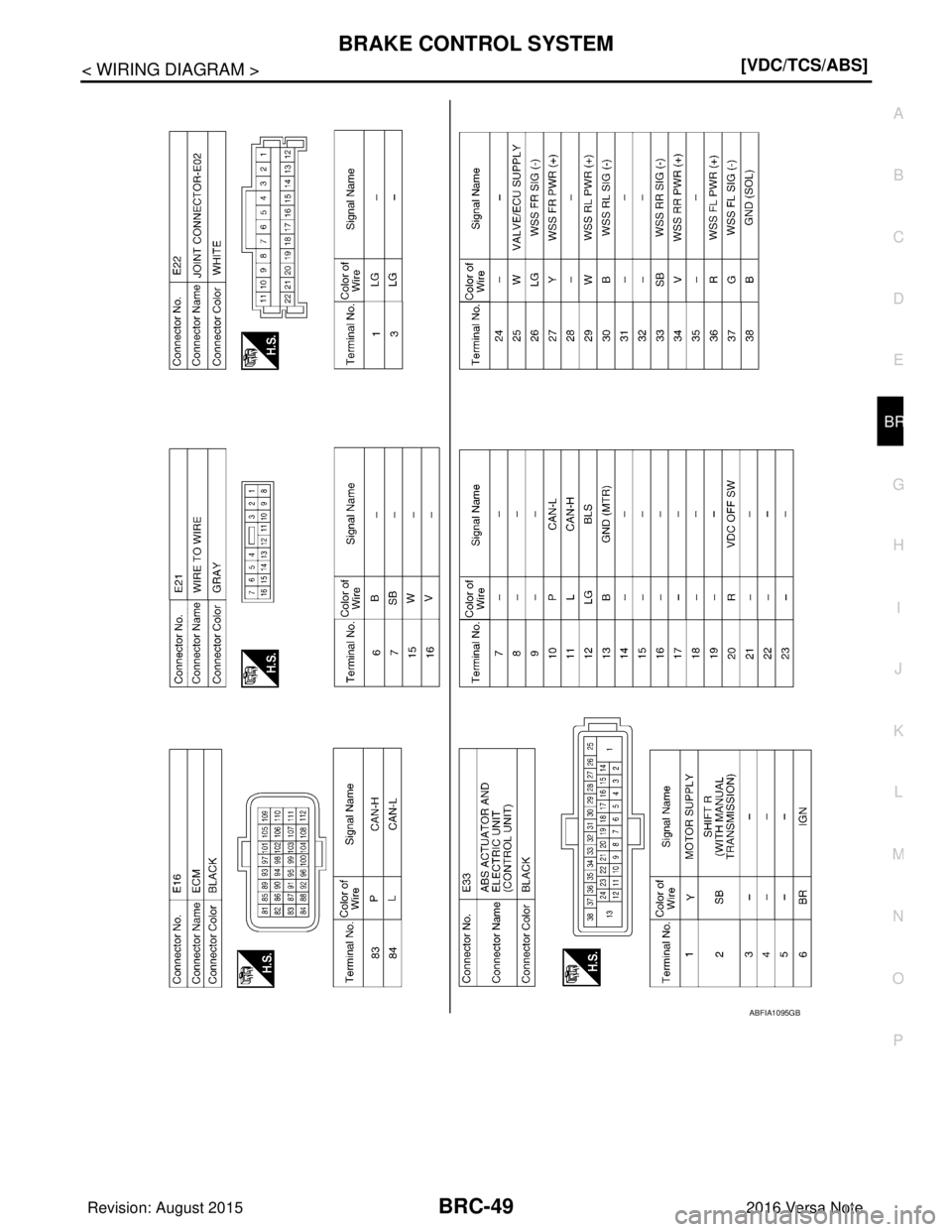

ABFIA1095GB
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-50
< WIRING DIAGRAM >[VDC/TCS/ABS]
BRAKE CONTROL SYSTEM

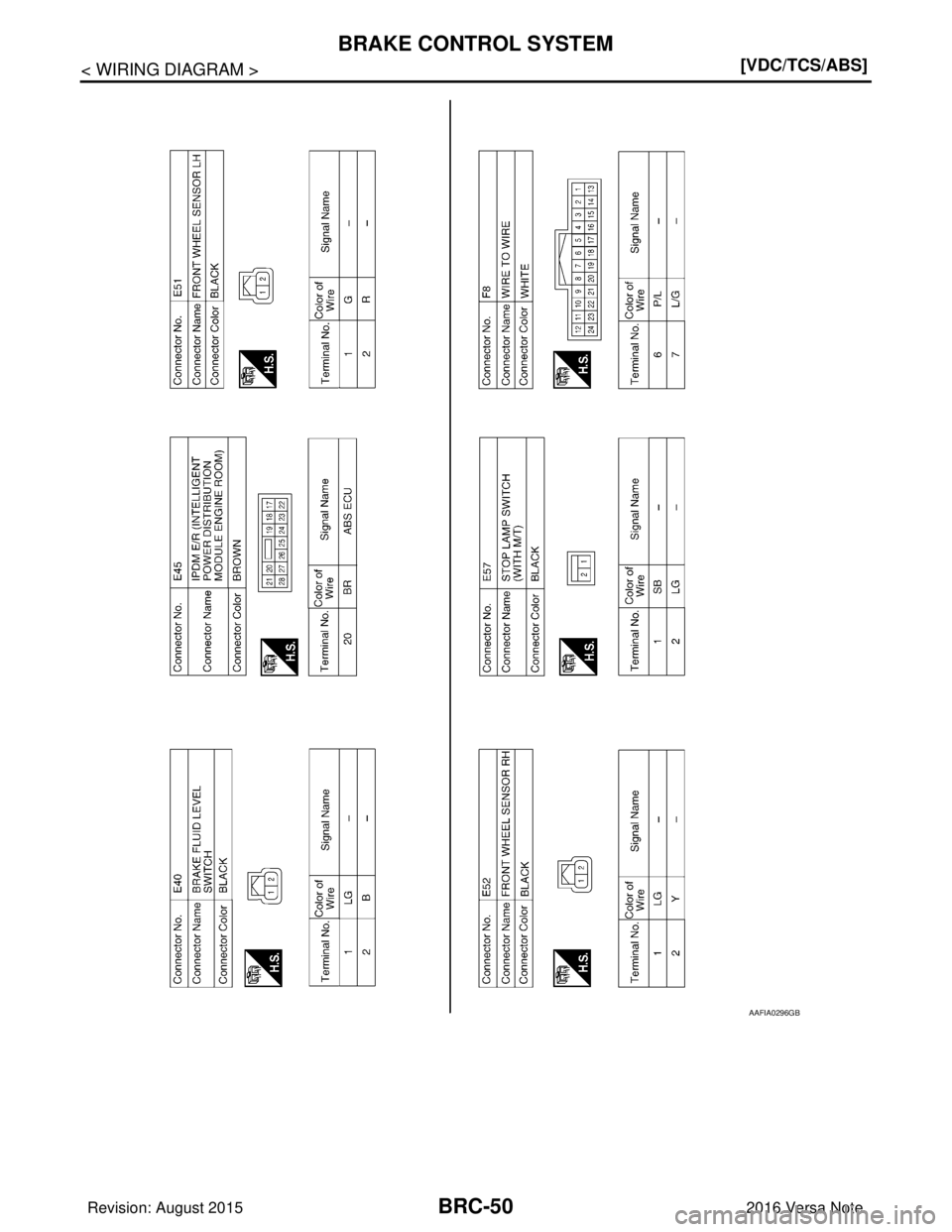

AAFIA0296GB
Revision: August 2015
2016 Versa Note

cardiagn.com

BRAKE CONTROL SYSTEMBRC-51
< WIRING DIAGRAM > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

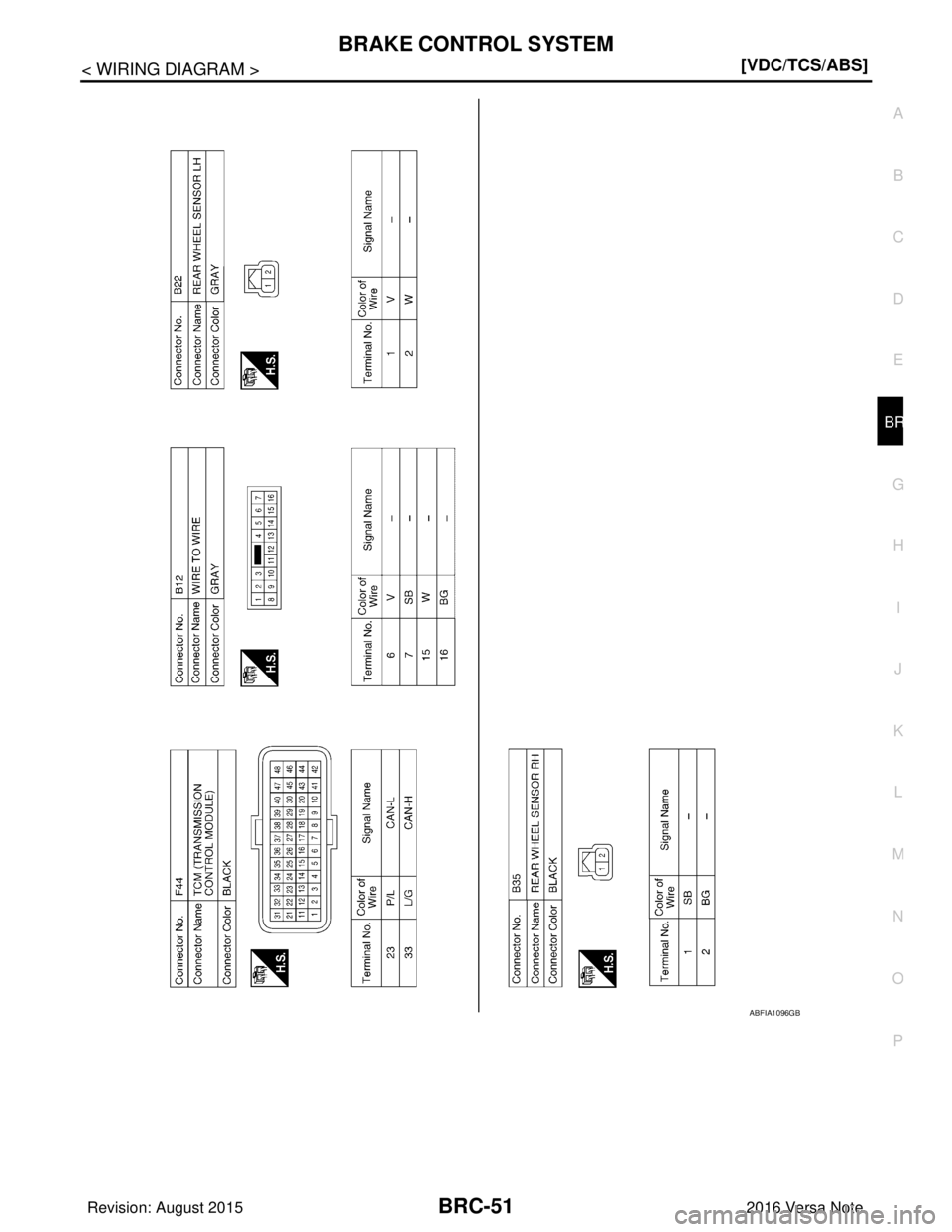

ABFIA1096GB
Revision: August 2015 2016 Versa Note

cardiagn.com

BRC-52
< BASIC INSPECTION >[VDC/TCS/ABS]
DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000012430848
DETAILED FLOW
1.INTERVIEW THE CUSTOMER
Clarify customer concerns before inspection. First of all, perform an interview utilizing BRC-53, "
Diagnostic
Work Sheet" and reproduce the symptom as well as fully understand it. Ask customer about his/her concerns
carefully. Check symptoms by driving vehicle with customer, if necessary.
CAUTION:
Customers are not professional. Never guess easily like “maybe the customer means that...,” or “ maybe the customer mentions this symptom”.
>> GO TO 2.
2.CHECK SYMPTOM
Reproduce the symptom that is indicated by the customer, based on the information from the customer
obtained in the interview. Also check that the sy mptom is not caused by fail-safe mode. Refer to BRC-39,
"Fail-safe".
CAUTION:
When the symptom is caused by normal operation, fully inspect each portion and obtain the under-
standing of customer that the sympt om is not caused by a malfunction.
>> GO TO 3.
3.PERFORM THE SELF-DIAGNOSIS
With CONSULT
1. Turn the ignition switch OFF → ON.
CAUTION:
Be sure to wait of 10 seconds after turning ignition switch OFF or ON.
2. Perform “Self Diagnostic Result” of “ABS”.
Is DTC detected?
YES >> Record or print Self Diagnostic Results and Freeze Frame Data (FFD). GO TO 4.
NO >> GO TO 6.
4.RECHECK THE SYMPTOM
With CONSULT
1. Erase “Self Diagnostic Result” of “ABS”.
2. Turn the ignition switch OFF → ON → OFF.
CAUTION:
Be sure to wait of 10 seconds after turning ignition switch OFF or ON.
3. Perform DTC confirmation procedures for the malfunctioning system. NOTE:
If some DTCs are detected at the some time, determine the order for performing the diagnosis based on
BRC-42, "
DTC Inspection Priority Chart".
Is DTC detected?
YES >> GO TO 5.
NO >> Check harness and connectors based on the information obtained in the interview. Refer to GI-42,
"Intermittent Incident".
5.REPAIR OR REPLACE MALFUNCTIONING COMPONENT
1. Repair or replace malfunctioning components.
2. Reconnect component or connector after repairing or replacing.
3. When DTC is detected, erase “Self Diagnostic Result” of “ABS”. CAUTION:
Revision: August 2015 2016 Versa Note
