NISSAN PICK-UP 1998 Repair Manual

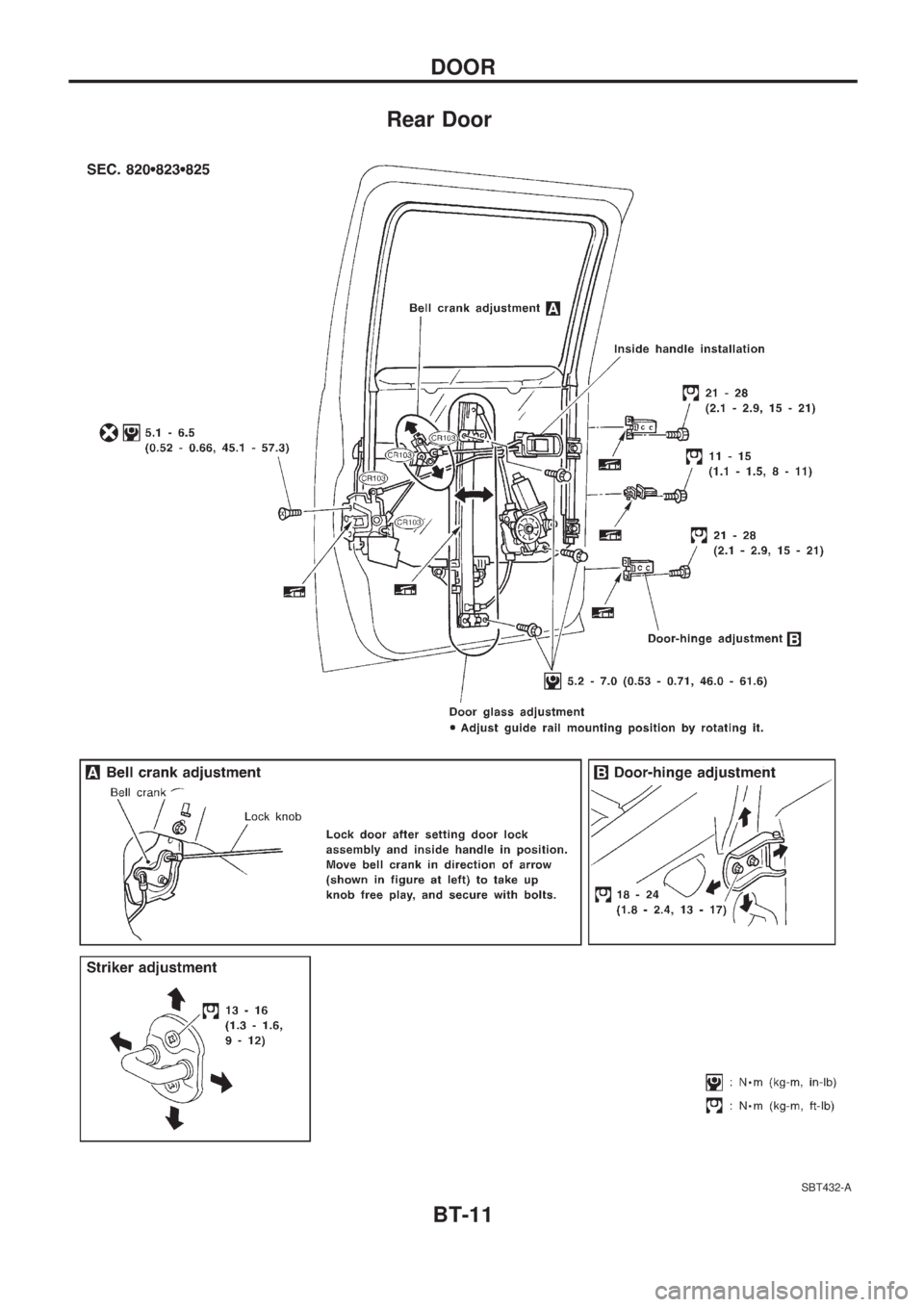

Rear Door
SBT432-A
DOOR
BT-11

CAUTION:
lDisconnect both terminals from battery in advance.
lDisconnect air bag module connector in advance.
lBe careful not to scratch finishers and other parts.
lNever tamper with or force air bag lid open, as this may adversely affect air bag performance.
REMOVAL Ð Instrument panel assembly
Instrument panel assemblyCombination meterAudio controlHeater and A/C
controlConsole box
Remove driver's air bag module and steering wheel.
Refer to ``SUPPLEMENTAL RESTRAINT SYSTEM'' in RS section for
details.
V1Steering column coverlRemove screws.
V2Instrument lower panel driver sidelRemove screws.
V3Cluster lid AlRemove screws.
V4Combination meterlRemove screws, then disconnect harness connectors.
V5Glove box assemblylRemove screws and pins.
V6Instrument lower panel passenger sidelRemove screw.
Remove ashtray.
V7Cluster lid ClRemove screws, then disconnect harness connectors.
V8Audio and deck pocketlRemove screws, then disconnect harness connectors.
V9Heater and A/C controllRemove mask and screws.lDisconnect temperature control cable and harness connectors.
V10Instrument stay cover lower centerlRemove screws.
V11Instrument lower panel centerlRemove screws.
V12Ventilator grille driver sidelRemove screw.
V13Defroster grille
Front pillar garnish
Refer to ``Side and Floor Trim'' in ``INTERIOR
TRIM'' for details, BT-15.
V14Instrument panel assemblylRemove screws and bolts.
V15Center consolelRemove screws.
INSTRUMENT PANEL
BT-12

SBT627

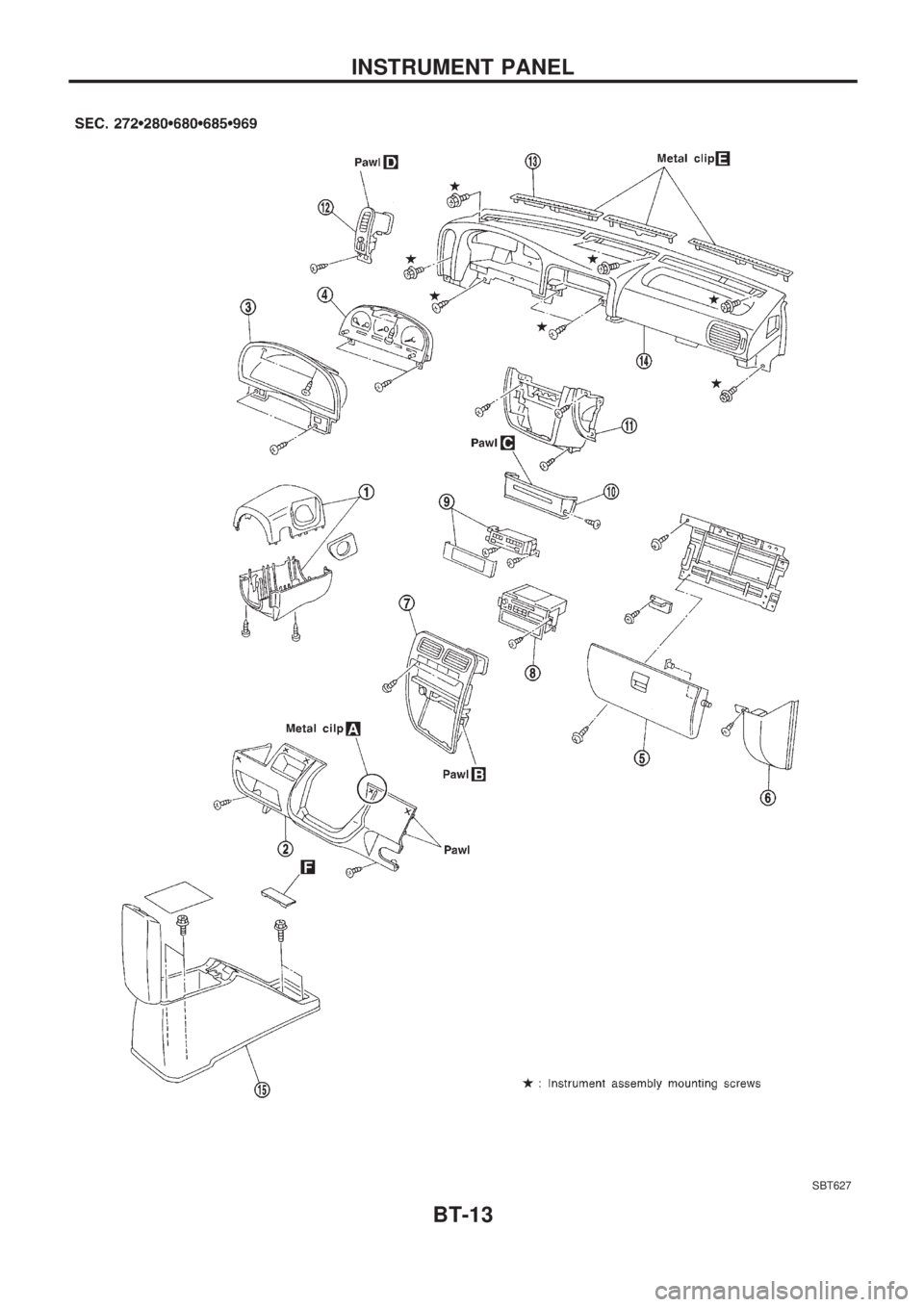

INSTRUMENT PANEL
BT-13

SBT507

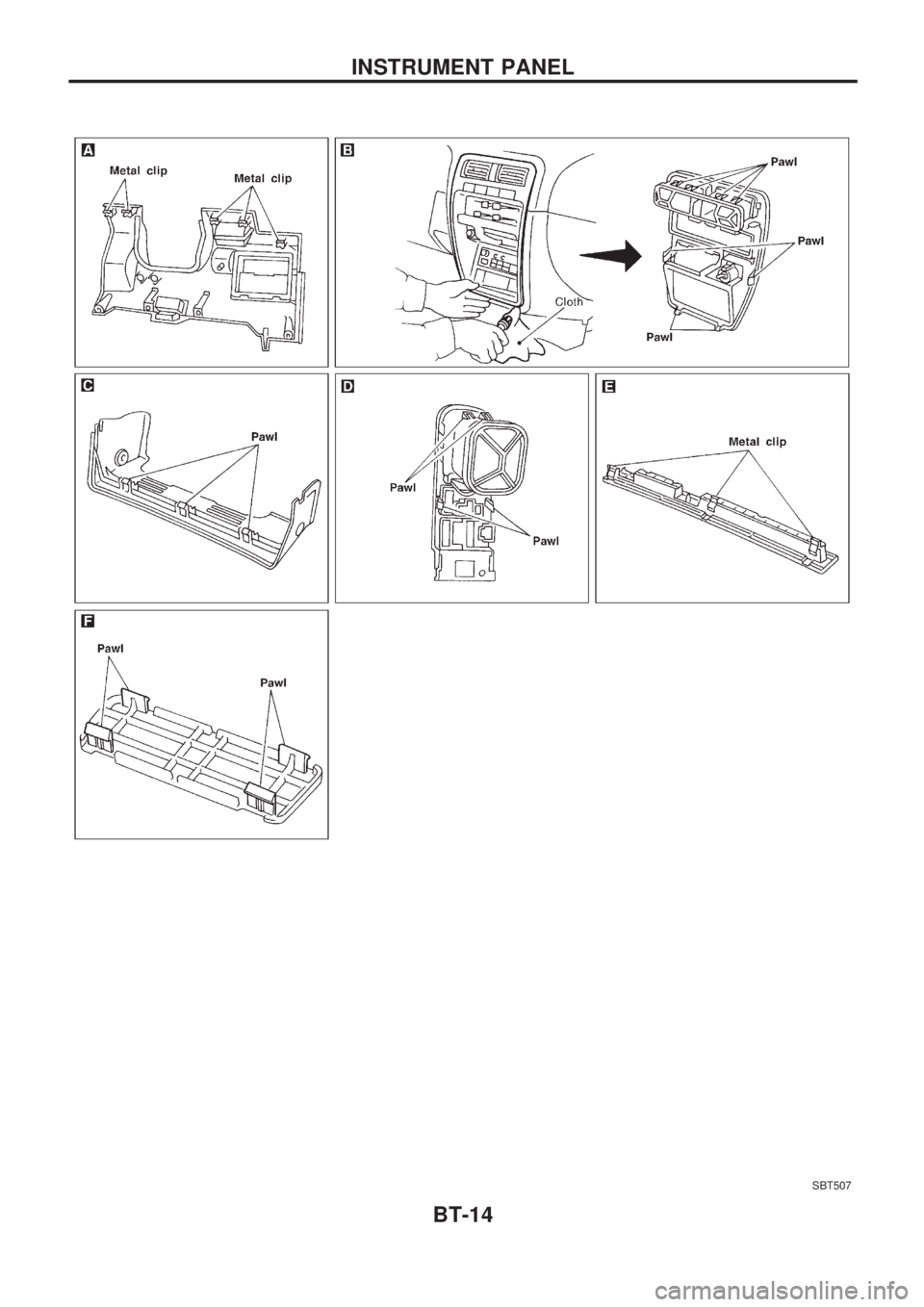

INSTRUMENT PANEL
BT-14

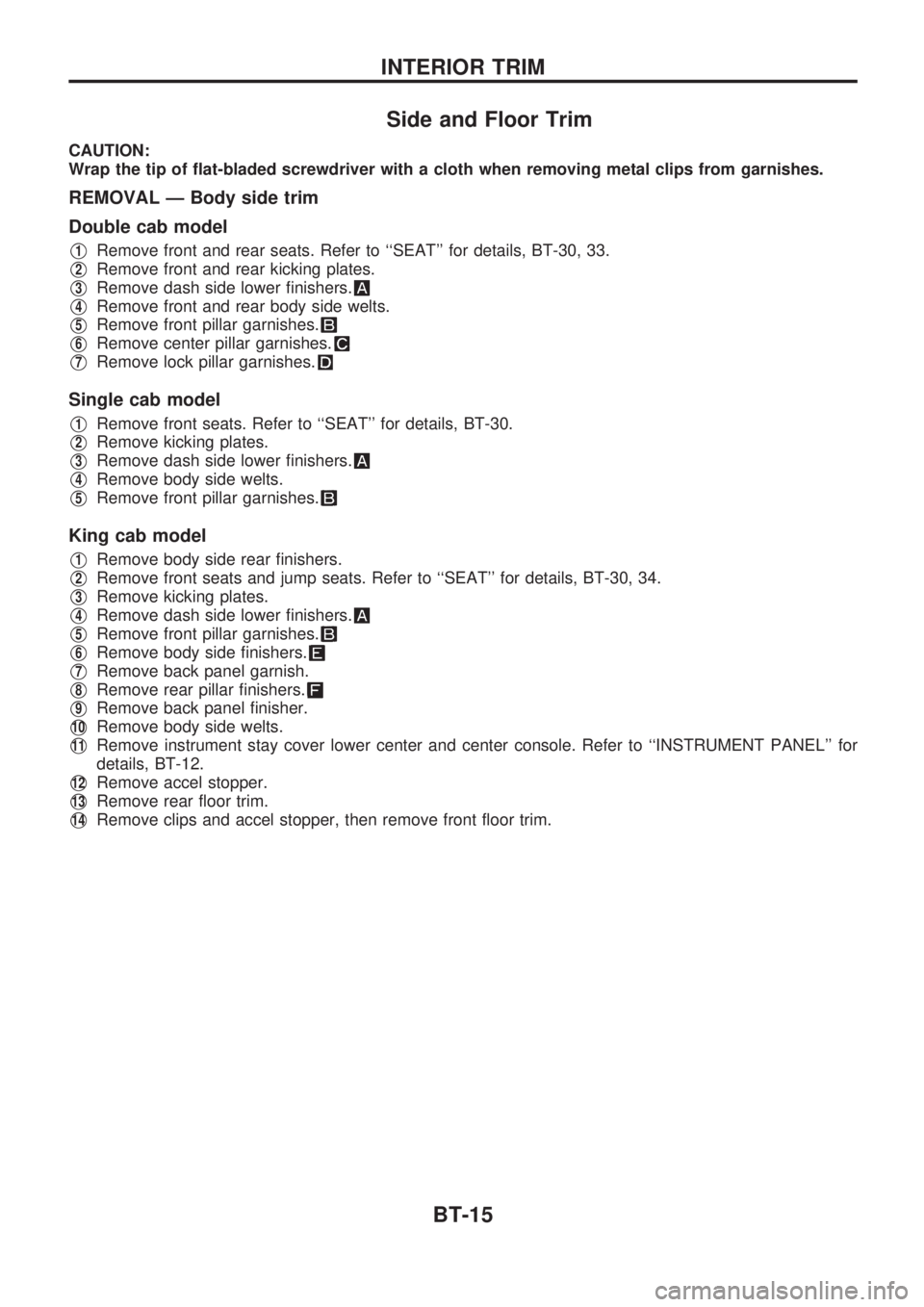

Side and Floor Trim
CAUTION:
Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
REMOVAL Ð Body side trim
Double cab model
V1Remove front and rear seats. Refer to ``SEAT'' for details, BT-30, 33.
V2Remove front and rear kicking plates.
V3Remove dash side lower finishers.
V4Remove front and rear body side welts.
V5Remove front pillar garnishes.
V6Remove center pillar garnishes.
V7Remove lock pillar garnishes.
Single cab model
V1Remove front seats. Refer to ``SEAT'' for details, BT-30.
V2Remove kicking plates.
V3Remove dash side lower finishers.
V4Remove body side welts.
V5Remove front pillar garnishes.
King cab model
V1Remove body side rear finishers.
V2Remove front seats and jump seats. Refer to ``SEAT'' for details, BT-30, 34.
V3Remove kicking plates.
V4Remove dash side lower finishers.
V5Remove front pillar garnishes.
V6Remove body side finishers.
V7Remove back panel garnish.
V8Remove rear pillar finishers.
V9Remove back panel finisher.
V10Remove body side welts.
V11Remove instrument stay cover lower center and center console. Refer to ``INSTRUMENT PANEL'' for
details, BT-12.
V12Remove accel stopper.
V13Remove rear floor trim.
V14Remove clips and accel stopper, then remove front floor trim.
INTERIOR TRIM
BT-15

SBT628
INTERIOR TRIM

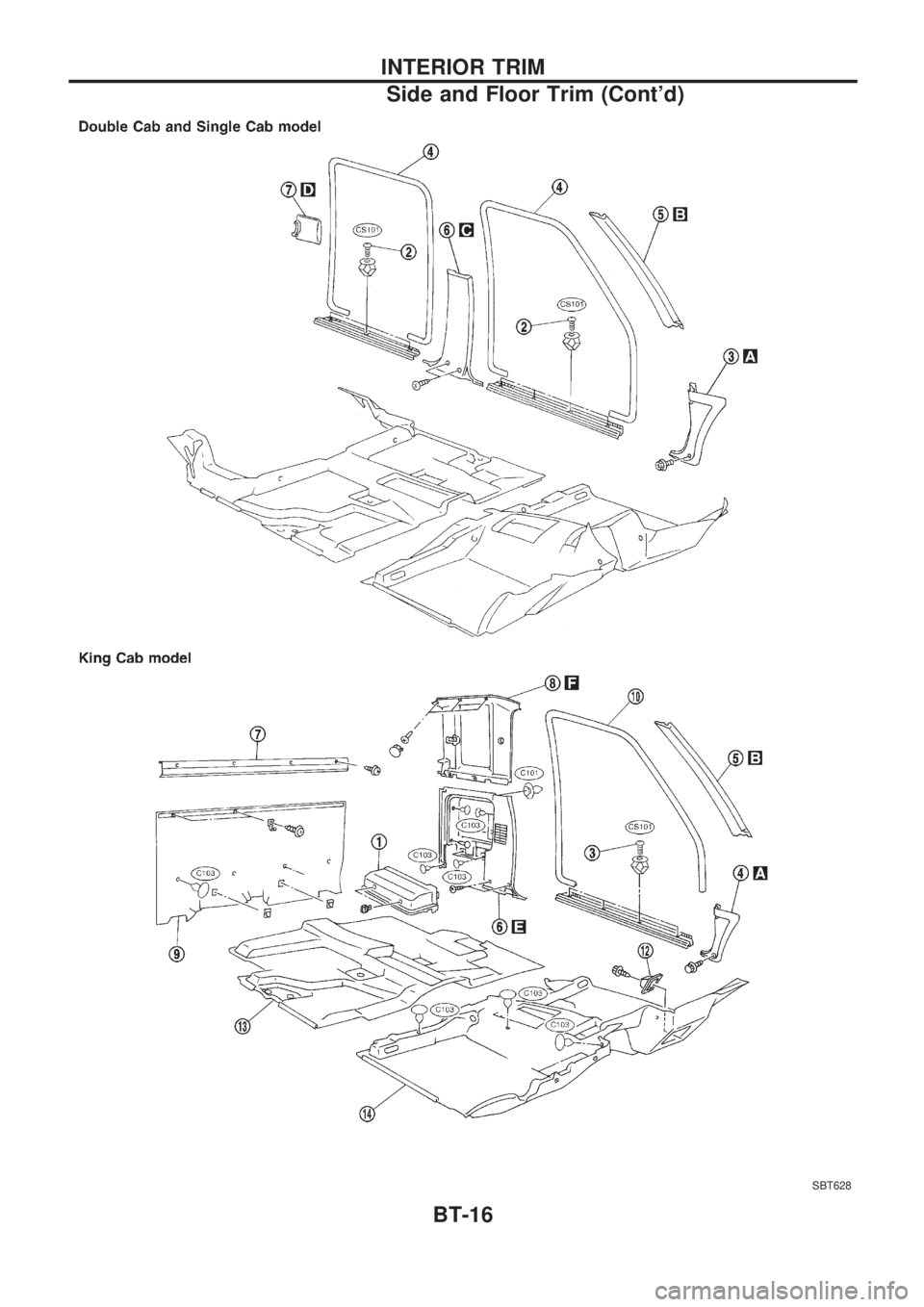

Side and Floor Trim (Cont'd)
BT-16

SBT629
INTERIOR TRIM

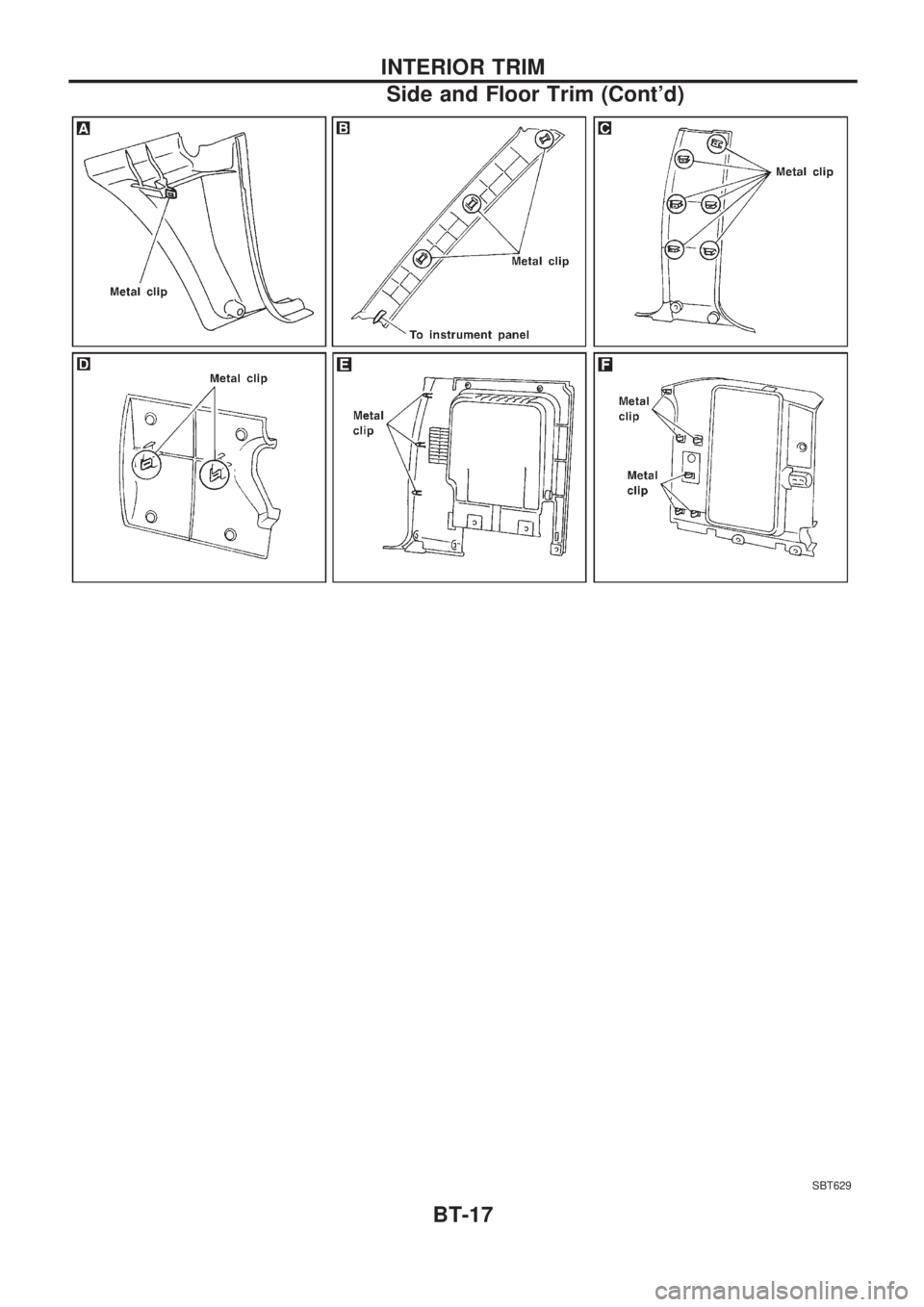

Side and Floor Trim (Cont'd)
BT-17

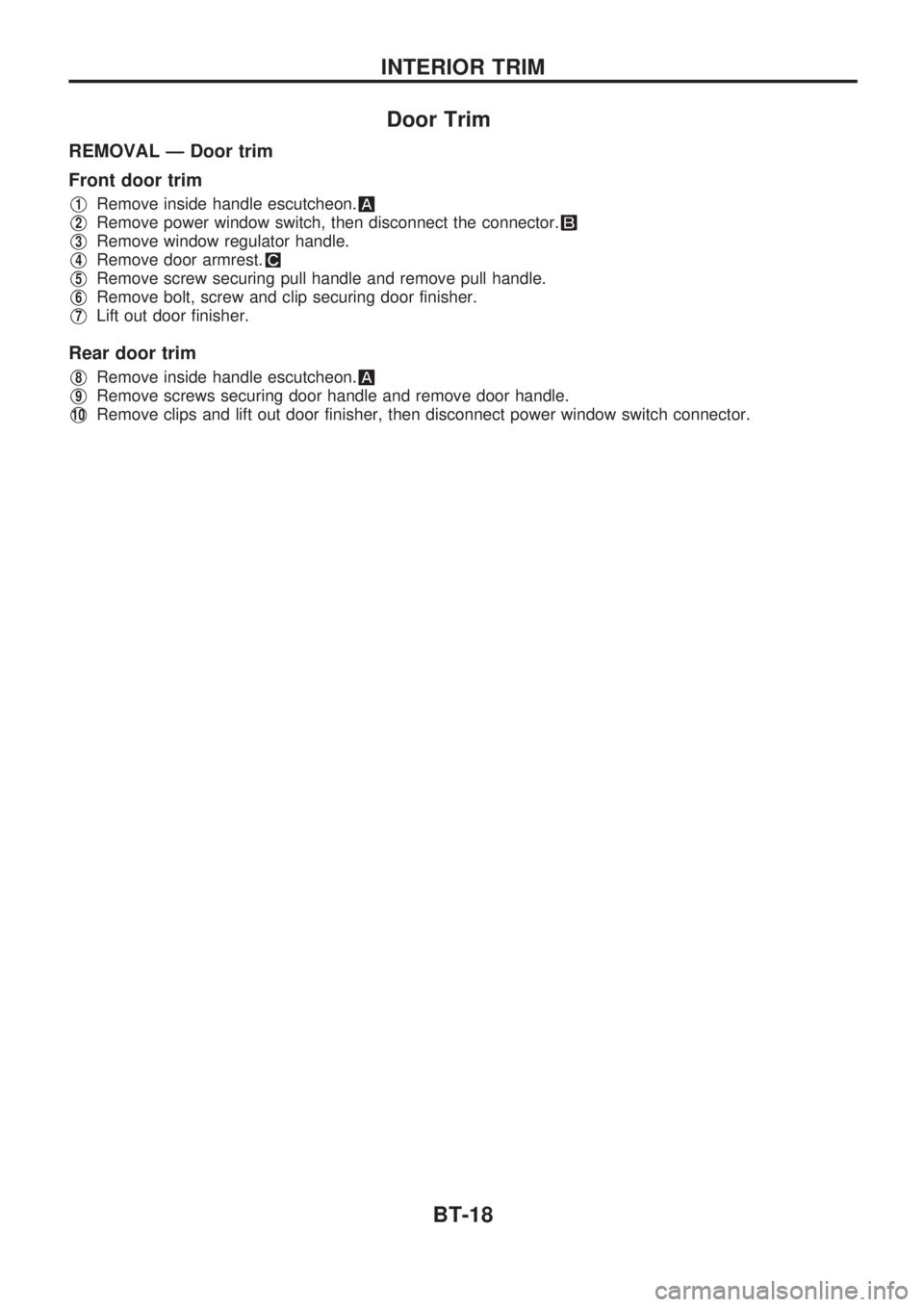

Door Trim
REMOVAL Ð Door trim
Front door trim
V1Remove inside handle escutcheon.
V2Remove power window switch, then disconnect the connector.
V3Remove window regulator handle.
V4Remove door armrest.
V5Remove screw securing pull handle and remove pull handle.
V6Remove bolt, screw and clip securing door finisher.
V7Lift out door finisher.
Rear door trim
V8Remove inside handle escutcheon.
V9Remove screws securing door handle and remove door handle.
V10Remove clips and lift out door finisher, then disconnect power window switch connector.
INTERIOR TRIM
BT-18

SBT630
INTERIOR TRIM

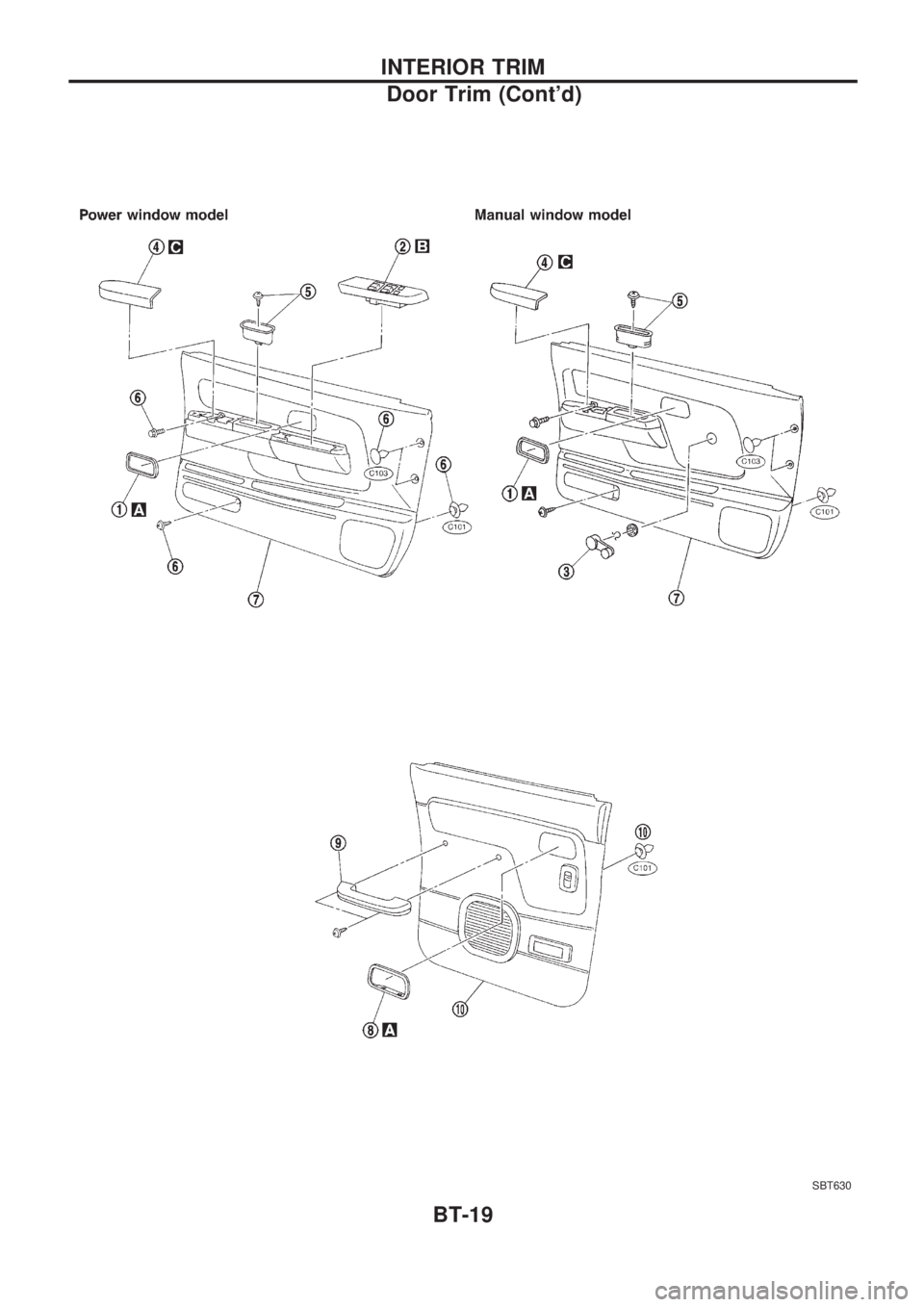

Door Trim (Cont'd)
BT-19

SBT631
INTERIOR TRIM

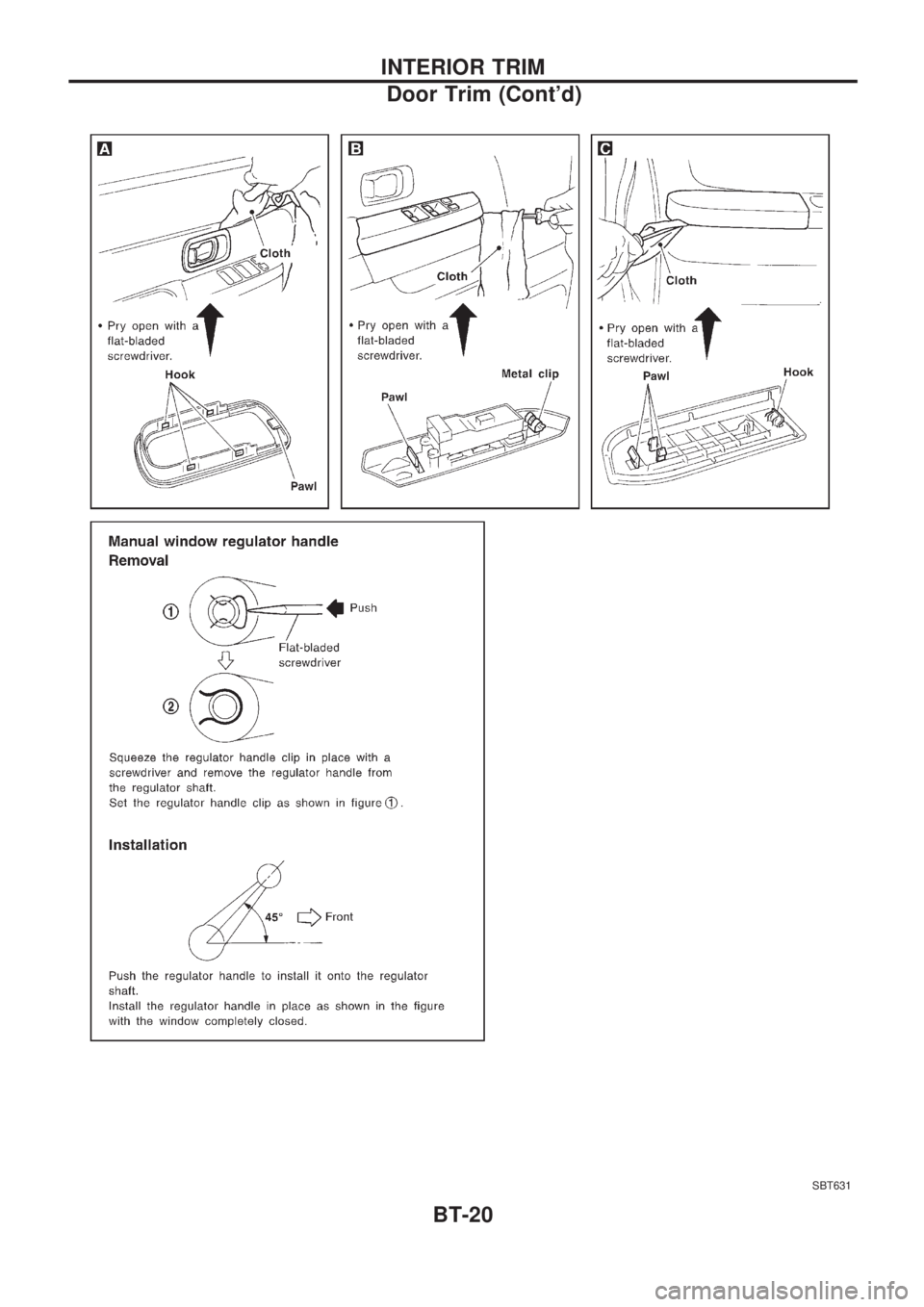

Door Trim (Cont'd)
BT-20
