Roof Trim

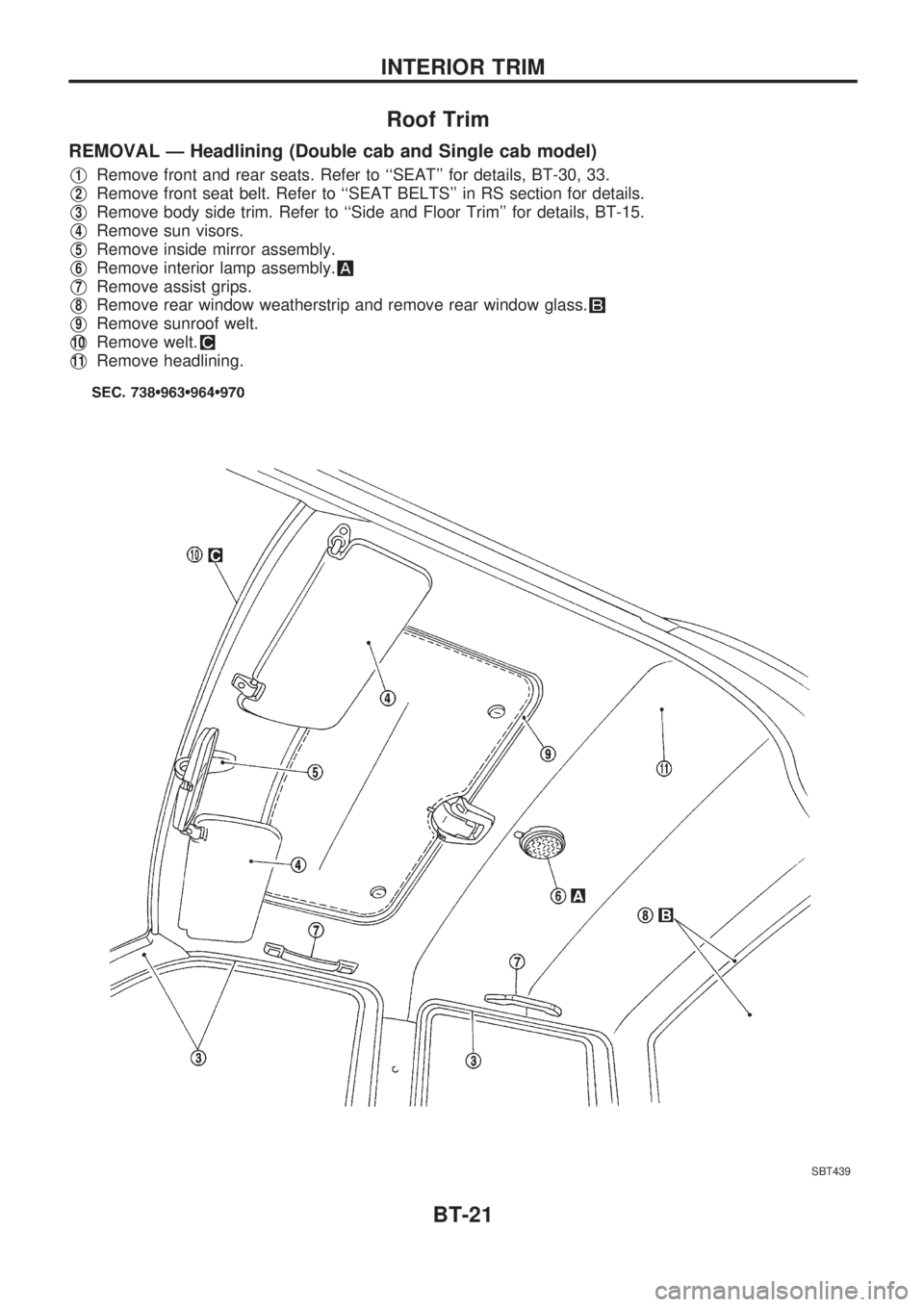

REMOVAL Ð Headlining (Double cab and Single cab model)
V1Remove front and rear seats. Refer to ``SEAT'' for details, BT-30, 33.
V2Remove front seat belt. Refer to ``SEAT BELTS'' in RS section for details.
V3Remove body side trim. Refer to ``Side and Floor Trim'' for details, BT-15.
V4Remove sun visors.
V5Remove inside mirror assembly.
V6Remove interior lamp assembly.
V7Remove assist grips.
V8Remove rear window weatherstrip and remove rear window glass.
V9Remove sunroof welt.
V10Remove welt.
V11Remove headlining.
SBT439
INTERIOR TRIM
BT-21

SBT440
INTERIOR TRIM
Roof Trim (Cont'd)
BT-22

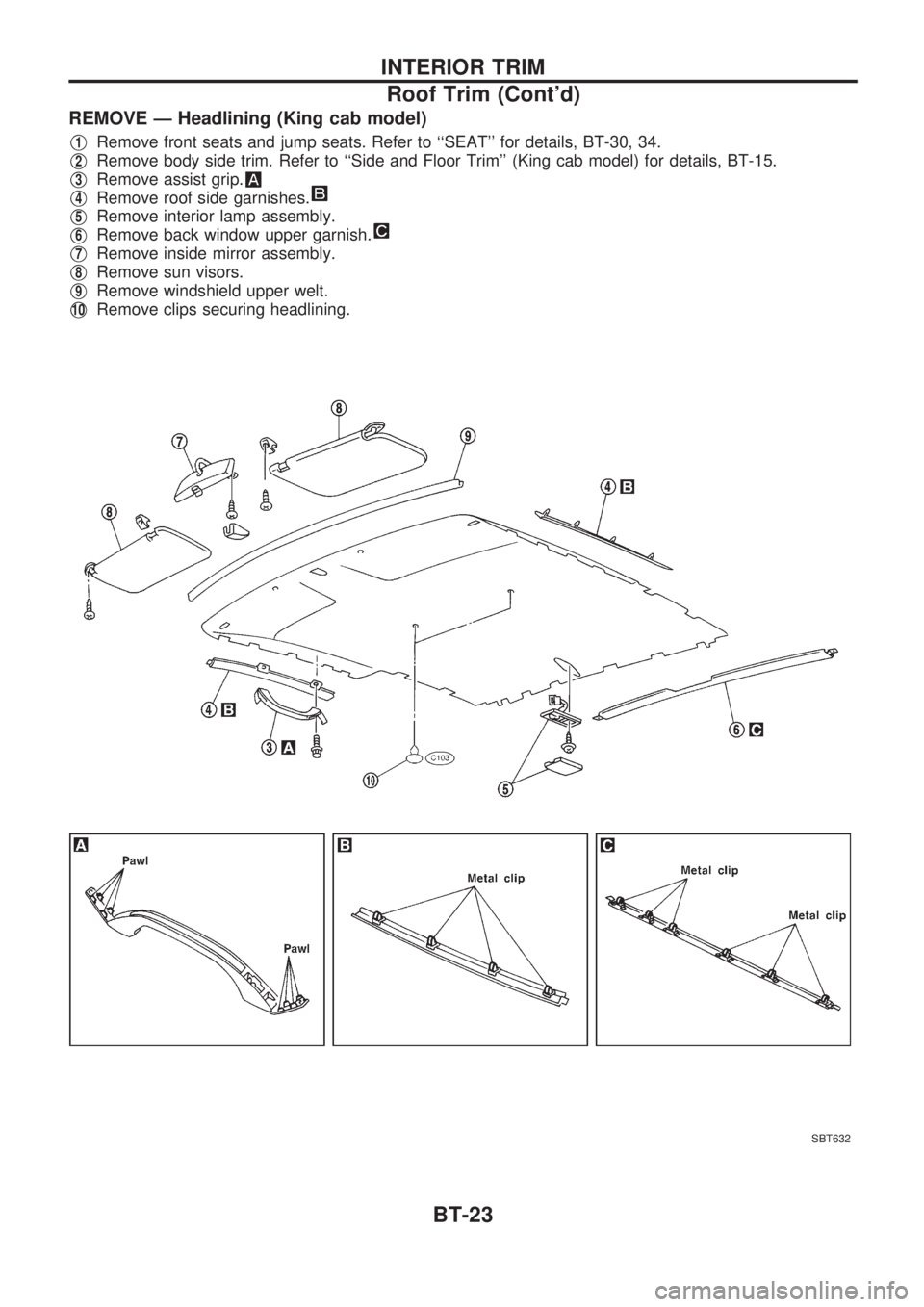

REMOVE Ð Headlining (King cab model)
V1Remove front seats and jump seats. Refer to ``SEAT'' for details, BT-30, 34.
V2Remove body side trim. Refer to ``Side and Floor Trim'' (King cab model) for details, BT-15.
V3Remove assist grip.
V4Remove roof side garnishes.
V5Remove interior lamp assembly.
V6Remove back window upper garnish.
V7Remove inside mirror assembly.
V8Remove sun visors.
V9Remove windshield upper welt.
V10Remove clips securing headlining.
SBT632
INTERIOR TRIM
Roof Trim (Cont'd)
BT-23

SBT635

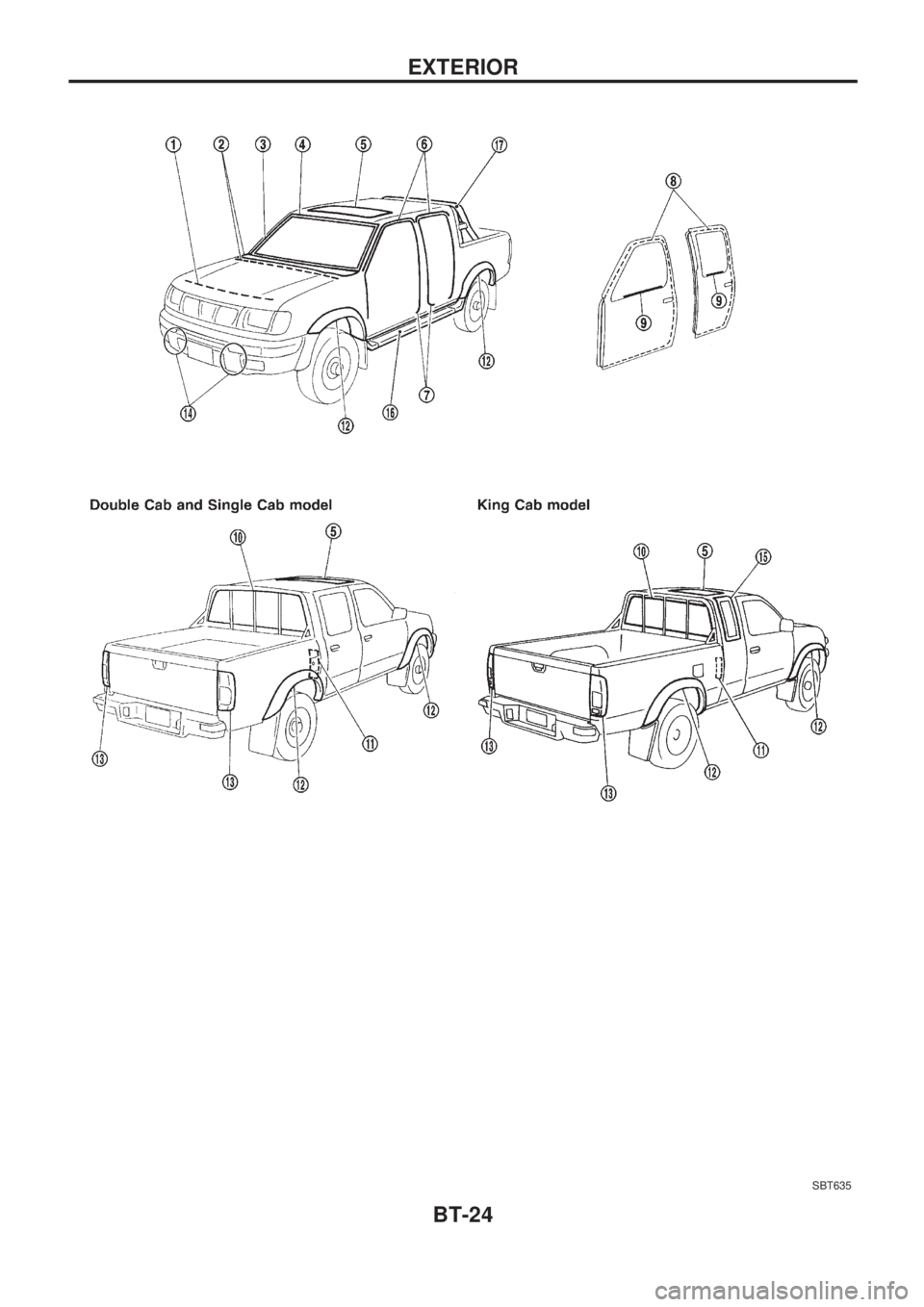

EXTERIOR
BT-24

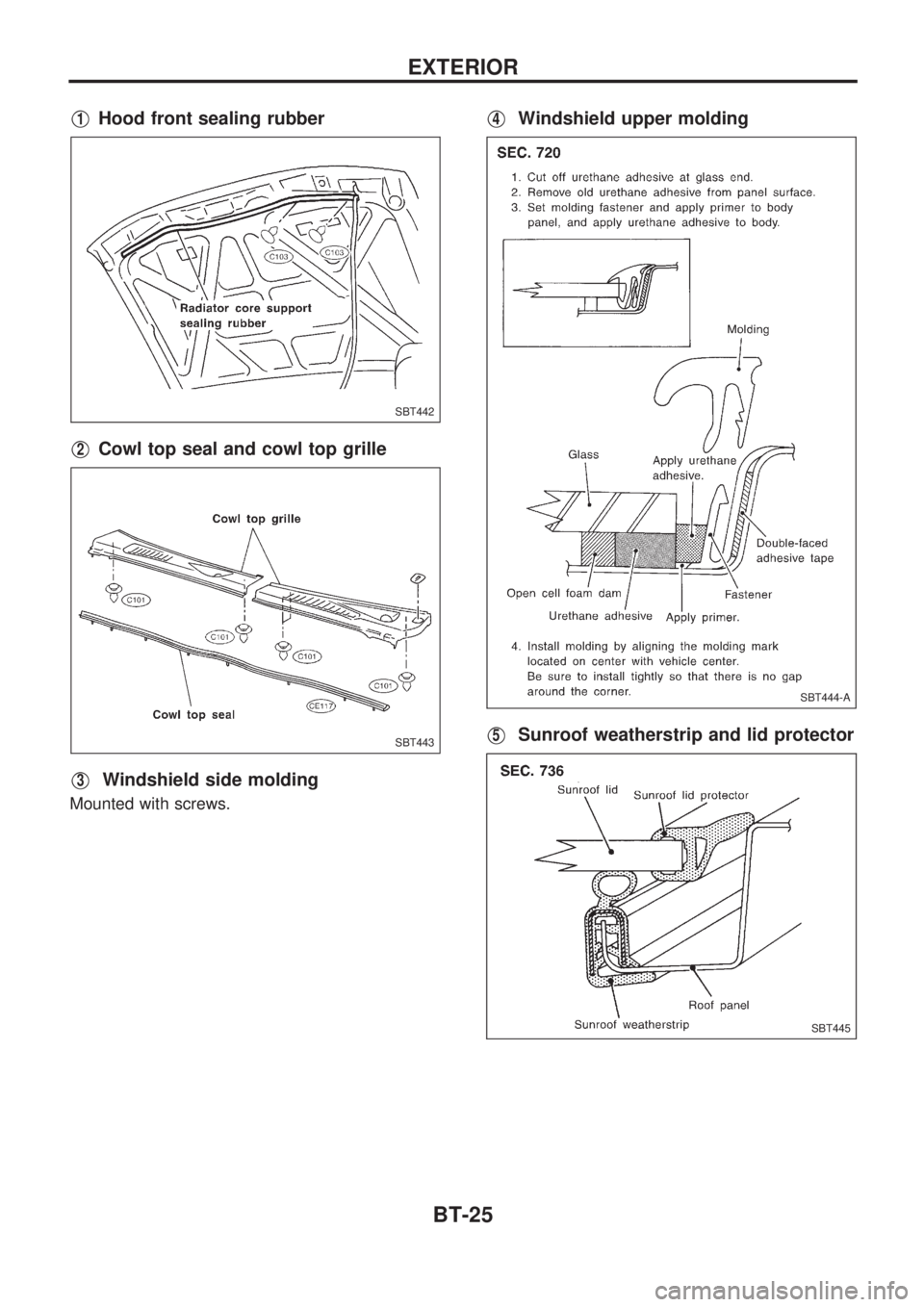

V1Hood front sealing rubber
V2Cowl top seal and cowl top grille
V3Windshield side molding
Mounted with screws.
V4Windshield upper molding
V5Sunroof weatherstrip and lid protector
SBT442
SBT443
SBT444-A
SBT445
EXTERIOR
BT-25

V6Drip weatherstrip
V7Body side welt
V8Door weatherstrip
V9Door outside molding
SBT449
SBT446
SBT447
SBT448
EXTERIOR
BT-26

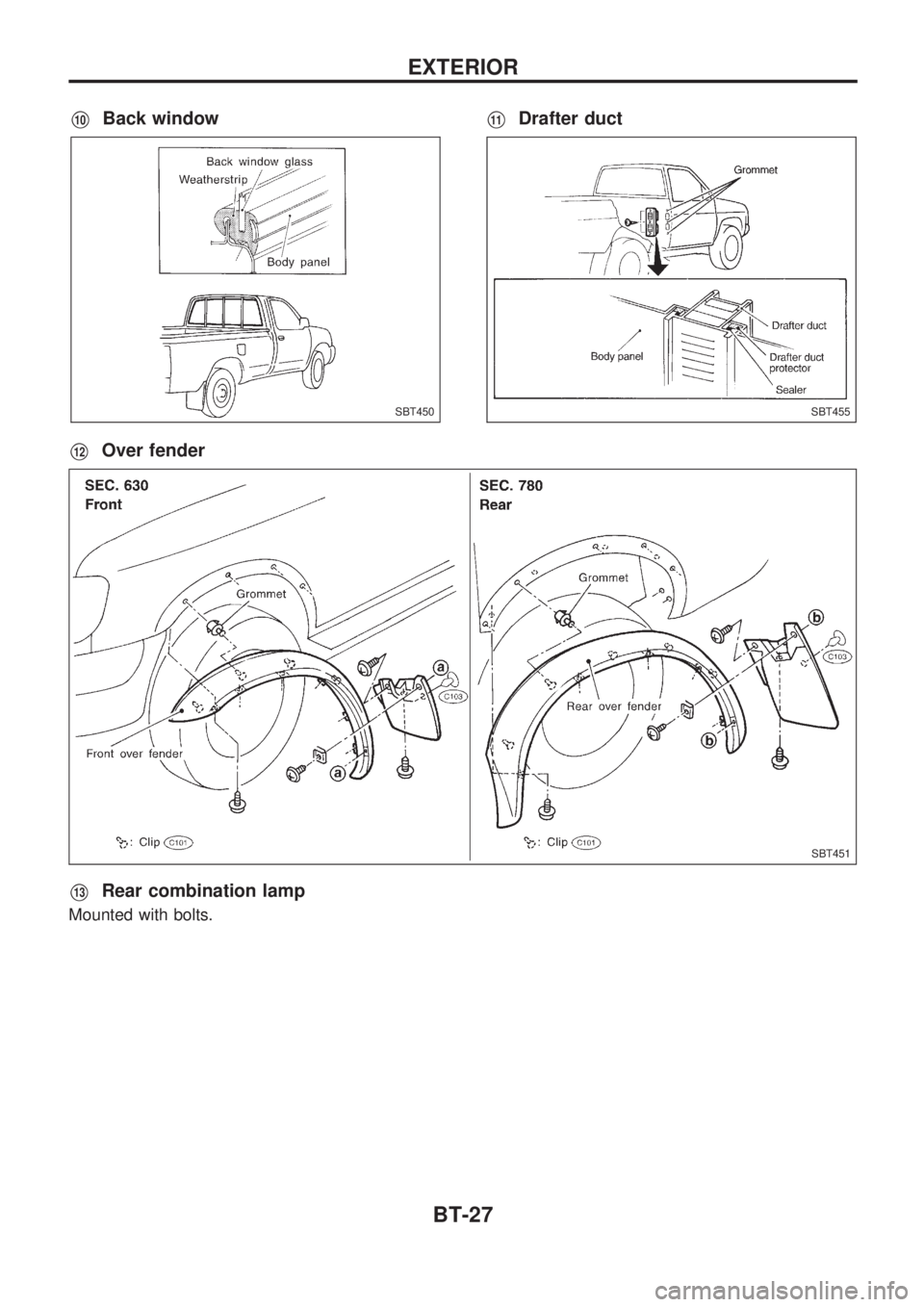

V10Back windowV11Drafter duct
V12Over fender
V13Rear combination lamp
Mounted with bolts.
SBT450SBT455
SBT451
EXTERIOR
BT-27

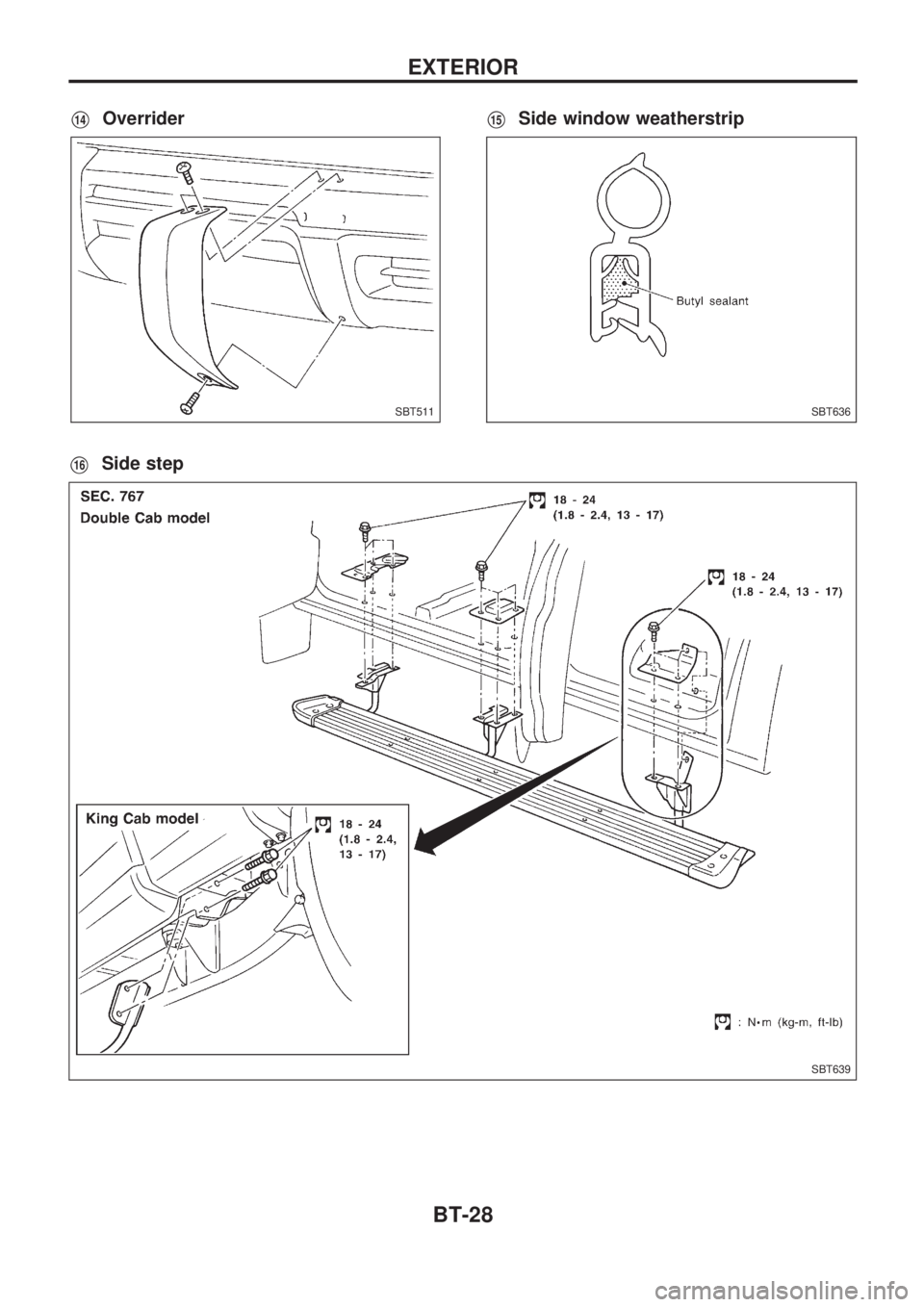

V14OverriderV15Side window weatherstrip
V16Side step
SBT511SBT636
SBT639
EXTERIOR
BT-28

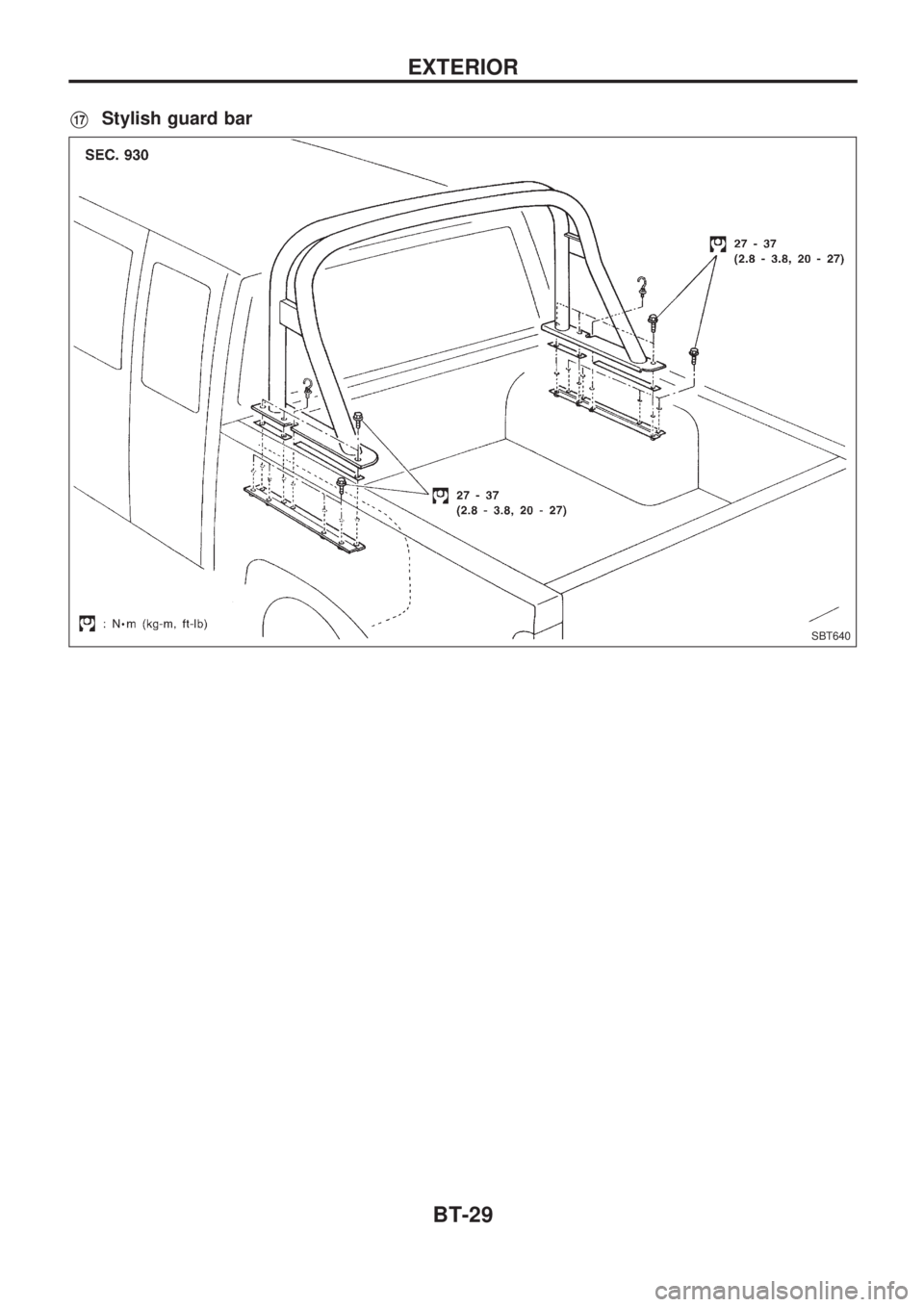

V17Stylish guard bar
SBT640
EXTERIOR
BT-29

lWhen removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.

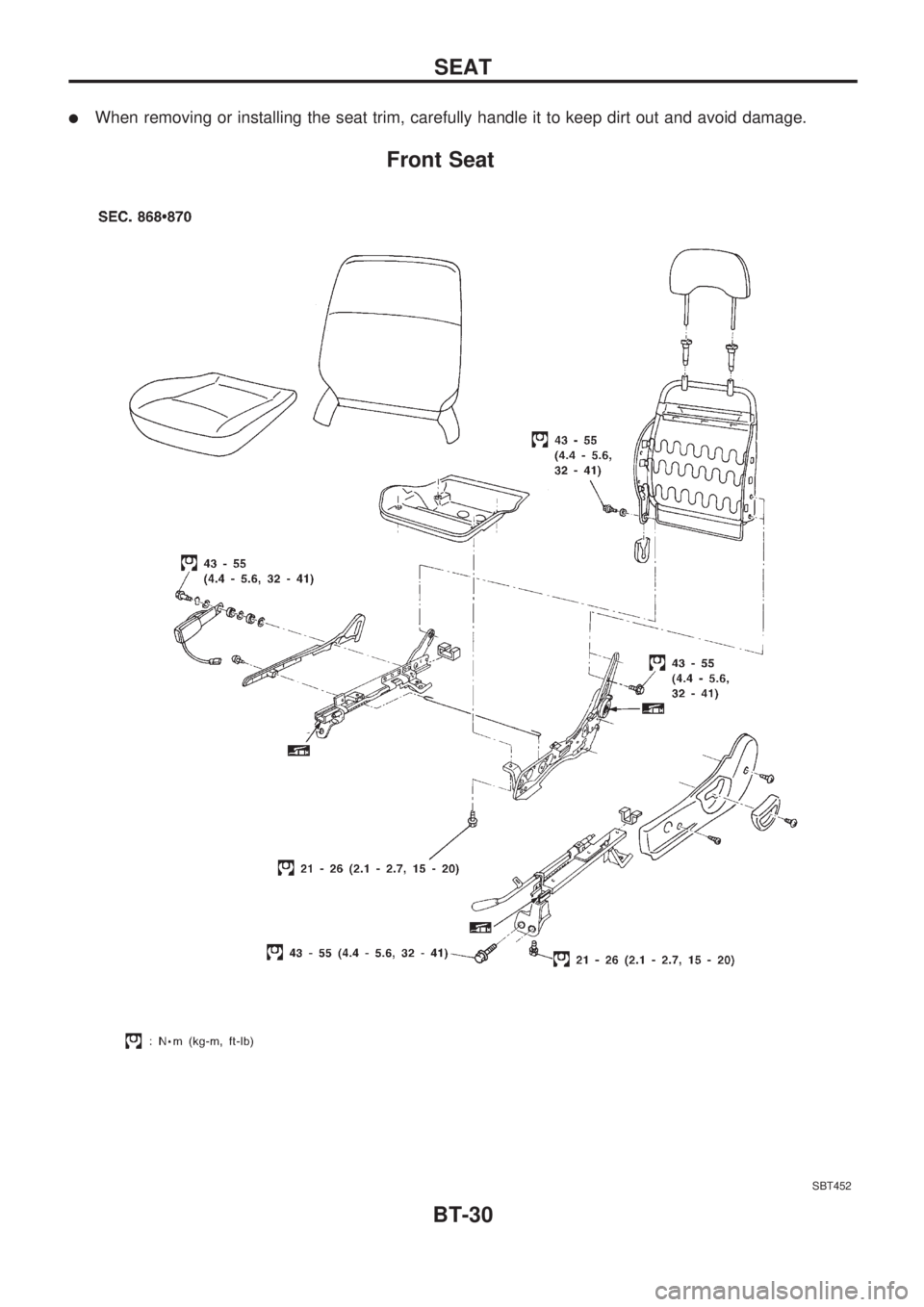

Front Seat
