NISSAN PICK-UP 1998 Repair Manual

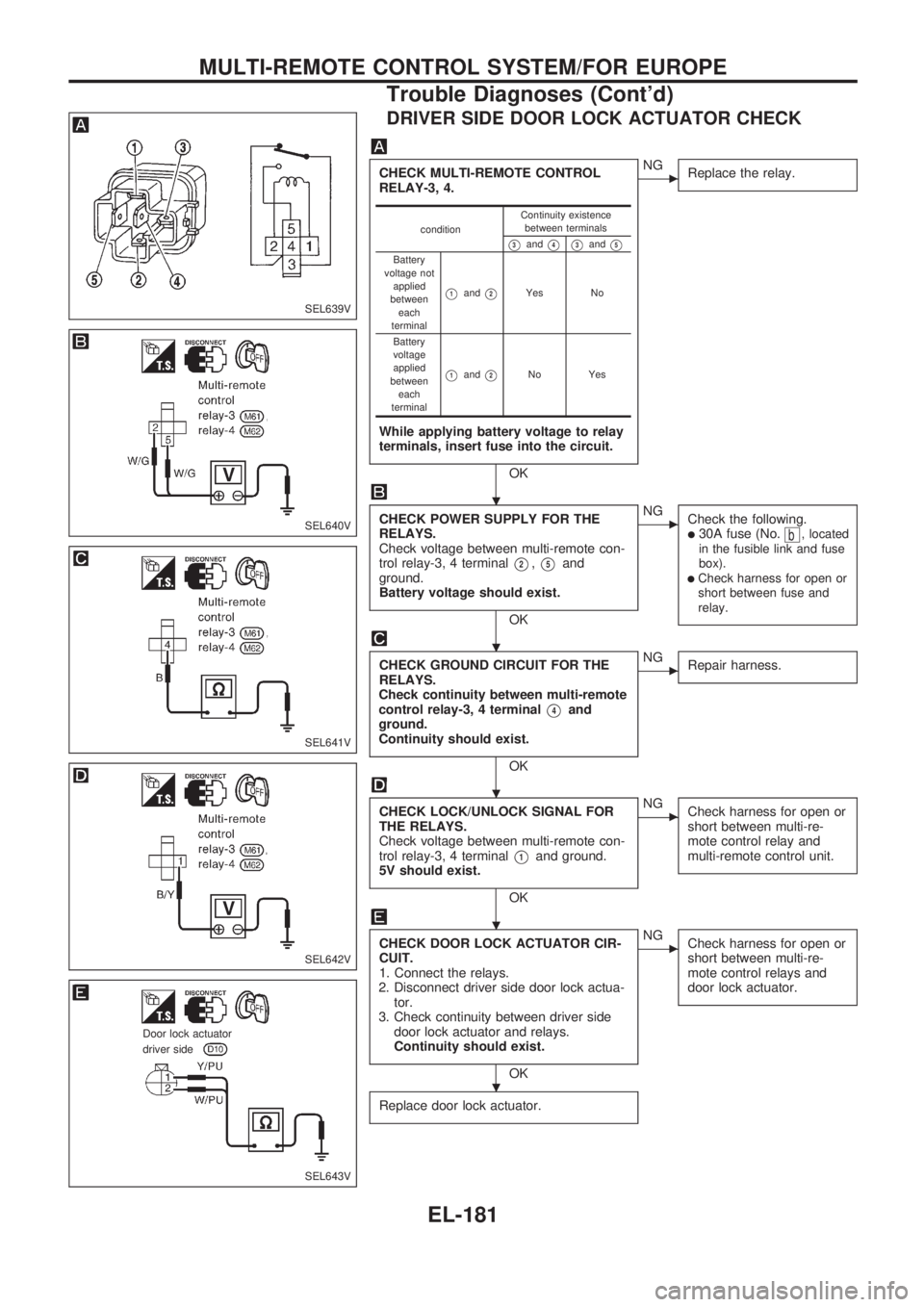

DRIVER SIDE DOOR LOCK ACTUATOR CHECK
CHECK MULTI-REMOTE CONTROL
RELAY-3, 4.
While applying battery voltage to relay
terminals, insert fuse into the circuit.
OK
cNG
Replace the relay.
CHECK POWER SUPPLY FOR THE
RELAYS.
Check voltage between multi-remote con-
trol relay-3, 4 terminal
V2,V5and
ground.
Battery voltage should exist.
OK
cNG
Check the following.
l30A fuse (No.b, located
in the fusible link and fuse
box).
lCheck harness for open or
short between fuse and
relay.
CHECK GROUND CIRCUIT FOR THE
RELAYS.
Check continuity between multi-remote
control relay-3, 4 terminal
V4and
ground.
Continuity should exist.
OK
cNG
Repair harness.
CHECK LOCK/UNLOCK SIGNAL FOR
THE RELAYS.
Check voltage between multi-remote con-
trol relay-3, 4 terminal
V1and ground.
5V should exist.
OK
cNG
Check harness for open or
short between multi-re-
mote control relay and
multi-remote control unit.
CHECK DOOR LOCK ACTUATOR CIR-
CUIT.
1. Connect the relays.
2. Disconnect driver side door lock actua-
tor.
3. Check continuity between driver side
door lock actuator and relays.
Continuity should exist.
OK
cNG
Check harness for open or
short between multi-re-
mote control relays and
door lock actuator.
Replace door lock actuator.
conditionContinuity existence
between terminals
V3andV4V3andV5
Battery
voltage not
applied
between
each
terminal
V1andV2Yes No
Battery
voltage
applied
between
each
terminal
V1andV2No Yes
SEL639V
SEL640V
SEL641V
SEL642V
SEL643V
.Door lock actuator.driver side
.
.
.
.
.
MULTI-REMOTE CONTROL SYSTEM/FOR EUROPE
Trouble Diagnoses (Cont'd)
EL-181

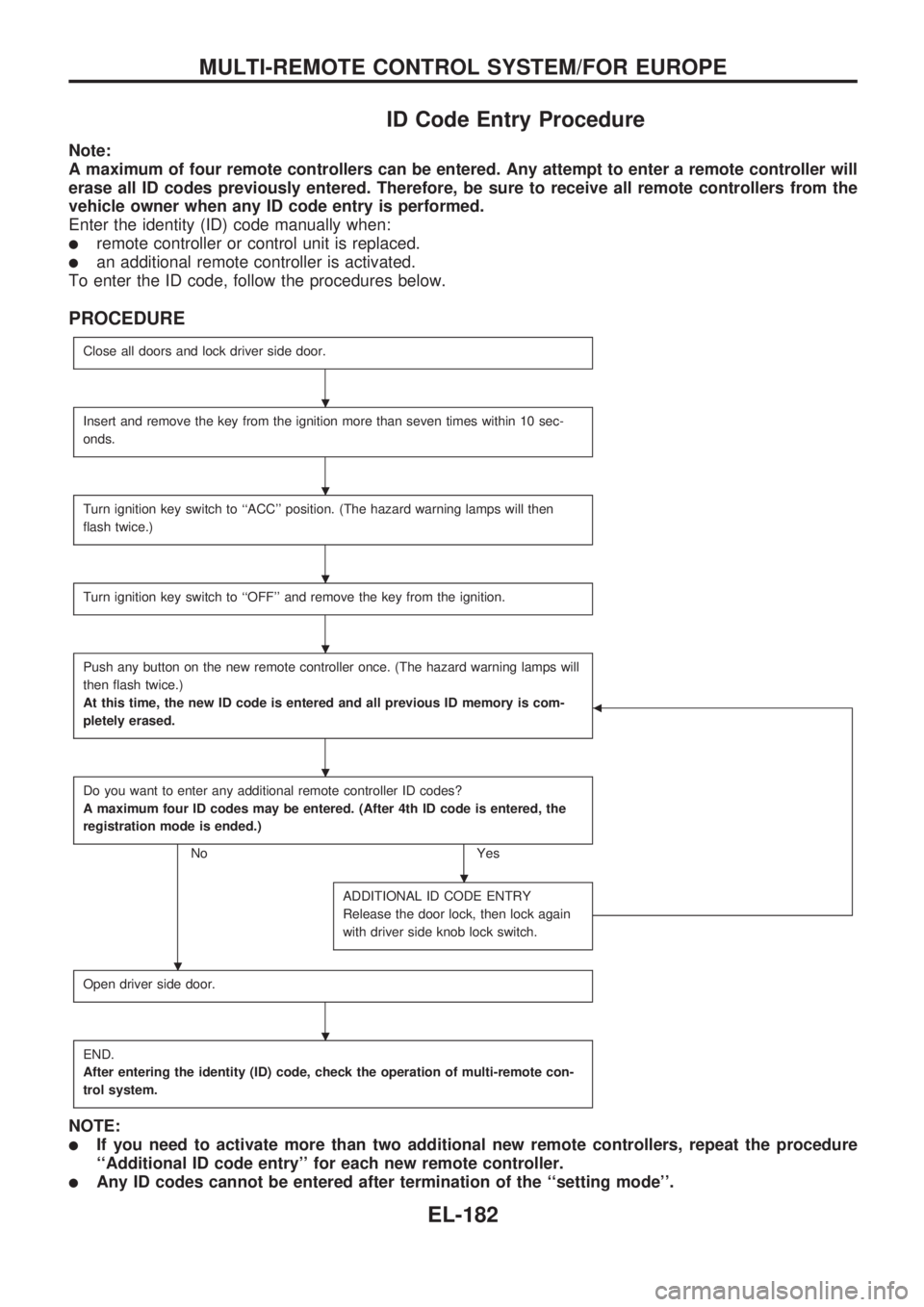

ID Code Entry Procedure
Note:
A maximum of four remote controllers can be entered. Any attempt to enter a remote controller will
erase all ID codes previously entered. Therefore, be sure to receive all remote controllers from the
vehicle owner when any ID code entry is performed.
Enter the identity (ID) code manually when:
lremote controller or control unit is replaced.
lan additional remote controller is activated.
To enter the ID code, follow the procedures below.
PROCEDURE
Close all doors and lock driver side door.
Insert and remove the key from the ignition more than seven times within 10 sec-
onds.
Turn ignition key switch to ``ACC'' position. (The hazard warning lamps will then
flash twice.)
Turn ignition key switch to ``OFF'' and remove the key from the ignition.
Push any button on the new remote controller once. (The hazard warning lamps will
then flash twice.)
At this time, the new ID code is entered and all previous ID memory is com-
pletely erased.
b
Do you want to enter any additional remote controller ID codes?
A maximum four ID codes may be entered. (After 4th ID code is entered, the
registration mode is ended.)
No Yes
ADDITIONAL ID CODE ENTRY
Release the door lock, then lock again
with driver side knob lock switch.
Open driver side door.
END.
After entering the identity (ID) code, check the operation of multi-remote con-
trol system.
NOTE:
lIf you need to activate more than two additional new remote controllers, repeat the procedure
``Additional ID code entry'' for each new remote controller.
lAny ID codes cannot be entered after termination of the ``setting mode''.
.
.
.
.
.
.
.
.
MULTI-REMOTE CONTROL SYSTEM/FOR EUROPE
EL-182

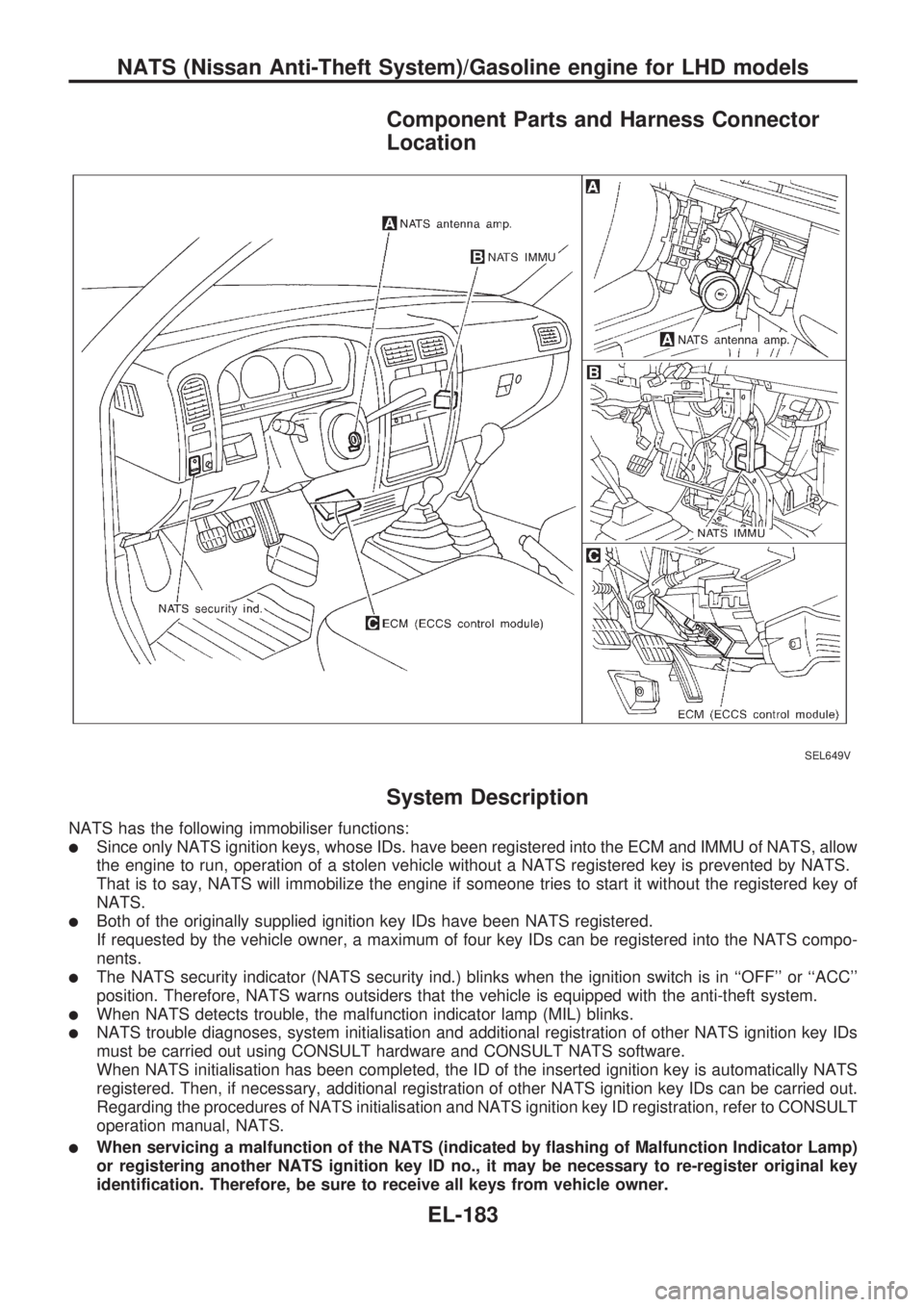

Component Parts and Harness Connector
Location
System Description
NATS has the following immobiliser functions:
lSince only NATS ignition keys, whose IDs. have been registered into the ECM and IMMU of NATS, allow
the engine to run, operation of a stolen vehicle without a NATS registered key is prevented by NATS.
That is to say, NATS will immobilize the engine if someone tries to start it without the registered key of
NATS.
lBoth of the originally supplied ignition key IDs have been NATS registered.
If requested by the vehicle owner, a maximum of four key IDs can be registered into the NATS compo-
nents.
lThe NATS security indicator (NATS security ind.) blinks when the ignition switch is in ``OFF'' or ``ACC''
position. Therefore, NATS warns outsiders that the vehicle is equipped with the anti-theft system.
lWhen NATS detects trouble, the malfunction indicator lamp (MIL) blinks.
lNATS trouble diagnoses, system initialisation and additional registration of other NATS ignition key IDs
must be carried out using CONSULT hardware and CONSULT NATS software.
When NATS initialisation has been completed, the ID of the inserted ignition key is automatically NATS
registered. Then, if necessary, additional registration of other NATS ignition key IDs can be carried out.
Regarding the procedures of NATS initialisation and NATS ignition key ID registration, refer to CONSULT
operation manual, NATS.
lWhen servicing a malfunction of the NATS (indicated by flashing of Malfunction Indicator Lamp)
or registering another NATS ignition key ID no., it may be necessary to re-register original key
identification. Therefore, be sure to receive all keys from vehicle owner.
SEL649V
NATS (Nissan Anti-Theft System)/Gasoline engine for LHD models
EL-183

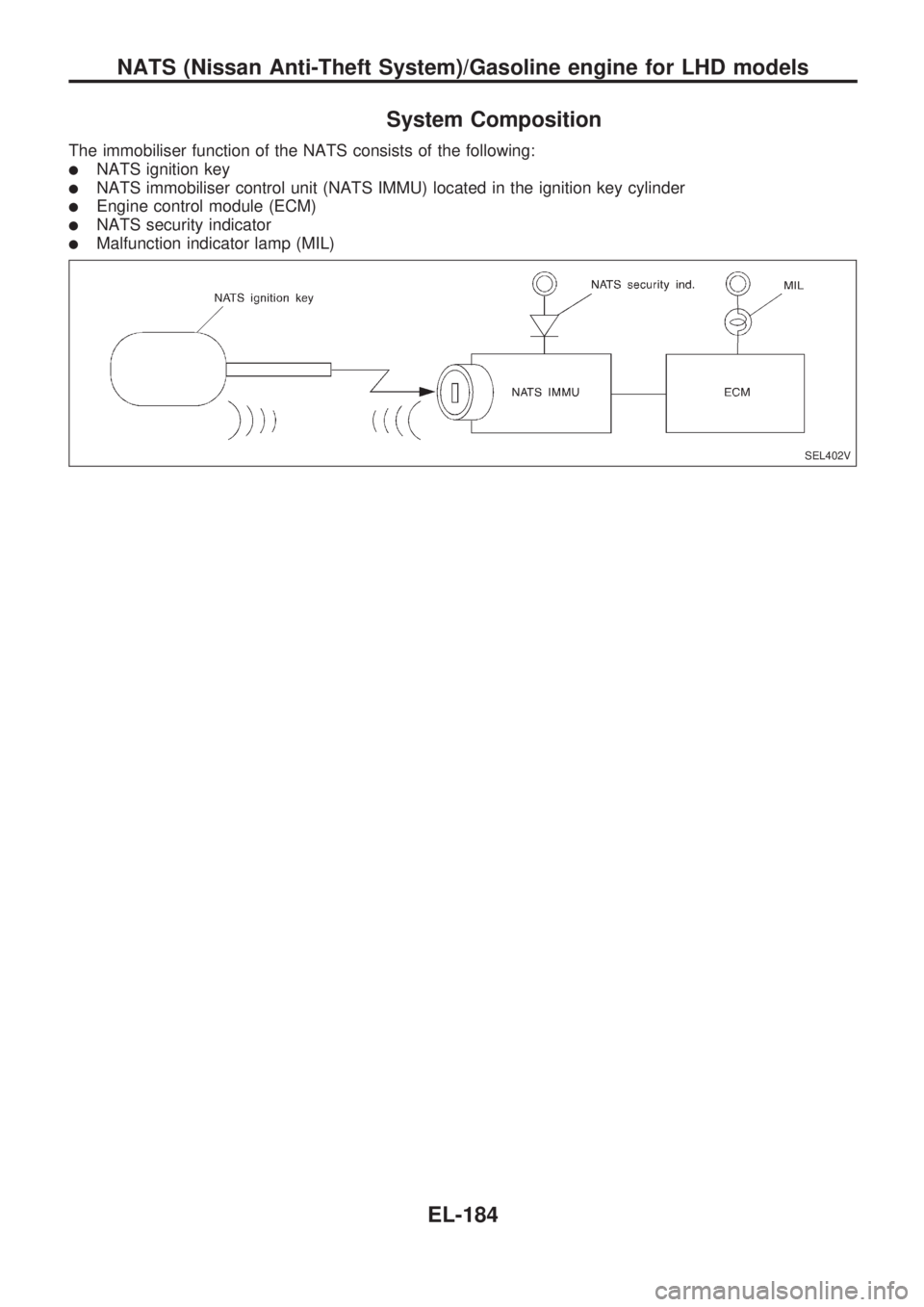

System Composition
The immobiliser function of the NATS consists of the following:
lNATS ignition key
lNATS immobiliser control unit (NATS IMMU) located in the ignition key cylinder
lEngine control module (ECM)
lNATS security indicator
lMalfunction indicator lamp (MIL)
SEL402V
NATS (Nissan Anti-Theft System)/Gasoline engine for LHD models
EL-184

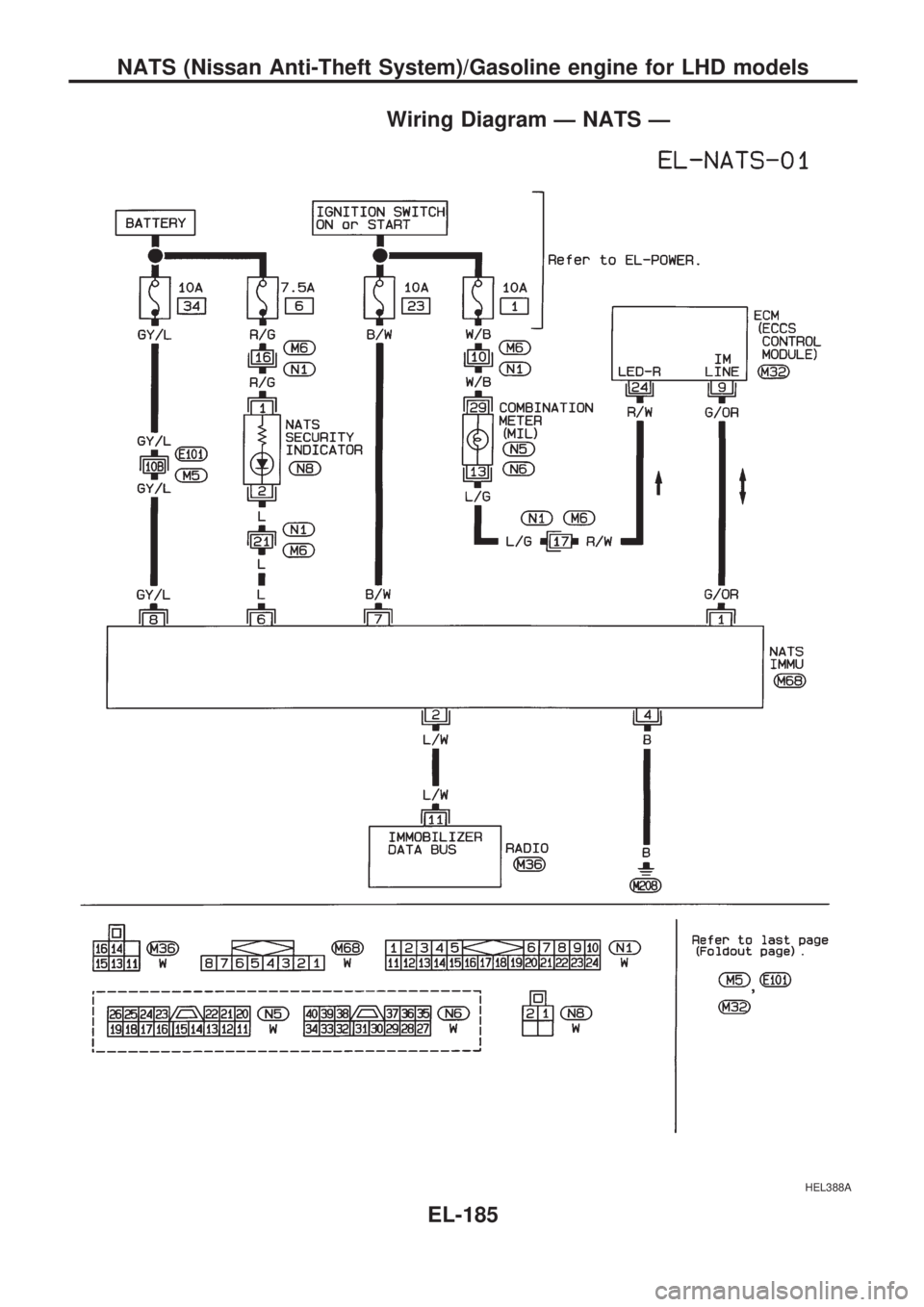

Wiring Diagram Ð NATS Ð
HEL388A
NATS (Nissan Anti-Theft System)/Gasoline engine for LHD models
EL-185

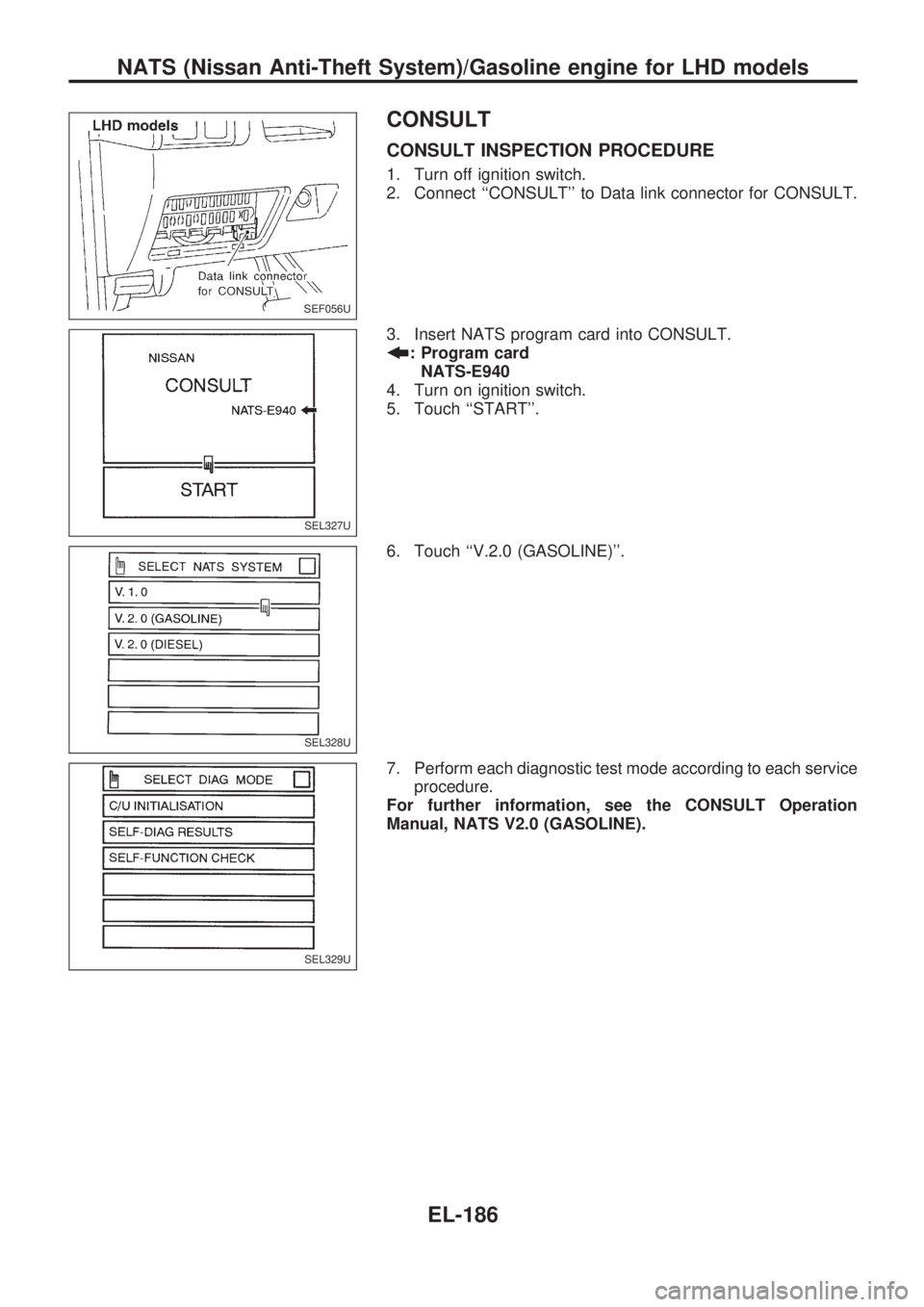

CONSULT
CONSULT INSPECTION PROCEDURE
1. Turn off ignition switch.
2. Connect ``CONSULT'' to Data link connector for CONSULT.
3. Insert NATS program card into CONSULT.
b
: Program card
NATS-E940
4. Turn on ignition switch.
5. Touch ``START''.
6. Touch ``V.2.0 (GASOLINE)''.
7. Perform each diagnostic test mode according to each service
procedure.
For further information, see the CONSULT Operation
Manual, NATS V2.0 (GASOLINE).
SEF056U
SEL327U
SEL328U
SEL329U
NATS (Nissan Anti-Theft System)/Gasoline engine for LHD models
EL-186

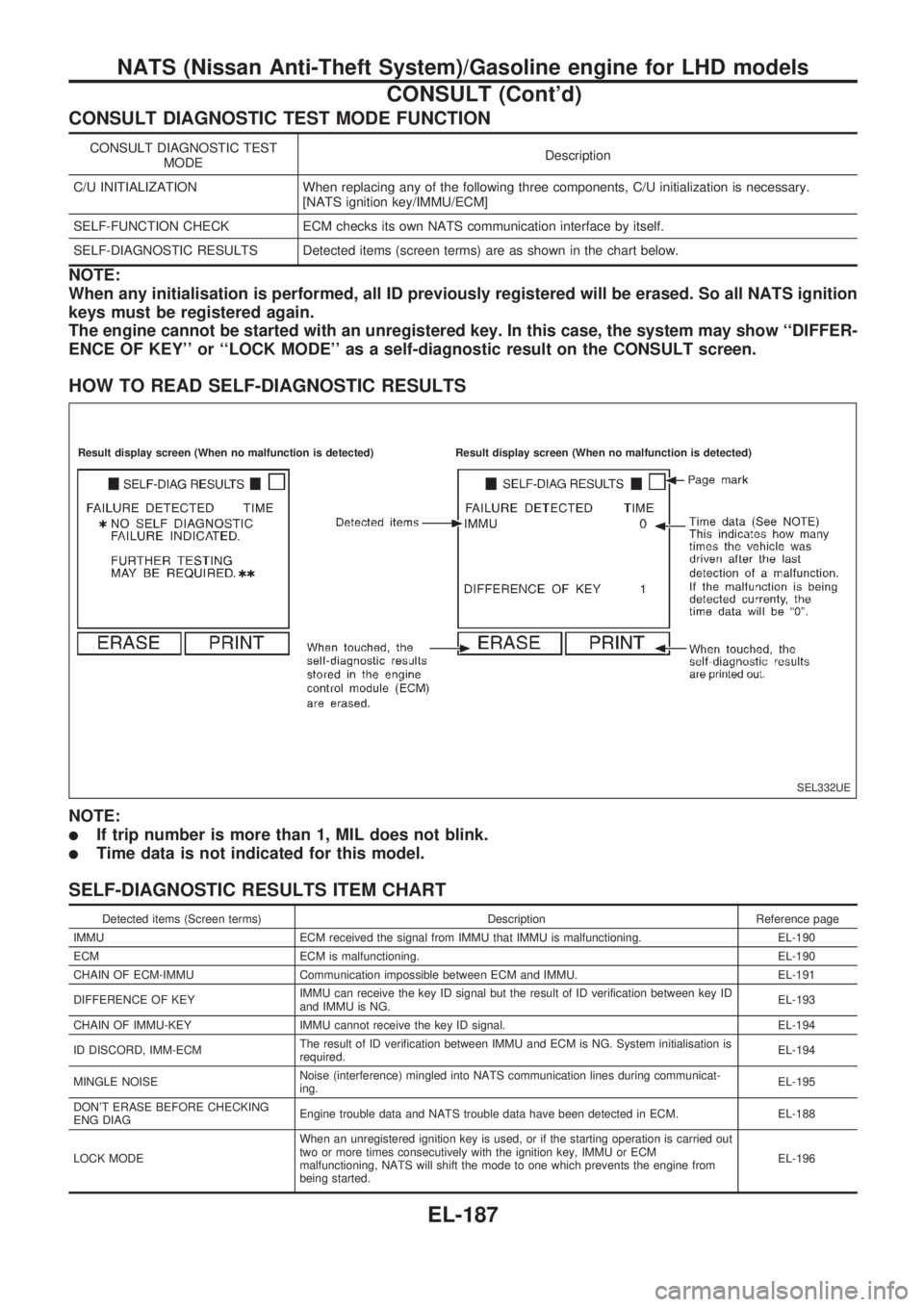

CONSULT DIAGNOSTIC TEST MODE FUNCTION
CONSULT DIAGNOSTIC TEST
MODEDescription
C/U INITIALIZATION When replacing any of the following three components, C/U initialization is necessary.
[NATS ignition key/IMMU/ECM]
SELF-FUNCTION CHECK ECM checks its own NATS communication interface by itself.
SELF-DIAGNOSTIC RESULTS Detected items (screen terms) are as shown in the chart below.
NOTE:
When any initialisation is performed, all ID previously registered will be erased. So all NATS ignition
keys must be registered again.
The engine cannot be started with an unregistered key. In this case, the system may show ``DIFFER-
ENCE OF KEY'' or ``LOCK MODE'' as a self-diagnostic result on the CONSULT screen.
HOW TO READ SELF-DIAGNOSTIC RESULTS
NOTE:
lIf trip number is more than 1, MIL does not blink.
lTime data is not indicated for this model.
SELF-DIAGNOSTIC RESULTS ITEM CHART
Detected items (Screen terms) Description Reference page
IMMU ECM received the signal from IMMU that IMMU is malfunctioning. EL-190
ECM ECM is malfunctioning. EL-190
CHAIN OF ECM-IMMU Communication impossible between ECM and IMMU. EL-191
DIFFERENCE OF KEYIMMU can receive the key ID signal but the result of ID verification between key ID
and IMMU is NG.EL-193
CHAIN OF IMMU-KEY IMMU cannot receive the key ID signal. EL-194
ID DISCORD, IMM-ECMThe result of ID verification between IMMU and ECM is NG. System initialisation is
required.EL-194
MINGLE NOISENoise (interference) mingled into NATS communication lines during communicat-
ing.EL-195
DON'T ERASE BEFORE CHECKING
ENG DIAGEngine trouble data and NATS trouble data have been detected in ECM. EL-188
LOCK MODEWhen an unregistered ignition key is used, or if the starting operation is carried out
two or more times consecutively with the ignition key, IMMU or ECM
malfunctioning, NATS will shift the mode to one which prevents the engine from
being started.EL-196
SEL332UE
.Result display screen (When no malfunction is detected).Result display screen (When no malfunction is detected)
NATS (Nissan Anti-Theft System)/Gasoline engine for LHD models
CONSULT (Cont'd)
EL-187

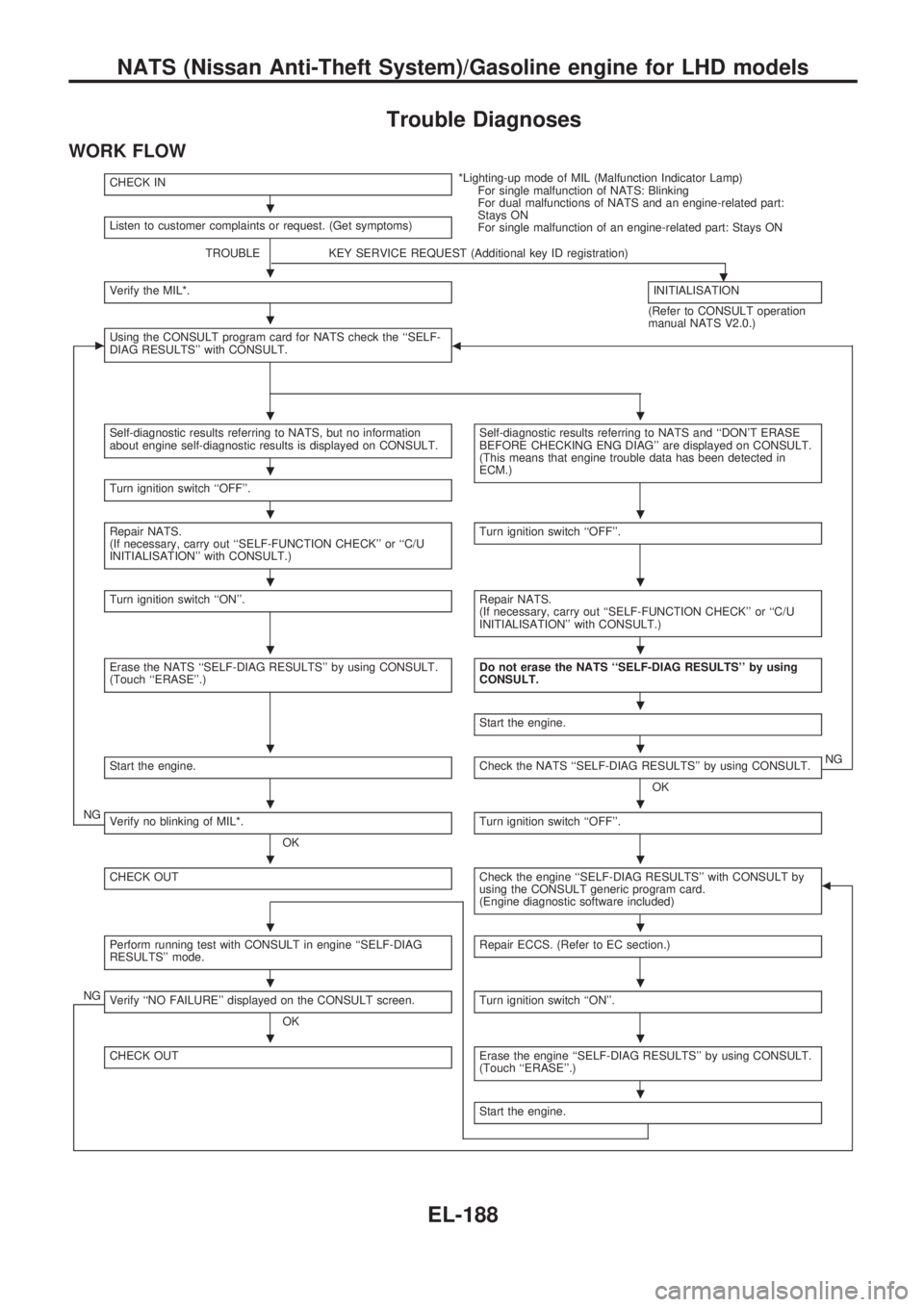

Trouble Diagnoses
WORK FLOW
CHECK IN*Lighting-up mode of MIL (Malfunction Indicator Lamp)
For single malfunction of NATS: Blinking
For dual malfunctions of NATS and an engine-related part:
Stays ON
For single malfunction of an engine-related part: Stays ON Listen to customer complaints or request. (Get symptoms)
TROUBLE KEY SERVICE REQUEST (Additional key ID registration)
.Verify the MIL*.INITIALISATION
(Refer to CONSULT operation
manual NATS V2.0.)
cUsing the CONSULT program card for NATS check the ``SELF-
DIAG RESULTS'' with CONSULT.b
Self-diagnostic results referring to NATS, but no information
about engine self-diagnostic results is displayed on CONSULT.Self-diagnostic results referring to NATS and ``DON'T ERASE
BEFORE CHECKING ENG DIAG'' are displayed on CONSULT.
(This means that engine trouble data has been detected in
ECM.)
Turn ignition switch ``OFF''.
Repair NATS.
(If necessary, carry out ``SELF-FUNCTION CHECK'' or ``C/U
INITIALISATION'' with CONSULT.)Turn ignition switch ``OFF''.
Turn ignition switch ``ON''.Repair NATS.
(If necessary, carry out ``SELF-FUNCTION CHECK'' or ``C/U
INITIALISATION'' with CONSULT.)
Erase the NATS ``SELF-DIAG RESULTS'' by using CONSULT.
(Touch ``ERASE''.)Do not erase the NATS ``SELF-DIAG RESULTS'' by using
CONSULT.
Start the engine.
Start the engine.Check the NATS ``SELF-DIAG RESULTS'' by using CONSULT.
OKNG
NGVerify no blinking of MIL*.
OKTurn ignition switch ``OFF''.
CHECK OUTCheck the engine ``SELF-DIAG RESULTS'' with CONSULT by
using the CONSULT generic program card.
(Engine diagnostic software included)b
Perform running test with CONSULT in engine ``SELF-DIAG
RESULTS'' mode.Repair ECCS. (Refer to EC section.)
NGVerify ``NO FAILURE'' displayed on the CONSULT screen.
OKTurn ignition switch ``ON''.
CHECK OUTErase the engine ``SELF-DIAG RESULTS'' by using CONSULT.
(Touch ``ERASE''.)
Start the engine.
.
.
.
..
.
..
..
..
.
..
..
..
..
..
..
.
NATS (Nissan Anti-Theft System)/Gasoline engine for LHD models
EL-188

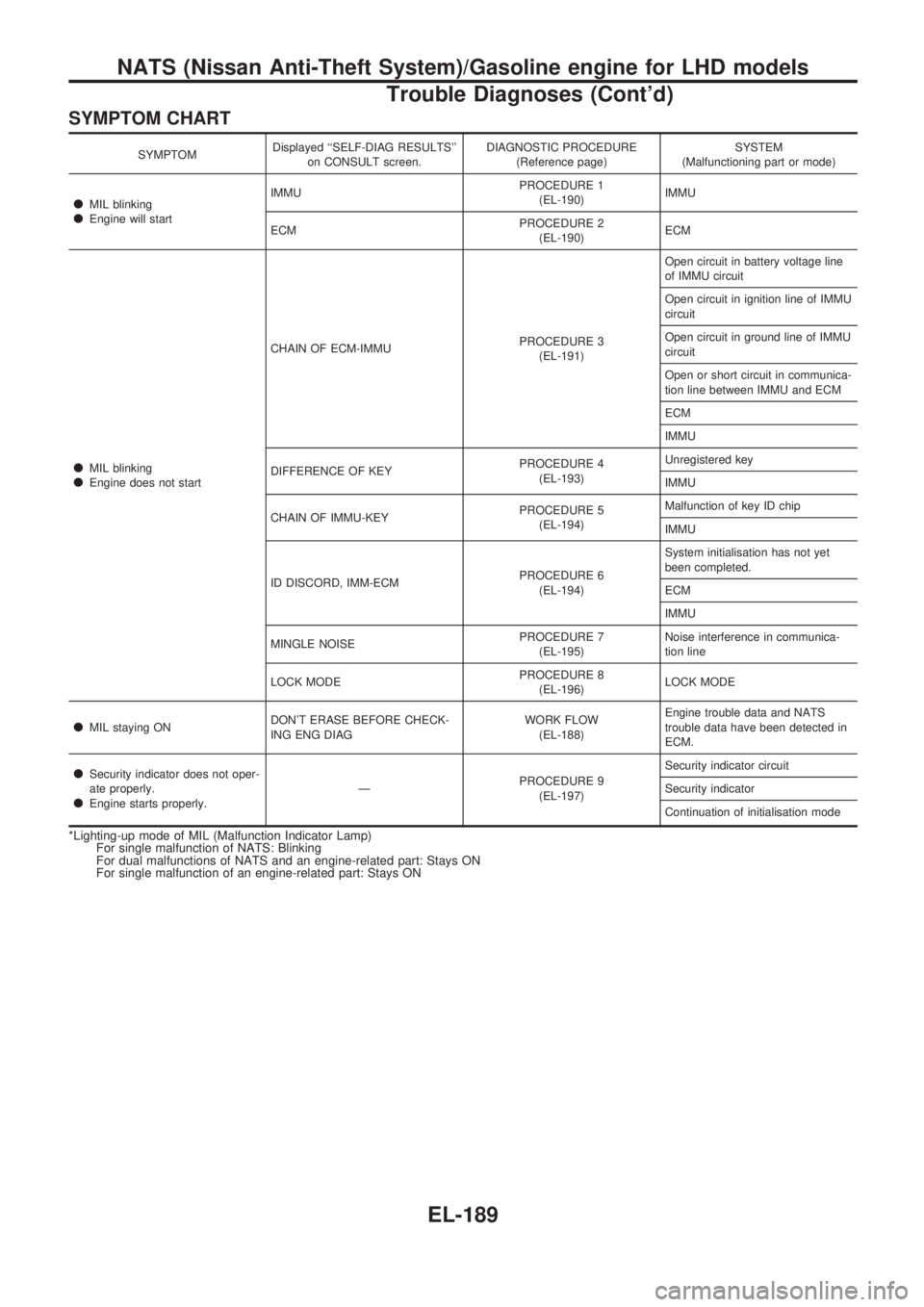

SYMPTOM CHART
SYMPTOMDisplayed ``SELF-DIAG RESULTS''
on CONSULT screen.DIAGNOSTIC PROCEDURE
(Reference page)SYSTEM
(Malfunctioning part or mode)
lMIL blinkinglEngine will startIMMUPROCEDURE 1
(EL-190)IMMU
ECMPROCEDURE 2
(EL-190)ECM
lMIL blinkinglEngine does not startCHAIN OF ECM-IMMUPROCEDURE 3
(EL-191)Open circuit in battery voltage line
of IMMU circuit
Open circuit in ignition line of IMMU
circuit
Open circuit in ground line of IMMU
circuit
Open or short circuit in communica-
tion line between IMMU and ECM
ECM
IMMU
DIFFERENCE OF KEYPROCEDURE 4
(EL-193)Unregistered key
IMMU
CHAIN OF IMMU-KEYPROCEDURE 5
(EL-194)Malfunction of key ID chip
IMMU
ID DISCORD, IMM-ECMPROCEDURE 6
(EL-194)System initialisation has not yet
been completed.
ECM
IMMU
MINGLE NOISEPROCEDURE 7
(EL-195)Noise interference in communica-
tion line
LOCK MODEPROCEDURE 8
(EL-196)LOCK MODE
lMIL staying ONDON'T ERASE BEFORE CHECK-
ING ENG DIAGWORK FLOW
(EL-188)Engine trouble data and NATS
trouble data have been detected in
ECM.
lSecurity indicator does not oper-
ate properly.
lEngine starts properly.ÐPROCEDURE 9
(EL-197)Security indicator circuit
Security indicator
Continuation of initialisation mode
*Lighting-up mode of MIL (Malfunction Indicator Lamp)
For single malfunction of NATS: Blinking
For dual malfunctions of NATS and an engine-related part: Stays ON
For single malfunction of an engine-related part: Stays ON
NATS (Nissan Anti-Theft System)/Gasoline engine for LHD models
Trouble Diagnoses (Cont'd)
EL-189

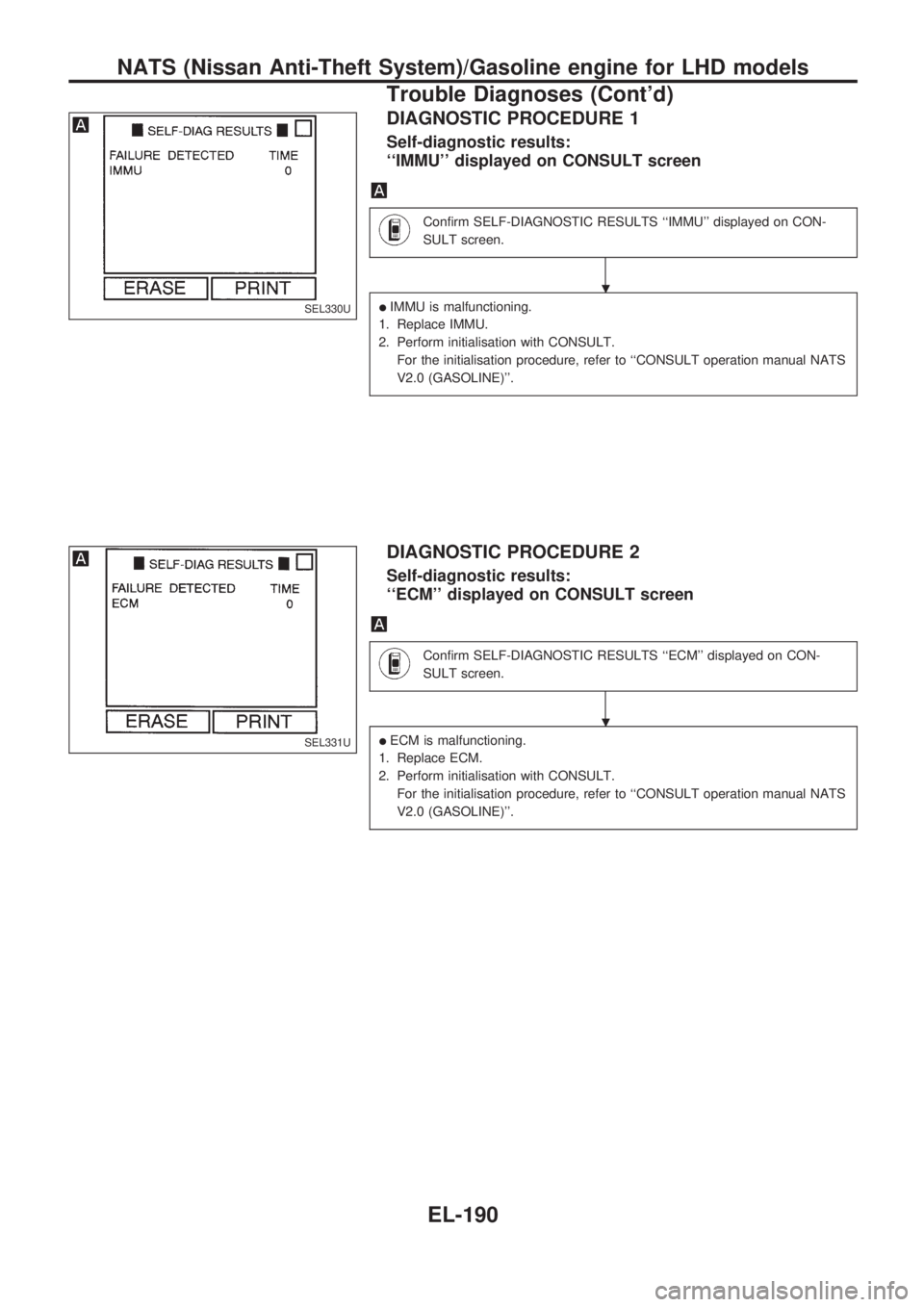

DIAGNOSTIC PROCEDURE 1
Self-diagnostic results:
``IMMU'' displayed on CONSULT screen
Confirm SELF-DIAGNOSTIC RESULTS ``IMMU'' displayed on CON-
SULT screen.
lIMMU is malfunctioning.
1. Replace IMMU.
2. Perform initialisation with CONSULT.
For the initialisation procedure, refer to ``CONSULT operation manual NATS
V2.0 (GASOLINE)''.
DIAGNOSTIC PROCEDURE 2
Self-diagnostic results:
``ECM'' displayed on CONSULT screen
Confirm SELF-DIAGNOSTIC RESULTS ``ECM'' displayed on CON-
SULT screen.
lECM is malfunctioning.
1. Replace ECM.
2. Perform initialisation with CONSULT.
For the initialisation procedure, refer to ``CONSULT operation manual NATS
V2.0 (GASOLINE)''.
SEL330U
SEL331U
.
.
NATS (Nissan Anti-Theft System)/Gasoline engine for LHD models
Trouble Diagnoses (Cont'd)
EL-190
