Page 361 of 1306

NISSAN PICK-UP 2001  Repair Manual PBIB0558E
Procedure for COND2NEEC0157S01021. While driving, release accelerator pedal completely from the
above condition [step 8] until ªINCOMPLETEº at ªCOND2º on
CONSULT-II screen has turned to

Page 362 of 1306

NISSAN PICK-UP 2001  Repair Manual Wiring DiagramNEEC0159
GEC246A
DTC P1147 HO2S2KA24DE (EURO OBD)
Wiring Diagram
EC-3337

Page 363 of 1306

NISSAN PICK-UP 2001  Repair Manual Diagnostic ProcedureNEEC0160
1 RETIGHTEN GROUND SCREWS
1. Turn ignition switch OFF.
2. Loosen and retighten engine ground screws.
SEC309D
©GO TO 2.
DTC P1147 HO2S2KA24DE (EURO OBD)
Diagnostic Procedu

Page 364 of 1306

NISSAN PICK-UP 2001  Repair Manual 2 CLEAR THE SELF-LEARNING DATA
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select ªSELF-LEARNING CONTº in ªWORK SUPPORTº mode with CONSULT-II.
3. Clear the s

Page 365 of 1306

NISSAN PICK-UP 2001  Repair Manual 4 DETECT MALFUNCTIONING PART
Check the following.
+Harness for open or short between ECM and heated oxygen sensor 2
©Repair open circuit or short to ground or short to power in harness or connectors.

Page 366 of 1306

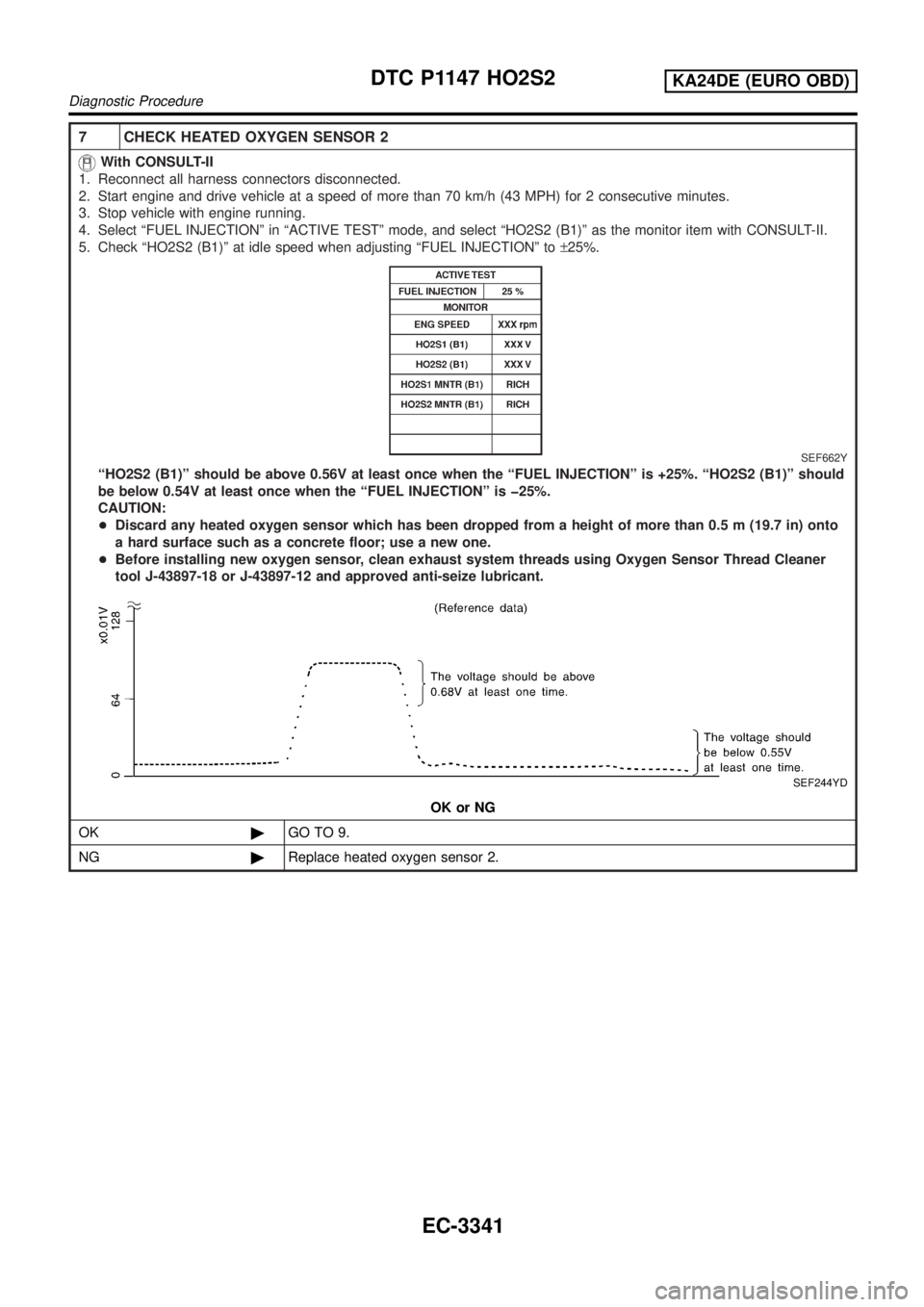

NISSAN PICK-UP 2001  Repair Manual 7 CHECK HEATED OXYGEN SENSOR 2
With CONSULT-II
1. Reconnect all harness connectors disconnected.
2. Start engine and drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes.
3

Page 367 of 1306

NISSAN PICK-UP 2001  Repair Manual 8 CHECK HEATED OXYGEN SENSOR 2
Without CONSULT-II
1. Reconnect all harness connectors disconnected.
2. Start engine and drive vehicle at a speed of more than 70 km/h (43 MPH) for 2 consecutive minutes

Page 368 of 1306

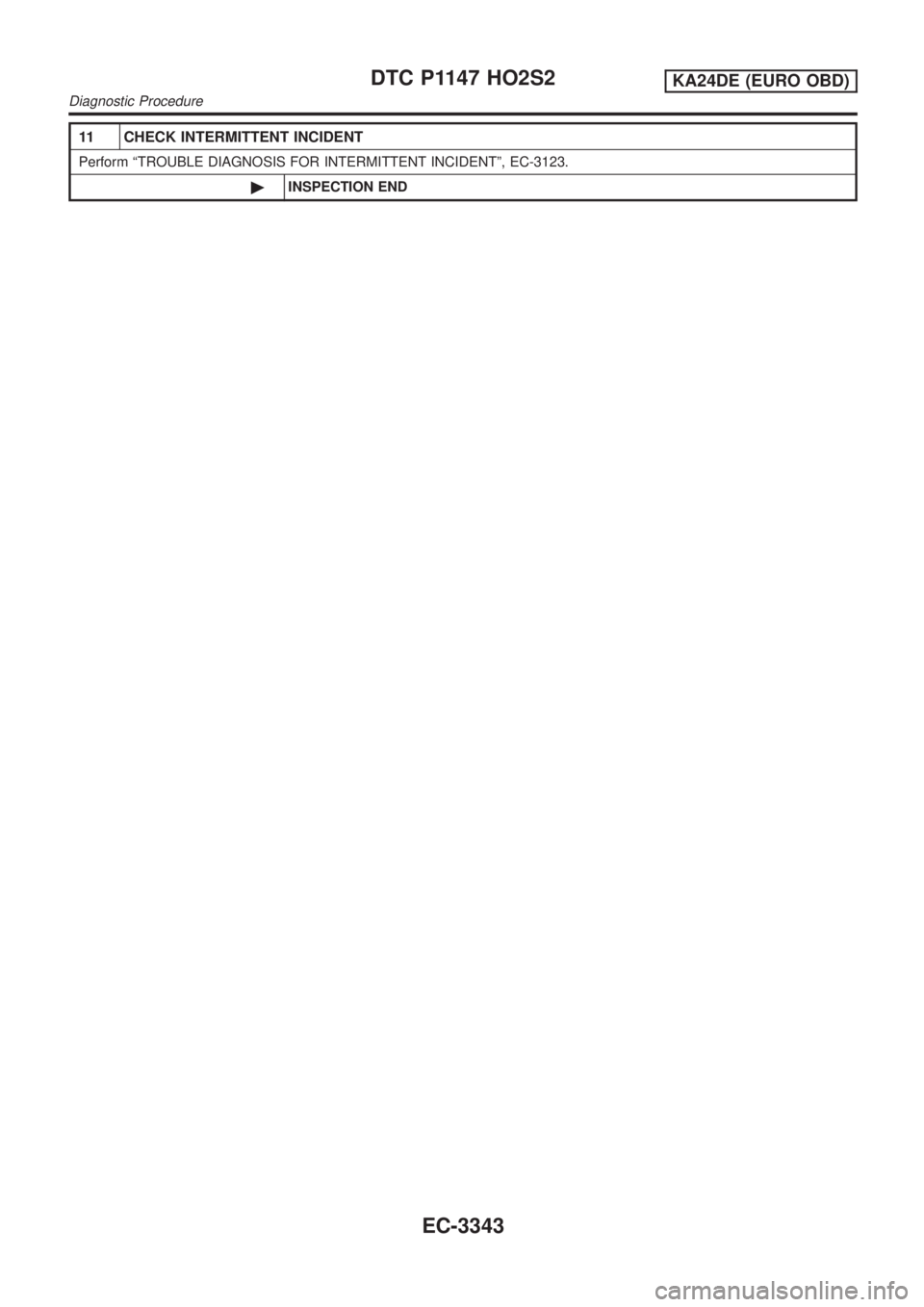

NISSAN PICK-UP 2001  Repair Manual 11 CHECK INTERMITTENT INCIDENT
Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-3123.
©INSPECTION END
DTC P1147 HO2S2KA24DE (EURO OBD)
Diagnostic Procedure
EC-3343

Page 369 of 1306

NISSAN PICK-UP 2001  Repair Manual On Board Diagnosis LogicNEEC1534If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnorma

Page 370 of 1306

NISSAN PICK-UP 2001  Repair Manual Diagnostic ProcedureNEEC1536
1 CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the pressure drops.
Testing pressure: 157 kPa (1.57 bar, 1.6 kg/cm2, 23 ps
