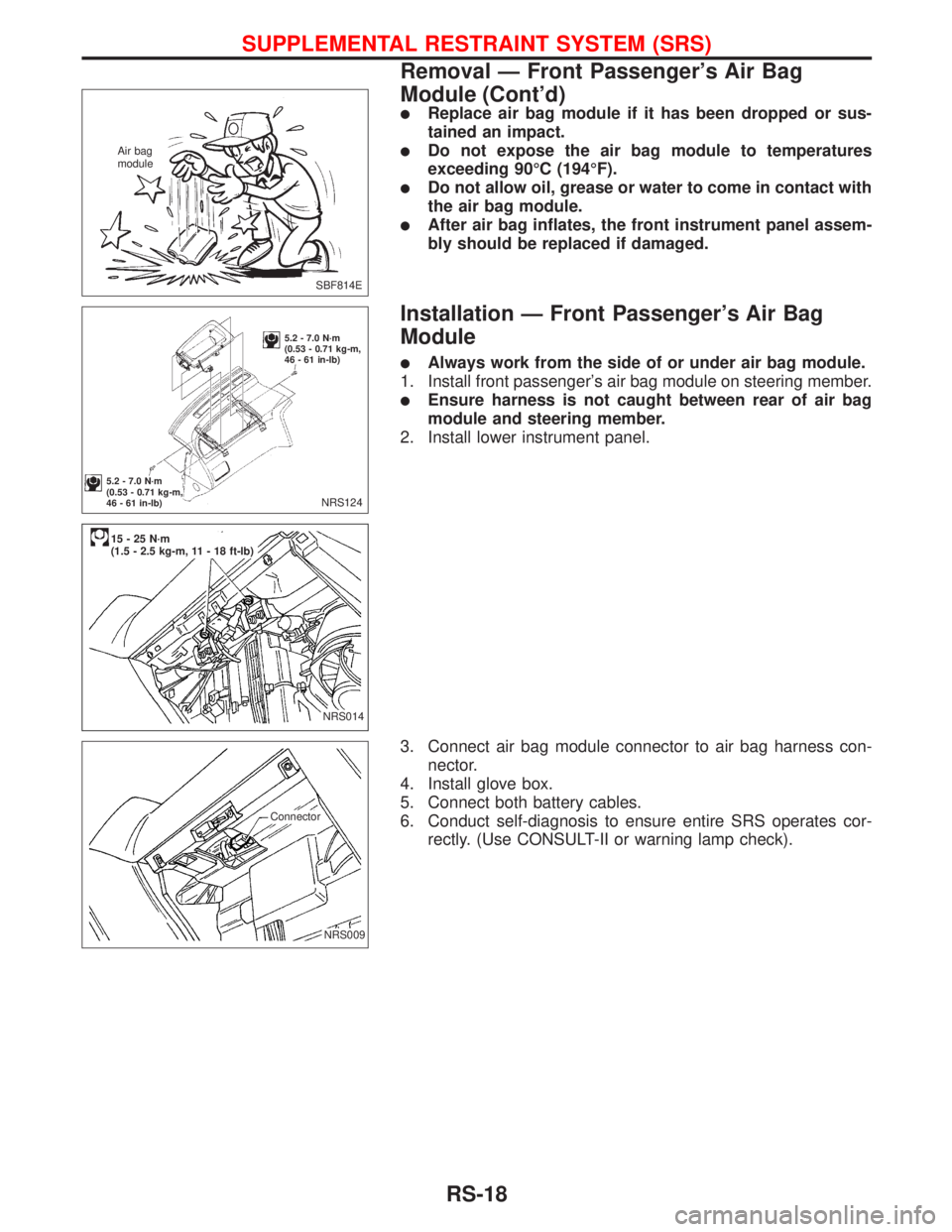

lReplace air bag module if it has been dropped or sus-
tained an impact.
lDo not expose the air bag module to temperatures
exceeding 90ÉC (194ÉF).
lDo not allow oil, grease or water to come in contact with
the air bag module.
lAfter air bag inflates, the front instrument panel assem-
bly should be replaced if damaged.
Installation Ð Front Passenger's Air Bag
Module
lAlways work from the side of or under air bag module.
1. Install front passenger's air bag module on steering member.
lEnsure harness is not caught between rear of air bag
module and steering member.
2. Install lower instrument panel.
3. Connect air bag module connector to air bag harness con-
nector.
4. Install glove box.
5. Connect both battery cables.
6. Conduct self-diagnosis to ensure entire SRS operates cor-
rectly. (Use CONSULT-II or warning lamp check).
SBF814E Air bag
module
NRS124
5.2 - 7.0 N´m
(0.53 - 0.71 kg-m,
46 - 61 in-lb)
5.2 - 7.0 N´m
(0.53 - 0.71 kg-m,
46 - 61 in-lb)
.NRS014
.15-25N´m
(1.5 - 2.5 kg-m, 11 - 18 ft-lb)
.NRS009
.Connector
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Removal Ð Front Passenger's Air Bag
Module (Cont'd)
RS-18
Page 2202 of 2267

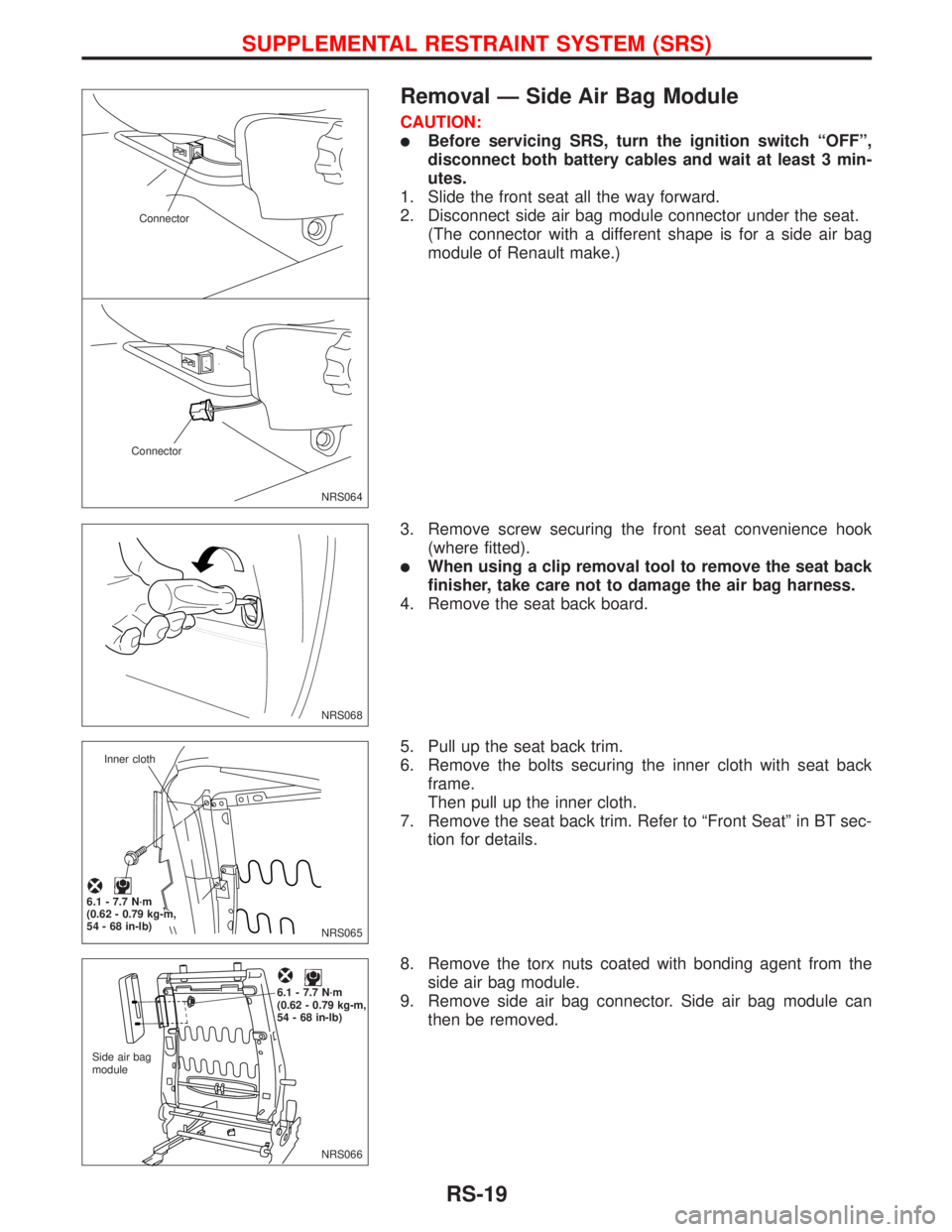

Removal Ð Side Air Bag Module
CAUTION:
lBefore servicing SRS, turn the ignition switch ªOFFº,
disconnect both battery cables and wait at least 3 min-
utes.
1. Slide the front seat all the way forward.
2. Disconnect side air bag module connector under the seat.
(The connector with a different shape is for a side air bag
module of Renault make.)
3. Remove screw securing the front seat convenience hook
(where fitted).
lWhen using a clip removal tool to remove the seat back
finisher, take care not to damage the air bag harness.
4. Remove the seat back board.
5. Pull up the seat back trim.
6. Remove the bolts securing the inner cloth with seat back
frame.
Then pull up the inner cloth.
7. Remove the seat back trim. Refer to ªFront Seatº in BT sec-
tion for details.
8. Remove the torx nuts coated with bonding agent from the
side air bag module.
9. Remove side air bag connector. Side air bag module can
then be removed.
NRS064 Connector
Connector
NRS068
NRS065 Inner cloth
.6.1 - 7.7 N´m
(0.62 - 0.79 kg-m,
54 - 68 in-lb)
NRS066 Side air bag
module
.6.1 - 7.7 N´m
(0.62 - 0.79 kg-m,
54 - 68 in-lb)
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
RS-19
Page 2203 of 2267

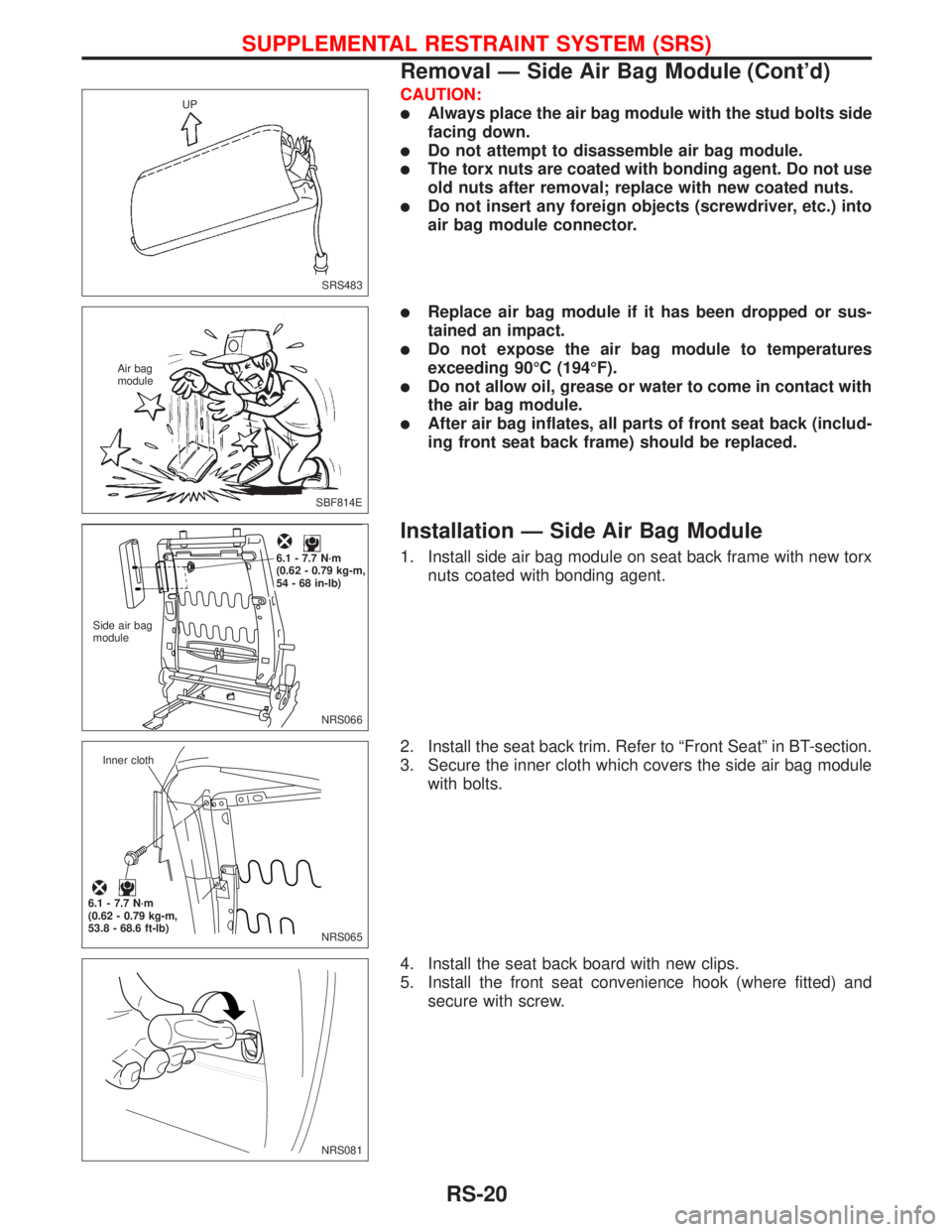

CAUTION:
lAlways place the air bag module with the stud bolts side
facing down.
lDo not attempt to disassemble air bag module.
lThe torx nuts are coated with bonding agent. Do not use
old nuts after removal; replace with new coated nuts.
lDo not insert any foreign objects (screwdriver, etc.) into
air bag module connector.
lReplace air bag module if it has been dropped or sus-
tained an impact.
lDo not expose the air bag module to temperatures
exceeding 90ÉC (194ÉF).
lDo not allow oil, grease or water to come in contact with
the air bag module.
lAfter air bag inflates, all parts of front seat back (includ-
ing front seat back frame) should be replaced.
Installation Ð Side Air Bag Module
1. Install side air bag module on seat back frame with new torx
nuts coated with bonding agent.
2. Install the seat back trim. Refer to ªFront Seatº in BT-section.
3. Secure the inner cloth which covers the side air bag module
with bolts.
4. Install the seat back board with new clips.
5. Install the front seat convenience hook (where fitted) and
secure with screw.
SRS483 UP
SBF814E Air bag
module
NRS066
.
6.1 - 7.7 N´m
(0.62 - 0.79 kg-m,
54 - 68 in-lb)
Side air bag
module
NRS065 Inner cloth
.
6.1 - 7.7 N´m
(0.62 - 0.79 kg-m,
53.8 - 68.6 ft-lb)
NRS081
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Removal Ð Side Air Bag Module (Cont'd)
RS-20
Page 2204 of 2267

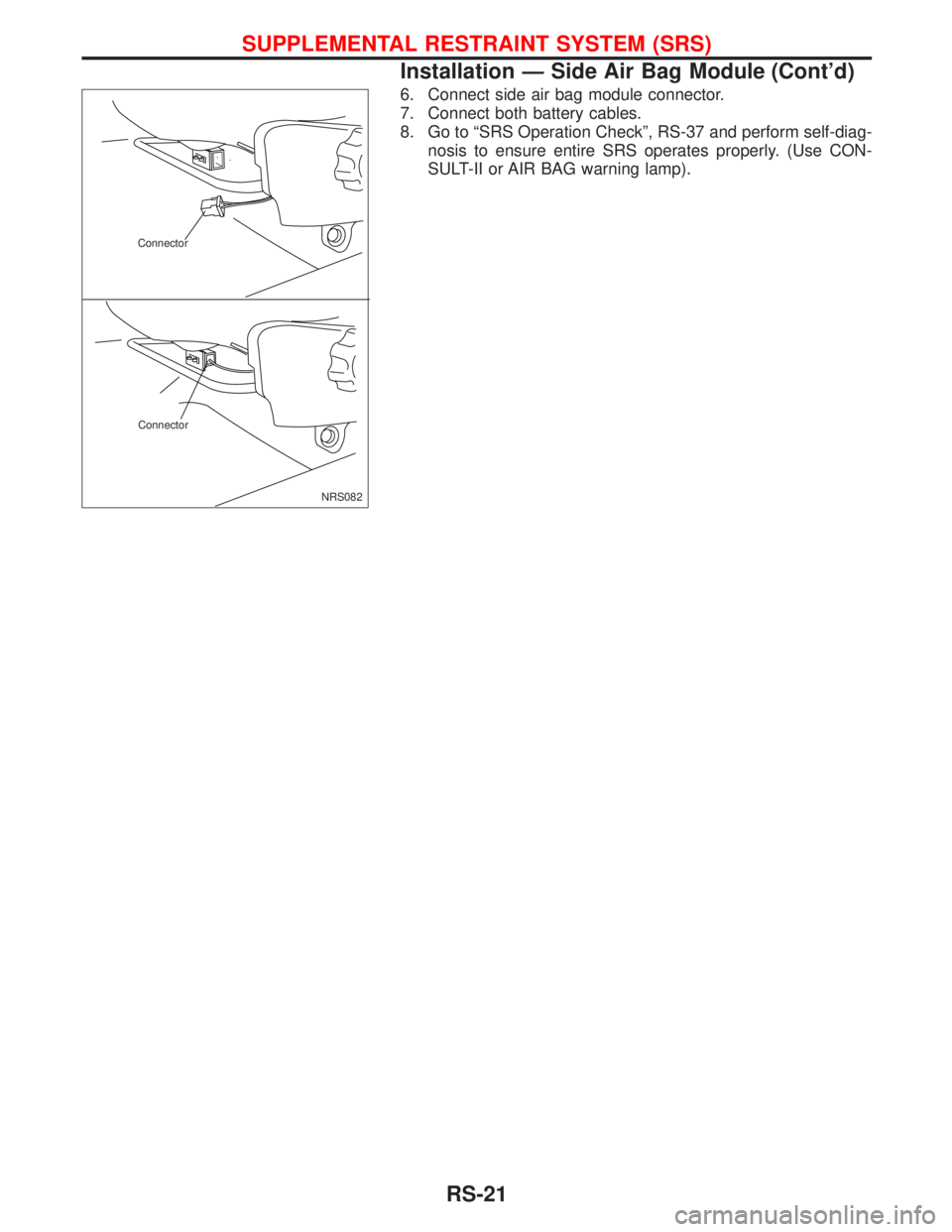

6. Connect side air bag module connector.
7. Connect both battery cables.
8. Go to ªSRS Operation Checkº, RS-37 and perform self-diag-
nosis to ensure entire SRS operates properly. (Use CON-
SULT-II or AIR BAG warning lamp).
NRS082 Connector
Connector
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Installation Ð Side Air Bag Module (Cont'd)
RS-21
Page 2205 of 2267

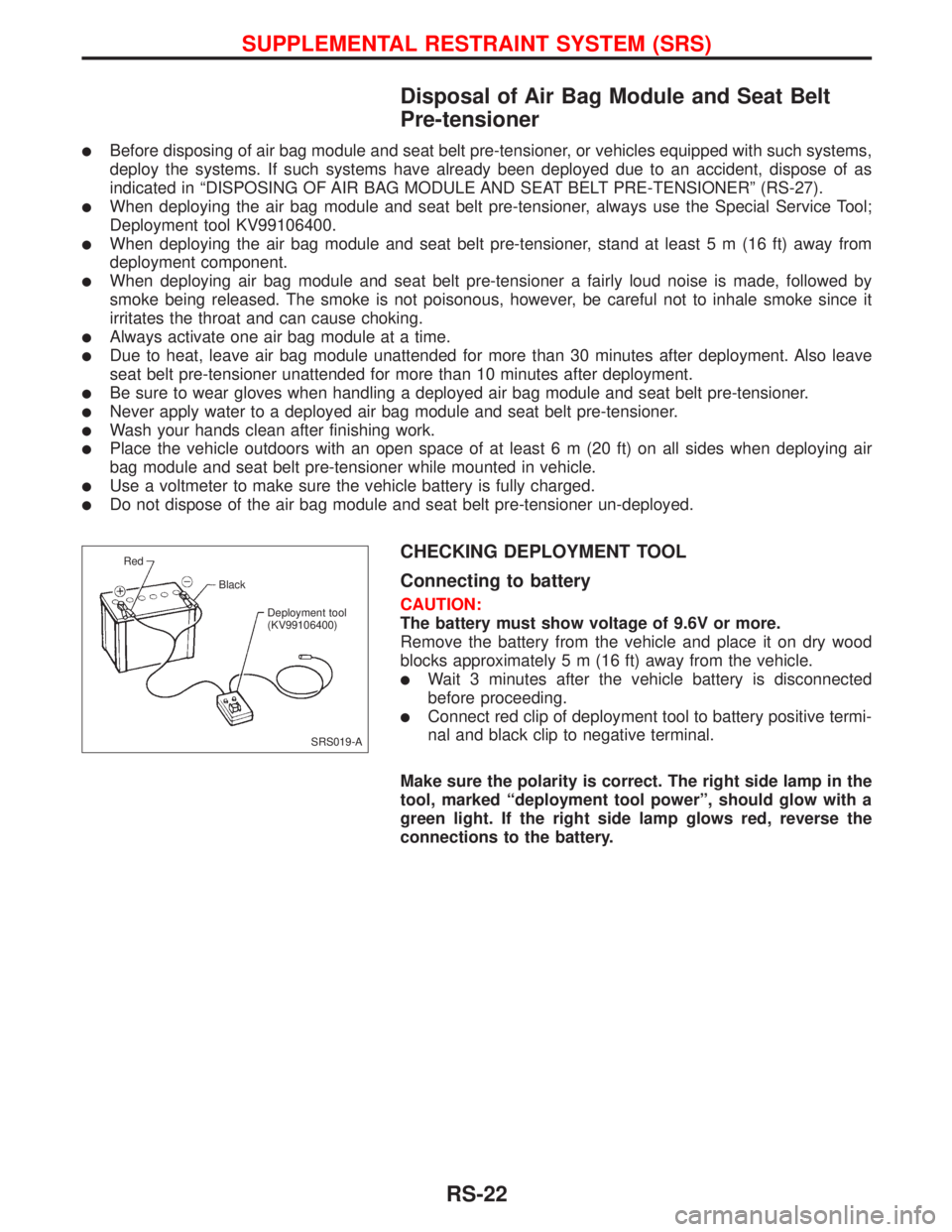

Disposal of Air Bag Module and Seat Belt
Pre-tensioner
lBefore disposing of air bag module and seat belt pre-tensioner, or vehicles equipped with such systems,
deploy the systems. If such systems have already been deployed due to an accident, dispose of as
indicated in ªDISPOSING OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONERº (RS-27).
lWhen deploying the air bag module and seat belt pre-tensioner, always use the Special Service Tool;
Deployment tool KV99106400.
lWhen deploying the air bag module and seat belt pre-tensioner, stand at least 5 m (16 ft) away from
deployment component.
lWhen deploying air bag module and seat belt pre-tensioner a fairly loud noise is made, followed by
smoke being released. The smoke is not poisonous, however, be careful not to inhale smoke since it
irritates the throat and can cause choking.
lAlways activate one air bag module at a time.
lDue to heat, leave air bag module unattended for more than 30 minutes after deployment. Also leave
seat belt pre-tensioner unattended for more than 10 minutes after deployment.
lBe sure to wear gloves when handling a deployed air bag module and seat belt pre-tensioner.
lNever apply water to a deployed air bag module and seat belt pre-tensioner.
lWash your hands clean after finishing work.
lPlace the vehicle outdoors with an open space of at least 6 m (20 ft) on all sides when deploying air
bag module and seat belt pre-tensioner while mounted in vehicle.
lUse a voltmeter to make sure the vehicle battery is fully charged.
lDo not dispose of the air bag module and seat belt pre-tensioner un-deployed.
CHECKING DEPLOYMENT TOOL
Connecting to battery
CAUTION:
The battery must show voltage of 9.6V or more.
Remove the battery from the vehicle and place it on dry wood
blocks approximately 5 m (16 ft) away from the vehicle.
lWait 3 minutes after the vehicle battery is disconnected
before proceeding.
lConnect red clip of deployment tool to battery positive termi-
nal and black clip to negative terminal.
Make sure the polarity is correct. The right side lamp in the
tool, marked ªdeployment tool powerº, should glow with a
green light. If the right side lamp glows red, reverse the
connections to the battery.
SRS019-A Red
Black
Deployment tool
(KV99106400)
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
RS-22
Page 2206 of 2267

Deployment tool check
Press the deployment tool push button to the ªONº position. The
left side lamp in the tool, marked ªair bag connector voltageº
should illuminate. If it does not illuminate, replace the tool.
Air bag deployment tool lamp illumination chart
(Battery connected)
Switch operationLeft side lamp, green*
ªAIR BAG CONNECTOR
VOLTAGEºRight side lamp, green*
ªDEPLOYMENT TOOL
POWERº
OFFOFF ON
ONON ON
*: If this lamp glows red, the tool is connected to the battery incorrectly.
Reverse the connections and make sure the lamp glows green.

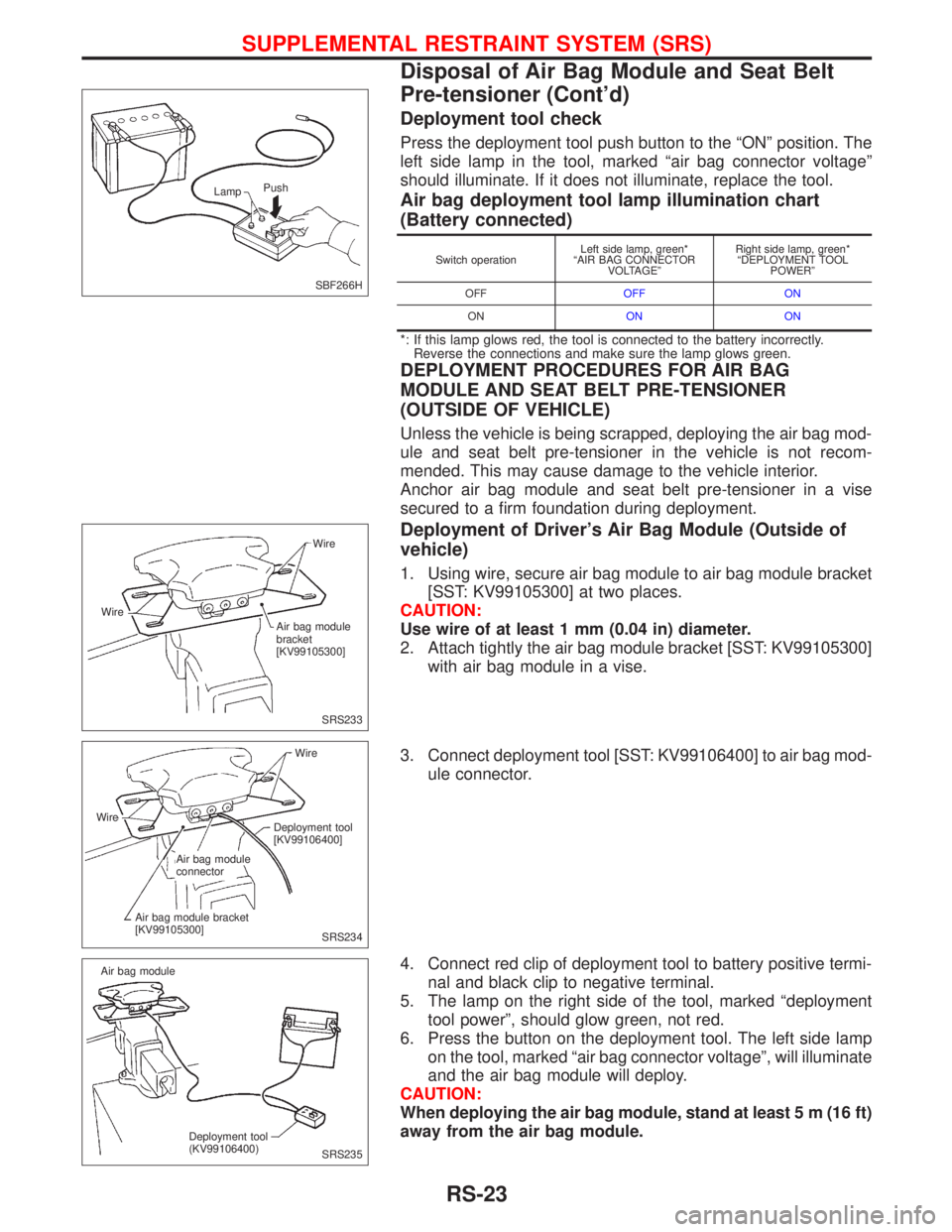

DEPLOYMENT PROCEDURES FOR AIR BAG
MODULE AND SEAT BELT PRE-TENSIONER
(OUTSIDE OF VEHICLE)
Unless the vehicle is being scrapped, deploying the air bag mod-
ule and seat belt pre-tensioner in the vehicle is not recom-
mended. This may cause damage to the vehicle interior.
Anchor air bag module and seat belt pre-tensioner in a vise
secured to a firm foundation during deployment.
Deployment of Driver's Air Bag Module (Outside of
vehicle)
1. Using wire, secure air bag module to air bag module bracket
[SST: KV99105300] at two places.
CAUTION:
Use wire of at least 1 mm (0.04 in) diameter.
2. Attach tightly the air bag module bracket [SST: KV99105300]
with air bag module in a vise.
3. Connect deployment tool [SST: KV99106400] to air bag mod-
ule connector.
4. Connect red clip of deployment tool to battery positive termi-
nal and black clip to negative terminal.
5. The lamp on the right side of the tool, marked ªdeployment
tool powerº, should glow green, not red.
6. Press the button on the deployment tool. The left side lamp
on the tool, marked ªair bag connector voltageº, will illuminate
and the air bag module will deploy.
CAUTION:
When deploying the air bag module, stand at least 5 m (16 ft)
away from the air bag module.
SBF266H LampPush
SRS233 Wire
Air bag module
bracket
[KV99105300]Wire
SRS234 Deployment tool
[KV99106400]
Air bag module bracket
[KV99105300]Wire
Air bag module
connector Wire
SRS235 Air bag module
Deployment tool
(KV99106400)
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Disposal of Air Bag Module and Seat Belt
Pre-tensioner (Cont'd)
RS-23
Page 2207 of 2267
![NISSAN PRIMERA 1999 Electronic Repair Manual Deployment of Passengers Air bag Module (outside
of vehicle)
1. Make an 8.5 mm (0.335 in) diameter hole in air bag module
bracket [SST: KV99105300] at the position as shown in the
left figure.
2. Att NISSAN PRIMERA 1999 Electronic Repair Manual Deployment of Passengers Air bag Module (outside
of vehicle)
1. Make an 8.5 mm (0.335 in) diameter hole in air bag module
bracket [SST: KV99105300] at the position as shown in the
left figure.
2. Att](/img/5/57377/w960_57377-2206.png)

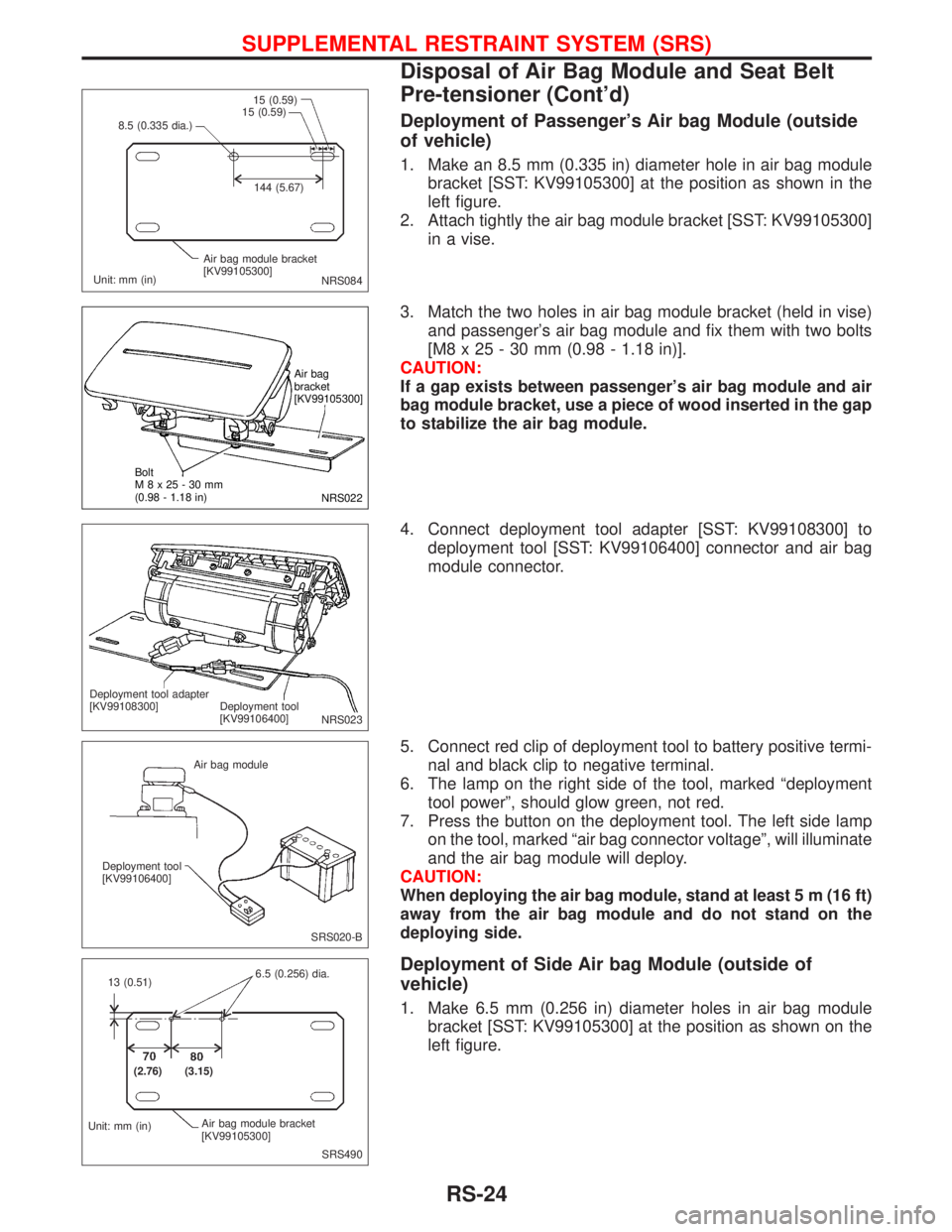

Deployment of Passenger's Air bag Module (outside
of vehicle)
1. Make an 8.5 mm (0.335 in) diameter hole in air bag module
bracket [SST: KV99105300] at the position as shown in the
left figure.
2. Attach tightly the air bag module bracket [SST: KV99105300]
in a vise.
3. Match the two holes in air bag module bracket (held in vise)
and passenger's air bag module and fix them with two bolts
[M8 x 25 - 30 mm (0.98 - 1.18 in)].
CAUTION:
If a gap exists between passenger's air bag module and air
bag module bracket, use a piece of wood inserted in the gap
to stabilize the air bag module.
4. Connect deployment tool adapter [SST: KV99108300] to
deployment tool [SST: KV99106400] connector and air bag
module connector.
5. Connect red clip of deployment tool to battery positive termi-
nal and black clip to negative terminal.
6. The lamp on the right side of the tool, marked ªdeployment
tool powerº, should glow green, not red.
7. Press the button on the deployment tool. The left side lamp
on the tool, marked ªair bag connector voltageº, will illuminate
and the air bag module will deploy.
CAUTION:
When deploying the air bag module, stand at least 5 m (16 ft)
away from the air bag module and do not stand on the
deploying side.
Deployment of Side Air bag Module (outside of
vehicle)
1. Make 6.5 mm (0.256 in) diameter holes in air bag module
bracket [SST: KV99105300] at the position as shown on the
left figure.
NRS084 15 (0.59)
15 (0.59)
8.5 (0.335 dia.)
144 (5.67)
Air bag module bracket
[KV99105300]
Unit: mm (in)
NRS022 Air bag
bracket
[KV99105300]
Bolt
M8x25-30mm
(0.98 - 1.18 in)
.
Deployment tool adapter
[KV99108300]Deployment tool
[KV99106400]
NRS023
SRS020-B Air bag module
Deployment tool
[KV99106400]
SRS490
.13 (0.51)
Unit: mm (in)Air bag module bracket
[KV99105300]6.5 (0.256) dia.
(2.76) (3.15)
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Disposal of Air Bag Module and Seat Belt
Pre-tensioner (Cont'd)
RS-24
Page 2208 of 2267
![NISSAN PRIMERA 1999 Electronic Repair Manual 2. Attach tightly the air bag module bracket [SST: KV99105300]
in a vise.
3. Insert the stud bolts of side air bag module into the two holes
in air bag module bracket held in vise and fix them with tw NISSAN PRIMERA 1999 Electronic Repair Manual 2. Attach tightly the air bag module bracket [SST: KV99105300]
in a vise.
3. Insert the stud bolts of side air bag module into the two holes
in air bag module bracket held in vise and fix them with tw](/img/5/57377/w960_57377-2207.png)

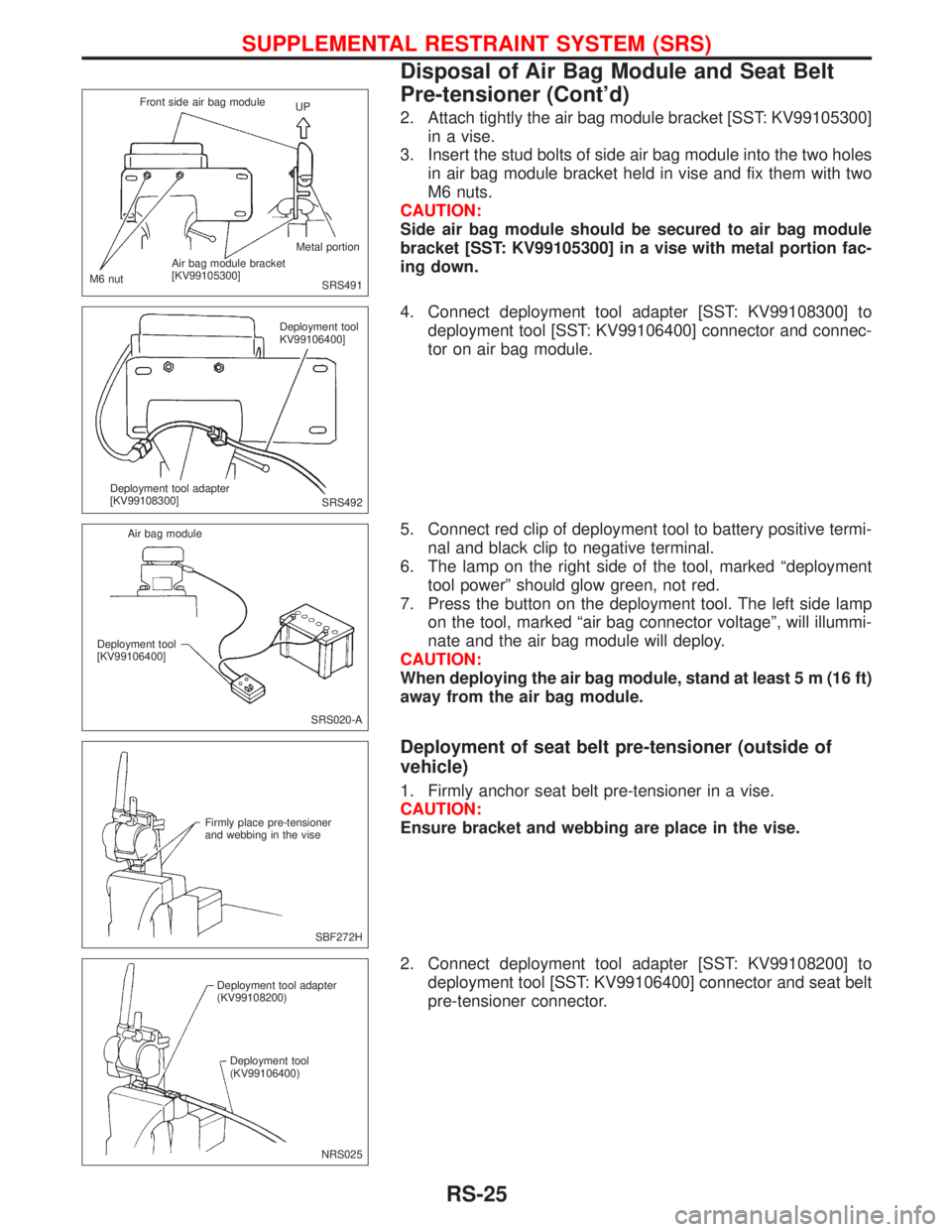

2. Attach tightly the air bag module bracket [SST: KV99105300]
in a vise.
3. Insert the stud bolts of side air bag module into the two holes
in air bag module bracket held in vise and fix them with two
M6 nuts.
CAUTION:
Side air bag module should be secured to air bag module
bracket [SST: KV99105300] in a vise with metal portion fac-
ing down.
4. Connect deployment tool adapter [SST: KV99108300] to
deployment tool [SST: KV99106400] connector and connec-
tor on air bag module.
5. Connect red clip of deployment tool to battery positive termi-
nal and black clip to negative terminal.
6. The lamp on the right side of the tool, marked ªdeployment
tool powerº should glow green, not red.
7. Press the button on the deployment tool. The left side lamp
on the tool, marked ªair bag connector voltageº, will illummi-
nate and the air bag module will deploy.
CAUTION:
When deploying the air bag module, stand at least 5 m (16 ft)
away from the air bag module.
Deployment of seat belt pre-tensioner (outside of
vehicle)
1. Firmly anchor seat belt pre-tensioner in a vise.
CAUTION:
Ensure bracket and webbing are place in the vise.
2. Connect deployment tool adapter [SST: KV99108200] to
deployment tool [SST: KV99106400] connector and seat belt
pre-tensioner connector.
SRS491 Front side air bag module
Metal portion
Air bag module bracket
[KV99105300]
M6 nutUP
SRS492 Deployment tool
KV99106400]
Deployment tool adapter
[KV99108300]
SRS020-A Air bag module
Deployment tool
[KV99106400]
SBF272H Firmly place pre-tensioner
and webbing in the vise
NRS025 Deployment tool adapter
(KV99108200)
Deployment tool
(KV99106400)
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Disposal of Air Bag Module and Seat Belt
Pre-tensioner (Cont'd)
RS-25
Page 2209 of 2267

3. Connect red clip of deployment tool to battery positive termi-
nal and black clip to negative terminal.
4. The lamp on the right side of the tool, marked ªdeployment
tool powerº, should glow green, not red.
5. Press the button on the deployment tool. The left side lamp
on the tool, marked ªseat belt pre-tensioner connector
voltageº, will illuminate and the seat belt pre-tensioner will
deploy.
CAUTION:
When deploying the seat belt pretensioner, stand at least
5 m (16 ft) away from the seat belt pre-tensioner.

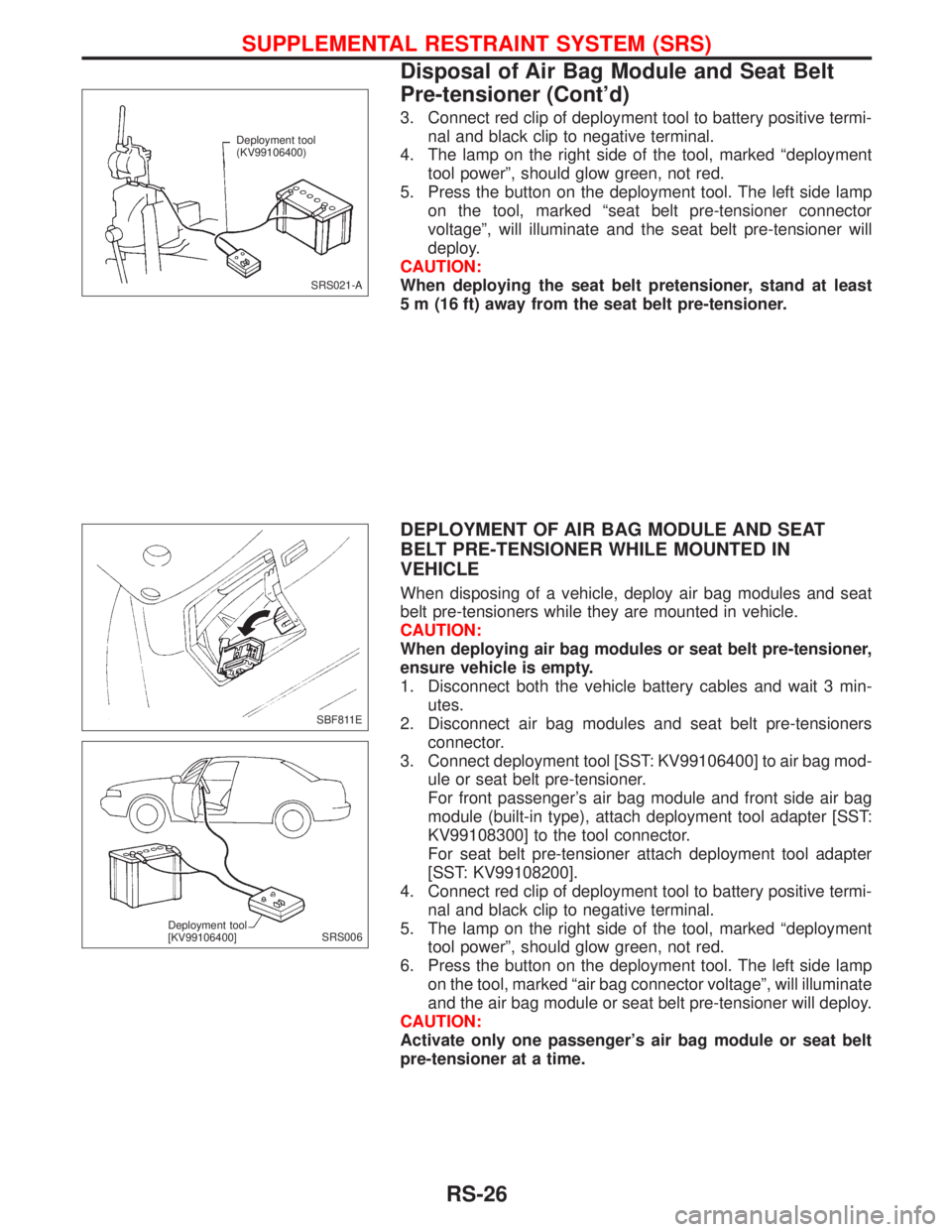

DEPLOYMENT OF AIR BAG MODULE AND SEAT
BELT PRE-TENSIONER WHILE MOUNTED IN
VEHICLE
When disposing of a vehicle, deploy air bag modules and seat
belt pre-tensioners while they are mounted in vehicle.
CAUTION:
When deploying air bag modules or seat belt pre-tensioner,
ensure vehicle is empty.
1. Disconnect both the vehicle battery cables and wait 3 min-
utes.
2. Disconnect air bag modules and seat belt pre-tensioners
connector.
3. Connect deployment tool [SST: KV99106400] to air bag mod-
ule or seat belt pre-tensioner.
For front passenger's air bag module and front side air bag
module (built-in type), attach deployment tool adapter [SST:
KV99108300] to the tool connector.
For seat belt pre-tensioner attach deployment tool adapter
[SST: KV99108200].
4. Connect red clip of deployment tool to battery positive termi-
nal and black clip to negative terminal.
5. The lamp on the right side of the tool, marked ªdeployment
tool powerº, should glow green, not red.
6. Press the button on the deployment tool. The left side lamp
on the tool, marked ªair bag connector voltageº, will illuminate
and the air bag module or seat belt pre-tensioner will deploy.
CAUTION:
Activate only one passenger's air bag module or seat belt
pre-tensioner at a time.
SRS021-A Deployment tool
(KV99106400)
SBF811E
SRS006
.Deployment tool
[KV99106400]
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Disposal of Air Bag Module and Seat Belt
Pre-tensioner (Cont'd)
RS-26
Page 2210 of 2267

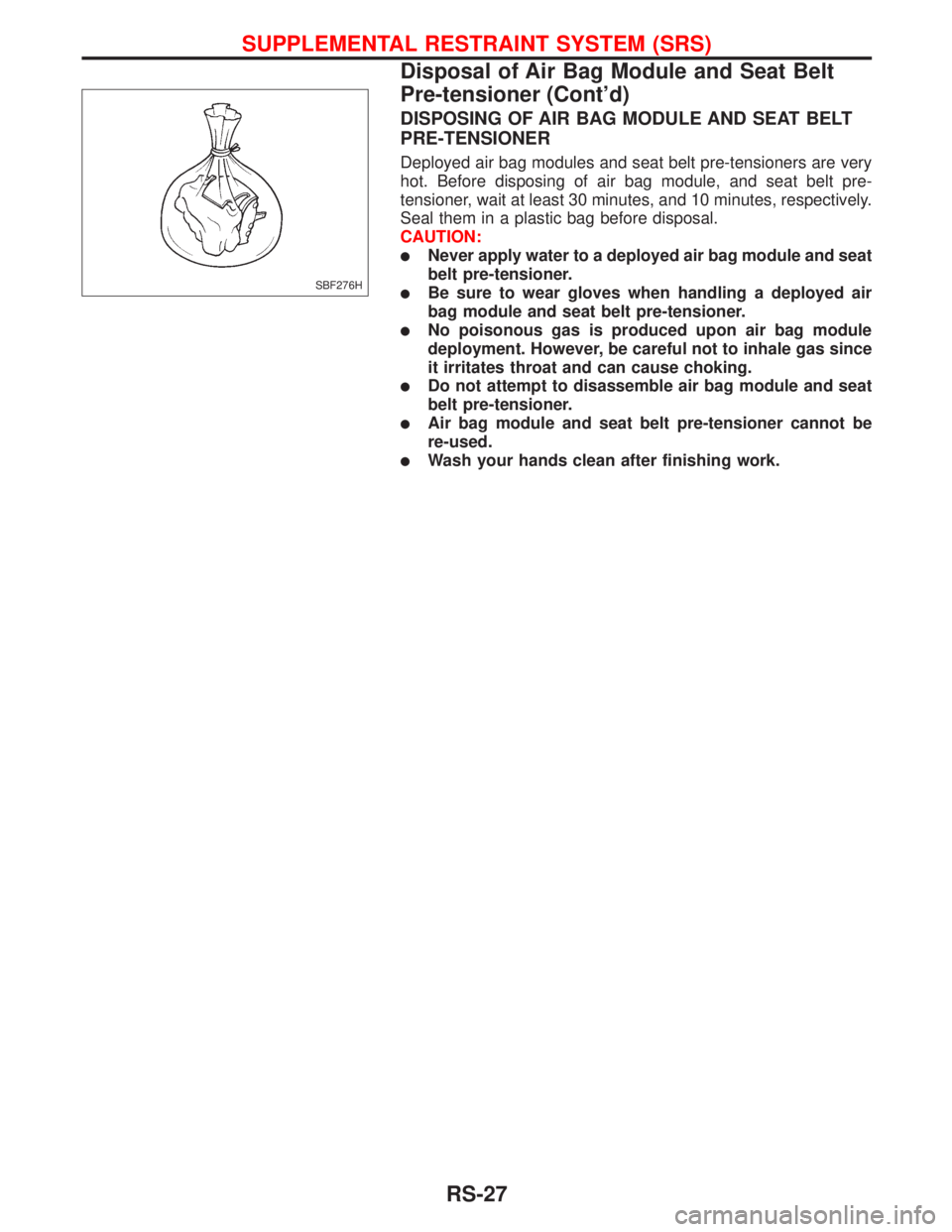

DISPOSING OF AIR BAG MODULE AND SEAT BELT
PRE-TENSIONER
Deployed air bag modules and seat belt pre-tensioners are very
hot. Before disposing of air bag module, and seat belt pre-
tensioner, wait at least 30 minutes, and 10 minutes, respectively.
Seal them in a plastic bag before disposal.
CAUTION:
lNever apply water to a deployed air bag module and seat
belt pre-tensioner.
lBe sure to wear gloves when handling a deployed air
bag module and seat belt pre-tensioner.
lNo poisonous gas is produced upon air bag module
deployment. However, be careful not to inhale gas since
it irritates throat and can cause choking.
lDo not attempt to disassemble air bag module and seat
belt pre-tensioner.
lAir bag module and seat belt pre-tensioner cannot be
re-used.
lWash your hands clean after finishing work.
SBF276H
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Disposal of Air Bag Module and Seat Belt
Pre-tensioner (Cont'd)
RS-27
