NISSAN TEANA 2008 Service Manual

EXL-192
< ON-VEHICLE REPAIR >[XENON TYPE]
REAR COMBINATION LAMP
Replacement
INFOID:0000000003773636
CAUTION:
 Disconnect the battery negative terminal or remove the fuse.
 Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off.
 Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect
the performance of lamp. When replacing bulb, be sure to replace it with new one.
STOP/TAIL LAMP
Replacement integral with rear combination lamp. Refer to EXL-191, "Exploded View".
REAR TURN SIGNAL LAMP BULB
1. Remove the rear combination lamp. Refer to EXL-191, "Exploded View".
2. Rotate the rear turn signal lamp bulb socket counterclockwise, and unlock it.
3. Remove the bulb from the rear turn signal lamp bulb socket.
BACK-UP LAMP BULB
1. Remove the rear combination lamp. Refer to EXL-191, "Exploded View".
2. Rotate the back-up lamp bulb socket counterclockwise, and unlock it.
3. Remove the bulb from the back-up lamp bulb socket.

HIGH-MOUNTED STOP LAMP
EXL-193
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
HIGH-MOUNTED STOP LAMP
Exploded ViewINFOID:0000000003773637
Removal and InstallationINFOID:0000000003773638
CAUTION:
Disconnect battery negative terminal or remove the fuse.
REMOVAL
1. Remove the rear parcel shelf finisher. Refer to INT-43, "Exploded View".
2. Remove the screw. And then disconnect the connector.
3. Remove the high-mounted stop lamp.
INSTALLATION
Install in the reverse order of removal.
1. High-mounted stop lamp 2. Rear parcel shelf finisher
JPLIA1099ZZ

EXL-194
< ON-VEHICLE REPAIR >[XENON TYPE]
REAR FOG LAMP
REAR FOG LAMP
Exploded ViewINFOID:0000000003774379
Removal and InstallationINFOID:0000000003774380
CAUTION:
Disconnect battery negative terminal or remove the fuse.
REMOVAL
1. Disconnect the rear fog lamp connector.
2. Remove the nuts. And then remove the rear fog lamp rim.
3. Remove the screw. And then remove the rear fog lamp from the rear fog lamp rim.
INSTALLATION
Installation is the reverse order of removal.
ReplacementINFOID:0000000003774381
CAUTION:
 Disconnect the battery negative terminal or remove the fuse.
 Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off.
 Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect
the performance of lamp. When replacing bulb, be sure to replace it with new one.
REAR FOG LAMP BULB
1. Turn the bulb socket (1) counterclockwise and unlock it.
2. Remove the bulb (2) from the rear fog lamp bulb socket.
1. Rear fog lamp 2. Rear fog lamp bracket 3. Rear fog lamp finisher
JPLIA1102ZZ
JPLIA1103ZZ

LICENSE PLATE LAMP
EXL-195
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
LICENSE PLATE LAMP
Exploded ViewINFOID:0000000003773642
Removal and InstallationINFOID:0000000003773643
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
REMOVAL
1. Remove the trunk lid finisher inner. Refer to INT-59, "Exploded View".
2. Remove the trunk lid finisher outer. Refer to INT-59, "
Exploded View".
3. Remove the license plate lamp while pushing a resin clip.
4. Disconnect the license plate lamp connector.
INSTALLATION
Install in the reverse order of removal.
ReplacementINFOID:0000000003773644
CAUTION:
 Disconnect the battery negative terminal or remove the fuse.
 Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off.
 Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect
the performance of lamp. When replacing bulb, be sure to replace it with new one.
LICENSE PLATE LAMP BULB
1. Remove the trunk lid finisher inner. Refer to INT-59, "Exploded View".
1. License plate lamp
A. Resin clip
JPLIA1100ZZ

EXL-196
< ON-VEHICLE REPAIR >[XENON TYPE]
LICENSE PLATE LAMP
2. Turn the license plate lamp bulb socket (1) counterclockwise
and unlock it.
3. Remove the bulb (2) from the license plate lamp bulb socket.
JPLIA1101ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)
EXL-197
< SERVICE DATA AND SPECIFICATIONS (SDS) [XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Bulb SpecificationsINFOID:0000000003774382
Item Type Wattage (W)
Front combination lampHeadlamp (HI) H9 65
Headlamp (LO) D2R 35
Parking Lamp W5W 5
Front turn signal WY21W (Amber) 21
Front fog lamp H11 55
Front side turn signal lamp (integrated into the door mirror) LED —
Rear combination lampStop/tail lamp LED —
Rear turn signal lamp S25 (Amber) 21
Back-up lamp W16W 16
License plate lamp W5W 5
High-mounted stop lamp LED —
Rear fog lamp W21W 21

EXL-198
< BASIC INSPECTION >[HALOGEN TYPE]

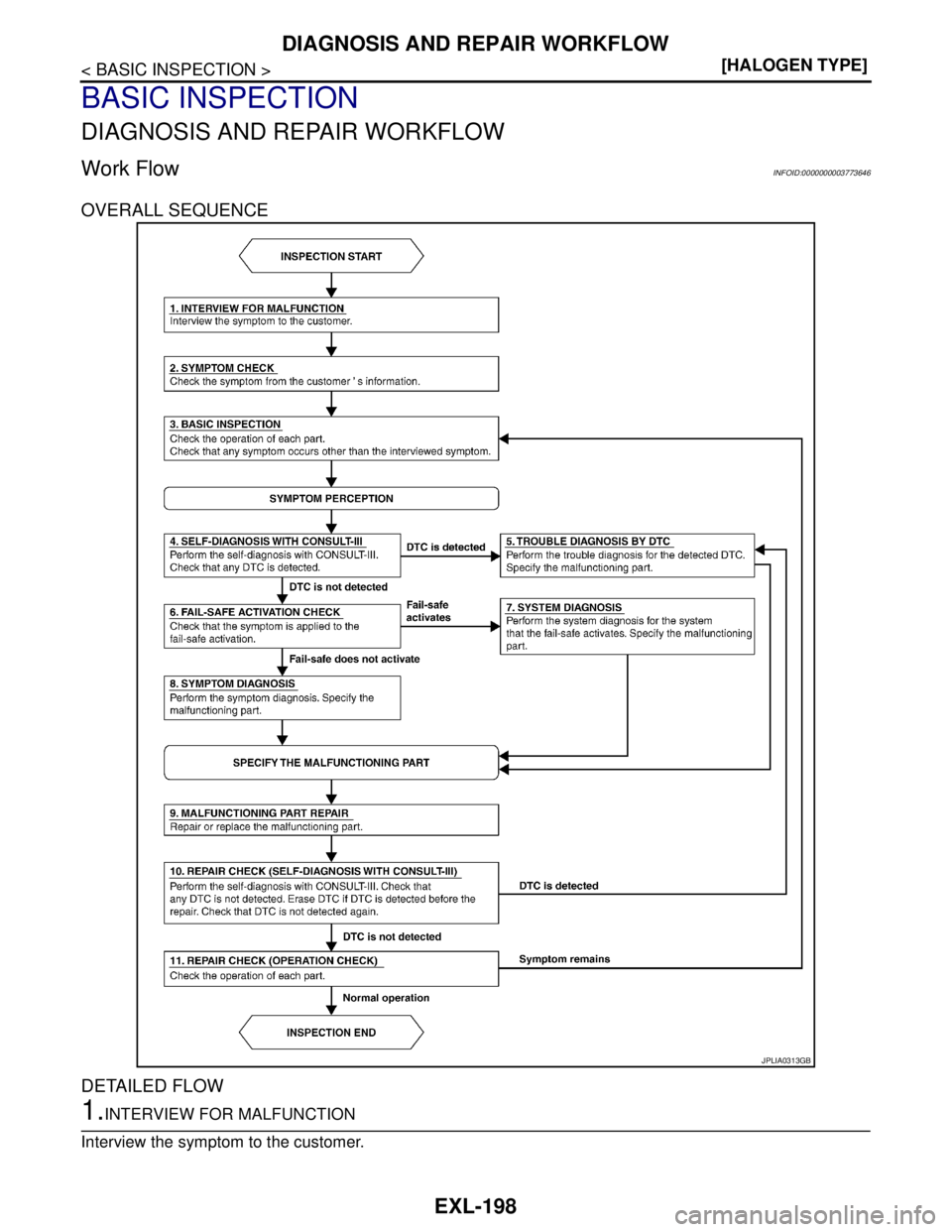

DIAGNOSIS AND REPAIR WORKFLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000003773646
OVERALL SEQUENCE
DETAILED FLOW
1.INTERVIEW FOR MALFUNCTION
Interview the symptom to the customer.
JPLIA0313GB

DIAGNOSIS AND REPAIR WORKFLOW
EXL-199
< BASIC INSPECTION >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
>> GO TO 2.
2.SYMPTOM CHECK
Check the symptom from the customer's information.
>> GO TO 3.
3.BASIC INSPECTION
Check the operation of each part. Check that any symptom occurs other than the interviewed symptom.
>> GO TO 4.
4.SELF-DIAGNOSIS WITH CONSULT-III
Perform the self-diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?
YES >> GO TO 5.
NO >> GO TO 6.
5.TROUBLE DIAGNOSIS BY DTC
Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.
>> GO TO 9.
6.FAIL-SAFE ACTIVATION CHECK
Check that the symptom is applied to the fail-safe activation.
Does the fail-safe activate?
YES >> GO TO 7.
NO >> GO TO 8.
7.SYSTEM DIAGNOSIS
Perform the system diagnosis for the system that the fail-safe activates. Specify the malfunctioning part.
>> GO TO 9.
8.SYMPTOM DIAGNOSIS
Perform the symptom diagnosis. Specify the malfunctioning part.
>> GO TO 9.
9.MALFUNCTION PART REPAIR
Repair or replace the malfunctioning part.
>> GO TO 10.
10.REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)
Perform the self-diagnosis with CONSULT-III. Check that any DTC is not detected. Erase DTC if DTC is
detected before the repair. Check that DTC is not detected again.
Is any DTC detected?
YES >> GO TO 5.
NO >> GO TO 11.
11 .REPAIR CHECK (OPERATION CHECK)
Check the operation of each part.
Does it operate normally?
YES >> INSPECTION END
NO >> GO TO 3.

EXL-200
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
HEADLAMP SYSTEM
FUNCTION DIAGNOSIS
HEADLAMP SYSTEM

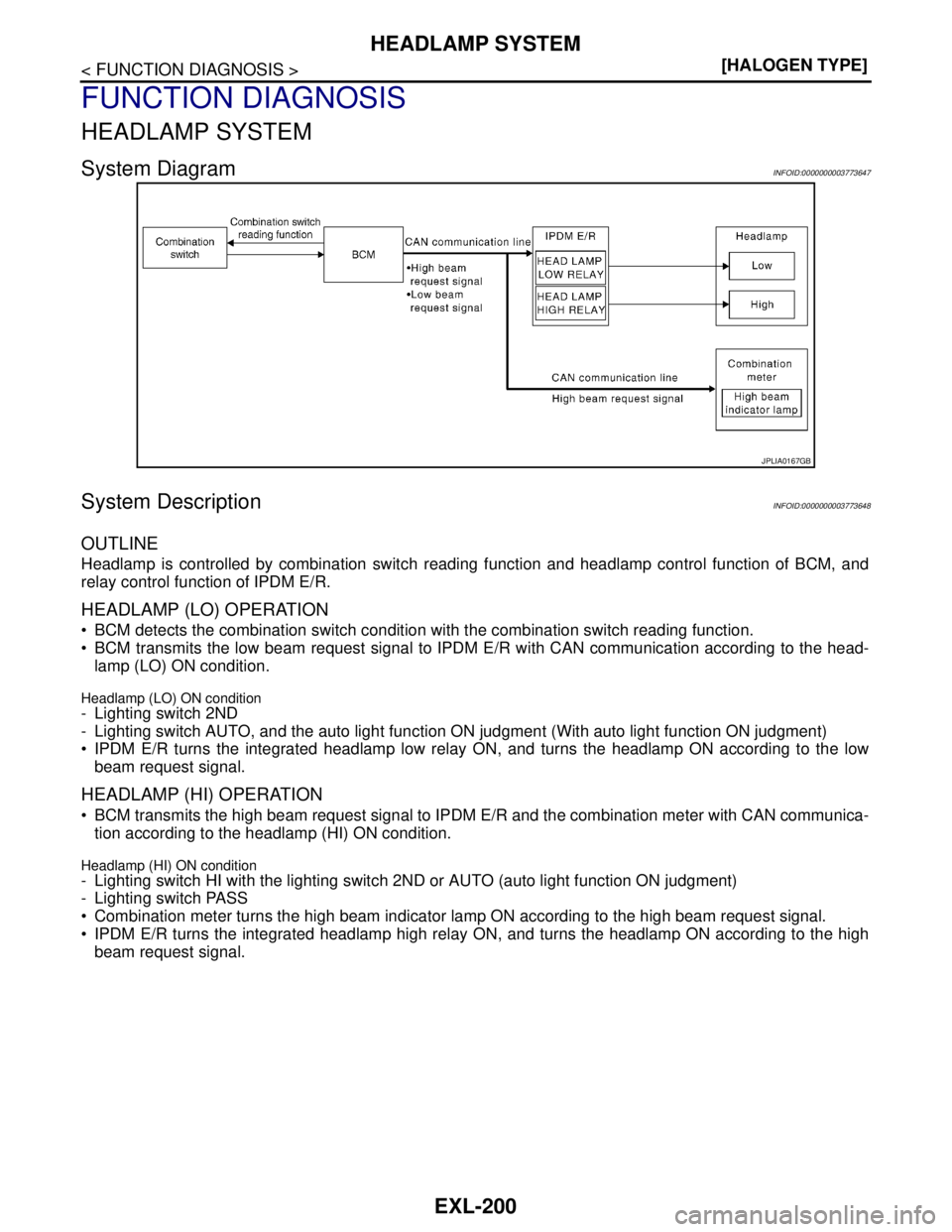

System DiagramINFOID:0000000003773647
System DescriptionINFOID:0000000003773648
OUTLINE
Headlamp is controlled by combination switch reading function and headlamp control function of BCM, and
relay control function of IPDM E/R.
HEADLAMP (LO) OPERATION
 BCM detects the combination switch condition with the combination switch reading function.
 BCM transmits the low beam request signal to IPDM E/R with CAN communication according to the head-
lamp (LO) ON condition.
Headlamp (LO) ON condition- Lighting switch 2ND
- Lighting switch AUTO, and the auto light function ON judgment (With auto light function ON judgment)
 IPDM E/R turns the integrated headlamp low relay ON, and turns the headlamp ON according to the low
beam request signal.
HEADLAMP (HI) OPERATION
 BCM transmits the high beam request signal to IPDM E/R and the combination meter with CAN communica-
tion according to the headlamp (HI) ON condition.
Headlamp (HI) ON condition- Lighting switch HI with the lighting switch 2ND or AUTO (auto light function ON judgment)
- Lighting switch PASS
 Combination meter turns the high beam indicator lamp ON according to the high beam request signal.
 IPDM E/R turns the integrated headlamp high relay ON, and turns the headlamp ON according to the high
beam request signal.
JPLIA0167GB

HEADLAMP SYSTEM
EXL-201
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

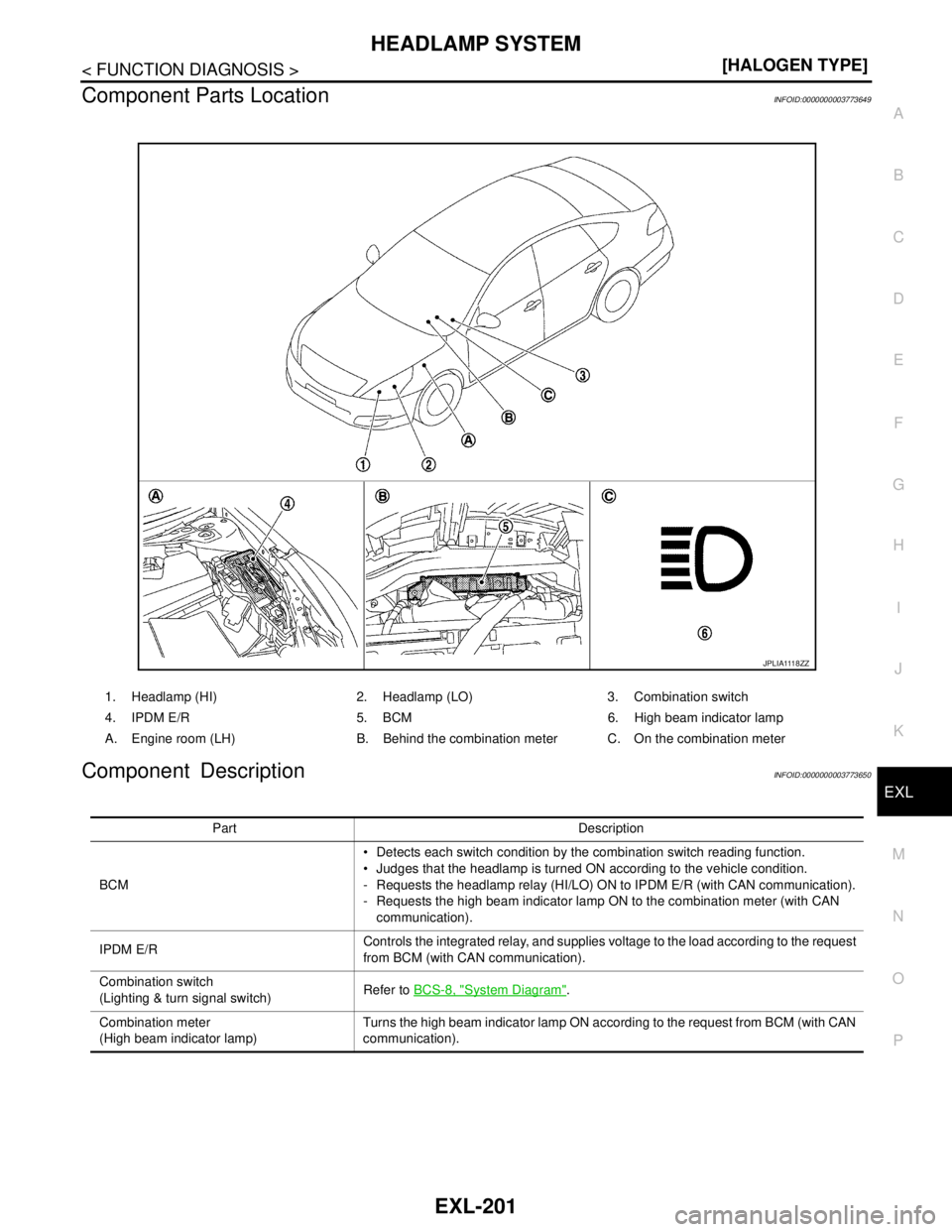

Component Parts LocationINFOID:0000000003773649
Component DescriptionINFOID:0000000003773650
1. Headlamp (HI) 2. Headlamp (LO) 3. Combination switch
4. IPDM E/R 5. BCM 6. High beam indicator lamp
A. Engine room (LH) B. Behind the combination meter C. On the combination meter
J P L I A 111 8 Z Z
Part Description
BCM Detects each switch condition by the combination switch reading function.
 Judges that the headlamp is turned ON according to the vehicle condition.
- Requests the headlamp relay (HI/LO) ON to IPDM E/R (with CAN communication).
- Requests the high beam indicator lamp ON to the combination meter (with CAN
communication).
IPDM E/RControls the integrated relay, and supplies voltage to the load according to the request
from BCM (with CAN communication).
Combination switch
(Lighting & turn signal switch)Refer to BCS-8, "
System Diagram".
Combination meter
(High beam indicator lamp)Turns the high beam indicator lamp ON according to the request from BCM (with CAN
communication).
