NISSAN TEANA 2008 Service Manual

EXL-202
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
AUTO LIGHT SYSTEM
AUTO LIGHT SYSTEM
System DiagramINFOID:0000000003894281
System DescriptionINFOID:0000000003894282
OUTLINE
 Auto light system is controlled by each function of BCM and IPDM E/R.
Control by BCM- Combination switch reading function
- Headlamp control function
- Auto light function
- Delay timer function
Control by IPDM E/R- Relay control function
 Auto light system has the auto light function and the delay timer function.
- Auto light function turns the exterior lamps* and each illumination ON/OFF automatically according to the
outside brightness.
- When auto light system turns the exterior lamps ON with the ignition switch OFF, delay timer function turns
the exterior lamps OFF depending on the vehicle condition with the auto light function after a certain period
of time.
*: Headlamp (LO/HI), parking lamp, tail lamp and front fog lamp (Headlamp HI and front fog lamp depend on
the combination switch condition.)
AUTO LIGHT FUNCTION
 BCM detects the combination switch condition with the combination switch reading function.
 BCM supplies voltage to optical sensor when the ignition switch is turned ON or ACC.
 Optical sensor converts outside brightness (lux) to voltage and transmits the optical sensor signal to BCM.
 BCM judges outside brightness from the optical sensor signal and judges ON/OFF condition of the exterior
lamp and each illumination according to the outside brightness.
 BCM transmits each request signal to IPDM E/R with CAN communication according to ON/OFF condition
by the auto light function.
NOTE:
ON/OFF timing differs based on the sensitivity from the setting. The setting can be set by CONSULT-III. Refer
to EXL-215, "
HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)".
DELAY TIMER FUNCTION
BCM turns the exterior lamp OFF depending on the vehicle condition with the auto light function when the igni-
tion switch is turned OFF.
 Turns the exterior lamp OFF 5 minutes after detecting that any door opens (Door switch ON).
 Turns the exterior lamp OFF a certain period of time* after closing all doors (Door switch ON→OFF).
JPLIA0804GB

AUTO LIGHT SYSTEM
EXL-203
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
 Turns the exterior lamp OFF with the ignition switch ACC or the light switch OFF.
*: The preset time is 45 seconds. The timer operating time can be set by CONSULT-III. Refer to EXL-215,
"HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)".
NOTE:
When any position other than the light switch AUTO is set, the auto light system function switches to the exte-
rior lamp battery saver function.

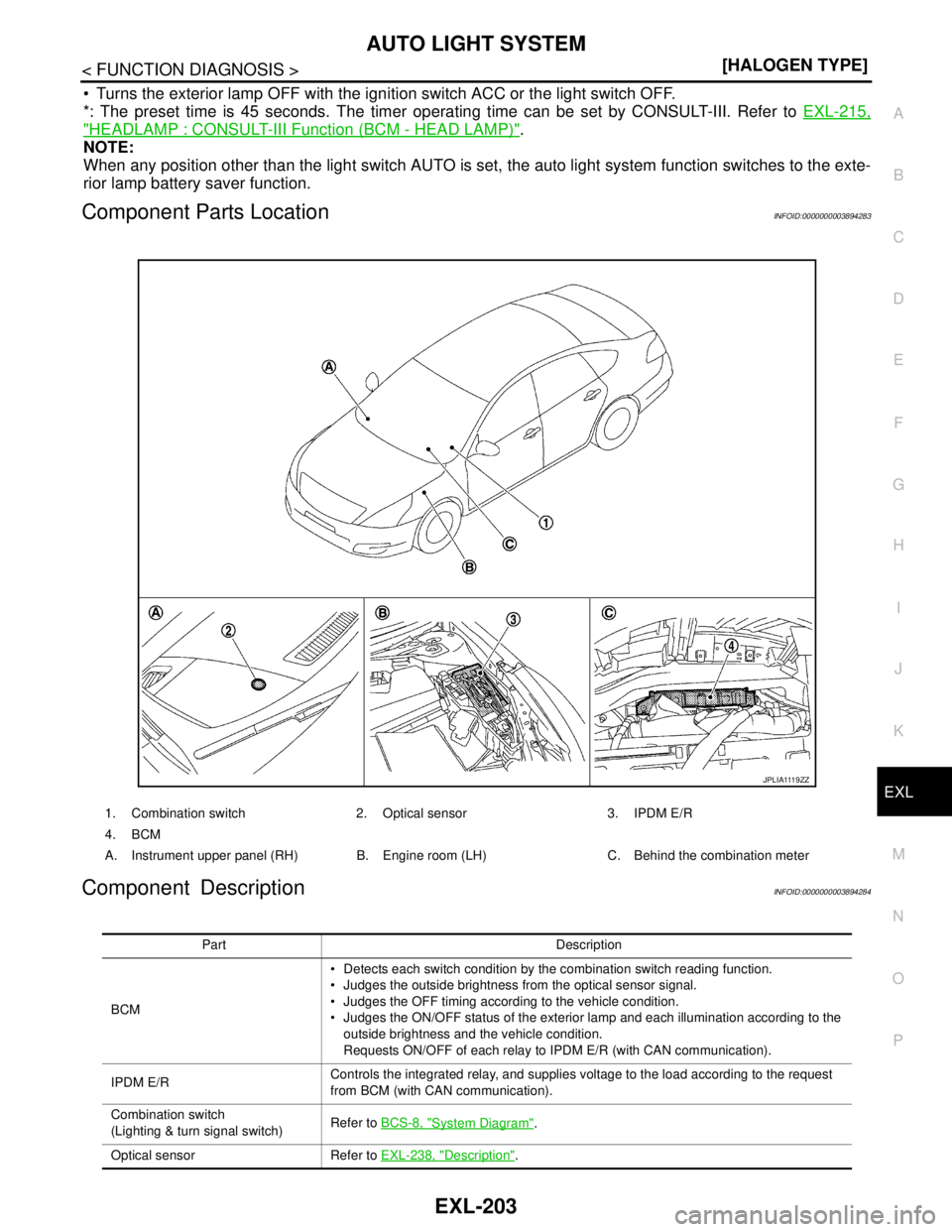

Component Parts LocationINFOID:0000000003894283
Component DescriptionINFOID:0000000003894284
1. Combination switch 2. Optical sensor 3. IPDM E/R
4. BCM
A. Instrument upper panel (RH) B. Engine room (LH) C. Behind the combination meter
J P L I A 111 9 Z Z
Part Description
BCM Detects each switch condition by the combination switch reading function.
 Judges the outside brightness from the optical sensor signal.
 Judges the OFF timing according to the vehicle condition.
 Judges the ON/OFF status of the exterior lamp and each illumination according to the
outside brightness and the vehicle condition.
Requests ON/OFF of each relay to IPDM E/R (with CAN communication).
IPDM E/RControls the integrated relay, and supplies voltage to the load according to the request
from BCM (with CAN communication).
Combination switch
(Lighting & turn signal switch)Refer to BCS-8, "
System Diagram".
Optical sensor Refer to EXL-238, "
Description".

EXL-204
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
FRONT FOG LAMP SYSTEM
FRONT FOG LAMP SYSTEM

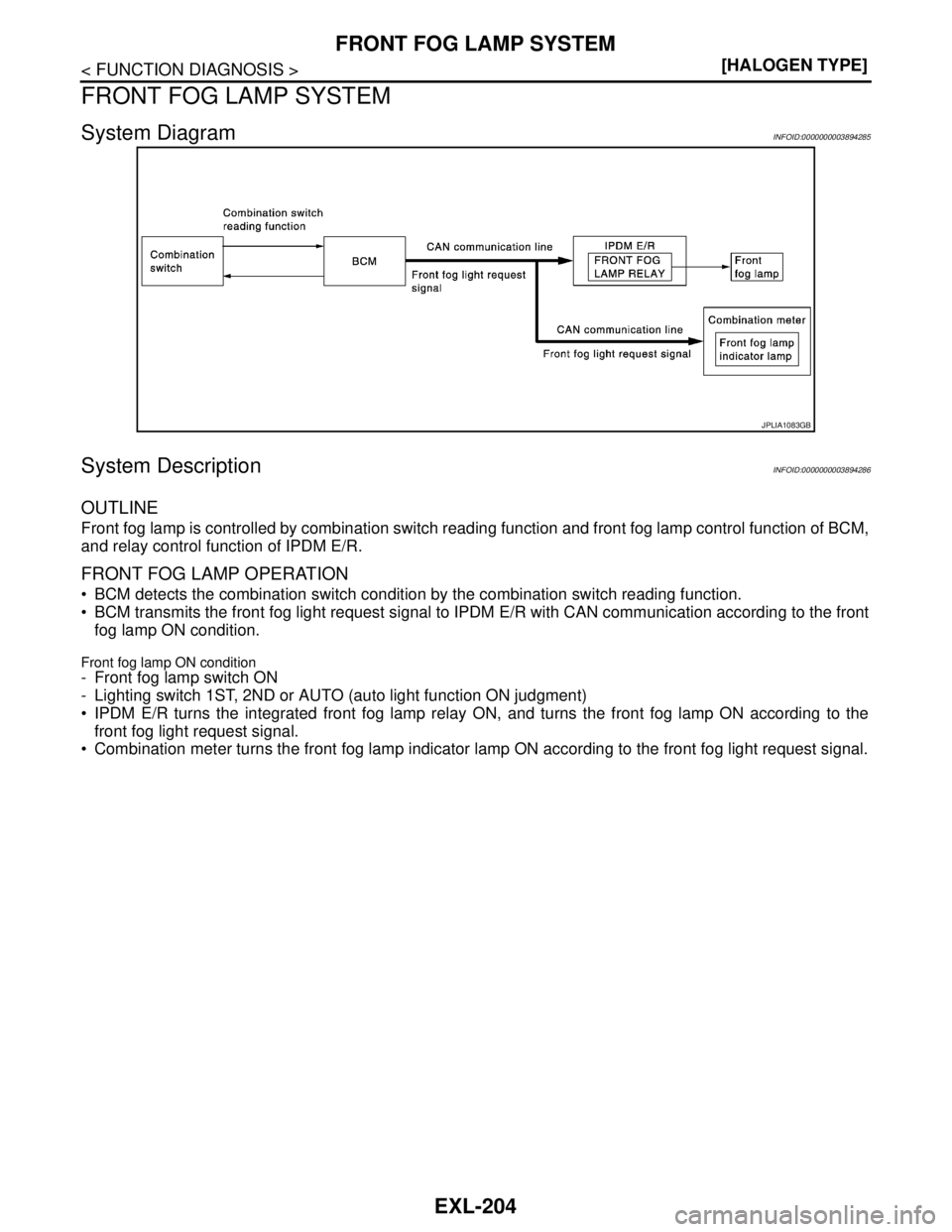

System DiagramINFOID:0000000003894285
System DescriptionINFOID:0000000003894286
OUTLINE
Front fog lamp is controlled by combination switch reading function and front fog lamp control function of BCM,
and relay control function of IPDM E/R.
FRONT FOG LAMP OPERATION
 BCM detects the combination switch condition by the combination switch reading function.
 BCM transmits the front fog light request signal to IPDM E/R with CAN communication according to the front
fog lamp ON condition.
Front fog lamp ON condition
- Front fog lamp switch ON
- Lighting switch 1ST, 2ND or AUTO (auto light function ON judgment)
 IPDM E/R turns the integrated front fog lamp relay ON, and turns the front fog lamp ON according to the
front fog light request signal.
 Combination meter turns the front fog lamp indicator lamp ON according to the front fog light request signal.
JPLIA1083GB

FRONT FOG LAMP SYSTEM
EXL-205
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

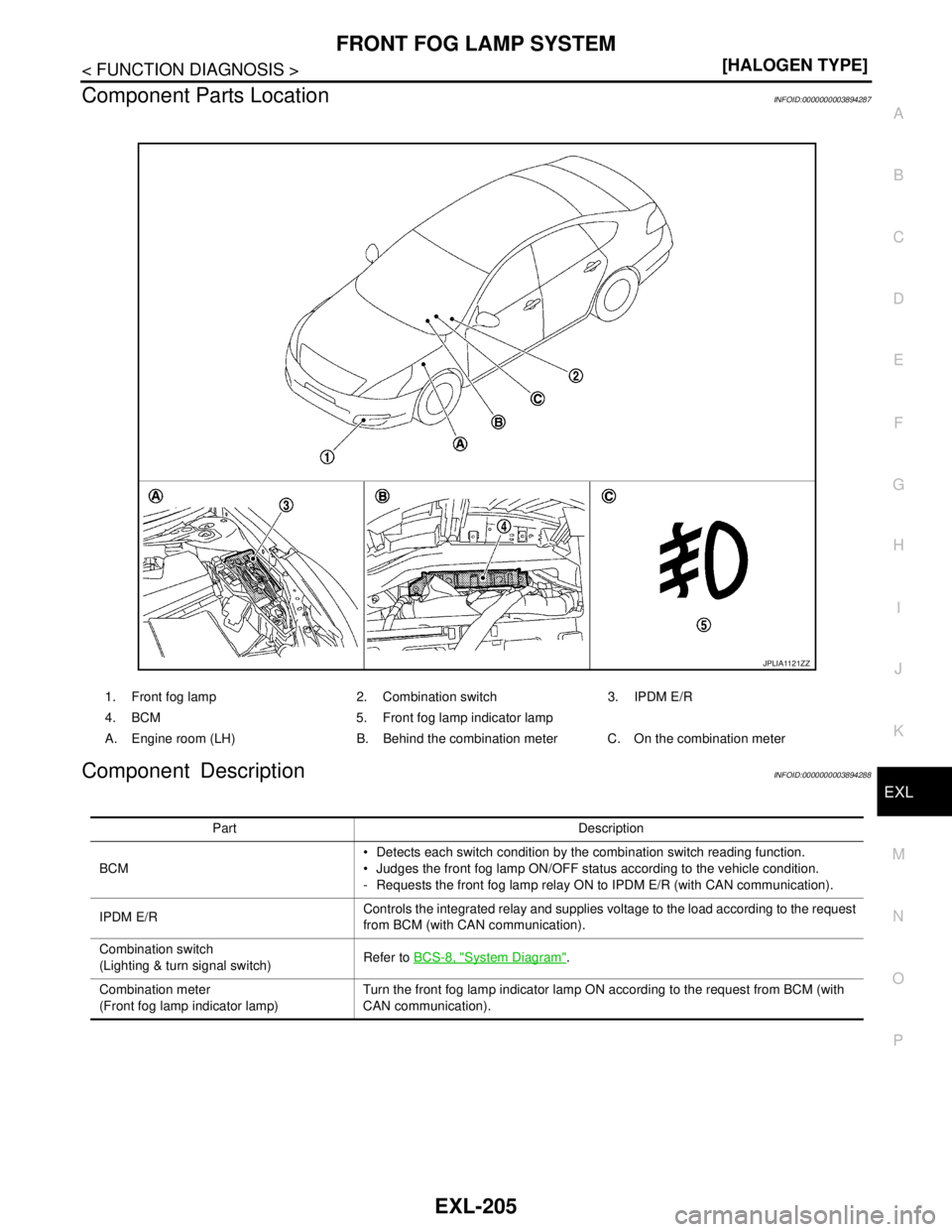

Component Parts LocationINFOID:0000000003894287
Component DescriptionINFOID:0000000003894288
1. Front fog lamp 2. Combination switch 3. IPDM E/R
4. BCM 5. Front fog lamp indicator lamp
A. Engine room (LH) B. Behind the combination meter C. On the combination meter
JPLIA1121ZZ
Part Description
BCM Detects each switch condition by the combination switch reading function.
 Judges the front fog lamp ON/OFF status according to the vehicle condition.
- Requests the front fog lamp relay ON to IPDM E/R (with CAN communication).
IPDM E/RControls the integrated relay and supplies voltage to the load according to the request
from BCM (with CAN communication).
Combination switch
(Lighting & turn signal switch)Refer to BCS-8, "
System Diagram".
Combination meter
(Front fog lamp indicator lamp)Turn the front fog lamp indicator lamp ON according to the request from BCM (with
CAN communication).

EXL-206
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

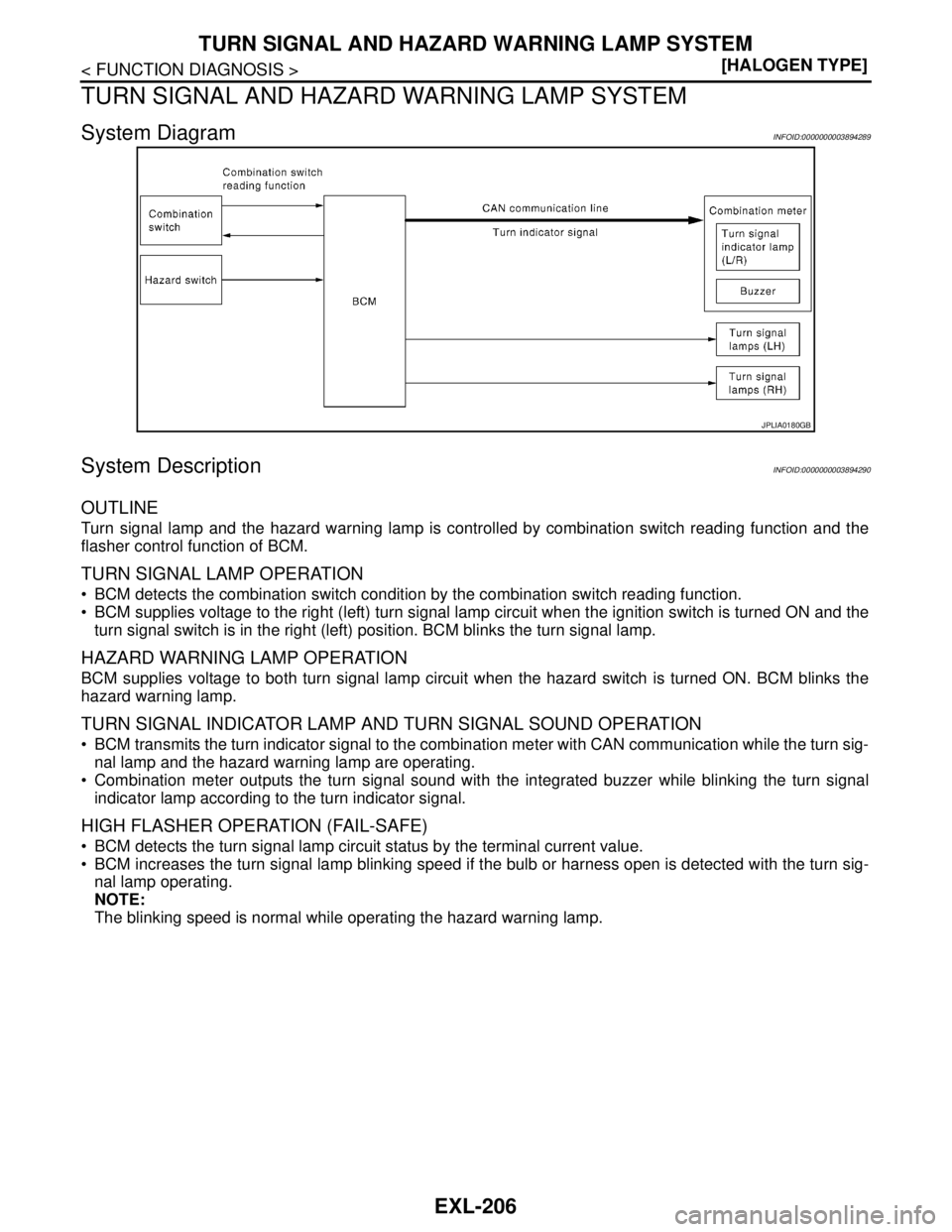

System DiagramINFOID:0000000003894289
System DescriptionINFOID:0000000003894290
OUTLINE
Turn signal lamp and the hazard warning lamp is controlled by combination switch reading function and the
flasher control function of BCM.
TURN SIGNAL LAMP OPERATION
 BCM detects the combination switch condition by the combination switch reading function.
 BCM supplies voltage to the right (left) turn signal lamp circuit when the ignition switch is turned ON and the
turn signal switch is in the right (left) position. BCM blinks the turn signal lamp.
HAZARD WARNING LAMP OPERATION
BCM supplies voltage to both turn signal lamp circuit when the hazard switch is turned ON. BCM blinks the
hazard warning lamp.
TURN SIGNAL INDICATOR LAMP AND TURN SIGNAL SOUND OPERATION
 BCM transmits the turn indicator signal to the combination meter with CAN communication while the turn sig-
nal lamp and the hazard warning lamp are operating.
 Combination meter outputs the turn signal sound with the integrated buzzer while blinking the turn signal
indicator lamp according to the turn indicator signal.
HIGH FLASHER OPERATION (FAIL-SAFE)
 BCM detects the turn signal lamp circuit status by the terminal current value.
 BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn sig-
nal lamp operating.
NOTE:
The blinking speed is normal while operating the hazard warning lamp.
JPLIA0180GB

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM
EXL-207
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

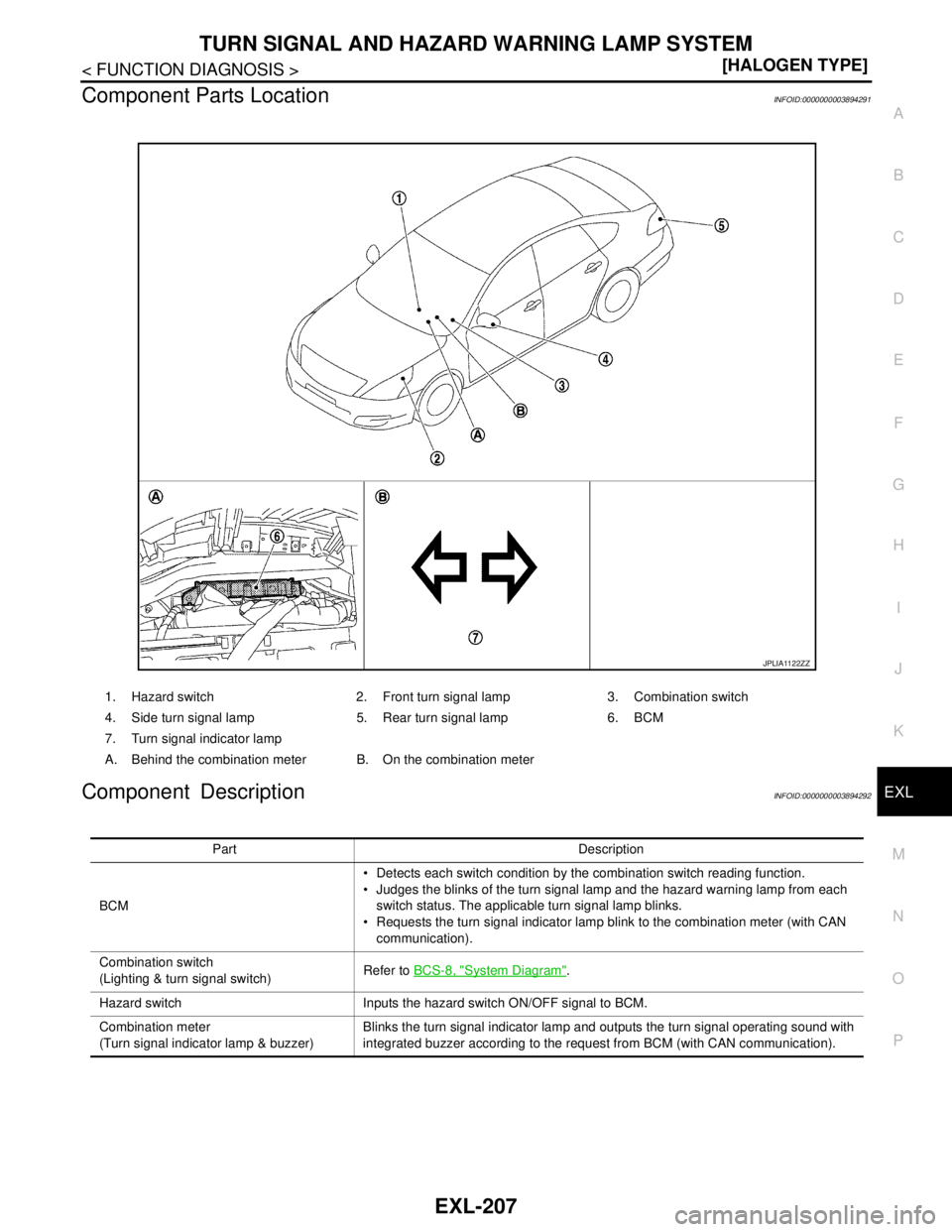

Component Parts LocationINFOID:0000000003894291
Component DescriptionINFOID:0000000003894292
1. Hazard switch 2. Front turn signal lamp 3. Combination switch
4. Side turn signal lamp 5. Rear turn signal lamp 6. BCM
7. Turn signal indicator lamp
A. Behind the combination meter B. On the combination meter
JPLIA1122ZZ
Part Description
BCM Detects each switch condition by the combination switch reading function.
 Judges the blinks of the turn signal lamp and the hazard warning lamp from each
switch status. The applicable turn signal lamp blinks.
 Requests the turn signal indicator lamp blink to the combination meter (with CAN
communication).
Combination switch
(Lighting & turn signal switch)Refer to BCS-8, "
System Diagram".
Hazard switch Inputs the hazard switch ON/OFF signal to BCM.
Combination meter
(Turn signal indicator lamp & buzzer)Blinks the turn signal indicator lamp and outputs the turn signal operating sound with
integrated buzzer according to the request from BCM (with CAN communication).

EXL-208
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM

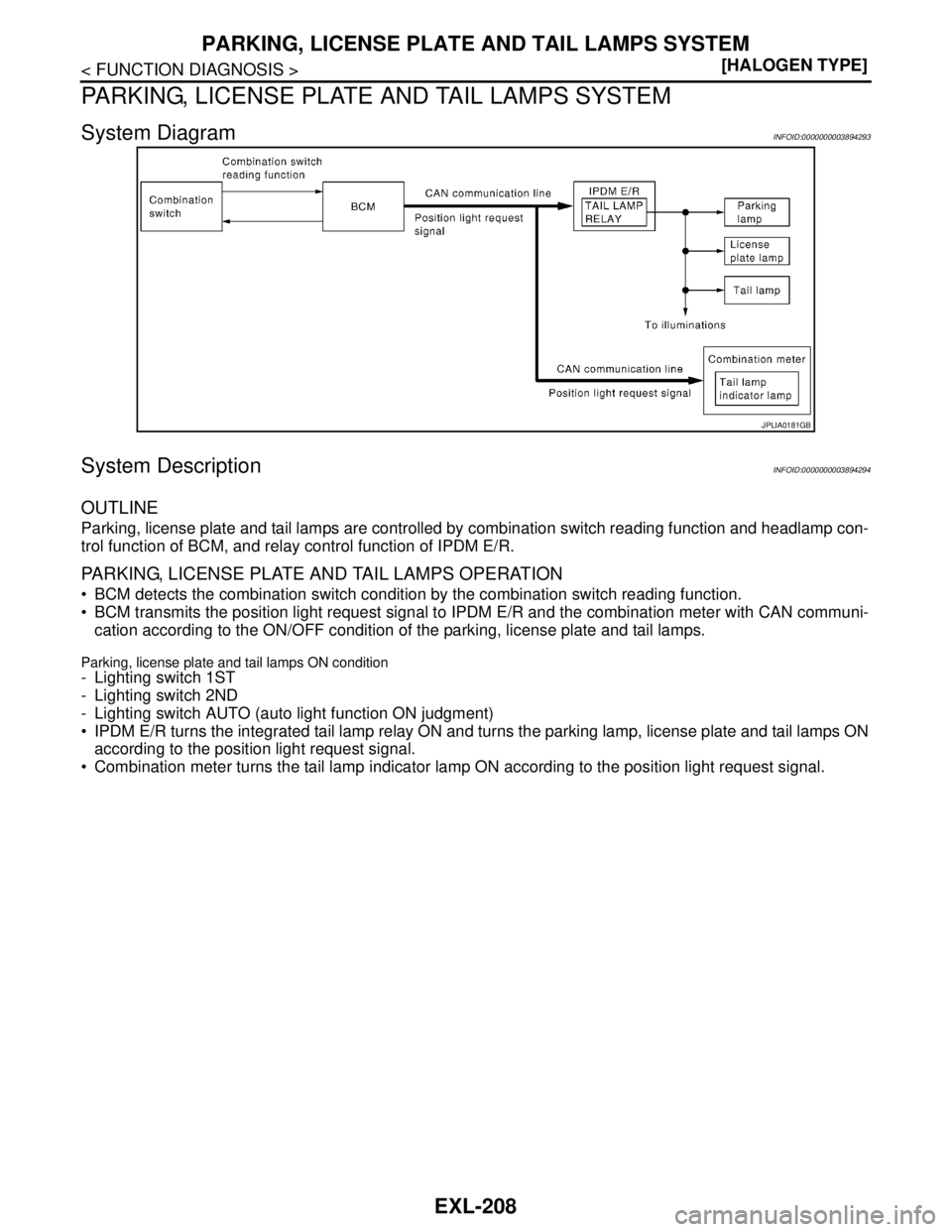

System DiagramINFOID:0000000003894293
System DescriptionINFOID:0000000003894294
OUTLINE
Parking, license plate and tail lamps are controlled by combination switch reading function and headlamp con-
trol function of BCM, and relay control function of IPDM E/R.
PARKING, LICENSE PLATE AND TAIL LAMPS OPERATION
 BCM detects the combination switch condition by the combination switch reading function.
 BCM transmits the position light request signal to IPDM E/R and the combination meter with CAN communi-
cation according to the ON/OFF condition of the parking, license plate and tail lamps.
Parking, license plate and tail lamps ON condition
- Lighting switch 1ST
- Lighting switch 2ND
- Lighting switch AUTO (auto light function ON judgment)
 IPDM E/R turns the integrated tail lamp relay ON and turns the parking lamp, license plate and tail lamps ON
according to the position light request signal.
 Combination meter turns the tail lamp indicator lamp ON according to the position light request signal.
JPLIA0181GB

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM
EXL-209
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

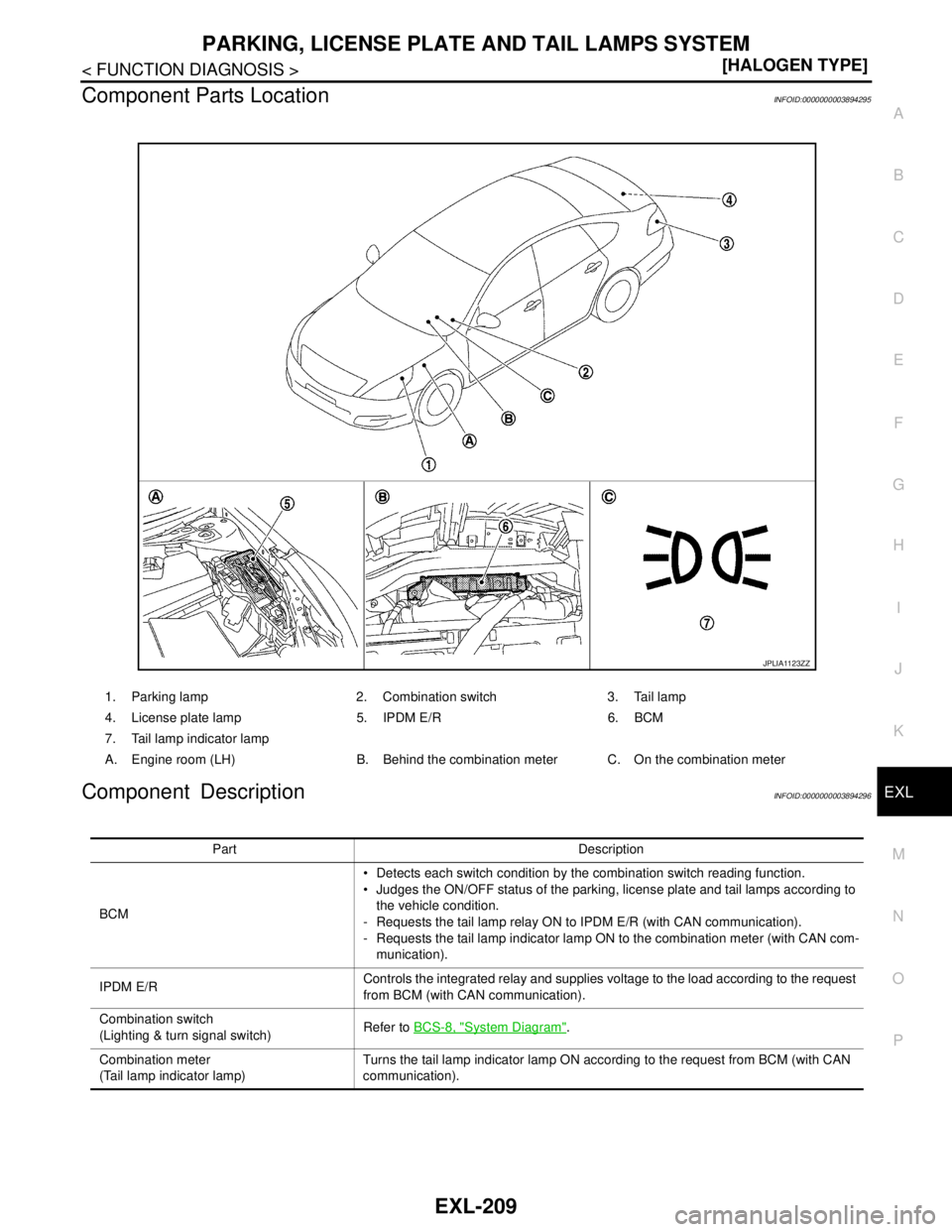

Component Parts LocationINFOID:0000000003894295
Component DescriptionINFOID:0000000003894296
1. Parking lamp 2. Combination switch 3. Tail lamp
4. License plate lamp 5. IPDM E/R 6. BCM
7. Tail lamp indicator lamp
A. Engine room (LH) B. Behind the combination meter C. On the combination meter
JPLIA1123ZZ
Part Description
BCM Detects each switch condition by the combination switch reading function.
 Judges the ON/OFF status of the parking, license plate and tail lamps according to
the vehicle condition.
- Requests the tail lamp relay ON to IPDM E/R (with CAN communication).
- Requests the tail lamp indicator lamp ON to the combination meter (with CAN com-
munication).
IPDM E/RControls the integrated relay and supplies voltage to the load according to the request
from BCM (with CAN communication).
Combination switch
(Lighting & turn signal switch)Refer to BCS-8, "
System Diagram".
Combination meter
(Tail lamp indicator lamp)Turns the tail lamp indicator lamp ON according to the request from BCM (with CAN
communication).

EXL-210
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
REAR FOG LAMP SYSTEM
REAR FOG LAMP SYSTEM

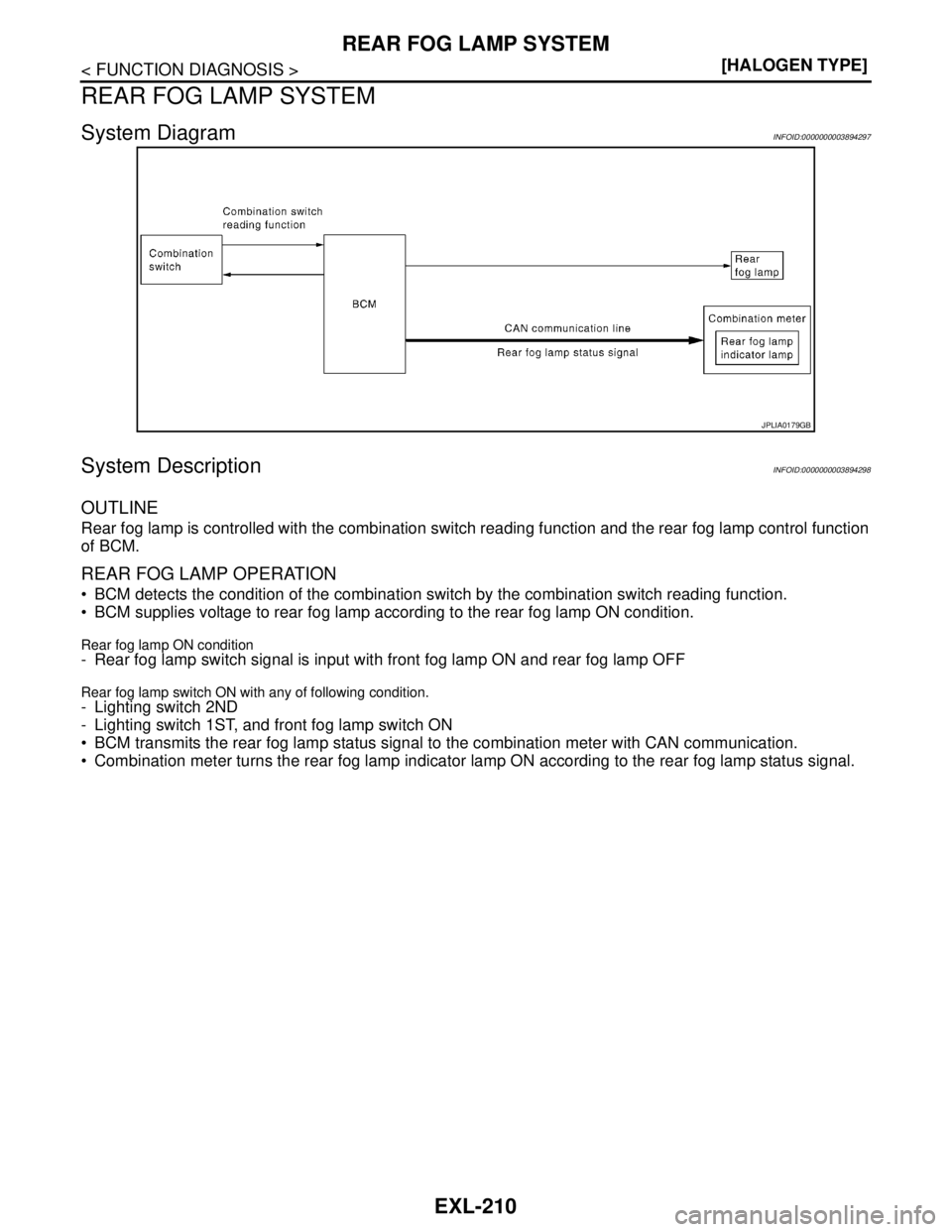

System DiagramINFOID:0000000003894297
System DescriptionINFOID:0000000003894298
OUTLINE
Rear fog lamp is controlled with the combination switch reading function and the rear fog lamp control function
of BCM.
REAR FOG LAMP OPERATION
 BCM detects the condition of the combination switch by the combination switch reading function.
 BCM supplies voltage to rear fog lamp according to the rear fog lamp ON condition.
Rear fog lamp ON condition- Rear fog lamp switch signal is input with front fog lamp ON and rear fog lamp OFF
Rear fog lamp switch ON with any of following condition.- Lighting switch 2ND
- Lighting switch 1ST, and front fog lamp switch ON
 BCM transmits the rear fog lamp status signal to the combination meter with CAN communication.
 Combination meter turns the rear fog lamp indicator lamp ON according to the rear fog lamp status signal.
JPLIA0179GB

REAR FOG LAMP SYSTEM
EXL-211
< FUNCTION DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Component Parts LocationINFOID:0000000003894299
Component DescriptionINFOID:0000000003894300
1. Combination switch 2. Rear fog lamp 3. BCM
4. Rear fog lamp indicator lamp
A. Behind the combination meter B. On the combination meter
JPLIA1125ZZ
Part Description
BCM Detects each switch condition by the combination switch reading function.
 Judges that the rear fog lamp is turned ON according to the vehicle status
- Supplies voltage to the rear fog lamp
- Requests the rear fog lamp indicator lamp ON to the combination meter (with CAN
communication).
Combination switch
(Lighting & turn signal switch)Refer to BCS-8, "
System Diagram".
Combination meter
(Rear fog lamp indicator lamp)Turns the rear fog lamp indicator lamp ON according to the request from BCM (with CAN
communication).
