NISSAN TEANA 2008 Service Manual

INL-12
< FUNCTION DIAGNOSIS >
ILLUMINATION CONTROL SYSTEM
ILLUMINATION CONTROL SYSTEM
System DiagramINFOID:0000000003774547
System DescriptionINFOID:0000000003774548
OUTLINE
Each illumination lamp is controlled by each function of BCM and IPDM E/R.
Control by BCM Combination switch reading function
 Headlamp control function
Control by IPDM E/R Relay control function
ILLUMINATION CONTROL
 BCM detects the combination switch condition by the combination switch reading function.
 BCM transmits position light request signal to IPDM E/R and combination meter according to tail lamp ON
condition.
Tail lamp ON condition- Lighting switch 1ST
- Lighting switch 2ND
- Lighting switch AUTO, and the auto light function ON judgment (With auto light system)
 IPDM E/R turns the integrated tail lamp relay ON according to position light request signal. It provides the
power supply to each illumination lamp.
 Combination meter dims the meter illumination according to position light request signal.
JPLIA0333GB

ILLUMINATION CONTROL SYSTEM
INL-13
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P

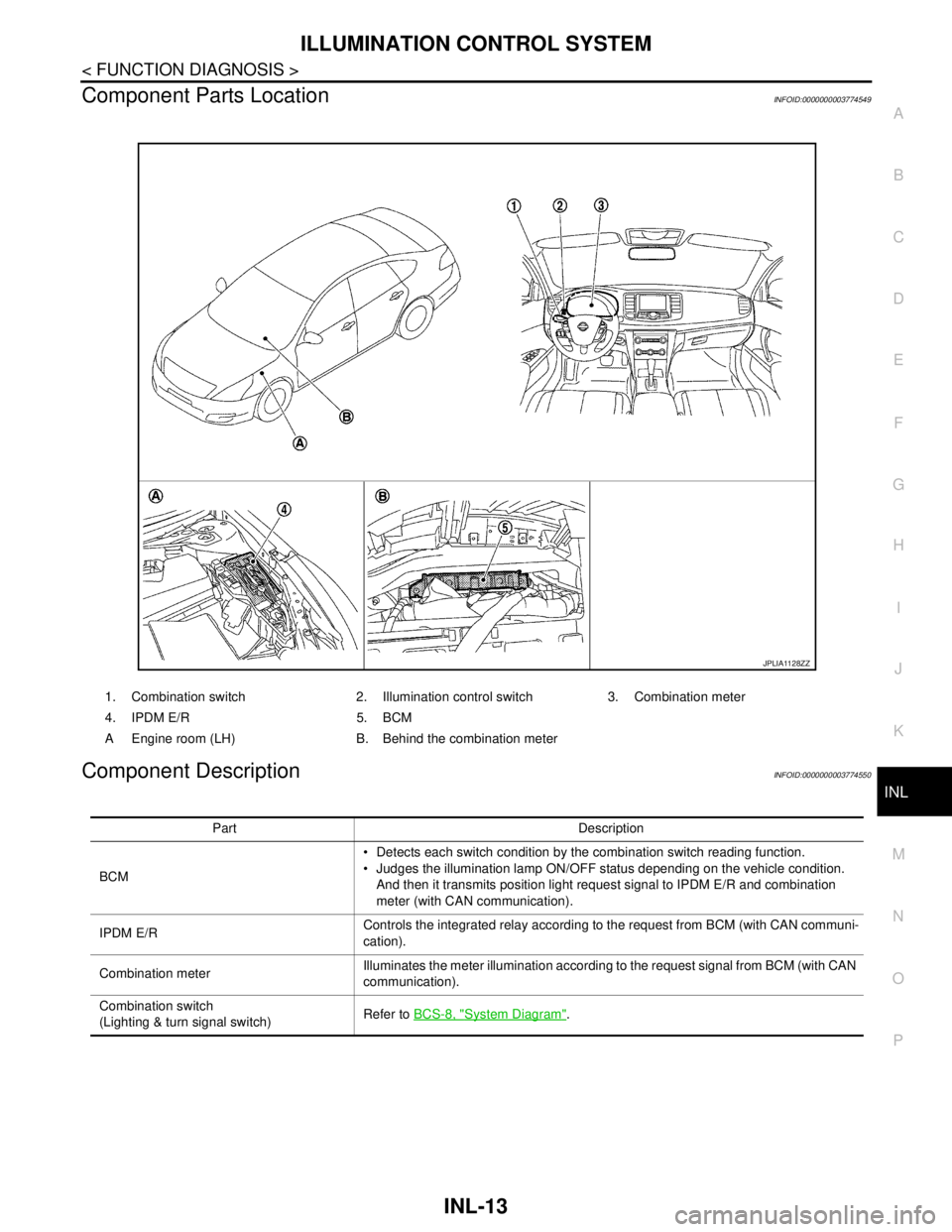

Component Parts LocationINFOID:0000000003774549
Component DescriptionINFOID:0000000003774550
1. Combination switch 2. Illumination control switch 3. Combination meter
4. IPDM E/R 5. BCM
A Engine room (LH) B. Behind the combination meter
JPLIA1128ZZ
Part Description
BCM Detects each switch condition by the combination switch reading function.
 Judges the illumination lamp ON/OFF status depending on the vehicle condition.
And then it transmits position light request signal to IPDM E/R and combination
meter (with CAN communication).
IPDM E/RControls the integrated relay according to the request from BCM (with CAN communi-
cation).
Combination meterIlluminates the meter illumination according to the request signal from BCM (with CAN
communication).
Combination switch
(Lighting & turn signal switch)Refer to BCS-8, "
System Diagram".

INL-14
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)INFOID:0000000003894737
APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.
×: Applicable item
NOTE:
*: This item is displayed, but is not used.
FREEZE FRAME DATA (FFD) AND IGN COUNTER
Freeze Frame Data
Diagnosis mode Function Description
Work Support Changes the setting for each system function.
Self Diagnostic Result Displays the diagnosis results judged by BCM.
CAN Diag Support MonitorMonitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.
Data Monitor The BCM input/output signals are displayed.
Active Test The signals used to activate each device are forcibly supplied from BCM.
Ecu Identification The BCM part number is displayed.
Configuration Read and save the vehicle specification.
 Write the vehicle specification when replacing BCM.
System Sub system selection itemDiagnosis mode
Work Support Data Monitor Active Test
Door lock DOOR LOCK×××
Rear window defogger REAR DEFOGGER××
Warning chime BUZZER××
Interior room lamp timer INT LAMP×××
Exterior lamp HEAD LAMP×××
Wiper and washer WIPER×××
Turn signal and hazard warning lamps FLASHER×××
— AIR CONDITONER*
 Intelligent Key system
 Engine start systemINTELLIGENT KEY×××
Combination switch COMB SW×
Body control system BCM×
NVIS - NATS IMMU××
Interior room lamp battery saver BATTERY SAVER×××
Trunk lid opener system TRUNK××
Vehicle security system THEFT ALM×××
— RETAINED PWR*×
Signal buffer system SIGNAL BUFFER××
— TPMS (AIR PRESSURE MONITOR)*×××

DIAGNOSIS SYSTEM (BCM)
INL-15
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P
The BCM records the following condition at the moment a particular DTC is detected.
 Vehicle Speed
 Odo/Trip Meter
 Vehicle Condition (BCM detected condition)
IGN Counter
IGN counter indicates the number of times that ignition switch is turned ON after DTC is detected.
 The number is 0 when a malfunction is detected now.
 The number increases like 1 → 2 → 3...38 → 39 after returning to the normal condition whenever ignition
switch OFF → ON.
 The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.
INT LAMP
CONSULT screen terms Description
SLEEP>LOCKWhile turning BCM status from low power consumption mode to normal mode (Power supply
position is “LOCK”.)
SLEEP>OFFWhile turning BCM status from low power consumption mode to normal mode (Power supply
position is “OFF”.)
LOCK>ACC While turning power supply position from “LOCK” to “ACC”
ACC>ON While turning power supply position from “ACC” to “IGN”
RUN>ACCWhile turning power supply position from “RUN” to “ACC” (Vehicle is stopping and selector
lever is except P position.)
CRANK>RUNWhile turning power supply position from “CRANKING” to “RUN” (From cranking up the en-
gine to run it)
RUN>URGENT While turning power supply position from “RUN“ to “ACC” (Emergency stop operation)
ACC>OFF While turning power supply position from “ACC” to “OFF”
OFF>LOCK While turning power supply position from “OFF” to “LOCK”
OFF>ACC While turning power supply position from “OFF” to “ACC”
ON>CRANK While turning power supply position from “IGN” to “CRANKING”
OFF>SLEEPWhile turning BCM status from normal mode (Power supply position is “OFF”.) to low power
consumption mode
LOCK>SLEEPWhile turning BCM status from normal mode (Power supply position is “LOCK”.) to low pow-
er consumption mode
LOCK Power supply position is “LOCK” (Ignition switch OFF with steering is locked.)
OFF Power supply position is “OFF” (Ignition switch OFF with steering is unlocked.)
ACC Power supply position is “ACC” (Ignition switch ACC)
ON Power supply position is “IGN” (Ignition switch ON with engine stopped)
ENGINE RUN Power supply position is “RUN” (Ignition switch ON with engine running)
CRANKING Power supply position is “CRANKING” (At engine cranking)

INL-16
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (BCM)
INT LAMP : CONSULT-III Function (BCM - INT LAMP)
INFOID:0000000003774552
WORK SUPPORT
*: Factory setting
DATA MONITOR

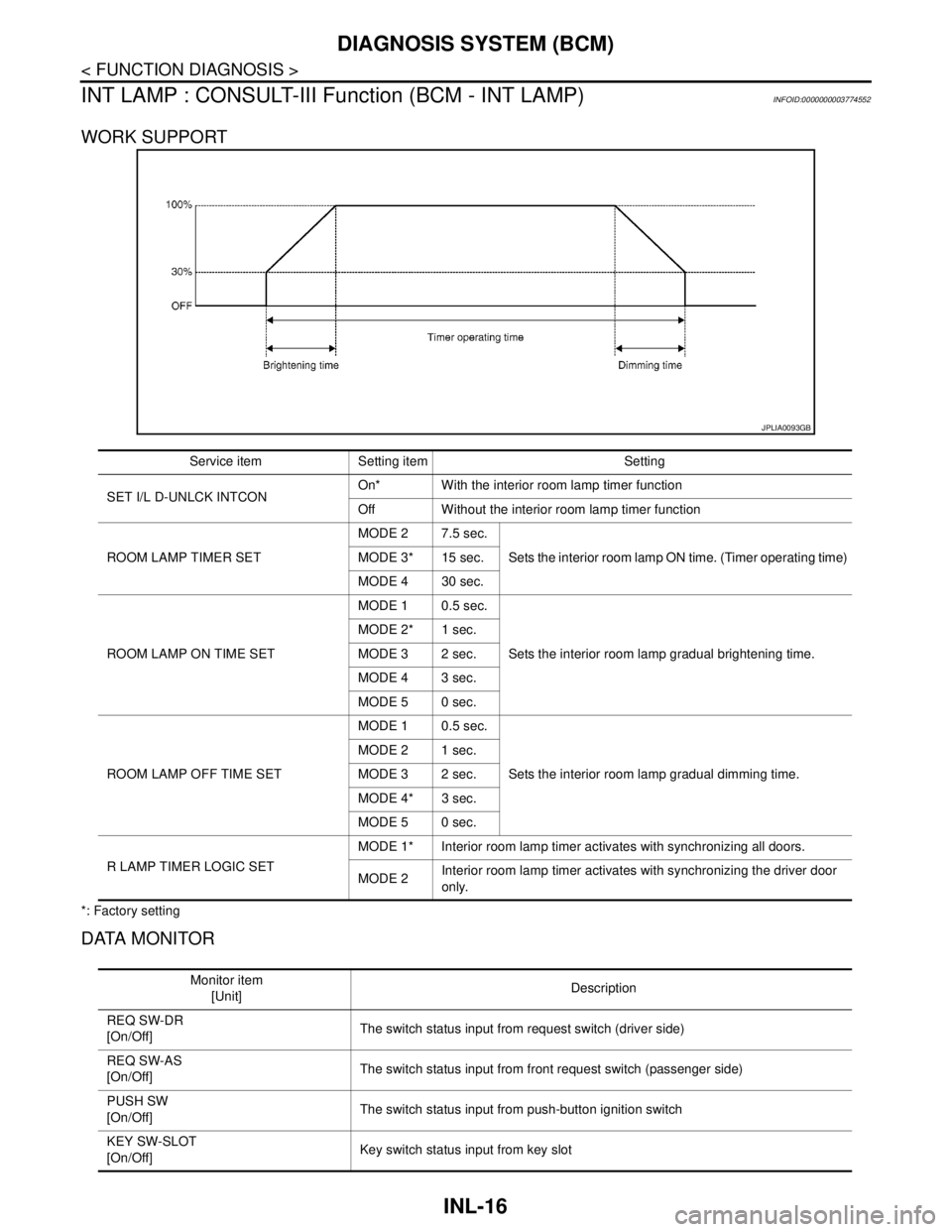

JPLIA0093GB
Service item Setting item Setting
SET I/L D-UNLCK INTCONOn* With the interior room lamp timer function
Off Without the interior room lamp timer function
ROOM LAMP TIMER SETMODE 2 7.5 sec.
Sets the interior room lamp ON time. (Timer operating time) MODE 3* 15 sec.
MODE 4 30 sec.
ROOM LAMP ON TIME SETMODE 1 0.5 sec.
Sets the interior room lamp gradual brightening time. MODE 2* 1 sec.
MODE 3 2 sec.
MODE 4 3 sec.
MODE 5 0 sec.
ROOM LAMP OFF TIME SETMODE 1 0.5 sec.
Sets the interior room lamp gradual dimming time. MODE 2 1 sec.
MODE 3 2 sec.
MODE 4* 3 sec.
MODE 5 0 sec.
R LAMP TIMER LOGIC SETMODE 1* Interior room lamp timer activates with synchronizing all doors.
MODE 2Interior room lamp timer activates with synchronizing the driver door
only.
Monitor item
[Unit]Description
REQ SW-DR
[On/Off]The switch status input from request switch (driver side)
REQ SW-AS
[On/Off]The switch status input from front request switch (passenger side)
PUSH SW
[On/Off]The switch status input from push-button ignition switch
KEY SW-SLOT
[On/Off]Key switch status input from key slot

DIAGNOSIS SYSTEM (BCM)
INL-17
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P
ACTIVE TEST
BATTERY SAVER
BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)INFOID:0000000003774553
WORK SUPPORT
*: Factory setting
DATA MONITOR
DOOR SW-DR
[On/Off]The switch status input from front door switch (driver side)
DOOR SW-AS
[On/Off]The switch status input from front door switch (passenger side)
DOOR SW-RR
[On/Off]The switch status input from rear door switch RH
DOOR SW- RL
[On/Off]The switch status input from rear door switch LH
DOOR SW-BK
[On/Off]NOTE:
The item is indicated, but not monitored.
CDL LOCK SW
[On/Off]Lock switch status received from door lock/unlock switch
CDL UNLOCK SW
[On/Off]Unlock switch status received from door lock/unlock switch
KEY CYL LK-SW
[On/Off]NOTE:
The item is indicated, but not monitored.
KEY CYL UN-SW
[On/Off]NOTE:
The item is indicated, but not monitored.
TRNK/HAT MNTR
[On/Off]The switch status input from trunk room lamp switch
RKE-LOCK
[On/Off]Lock signal status received from remote keyless entry receiver
RKE-UNLOCK
[On/Off]Unlock signal status received from remote keyless entry receiver Monitor item
[Unit]Description
Test item Operation Description
INT LAMPOnOutputs the interior room lamp control signal to turn map lamp and personal lamp ON
(Map lamp switch is in DOOR position).
Off Stops the interior room lamp control signal to turn map lamp and personal lamp OFF.
STEP LAMP TESTOn Outputs the step lamp control signal to turn step lamp ON.
Off Stops the step lamp control signal to turn step lamp OFF.
LUGGAGE LAMP TESTOn Outputs the trunk room lamp control signal to turn trunk room lamp ON.
Off Stops the trunk room lamp control signal to turn trunk room lamp OFF.
Service item Setting item Setting
BATTERY SAVER SETOn* With the exterior lamp battery saver function
Off Without the exterior lamp battery saver function
ROOM LAMP BAT SAV SETOn* With the interior room lamp battery saver function
Off Without the interior room lamp battery saver function
ROOM LAMP TIMER SETMODE 1* 30 min.
Sets the interior room lamp battery saver timer operating
time.
MODE 2 60 min.

INL-18
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (BCM)
ACTIVE TEST
*: Each lamp switch is in ON position.Monitor item
[Unit]Description
REQ SW-DR
[On/Off]The switch status input from request switch (driver side)
REQ SW-AS
[On/Off]The switch status input from front request switch (passenger side)
PUSH SW
[On/Off]The switch status input from push-button ignition switch
KEY SW-SLOT
[On/Off]Key switch status input from key slot
DOOR SW-DR
[On/Off]The switch status input from front door switch (driver side)
DOOR SW-AS
[On/Off]The switch status input from front door switch (passenger side)
DOOR SW-RR
[On/Off]The switch status input from rear door switch RH
DOOR SW- RL
[On/Off]The switch status input from rear door switch LH
DOOR SW-BK
[On/Off]NOTE:
The item is indicated, but not monitored.
CDL LOCK SW
[On/Off]Lock switch status received from door lock/unlock switch
CDL UNLOCK SW
[On/Off]Unlock switch status received from door lock/unlock switch
KEY CYL LK-SW
[On/Off]NOTE:
The item is indicated, but not monitored.
KEY CYL UN-SW
[On/Off]NOTE:
The item is indicated, but not monitored.
TRNK/HAT MNTR
[On/Off]The switch status input from trunk room lamp switch
RKE-LOCK
[On/Off]Lock signal status received from remote keyless entry receiver
RKE-UNLOCK
[On/Off]Unlock signal status received from remote keyless entry receiver
Test item Operation Description
BATTERY SAVEROff Cuts the interior room lamp power supply to turn interior room lamp OFF.
On Outputs the interior room lamp power supply to turn interior room lamp ON.*

POWER SUPPLY AND GROUND CIRCUIT
INL-19
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P
COMPONENT DIAGNOSIS
POWER SUPPLY AND GROUND CIRCUIT
BCM
BCM : Diagnosis ProcedureINFOID:0000000003894738
1.CHECK FUSE AND FUSIBLE LINK
Check that the following fuse and fusible link are not blown.
Is the fuse fusing?
YES >> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is
blown.
NO >> GO TO 2.
2.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connectors.
3. Check voltage between BCM harness connector and ground.
Is the measurement value normal?
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
Does continuity exist?
YES >> INSPECTION END
NO >> Repair harness or connector.
Signal name Fuse and fusible link No.
Battery power supplyI
10
Te r m i n a l s
Vo l ta g e
(Approx.) (+) (−)
BCM
Ground Connector Terminal
M118 1
Battery voltage
M119 11
BCM
GroundContinuity
Connector Terminal
M119 13 Existed

INL-20
< COMPONENT DIAGNOSIS >
INTERIOR ROOM LAMP POWER SUPPLY CIRCUIT
INTERIOR ROOM LAMP POWER SUPPLY CIRCUIT
DescriptionINFOID:0000000003774555
Provides the interior room lamp power supply. Also cuts the power supply when the interior room lamp battery
saver activating.
Component Function CheckINFOID:0000000003774556
1.CHECK INTERIOR ROOM LAMP POWER SUPPLY FUNCTION
CONSULT-III ACTIVE TEST
1. Turn ignition switch ON.
2. Turn each interior room lamp ON.
- Map lamp
- Personal lamp
- Step lamp
- Vanity mirror lamp
- Trunk room lamp
3. Select "BATTERY SAVER" of BCM (BATTERY SAVER) active test item.
4. With operating the test items, check that each interior room lamp turns ON/OFF.
Does the interior room lamp turn ON/OFF?
YES >> Interior room lamp power supply circuit is normal.
NO >> Refer to INL-20, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003774557
1.CHECK INTERIOR ROOM LAMP POWER SUPPLY OUTPUT
CONSULT-III ACTIVE TEST
1. Turn ignition switch ON.
2. Select “BATTERY SAVER” of BCM (BATTERY SAVER) active test item.
3. With operating the test item, check voltage between BCM harness connector and ground.
Is the measurement value normal?
YES >> GO TO 2.
NO >> Replace BCM.
2.CHECK INTERIOR ROOM LAMP POWER SUPPLY OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the following connectors.
- Map lamp
- Personal lamp
- Vanity mirror lamp (driver side)
- Vanity mirror lamp (passenger side)
- Trunk room lamp
- Step lamp (driver side)
- Step lamp (passenger side)Off : Interior room lamp OFF
On : Interior room lamp ON
Te r m i n a l s
Te s t i t e m
Voltage (Ap-
prox.) (+) (-)
BCM
GroundBATTERY
SAVER
Connector Terminal
M119 4Off 0 V
OnBattery volt-
age

INTERIOR ROOM LAMP POWER SUPPLY CIRCUIT
INL-21
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P
3. Check continuity between BCM harness connector and each interior room lamp harness connector.
Does continuity exist?
YES >> GO TO 3.
NO >> Repair the harnesses or connectors.
3.CHECK INTERIOR ROOM LAMP POWER SUPPLY SHORT CIRCUIT
Check continuity between BCM harness connector and ground.
Does continuity exist?
YES >> Repair the harnesses or connectors.
NO >> Check that each interior room lamp has no internal short circuit.
BCM Each interior room lamp
Continu-
ity Connec-
torTerminal Connector Terminal
M119 4Map lamp R19 1
Existed Personal lamp R21 1
Vanity mirror lamp
(driver side)R24 2
Vanity mirror lamp
(passenger side)R10 2
Trunk room lamp B91 1
Step lamp
(driver side)D17 1
Step lamp
(passenger side)D51 1
BCM
GroundContinuity
Connector Terminal
M119 4 Not existed
