NISSAN TEANA 2008 Service Manual

INL-22
< COMPONENT DIAGNOSIS >
INTERIOR ROOM LAMP CONTROL CIRCUIT
INTERIOR ROOM LAMP CONTROL CIRCUIT
DescriptionINFOID:0000000003774558
Controls each interior room lamp (ground side) by PWM signal.
NOTE:
PWM signal control period is approximately 250 Hz (in the gradual brightening/dimming).
Component Function CheckINFOID:0000000003774559
NOTE:
Replace the personal lamp assembly if the map lamp is turned ON but the personal lamp LH and RH are not
turn ON.
CAUTION:
Before performing the diagnosis, check that the following is normal.
• Interior room lamp power supply
 Map lamp bulb
 Personal lamp bulb
1.CHECK INTERIOR ROOM LAMP CONTROL FUNCTION
CONSULT-III ACTIVE TEST
1. Switch the map lamp switch to DOOR.
2. Turn ignition switch ON.
3. Select “INT LAMP” of BCM (INT LAMP) active test item.
4. With operating the test items, check that each interior room lamp turns ON/OFF (gradual brightening/dim-
ming).
Does the interior room lamp turns ON/OFF (gradual brightening/dimming)?
YES >> Interior room lamp control circuit is normal.
NO >> Refer to INL-22, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003774560
1.CHECK INTERIOR ROOM LAMP CONTROL OUTPUT
CONSULT-III ACTIVE TEST
1. Turn ignition switch OFF.
2. Remove all the bulbs of map lamp and personal lamp.
3. Select “INT LAMP” of BCM (INT LAMP) active test item.
4. With operating the test item, check continuity between BCM harness connector and ground.
Is the measurement value normal?
YES >> GO TO 2.
Fixed ON>>GO TO 3.
Fixed OFF>>Replace BCM.
2.CHECK INTERIOR ROOM LAMP CONTROL OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and map lamp connector.
3. Check continuity between BCM harness connector and map lamp harness connector. On : Interior room lamp gradual brightening
Off : Interior room lamp gradual dimming
BCM
GroundTe s t i t e m
Continuity
Connector Terminal INT LAMP
M119 19On Existed
Off Not existed

INTERIOR ROOM LAMP CONTROL CIRCUIT
INL-23
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P
Does continuity exist?
YES >> Replace the map lamp.
NO >> Repair the harnesses or connectors.
3.CHECK INTERIOR ROOM LAMP CONTROL SHORT CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and map lamp connector.
3. Check continuity between BCM harness connector and ground.
Does continuity exist?
YES >> Repair the harnesses or connectors.
NO >> Replace BCM.
BCM Map lamp
Continuity
Connector Terminal Connector Terminal
M119 19 R19 2 Existed
BCM
GroundContinuity
Connector Terminal
M119 19 Not existed

INL-24
< COMPONENT DIAGNOSIS >
STEP LAMP CIRCUIT
STEP LAMP CIRCUIT
DescriptionINFOID:0000000003774561
Controls the step lamp (ground side) to turn the step lamp ON and OFF.
Component Function CheckINFOID:0000000003774562
CAUTION:
Before performing the diagnosis, check that the following is normal.
 Interior room lamp power supply
 Step lamp bulb
1.CHECK STEP LAMP OPERATION
CONSULT-III ACTIVE TEST
1. Turn ignition switch ON.
2. Select "STEP LAMP TEST" of BCM (INT LAMP) active test item.
3. With operating the test items, check that step lamp turns ON/OFF.
Does the step lamp turn ON/OFF?
YES >> Step lamp circuit is normal.
NO >> Refer to INL-24, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003774563
1.CHECK STEP LAMP OUTPUT
CONSULT-III ACTIVE TEST
1. Turn ignition switch OFF.
2. Remove the step lamp bulbs (driver side and passenger side).
3. Turn ignition switch ON.
4. Select “STEP LAMP TEST” of BCM (INT LAMP) active test item.
5. With operating the test item, check continuity between BCM harness connector and ground.
Is the measurement value normal?
YES >> GO TO 2.
Fixed ON>>GO TO 3.
Fixed OFF>>Replace BCM.
2.CHECK STEP LAMP OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector, and step lamp connector.
3. Check continuity between BCM harness connector and step lamp harness connector. On : Step lamp ON
Off : Step lamp OFF
BCM
GroundTe s t i t e m
Continuity
Connector TerminalSTEP LAMP
TEST
M119 7On Existed
Off Not existed

STEP LAMP CIRCUIT
INL-25
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P
Does continuity exist?
YES >> Replace step lamp.
NO >> Repair harnesses or connectors.
3.CHECK STEP LAMP SHORT CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between BCM harness connector and ground.
Does continuity exist?
YES >> Repair the harnesses or connectors.
NO >> Replace BCM.
BCM Step lamp
Continuity
Connec-
torTerminal Connector Terminal
M119 7Driver
sideD17 2
Existed
Passen-
ger sideD51 2
BCM
GroundContinuity
Connector Terminal
M119 7 Not existed

INL-26
< COMPONENT DIAGNOSIS >
TRUNK ROOM LAMP CIRCUIT
TRUNK ROOM LAMP CIRCUIT
DescriptionINFOID:0000000003812232
Controls the trunk room lamp (ground side) to turn the trunk room lamp ON and OFF.
Component Function CheckINFOID:0000000003812233
CAUTION:
Before performing the diagnosis, check that the following is normal.
 Interior room lamp power supply
 Trunk room lamp bulb
1.CHECK TRUNK ROOM LAMP OPERATION
CONSULT-III ACTIVE TEST
1. Turn ignition switch ON.
2. Select “LUGGAGE LAMP TEST” of BCM (INT LAMP) active test item.
3. With operating the test items, check that trunk room lamp turns ON/OFF.
Does the trunk room lamp turn ON/OFF?
YES >> Trunk room lamp circuit is normal.
NO >> Refer to INL-26, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003812234
1.CHECK TRUNK ROOM LAMP OUTPUT
CONSULT-III ACTIVE TEST
1. Turn ignition switch OFF.
2. Remove trunk room lamp bulb.
3. Turn ignition switch ON.
4. Select “LUGGAGE LAMP TEST” of BCM (INT LAMP) active test item.
5. With operating the test item, check continuity between BCM harness connector and ground.
Is the measurement value normal?
YES >> GO TO 2.
Fixed ON>>GO TO 3.
Fixed OFF>>Replace BCM.
2.CHECK TRUNK ROOM LAMP OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and trunk room lamp connector.
3. Check continuity between BCM harness connector and trunk room lamp harness connector.
Does continuity exist?
YES >> Replace trunk room lamp.On : Trunk room lamp ON
Off : Trunk room lamp OFF
BCM
GroundTe s t i t e m
Continuity
Connector TerminalLUGGAGE
LAMP TEST
M120 30On Existed
Off Not existed
BCM Trunk room lamp
Continuity
Connector Terminal Connector Terminal
M120 30 B91 2 Existed

TRUNK ROOM LAMP CIRCUIT
INL-27
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P
NO >> Repair harnesses or connectors.
3.CHECK TRUNK ROOM LAMP SHORT CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and trunk room lamp connector.
3. Check continuity between BCM harness connector and ground.
Does continuity exist?
YES >> Repair harnesses or connectors.
NO >> Replace BCM.
BCM
GroundContinuity
Connector Terminal
M120 30 Not existed

INL-28
< COMPONENT DIAGNOSIS >
PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT
PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT
DescriptionINFOID:0000000003774564
Provides the power supply and the ground to control the push-button ignition switch illumination.
Component Function CheckINFOID:0000000003774565
1.CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION OPERATION
CONSULT-III ACTIVE TEST
1. Turn the ignition switch ON.
2. Select “ENGINE SW ILLUMI” of BCM (INTELLIGENT KEY) active test item.
3. With operating the test items, check that the push-button ignition switch illumination turns ON/OFF.
Does the push-button ignition switch illumination turn ON/OFF?
YES >> Push-button ignition switch illumination circuit is normal.
NO >> Refer to INL-28, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003774566
1.CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY OUTPUT
CONSULT-III ACTIVE TEST
1. Turn the ignition switch ON.
2. Select “ENGINE SW ILLUMI” of BCM (INTELLIGENT KEY) active test item.
3. With operating the test item, check voltage between BCM harness connector and ground.
Is the measurement value normal?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY OPEN CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect BCM connector and the push-button ignition switch connector.
3. Check continuity between BCM harness connector and the push-button ignition switch harness connector.
Does the continuity exist?
YES >> GO TO 4.
NO >> Repair the harness or the connector.
3.CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY SHORT CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect BCM connector and the push-button ignition switch connector.
3. Check continuity between BCM harness connector and the push-button ignition switch harness connector.On : Push-button ignition switch illumination ON
Off : Push-button ignition switch illumination OFF
Te r m i n a l s
Te s t i t e m
Voltag e
(Approx.) (+) (-)
BCM
GroundENGINE SW
ILLUMI
Connector Terminal
M123 133ON 9.5 V
OFF 0 V
BCM Push-button ignition switch
Continuity
Connector Terminal Connector Terminal
M123 133 M101 3 Existed

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT
INL-29
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P
Does the continuity exist?
YES >> Repair the harness or the connector.
NO >> Replace BCM.
4.CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION GROUND CIRCUIT
Check continuity between the push-button ignition switch harness connector and ground.
Does the continuity exist?
YES >> Replace push-button ignition switch.
NO >> Repair the harness or the connector.
BCM
GroundContinuity
Connector Terminal
M123 133 Not existed
Push-button ignition switch
GroundContinuity
Connector Terminal
M101 2 Existed

INL-30
< COMPONENT DIAGNOSIS >
INTERIOR ROOM LAMP CONTROL SYSTEM
INTERIOR ROOM LAMP CONTROL SYSTEM

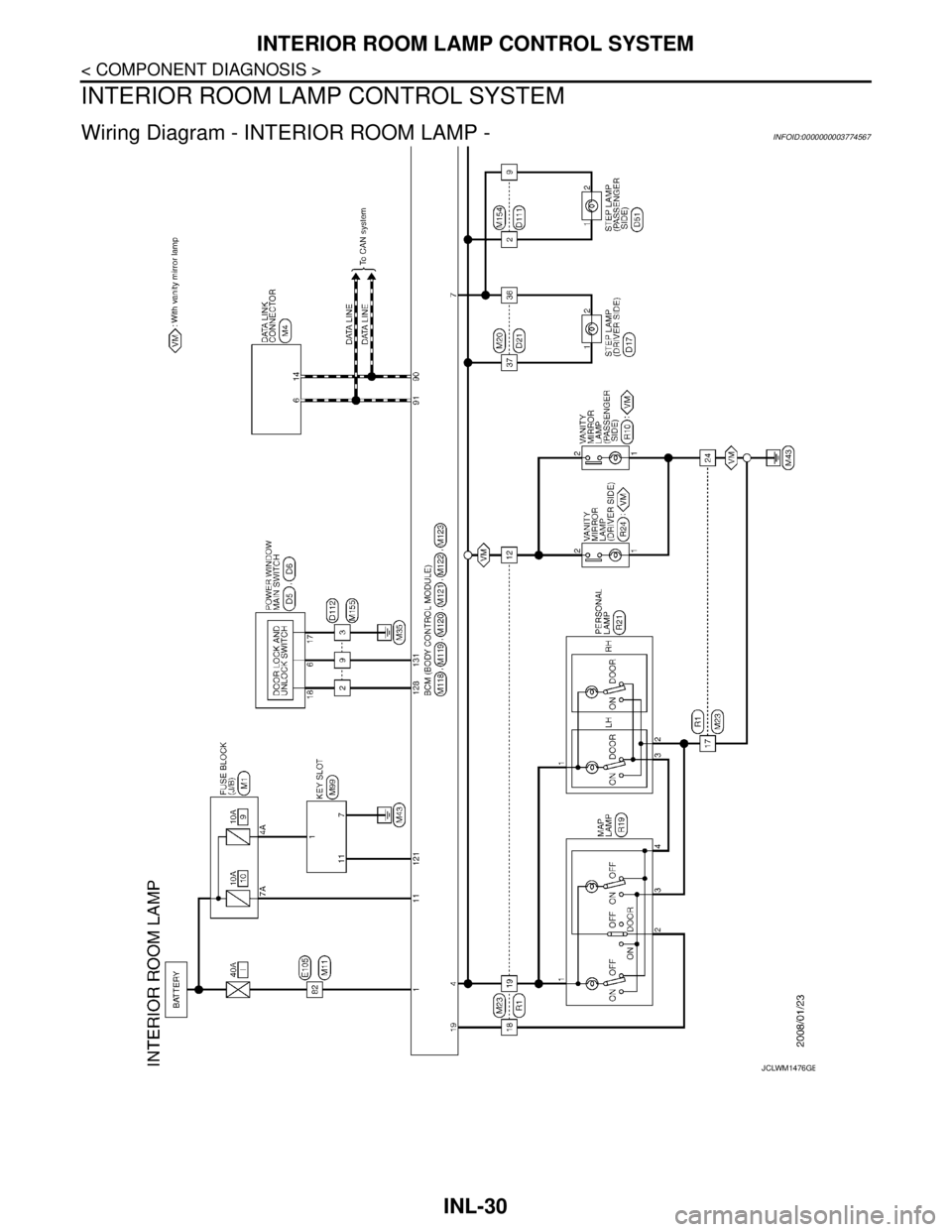

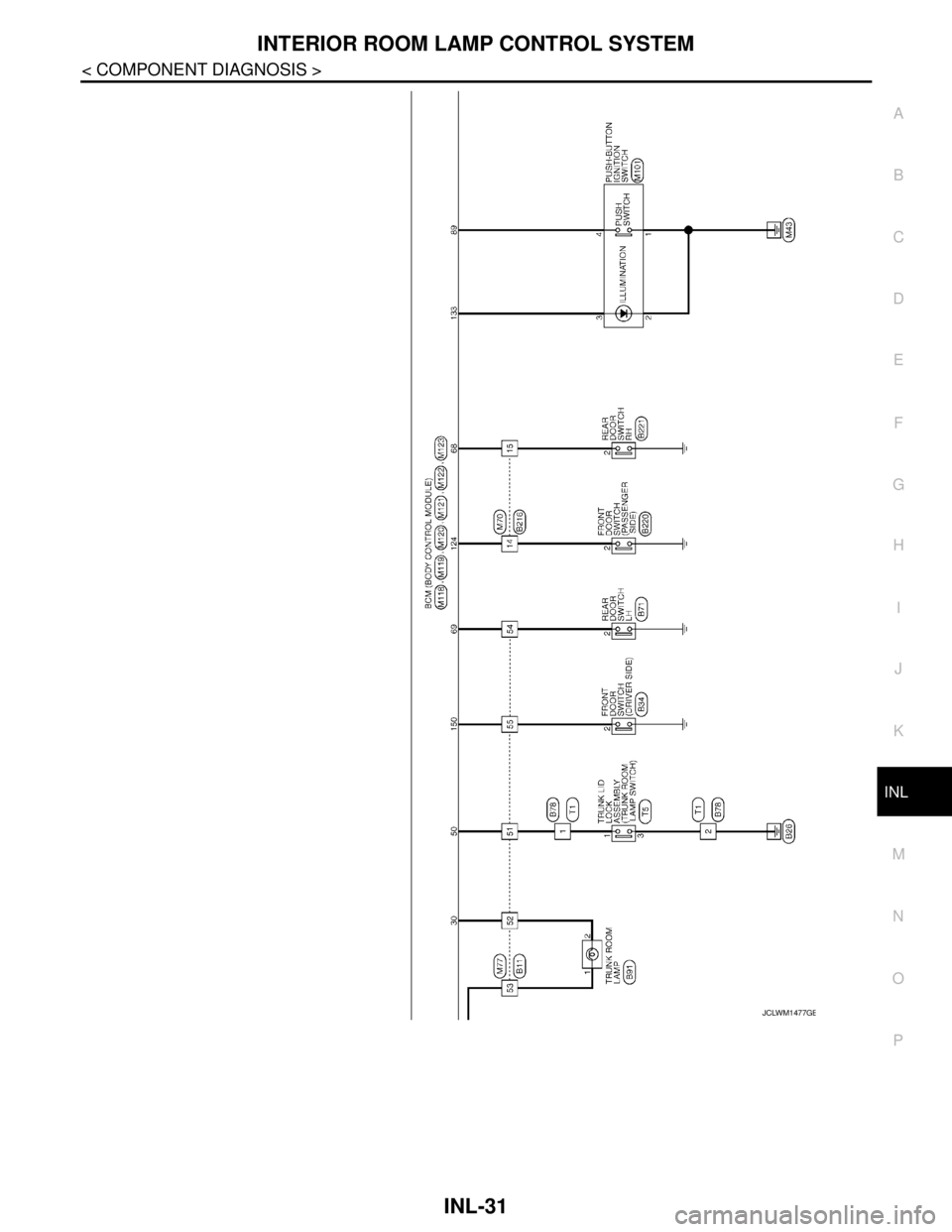

Wiring Diagram - INTERIOR ROOM LAMP -INFOID:0000000003774567
JCLWM1476GB

INTERIOR ROOM LAMP CONTROL SYSTEM
INL-31
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P
JCLWM1477GB
