DTC IndexINFOID:0000000009463762
5 • C1101 RR RH SENSOR-1
• C1102 RR LH SENSOR-1
• C1103 FR RH SENSOR-1
• C1104 FR LH SENSOR-1
• C1105 RR RH SENSOR-2
• C1106 RR LH SENSOR-2
• C1107 FR RH SENSOR-2
• C1108 FR LH SENSOR-2
• C1115 ABS SENSOR [ABNORMAL SIGNAL]
• C1116 STOP LAMP SW
• C1120 FR LH IN ABS SOL
• C1121 FR LH OUT ABS SOL
• C1122 FR RH IN ABS SOL
• C1123 FR RH OUT ABS SOL
• C1124 RR LH IN ABS SOL
• C1125 RR LH OUT ABS SOL
• C1126 RR RH IN ABS SOL
• C1127 RR RH OUT ABS SOL
• C1142 PRESS SEN CIRCUIT
• C1143 ST ANG SEN CIRCUIT
• C1145 YAW RATE SENSOR
• C1146 SIDE G-SEN CIRCUIT
• C1160 DECEL G SEN SET
•C1164 CV1
•C1165 CV2
• C1166 SV1
• C1167 SV2
• C1197 VACUUM SENSOR
• C1198 VACUUM SEN CIR
• C1199 BRAKE BOOSTER
• C119A VACUUM SEN VOLT
6 • C1155 BR FLUID LEVEL LOW
Priority Detected item (DTC)
DTC Items (CONSULT screen terms) Reference
C1101 RR RH SENSOR-1
BRC-64, "DTC Logic"
C1102 RR LH SENSOR-1
C1103 FR RH SENSOR-1
C1104 FR LH SENSOR-1
C1105 RR RH SENSOR-2
BRC-68, "DTC Logic"
C1106 RR LH SENSOR-2
C1107 FR RH SENSOR-2
C1108 FR LH SENSOR-2
C1109 BATTERY VOLTAGE [ABNORMAL] BRC-70, "DTC Logic"
C1110 CONTROLLER FAILUREBRC-72, "DTC Logic"
C 1111 P U M P M O T O RBRC-73, "DTC Logic"
C1115 ABS SENSOR [ABNORMAL SIGNAL] BRC-76, "DTC Logic"
C1116 STOP LAMP SWBRC-78, "DTC Logic"
C1120 FR LH IN ABS SOL BRC-80, "DTC Logic"
C1121 FR LH OUT ABS SOLBRC-82, "DTC Logic"
C1122 FR RH IN ABS SOLBRC-80, "DTC Logic"
C1123 FR RH OUT ABS SOLBRC-82, "DTC Logic"
C1124 RR LH IN ABS SOLBRC-80, "DTC Logic"
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BRC-46
< ECU DIAGNOSIS INFORMATION >[VDC/TCS/ABS]
ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
C1125 RR LH OUT ABS SOL
BRC-82, "DTC Logic"
C1126 RR RH IN ABS SOLBRC-80, "DTC Logic"
C1127 RR RH OUT ABS SOLBRC-82, "DTC Logic"
C1130 ENGINE SIGNAL 1BRC-84, "DTC Logic"
C1140 ACTUATOR RLYBRC-85, "DTC Logic"
C1142 PRESS SEN CIRCUITBRC-87, "DTC Logic"
C1143 ST ANG SEN CIRCUITBRC-88, "DTC Logic"
C1144 ST ANG SEN SIGNALBRC-90, "DTC Logic"
C1145 YAW RATE SENSOR
BRC-75, "DTC Logic"
C1146 SIDE G-SEN CIRCUIT
C1153 EMERGENCY BRAKE BRC-72, "DTC Logic"
C1155 BR FLUID LEVEL LOWBRC-93, "DTC Logic"
C1160 DECEL G SEN SETBRC-95, "DTC Logic"
C1164 CV 1
BRC-96, "DTC Logic"
C1165 CV 2
C1166 SV 1
C1167 SV 2
C1170 VARIANT CORDING BRC-72, "DTC Logic"
C1197 VACUUM SENSORBRC-98, "DTC Logic"
C1198 VACUUM SEN CIRBRC-100, "DTC Logic"
C1199 BRAKE BOOSTERBRC-102, "DTC Logic"
C119A VACUUM SEN VOLT BRC-104, "DTC Logic"
U1000 CAN COMM CIRCUITBRC-106, "DTC Logic"
U1002 SYSTEM COMM(CAN)BRC-107, "DTC Logic"
DTC Items (CONSULT screen terms) Reference
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

BRAKE CONTROL SYSTEMBRC-47
< WIRING DIAGRAM > [VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
N
O P
WIRING DIAGRAM
BRAKE CONTROL SYSTEM

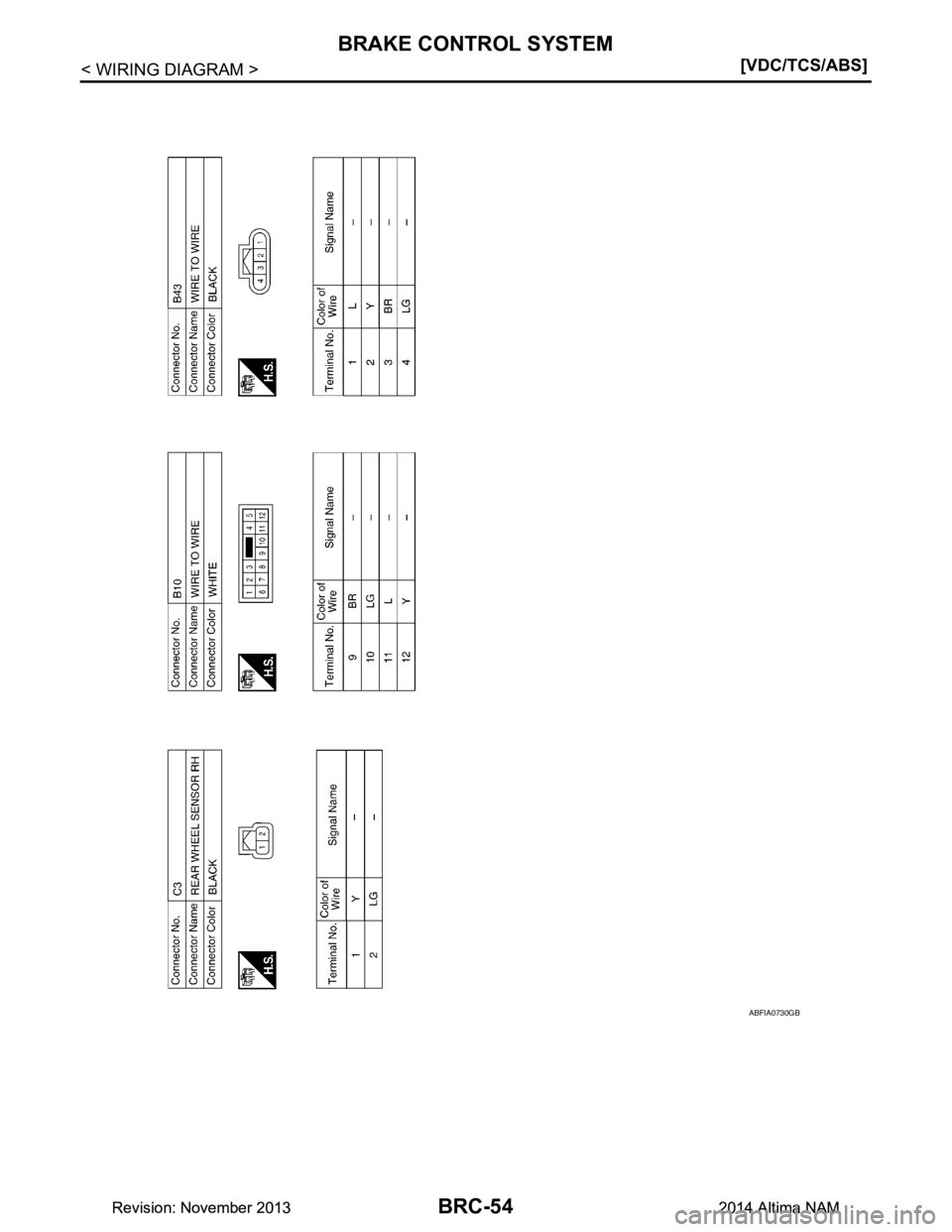

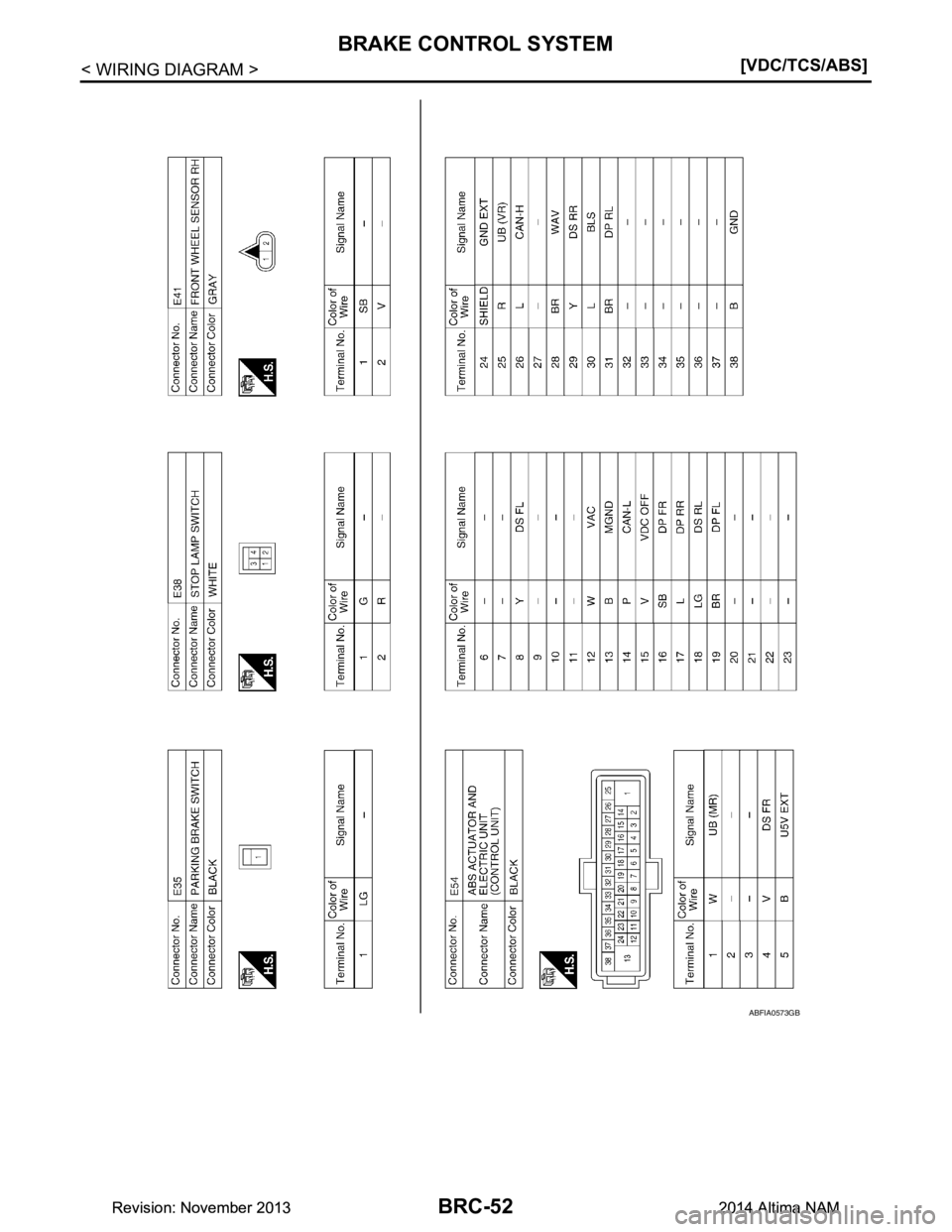

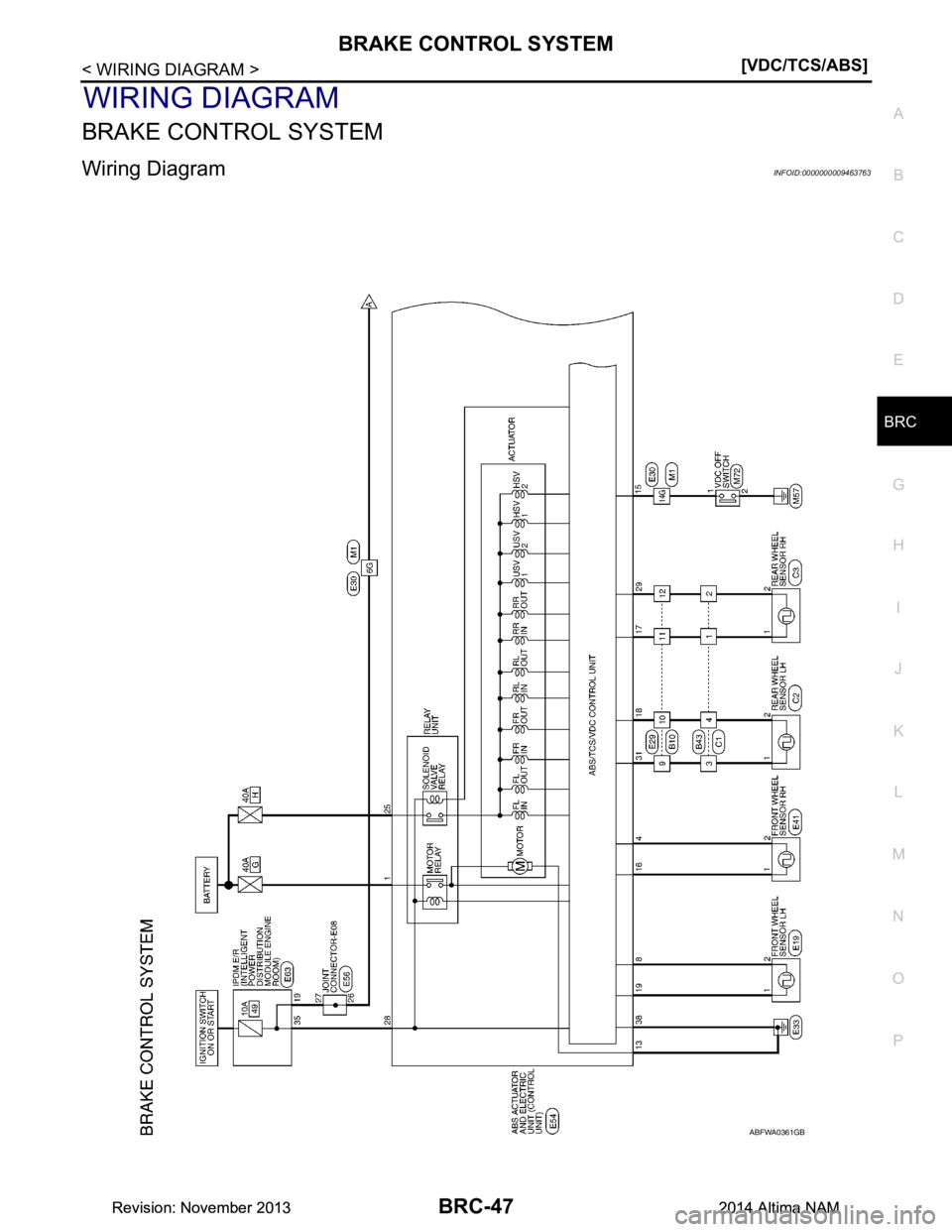

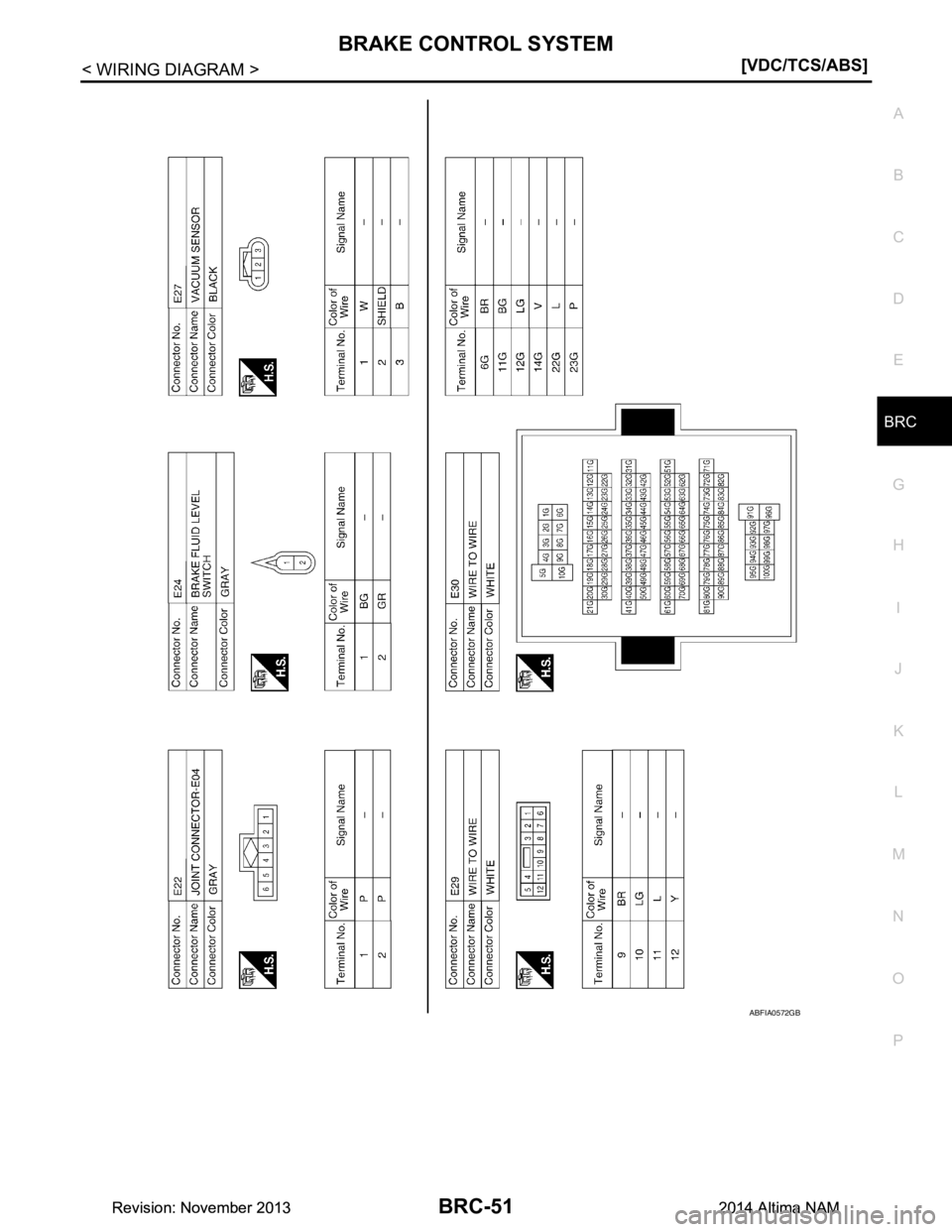

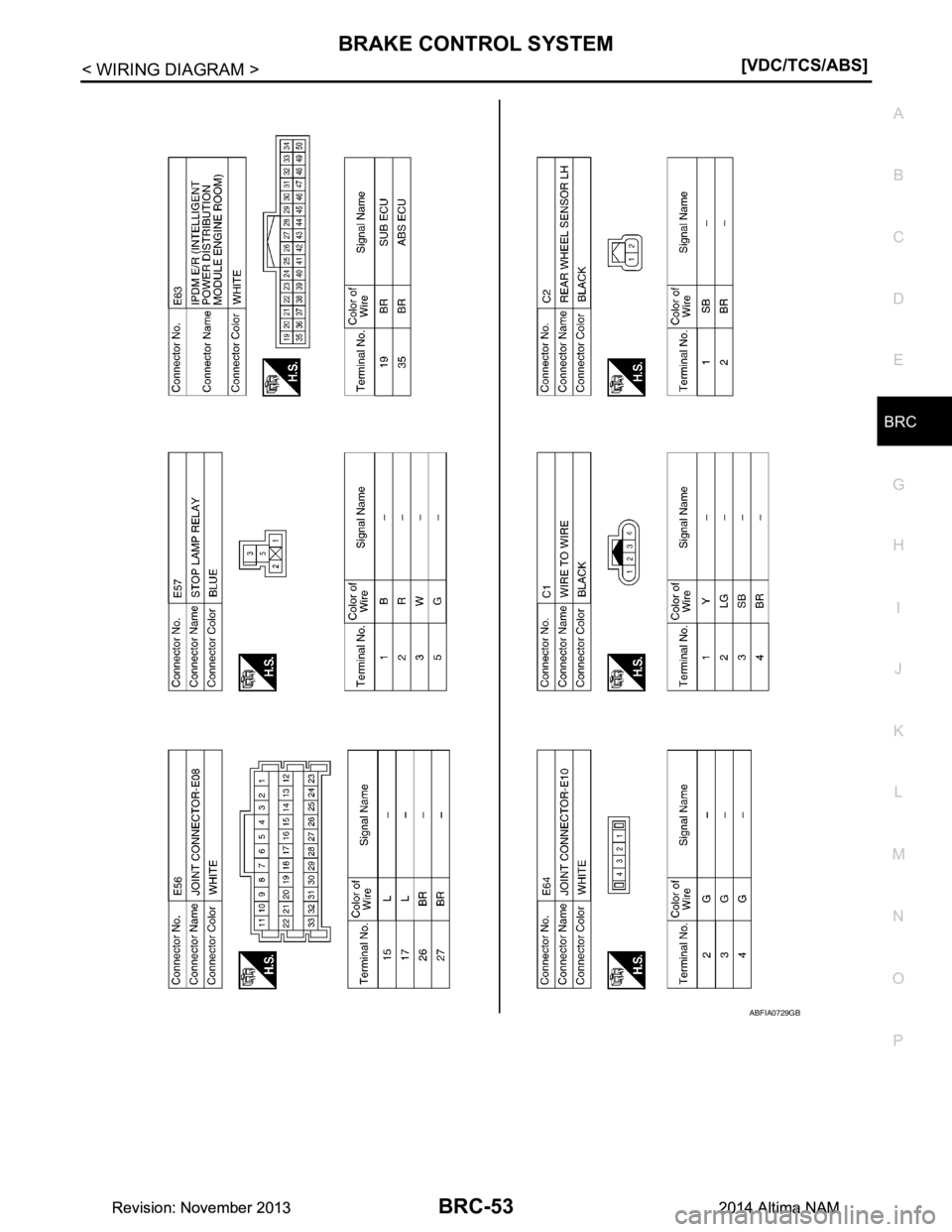

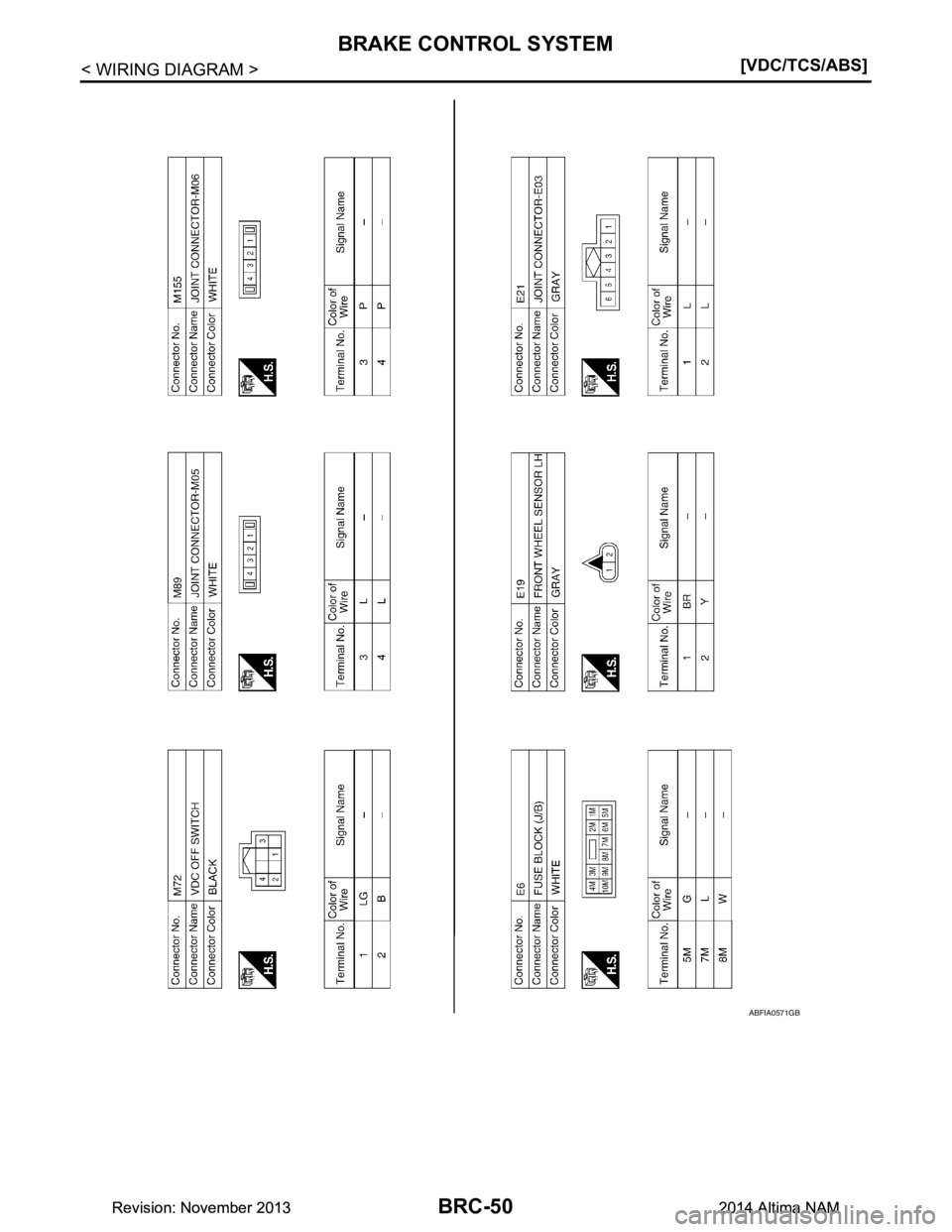

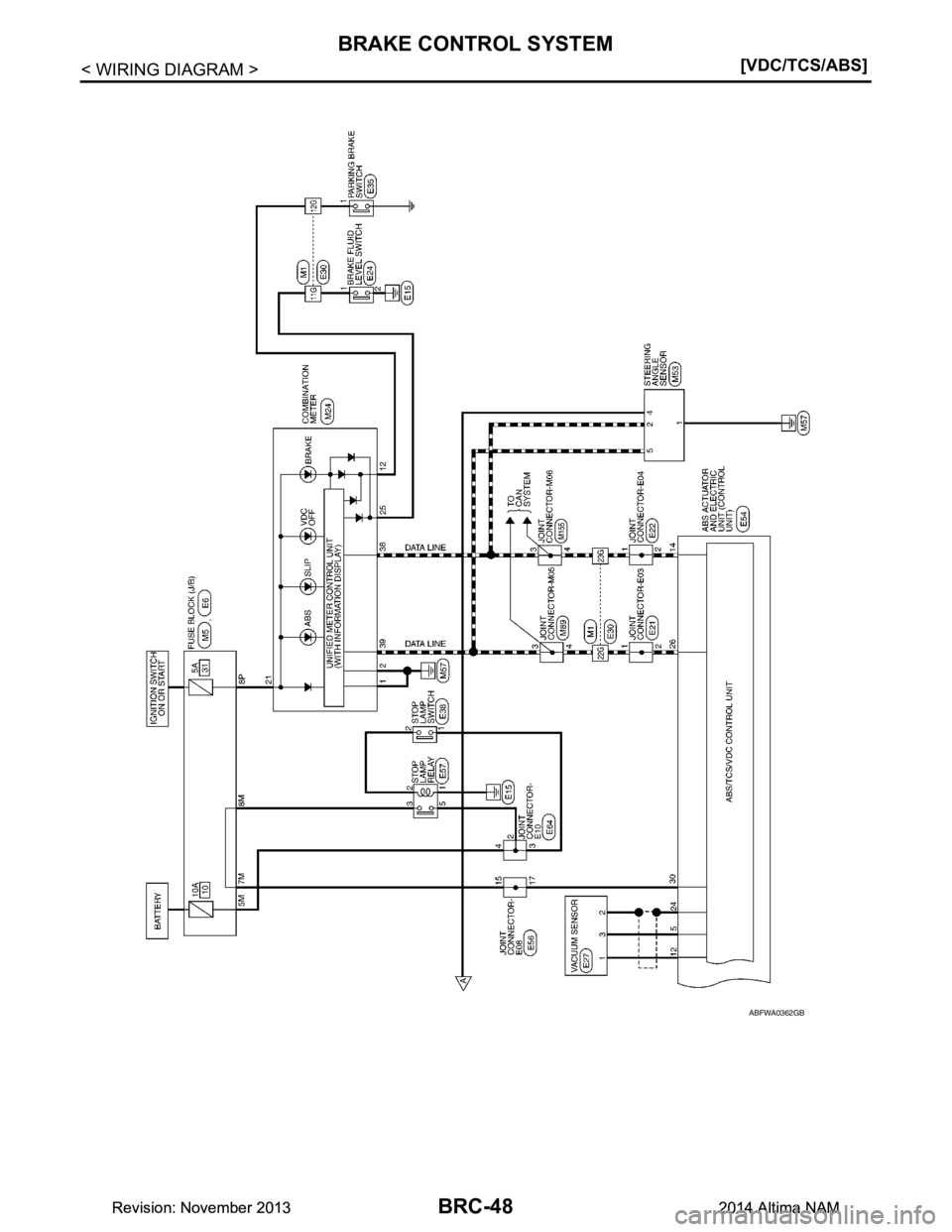

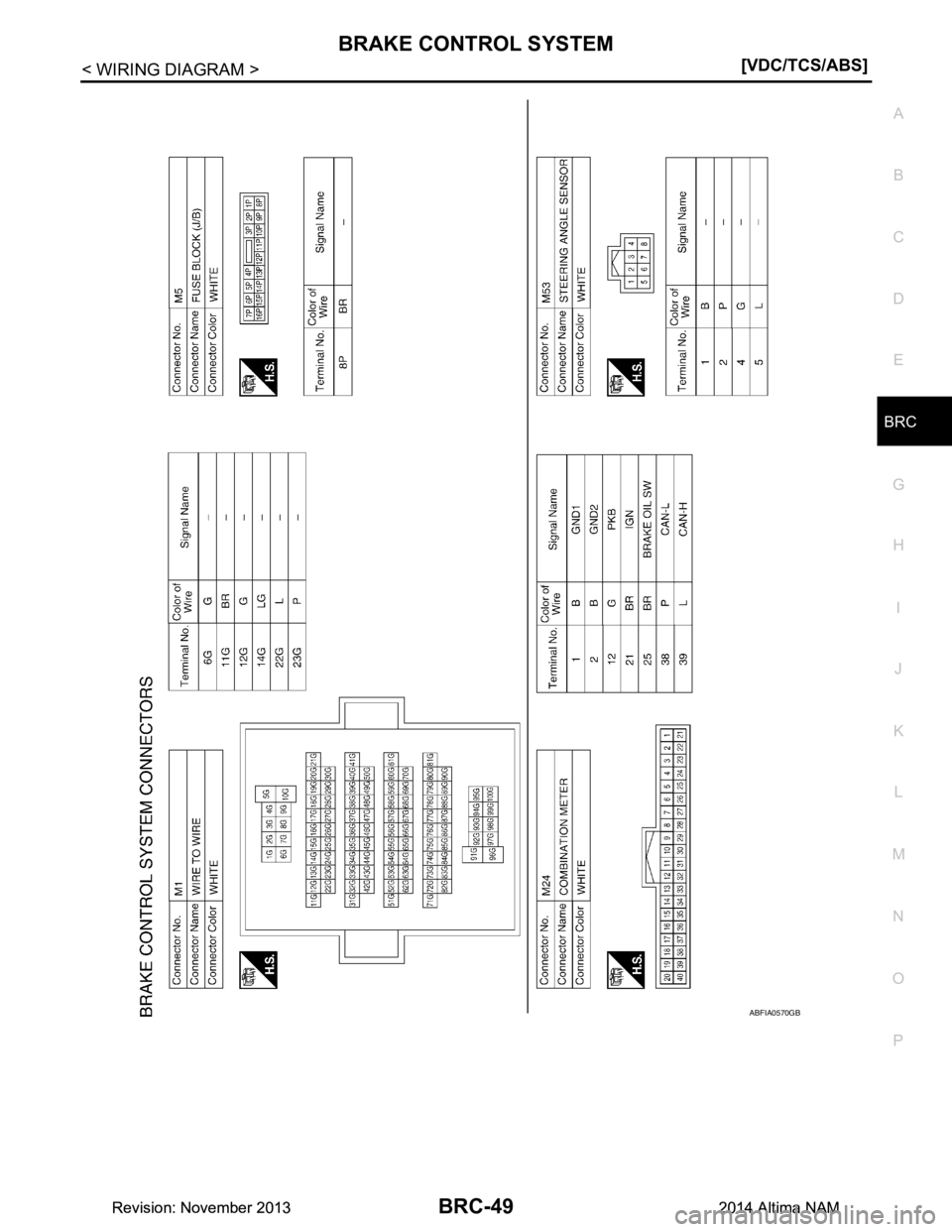

Wiring DiagramINFOID:0000000009463763
