SERVICE DATA AND SPECIFICATIONS (SDS)
BODY ALIGNMENT
Body Center MarksINFOID:0000000009464985
A mark has been placed on each part of the body to indi cate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (me mbers, pillars, etc.), more accurate and effective
repair will be possible by using these marks t ogether with body alignment specifications.
Front
Position Description A Cowl top extension hole
B Roof panel center mark foe alignment
C Shift selector bracket center hole
D Rear roof position mark for alignment raised dimple
ALKIA3026ZZ
Revision: November 20132014 Altima NAM

BRM-54
< SERVICE DATA AND SPECIFICATIONS (SDS)
BODY ALIGNMENT
Description
INFOID:0000000009464986
• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself
to make sure there is no free play.
• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side
is symmetrically the same value.
• The coordinates of the measurement points are the distances measured from the standard line of ″X ″, ″Y ″
and ″Z ″.
Engine CompartmentINFOID:0000000009464987
Measurement
E Raised dimple in rear waist flange
F Rear panel upper notch
Position Description
PIIA0104E
Revision: November 20132014 Altima NAM

BODY ALIGNMENTBRM-55
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
D E
F
G H
I
J
L
M A
B
BRM
N
O P
Unit: mm (in)
Figures marked with an (*) indicate symmetrically identical dimensions on both the RH and LH side of the vehicle.

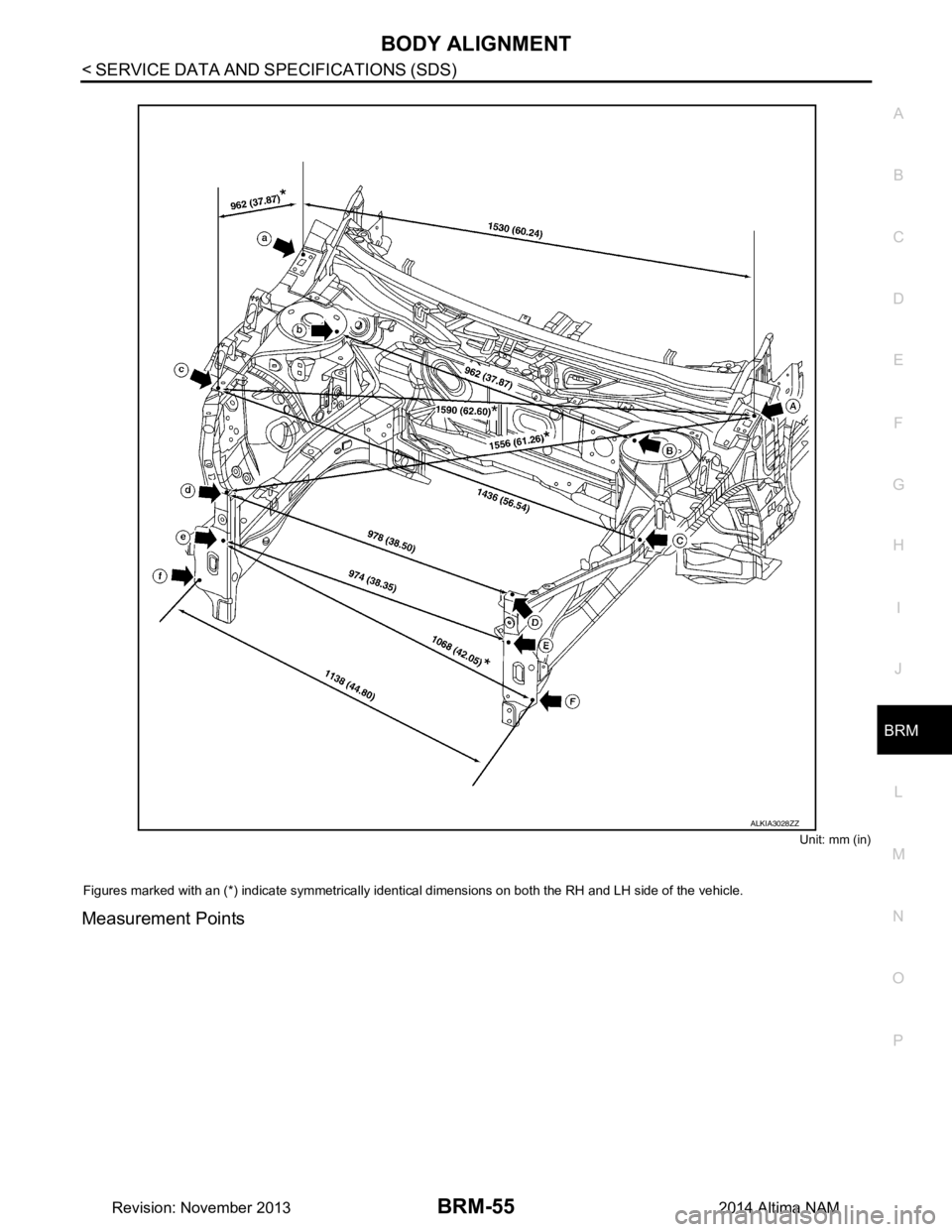

Measurement Points
ALKIA3028ZZ
Revision: November 20132014 Altima NAM

BRM-56
< SERVICE DATA AND SPECIFICATIONS (SDS)
BODY ALIGNMENT
Unit: mm (in)
UnderbodyINFOID:0000000009464988
Measurement
Front
Position Description Measurement A - a. Hood hinge hole 11 (0.43)
B - b. Hole for cowl top extension 9 (0.35)
C - c. Upper radiator core support hole 13 (0.51)
D - d. Radiator core support body assembly hole 13 (0.51) E - e. Front bumper reinforcement hole upper 9 (0.35) F - f. Front bumper reinforcement clearance hole lower 14 (0.55)
AWKIA2260ZZ
Revision: November 20132014 Altima NAM

BODY ALIGNMENTBRM-57
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
D E
F
G H
I
J
L
M A
B
BRM
N
O P
NOTE:
Figures marked with an (*) indicate symmetrically i dentical dimensions on both the RH and LH side of the
vehicle.
• All dimensions shown are actual.
• As viewed from underside.
Front

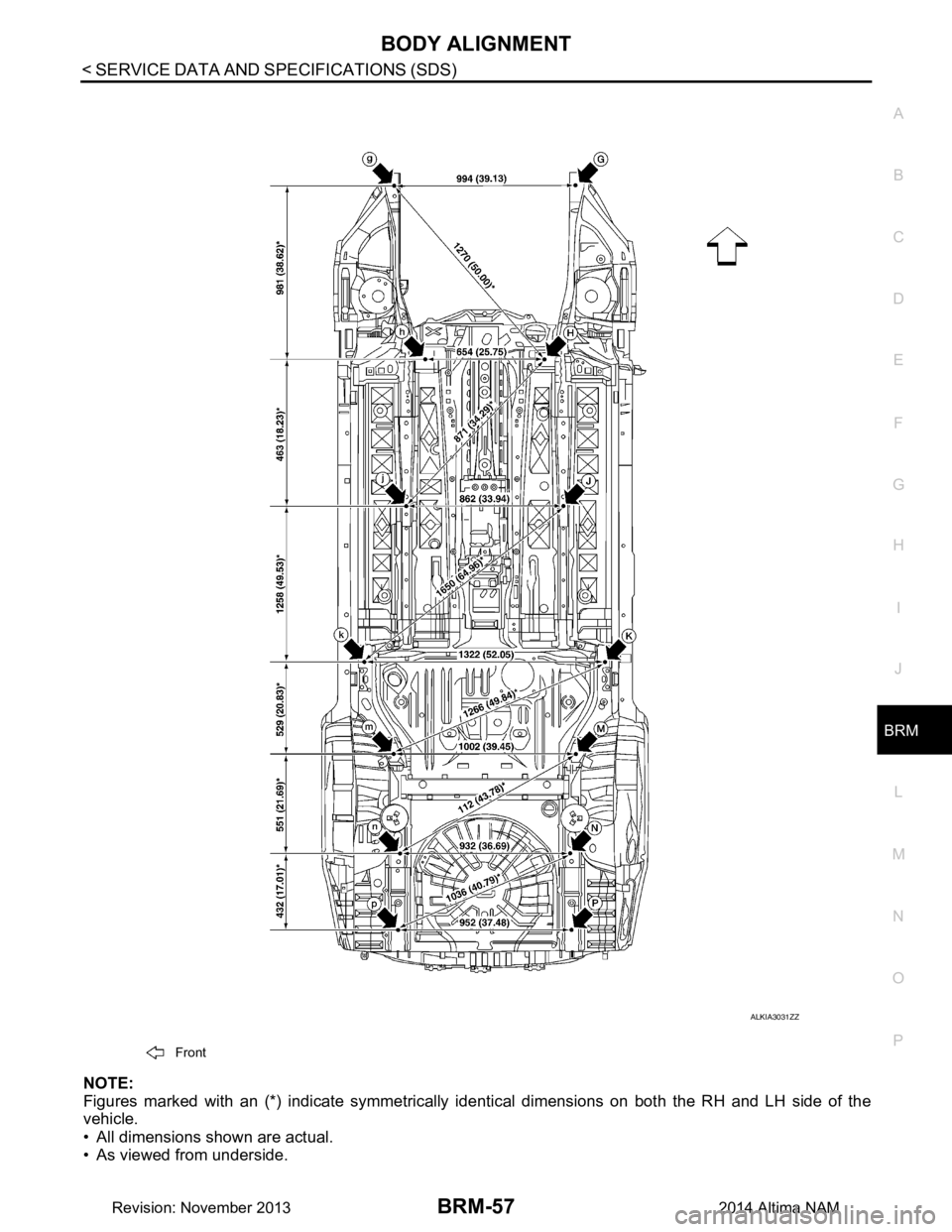

ALKIA3031ZZ
Revision: November 20132014 Altima NAM

BRM-58
< SERVICE DATA AND SPECIFICATIONS (SDS)
BODY ALIGNMENT
Unit: mm (in)
Passenger CompartmentINFOID:0000000009464989
MEASUREMENTS
Unit: mm (in)
Position DescriptionG, g Front suspension member front weld nut hole 17 (0.67)
H, h Front suspension member rear weld nut hole LH dia 28 (1.10) RH 28X33 (1.10 X 1.30) J, j Front side member center extension locating hole 20 x 16 (0.79 x 0.63)
K, k Rear side member assembly hole 16 (0.79)
M, m Rear suspension member front stud tip N, n Rear suspension member rear stud tipP, p Rear side member stamping hole 18 x 16 (0.7 x 0.6)
Position Description E - e 1218 (47.95)F - f 1439 (56.65)
G - g 1589 (62.56) H - h 1455 (57.28) J - j 1625 (63.98)
K - k 1485 (58.46)
M - m 1463 (57.60) N - n 1313 (51.69)
P - P 1312 (51.65)
Q - q 1582 (62.28) R - r 1466 (57.72)
S - s 1624 (63.97)
AWKIA2268ZZ
Revision: November 20132014 Altima NAM

BODY ALIGNMENTBRM-59
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
D E
F
G H
I
J
L
M A
B
BRM
N
O P
Figures marked with an (*) indicate symmetrically identical dimensions on both the RH and LH side of the vehicle.
Measurement Points
T - t 1473 (57.99)
U - u 1473 (57.99) V - v 1450 (57.09)
W - w 1201 (47.28)
Position Description
Revision: November 20132014 Altima NAM

BRM-60
< SERVICE DATA AND SPECIFICATIONS (SDS)
BODY ALIGNMENT
Front
Position Description A. Dash panel hole center
B. Roof panel center mark
C - c Body side outer corner
AWKIA2269ZZ
Revision: November 20132014 Altima NAM

BODY ALIGNMENTBRM-61
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
D E
F
G H
I
J
L
M A
B
BRM
N
O P

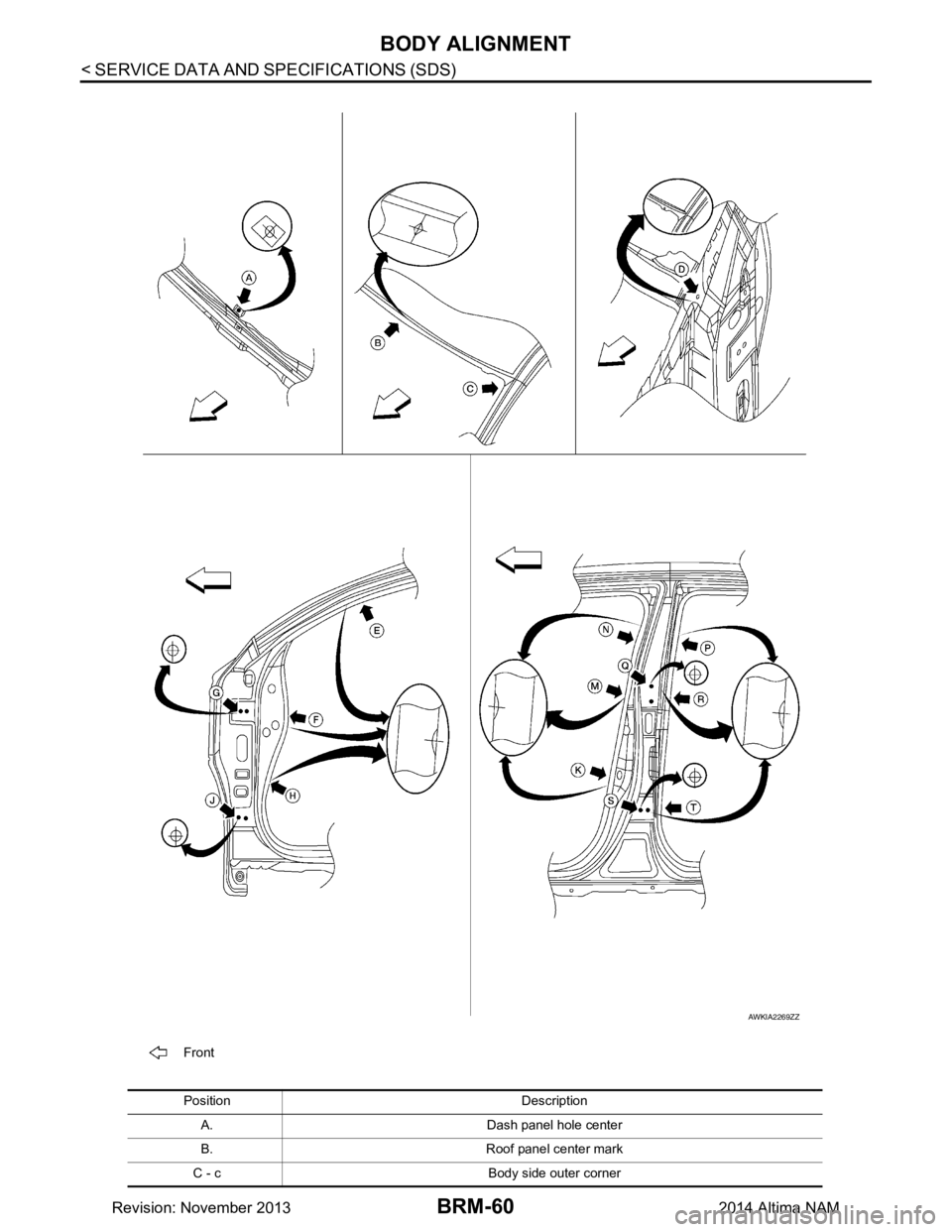

D - d Body side positioning mark E -e Body side outer notch for alignmentF - f Body side outer notch for alignment
G - g Body side hole for door hinge H - h Body side outer notch for alignment J - j Body side hole for door hinge
K - k Body side outer notch for alignment
M - m Body side outer notch for alignment N - n Body side outer notch for alignmentP - p Body side outer notch for alignment
Q - q Body side hole for door hinge R - r Body side outer notch for alignment
S - s Body side hole for door hinge T - t Body side outer notch for alignment
Position Description
Front

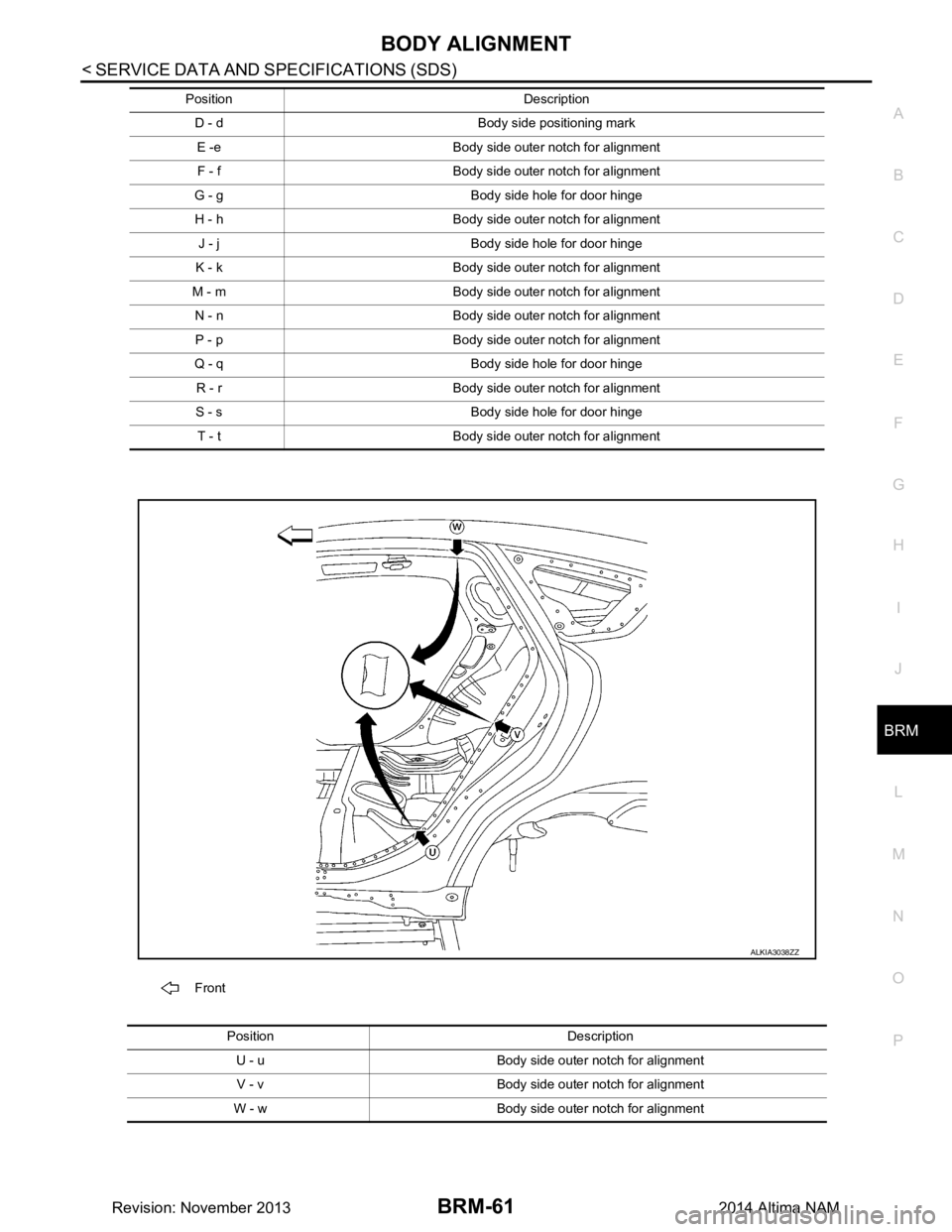

Position DescriptionU - u Body side outer notch for alignmentV - v Body side outer notch for alignment
W - w Body side outer notch for alignment
ALKIA3038ZZ
Revision: November 20132014 Altima NAM

BRM-62
< SERVICE DATA AND SPECIFICATIONS (SDS)
BODY ALIGNMENT
Rear Body
INFOID:0000000009464990
BODY CENTER MARKS
A mark has been placed on each part of the body to indi cate the vehicle center. When repairing parts dam-
aged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective
repair will be possible by using these marks together with body alignment specifications.
Unit: mm (in)

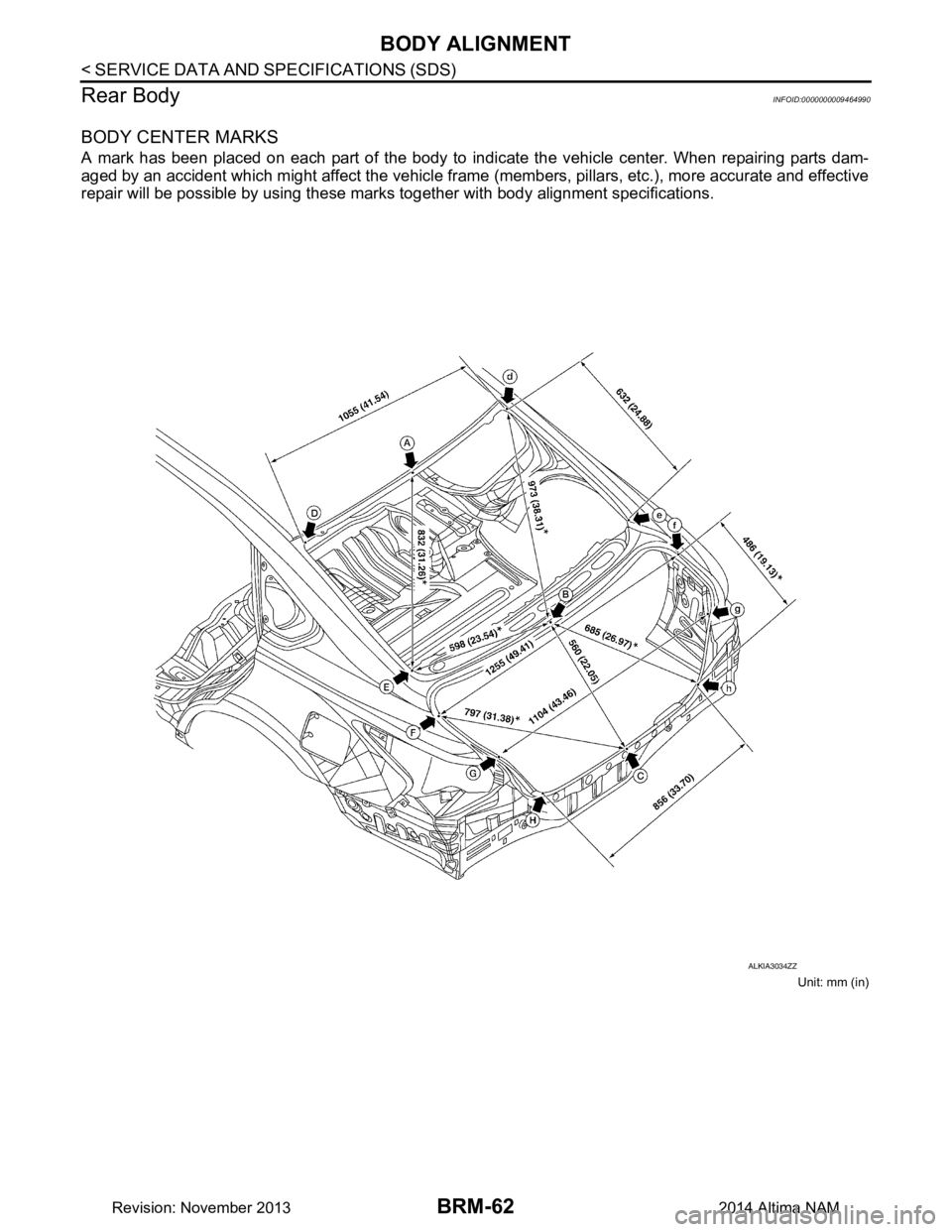

ALKIA3034ZZ
