NISSAN TERRANO 2002 Service Repair Manual

NAT223
MAJOR OVERHAUL
AT-119

YAT342
MAJOR OVERHAUL
AT-120

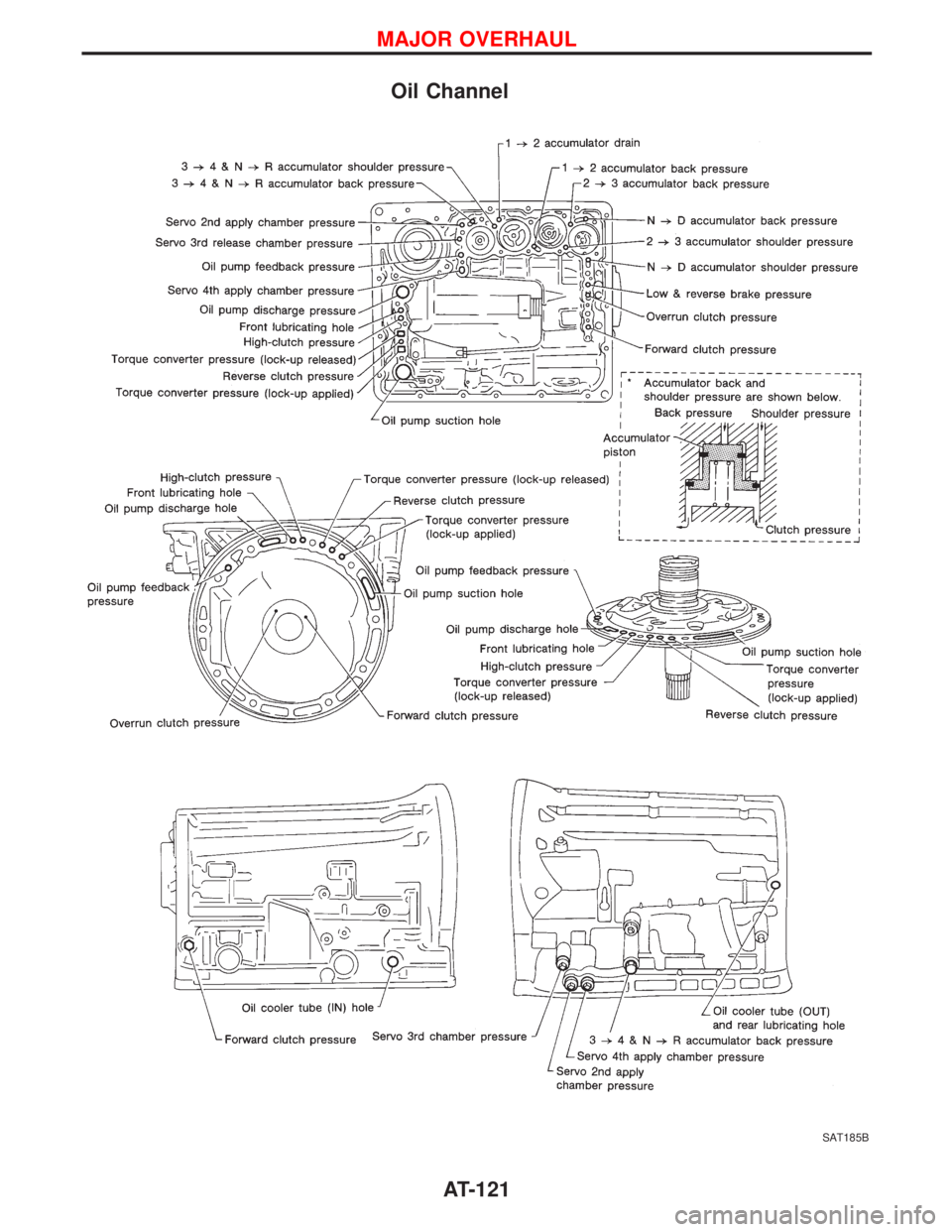

Oil Channel
SAT185B
MAJOR OVERHAUL
AT-121

Locations of Needle Bearings, Thrust Washers
and Snap Rings
NAT225
MAJOR OVERHAUL
AT-122

Disassembly
1. Drain ATF through drain plug.
2. Remove torque converter by holding it firmly and turning while
pulling straight out.
3. Check torque converter one-way clutch.
a. Insert Tool into spline of one-way clutch inner race.
b. Hook bearing support unitized with one-way clutch outer race
with suitable wire.
c. Check that one-way clutch inner race rotates only clockwise
with Tool while holding bearing support with wire.
4. Remove park/neutral position switch from transmission case.
5. Remove oil pan.
IAlways place oil pan straight down so that foreign par-
ticles inside will not move.
6. Place transmission into Tool with the control valve facing up.
SAT018B
NAT226
YAT339
SAT754I
NAT227
DISASSEMBLY
AT-123

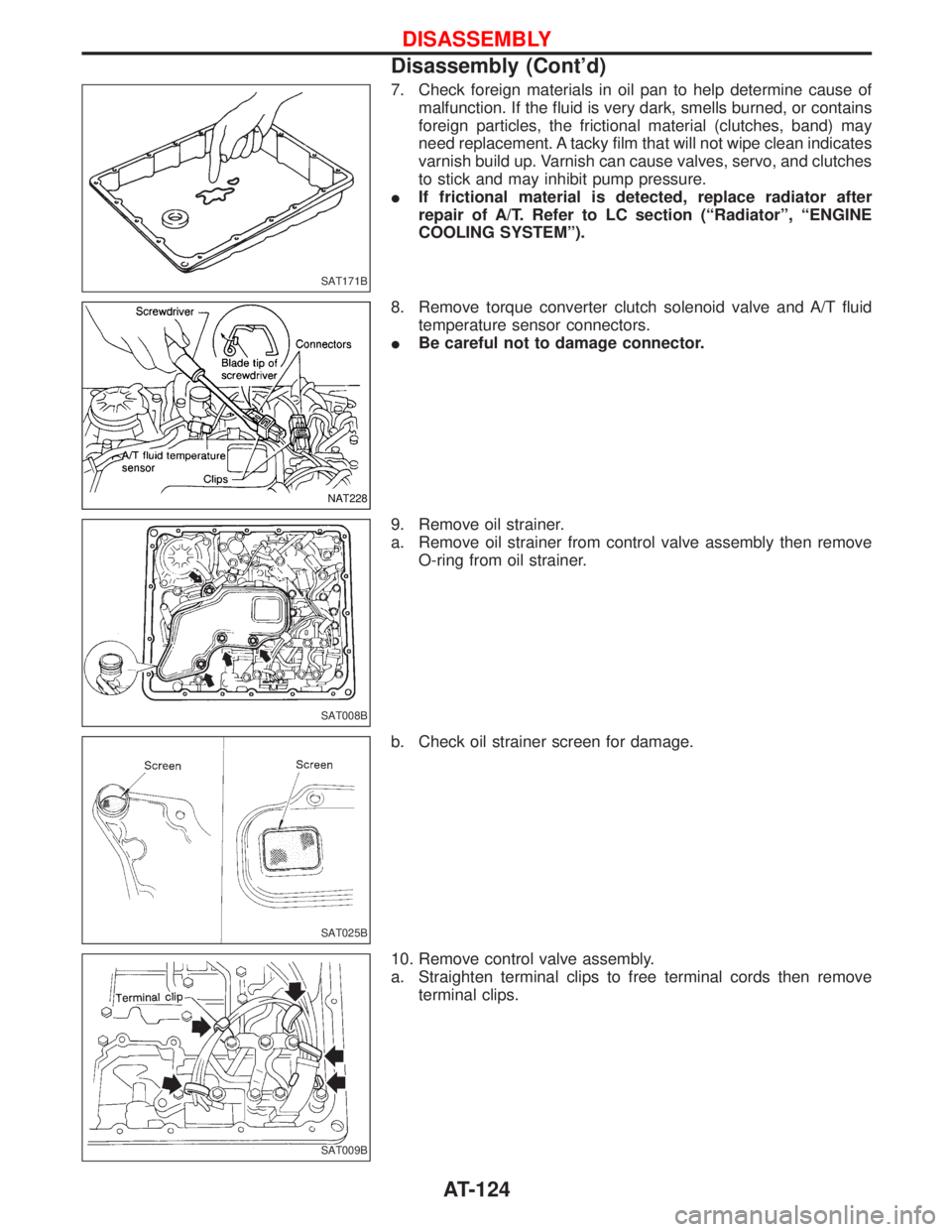

7. Check foreign materials in oil pan to help determine cause of
malfunction. If the fluid is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish build up. Varnish can cause valves, servo, and clutches
to stick and may inhibit pump pressure.
IIf frictional material is detected, replace radiator after
repair of A/T. Refer to LC section (ªRadiatorº, ªENGINE
COOLING SYSTEMº).
8. Remove torque converter clutch solenoid valve and A/T fluid
temperature sensor connectors.
IBe careful not to damage connector.
9. Remove oil strainer.
a. Remove oil strainer from control valve assembly then remove
O-ring from oil strainer.
b. Check oil strainer screen for damage.
10. Remove control valve assembly.
a. Straighten terminal clips to free terminal cords then remove
terminal clips.
SAT171B
NAT228
SAT008B
SAT025B
SAT009B
DISASSEMBLY
Disassembly (Cont'd)
AT-124

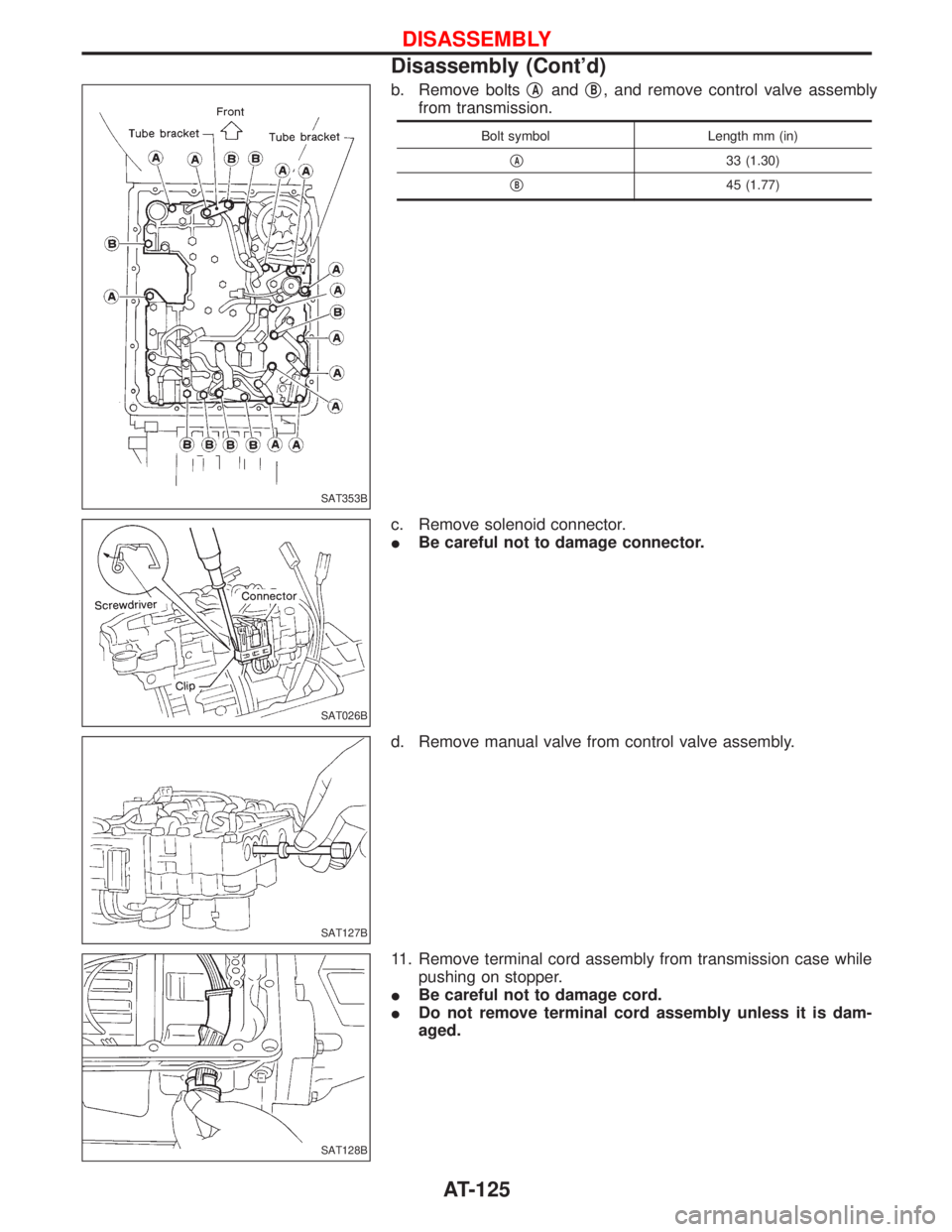

b. Remove boltsqAandqB, and remove control valve assembly
from transmission.
Bolt symbol Length mm (in)
q
A33 (1.30)
q
B45 (1.77)
c. Remove solenoid connector.
IBe careful not to damage connector.
d. Remove manual valve from control valve assembly.
11. Remove terminal cord assembly from transmission case while
pushing on stopper.
IBe careful not to damage cord.
IDo not remove terminal cord assembly unless it is dam-
aged.
SAT353B
SAT026B
SAT127B
SAT128B
DISASSEMBLY
Disassembly (Cont'd)
AT-125

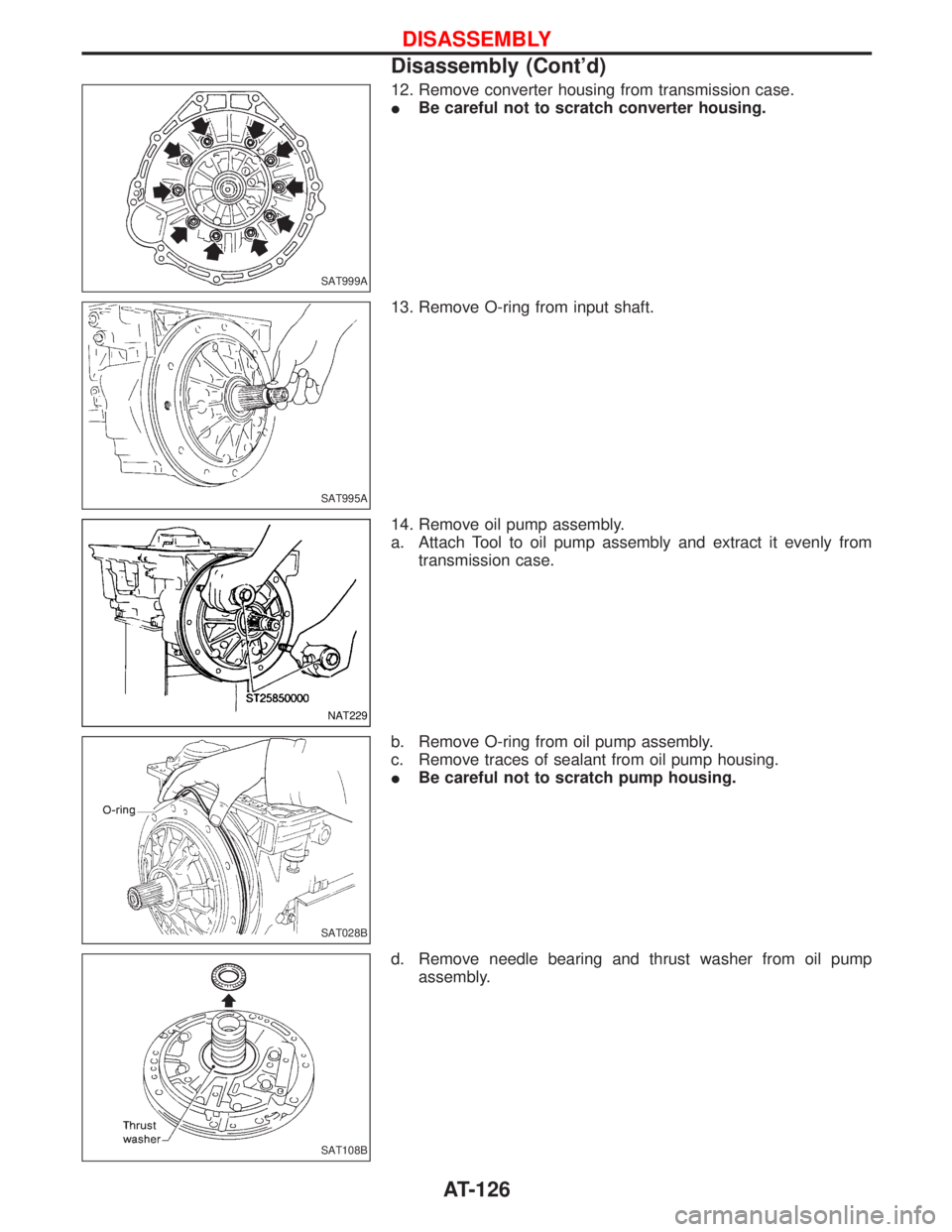

12. Remove converter housing from transmission case.
IBe careful not to scratch converter housing.
13. Remove O-ring from input shaft.
14. Remove oil pump assembly.
a. Attach Tool to oil pump assembly and extract it evenly from
transmission case.
b. Remove O-ring from oil pump assembly.
c. Remove traces of sealant from oil pump housing.
IBe careful not to scratch pump housing.
d. Remove needle bearing and thrust washer from oil pump
assembly.
SAT999A
SAT995A
NAT229
SAT028B
SAT108B
DISASSEMBLY
Disassembly (Cont'd)
AT-126

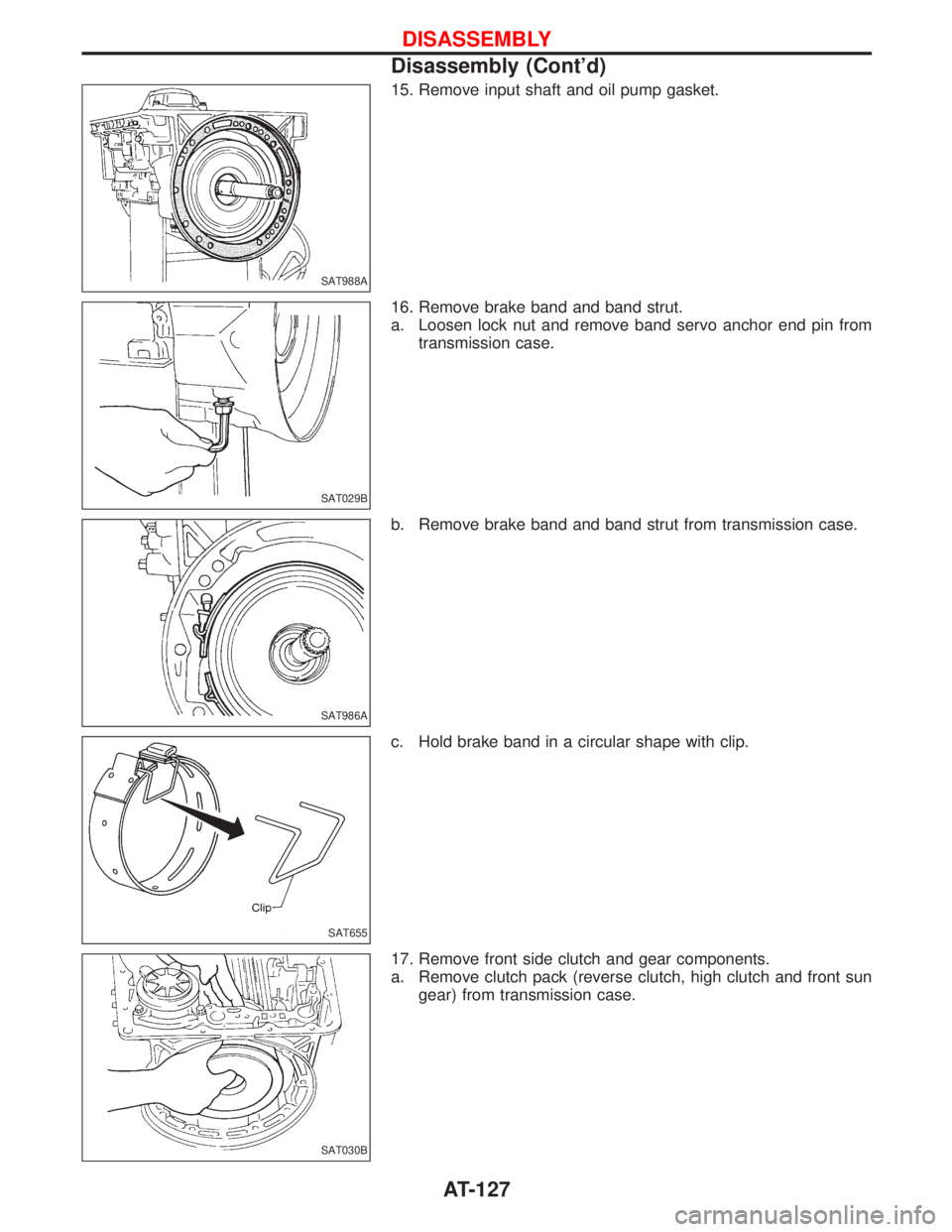

15. Remove input shaft and oil pump gasket.
16. Remove brake band and band strut.
a. Loosen lock nut and remove band servo anchor end pin from
transmission case.
b. Remove brake band and band strut from transmission case.
c. Hold brake band in a circular shape with clip.
17. Remove front side clutch and gear components.
a. Remove clutch pack (reverse clutch, high clutch and front sun
gear) from transmission case.
SAT988A
SAT029B
SAT986A
SAT655
SAT030B
DISASSEMBLY
Disassembly (Cont'd)
AT-127

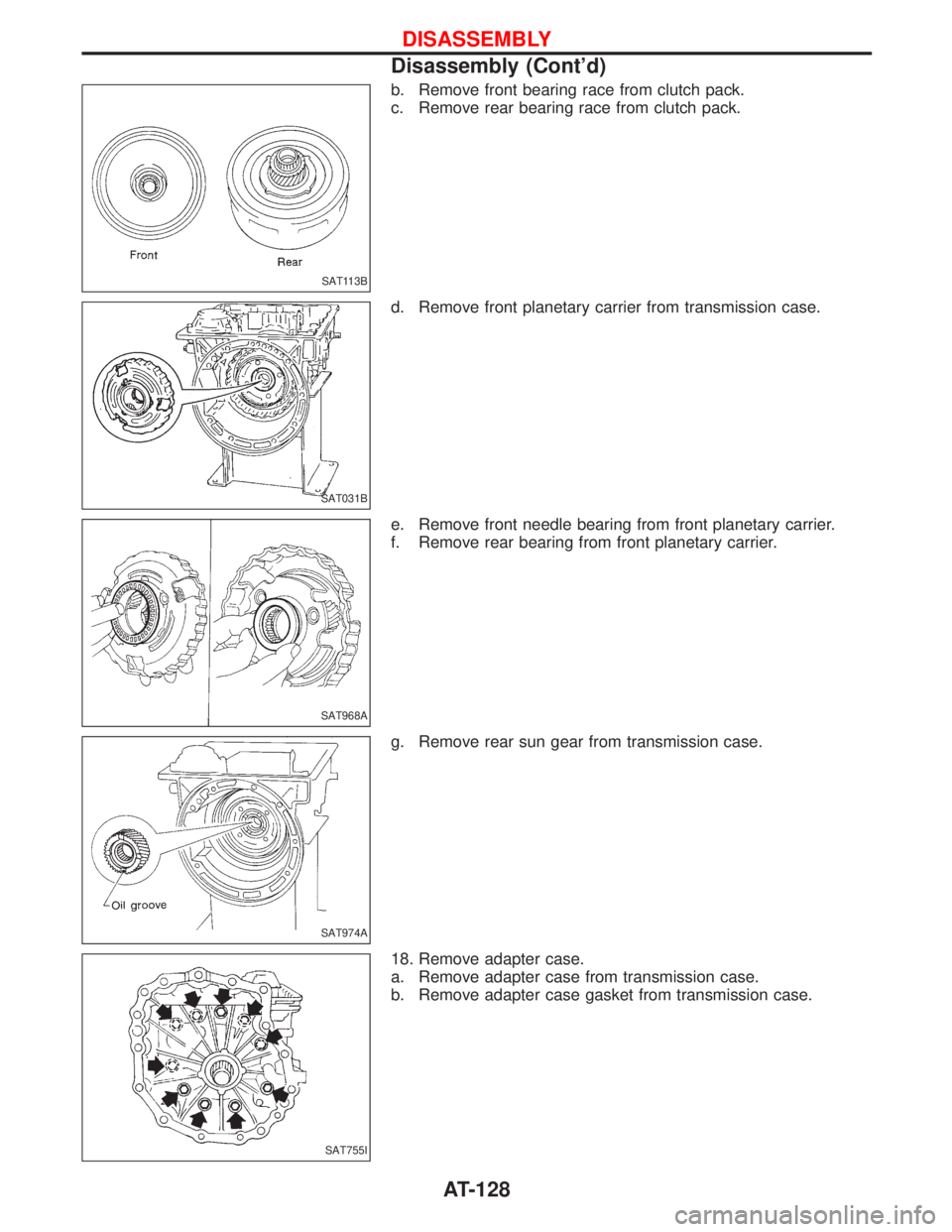

b. Remove front bearing race from clutch pack.
c. Remove rear bearing race from clutch pack.
d. Remove front planetary carrier from transmission case.
e. Remove front needle bearing from front planetary carrier.
f. Remove rear bearing from front planetary carrier.
g. Remove rear sun gear from transmission case.
18. Remove adapter case.
a. Remove adapter case from transmission case.
b. Remove adapter case gasket from transmission case.
SAT113B
SAT031B
SAT968A
SAT974A
SAT755I
DISASSEMBLY
Disassembly (Cont'd)
AT-128
