NISSAN TIIDA 2007 Service Repair Manual

DLK-432
< SYMPTOM DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
SQUEAK AND RATTLE TROUBLE DIAGNOSES
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.
 Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
 If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSB) related to
that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Engine Ear or mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:
 removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.
 tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only tem-
porarily.
 feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.
 placing a piece of paper between components that you suspect are causing the noise.
 looking for loose components and contact marks.
Refer to XX-XX, "*****"
.
REPAIR THE CAUSE
 If the cause is a loose component, tighten the component securely.
 If the cause is insufficient clearance between components:
- separate components by repositioning or loosening and retightening the component, if possible.
- insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or urethane
tape are available through your authorized Nissan Parts Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
 URETHANE PADS
Insulates connectors, harness, etc.
 INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
 INSULATOR (Light foam block)
 FELT CLOTHTAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
The following materials, not available through NISSAN Parts Department, can also be used to repair
squeaks and rattles.
 UHMW(TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
 SILICONE GREASE
Used in place of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
 SILICONE SPRAY
Use when grease cannot be applied.
 DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR

SQUEAK AND RATTLE TROUBLE DIAGNOSES
DLK-433
< SYMPTOM DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Inspection ProcedureINFOID:0000000001396892
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. Cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks to
repair the noise.
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid dumpers out of adjustment
2. Trunk lid striker out of adjustment
3. Trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking

DLK-434
< SYMPTOM DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it is important to note the position the seat is in and the load placed on the seat
when the noise is present. These conditions should be duplicated when verifying and isolating the cause of
the noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. Rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.

SQUEAK AND RATTLE TROUBLE DIAGNOSES
DLK-435
< SYMPTOM DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

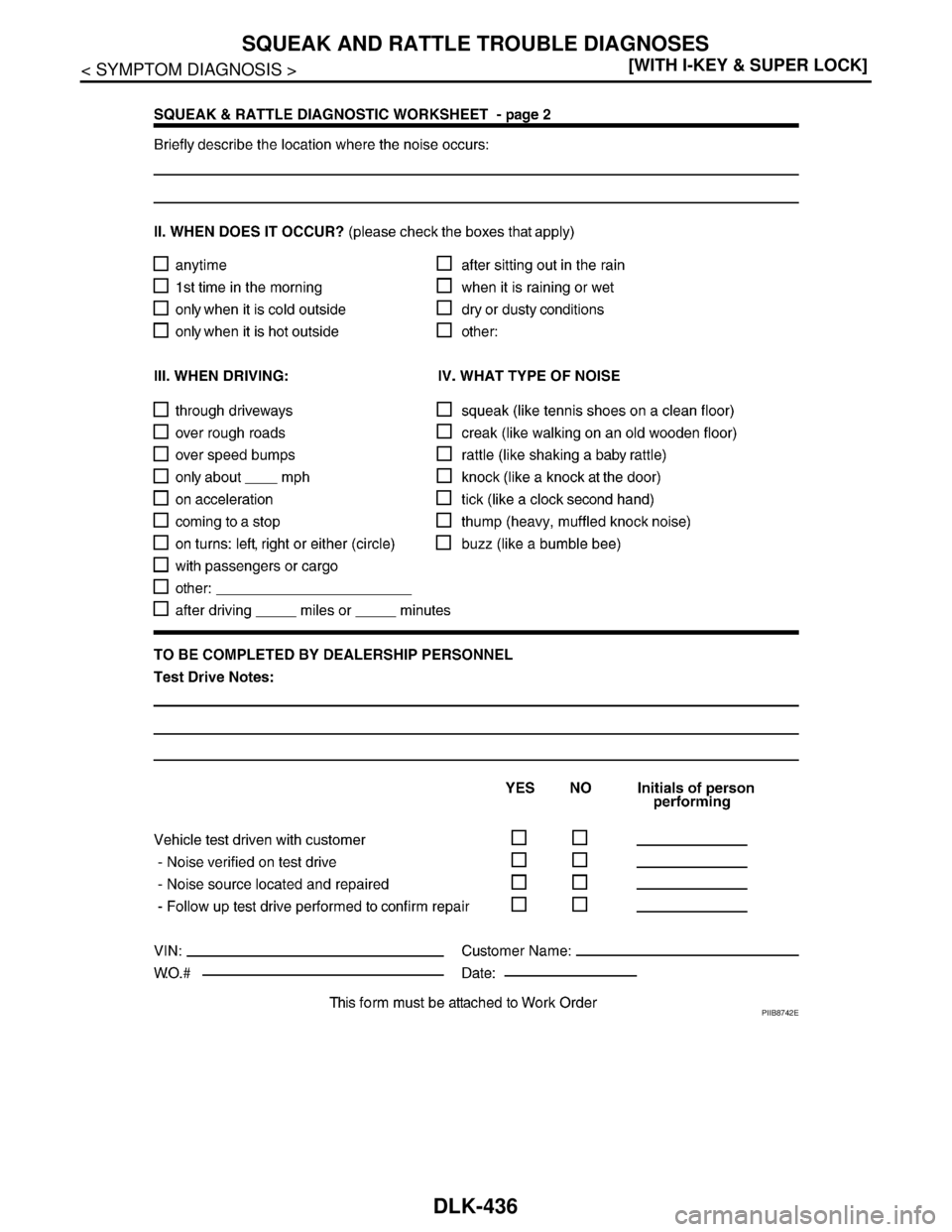

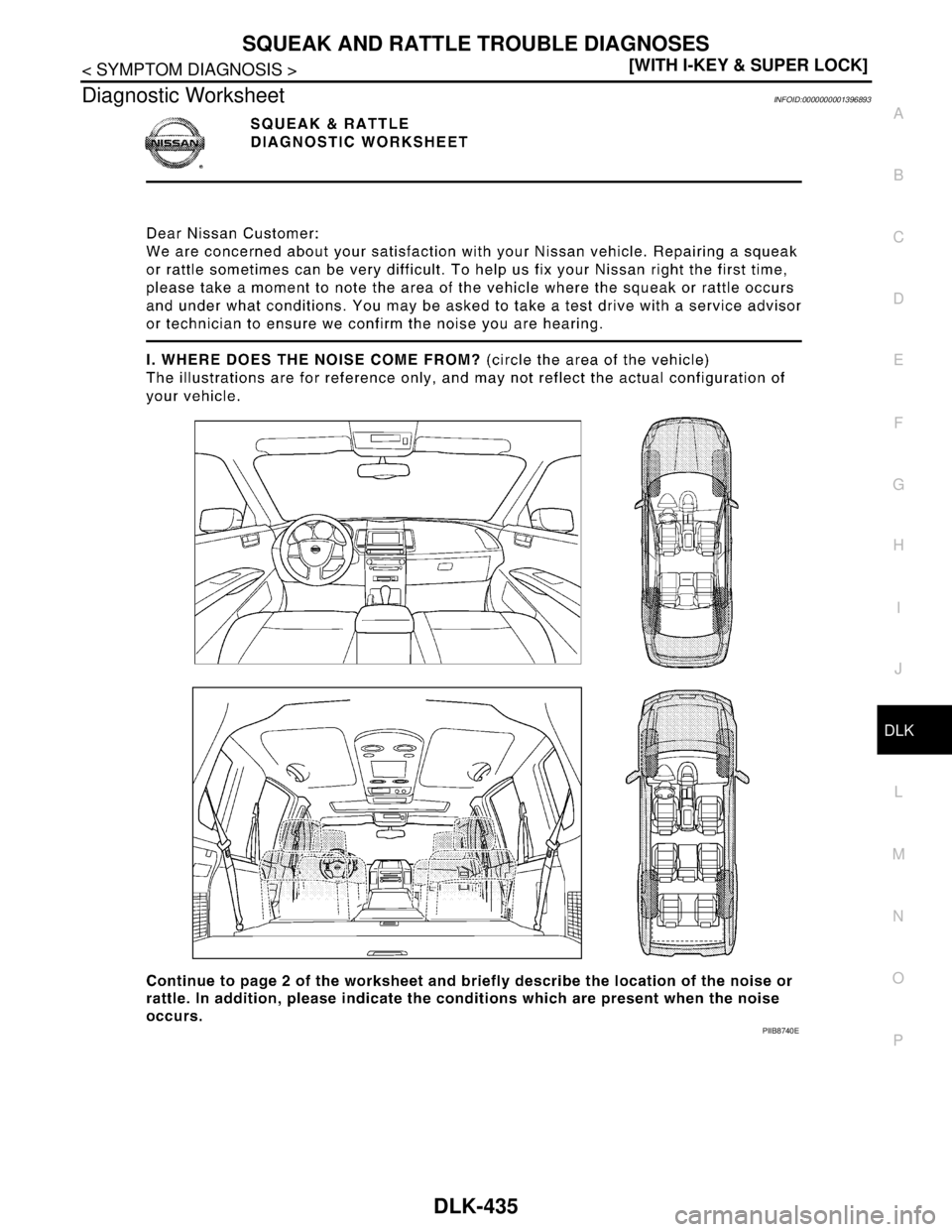

Diagnostic WorksheetINFOID:0000000001396893
PIIB8740E

DLK-436
< SYMPTOM DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
SQUEAK AND RATTLE TROUBLE DIAGNOSES
PIIB8742E

PRECAUTIONS
DLK-437
< PRECAUTION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001530406
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
 To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
 Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
 Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

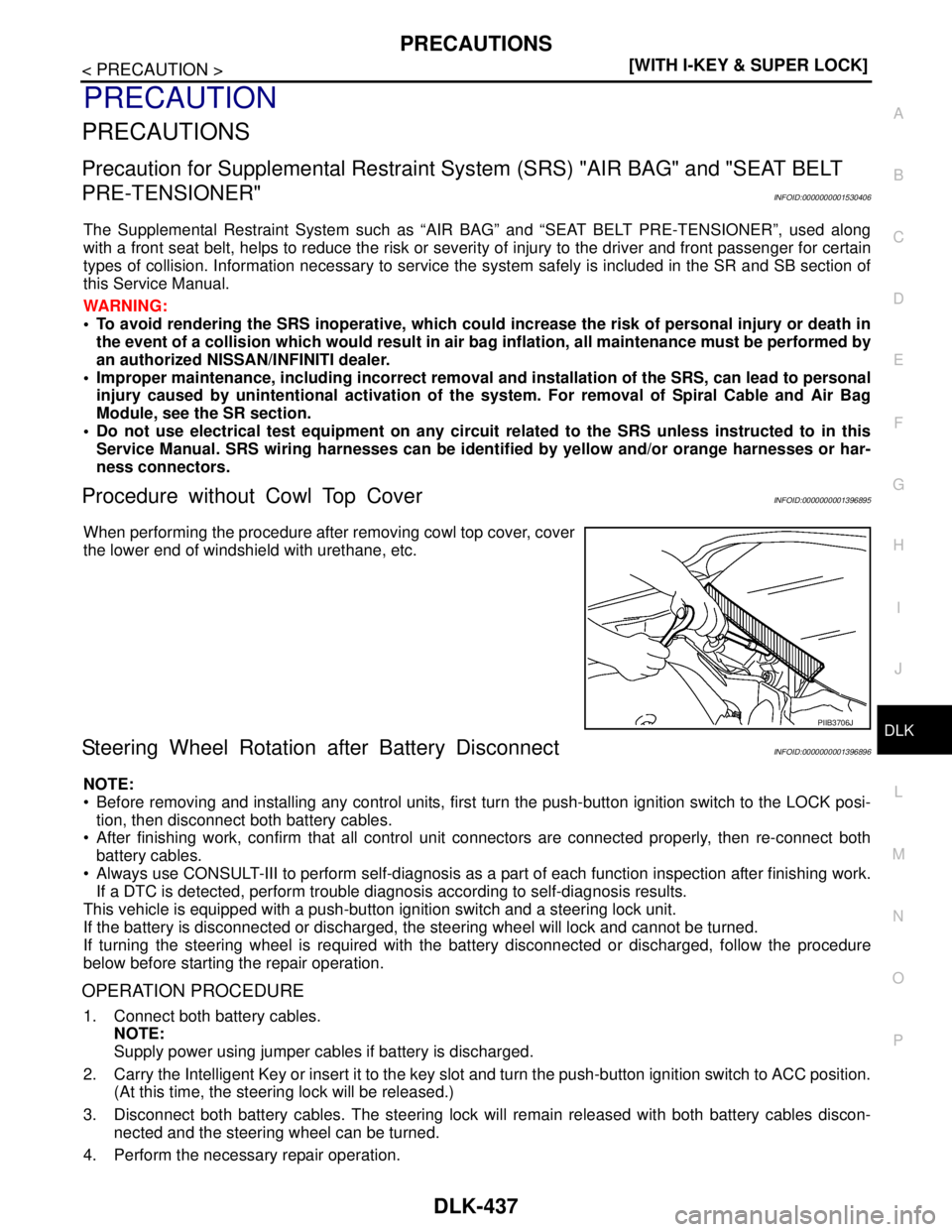

Procedure without Cowl Top CoverINFOID:0000000001396895
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Steering Wheel Rotation after Battery DisconnectINFOID:0000000001396896
NOTE:
 Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-
tion, then disconnect both battery cables.
 After finishing work, confirm that all control unit connectors are connected properly, then re-connect both
battery cables.
 Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.
This vehicle is equipped with a push-button ignition switch and a steering lock unit.
If the battery is disconnected or discharged, the steering wheel will lock and cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the procedure
below before starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Carry the Intelligent Key or insert it to the key slot and turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)
3. Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.
4. Perform the necessary repair operation.
PIIB3706J

DLK-438
< PRECAUTION >[WITH I-KEY & SUPER LOCK]
PRECAUTIONS
5. When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)
6. Perform self-diagnosis check of all control units using CONSULT-III.
WorkINFOID:0000000001396897
 After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their
operational.
 Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

PREPARATION
DLK-439
< PREPARATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
PREPARATION
PREPARATION

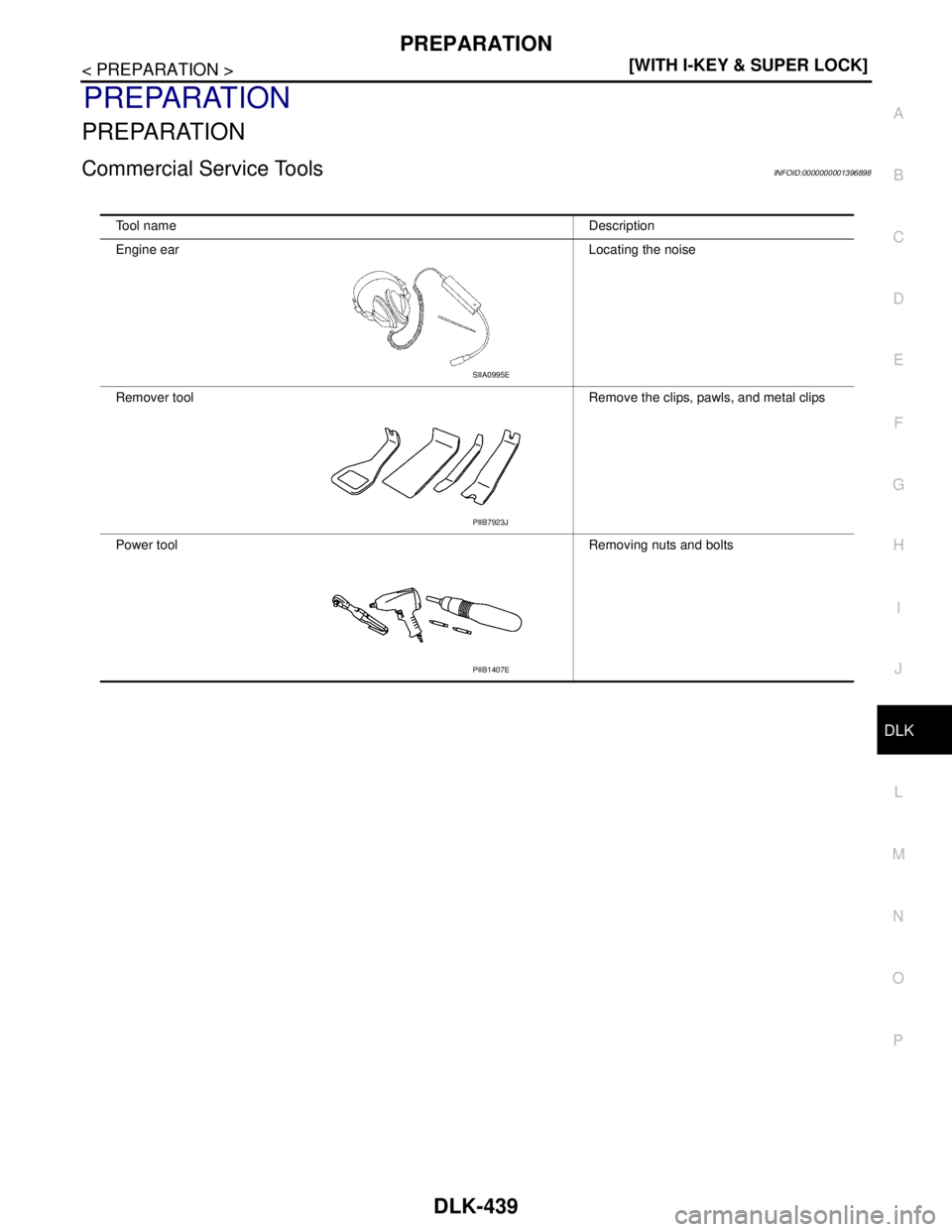

Commercial Service ToolsINFOID:0000000001396898
Tool name Description
Engine ear Locating the noise
Remover tool Remove the clips, pawls, and metal clips
Power tool Removing nuts and bolts
SIIA0995E
PIIB7923J
PIIB1407E

DLK-440
< ON-VEHICLE MAINTENANCE >[WITH I-KEY & SUPER LOCK]
PRE-INSPECTION FOR DIAGNOSTIC
ON-VEHICLE MAINTENANCE
PRE-INSPECTION FOR DIAGNOSTIC
Basic InspectionINFOID:0000000001396899
BASIC INSPECTION
1.CHECK POWER DOOR LOCK AND UNLOCK SWITCH OPERATION
Check door lock and unlock operation by operating door lock and unlock switch.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Refer to XX-XX, "*****"
.
2.CHECK INTELLIGENT KEY OPERATION
Check door lock and unlock operation by operating the Intelligent Key remote control button.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Refer to XX-XX, "*****"
.
3.CHECK DOOR REQUEST SWITCH OPERATION
Check door lock and unlock operation by operating door request switch.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Refer to XX-XX, "*****"
.
4.CHECK KEY REMINDER OPERATION
Check key reminder operation. Refer to DLK-255, "
KEY REMINDER : System Description".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Refer to XX-XX, "*****"
.
5.CHECK AUTO DOOR LOCK OPERATION
Check auto door lock operation. Refer to XX-XX, "*****"
.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Refer to XX-XX, "*****"
.
6.CHECK VEHICLE SPEED SENSING AUTO DOOR LOCK OPERATION
Check vehicle speed sensing auto door lock operation. Refer to XX-XX, "*****"
.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Refer to XX-XX, "*****"
.
7.CHECK BACK DOOR OPENER OPERATION
Check back door opener operation by operating the back door opener switch.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Refer to XX-XX, "*****"
.
8.CHECK WARNING FUNCTION
Check warning function. Refer to DLK-264, "
System Description".
Is the inspection result normal?
YES >> GO TO 9.
NO [Buzzer (combination meter)]>> Refer to XX-XX, "*****"
.
NO (Intelligent Key warning buzzer)>> Refer to XX-XX, "*****"
.

PRE-INSPECTION FOR DIAGNOSTIC
DLK-441
< ON-VEHICLE MAINTENANCE >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
NO (Warning lamp)>> Refer to XX-XX, "*****".
NO (Back door open warning)>> Refer to XX-XX, "*****"
.
9.CHECK HAZARD AND BUZZER REMINDER FUNCTION
Check hazard and buzzer reminder function by Intelligent Key or request switch. Refer to DLK-270, "
System
Description".
Is the inspection result normal?
YES >> GO TO 10.
NO (Hazard warning lamp)>> Refer to XX-XX, "*****"
.
NO (Intelligent Key warning buzzer)>> Refer to XX-XX, "*****"
.
10.CHECK OUT
CHECK OUT.
>> INSPECTION END
