NISSAN TIIDA 2007 Service Repair Manual

DLK-712
< ECU DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
BCM (BODY CONTROL MODULE)

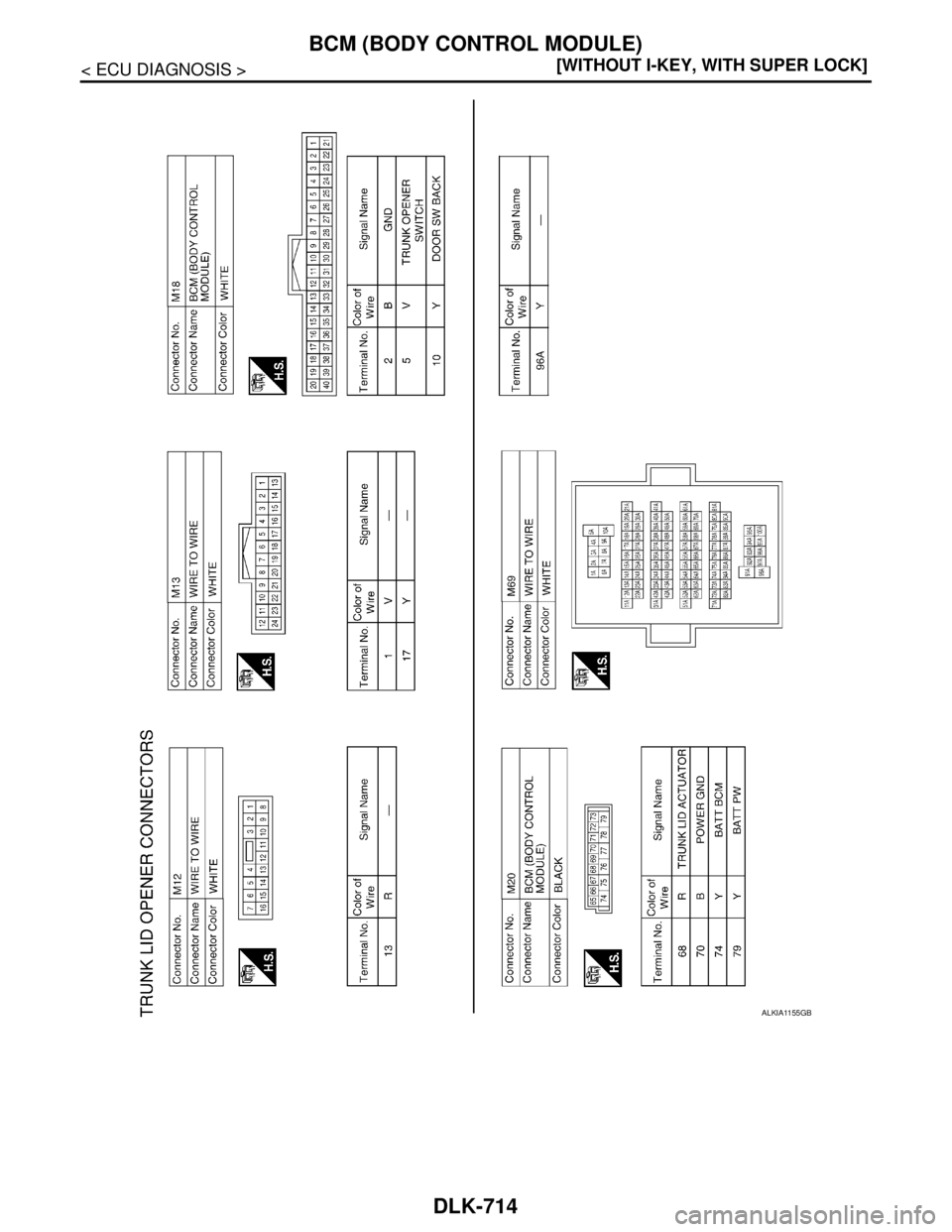

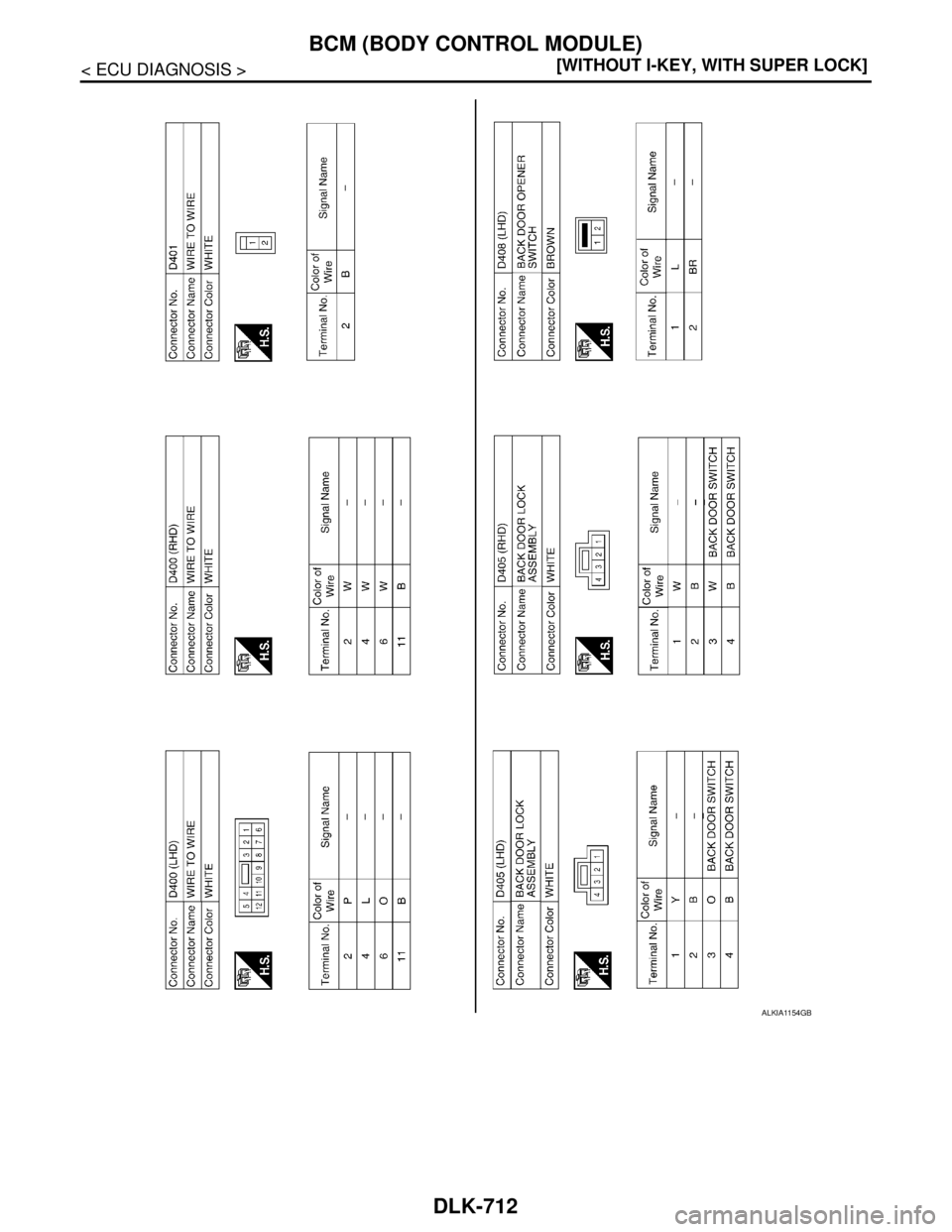

ALKIA1154GB

BCM (BODY CONTROL MODULE)
DLK-713
< ECU DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

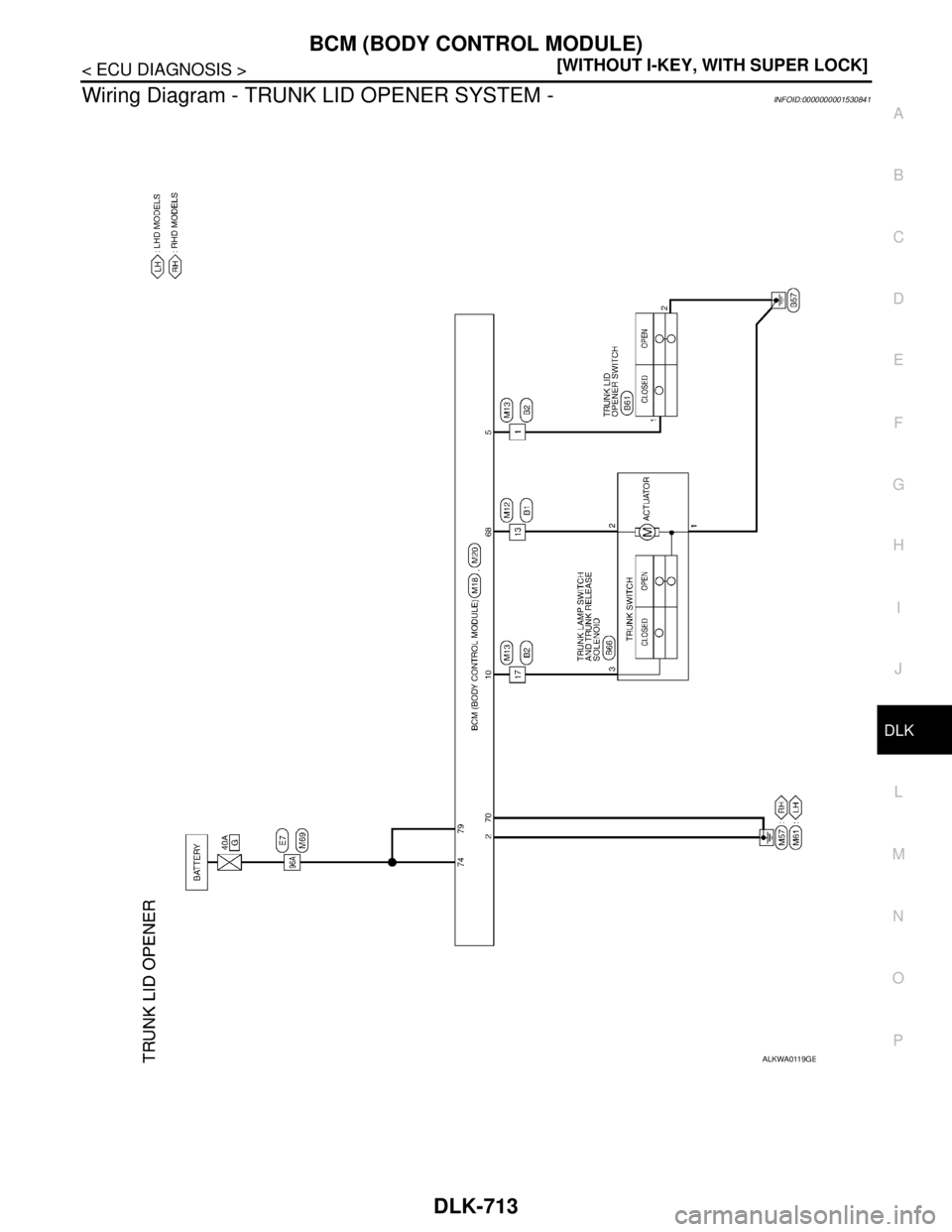

Wiring Diagram - TRUNK LID OPENER SYSTEM -INFOID:0000000001530841
ALKWA0119GB

DLK-714
< ECU DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
BCM (BODY CONTROL MODULE)

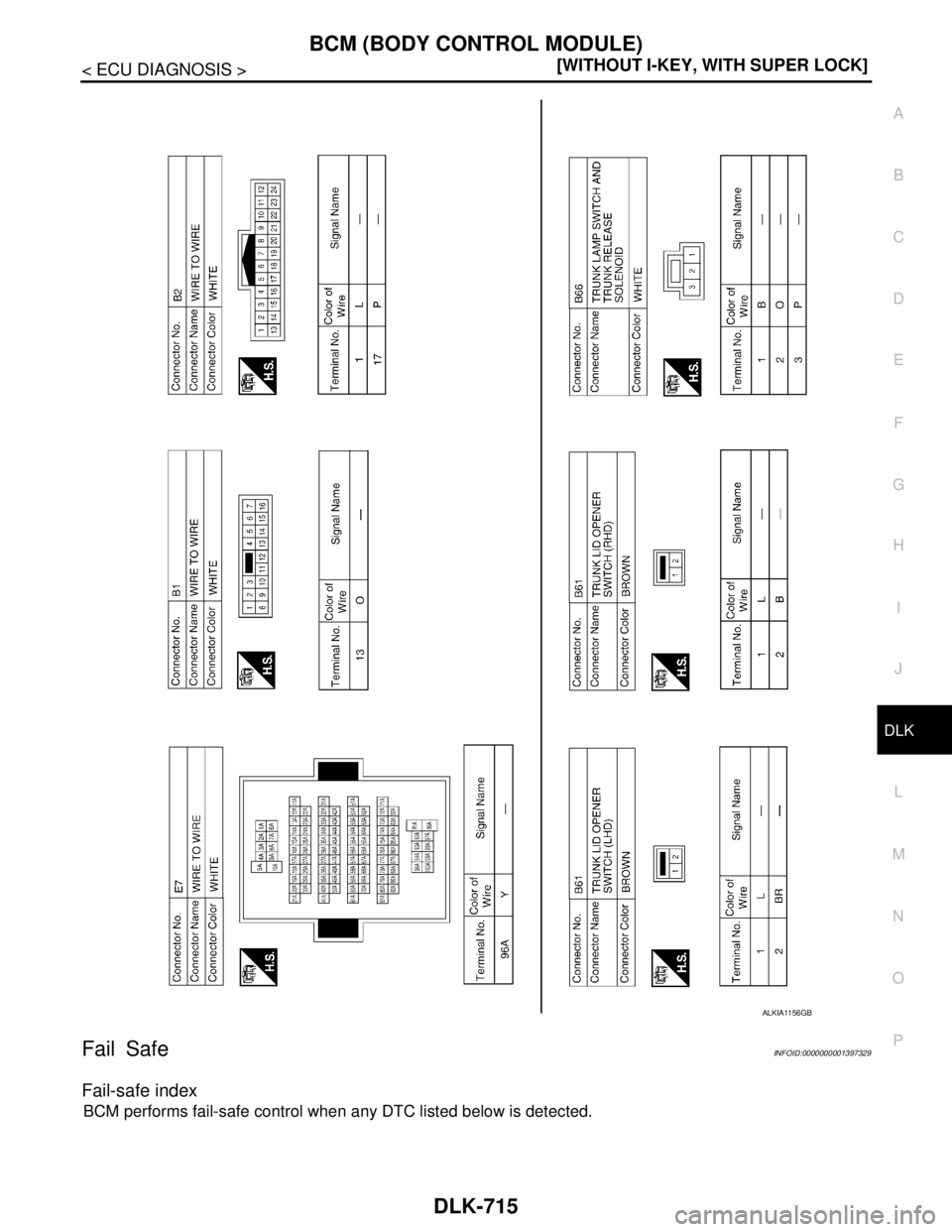

ALKIA1155GB

BCM (BODY CONTROL MODULE)
DLK-715
< ECU DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
Fail SafeINFOID:0000000001397329
Fail-safe index
BCM performs fail-safe control when any DTC listed below is detected.
ALKIA1156GB

DLK-716
< ECU DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
BCM (BODY CONTROL MODULE)
TURN SIGNAL LAMP CONTROL
BCM detects the turn signal lamp circuit status from the terminal voltage.
BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn signal
lamp operating.
NOTE:
The blinking speed is normal while activating the hazard warning lamp.
DTC Inspection Priority ChartINFOID:0000000001397330
DTC IndexINFOID:0000000001397331
NOTE:
Details of time display
 CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-
tion switch OFF → ON again.
 PAST: Displays when there is a malfunction that is detected in the past and stored.
 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1
→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter
remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF → ON after returning to the normal condition if the malfunction is detected again.
Display contents of CONSULT Fail-safe Cancellation
B2190: NATS ANTENNA AMP Inhibits engine cranking
Fuel cut (ECM)Erase DTC
B2191: DIFFERENCE OF KEY Inhibits engine cranking
Fuel cut (ECM)Erase DTC
B2192: ID DISCORD BCM-ECM Fuel cut (ECM) Erase DTC
B2193: CHAIN OF BCM-ECM Fuel cut (ECM) Erase DTC
B2194: DISCORD BCM-I-KEY Inhibits engine cranking
Fuel cut (ECM)Erase DTC
B2195: ANTI SCANNING Inhibits engine cranking
Fuel cut (ECM)Erase DTC
B2196: DONGLE NG Inhibits engine cranking
Fuel cut (ECM)Erase DTC
Priority DTC
1 U1000: CAN COMM CIRCUIT
 U1010: CONTROL UNIT (CAN)
2 B2190: NATS ANTENNA AMP
 B2191: DIFFERNCE OF KEY
 B2192: ID DISCORD BCM-ECM
 B2193: CHAIN OF BCM-ECM
 B2194: DISCORD BCM-I-KEY
 B2195: ANTI SCANNING
 B2196: DONGLE NG
CONSULT display TIME Fail-safe Refer to
No DTC is detected.
further testing
may be required.—— — —
U1000: CAN COMM CIRCUIT 0 1 - 39 —XX-XX, "*****"
U1010: CONTROL UNIT (CAN) 0 1 - 39 —XX-XX, "*****"
B2190: NATS ANTENNA AMP CRNT PAST×XX-XX, "*****"
B2191: DIFFERENCE OF KEY CRNT PAST×XX-XX, "*****"
B2192: ID DISCORD BCM-ECM CRNT PAST×XX-XX, "*****"

BCM (BODY CONTROL MODULE)
DLK-717
< ECU DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
B2193: CHAIN OF BCM-ECM CRNT PAST×XX-XX, "*****"
B2195: ANTI SCANNING CRNT PAST×XX-XX, "*****"
B2196: DONGLE NG CRNT PAST×XX-XX, "*****"
CONSULT display TIME Fail-safe Refer to

DLK-718
< SYMPTOM DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
DOOR LOCK FUNCTION SYMPTOMS
SYMPTOM DIAGNOSIS
DOOR LOCK FUNCTION SYMPTOMS
DOOR LOCK AND UNLOCK SWITCH
DOOR LOCK AND UNLOCK SWITCH : Symptom TableINFOID:0000000001397332
DOOR LOCK AND UNLOCK SWITCH OPERATION MALFUNCTION
NOTE:
 Before performing the diagnosis in the following table, check “Work Flow”. Refer to DLK-610, "
Work Flow".
 Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and
check each symptom.
 If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column
in this order.
Conditions of Vehicle (Operating Conditions)
 Except driver side, doors are closed.
 Doors are not locked by keyfob.
Symptom Table
KEYFOB
Symptom Diagnosis/service procedure Reference page
Power door lock does not operate with door lock
and unlock switch.1. BCM Power supply and ground circuit check.BCS-30
2. Door lock and unlock switch check.DLK-61
3. Door lock actuator (driver side) checkDLK-108
4. Intermittent Incident check. GI
Specific door lock actuator does not operate.1a. Driver side door lock actuator check.DLK-108
1b. Passenger side door lock actuator check.DLK-109
1c. Rear LH side door lock actuator check.D L K - 111
1d. Rear RH side door lock actuator check.DLK-113
1e. Back door lock actuator (hatchback) check.DLK-114
2. Intermittent Incident check. GI
Specific door does not open from inside the vehicle.1a. Driver side super lock actuator check.DLK-108
1b. Passenger side super lock actuator check.DLK-109
1c. Rear LH side super lock actuator check.D L K - 111
1d. Rear RH side super lock actuator check.DLK-113
2. Intermittent Incident check. GI
Instrument panel warning lamp indicator does not
operate.1. Instrument panel warning lamp assembly check.DLK-293
2. Intermittent Incident check. GI
Key reminder function does not operate properly.1.Check “ANTI KEY LOCK IN FUNCTION” setting in
“WORK SUPPORT”.DLK-50
2a. Driver side door switch check.DLK-65
2b. Passenger side door switch check.DLK-67
2c. Rear LH side door switch check.DLK-69
2d. Rear RH side door switch check.DLK-71
2e. Back door switch (hatchback) check.DLK-73
3. Front door lock actuator LH (door unlock sensor) check.DLK-104
4. Replace BCM.BCS-57

DOOR LOCK FUNCTION SYMPTOMS
DLK-719
< SYMPTOM DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
KEYFOB : Symptom TableINFOID:0000000001397333
KEYFOB OPERATION MALFUNCTION
NOTE:
 Before performing the diagnosis in the following table, check “Work Flow”. Refer to DLK-610, "
Work Flow".
 Check that vehicle is under the condition shown in “Conditions of Vehicle” before starting diagnosis, and
check each symptom.
 If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column
in this order.
Conditions of Vehicle (Operating Conditions)
 Mechanical key is removed from ignition key cylinder.
 Door lock and unlock operation is normal.
Symptom Table
Symptom Diagnosis/service procedureReference
page
All of the keyfob operations do not operate.1. Check keyfob battery inspection.XX-XX, "*****"
2. Check intermittent incident.XX-XX, "*****"
Anti-hijack operation does not operate.1.Check “SECURITY DOOR LOCK SET” setting in “WORK
SUPPORT”.DLK-628
2. Check Intermittent Incident.XX-XX, "*****"

DLK-720
< SYMPTOM DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
BACK DOOR OPEN FUNCTION SYMPTOMS
BACK DOOR OPEN FUNCTION SYMPTOMS
BACK DOOR OPENER SWITCH
BACK DOOR OPENER SWITCH : Symptom TableINFOID:0000000001397336
BACK DOOR OPENER FUNCTION MALFUNCTION
NOTE:
 Before performing the diagnosis in the following table, check “Work Flow”. Refer to DLK-610, "
Work Flow".
 Check that vehicle is under the condition shown in “Conditions of Vehicle” before starting diagnosis, and
check each symptom.
 If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column
in this order.
Conditions of Vehicle (Operating Conditions)
 Door lock function is normal.
 Vehicle speed is less than 5 km/h (3MPH).
 All doors are unlocked.
Symptom Table
Symptom Diagnosis/service procedure Reference page
Back door opener function does not operate by
back door opener switch.1. Check back door opener switch.XX-XX, "*****"
2. Check vehicle speed signal.XX-XX, "*****"
3. Check back door opener actuator.XX-XX, "*****"
4. Check Intermittent Incident.XX-XX, "*****"

TRUNK OPEN FUNCTION SYMPTOMS
DLK-721
< SYMPTOM DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
TRUNK OPEN FUNCTION SYMPTOMS
TRUNK LID OPENER SWITCH
TRUNK LID OPENER SWITCH : Symptom TableINFOID:0000000001530719
TRUNK LID OPENER FUNCTION MALFUNCTION
NOTE:
 Before performing the diagnosis in the following table, check “Work Flow”. Refer to DLK-16, "
Work Flow".
 Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and
check each symptom.
 If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column
in this order.
Conditions of Vehicle (Operating Conditions)
 Door lock function is normal.
 Vehicle speed is less than 5 km/h (3 MPH).
 All doors are unlocked.
Symptom Table
Symptom Diagnosis/service procedure Reference page
Trunk lid opener function does not operate by
trunk lid opener switch.1. Check trunk lid opener switch.DLK-101
2. Check vehicle speed signal.DLK-149
3. Check trunk lid opener actuator.DLK-117
4. Check intermittent incident.XX-XX, "*****"
Trunk room lamp switch inoperative. 1. Check trunk room lamp switch.DLK-94
