NISSAN TIIDA 2007 Service Repair Manual

EC-262
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1225 TP SENSOR
3. Check if foreign matter is caught between the throttle valve (1)
and the housing.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Go to EC-262, "
Special Repair Requirement".
>> INSPECTION END
Special Repair RequirementINFOID:0000000001671035
1.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Refer to EC-27, "
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement".
>> GO TO 2.
2.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-27, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement".
>> END
2. Electric throttle control actuator
JMBIA0447ZZ

P1226 TP SENSOR
EC-263
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

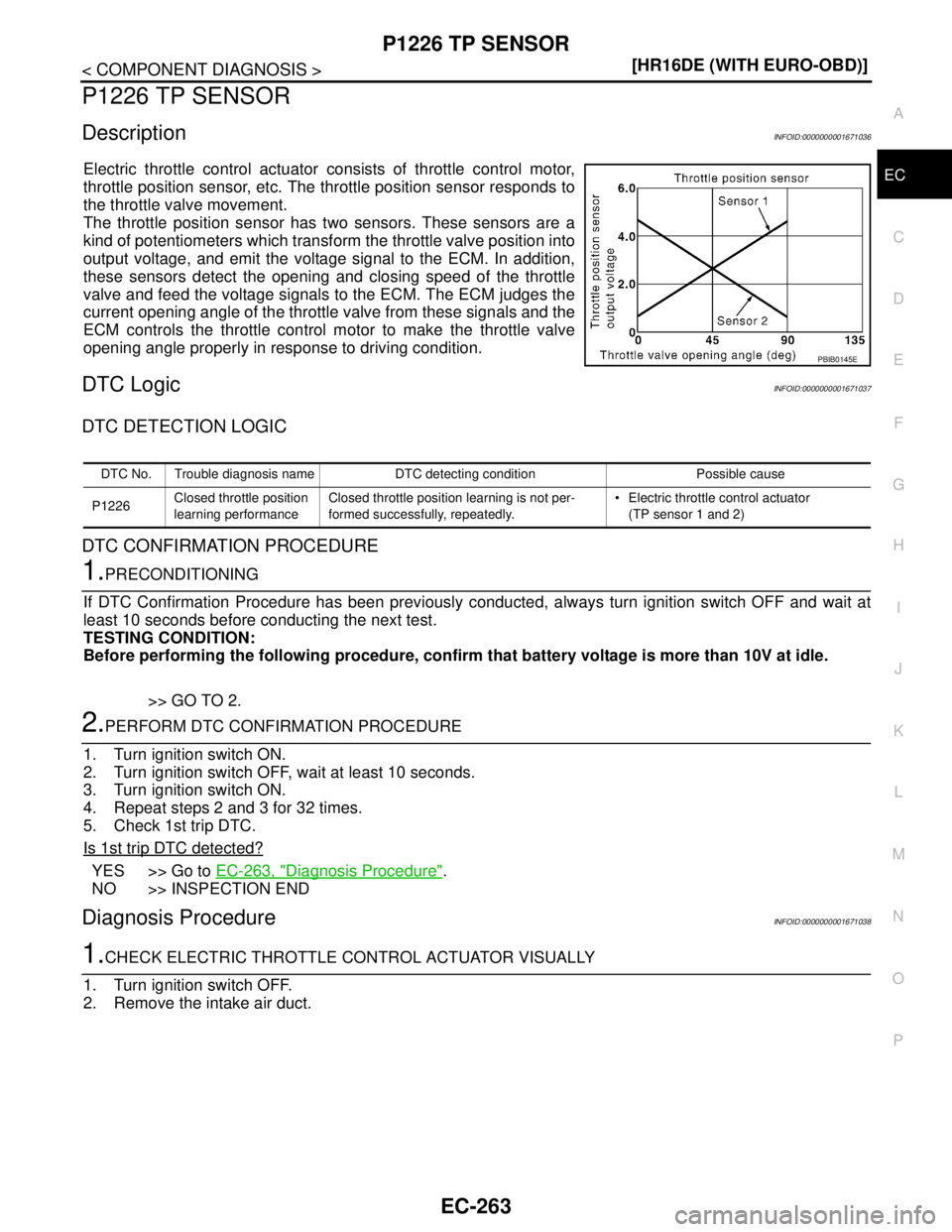

P1226 TP SENSOR
DescriptionINFOID:0000000001671036
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
DTC LogicINFOID:0000000001671037
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Turn ignition switch OFF, wait at least 10 seconds.
3. Turn ignition switch ON.
4. Repeat steps 2 and 3 for 32 times.
5. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-263, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001671038
1.CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1226Closed throttle position
learning performanceClosed throttle position learning is not per-
formed successfully, repeatedly. Electric throttle control actuator
(TP sensor 1 and 2)

EC-264
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1226 TP SENSOR
3. Check if foreign matter is caught between the throttle valve (1)
and the housing.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Go to EC-262, "
Special Repair Requirement".
>> INSPECTION END
Special Repair RequirementINFOID:0000000001671039
1.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Refer to EC-27, "
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement".
>> GO TO 2.
2.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-27, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement".
>> END
2. Electric throttle control actuator
JMBIA0447ZZ

P1229 SENSOR POWER SUPPLY
EC-265
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P1229 SENSOR POWER SUPPLY
DTC LogicINFOID:0000000001671040
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-265, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001671041
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground Inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check the voltage between APP sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 3.
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1229Sensor power supply
circuit shortECM detects a voltage of power source for
sensor is excessively low or high. Harness or connectors
(APP sensor 1 circuit is shorted.)
(TP sensor circuit is shorted.)
[Camshaft position sensor (PHASE) circuit is
shorted.]
 Accelerator pedal position sensor
(APPS 1)
 Throttle position sensor
 Camshaft position sensor (PHASE)
APP sensor
Ground Voltage
Connector Terminal
E12 (LHD models)
M204 (RHD models)4 Ground Approx. 5V

EC-266
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1229 SENSOR POWER SUPPLY
3.CHECK SENSOR POWER SUPPLY CIRCUITS
Check harness for short to power and short to ground, between the following terminals.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair short to ground or short to power in harness or connectors.
4.CHECK COMSHAFT POSITION SENSOR
Refer to EC-203, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace malfunctioning component.
5.CHECK TP SENSOR
Refer to EC-296, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 6.
6.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Go to EC-296, "
Component Inspection".
>> INSPECTION END
7.CHECK APP SENSOR
Refer to EC-288, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 9.
NO >> GO TO 8.
8.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Go to EC-26, "
ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Require-
ment".
>> INSPECTION END
9.CHECK INTERMITTENT INCIDENT
Refer to GI-55, "
Intermittent Incident".
>> INSPECTION END
ECM Sensor
Connector Terminal Item Connector Terminal
F1172 Electric throttle control actuator F7 1
78 CMP sensor (PHASE) F21 1
E16 106 APP sensorE12 (LHD models)
M204 (RHD models)4

P1564 ASCD STEERING SWITCH
EC-267
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P1564 ASCD STEERING SWITCH
DescriptionINFOID:0000000001671042
ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.
Refer to EC-61, "
System Diagram" for the ASCD function.
DTC LogicINFOID:0000000001671043
DTC DETECTION LOGIC
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-215, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Wait at least 10 seconds.
3. Press MAIN switch for at least 10 seconds, then release it and wait at least 10 seconds.
4. Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.
5. Press RESUME/ACCELERATE switch for at least 10 seconds, then release it and wait at least 10 sec-
onds.
6. Press SET/COAST switch for at least 10 seconds, then release it and wait at least 10 seconds.
7. Check DTC.
Is DTC detected?
YES >> Go to EC-267, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001671044
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground Inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
YS >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-III
1. Turn ignition switch ON.
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1564 ASCD steering switch An excessively high voltage signal from the
ASCD steering switch is sent to ECM.
 ECM detects that input signal from the
ASCD steering switch is out of the specified
range.
 ECM detects that the ASCD steering switch
is stuck ON. Harness or connectors
(The switch circuit is open or shorted.)
 ASCD steering switch
ECM

EC-268
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1564 ASCD STEERING SWITCH
2. Select “MAIN SW”, “CANCEL SW”, “RESUME/ACC SW” and “SET SW” in “DATA MONITOR” mode with
CONSULT-III.
3. Check each item indication under the following conditions.
Without CONSULT-III
1. Turn ignition switch ON.
2. Check the voltage between ECM harness connector terminals as follows.
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 3.
3.CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect combination switch harness connector M30.
4. Check the continuity between combinarion switch and ECM harness connector.
5. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors M69, E7
 Combination switch (spiral cable)
 Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
Monitor item Condition Indication
MAIN SW MAIN switchPressed ON
Released OFF
CANCEL SW CANCEL switchPressed ON
Released OFF
RESUME/ACC SW RESUME/ACCELERATE switchPressed ON
Released OFF
SET SW SET/COAST switchPressed ON
Released OFF
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
E1694
(ASCD steering switch signal)E16 95MAIN switch: Pressed Approx. 0V
CANSEL switch: Pressed Approx. 1V
SET/COAST switch: Pressed Approx. 2V
RESUME/ACCELERATE switch: Pressed Approx. 3V
All ASCD steering switches: Released Approx. 4V
Combination switch ECM
Continuity
Terminal Connector Terminal
15 E16 95 Existed

P1564 ASCD STEERING SWITCH
EC-269
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. Check the continuity between ECM harness connector and combination switch.
2. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 6.
6.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors M69, E7
 Combination switch (spiral cable)
 Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK ASCD STEERING SWITCH
Refer to EC-269, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace ASCD steering switch.
8.CHECK INTERMITTENT INCIDENT
Refer to GI-55, "
Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000001671045
1.CHECK ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable) harness connector.
2. Check the continuity between combination switch harness connector terminals under following conditions.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace ASCD steering switch
Combination switch ECM
Continuity
Terminal Connector Terminal
14 E16 94 Existed
Combination meter
Condition Resistance
Connector Terminals
M30 14 and 15MAIN switch: Pressed Approx. 0 Ω
CANCEL switch: Pressed Approx. 250 Ω
SET/COAST switch: Pressed Approx. 660 Ω
RESUME/ACCELERATE switch: Pressed Approx. 1,480 Ω
All ASCD steering switches: Released Approx. 4,000 Ω

EC-270
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1572 ASCD BRAKE SWITCH
P1572 ASCD BRAKE SWITCH
DescriptionINFOID:0000000001671184
When the brake pedal is depressed, ASCD brake switch is turned OFF and stop lamp switch is turned ON.
ECM detects the state of the brake pedal by this input of two kinds (ON/OFF signal).
Refer to EC-61, "
System Description" for the ASCD function.
DTC LogicINFOID:0000000001671185
DTC DETECTION LOGIC
NOTE:
If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer
to EC-215, "
DTC Logic".
This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
NOTE:
Procedure for malfunction B is not described here. It takes extremely long time to complete procedure for mal-
function B. By performing procedure for malfunction A, the incident that causes malfunction B can be
detected.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A-I
With CONSULT-III
1. Start engine.
2. Select “DATA MONITOR” mode with CONSULT-III.
3. Press MAIN switch and make sure that CRUISE indicator is displayed in combination meter.
4. Drive the vehicle for at least 5 consecutive seconds under the following conditions.
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
This procedure may be conducted with the drive wheels lifted in the shop or by driving the vehicle.
If a road test is expected to be easier, it is unnecessary to lift the vehicle.
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1572 ASCD brake switchA)When the vehicle speed is above 30 km/h
(19 MPH), ON signals from the stop lamp
switch and the ASCD brake switch are sent
to the ECM at the same time. Harness or connectors
(The stop lamp switch circuit is shorted.)
 Harness or connectors
(The ASCD brake switch circuit is shorted.)
 Harness or connectors
(The ASCD clutch switch circuit is shorted.)
(M/T)
 Stop lamp switch
 ASCD brake switch
 ASCD clutch switch (M/T)
 Incorrect stop lamp switch installation
 Incorrect ASCD brake switch installation
 Incorrect ASCD clutch switch installation (M/T)
ECM B)ASCD brake switch signal is not sent to
ECM for extremely long time while the ve-
hicle is driving.

P1572 ASCD BRAKE SWITCH
EC-271
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O5. Check 1st trip DTC.
With GST
Follow the procedure “With CONSULT-III” above.
Is 1st trip DTC detected?
YES >> Go to EC-271, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A-II
1. Drive the vehicle for at least 5 consecutive seconds under the following conditions.
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
This procedure may be conducted with the drive wheels lifted in the shop or by driving the vehicle.
If a road test is expected to be easier, it is unnecessary to lift the vehicle.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-271, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001671186
1.CHECK OVERALL FUNCTION-I
With CONSULT-III
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT-III.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-III
1. Turn ignition switch ON.
2. Check the voltage between ECM harness connector terminal as follows.
Is the inspection result normal?
YES >> GO TO 2.
NO-1 >> A/T models: GO TO 3.
VHCL SPEED SE More than 30 km/h (19 mph)
Shift lever Suitable position
VHCL SPEED SE More than 30 km/h (19 mph)
Selector lever Suitable position
Driving locationDepress the brake pedal for more than
five seconds so as not to come off from
the above-mentioned vehicle speed.
Monitor item Condition Indication
BRAKE SW1Brake pedal and/or clutch pedal Slightly depressed OFF
Brake pedal and clutch pedal Fully released ON
(+) (−)
Condition Voltage
Connector Terminal Connector Terminal
E16100
(ASCD brake switch signal)E16 108Brake pedal and/or
clutch pedalSlightly depressed Approx. 0V
Brake pedal and
clutch pedalFully released Battery voltage
