BRC-18
< FUNCTION DIAGNOSIS >[ABS]
TCS
Component Description
INFOID:0000000001731215
1. Front wheel sensor
LH E18
RH E1172. ABS actuator and electric unit (con-
trol unit) E1253. Combination meter M24
4. Rear wheel sensor
LH C11
RH C105. Yaw rate/side/decel G sensor M108 6. Steering angle sensor M17 (view
with steering wheel removed)
7. VDC OFF switch M257 8. Active booster E49 9. Delta stroke sensor E114
10. Brake fluid level switch E21 11. Front pressure sensor E31 12. Rear pressure sensor E32
Component parts Reference
ABS actuator and electric unit (control unit)Pump
BRC-39, "
Description"Motor
Actuator relayBRC-54, "
Description"
Solenoid valveBRC-46, "Description"
VDC switch-over valve
(CV1, CV2, SV1, SV2)XX-XX, "*****"
Wheel sensorBRC-30, "Description"
Yaw rate/side/decel G sensorXX-XX, "*****"
Steering angle sensorXX-XX, "*****"
VDC OFF switchXX-XX, "*****"
ABS warning lampBRC-60, "Description"
Brake warning lampBRC-61, "Description"
VDC OFF indicator lampXX-XX, "*****"
SLIP indicator lampXX-XX, "*****"
Front pressure sensor
XX-XX, "*****"
Rear pressure sensor
Active boosterXX-XX, "*****"
Delta stroke sensorXX-XX, "*****"

ABS
BRC-19
< FUNCTION DIAGNOSIS >[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
ABS
System DiagramINFOID:0000000001731216
System DescriptionINFOID:0000000001731217
 Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls
braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-
verability for avoiding obstacles.
 Electrical system diagnosis by CONSULT-III is available.
AWFIA0014GB

BRC-20
< FUNCTION DIAGNOSIS >[ABS]
ABS
Component Parts Location
INFOID:0000000001731218
AWFIA0013GB

ABS
BRC-21
< FUNCTION DIAGNOSIS >[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
Component DescriptionINFOID:0000000001731219
1. Front wheel sensor
LH E18
RH E1172. ABS actuator and electric unit (con-
trol unit) E1253. Combination meter M24
4. Rear wheel sensor
LH C11
RH C105. Yaw rate/side/decel G sensor M108 6. Steering angle sensor M17 (view
with steering wheel removed)
7. VDC OFF switch M257 8. Active booster E49 9. Delta stroke sensor E114
10. Brake fluid level switch E21 11. Front pressure sensor E31 12. Rear pressure sensor E32
Component parts Reference
ABS actuator and electric unit (control unit)Pump
BRC-39, "
Description"Motor
Actuator relayBRC-54, "
Description"
Solenoid valveBRC-46, "Description"
Wheel sensorBRC-30, "Description"
ABS warning lampBRC-60, "Description"
Brake warning lampBRC-61, "Description"

BRC-22
< FUNCTION DIAGNOSIS >[ABS]
EBD
EBD
System DiagramINFOID:0000000001731220
System DescriptionINFOID:0000000001731221
 Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects
subtle slippages between the front and rear wheels during braking. Then it electronically controls the rear
braking force (brake fluid pressure) to reduce rear wheel slippage. Accordingly, it improves vehicle stability.
 Electrical system diagnosis by CONSULT-III is available.
AWFIA0014GB

EBD
BRC-23
< FUNCTION DIAGNOSIS >[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P

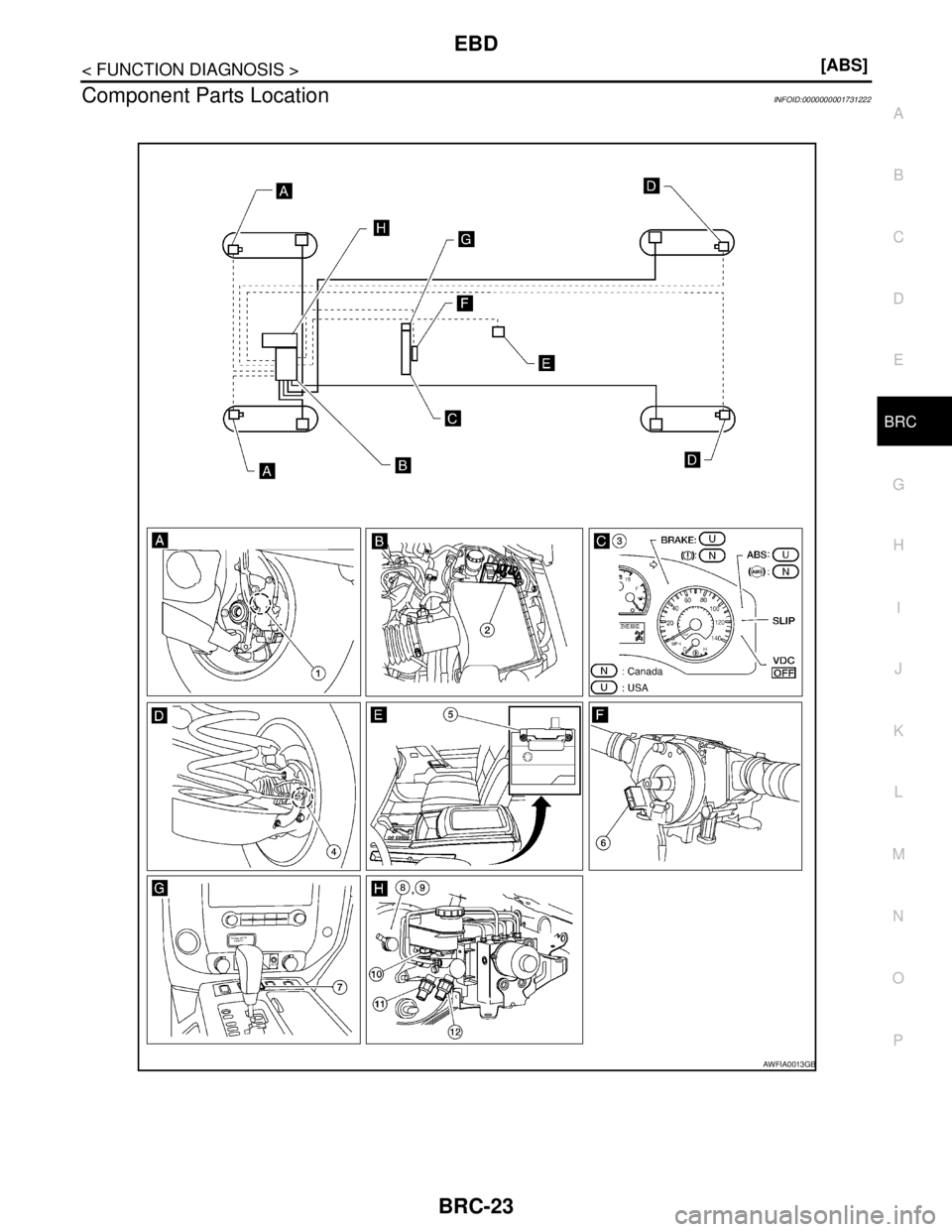

Component Parts LocationINFOID:0000000001731222
AWFIA0013GB

BRC-24
< FUNCTION DIAGNOSIS >[ABS]
EBD
Component Description
INFOID:0000000001731223
1. Front wheel sensor
LH E18
RH E1172. ABS actuator and electric unit (con-
trol unit) E1253. Combination meter M24
4. Rear wheel sensor
LH C11
RH C105. Yaw rate/side/decel G sensor M108 6. Steering angle sensor M17 (view
with steering wheel removed)
7. VDC OFF switch M257 8. Active booster E49 9. Delta stroke sensor E114
10. Brake fluid level switch E21 11. Front pressure sensor E31 12. Rear pressure sensor E32
Component parts Reference
ABS actuator and electric unit (control unit)Pump
BRC-39, "
Description"Motor
Actuator relayBRC-54, "
Description"
Solenoid valveBRC-46, "Description"
Wheel sensorBRC-30, "Description"
ABS warning lampBRC-60, "Description"
Brake warning lampBRC-61, "Description"

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
BRC-25
< FUNCTION DIAGNOSIS >[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
CONSULT-III Function (ABS)INFOID:0000000001731224
FUNCTION
CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
SELF-DIAG RESULTS MODE
Operation Procedure
1. Before performing the self-diagnosis, start engine and drive vehicle at 30 km/h (19 MPH) or more for
approximately 1 minute.
How to Erase Self-diagnosis Results
1. After erasing DTC memory, start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately
1 minute as the final inspection, and make sure that the ABS warning lamp, VDC OFF indicator lamp,
SLIP indicator lamp and brake warning lamp turn OFF.
CAUTION:
If memory cannot be erased, perform applicable diagnosis.
NOTE:
 When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning lamp,
VDC OFF indicator lamp, SLIP indicator lamp and brake warning lamp will not turn OFF even when the
system is normal unless the vehicle is driving at approximately 30 km/h (19 MPH) or more for approxi-
mately 1 minute.
 Brake warning lamp will turn ON in case of parking brake operation (when switch is ON) or of brake fluid
level switch operation (when brake fluid is insufficient).
 VDC OFF switch should not stay “ON” position.
Display Item List
Refer to BRC-71, "DTC No. Index".
DATA MONITOR MODE
Display Item List
Diagnostic test mode Function
Work supportThis mode enables a technician to adjust some devices faster and more accurately by following
the indications on CONSULT-III.
Self-diagnostic results Self-diagnostic results can be read and erased quickly.
Data monitor Input/Output data in the ABS actuator and electric unit (control unit) can be read.
Active testDiagnostic test mode is which CONSULT-III drives some actuators apart from the ABS actuator
and electric unit (control unit) and also shifts some parameters in a specified range.
ECU part number ABS actuator and electric unit (control unit) part number can be read.
CAN diagnostic support monitor The results of transmit/receive diagnosis of CAN communication can be read.
Item
(Unit)Data monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN
SIGNALSSELECTION
FROM MENU
GEAR×××Gear position judged by PNP switch
signal is displayed.
FR RH SENSOR
(km/h, MPH)×××Wheel speed calculated by front RH
wheel sensor signal is displayed.
FR LH SENSOR
(km/h, MPH)×××Wheel speed calculated by front LH
wheel sensor signal is displayed.
RR RH SENSOR
(km/h, MPH)×××Wheel speed calculated by rear RH
wheel sensor signal is displayed.
