NISSAN TIIDA 2007 Service Repair Manual

BRC-48
< COMPONENT DIAGNOSIS >[ABS]
C1120, C1122, C1124, C1126 IN ABS SOL
NO >> Go to diagnosis procedure. Refer to BRC-46, "Diagnosis Procedure".
Special Repair RequirementINFOID:0000000001731265
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to BRC-90, "
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL
POSITION : Description".
>> GO TO 2
2.CALIBRATION OF DECEL G SENSOR
Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to BRC-91, "
CALIBRATION OF DECEL G SENSOR : Description".
>> END

C1121, C1123, C1125, C1127 OUT ABS SOL
BRC-49
< COMPONENT DIAGNOSIS >[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
C1121, C1123, C1125, C1127 OUT ABS SOL
DescriptionINFOID:0000000001731266
The solenoid valve increases, holds or decreases the fluid pressure of each brake caliper according to the sig-
nals transmitted by the ABS actuator and electric unit (control unit).
DTC LogicINFOID:0000000001731267
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> Proceed to diagnosis procedure. Refer to BRC-49, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001731268
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connector.
3. Check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.
4. Reconnect connectors and then perform the self-diagnosis. Refer to BRC-25, "
CONSULT-III Function
(ABS)".
Is any item indicated on the self-diagnosis display?
YES >> GO TO 2
NO >> Poor connection of connector terminal. Repair or replace connector.
2.CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACTUATOR RELAY POWER SUPPLY CIRCUIT
DTC Display item Malfunction detected condition Possible cause
C1121 FR LH OUT ABS SOLWhen the control unit detects a malfunction in the front
LH outlet solenoid circuit.
 ABS actuator and electric unit
(control unit) C1123 FR RH OUT ABS SOLWhen the control unit detects a malfunction in the front
RH outlet solenoid circuit.
C1125 RR LH OUT ABS SOLWhen the control unit detects a malfunction in the rear LH
outlet solenoid circuit.
C1127 RR RH OUT ABS SOLWhen the control unit detects a malfunction in the rear
RH outlet solenoid circuit.
Self-diagnosis results
FR LH OUT ABS SOL
FR RH OUT ABS SOL
RR LH OUT ABS SOL
RR RH OUT ABS SOL

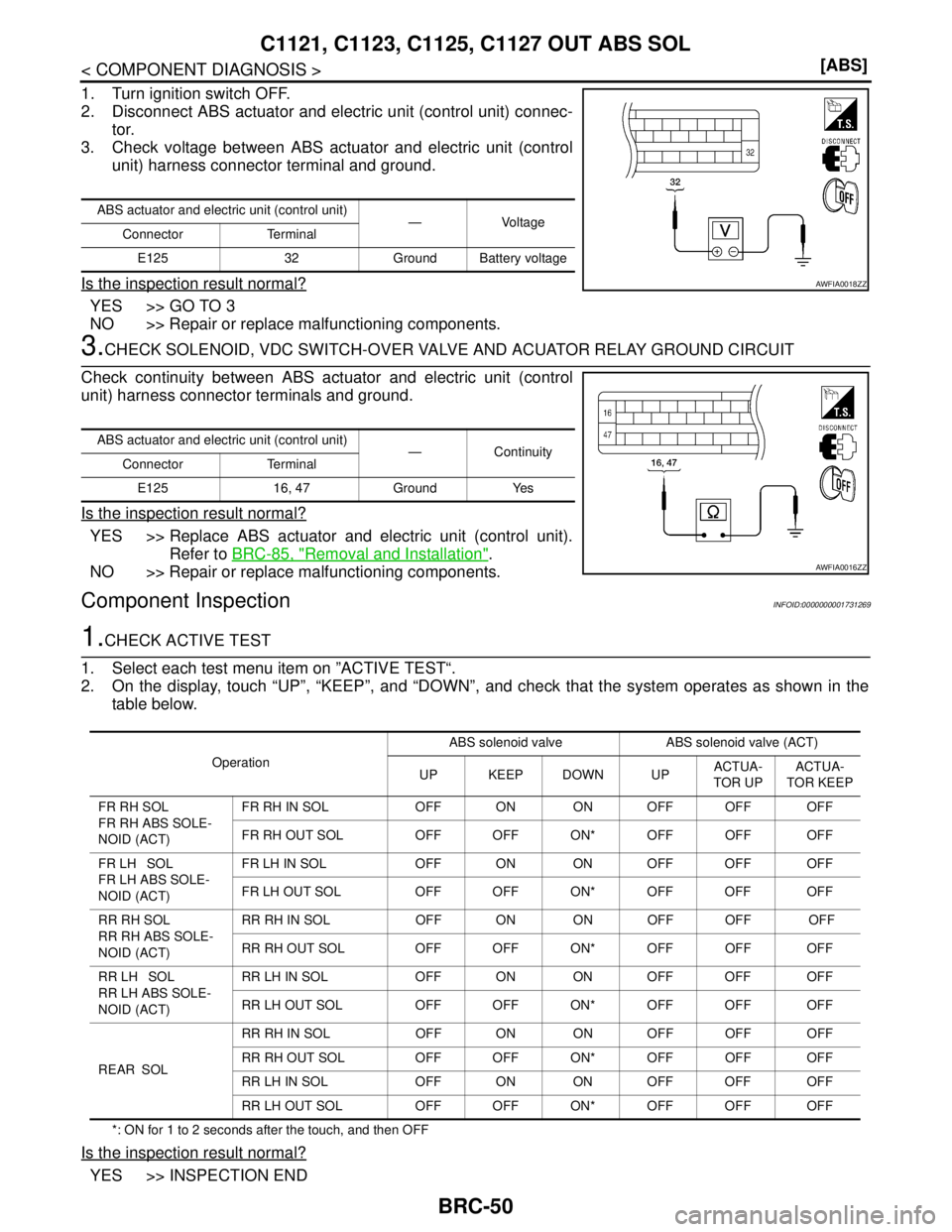

BRC-50
< COMPONENT DIAGNOSIS >[ABS]
C1121, C1123, C1125, C1127 OUT ABS SOL
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connec-
tor.

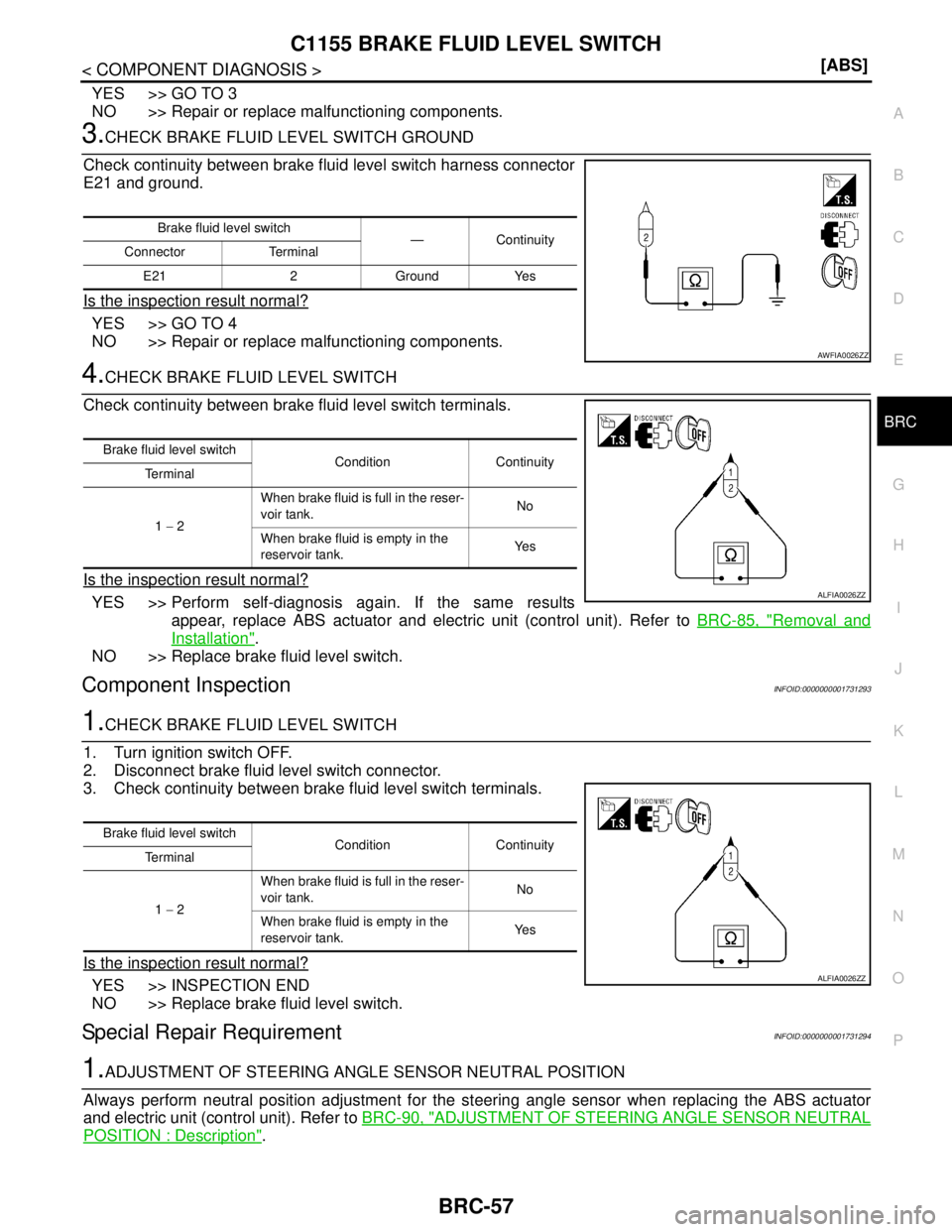

3. Check voltage between ABS actuator and electric unit (control
unit) harness connector terminal and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace malfunctioning components.
3.CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACUATOR RELAY GROUND CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector terminals and ground.
Is the inspection result normal?
YES >> Replace ABS actuator and electric unit (control unit).
Refer to BRC-85, "
Removal and Installation".
NO >> Repair or replace malfunctioning components.
Component InspectionINFOID:0000000001731269
1.CHECK ACTIVE TEST
1. Select each test menu item on ”ACTIVE TEST“.
2. On the display, touch “UP”, “KEEP”, and “DOWN”, and check that the system operates as shown in the
table below.
*: ON for 1 to 2 seconds after the touch, and then OFF
Is the inspection result normal?
YES >> INSPECTION END
ABS actuator and electric unit (control unit)
—Voltage
Connector Terminal
E125 32 Ground Battery voltage
AWFIA0018ZZ
ABS actuator and electric unit (control unit)
— Continuity
Connector Terminal
E125 16, 47 Ground Yes
AWFIA0016ZZ
OperationABS solenoid valve ABS solenoid valve (ACT)
UP KEEP DOWN UPACTUA-
TOR UPACTUA-
TOR KEEP
FR RH SOL
FR RH ABS SOLE-
NOID (ACT)FR RH IN SOL OFF ON ON OFF OFF OFF
FR RH OUT SOL OFF OFF ON* OFF OFF OFF
FR LH SOL
FR LH ABS SOLE-
NOID (ACT)FR LH IN SOL OFF ON ON OFF OFF OFF
FR LH OUT SOL OFF OFF ON* OFF OFF OFF
RR RH SOL
RR RH ABS SOLE-
NOID (ACT)RR RH IN SOL OFF ON ON OFF OFF OFF
RR RH OUT SOL OFF OFF ON* OFF OFF OFF
RR LH SOL
RR LH ABS SOLE-
NOID (ACT)RR LH IN SOL OFF ON ON OFF OFF OFF
RR LH OUT SOL OFF OFF ON* OFF OFF OFF
REAR SOLRR RH IN SOL OFF ON ON OFF OFF OFF
RR RH OUT SOL OFF OFF ON* OFF OFF OFF
RR LH IN SOL OFF ON ON OFF OFF OFF
RR LH OUT SOL OFF OFF ON* OFF OFF OFF

C1121, C1123, C1125, C1127 OUT ABS SOL
BRC-51
< COMPONENT DIAGNOSIS >[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
NO >> Go to diagnosis procedure. Refer to BRC-49, "Diagnosis Procedure".
Special Repair RequirementINFOID:0000000001731270
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to BRC-90, "
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL
POSITION : Description".
>> GO TO 2
2.CALIBRATION OF DECEL G SENSOR
Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to BRC-91, "
CALIBRATION OF DECEL G SENSOR : Description".
>> END

BRC-52
< COMPONENT DIAGNOSIS >[ABS]
C1130, C1131, C1132, C1133, C1136 ENGINE SIGNAL
C1130, C1131, C1132, C1133, C1136 ENGINE SIGNAL
DescriptionINFOID:0000000001731271
ABS actuator and electric unit (control unit) and ECM exchange the engine signal with CAN communication
line.
DTC LogicINFOID:0000000001731272
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> Proceed to diagnosis procedure. Refer to BRC-52, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001731273
INSPECTION PROCEDURE
1.CHECK ENGINE SYSTEM
1. Perform ECM self-diagnosis. Repair or replace items indicated, then perform ECM self-diagnosis again.
Refer to:
-EC-107, "
CONSULT-III Function" (HR16DE with EURO-OBD)
-EC-462, "
CONSULT-III Function" (HR16DE without EURO-OBD)
-EC-772, "
CONSULT-III Function" (MR18DE)
-EC-1104, "
Diagnosis Description" (K9K)
2. Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to BRC-25, "
CONSULT-III Func-
tion (ABS)".
Is any item indicated on the self-diagnosis display?
YES >> Repair or replace the affected part.
NO >> INSPECTION END
Special Repair RequirementINFOID:0000000001731274
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
DTC Display item Malfunction detected condition Possible cause
C1130 ENGINE SIGNAL 1
Based on the signal from ECM, ABS actuator and electric
unit (control unit) judges that engine fuel cut system is
malfunctioning. Harness or connector
 ABS actuator and electric unit
(control unit)
ECM
 CAN communication line C1131 ENGINE SIGNAL 2
C1132 ENGINE SIGNAL 3
C1133 ENGINE SIGNAL 4
C1136 ENGINE SIGNAL 6
Self-diagnosis results
ENGINE SIGNAL 1
ENGINE SIGNAL 2
ENGINE SIGNAL 3
ENGINE SIGNAL 4
ENGINE SIGNAL 6

C1130, C1131, C1132, C1133, C1136 ENGINE SIGNAL
BRC-53
< COMPONENT DIAGNOSIS >[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to BRC-90, "
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL
POSITION : Description".
>> GO TO 2
2.CALIBRATION OF DECEL G SENSOR
Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to BRC-91, "
CALIBRATION OF DECEL G SENSOR : Description".
>> END

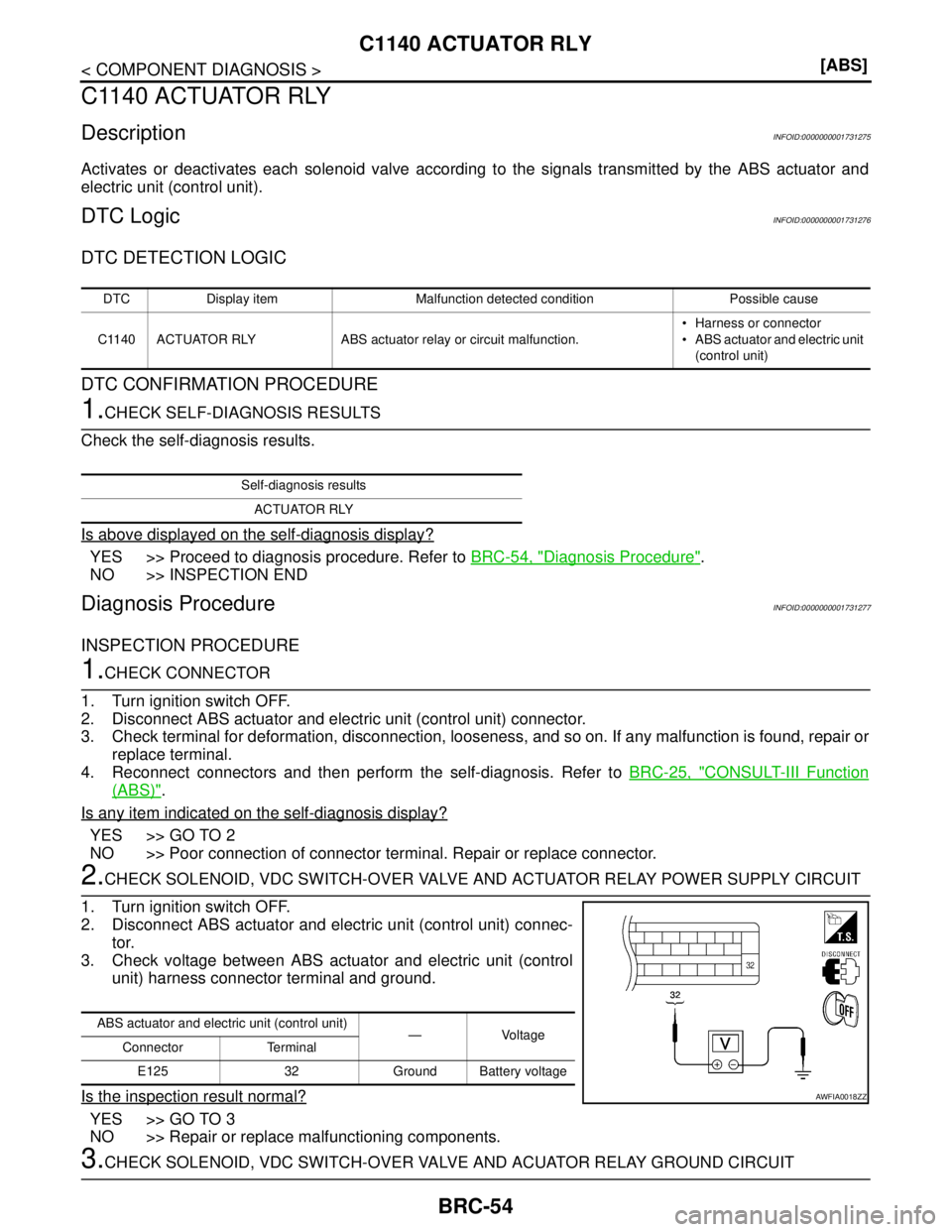

BRC-54
< COMPONENT DIAGNOSIS >[ABS]
C1140 ACTUATOR RLY
C1140 ACTUATOR RLY
DescriptionINFOID:0000000001731275
Activates or deactivates each solenoid valve according to the signals transmitted by the ABS actuator and
electric unit (control unit).
DTC LogicINFOID:0000000001731276
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> Proceed to diagnosis procedure. Refer to BRC-54, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001731277
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connector.
3. Check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.
4. Reconnect connectors and then perform the self-diagnosis. Refer to BRC-25, "
CONSULT-III Function
(ABS)".
Is any item indicated on the self-diagnosis display?
YES >> GO TO 2
NO >> Poor connection of connector terminal. Repair or replace connector.
2.CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACTUATOR RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connec-
tor.
3. Check voltage between ABS actuator and electric unit (control
unit) harness connector terminal and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace malfunctioning components.
3.CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACUATOR RELAY GROUND CIRCUIT
DTC Display item Malfunction detected condition Possible cause
C1140 ACTUATOR RLY ABS actuator relay or circuit malfunction. Harness or connector
 ABS actuator and electric unit
(control unit)
Self-diagnosis results
ACTUATOR RLY
ABS actuator and electric unit (control unit)
—Voltage
Connector Terminal
E125 32 Ground Battery voltage
AWFIA0018ZZ

C1140 ACTUATOR RLY

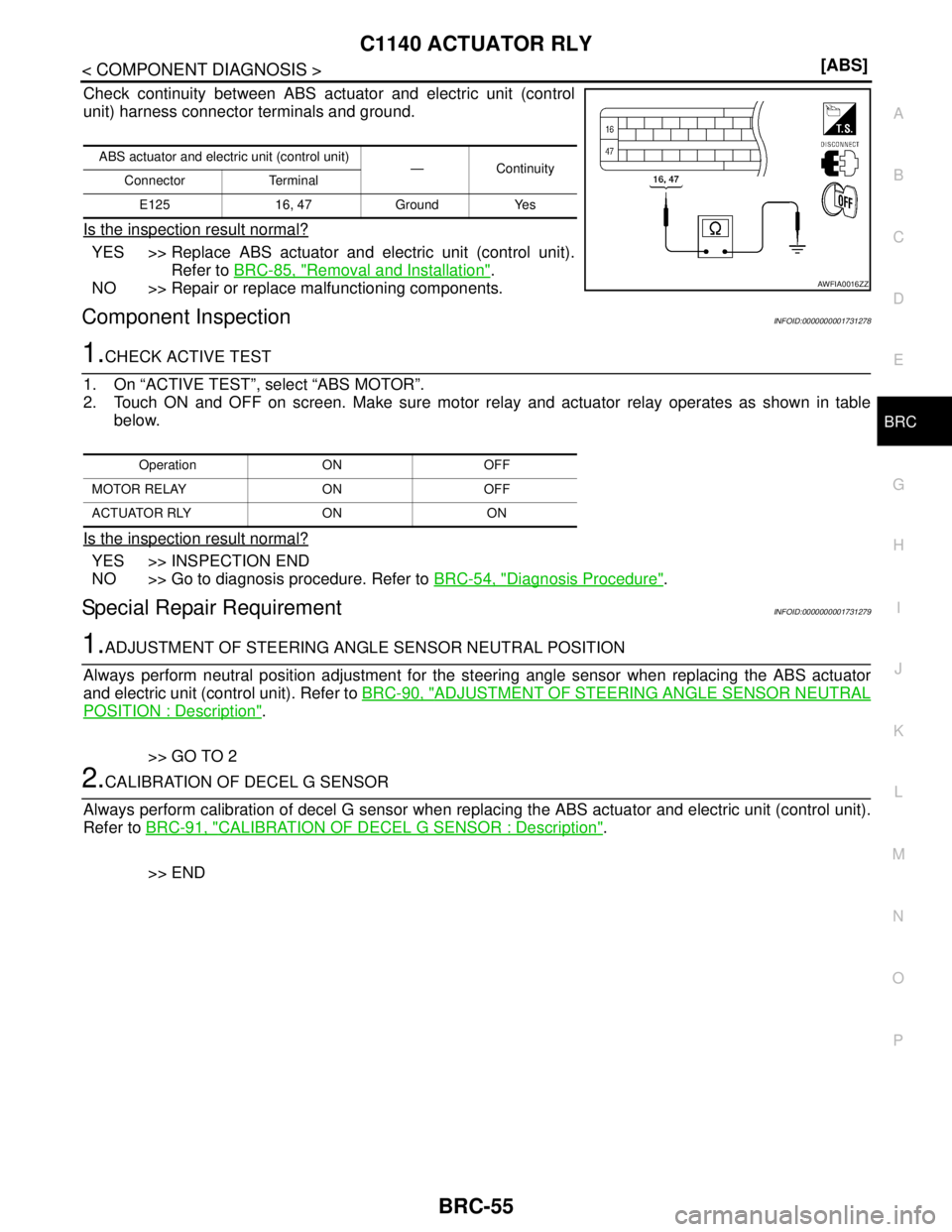

BRC-55
< COMPONENT DIAGNOSIS >[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
Check continuity between ABS actuator and electric unit (control
unit) harness connector terminals and ground.
Is the inspection result normal?
YES >> Replace ABS actuator and electric unit (control unit).
Refer to BRC-85, "
Removal and Installation".
NO >> Repair or replace malfunctioning components.
Component InspectionINFOID:0000000001731278
1.CHECK ACTIVE TEST
1. On “ACTIVE TEST”, select “ABS MOTOR”.
2. Touch ON and OFF on screen. Make sure motor relay and actuator relay operates as shown in table
below.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to diagnosis procedure. Refer to BRC-54, "
Diagnosis Procedure".
Special Repair RequirementINFOID:0000000001731279
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to BRC-90, "
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL
POSITION : Description".
>> GO TO 2
2.CALIBRATION OF DECEL G SENSOR
Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to BRC-91, "
CALIBRATION OF DECEL G SENSOR : Description".
>> END
ABS actuator and electric unit (control unit)
—Continuity
Connector Terminal
E125 16, 47 Ground Yes
AWFIA0016ZZ
Operation ON OFF
MOTOR RELAY ON OFF
ACTUATOR RLY ON ON

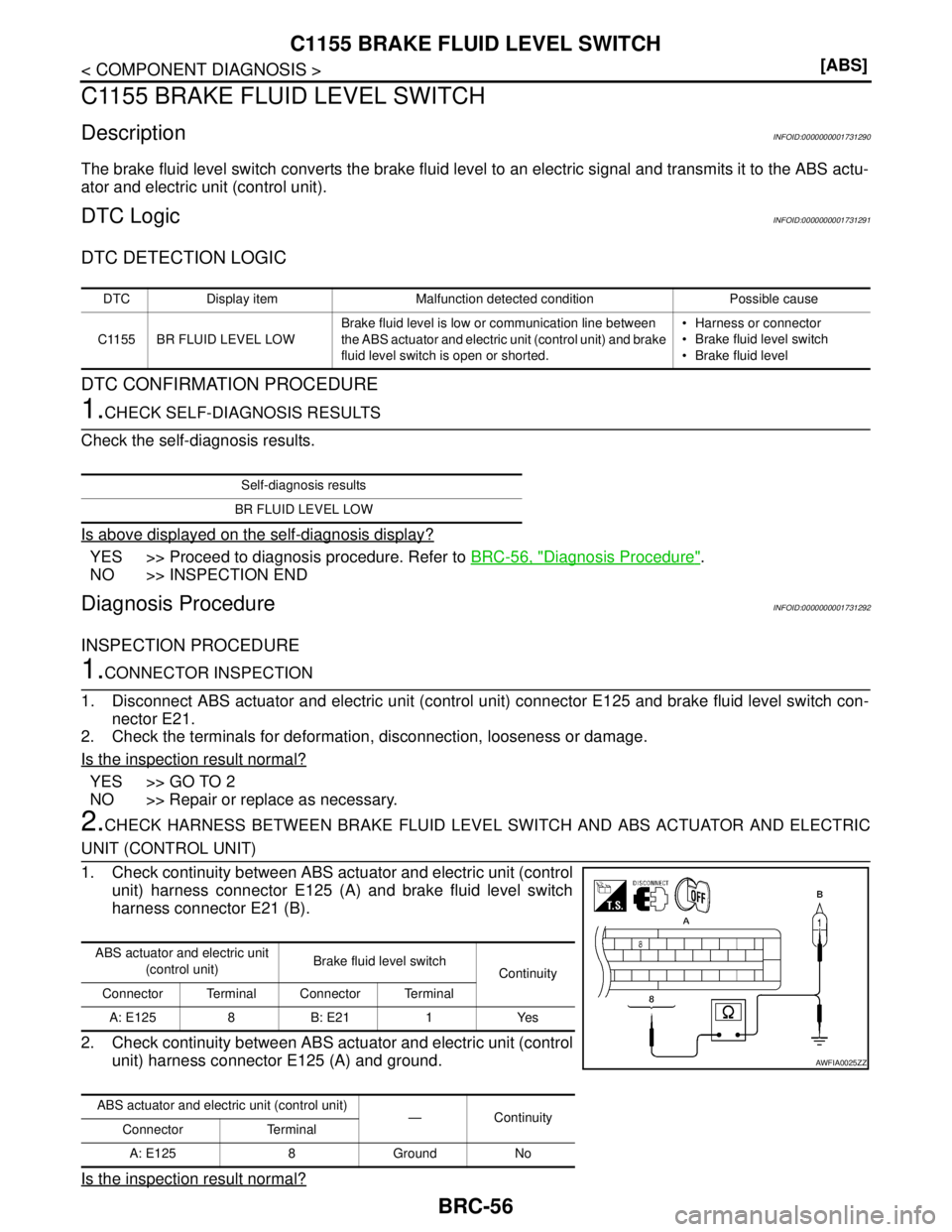

BRC-56
< COMPONENT DIAGNOSIS >[ABS]
C1155 BRAKE FLUID LEVEL SWITCH
C1155 BRAKE FLUID LEVEL SWITCH
DescriptionINFOID:0000000001731290
The brake fluid level switch converts the brake fluid level to an electric signal and transmits it to the ABS actu-
ator and electric unit (control unit).
DTC LogicINFOID:0000000001731291
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> Proceed to diagnosis procedure. Refer to BRC-56, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001731292
INSPECTION PROCEDURE
1.CONNECTOR INSPECTION
1. Disconnect ABS actuator and electric unit (control unit) connector E125 and brake fluid level switch con-
nector E21.
2. Check the terminals for deformation, disconnection, looseness or damage.
Is the inspection result normal?
YES >> GO TO 2
NO >> Repair or replace as necessary.
2.CHECK HARNESS BETWEEN BRAKE FLUID LEVEL SWITCH AND ABS ACTUATOR AND ELECTRIC
UNIT (CONTROL UNIT)
1. Check continuity between ABS actuator and electric unit (control
unit) harness connector E125 (A) and brake fluid level switch
harness connector E21 (B).
2. Check continuity between ABS actuator and electric unit (control
unit) harness connector E125 (A) and ground.
Is the inspection result normal?
DTC Display item Malfunction detected condition Possible cause
C1155 BR FLUID LEVEL LOWBrake fluid level is low or communication line between
the ABS actuator and electric unit (control unit) and brake
fluid level switch is open or shorted. Harness or connector
 Brake fluid level switch
Brake fluid level
Self-diagnosis results
BR FLUID LEVEL LOW
ABS actuator and electric unit
(control unit)Brake fluid level switch
Continuity
Connector Terminal Connector Terminal
A: E125 8 B: E21 1 Yes
ABS actuator and electric unit (control unit)
— Continuity
Connector Terminal
A: E125 8 Ground No
AWFIA0025ZZ

C1155 BRAKE FLUID LEVEL SWITCH
BRC-57
< COMPONENT DIAGNOSIS >[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
YES >> GO TO 3
NO >> Repair or replace malfunctioning components.
3.CHECK BRAKE FLUID LEVEL SWITCH GROUND
Check continuity between brake fluid level switch harness connector
E21 and ground.
Is the inspection result normal?
YES >> GO TO 4
NO >> Repair or replace malfunctioning components.
4.CHECK BRAKE FLUID LEVEL SWITCH
Check continuity between brake fluid level switch terminals.
Is the inspection result normal?
YES >> Perform self-diagnosis again. If the same results
appear, replace ABS actuator and electric unit (control unit). Refer to BRC-85, "
Removal and
Installation".
NO >> Replace brake fluid level switch.
Component InspectionINFOID:0000000001731293
1.CHECK BRAKE FLUID LEVEL SWITCH
1. Turn ignition switch OFF.
2. Disconnect brake fluid level switch connector.
3. Check continuity between brake fluid level switch terminals.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace brake fluid level switch.
Special Repair RequirementINFOID:0000000001731294
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to BRC-90, "
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL
POSITION : Description".
Brake fluid level switch
—Continuity
Connector Terminal
E21 2 Ground Yes
AWFIA0026ZZ
Brake fluid level switch
Condition Continuity
Te r m i n a l
1 − 2When brake fluid is full in the reser-
voir tank.No
When brake fluid is empty in the
reservoir tank.Ye s
ALFIA0026ZZ
Brake fluid level switch
Condition Continuity
Te r m i n a l
1 − 2When brake fluid is full in the reser-
voir tank.No
When brake fluid is empty in the
reservoir tank.Ye s
ALFIA0026ZZ
