NISSAN TIIDA 2007 Service Repair Manual

EM-4
DRIVE BELTS ..................................................263
Exploded View .......................................................263
Inspection and Adjustment ....................................263
Removal and Installation .......................................263
AIR CLEANER FILTER ...................................265
Removal and Installation .......................................265
CAMSHAFT VALVE CLEARANCE .................266
Inspection and Adjustment ....................................266
COMPRESSION PRESSURE ..........................267
Inspection ..............................................................267
ON-VEHICLE REPAIR ...............................268
DRIVE BELT AUTO-TENSIONER ...................268
Exploded View .......................................................268
Removal and Installation .......................................268
AIR CLEANER AND AIR DUCT ......................269
Exploded View .......................................................269
Removal and Installation .......................................269
CHARGE AIR COOLER ..................................270
Exploded View .......................................................270
Removal and Installation .......................................270
Inspection ..............................................................271
EGR SYSTEM ..................................................272
Exploded View .......................................................272
Removal and Installation .......................................272
CATALYST ......................................................274
Exploded View .......................................................274
Removal and Installation .......................................274
Inspection ..............................................................274
TURBOCHARGER ..........................................275
Exploded View .......................................................275
Removal and Installation .......................................275
Inspection ..............................................................276
EXHAUST MANIFOLD ....................................277
Exploded View .......................................................277
Removal and Installation .......................................277
Inspection ..............................................................278
GLOW PLUG ...................................................279
Exploded View .......................................................279
Removal and Installation .......................................279
VACUUM PUMP ..............................................280
Exploded View .......................................................280
Removal and Installation .......................................280
Inspection ..............................................................280
INJECTION TUBE AND FUEL INJECTOR .....281
Exploded View .......................................................281
Removal and Installation .......................................281
OIL PAN ............................................................284
Exploded View ......................................................284
Removal and Installation .......................................284
Inspection ..............................................................286
HIGH PRESSURE SUPPLY PUMP ..................287
Exploded View ......................................................287
Removal and Installation .......................................287
ROCKER COVER .............................................289
Exploded View ......................................................289
Removal and Installation .......................................289
TIMING BELT ...................................................291
Exploded View ......................................................291
Removal and Installation .......................................291
CAMSHAFT ......................................................298
Exploded View ......................................................298
Removal and Installation .......................................298
Inspection ..............................................................300
REMOVAL AND INSTALLATION .............302
ENGINE ASSEMBLY .......................................302
Exploded View ......................................................302
Removal and Installation .......................................302
Inspection ..............................................................304
DISASSEMBLY AND ASSEMBLY ...........305
ENGINE STAND SETTING ..............................305
Setting ...................................................................305
CYLINDER HEAD .............................................306
Exploded View ......................................................306
Removal and Installation .......................................306
Disassembly and Assembly ..................................307
Cleaning ................................................................310
Inspection ..............................................................310
CYLINDER BLOCK ..........................................314
Exploded View ......................................................314
Disassembly and Assembly ..................................314
Inspection ..............................................................330
SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................
333
SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................
333
General Specification ...........................................333
Drive Belt ..............................................................333
Camshaft ...............................................................333
Cylinder Head ......................................................335
Cylinder Block ......................................................337
Turbocharger ........................................................339

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
EM-5
< SYMPTOM DIAGNOSIS >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

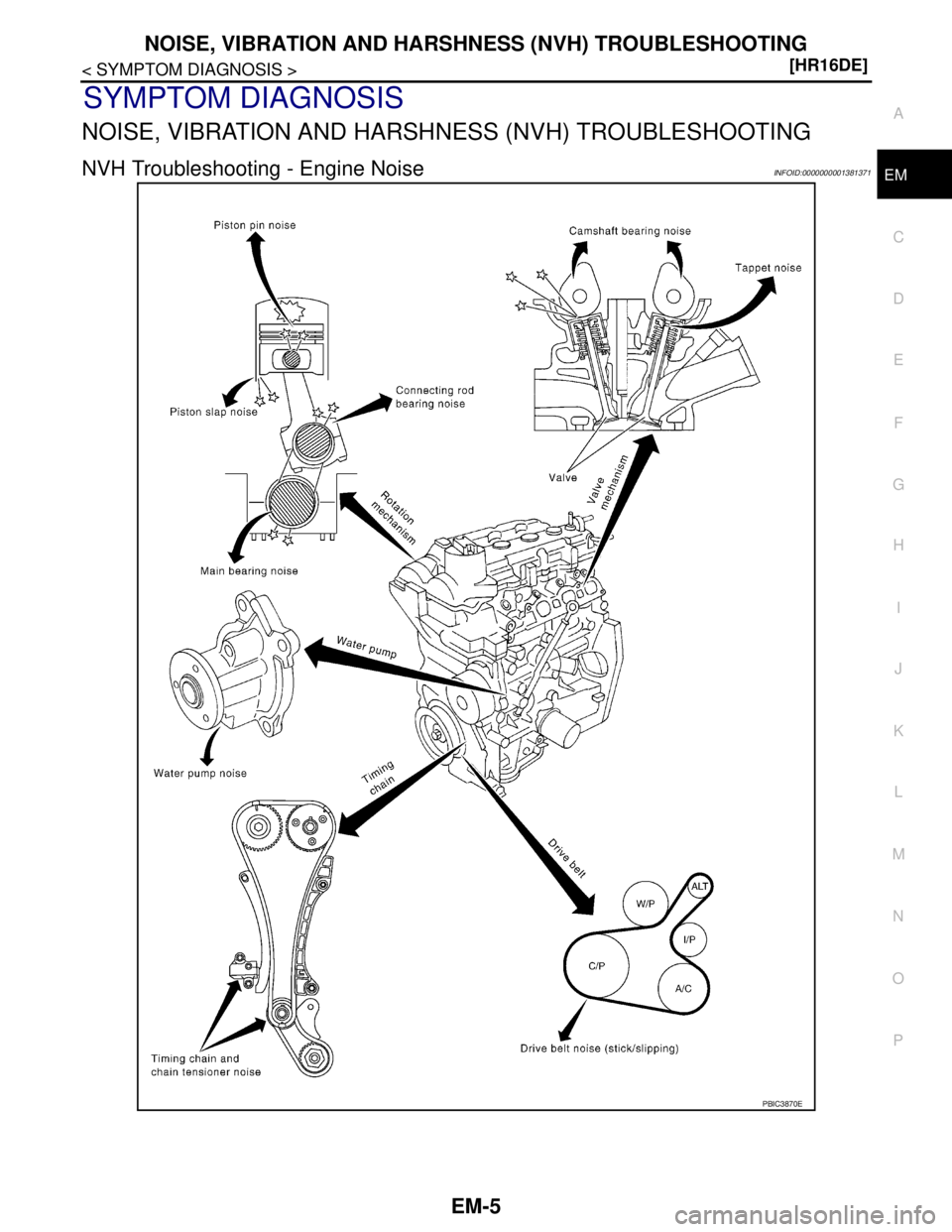

SYMPTOM DIAGNOSIS
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
NVH Troubleshooting - Engine NoiseINFOID:0000000001381371
PBIC3870E

EM-6
< SYMPTOM DIAGNOSIS >[HR16DE]
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
Use the Chart Below to Help You Find the Cause of the Symptom
INFOID:0000000001381372
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not relatedLocation
of noiseTyp e of
noiseOperating condition of engine
Source of
noiseCheck itemRefer-
ence page Before
warm-
upAfter
warm-
upWhen
start-
ingWhen
idlingWhen
racingWhile
driving
Top of en-
gine
Rocker
cover
Cylinder
headTicking or
clickingCA—AB—Tappet
noiseValve clearanceEM-21
Rattle C A — A B CCamshaft
bearing
noiseCamshaft journal oil
clearance
Camshaft runoutEM-123EM-123
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil panSlap or
knock—A—BB—Piston pin
noisePiston to piston pin oil
clearance
Connecting rod small
end clearanceEM-127
EM-130
Slap or
rapA——BBAPiston
slap noisePiston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsionEM-127EM-127
EM-127
EM-130
Knock A B C B B BConnect-
ing rod
bearing
noiseConnecting rod small
end clearance
Connecting rod bearing
oil clearanceEM-127EM-130
Knock A B — A B CMain bear-
ing noiseMain bearing oil clear-
ance
Crankshaft runoutEM-131EM-127
Front of
engine
Front cov-
erTapping or
tickingAA—BBBTiming
chain and
chain ten-
sioner
noiseTiming chain cracks
and wear
Timing chain tensioner
operationEM-57
Front of
engineSqueak-
ing or fizz-
ingAB—B—CDrive belt
(Sticking
or slip-
ping)Drive belt deflection
EM-122
Creaking A B A B A BDrive belt
(Slipping)Idler pulley bearing op-
eration
Squall
CreakAB—BABWater
pump
noiseWater pump operationCO-21

PRECAUTIONS
EM-7
< PRECAUTION >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001527642
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
 Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
 Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Precaution for Procedure without Cowl Top CoverINFOID:0000000001527633
When performing the procedure after removing cowl top cover, cover
the lower end of windshield.
Precaution Necessary for Steering Wheel Rotation After Battery Disconnect
INFOID:0000000001527634
NOTE:
 This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-
TEM).
 Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.
 Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing work.
If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
PIIB3706J

EM-8
< PRECAUTION >[HR16DE]
PRECAUTIONS
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.
Precaution for Drain CoolantINFOID:0000000001527635
 Drain coolant when engine is cooled.
Precaution for Disconnecting Fuel PipingINFOID:0000000001527636
 Before starting work, make sure no fire or spark producing items are in the work area.
 Release fuel pressure before disassembly.
 After disconnecting pipes, plug openings to stop fuel leakage.
Precaution for Removal and DisassemblyINFOID:0000000001527637
 When instructed to use special service tools, use the specified tools. Always be careful to work safely, avoid
forceful or uninstructed operations.
 Exercise maximum care to avoid damage to mating or sliding surfaces.
 Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.
 Mark and arrange disassembly parts in an organized way for easy troubleshooting and assembly.
 When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be used
where noted in the step.
Precaution for Inspection, Repair and ReplacementINFOID:0000000001527638
 Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precaution for Assembly and InstallationINFOID:0000000001527639
 Use torque wrench to tighten bolts or nuts to specification.
 When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is specified,
do exactly as specified.
 Replace with new gasket, packing, oil seal or O-ring.
 Thoroughly wash, clean, and air-blow each part. Carefully check oil or coolant passages for any restriction
and blockage.
 Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.
Before assembly, oil sliding surfaces well.
 Release air within route after draining coolant.
 Before starting engine, apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped).
Then make sure that there are no leaks at fuel line connections.
 After repairing, start engine and increase engine speed to check coolant, fuel, oil, and exhaust systems for
leakage.
Parts Requiring Angular TighteningINFOID:0000000001527640
 Use an angle wrench for the final tightening of the following engine parts:
- Cylinder head bolts
- Camshaft sprocket (INT)
- Main bearing cap bolts
- Connecting rod cap nuts
- Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angular
tightening)
 Do not use a torque value for final tightening. Tool number : KV10112100 (BT-8653-A)

PRECAUTIONS
EM-9
< PRECAUTION >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
 The torque value for these parts are for a preliminary step.
 Ensure thread and seat surfaces are clean and coated with engine oil.
Precaution for Liquid GasketINFOID:0000000001527641

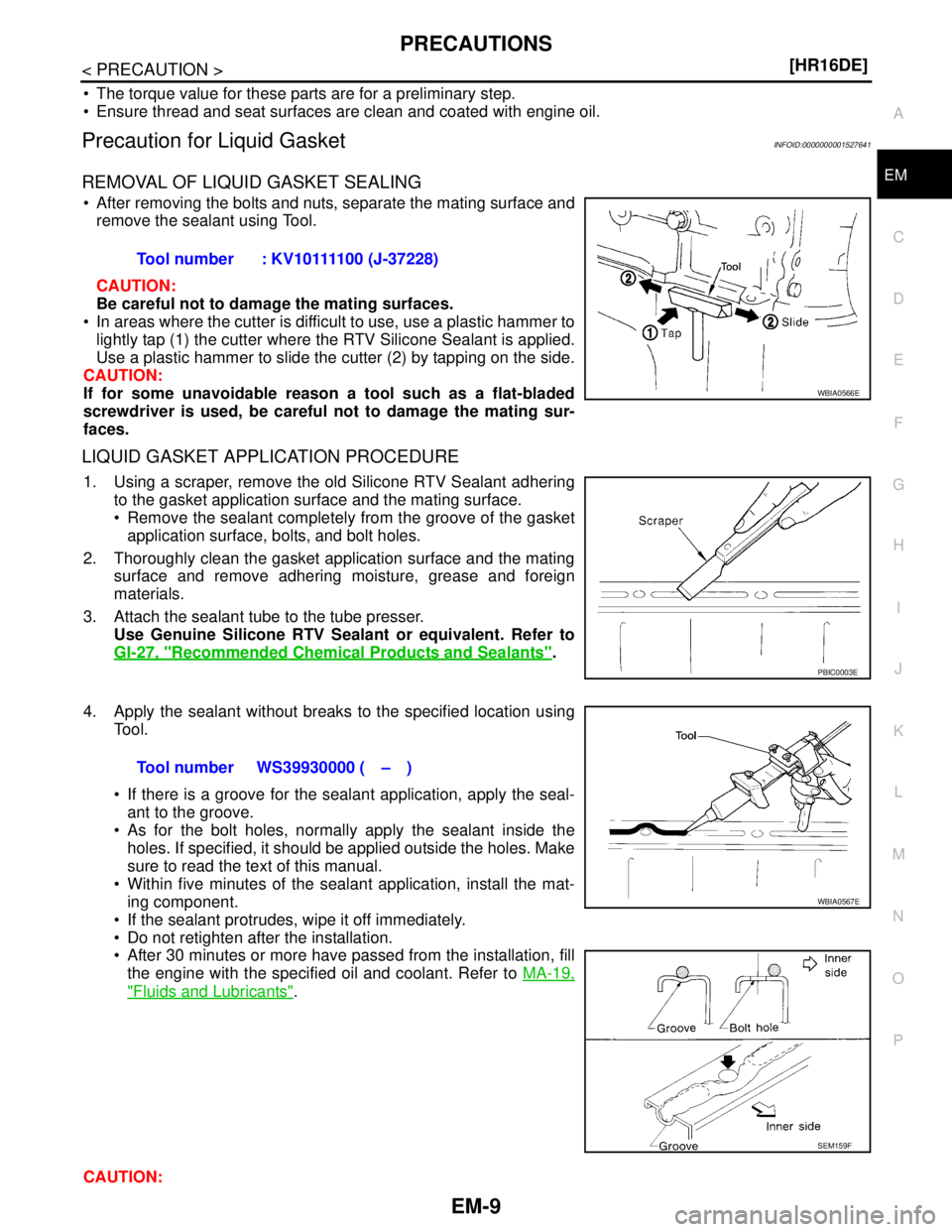

REMOVAL OF LIQUID GASKET SEALING
 After removing the bolts and nuts, separate the mating surface and
remove the sealant using Tool.
CAUTION:
Be careful not to damage the mating surfaces.
 In areas where the cutter is difficult to use, use a plastic hammer to
lightly tap (1) the cutter where the RTV Silicone Sealant is applied.
Use a plastic hammer to slide the cutter (2) by tapping on the side.
CAUTION:
If for some unavoidable reason a tool such as a flat-bladed
screwdriver is used, be careful not to damage the mating sur-
faces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove the old Silicone RTV Sealant adhering
to the gasket application surface and the mating surface.
 Remove the sealant completely from the groove of the gasket
application surface, bolts, and bolt holes.
2. Thoroughly clean the gasket application surface and the mating
surface and remove adhering moisture, grease and foreign
materials.
3. Attach the sealant tube to the tube presser.
Use Genuine Silicone RTV Sealant or equivalent. Refer to
GI-27, "
Recommended Chemical Products and Sealants".
4. Apply the sealant without breaks to the specified location using
Tool.
 If there is a groove for the sealant application, apply the seal-
ant to the groove.
 As for the bolt holes, normally apply the sealant inside the
holes. If specified, it should be applied outside the holes. Make
sure to read the text of this manual.
 Within five minutes of the sealant application, install the mat-
ing component.
 If the sealant protrudes, wipe it off immediately.
 Do not retighten after the installation.
 After 30 minutes or more have passed from the installation, fill
the engine with the specified oil and coolant. Refer to MA-19,
"Fluids and Lubricants".
CAUTION:Tool number : KV10111100 (J-37228)
WBIA0566E
PBIC0003E
Tool number WS39930000 ( – )
WBIA0567E
SEM159F

EM-10
< PRECAUTION >[HR16DE]
PRECAUTIONS
Follow all specific instructions in this manual.

PREPARATION
EM-11
< PREPARATION >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000001381382
Tool number
Tool nameDescription
K V 1 0 1111 0 0
Seal cutterRemoving oil pan (lower and upper) etc.
KV10116200
Valve spring compressor
1. KV10115900
Attachment
2. KV10109220
AdapterDisassembling and assembling valve mecha-
nism
Part (1) is a component of KV10116200, but
Part (2) is not so.
KV10112100
Angle wrenchTightening bolts for bearing cap, cylinder
head, etc. in angle
KV10117100
Heated oxygen sensor wrenchLoosening or tightening heated oxygen sen-
sor 1
For 22 mm (0.87 in) width hexagon nut
KV10107902
Valve oil seal puller
1. KV10116100
Valve oil seal puller adapterRemoving valve oil seal
KV10115600
Valve oil seal driftInstalling valve oil seal
Use side A.
a: 20 (0.79) dia. d: 8 (0.31) dia.
b: 13 (0.51) dia. e: 10.7 (0.421)
c: 10.3 (0.406) dia. f: 5 (0.20)
Unit: mm (in)
S-NT046
PBIC1650E
S-NT014
NT379
SZNT605
S-NT603

EM-12
< PREPARATION >[HR16DE]
PREPARATION
Commercial Service Tools
INFOID:0000000001381383

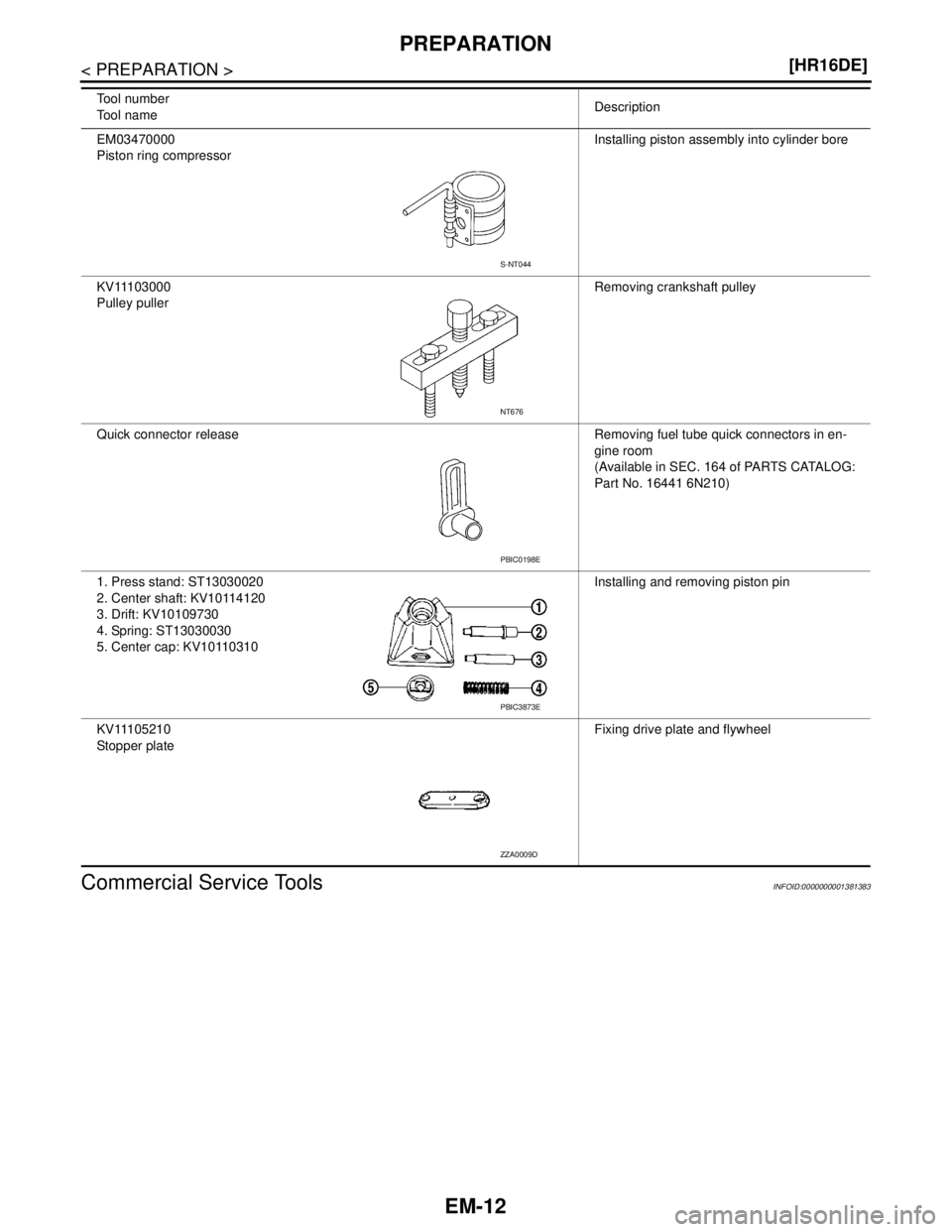

EM03470000
Piston ring compressorInstalling piston assembly into cylinder bore
KV11103000
Pulley pullerRemoving crankshaft pulley
Quick connector release Removing fuel tube quick connectors in en-
gine room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)
1. Press stand: ST13030020
2. Center shaft: KV10114120
3. Drift: KV10109730
4. Spring: ST13030030
5. Center cap: KV10110310 Installing and removing piston pin
KV11105210
Stopper plateFixing drive plate and flywheel Tool number
Tool nameDescription
S-NT044
NT676
PBIC0198E
PBIC3873E
ZZA0009D

PREPARATION
EM-13
< PREPARATION >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

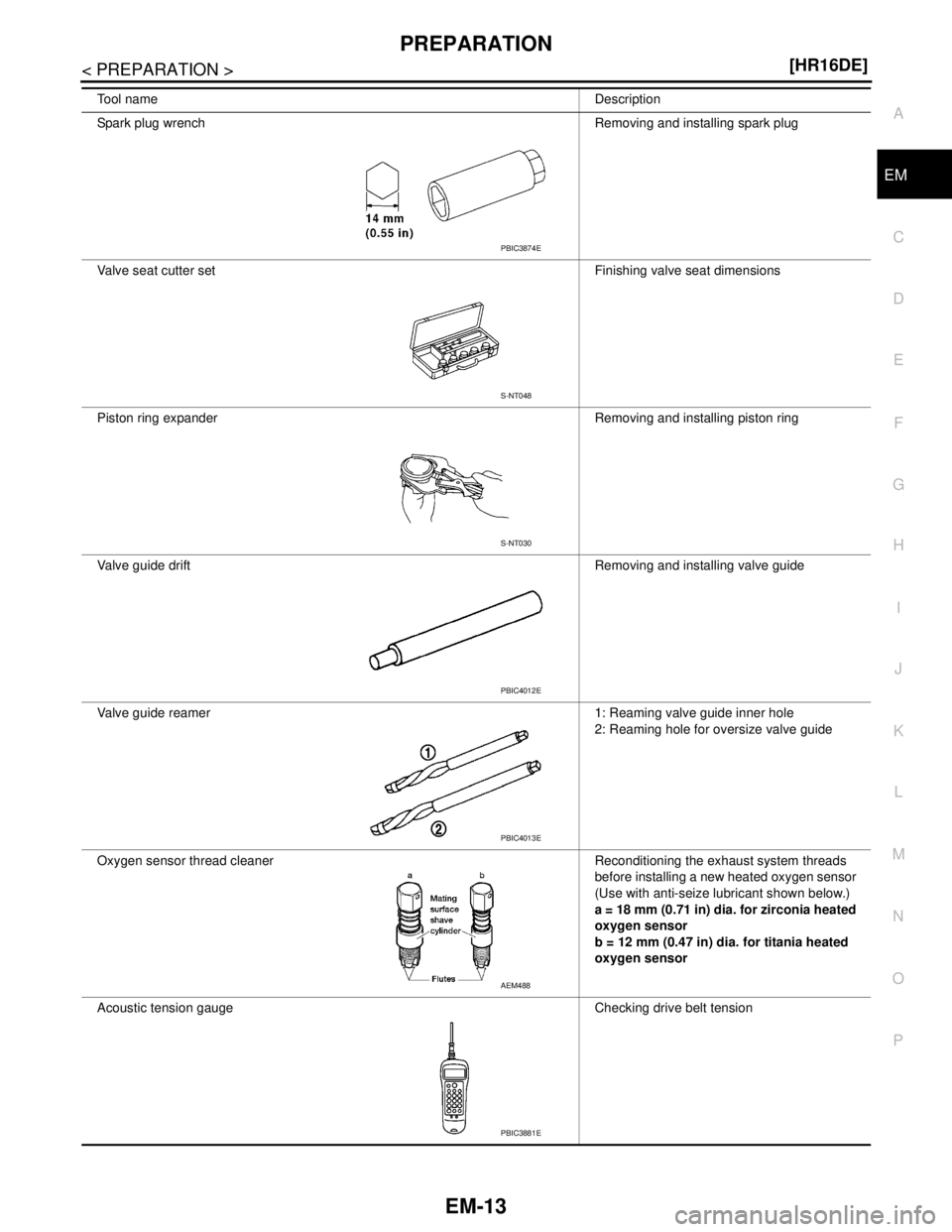

Tool nameDescription
Spark plug wrench Removing and installing spark plug
Valve seat cutter set Finishing valve seat dimensions
Piston ring expander Removing and installing piston ring
Valve guide drift Removing and installing valve guide
Valve guide reamer 1: Reaming valve guide inner hole
2: Reaming hole for oversize valve guide
Oxygen sensor thread cleaner Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)
a = 18 mm (0.71 in) dia. for zirconia heated
oxygen sensor
b = 12 mm (0.47 in) dia. for titania heated
oxygen sensor
Acoustic tension gauge Checking drive belt tension
PBIC3874E
S-NT048
S-NT030
PBIC4012E
PBIC4013E
AEM488
PBIC3881E
