DRIVE BELTS
EM-15
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
ON-VEHICLE MAINTENANCE
DRIVE BELTS
CheckingINFOID:0000000001381384
 Inspection should be done only when engine is cold or over 30
minutes after the engine is stopped.
 Visually check belts for wear, damage, and cracks on inside and
edges.
 Turn crankshaft pulley two time clockwise, and make sure tension on all pulleys is equal before doing the
test.
 When measuring deflection, apply 98 N (10 kg, 22 lb) at the ( ) marked point.
 Measure the belt tension and frequency with acoustic tension gauge (commercial service tool) at the ( )
marked point.
CAUTION:
 When the tension and frequency are measured, the acoustic tension gauge should be used.
 When checking immediately after installation, first adjust it to the specified value. Then, after turning
crankshaft two turns or more, re-adjust to the specified value to avoid variation in deflection
between pulleys.
Tension AdjustmentINFOID:0000000001381385
CAUTION:
 When belt is replaced with new one, adjust belt tension to the value for “New belt”, because new belt
will not fully seat in the pulley groove.
 When tension of the belt being used exceeds “Limit”, adjust it to the value for “After adjusted”.
 When installing a belt, make sure it is correctly engaged with the pulley groove.
 Never allow oil or engine coolant to get on the belt.
 Never twist or bend the belt strongly.

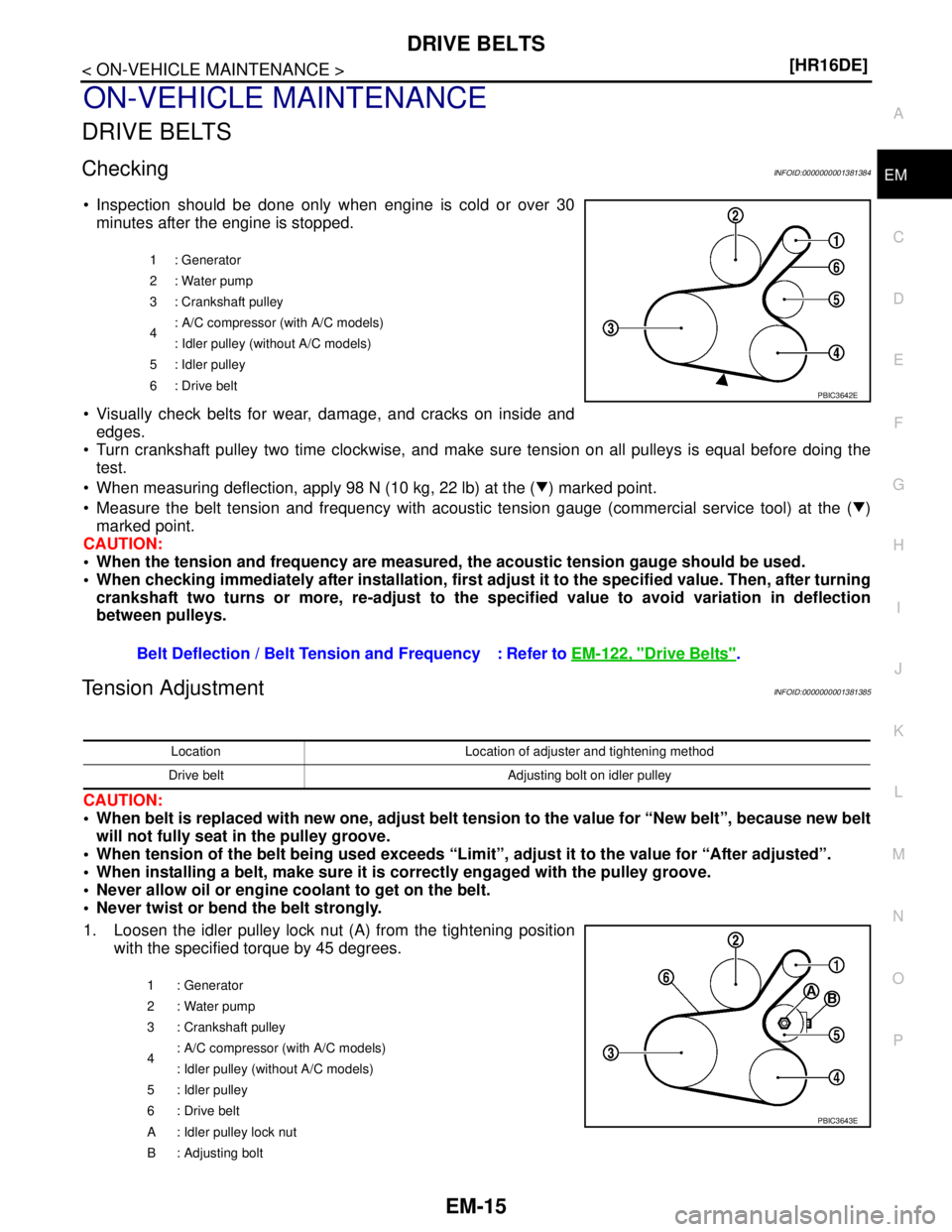

1. Loosen the idler pulley lock nut (A) from the tightening position
with the specified torque by 45 degrees.
1 : Generator
2 : Water pump
3 : Crankshaft pulley
4: A/C compressor (with A/C models)
: Idler pulley (without A/C models)
5 : Idler pulley
6: Drive belt
Belt Deflection / Belt Tension and Frequency : Refer to EM-122, "Drive Belts".
PBIC3642E
Location Location of adjuster and tightening method
Drive belt Adjusting bolt on idler pulley
1 : Generator
2: Water pump
3 : Crankshaft pulley
4: A/C compressor (with A/C models)
: Idler pulley (without A/C models)
5 : Idler pulley
6: Drive belt
A : Idler pulley lock nut
B : Adjusting bolt
PBIC3643E

EM-16
< ON-VEHICLE MAINTENANCE >[HR16DE]
DRIVE BELTS
CAUTION:
 When the lock nut is loosened excessively, the idler pulley tilts and the correct tension adjust-
ment cannot be performed. Never loosen it excessively (more than 45 degrees).
 Put a matching mark on the lock nut, and check turning angle with a protractor. Never visually
check the tightening angle.
2. Adjust the belt tension by turning the adjusting bolt.
CAUTION:
 When checking immediately after installation, first adjust it to the specified value. Then, after
turning crankshaft two turns or more, re-adjust to the specified value to avoid variation in deflec-
tion between pulleys.
 When the tension adjustment is performed, the lock nut should be in the condition at step“2”. If
the tension adjustment is performed when the lock nut is loosened more than the standard, the
idler pulley tilts and the correct tension adjustment cannot be performed.
3. Tighten the idler pulley lock nut.
Removal and InstallationINFOID:0000000001381386
REMOVAL
1. Loosen the idler pulley lock nut (A), and then adjust the belt ten-
sion by turning the adjusting bolt (B).
2. Remove drive belt.
INSTALLATION
1. Pull the idler pulley in the loosening direction, and then tempo-
rarily tighten the idler pulley lock nut (A) to the following torque.
NOTE:
Do not move the lock nut from the tightened position. Proceed to step “2”.
2. Install the drive belt to each pulley.
CAUTION:
 Make sure that there is no oil, grease, or coolant, etc. in pulley grooves.
 Make sure that the belt is securely inside the groove on each pulley.
3. Adjust drive belt tension by turning the adjusting bolt. Refer to EM-15, "
Tension Adjustment".
CAUTION:Idler pulley lock nut : 34.8 N·m (3.5 kg-m, 26 ft-lb)
1 : Generator
2: Water pump
3 : Crankshaft pulley
4: A/C compressor (with A/C models)
: Idler pulley (without A/C models)
5 : Idler pulley
6 : Drive belt
PBIC3643E
1 : Generator
2: Water pump
3 : Crankshaft pulley
4: A/C compressor (with A/C models)
: Idler pulley (without A/C models)
5 : Idler pulley
6 : Drive belt
B : Adjusting bolt
Idler pulley lock nut : 4.4 N·m (0.45 kg-m, 39 in-lb)
PBIC3643E

DRIVE BELTS
EM-17
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
 Perform the belt tension adjustment with the lock nut temporarily tightened at the step “1” so as
not to tilt the idler pulley.
 When checking immediately after installation, first adjust it to the specified value. Then, after
turning crankshaft two turns or more, re-adjust to the specified value to avoid variation in deflec-
tion between pulleys.
4. Tighten the idler pulley lock nut.
5. Make sure that belt tension of each belt within the standard.Idler pulley lock nut : 34.8 N·m (3.5 kg-m, 26 ft-lb)

EM-18
< ON-VEHICLE MAINTENANCE >[HR16DE]
AIR CLEANER FILTER
AIR CLEANER FILTER
Removal and InstallationINFOID:0000000001381387
REMOVAL
1. Push the tabs (A) of both ends of the air cleaner cover (1) into
the inside (B).
2. Pull up the air cleaner cover (1) and remove it (C).
3. Remove air cleaner filter (1) and holder (2) assembly from the
air cleaner case.
4. Remove the air cleaner filter (1) from the holder (2).
INSPECTION AFTER REMOVAL
It is necessary to clean air cleaner filter or replace it at the recommended intervals, more often under dusty
conditions. Refer to MA-7, "
Periodic Maintenance".
 Blow air into the back side of air cleaner filter until no objects spray
out.
INSTALLATION
Installation is in the reverse order of removal.
 Install the air cleaner cover (1) in the direction shown.
PBIC3557J
PBIC3558J
SMA384C
2 : Air cleaner filter
3 : Holder
PBIC3559J

SPARK PLUG
EM-19
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
SPARK PLUG
Exploded ViewINFOID:0000000001381388
Removal and InstallationINFOID:0000000001381389
REMOVAL
1. Remove intake manifold. Refer to EM-29, "Removal and Installation".
2. Remove ignition coil. Refer to EM-47, "
Removal and Installation".
3. Remove spark plug with a spark plug wrench (commercial ser-
vice tool).
INSPECTION AFTER REMOVAL
Use the standard type spark plug for normal condition.
CAUTION:
1. Ignition coil 2. Spark plug
PBIC3662E
PBIC3871E
Spark plug (Standard type): Refer to MA-29, "SPARK PLUG : In-
spection".

EM-20
< ON-VEHICLE MAINTENANCE >[HR16DE]
SPARK PLUG
 Never drop or shock spark plug.
 Never use a wire brush for cleaning.
 If plug tip is covered with carbon, spark plug cleaner may be
used.
Checking and adjusting plug gap is not required between
change intervals.
INSTALLATION
Installation is the reverse order of removal.Cleaner air
pressure:Less than 588 kPa (6 kg/cm
2, 85 psi)
Cleaning time: Less than 20 seconds
SMA773C
JPBIA0031ZZ
Plug type : Platinum tipped
Make : NGK
Part number : PLZKAR6AP-11
Gap (nominal) : 1.1 mm (0.043 in)

CAMSHAFT VALVE CLEARANCE
EM-21
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
CAMSHAFT VALVE CLEARANCE
Inspection and AdjustmentINFOID:0000000001381391
INSPECTION
Perform inspection as follows after removal, installation or replacement of camshaft or valve-related parts, or if
there is unusual engine conditions regarding valve clearance.
1. Remove rocker cover. Refer to EM-47, "
Exploded View".
2. Measure the valve clearance with the following procedure:
a. Set No. 1 cylinder at TDC of its compression stroke.
 Rotate crankshaft pulley (2) clockwise and align TDC mark
(without paint mark) (A) to timing indicator (1) on front cover.
 At the same time, make sure that both intake and exhaust cam
noses of No. 1 cylinder face outside as shown.
 If they do not face outside, rotate crankshaft pulley once more
(360 degrees) and align as shown.
b. Use a feeler gauge, measure the clearance between valve lifter
and camshaft.
 By referring to the figure, measure the valve clearances at
locations marked “×” as shown in the table below [locations
indicated with black arrow ( ) shown] with a feeler gauge.
B : White paint mark (Not use for service)
PBIC3673E
1 : Camshaft (INT)
2 : Camshaft (EXH)
: Engine front
PBIC3359J
Valve Clearance: Refer to EM-123, "Camshaft".
SEM139D
A : No. 1 cylinder compression TDC
: Engine front
Measuring position No. 1 CYL. No. 2 CYL. No. 3 CYL. No. 4 CYL.
Measurement po-
sitionEXH××
INT××
PBIC3707E

EM-22
< ON-VEHICLE MAINTENANCE >[HR16DE]
CAMSHAFT VALVE CLEARANCE
c. Rotate crankshaft pulley (2) one revolution (360 degrees) and
align TDC mark (without paint mark) (A) to timing indicator (1) on
front cover.
 By referring to the figure, measure the valve clearance at loca-
tions marked “×” as shown in the table below [locations indi-
cated with black arrow ( ) shown] with a feeler gauge.
3. If out of standard, perform adjustment procedure.
ADJUSTMENT
 Perform adjustment depending on selected head thickness of valve lifter.
1. Remove camshaft. Refer to EM-59, "
Exploded View".
2. Remove valve lifters at the locations that are out of the standard.
3. Measure the center thickness of the removed valve lifters with a
micrometer (A).
4. Use the equation below to calculate valve lifter thickness for replacement.
B : White paint mark (Not use for service)
PBIC3673E
A : No. 4 cylinder compression TDC
: Engine front
Measuring position No. 1 CYL. No. 2 CYL. No. 3 CYL. No. 4 CYL.
Measurement
pointEXH××
INT××
PBIC3708E
PBIC3195J
Valve lifter thickness calculation: t = t1 + (C1– C2)
t = Valve lifter thickness to be replaced
t
1= Removed valve lifter thickness
C
1= Measured valve clearance
C
2= Standard valve clearance:
Intake : 0.30 mm (0.012 in)
Exhaust : 0.33 mm (0.013 in)

CAMSHAFT VALVE CLEARANCE
EM-23
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
 Thickness of new valve lifter (B) can be identified by stamp
mark (A) on the reverse side (inside the cylinder).
 Stamp mark “300” indicates 3.00 mm (0.118 in) in thickness.
NOTE:
Available thickness of valve lifter: 26 sizes range 3.00 to 3.50 mm (0.1181 to 0.1378 in) in steps of 0.02
mm (0.0008 in) (when manufactured at factory). Refer to EM-123, "
Camshaft".
5. Install the selected valve lifter.
6. Install camshaft. Refer to EM-59, "
Exploded View".
7. Manually rotate crankshaft pulley a few rotations.
8. Make sure that valve clearances for cold engine are within specifications by referring to the specified val-
ues.
9. Install all removed parts in the reverse order of removal.
10. Warm up the engine, and check for unusual noise and vibration.
PBIC3196J
