NISSAN TIIDA 2007 Service Repair Manual

EM-94
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
ENGINE STAND SETTING
DISASSEMBLY AND ASSEMBLY
ENGINE STAND SETTING
SettingINFOID:0000000001381427
NOTE:
Explained here is how to disassemble with engine stand supporting transmission surface. When using differ-
ent type of engine stand, note with difference in steps and etc.
1. Remove the engine and the transaxle assembly from the vehicle, and separate the transaxle from the
engine. Refer to EM-89, "
Exploded View".
2. Remove clutch cover and clutch disc. Refer to CL-13, "
Removal and Installation".
3. Remove flywheel.
 Secure flywheel with a stopper plate [SST: KV11105210], and remove mounting bolts.
CAUTION:
 Never disassemble flywheel.
 Never place flywheel with signal plate facing down.
 When handling signal plate, take care not to damage or scratch it.
 Handle signal plate in a manner that prevents it from becoming magnetized.
4. Lift the engine with a hoist to install it onto widely use engine stand.
CAUTION:
 Use the engine stand that has a load capacity [approximately 135 kg (298 lb) or more] large
enough for supporting the engine weight.
 If the load capacity of stand is not adequate, remove the following parts beforehand to reduce the poten-
tial risk of overturning stand.
- Intake manifold: Refer to EM-29, "
Exploded View".
- Exhaust manifold: Refer to EM-32, "
Exploded View".
- Rocker cover: Refer to EM-47, "
Exploded View".
NOTE:
The figure shows an example of widely use engine stand that
can support mating surface of transaxle with flywheel removed.
CAUTION:
Before removing the hanging chains, make sure the engine
stand is stable and there is no risk of overturning.
5. Drain engine oil. Refer to LU-7, "
Draining".
6. Drain engine coolant by removing water drain plug (1) from
inside of the engine.
Use Genuine Liquid Gasket or equivalent.
PBIC0085E
: Engine front
PBIC3742E

ENGINE UNIT
EM-95
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
ENGINE UNIT
DisassemblyINFOID:0000000001381428
1. Remove intake manifold. Refer to EM-29, "Exploded View".
2. Remove exhaust manifold. Refer to EM-32, "
Exploded View".
3. Remove oil pan (lower). Refer to EM-40, "
Exploded View".
4. Remove ignition coil, spark plug and rocker cover. Refer to EM-47, "
Exploded View".
5. Remove fuel injector and fuel tube. Refer to EM-35, "
Exploded View".
6. Remove timing chain. Refer to EM-50, "
Exploded View".
7. Remove camshaft. Refer to EM-59, "
Exploded View".
8. Remove cylinder head. Refer to EM-80, "
Removal and Installation".
AssemblyINFOID:0000000001381429
Assembly is the reverse order of disassembly.

EM-96
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
OIL PAN (UPPER)
OIL PAN (UPPER)
Exploded ViewINFOID:0000000001381430
Removal and InstallationINFOID:0000000001381431
NOTE:
The oil strainer and oil pump are included in the oil pan (upper). Individual disassembly is prohibited.
REMOVAL
1. Remove the oil pan (lower). Refer to EM-40, "Exploded View".
2. Remove front cover and timing chain. Refer to EM-50, "
Exploded View".
3. Remove oil pump sprocket and crankshaft sprocket together with oil pump drive chain. Refer to EM-50,
"Exploded View".
4. Remove oil pan (upper) with the following procedure.
1. Rear oil seal 2. O-ring 3. Oil pan (upper)
4. Chain tensioner 5. Oil pump drive chain 6. Crankshaft sprocket
7. Oil pump sprocket 8. Oil pan drain plug 9. Washer
10. Oil pan (lower) 11. Oil filter stud bolt 12. Oil filter
13. Oil level sensor
A. Refer to EM-50
B. Refer to LU-9C. Oil pan side
JPBIA0553GB

OIL PAN (UPPER)
EM-97
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
a. Loosen oil pan (upper) mounting bolts in the reverse of the order
shown in the figure.
b. Insert a flat-bladed offset screwdriver into the arrow ( ) in the
figure and open up a crack between the oil pan (upper) cylinder
block.
c. Insert the seal cutter [SST: KV10111100] between remove the oil
pan (upper) and cylinder block. Slide seal cutter by tapping on
the side of tool with a hammer.
CAUTION:
 Be careful not to damage the mating surface.
 A more adhesive liquid gasket is applied compared to pre-
vious types when shipped, so it should not be forced off using a screwdriver, etc. outside the
indicated location.
 Never remove oil pump and oil strainer from oil pan (upper).
5. Remove oil level sensor, if necessary.
6. Remove rear oil seal from crankshaft.
INSTALLATION
1. Install the oil pan (upper) in the following procedure.
a. Use scraper to remove old liquid gasket from mating surfaces.
 Also remove the old liquid gasket from mating surface of cylinder block.
 Remove old liquid gasket from the bolt holes and threads.
CAUTION:
Never scratch or damage the mating surfaces when cleaning off old liquid gasket.
b. Install O-ring to the cylinder block.
: Engine front
MBIB1374E
: Engine front
MBIB1375E

EM-98
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
OIL PAN (UPPER)
c. Apply a continuous bead of liquid gasket (C) with the tube
presser (commercial service tool) to areas shown.
Use Genuine Liquid Gasket or equivalent.
CAUTION:
Attaching should be done within 5 minutes after coating.
d. Tighten bolts in the numerical order shown in the figure.
CAUTION:
Install avoiding misalignment of both oil pan gasket and O-
ring.
 The bolts are different according to the installation position.
Follow the numbers shown.
2. Install rear oil seal.
CAUTION:
 The installation of rear oil seal should be completed within 5 minutes after installing oil pan
(upper).
 Never touch oil seal lip.
a. Wipe off any liquid gasket protruding to the rear oil seal mounting part of oil pan (upper) and cylinder block
using a spatula.
b. Apply the liquid gasket lightly to entire outside area of new rear oil seal.
Use Genuine Liquid Gasket or equivalent.

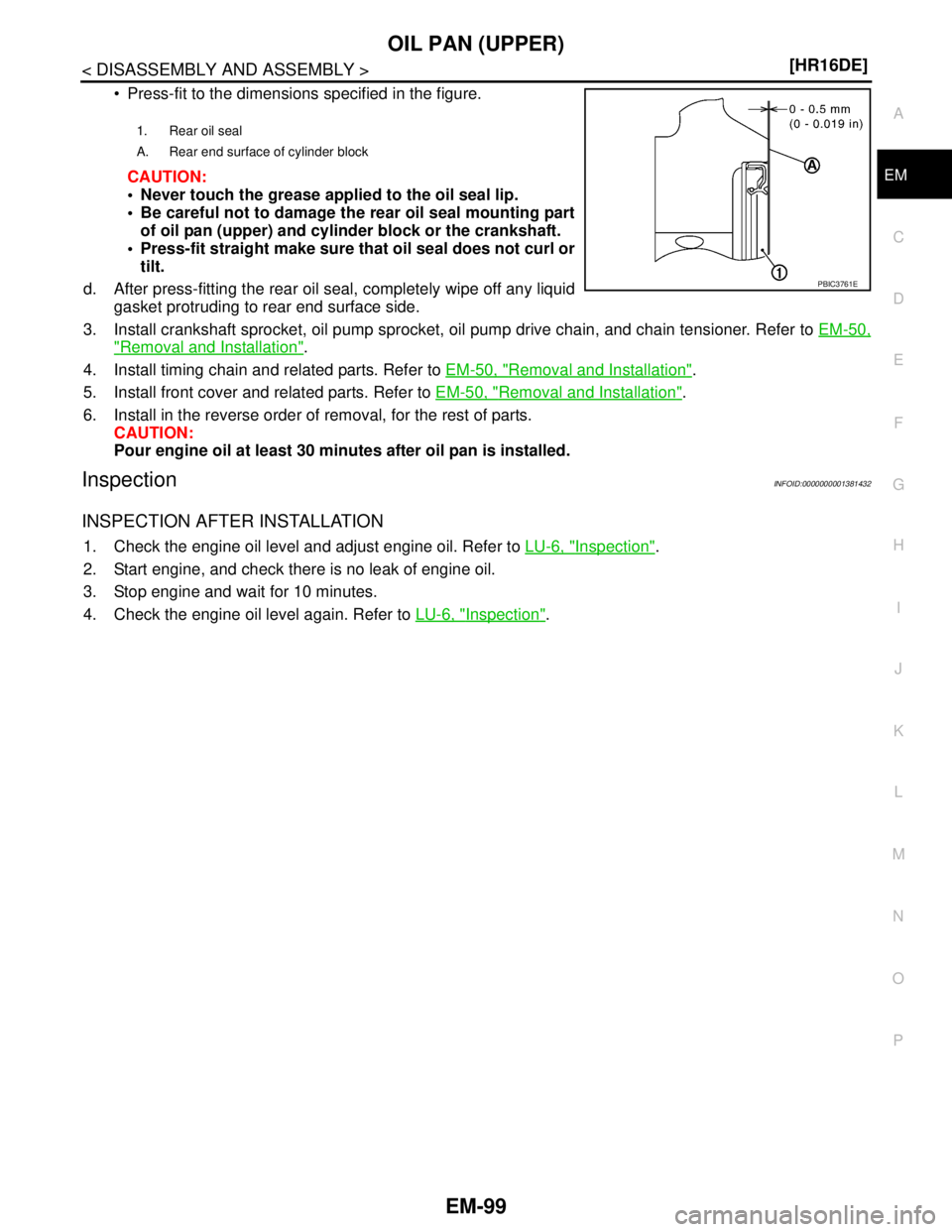

c. Press-fit the rear oil seal using a drift with outer diameter 113
mm (4.45 in) and inner diameter 90 mm (3.54 in) (commercial
service tool) (A).
A : 2 mm (0.08 in) protruded to outside
B : 2 mm (0.08 in) protruded to rear oil seal mounting side
: Engine front
: Oil pan out side
PBIC4344E
: Engine front
M8 × 179 mm (7.05 in) : No. 9, 10
M8 × 25 mm (0.98 in) : No. 4, 7, 8
M8 × 90 mm (3.54 in) : No. 1, 2, 3, 5, 6 MBIB1374E
PBIC3660E

OIL PAN (UPPER)
EM-99
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
 Press-fit to the dimensions specified in the figure.
CAUTION:
 Never touch the grease applied to the oil seal lip.
 Be careful not to damage the rear oil seal mounting part
of oil pan (upper) and cylinder block or the crankshaft.
 Press-fit straight make sure that oil seal does not curl or
tilt.
d. After press-fitting the rear oil seal, completely wipe off any liquid
gasket protruding to rear end surface side.
3. Install crankshaft sprocket, oil pump sprocket, oil pump drive chain, and chain tensioner. Refer to EM-50,
"Removal and Installation".
4. Install timing chain and related parts. Refer to EM-50, "
Removal and Installation".
5. Install front cover and related parts. Refer to EM-50, "
Removal and Installation".
6. Install in the reverse order of removal, for the rest of parts.
CAUTION:
Pour engine oil at least 30 minutes after oil pan is installed.
InspectionINFOID:0000000001381432
INSPECTION AFTER INSTALLATION
1. Check the engine oil level and adjust engine oil. Refer to LU-6, "Inspection".
2. Start engine, and check there is no leak of engine oil.
3. Stop engine and wait for 10 minutes.
4. Check the engine oil level again. Refer to LU-6, "
Inspection".
1. Rear oil seal
A. Rear end surface of cylinder block
PBIC3761E

EM-100
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
CYLINDER BLOCK
CYLINDER BLOCK
Exploded ViewINFOID:0000000001381433
1. Crankshaft position sensor (POS) cover 2. Crankshaft position sensor (POS) 3. O-ring
4. Water drain plug 5. Cylinder block 6. Oil level gauge
7. Oil level gauge guide 8. O-ring 9. Knock sensor
AWBIA0153GB

CYLINDER BLOCK
EM-101
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Disassembly and AssemblyINFOID:0000000001381434
DISASSEMBLY
1. Remove oil pan (upper). Refer to EM-96, "Removal and Installation".
2. Remove cylinder head. Refer to EM-80, "
Removal and Installation".
3. Remove knock sensor.
CAUTION:
Carefully handle knock sensor avoiding shocks.
4. Remove crankshaft position sensor (POS) and cover.
CAUTION:
 Avoid impacts such as a dropping.
 Never disassemble.
 Keep it away from metal particles.
 Never place the sensor where it is exposed to magnetism.

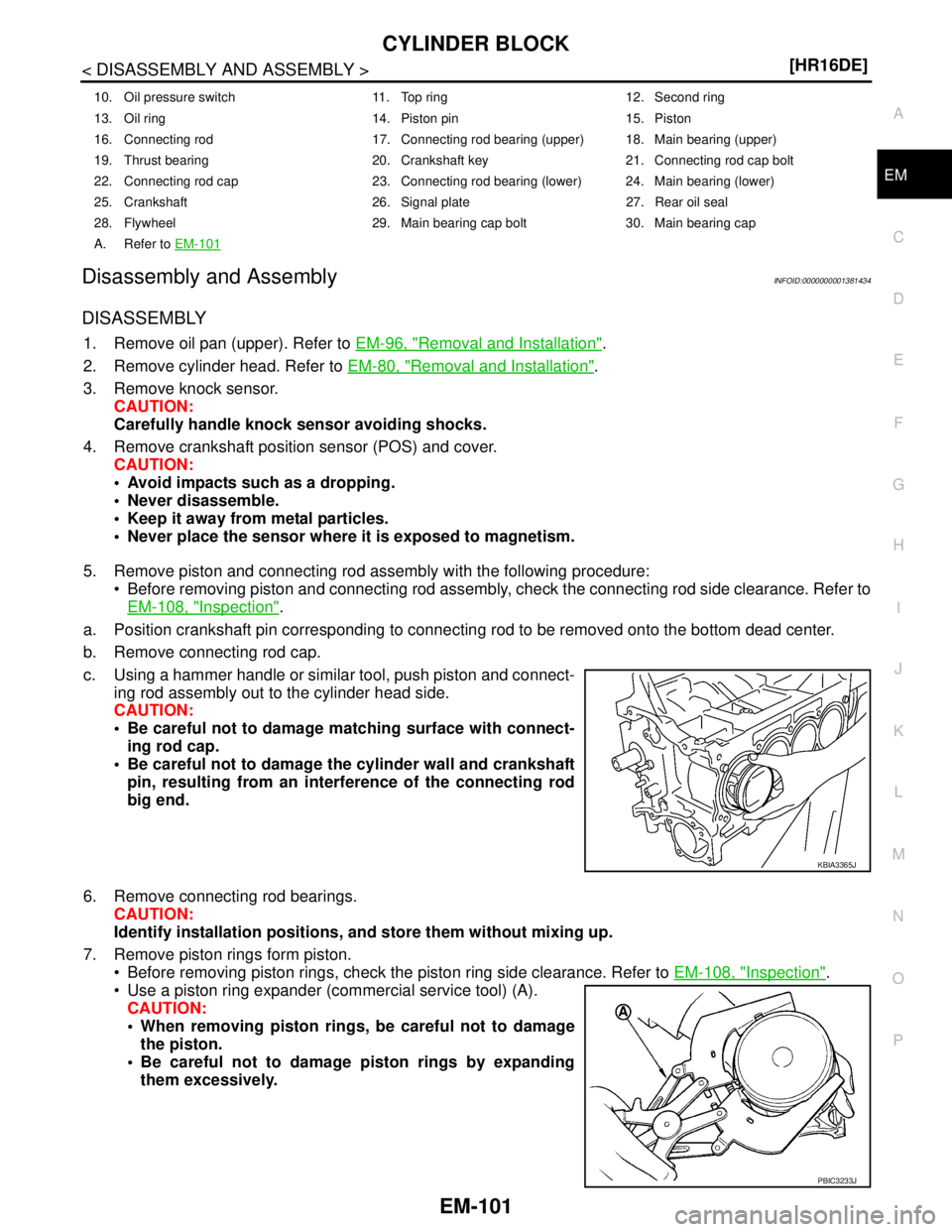

5. Remove piston and connecting rod assembly with the following procedure:
 Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer to
EM-108, "
Inspection".
a. Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.
b. Remove connecting rod cap.
c. Using a hammer handle or similar tool, push piston and connect-
ing rod assembly out to the cylinder head side.
CAUTION:
 Be careful not to damage matching surface with connect-
ing rod cap.
 Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interference of the connecting rod
big end.
6. Remove connecting rod bearings.
CAUTION:
Identify installation positions, and store them without mixing up.
7. Remove piston rings form piston.
 Before removing piston rings, check the piston ring side clearance. Refer to EM-108, "
Inspection".
 Use a piston ring expander (commercial service tool) (A).
CAUTION:
 When removing piston rings, be careful not to damage
the piston.
 Be careful not to damage piston rings by expanding
them excessively.

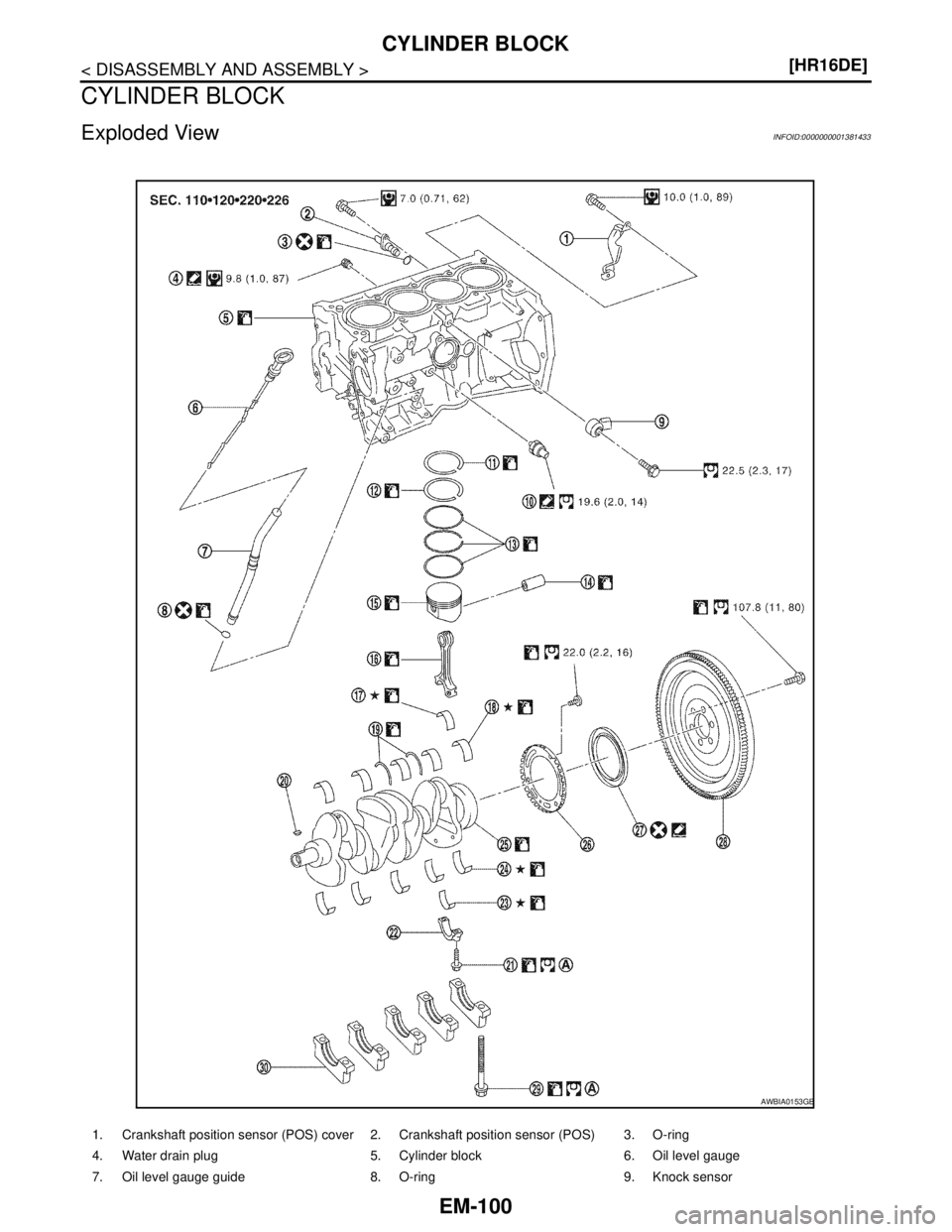

10. Oil pressure switch 11. Top ring 12. Second ring
13. Oil ring 14. Piston pin 15. Piston
16. Connecting rod 17. Connecting rod bearing (upper) 18. Main bearing (upper)
19. Thrust bearing 20. Crankshaft key 21. Connecting rod cap bolt
22. Connecting rod cap 23. Connecting rod bearing (lower) 24. Main bearing (lower)
25. Crankshaft 26. Signal plate 27. Rear oil seal
28. Flywheel 29. Main bearing cap bolt 30. Main bearing cap
A. Refer to EM-101
KBIA3365J
PBIC3233J

EM-102
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
CYLINDER BLOCK
8. Remove piston from connecting rod.

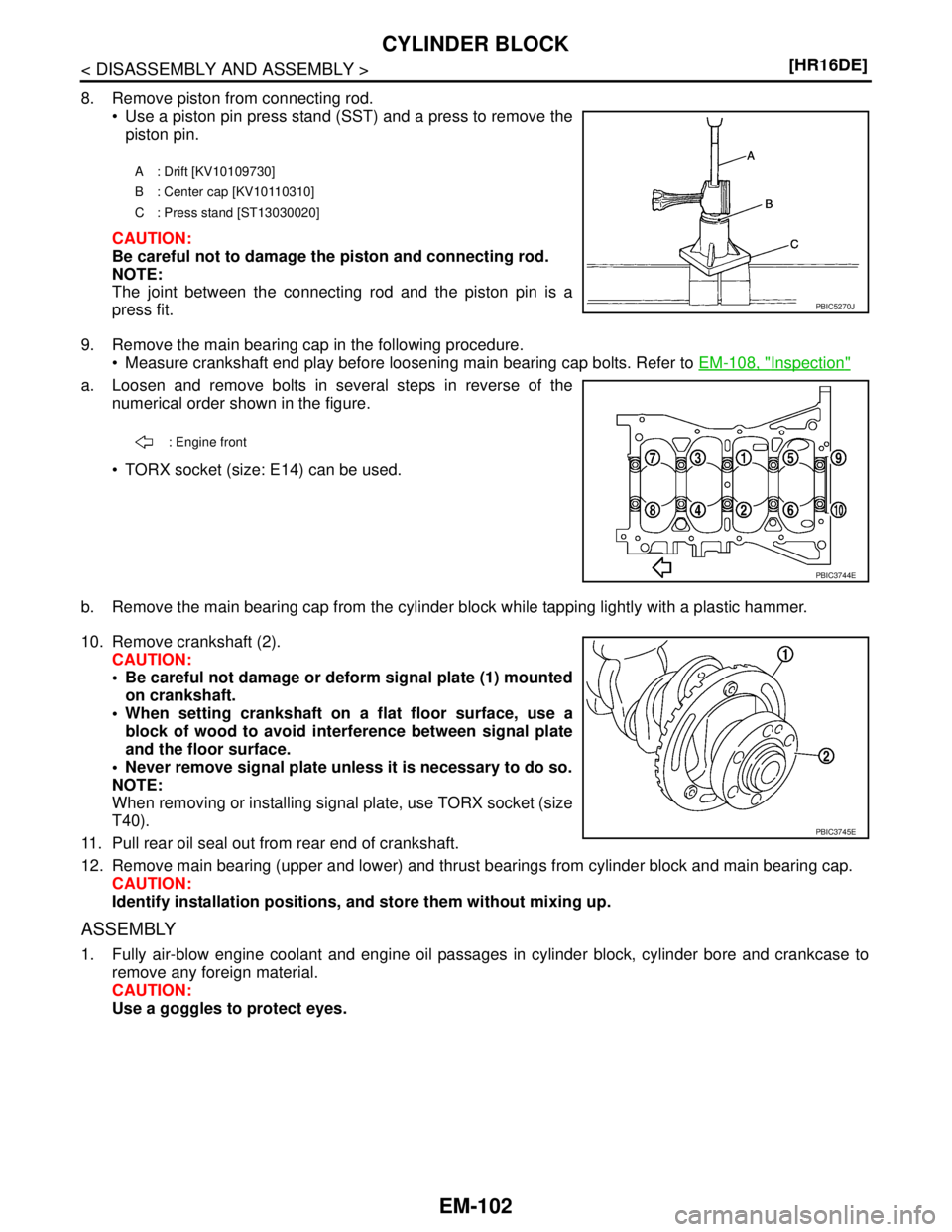

 Use a piston pin press stand (SST) and a press to remove the
piston pin.
CAUTION:
Be careful not to damage the piston and connecting rod.
NOTE:
The joint between the connecting rod and the piston pin is a
press fit.
9. Remove the main bearing cap in the following procedure.
 Measure crankshaft end play before loosening main bearing cap bolts. Refer to EM-108, "
Inspection"
a. Loosen and remove bolts in several steps in reverse of the
numerical order shown in the figure.
 TORX socket (size: E14) can be used.
b. Remove the main bearing cap from the cylinder block while tapping lightly with a plastic hammer.
10. Remove crankshaft (2).
CAUTION:
 Be careful not damage or deform signal plate (1) mounted
on crankshaft.
 When setting crankshaft on a flat floor surface, use a
block of wood to avoid interference between signal plate
and the floor surface.
 Never remove signal plate unless it is necessary to do so.
NOTE:
When removing or installing signal plate, use TORX socket (size
T40).
11. Pull rear oil seal out from rear end of crankshaft.
12. Remove main bearing (upper and lower) and thrust bearings from cylinder block and main bearing cap.
CAUTION:
Identify installation positions, and store them without mixing up.
ASSEMBLY
1. Fully air-blow engine coolant and engine oil passages in cylinder block, cylinder bore and crankcase to
remove any foreign material.
CAUTION:
Use a goggles to protect eyes.
A : Drift [KV10109730]
B : Center cap [KV10110310]
C : Press stand [ST13030020]
PBIC5270J
: Engine front
PBIC3744E
PBIC3745E

CYLINDER BLOCK
EM-103
< DISASSEMBLY AND ASSEMBLY >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
2. Install water drain plug (1) to cylinder block as shown in the fig-
ure.
Use Genuine Liquid Gasket or equivalent.
3. Install main bearings and thrust bearings with the following procedure:
a. Remove dust, dirt, and engine oil on the bearing mating surfaces of cylinder block.
b. Install thrust bearings to the both sides of the No. 3 journal hous-
ing (B) on cylinder block.
 Install thrust bearings with the oil groove (A) facing crankshaft
arm (outside).
c. Install the main bearings (1) paying attention to the direction.
 Install the one with oil holes (A) onto cylinder block and the
one without oil holes onto main bearing cap.
 Before installing main bearings, apply new engine oil to the
bearing surface (inside). Do not apply engine oil to the back
surface, but thoroughly clean it.
 Ensure the oil holes on cylinder block and those on the corre-
sponding bearing are aligned.
 Install the main bearing in the position shown in the figure.
NOTE:
Install the main bearing in the center position with the following
dimension. For service operation, the center position can be
checked visually.
: Engine front
PBIC3742E
: Engine front
PBIC3258J
PBIC3746E
1 : Cylinder block
2 : Main bearing (upper)
3 : Main bearing (lower)
4 : Main bearing cap
: Engine front
PBIC3747E
Journal position No. 1 No. 2 No. 3 No. 4 No. 5
L1 [Unit: mm (in)]1.65–2.05 1.25–1.65 2.30–2.70 1.25–1.65 1.60–2.00
(0.065-0.081) (0.049-0.065) (0.091-0.106) (0.049-0.065) (0.063-0.079)
L2 [Unit: mm (in)]1.30–1.70 1.30–1.70 2.30–2.70 1.30–1.70 1.30–1.70
(0.051-0.067) (0.051-0.067) (0.091-0.106) (0.051-0.067) (0.051-0.067)
