PTC HEATER CONTROL SYSTEM
PTC HEATER (300 WATT)
PTC HEATER (300 WATT) : Wiring Diagram - PTC Heater (300 Watt) -INFOID:0000000001686215
ALIWA0041GB

HAC-290
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
PTC HEATER CONTROL SYSTEM
ALIIA0167GB

PTC HEATER CONTROL SYSTEM
HAC-291
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
ALIIA0168GB

HAC-292
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
PTC HEATER CONTROL SYSTEM

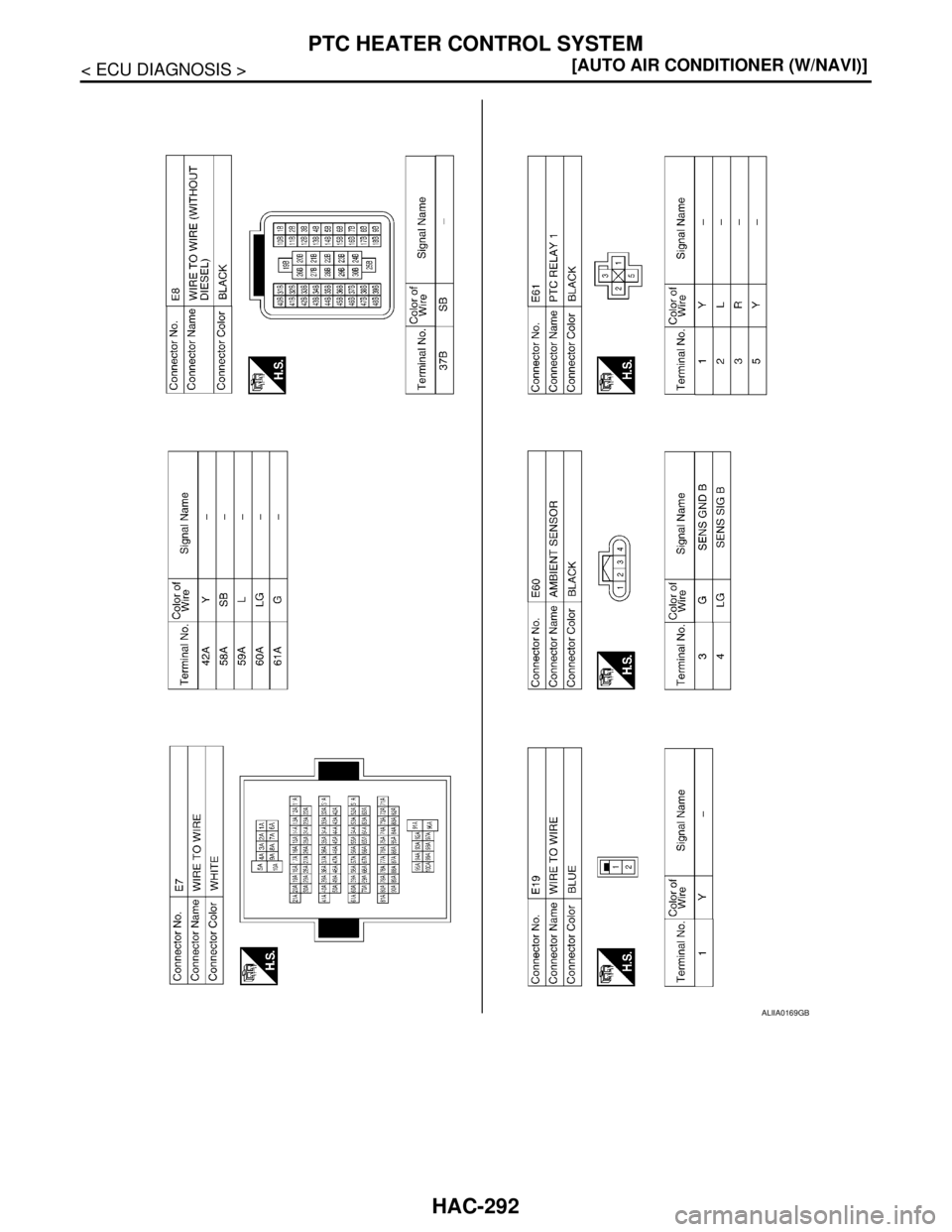

ALIIA0169GB

PTC HEATER CONTROL SYSTEM
HAC-293
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
PTC HEATER (1500 WATT)

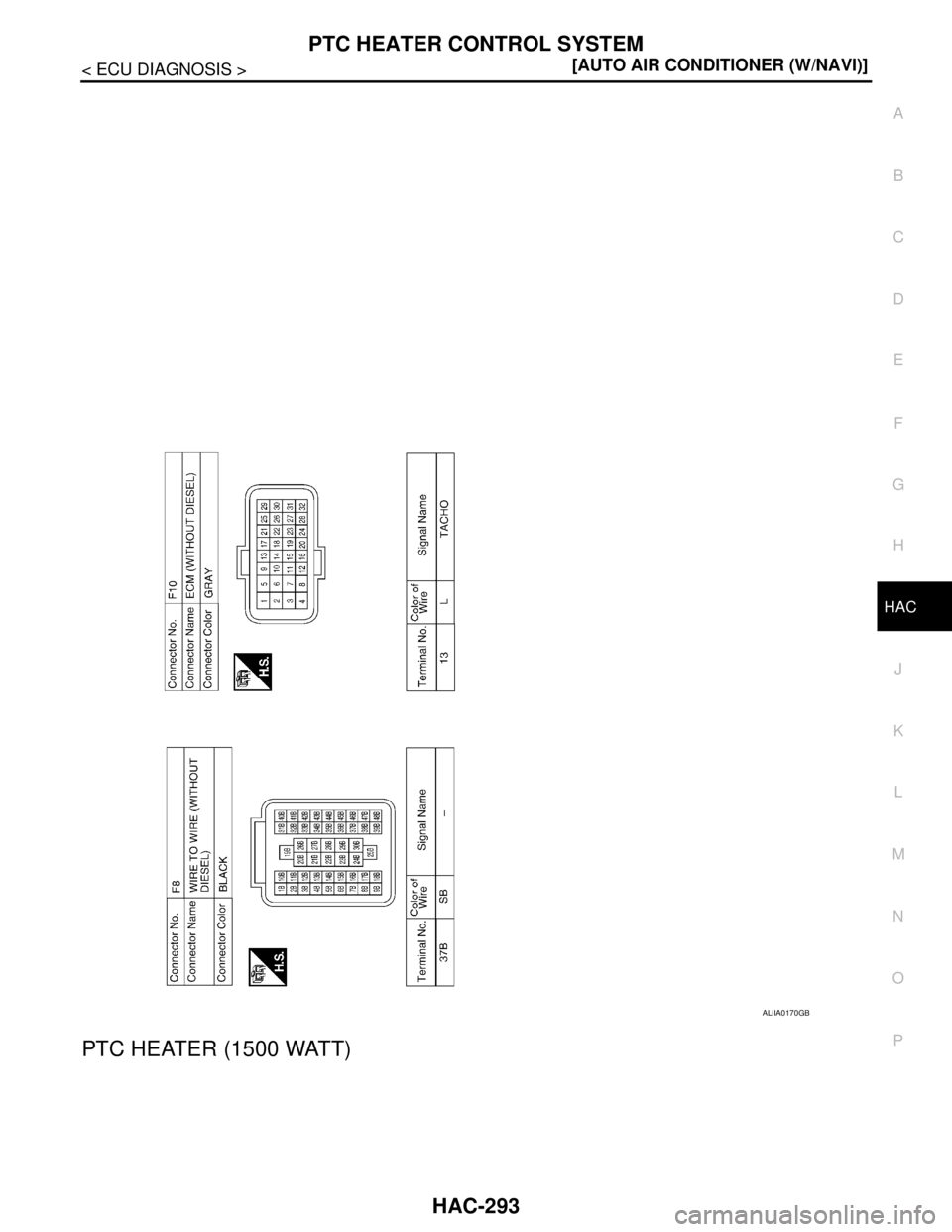

ALIIA0170GB

HAC-294
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
PTC HEATER CONTROL SYSTEM

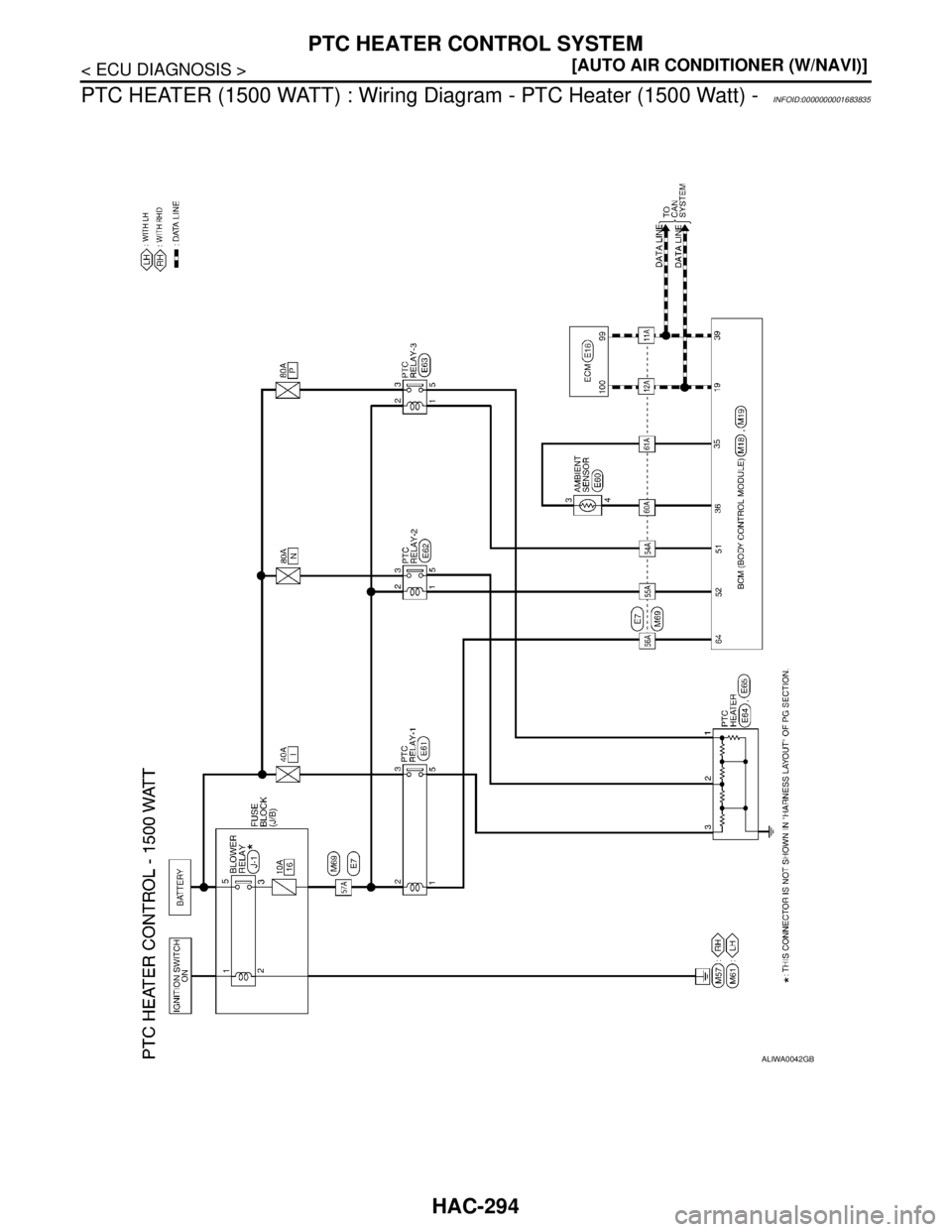

PTC HEATER (1500 WATT) : Wiring Diagram - PTC Heater (1500 Watt) -
INFOID:0000000001683835
ALIWA0042GB

PTC HEATER CONTROL SYSTEM
HAC-295
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P

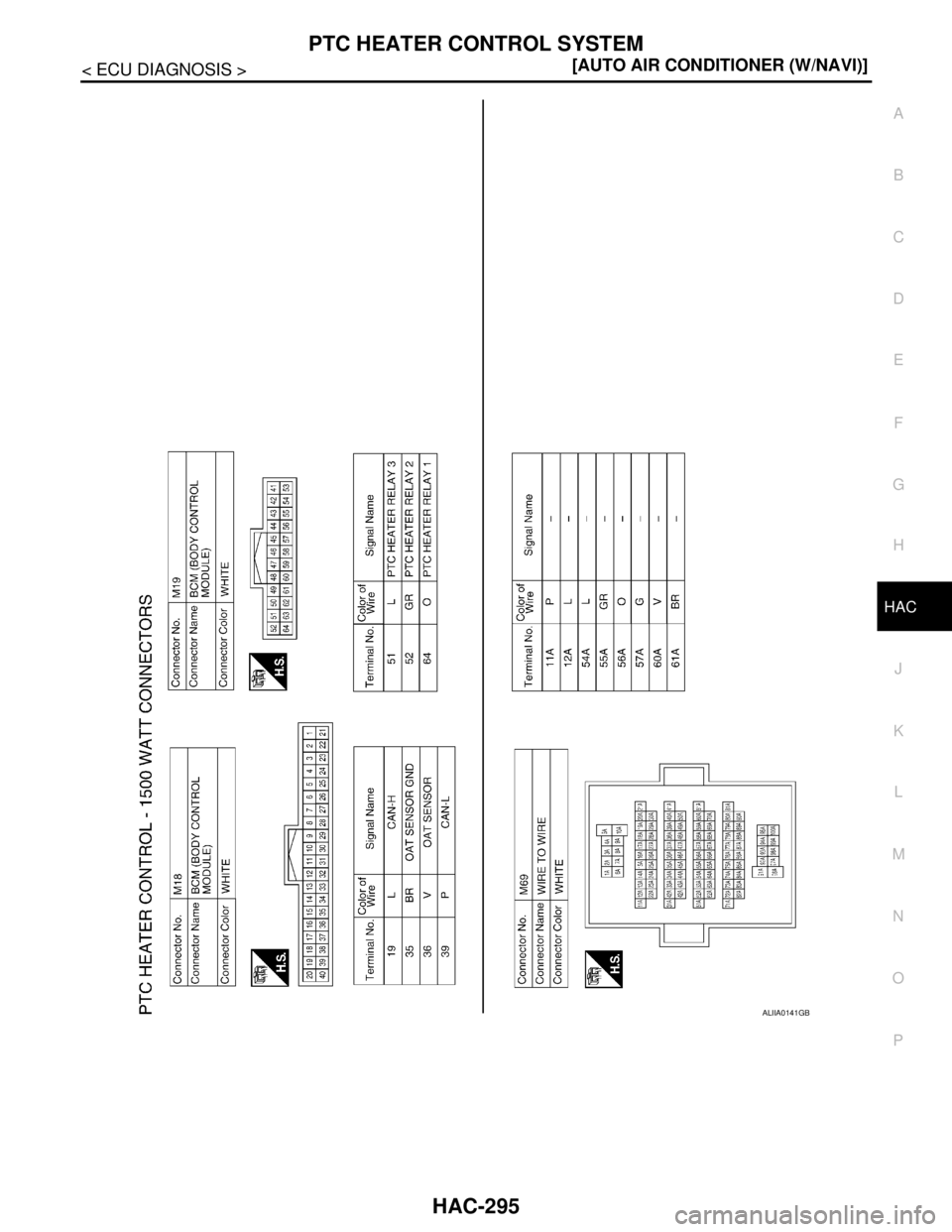

ALIIA0141GB

HAC-296
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
PTC HEATER CONTROL SYSTEM

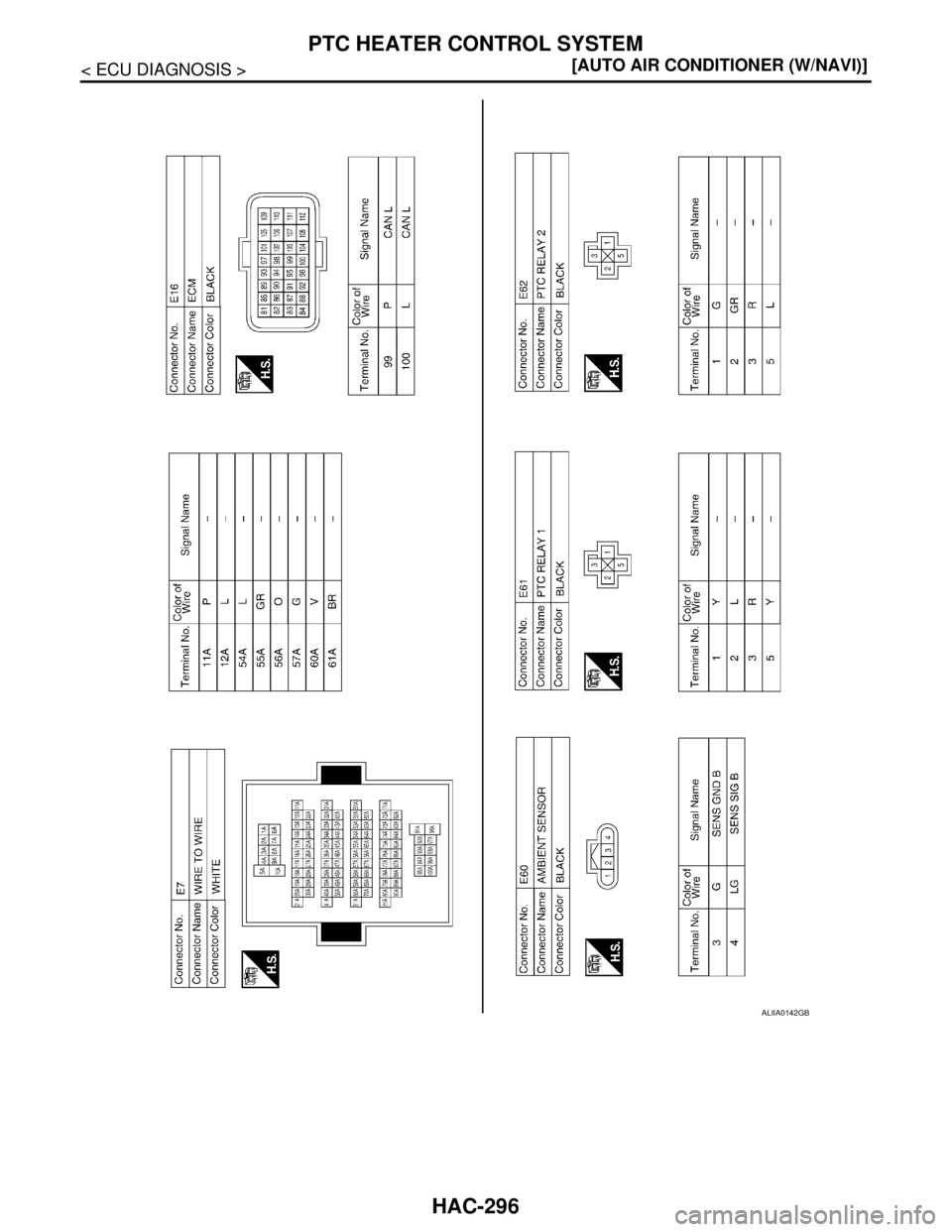

ALIIA0142GB

PTC HEATER CONTROL SYSTEM
HAC-297
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P

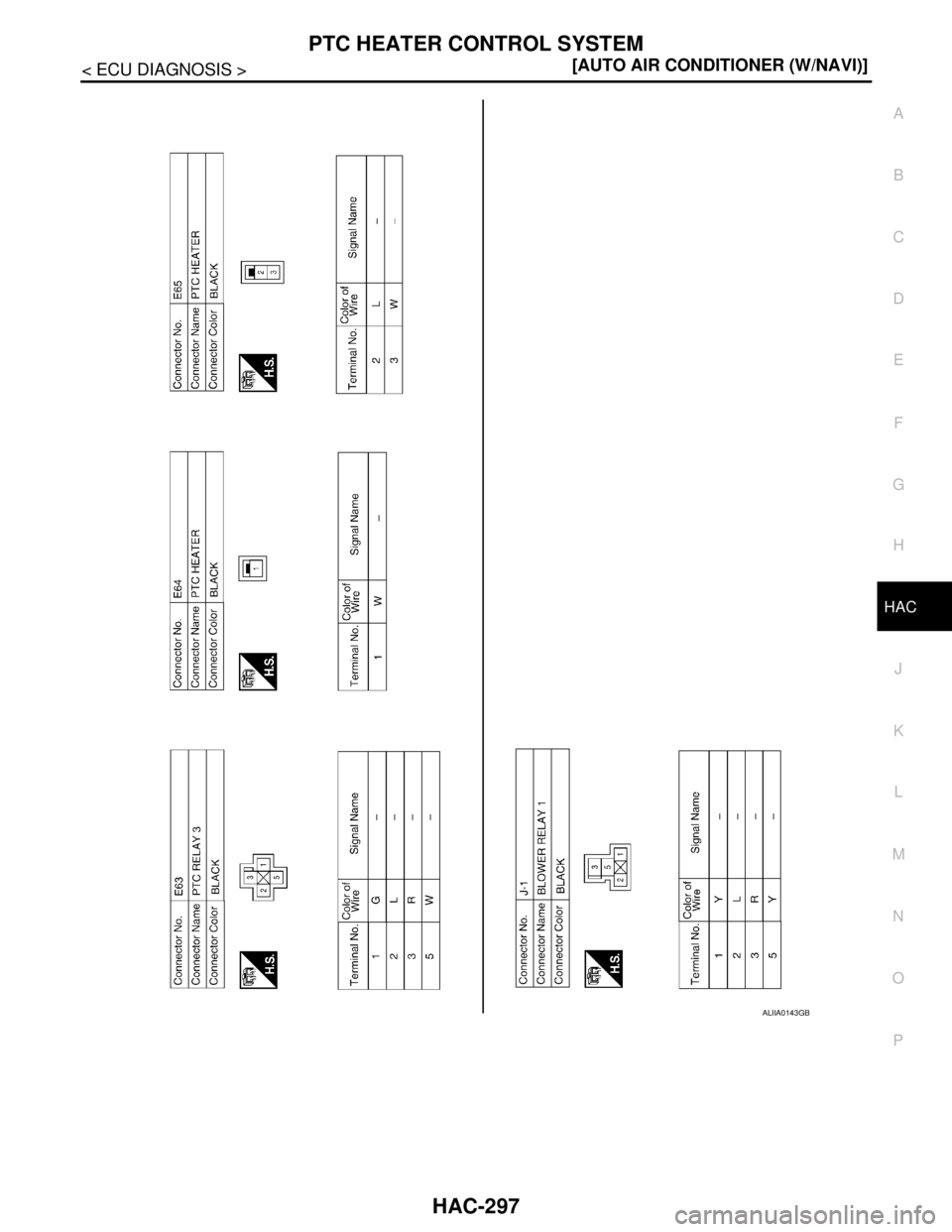

ALIIA0143GB
