NISSAN TIIDA 2007 Service Repair Manual

BRC-128
< COMPONENT DIAGNOSIS >[ESP/TCS/ABS]
C1116 STOP LAMP SWITCH
1. Disconnect the stop lamp relay harness connector E12.
2. Check the continuity between the ABS actuator and electric unit
(control unit) harness connector E125 (B) terminal 41 and stop
lamp relay harness connector E12 (A) terminal 4.
Is the inspection result normal?
YES >> Refer to BRC-86, "Work Flow".
NO >> Repair or replace malfunctioning components.
Special Repair RequirementINFOID:0000000001731117
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to BRC-90, "
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL
POSITION : Description".
>> GO TO 2
2.CALIBRATION OF DECEL G SENSOR
Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to BRC-91, "
CALIBRATION OF DECEL G SENSOR : Description".
>> END Continuity should exist.
AWFIA0020ZZ

C1120, C1122, C1124, C1126 IN ABS SOL
BRC-129
< COMPONENT DIAGNOSIS >[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
C1120, C1122, C1124, C1126 IN ABS SOL
DescriptionINFOID:0000000001731118
The solenoid valve increases, holds or decreases the fluid pressure of each brake caliper according to the sig-
nals transmitted by the ABS actuator and electric unit (control unit).
DTC LogicINFOID:0000000001731119
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> Proceed to diagnosis procedure. Refer to BRC-46, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001731120
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connector.
3. Check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.
4. Reconnect connectors and then perform the self-diagnosis. Refer to BRC-25, "
CONSULT-III Function
(ABS)".
Is any item indicated on the self-diagnosis display?
YES >> GO TO 2
NO >> Poor connection of connector terminal. Repair or replace connector.
2.CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACTUATOR RELAY POWER SUPPLY CIRCUIT
DTC Display item Malfunction detected condition Possible cause
C1120 FR LH IN ABS SOLWhen the control unit detects a malfunction in the front
LH inlet solenoid circuit.
 ABS actuator and electric unit
(control unit) C1122 FR RH IN ABS SOLWhen the control unit detects a malfunction in the front
RH inlet solenoid circuit.
C1124 RR LH IN ABS SOLWhen the control unit detects a malfunction in the rear LH
inlet solenoid circuit.
C1126 RR RH IN ABS SOLWhen the control unit detects a malfunction in the rear
RH inlet solenoid circuit.
Self-diagnosis results
FR LH IN ABS SOL
FR RH IN ABS SOL
RR LH IN ABS SOL
RR RH IN ABS SOL

BRC-130
< COMPONENT DIAGNOSIS >[ESP/TCS/ABS]
C1120, C1122, C1124, C1126 IN ABS SOL

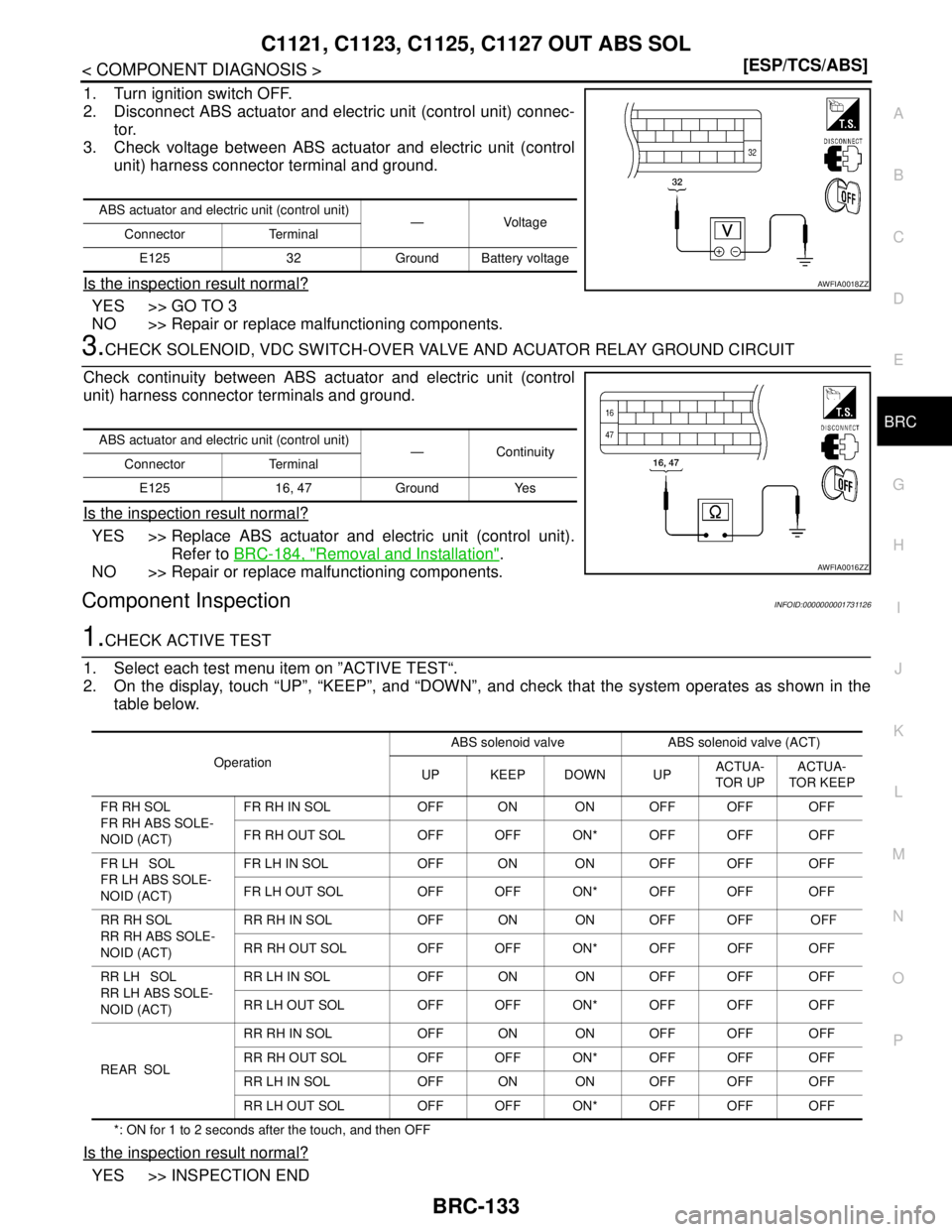

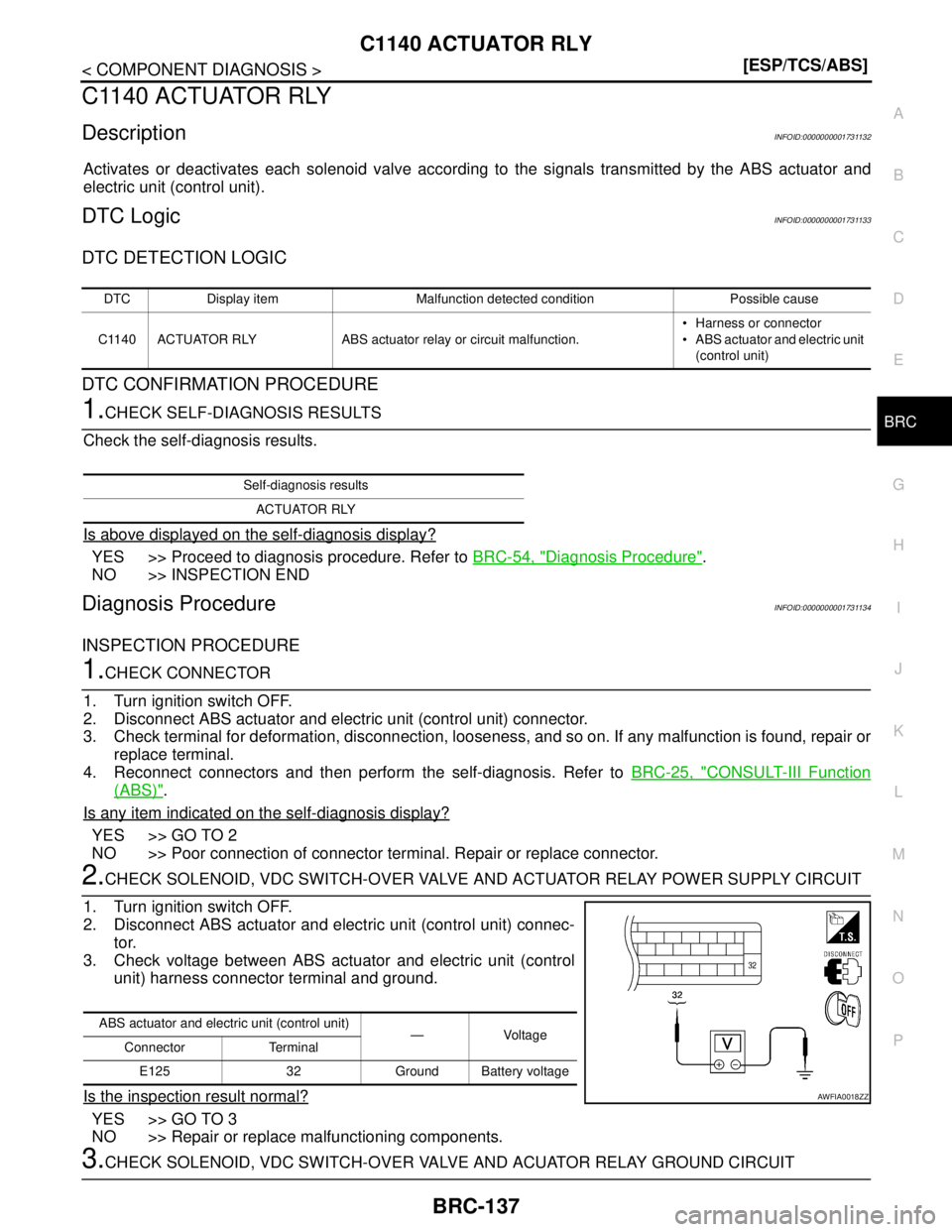

1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connec-
tor.
3. Check voltage between ABS actuator and electric unit (control
unit) harness connector terminal and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace malfunctioning components.
3.CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACUATOR RELAY GROUND CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector terminals and ground.
Is the inspection result normal?
YES >> Replace ABS actuator and electric unit (control unit).
Refer to BRC-184, "
Removal and Installation".
NO >> Repair or replace malfunctioning components.
Component InspectionINFOID:0000000001731121
1.CHECK ACTIVE TEST
1. Select each test menu item on ”ACTIVE TEST“.
2. On the display, touch “UP”, “KEEP”, and “DOWN”, and check that the system operates as shown in the
table below.
*: ON for 1 to 2 seconds after the touch, and then OFF
Is the inspection result normal?
YES >> INSPECTION END
ABS actuator and electric unit (control unit)
—Voltage
Connector Terminal
E125 32 Ground Battery voltage
AWFIA0018ZZ
ABS actuator and electric unit (control unit)
— Continuity
Connector Terminal
E125 16, 47 Ground Yes
AWFIA0016ZZ
OperationABS solenoid valve ABS solenoid valve (ACT)
UP KEEP DOWN UPACTUA-
TOR UPACTUA-
TOR KEEP
FR RH SOL
FR RH ABS SOLE-
NOID (ACT)FR RH IN SOL OFF ON ON OFF OFF OFF
FR RH OUT SOL OFF OFF ON* OFF OFF OFF
FR LH SOL
FR LH ABS SOLE-
NOID (ACT)FR LH IN SOL OFF ON ON OFF OFF OFF
FR LH OUT SOL OFF OFF ON* OFF OFF OFF
RR RH SOL
RR RH ABS SOLE-
NOID (ACT)RR RH IN SOL OFF ON ON OFF OFF OFF
RR RH OUT SOL OFF OFF ON* OFF OFF OFF
RR LH SOL
RR LH ABS SOLE-
NOID (ACT)RR LH IN SOL OFF ON ON OFF OFF OFF
RR LH OUT SOL OFF OFF ON* OFF OFF OFF
REAR SOLRR RH IN SOL OFF ON ON OFF OFF OFF
RR RH OUT SOL OFF OFF ON* OFF OFF OFF
RR LH IN SOL OFF ON ON OFF OFF OFF
RR LH OUT SOL OFF OFF ON* OFF OFF OFF

C1120, C1122, C1124, C1126 IN ABS SOL
BRC-131
< COMPONENT DIAGNOSIS >[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
NO >> Go to diagnosis procedure. Refer to BRC-46, "Diagnosis Procedure".
Special Repair RequirementINFOID:0000000001731122
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to BRC-90, "
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL
POSITION : Description".
>> GO TO 2
2.CALIBRATION OF DECEL G SENSOR
Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to BRC-91, "
CALIBRATION OF DECEL G SENSOR : Description".
>> END

BRC-132
< COMPONENT DIAGNOSIS >[ESP/TCS/ABS]
C1121, C1123, C1125, C1127 OUT ABS SOL
C1121, C1123, C1125, C1127 OUT ABS SOL
DescriptionINFOID:0000000001731123
The solenoid valve increases, holds or decreases the fluid pressure of each brake caliper according to the sig-
nals transmitted by the ABS actuator and electric unit (control unit).
DTC LogicINFOID:0000000001731124
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> Proceed to diagnosis procedure. Refer to BRC-49, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001731125
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connector.
3. Check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.
4. Reconnect connectors and then perform the self-diagnosis. Refer to BRC-25, "
CONSULT-III Function
(ABS)".
Is any item indicated on the self-diagnosis display?
YES >> GO TO 2
NO >> Poor connection of connector terminal. Repair or replace connector.
2.CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACTUATOR RELAY POWER SUPPLY CIRCUIT
DTC Display item Malfunction detected condition Possible cause
C1121 FR LH OUT ABS SOLWhen the control unit detects a malfunction in the front
LH outlet solenoid circuit.
 ABS actuator and electric unit
(control unit) C1123 FR RH OUT ABS SOLWhen the control unit detects a malfunction in the front
RH outlet solenoid circuit.
C1125 RR LH OUT ABS SOLWhen the control unit detects a malfunction in the rear LH
outlet solenoid circuit.
C1127 RR RH OUT ABS SOLWhen the control unit detects a malfunction in the rear
RH outlet solenoid circuit.
Self-diagnosis results
FR LH OUT ABS SOL
FR RH OUT ABS SOL
RR LH OUT ABS SOL
RR RH OUT ABS SOL

C1121, C1123, C1125, C1127 OUT ABS SOL
BRC-133
< COMPONENT DIAGNOSIS >[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connec-
tor.
3. Check voltage between ABS actuator and electric unit (control
unit) harness connector terminal and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace malfunctioning components.
3.CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACUATOR RELAY GROUND CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector terminals and ground.
Is the inspection result normal?
YES >> Replace ABS actuator and electric unit (control unit).
Refer to BRC-184, "
Removal and Installation".
NO >> Repair or replace malfunctioning components.
Component InspectionINFOID:0000000001731126
1.CHECK ACTIVE TEST
1. Select each test menu item on ”ACTIVE TEST“.
2. On the display, touch “UP”, “KEEP”, and “DOWN”, and check that the system operates as shown in the
table below.
*: ON for 1 to 2 seconds after the touch, and then OFF
Is the inspection result normal?
YES >> INSPECTION END
ABS actuator and electric unit (control unit)
—Voltage
Connector Terminal
E125 32 Ground Battery voltage
AWFIA0018ZZ
ABS actuator and electric unit (control unit)
—Continuity
Connector Terminal
E125 16, 47 Ground Yes
AWFIA0016ZZ
OperationABS solenoid valve ABS solenoid valve (ACT)
UP KEEP DOWN UPACTUA-
TOR UPACTUA-
TOR KEEP
FR RH SOL
FR RH ABS SOLE-
NOID (ACT)FR RH IN SOL OFF ON ON OFF OFF OFF
FR RH OUT SOL OFF OFF ON* OFF OFF OFF
FR LH SOL
FR LH ABS SOLE-
NOID (ACT)FR LH IN SOL OFF ON ON OFF OFF OFF
FR LH OUT SOL OFF OFF ON* OFF OFF OFF
RR RH SOL
RR RH ABS SOLE-
NOID (ACT)RR RH IN SOL OFF ON ON OFF OFF OFF
RR RH OUT SOL OFF OFF ON* OFF OFF OFF
RR LH SOL
RR LH ABS SOLE-
NOID (ACT)RR LH IN SOL OFF ON ON OFF OFF OFF
RR LH OUT SOL OFF OFF ON* OFF OFF OFF
REAR SOLRR RH IN SOL OFF ON ON OFF OFF OFF
RR RH OUT SOL OFF OFF ON* OFF OFF OFF
RR LH IN SOL OFF ON ON OFF OFF OFF
RR LH OUT SOL OFF OFF ON* OFF OFF OFF

BRC-134
< COMPONENT DIAGNOSIS >[ESP/TCS/ABS]
C1121, C1123, C1125, C1127 OUT ABS SOL
NO >> Go to diagnosis procedure. Refer to BRC-49, "Diagnosis Procedure".
Special Repair RequirementINFOID:0000000001731127
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to BRC-90, "
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL
POSITION : Description".
>> GO TO 2
2.CALIBRATION OF DECEL G SENSOR
Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to BRC-91, "
CALIBRATION OF DECEL G SENSOR : Description".
>> END

C1130, C1131, C1132, C1133, C1136 ENGINE SIGNAL
BRC-135
< COMPONENT DIAGNOSIS >[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
C1130, C1131, C1132, C1133, C1136 ENGINE SIGNAL
DescriptionINFOID:0000000001731128
ABS actuator and electric unit (control unit) and ECM exchange the engine signal with CAN communication
line.
DTC LogicINFOID:0000000001731129
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> Proceed to diagnosis procedure. Refer to BRC-52, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001731130
INSPECTION PROCEDURE
1.CHECK ENGINE SYSTEM
1. Perform ECM self-diagnosis. Repair or replace items indicated, then perform ECM self-diagnosis again.
Refer to:
-EC-107, "
CONSULT-III Function" (HR16DE with EURO-OBD)
-EC-462, "
CONSULT-III Function" (HR16DE without EURO-OBD)
-EC-772, "
CONSULT-III Function" (MR18DE)
-EC-1104, "
Diagnosis Description" (K9K)
2. Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to BRC-25, "
CONSULT-III Func-
tion (ABS)".
Is any item indicated on the self-diagnosis display?
YES >> Repair or replace the affected part.
NO >> INSPECTION END
Special Repair RequirementINFOID:0000000001731131
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
DTC Display item Malfunction detected condition Possible cause
C1130 ENGINE SIGNAL 1
Based on the signal from ECM, ABS actuator and electric
unit (control unit) judges that engine fuel cut system is
malfunctioning. Harness or connector
 ABS actuator and electric unit
(control unit)
ECM
 CAN communication line C1131 ENGINE SIGNAL 2
C1132 ENGINE SIGNAL 3
C1133 ENGINE SIGNAL 4
C1136 ENGINE SIGNAL 6
Self-diagnosis results
ENGINE SIGNAL 1
ENGINE SIGNAL 2
ENGINE SIGNAL 3
ENGINE SIGNAL 4
ENGINE SIGNAL 6

BRC-136
< COMPONENT DIAGNOSIS >[ESP/TCS/ABS]
C1130, C1131, C1132, C1133, C1136 ENGINE SIGNAL
Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to BRC-90, "
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL
POSITION : Description".
>> GO TO 2
2.CALIBRATION OF DECEL G SENSOR
Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to BRC-91, "
CALIBRATION OF DECEL G SENSOR : Description".
>> END

C1140 ACTUATOR RLY
BRC-137
< COMPONENT DIAGNOSIS >[ESP/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
C1140 ACTUATOR RLY
DescriptionINFOID:0000000001731132
Activates or deactivates each solenoid valve according to the signals transmitted by the ABS actuator and
electric unit (control unit).
DTC LogicINFOID:0000000001731133
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> Proceed to diagnosis procedure. Refer to BRC-54, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001731134
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connector.
3. Check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.
4. Reconnect connectors and then perform the self-diagnosis. Refer to BRC-25, "
CONSULT-III Function
(ABS)".
Is any item indicated on the self-diagnosis display?
YES >> GO TO 2
NO >> Poor connection of connector terminal. Repair or replace connector.
2.CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACTUATOR RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connec-
tor.
3. Check voltage between ABS actuator and electric unit (control
unit) harness connector terminal and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace malfunctioning components.
3.CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACUATOR RELAY GROUND CIRCUIT
DTC Display item Malfunction detected condition Possible cause
C1140 ACTUATOR RLY ABS actuator relay or circuit malfunction. Harness or connector
 ABS actuator and electric unit
(control unit)
Self-diagnosis results
ACTUATOR RLY
ABS actuator and electric unit (control unit)
—Voltage
Connector Terminal
E125 32 Ground Battery voltage
AWFIA0018ZZ
