c. Check that low one-way clutch rotates counter-clockwise around
front planetary carrier. Then try to turn it clockwise and check
that it is locked.
Replace low one-way clutch if necessary.
d. Remove low one-way clutch from front planetary carrier by turn-
ing it in the direction of unlock.
Inspect low one-way clutch, and replace if damaged or
worn.
e. Remove needle bearing (1) from front planetary carrier (2).
Inspect needle bearing (1) and front planetary carrier (2),
and replace if damaged or worn.
f. Check clearance between pinion washer and front planetary
carrier using feeler gauge.
Replace front planetary carrier if the clearance exceeds
allowable limit.
38. Remove rear planetary carrier and rear sun gear according to the following procedures.
a. Remove rear planetary carrier (with rear sun gear) from tran-
saxle case.
SAT048D
SCIA6047J
Standard clearance and allowable limit:
Refer to TM-323, "
Planetary Carrier".
SAT050D
SAT051D

TM-526
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
DISASSEMBLY
b. Remove rear sun gear from rear planetary carrier.
Inspect rear sun gear, and replace if damaged or worn.
c. Remove needle bearing (1) from rear planetary carrier (2).
Inspect needle bearing (1) and rear planetary carrier (2),
and replace if damaged or worn.
d. Check clearance between pinion washer and rear planetary car-
rier using feeler gauge.
Replace rear planetary carrier if the clearance exceeds
allowable limit.
39. Remove rear internal gear (1) and forward clutch hub (2) as a
set from forward clutch drum.
40. Remove needle bearing (1) from rear internal gear (2).
Inspect needle bearing (1), and replace if damaged or
worn.
SAT052D
SCIA5927J
Standard clearance and allowable limit:
Refer to TM-323, "
Planetary Carrier".
SAT054D
SCIA5897J
SCIA6041J

DISASSEMBLY
TM-527
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
41. Remove overrun clutch hub (1) from forward clutch drum.
42. Remove thrust washer (1) from overrun clutch hub (2).
Inspect thrust washer (1) and overrun clutch hub (2), and
replace if damaged or worn.
43. Remove forward clutch assembly and overrun clutch assembly
(1) from transaxle case.
44. Remove needle bearing (1) and thrust washer (2) from bearing
retainer.
Inspect needle bearing (1) and thrust washer (2), and
replace damaged or worn.
45. Remove side cover fitting bolts (1), and then remove side cover
by lightly tapping it using a soft hammer.
CAUTION:
Do not damage side cover.
46. Remove side cover gasket from side cover.
SCIA5898J
SCIA5899J
SCIA5900J
SCIA5901J
SCIA6039J

TM-528
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
DISASSEMBLY
47. Remove output shaft, output gear and reduction gear according to the following procedures.
a. Set manual shaft in “P” position to fix idler gear and output gear.
b. Unlock both idler gear and output gear lock nuts using a pin punch.
c. Remove idler gear and output gear lock nuts.
d. Remove idler gear (2) and output gear (1) using Tool A.
e. Remove reduction pinion gear and output shaft from transaxle
case.
f. Remove reduction pinion gear adjusting shim (1) from reduction
pinion gear (2).
g. Remove output gear adjusting spacer (3) from output shaft (4).
48. Remove bearing retainer fitting bolts, and then remove bearing
retainer (1) from transaxle case.
SAT704D
Tool number: ST27180001
SCIA6991E
SCIA5902J
SCIA5909J

DISASSEMBLY
TM-529
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
49. Remove return spring (2) from parking shaft (3) suitable tool.
(1): Parking pawl
Inspect return spring (2), and replace if damaged or worn.
50. Draw out parking shaft (1), and then remove parking pawl (2)
from transaxle case.
Inspect parking shaft (1) and parking pawl (2), and replace
if damaged or worn.
51. Remove parking actuator support (1) from transaxle case.
Inspect parking actuator support (1), and replace if dam-
aged or worn.
52. Remove snap ring from transaxle case using suitable tool.
53. Remove governor cap from transaxle case.
54. Remove O-ring from governor cap.
55. Remove LH differential side oil seal from transaxle case using
suitable tool.
CAUTION:
Do not scratch transaxle case.
SCIA6996E
SCIA6997E
SCIA6998E
ATM0076D

TM-530
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
REPAIR FOR COMPONENT PARTS
Manual ShaftINFOID:0000000001731435

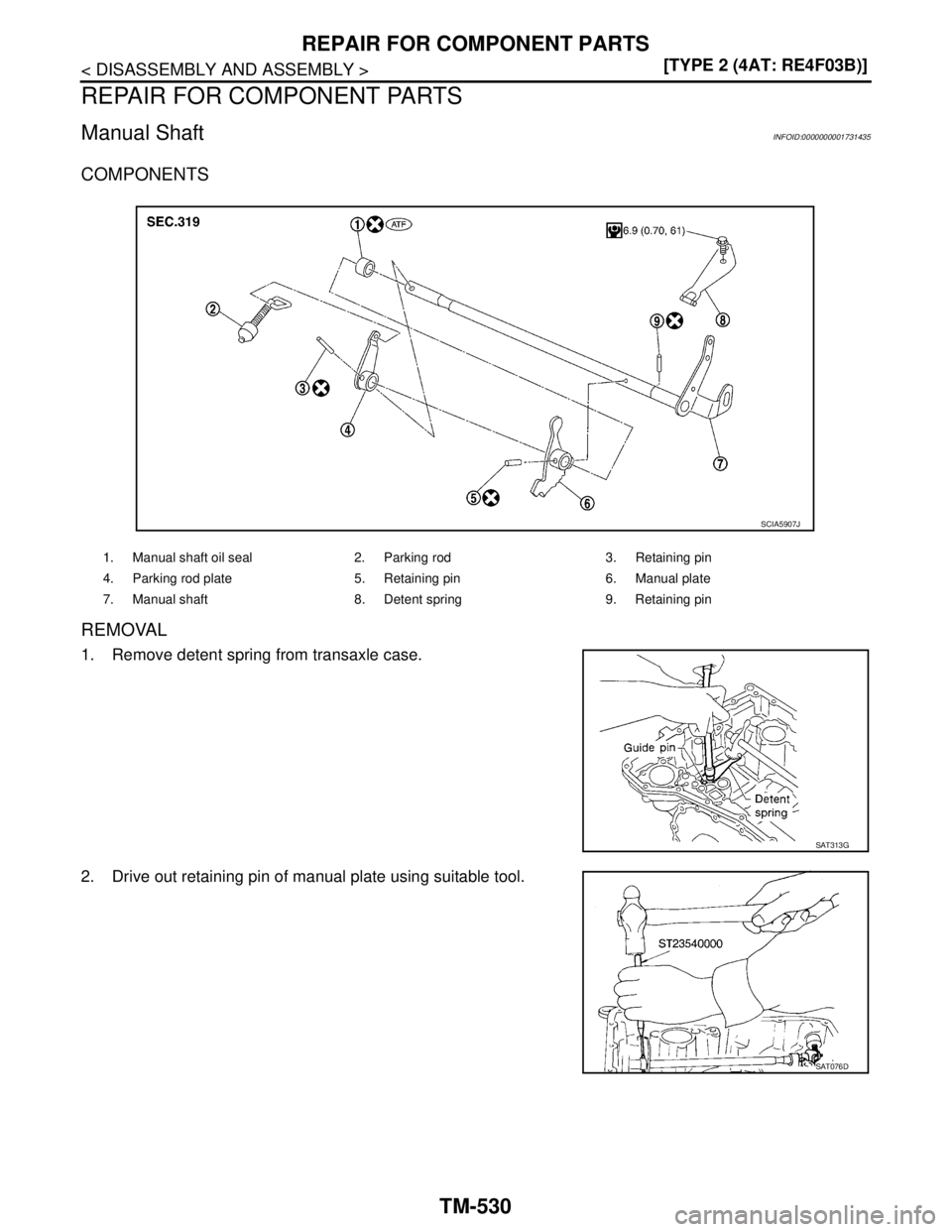

COMPONENTS
REMOVAL
1. Remove detent spring from transaxle case.
2. Drive out retaining pin of manual plate using suitable tool.
1. Manual shaft oil seal 2. Parking rod 3. Retaining pin
4. Parking rod plate 5. Retaining pin 6. Manual plate
7. Manual shaft 8. Detent spring 9. Retaining pin
SCIA5907J
SAT313G
SAT076D

REPAIR FOR COMPONENT PARTS
TM-531
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

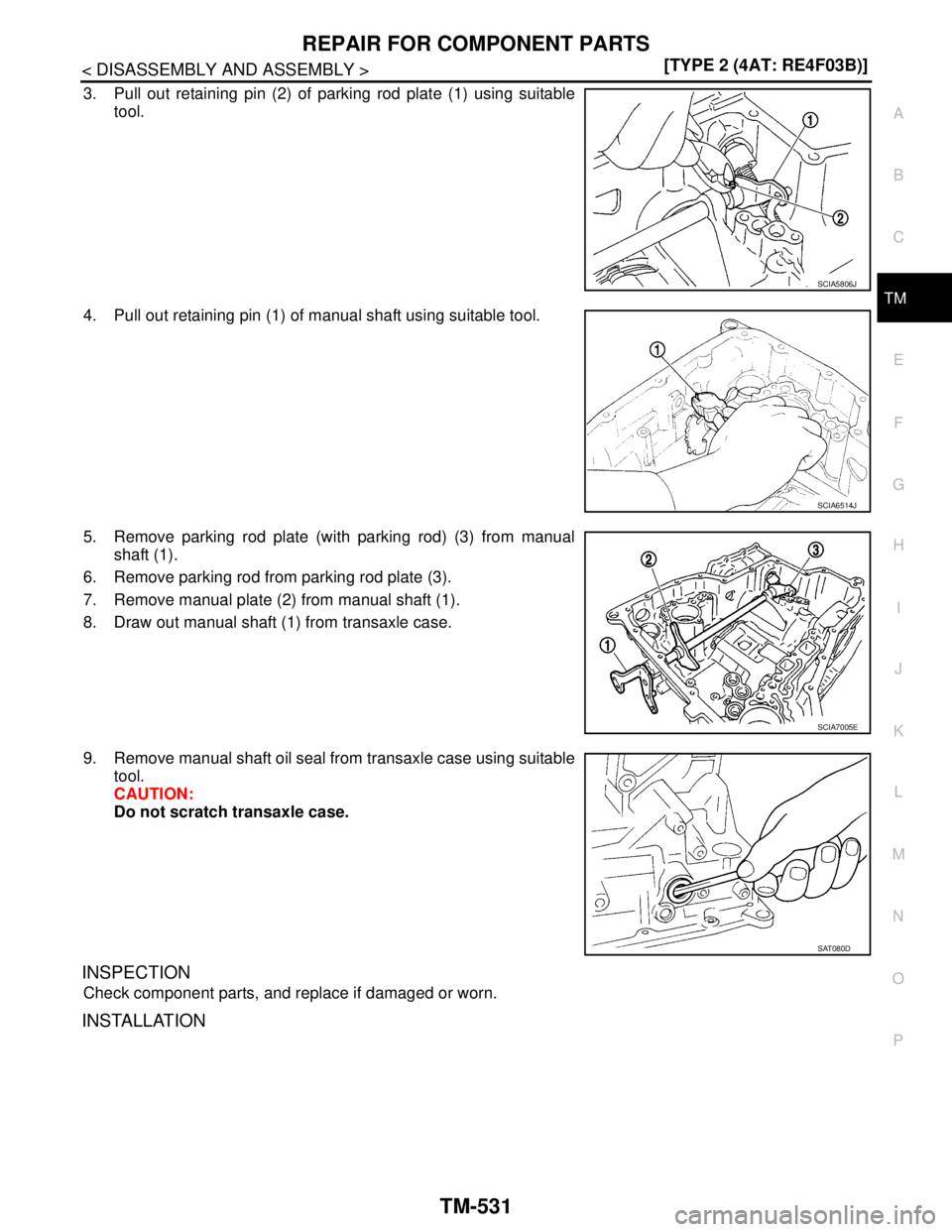

3. Pull out retaining pin (2) of parking rod plate (1) using suitable
tool.
4. Pull out retaining pin (1) of manual shaft using suitable tool.
5. Remove parking rod plate (with parking rod) (3) from manual
shaft (1).
6. Remove parking rod from parking rod plate (3).
7. Remove manual plate (2) from manual shaft (1).
8. Draw out manual shaft (1) from transaxle case.
9. Remove manual shaft oil seal from transaxle case using suitable
tool.
CAUTION:
Do not scratch transaxle case.
INSPECTION
Check component parts, and replace if damaged or worn.
INSTALLATION
SCIA5806J
SCIA6514J
SCIA7005E
SAT080D

TM-532
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS

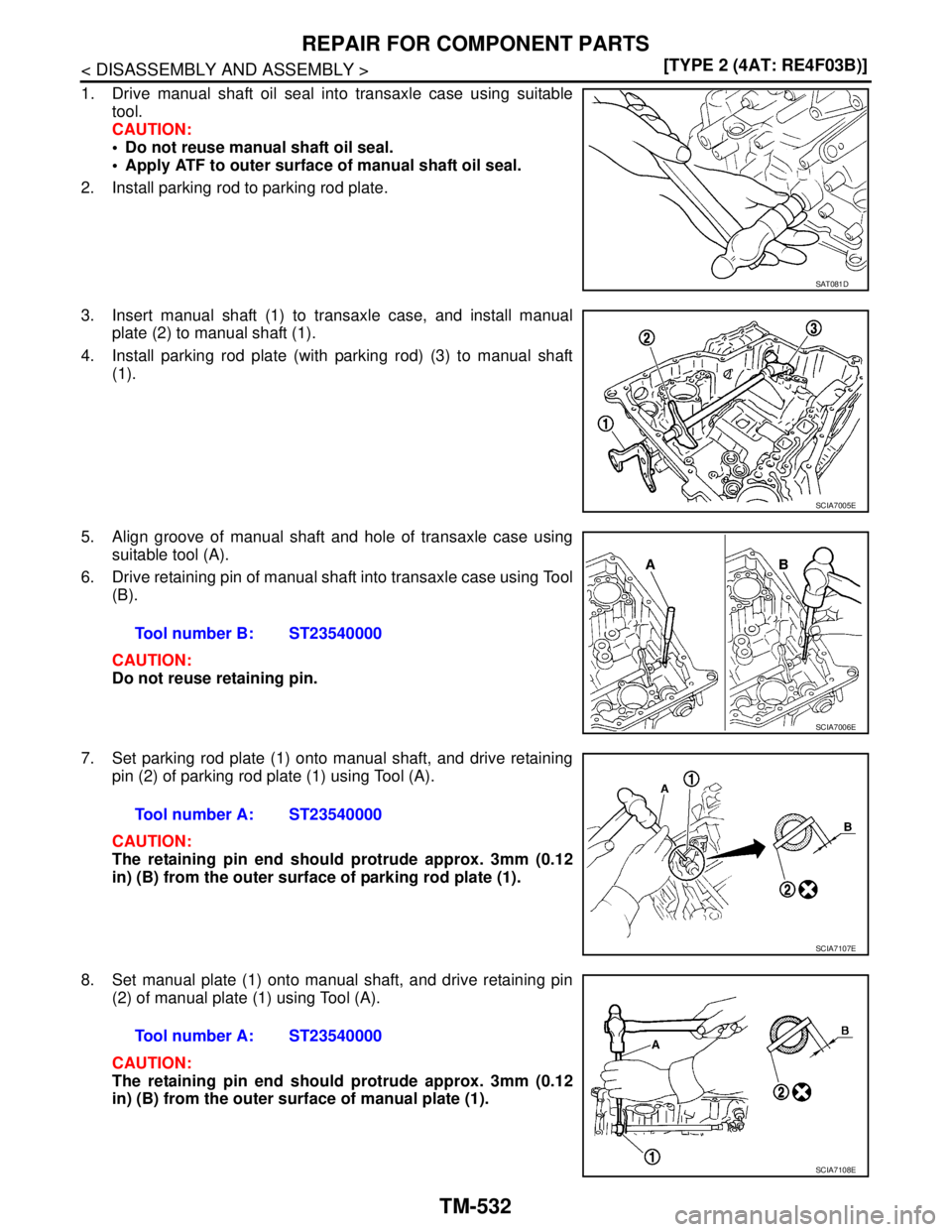

1. Drive manual shaft oil seal into transaxle case using suitable
tool.
CAUTION:
 Do not reuse manual shaft oil seal.
 Apply ATF to outer surface of manual shaft oil seal.
2. Install parking rod to parking rod plate.
3. Insert manual shaft (1) to transaxle case, and install manual
plate (2) to manual shaft (1).
4. Install parking rod plate (with parking rod) (3) to manual shaft
(1).
5. Align groove of manual shaft and hole of transaxle case using
suitable tool (A).
6. Drive retaining pin of manual shaft into transaxle case using Tool
(B).
CAUTION:
Do not reuse retaining pin.
7. Set parking rod plate (1) onto manual shaft, and drive retaining
pin (2) of parking rod plate (1) using Tool (A).
CAUTION:
The retaining pin end should protrude approx. 3mm (0.12
in) (B) from the outer surface of parking rod plate (1).
8. Set manual plate (1) onto manual shaft, and drive retaining pin
(2) of manual plate (1) using Tool (A).
CAUTION:
The retaining pin end should protrude approx. 3mm (0.12
in) (B) from the outer surface of manual plate (1).
SAT081D
SCIA7005E
Tool number B: ST23540000
SCIA7006E
Tool number A: ST23540000
SCIA7107E
Tool number A: ST23540000
SCIA7108E

REPAIR FOR COMPONENT PARTS
TM-533
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
9. Install detent spring on transaxle case.
10. Tighten detent spring bolt to the specified torque. Refer to TM-
213, "Component".
Oil PumpINFOID:0000000001731436

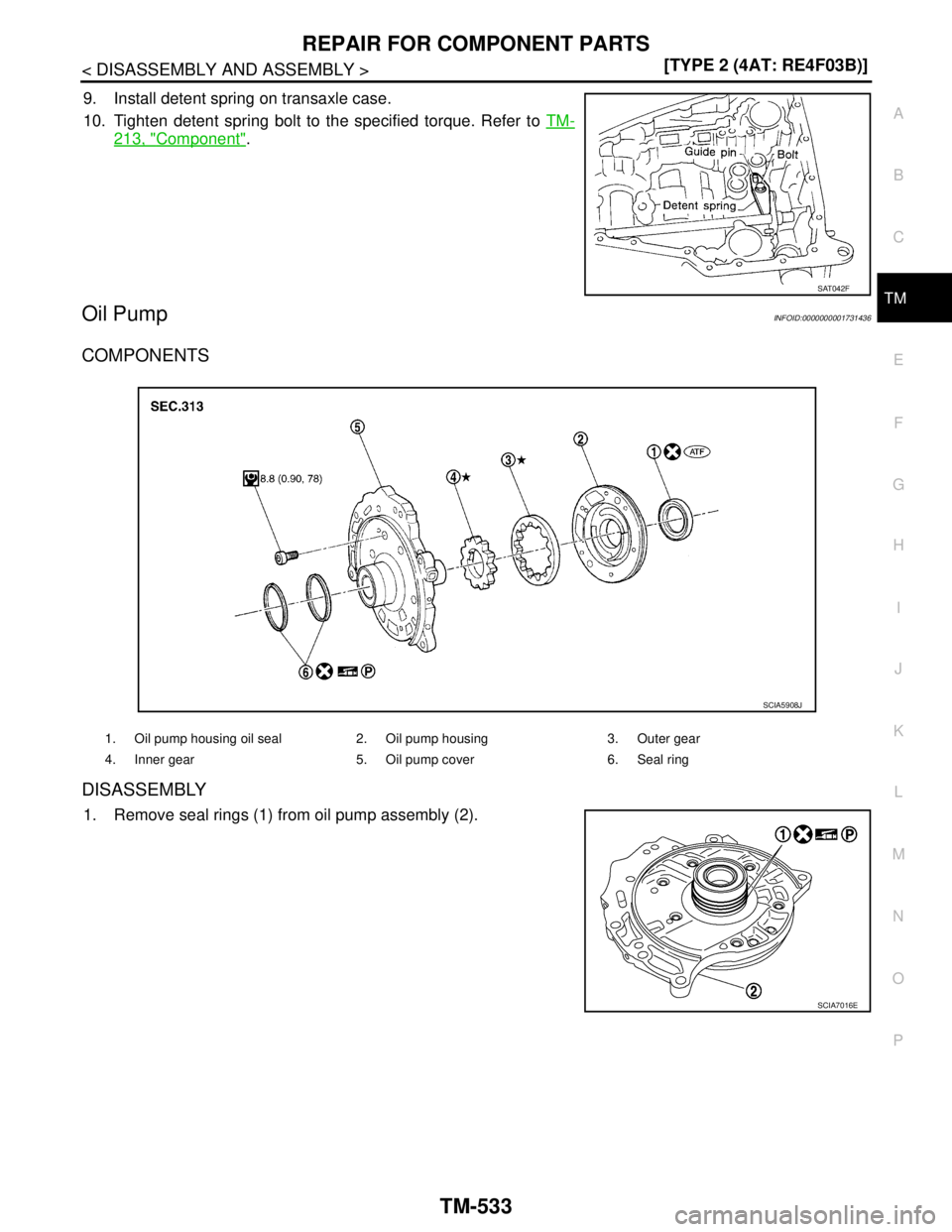

COMPONENTS
DISASSEMBLY
1. Remove seal rings (1) from oil pump assembly (2).
SAT042F
1. Oil pump housing oil seal 2. Oil pump housing 3. Outer gear
4. Inner gear 5. Oil pump cover 6. Seal ring
SCIA5908J
SCIA7016E

TM-534
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS

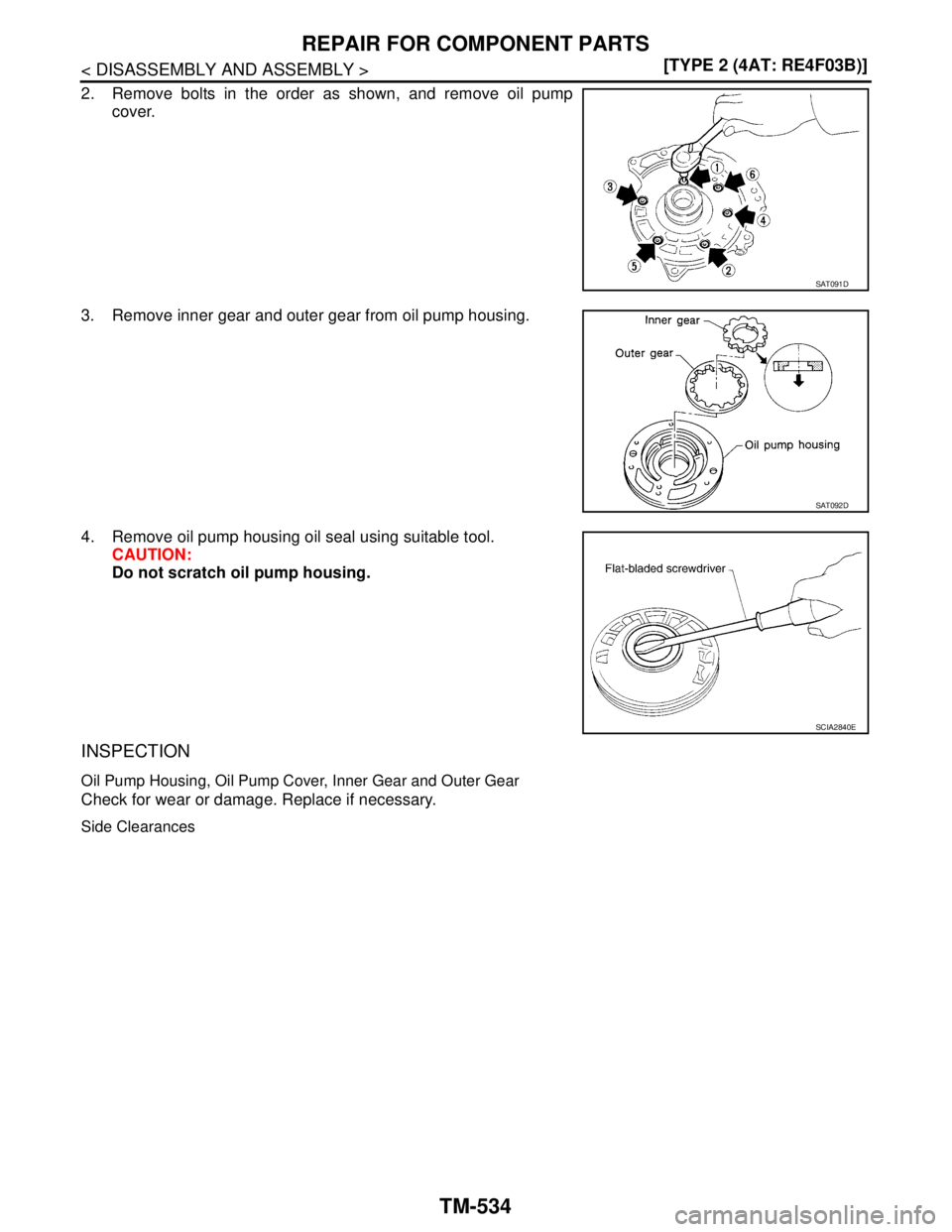

2. Remove bolts in the order as shown, and remove oil pump
cover.
3. Remove inner gear and outer gear from oil pump housing.
4. Remove oil pump housing oil seal using suitable tool.
CAUTION:
Do not scratch oil pump housing.
INSPECTION
Oil Pump Housing, Oil Pump Cover, Inner Gear and Outer Gear
Check for wear or damage. Replace if necessary.
Side Clearances
SAT091D
SAT092D
SCIA2840E
