Page 3661 of 4331
LT
N
O P

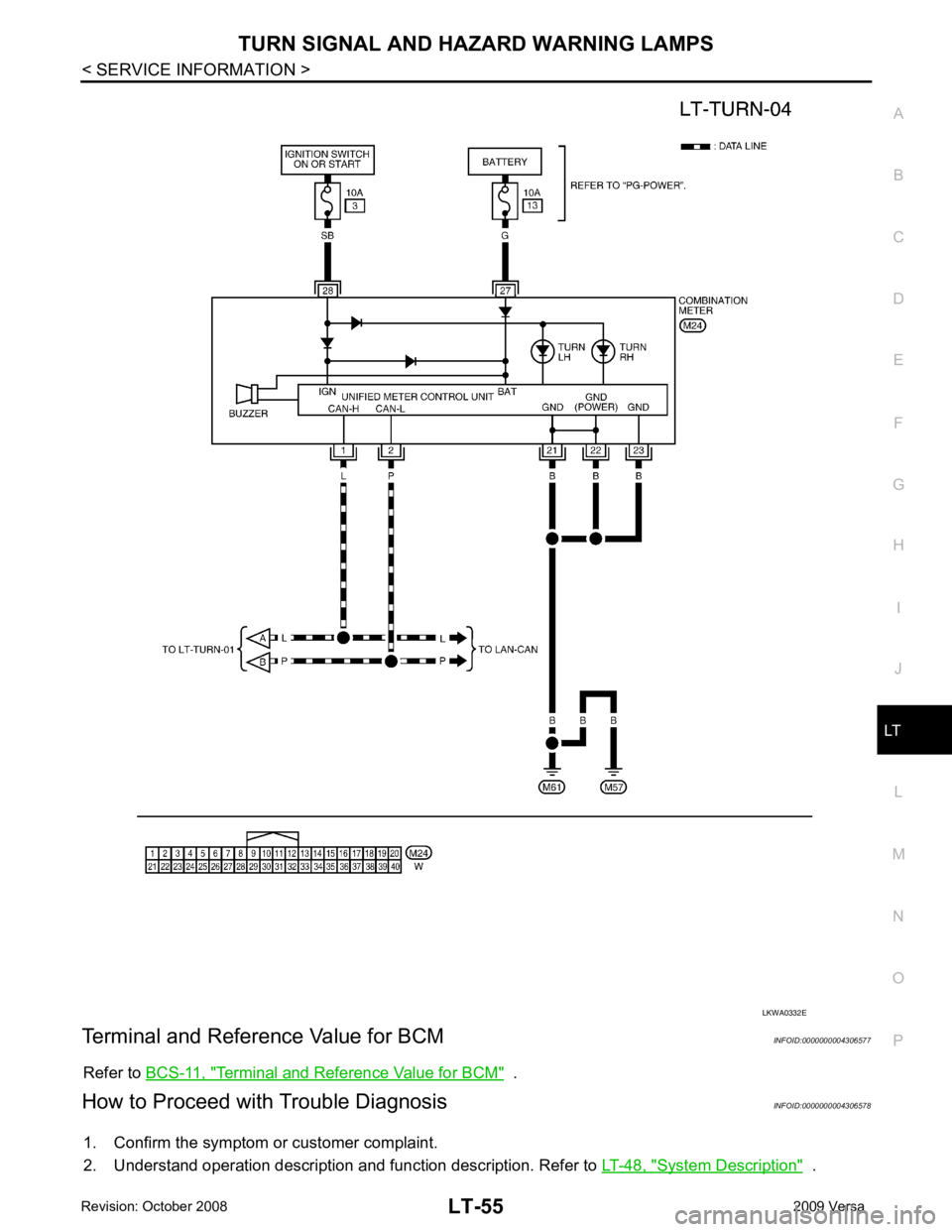

Terminal and Reference Value for BCM
INFOID:0000000004306577
Refer to BCS-11, " Terminal and Reference Value for BCM " .
How to Proceed with Trouble Diagnosis INFOID:0000000004306578
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT-48, " System Description " .

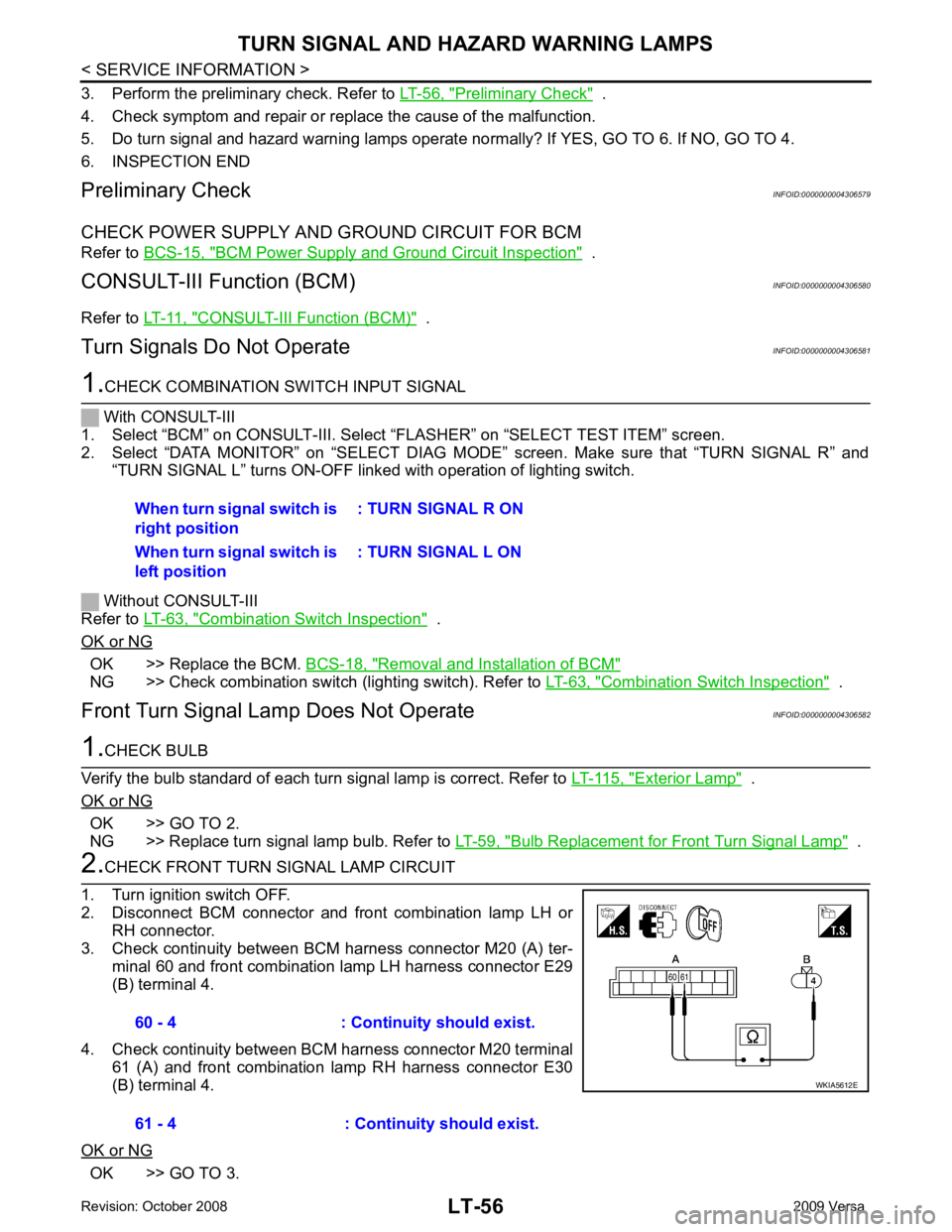

Page 3662 of 4331

Preliminary Check " .
4. Check symptom and repair or repl ace the cause of the malfunction.
5. Do turn signal and hazard warning lamps operate no rmally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary Check INFOID:0000000004306579
CHECK POWER SUPPLY AND GROUND CIRCUIT FOR BCM
Refer to BCS-15, " BCM Power Supply and Ground Circuit Inspection " .
CONSULT-III Function (BCM) INFOID:0000000004306580
Refer to LT-11, " CONSULT-III Function (BCM) " .
Turn Signals Do Not Operate INFOID:0000000004306581Combination Switch Inspection " .
OK or NG OK >> Replace the BCM.
BCS-18, " Removal and Installation of BCM "
NG >> Check combination switch (lighting switch). Refer to
LT-63, " Combination Switch Inspection " .
Front Turn Signal La mp Does Not Operate INFOID:0000000004306582 Exterior Lamp " .
OK or NG OK >> GO TO 2.
NG >> Replace turn signal lamp bulb. Refer to LT-59, " Bulb Replacement for Front Turn Signal Lamp " .
OK >> GO TO 3.When turn signal switch is
right position : TURN SIGNAL R ON
When turn signal switch is
left position : TURN SIGNAL L ON60 - 4 : Continuity should exist.
61 - 4 : Continuity should exist.
Page 3663 of 4331
LT
N
O P
NG >> Repair harness or connector.
OK >> Inspect connection at front combination lamp.
NG >> Repair harness.

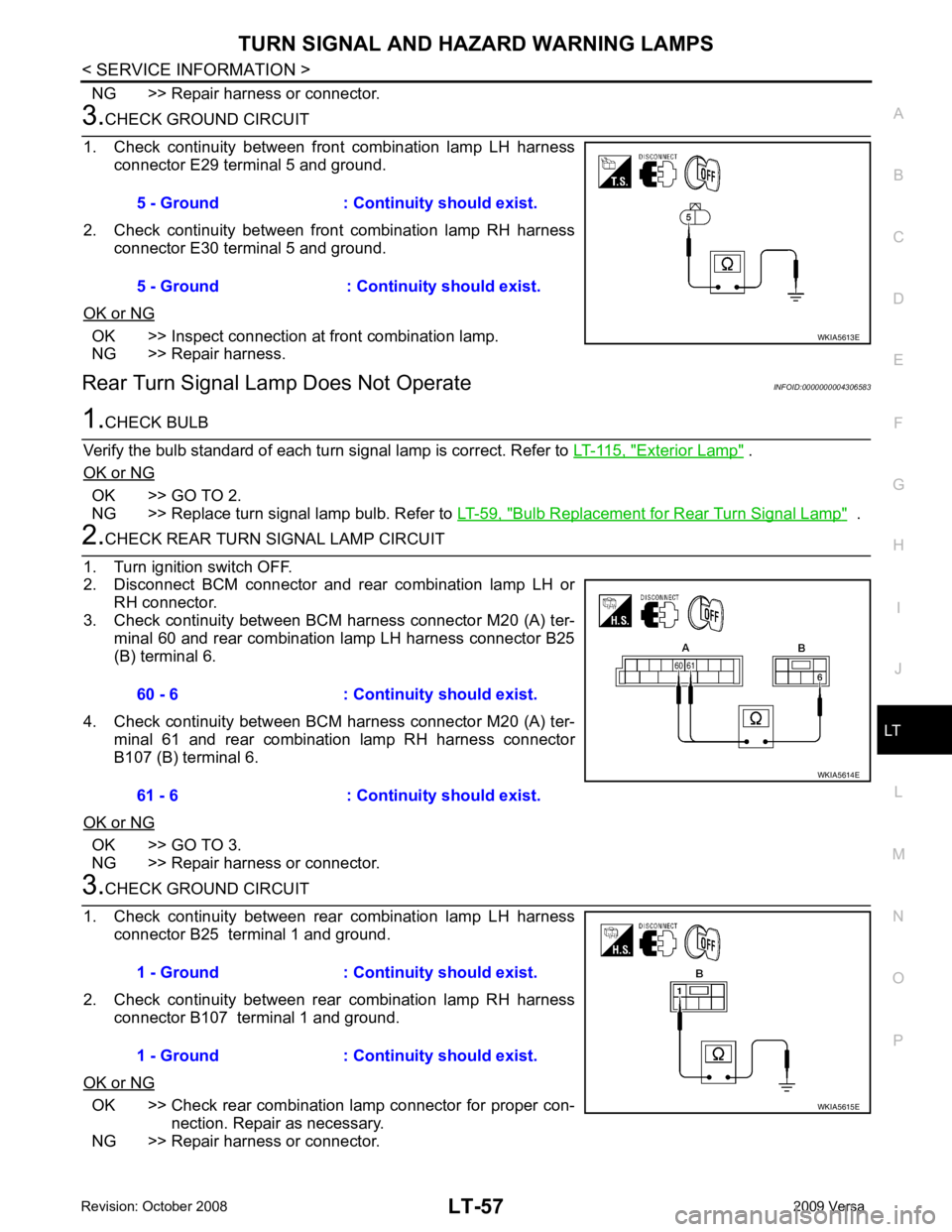

Rear Turn Signal Lamp Does Not Operate INFOID:0000000004306583Exterior Lamp " .
OK or NG OK >> GO TO 2.
NG >> Replace turn signal lamp bulb. Refer to LT-59, " Bulb Replacement for Rear Turn Signal Lamp " .
OK >> GO TO 3.
NG >> Repair harness or connector. OK >> Check rear combination lamp connector for proper con-
nection. Repair as necessary.
NG >> Repair harness or connector. 5 - Ground : Continuity should exist.
5 - Ground : Continuity should exist.
Page 3664 of 4331
OK >> Replace BCM. Refer to
BCS-18, " Removal and Installa-
tion of BCM " .
NG >> GO TO 2. OK >> GO TO 3.
NG >> Repair harness or connector. OK >> GO TO 4.
NG >> Repair harness or connector.
Page 3665 of 4331

LT
N
O P

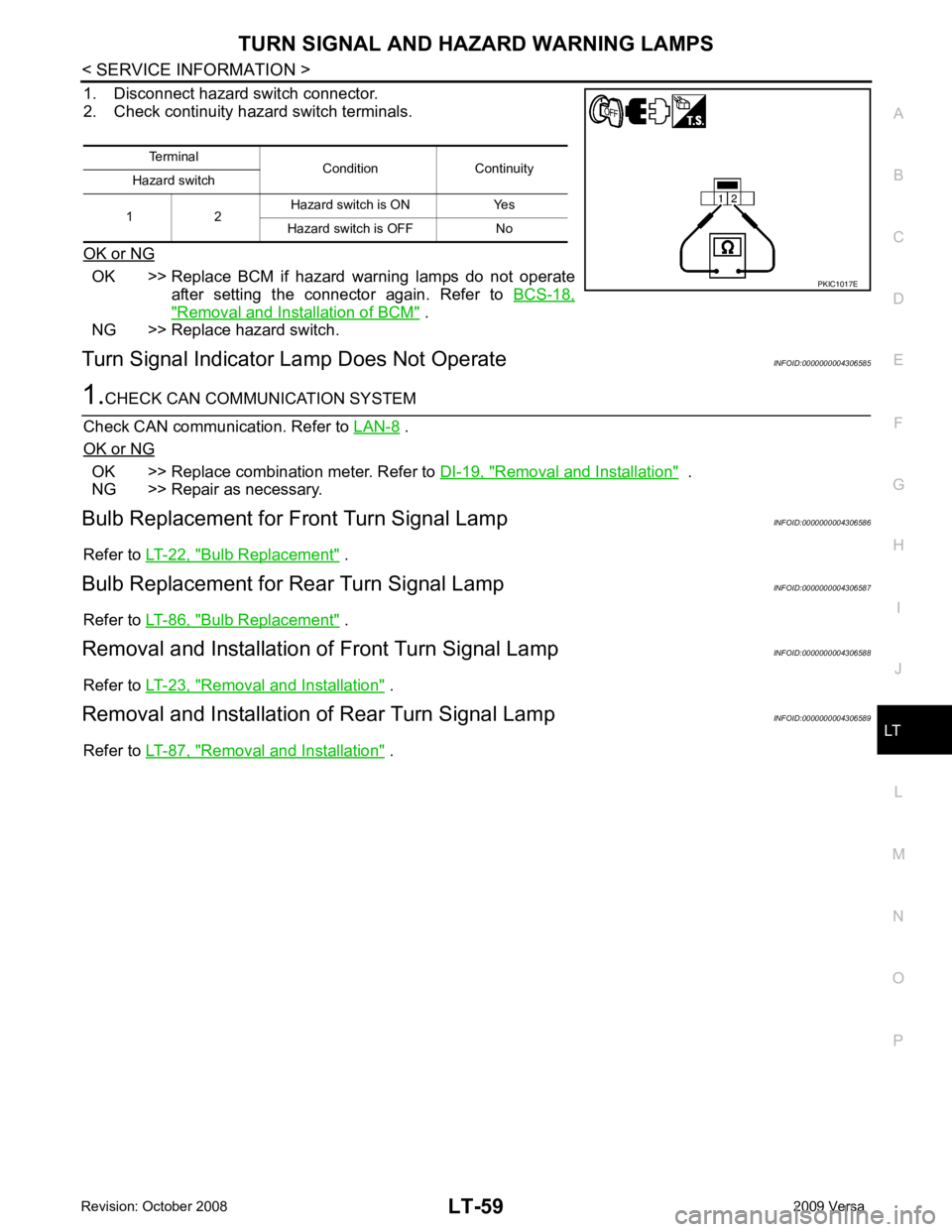

1. Disconnect hazard switch connector.
2. Check continuity hazard switch terminals.
OK or NG OK >> Replace BCM if hazard warning lamps do not operate
after setting the connector again. Refer to BCS-18," Removal and Installation of BCM " .
NG >> Replace hazard switch.
Turn Signal Indicator Lamp Does Not Operate INFOID:0000000004306585 .
OK or NG OK >> Replace combination meter. Refer to
DI-19, " Removal and Installation " .
NG >> Repair as necessary.
Bulb Replacement for Front Turn Signal Lamp INFOID:0000000004306586
Refer to LT-22, " Bulb Replacement " .
Bulb Replacement for Rear Turn Signal Lamp INFOID:0000000004306587
Refer to LT-86, " Bulb Replacement " .
Removal and Installation of Front Turn Signal Lamp INFOID:0000000004306588
Refer to LT-23, " Removal and Installation " .
Removal and Installation of Rear Turn Signal Lamp INFOID:0000000004306589
Refer to LT-87, " Removal and Installation " .
Terminal
Condition Continuity
Hazard switch
1 2 Hazard switch is ON Yes
Hazard switch is OFF No
Page 3666 of 4331
.

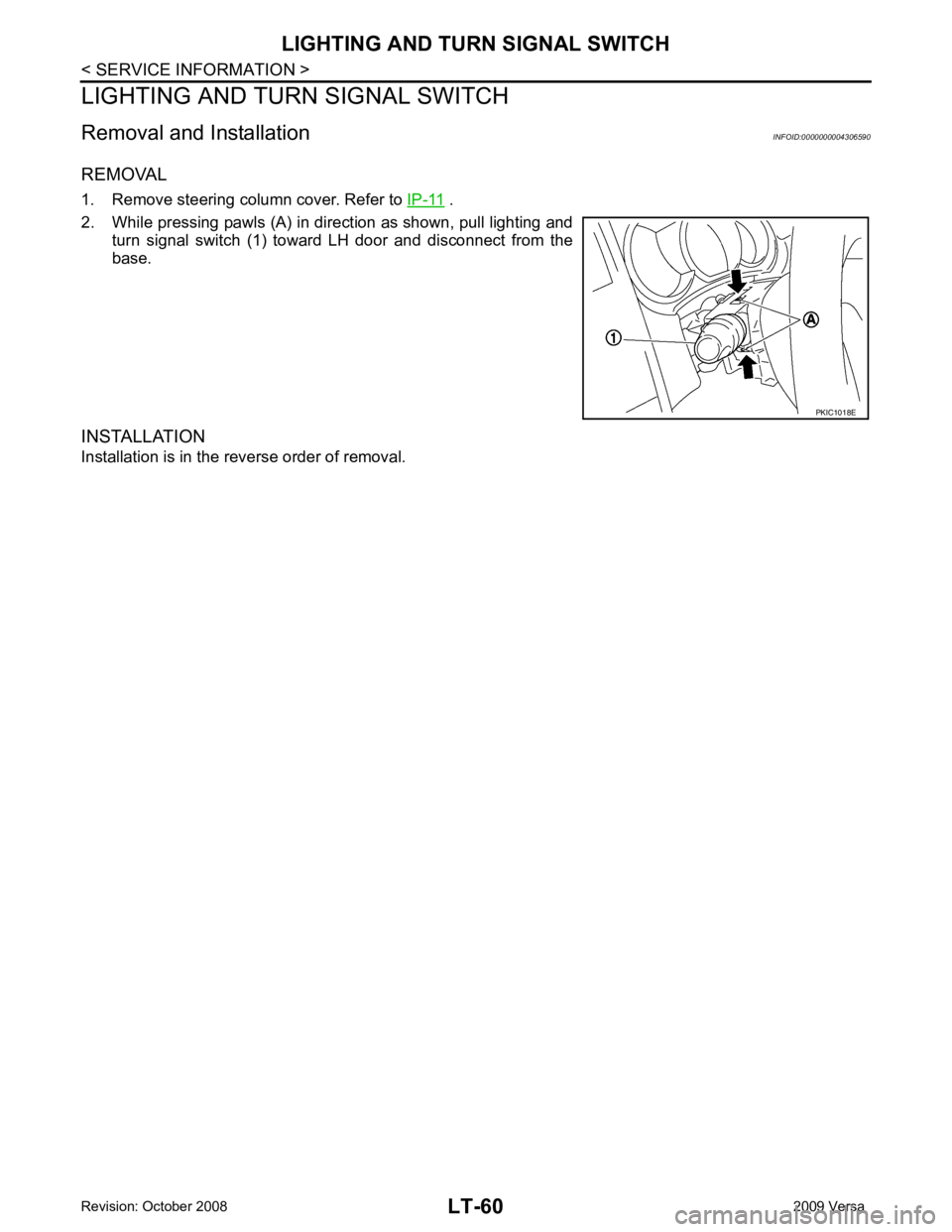

2. While pressing pawls (A) in direction as shown, pull lighting and turn signal switch (1) toward LH door and disconnect from the
base.
INSTALLATION
Installation is in the reverse order of removal.
Page 3667 of 4331
LT
N
O P

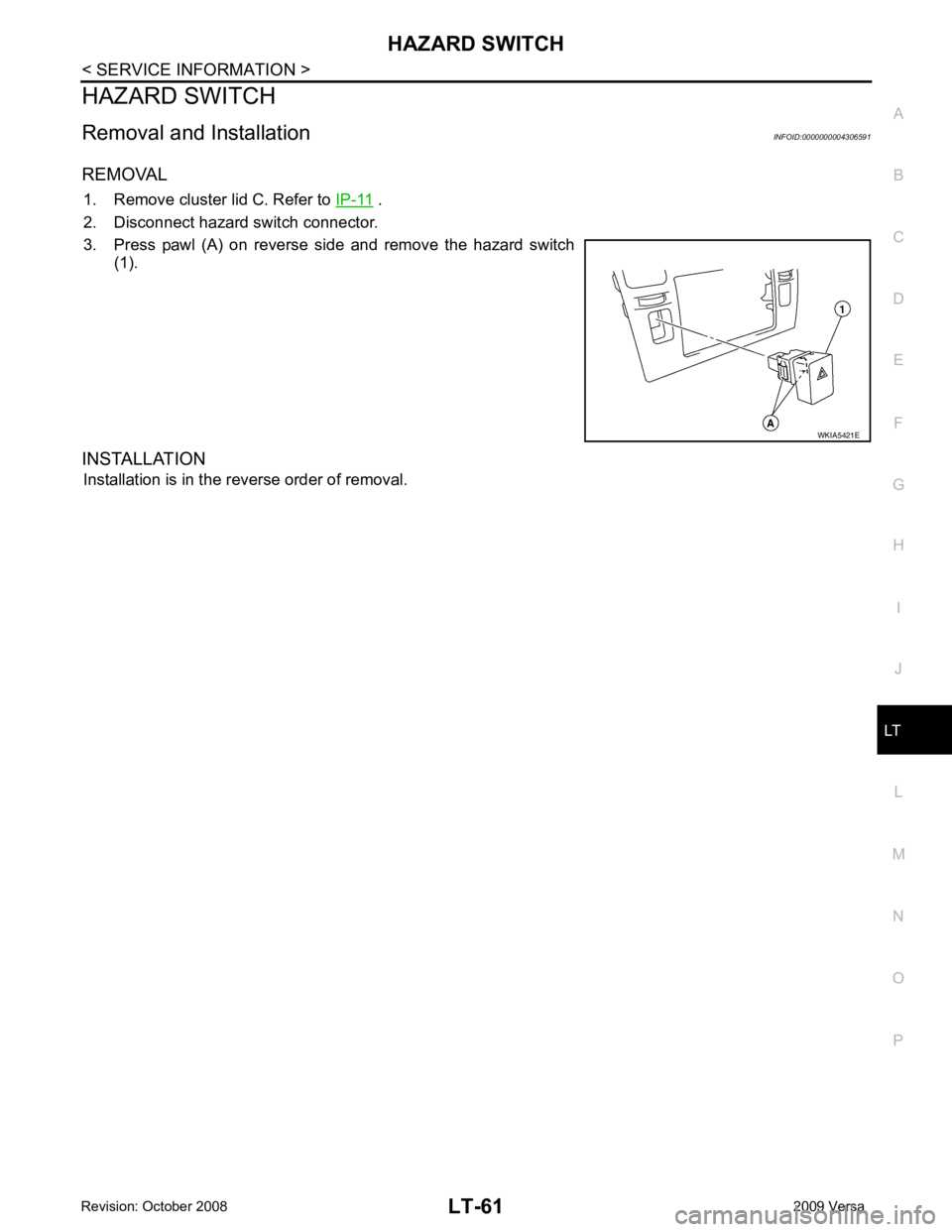

HAZARD SWITCH
Removal and Installation INFOID:0000000004306591
REMOVAL 1. Remove cluster lid C. Refer to IP-11 .
2. Disconnect hazard switch connector.
3. Press pawl (A) on reverse side and remove the hazard switch (1).
INSTALLATION Installation is in the reverse order of removal.
Page 3668 of 4331
Page 3669 of 4331
LT
N
O P
Terminal and Reference Value for BCM
INFOID:0000000004306594
Refer to BCS-11, " Terminal and Reference Value for BCM " .
CONSULT-III Function (BCM) INFOID:0000000004306595
Refer to LT-11, " CONSULT-III Function (BCM) " .

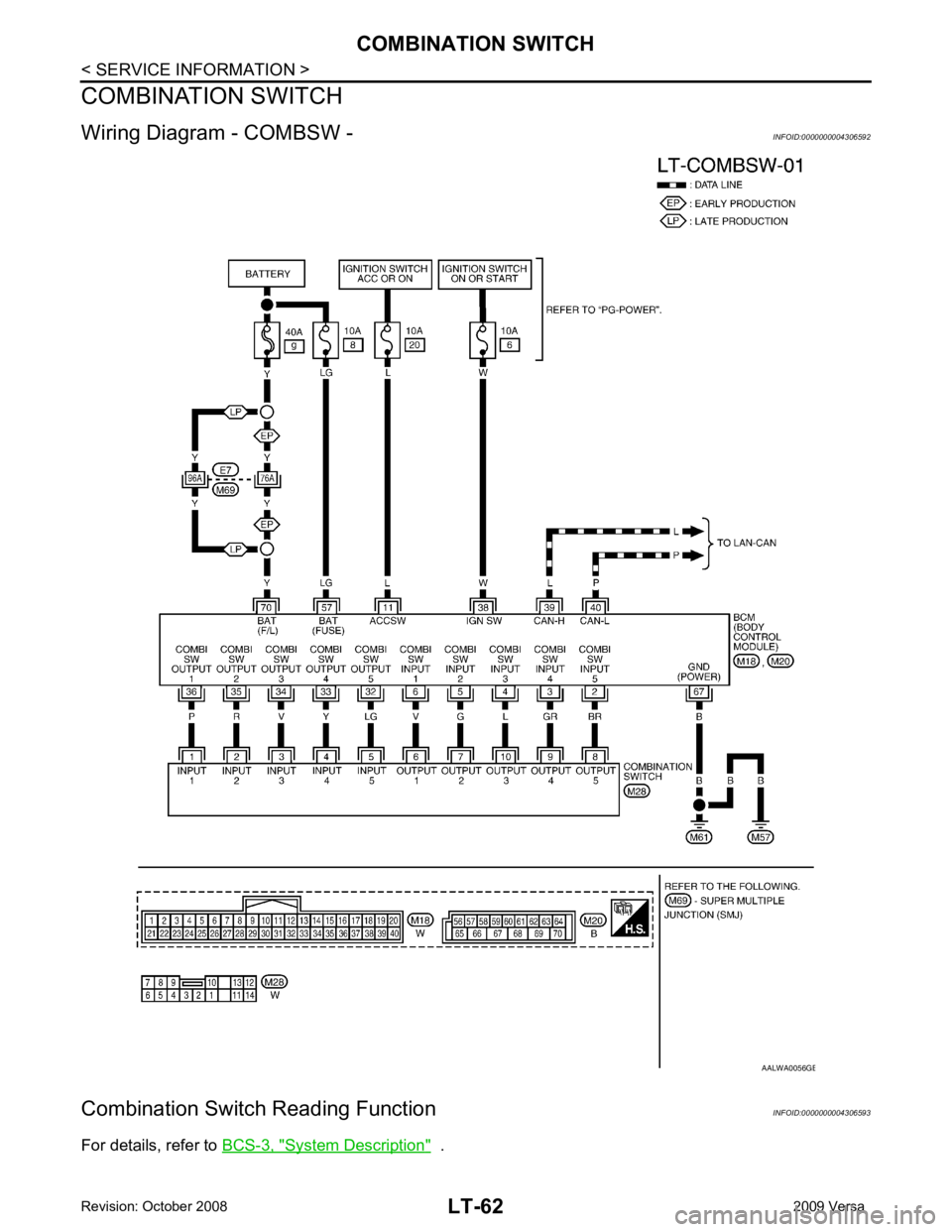

Combination Switch Inspection INFOID:0000000004306596Other switches in the system operate normall
y.>>Replace lighting switch or wiper switch.
Other switches in the system do not operate normally.>>GO TO 3.
Page 3670 of 4331
OK >> GO TO 4.
NG >> Check harness between BCM and combination switch for open or short circuit. WKIA5500E
PKIC1020E
