EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-607
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Component InspectionEBS00B97
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT-II
Check air passage continuity of EVAP canister purge volume control
solenoid valve under the following conditions.
Without CONSULT-II
Check air passage continuity of EVAP canister purge volume control
solenoid valve under the following conditions.
Removal and InstallationEBS00B98
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer toEM-17, "INTAKE MANIFOLD".
Condition
(PURG VOL CONT/V value)Air passage continuity
between A and B
100.0% Yes
0.0% No
PBIB0149E
ConditionAir passage continuity
between A and B
12V direct current supply between
terminals 1 and 2Ye s
No supply No
PBIB0150E

EC-608
[QR (WITHOUT EURO-OBD)]
IVT CONTROL SOLENOID VALVE
IVT CONTROL SOLENOID VALVE
PFP:23796
DescriptionEBS00BM1
SYSTEM DESCRIPTION
This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control solenoid
valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to
increase engine torque in low/mid speed range and output in high-speed range.
COMPONENT DESCRIPTION
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
CONSULT-II Reference Value in Data Monitor ModeEBS00B9A
Specification data are reference values.
Sensor Input signal to ECM function ECM Actuator
Crankshaft position sensor (POS)
Engine speed
Intake valve
timing controlIntake valve timing control
solenoid valve Camshaft position sensor (PHASE)
Engine coolant temperature sensor Engine coolant temperature
Wheel sensor Vehicle speed
PBIB0540E
PBIB0195E
MONITOR ITEM CONDITION SPECIFICATION
INT/V SOL (B1)
lEngine: After warming up
lShift lever: N
lAir conditioner switch: OFF
lNo-loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 50%

IVT CONTROL SOLENOID VALVE
EC-609
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
ECM Terminals and Reference ValueEBS00B9B
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
107 Y/RIntake valve timing
control solenoid valve[Engineisrunning]
lWarm-up condition
lIdle speedBATTERY VOLTAGE
(11 - 14V)
[Engineisrunning]
lWarm-up condition
lWhenrevvingengineupto2,000rpmquicklyApproximately 4V - BATTERY
V O LTA G E ( 11 - 1 4 V )
PBIB0532E

EC-610
[QR (WITHOUT EURO-OBD)]
IVT CONTROL SOLENOID VALVE

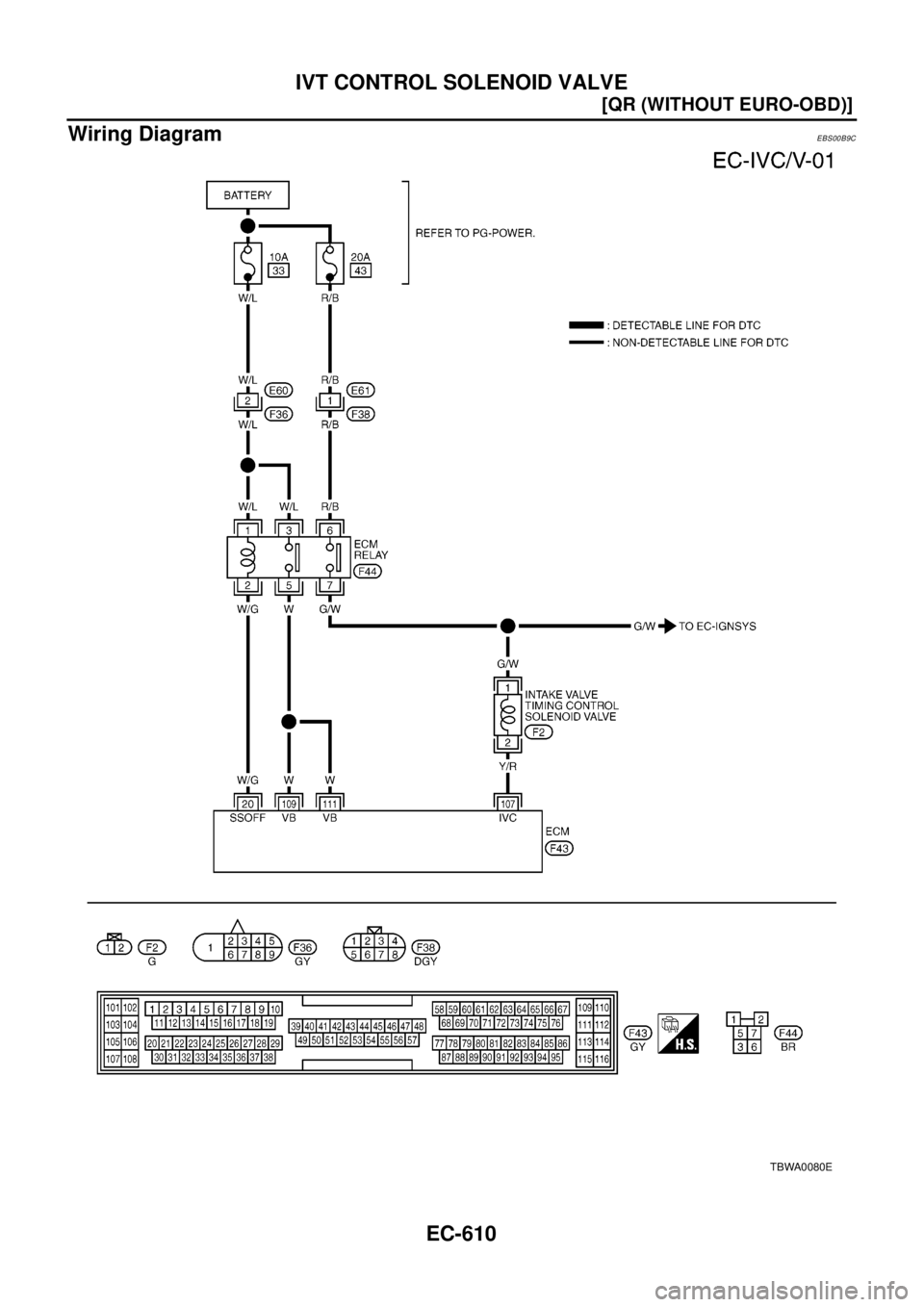

Wiring Diagram
EBS00B9C
TBWA0080E

IVT CONTROL SOLENOID VALVE
EC-611
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00B9D
1.CHECK OVERALL FUNCTION CHECK
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch "OFF" and wait at least 10 seconds.
3. Turn ignition switch "ON".
4. Set the tester probe between ECM terminals 107 (IVT control solenoid valve signal) and ground.
5. Start engine and let it idle.
6. Check the voltage under the following conditions.
Verify that the oscilloscope screen shows the signal wave as
shown below.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2.CHECK POWER SUPPLY CIRCIUT
1. Turn ignition switch "OFF".
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Turn ignition switch "ON".

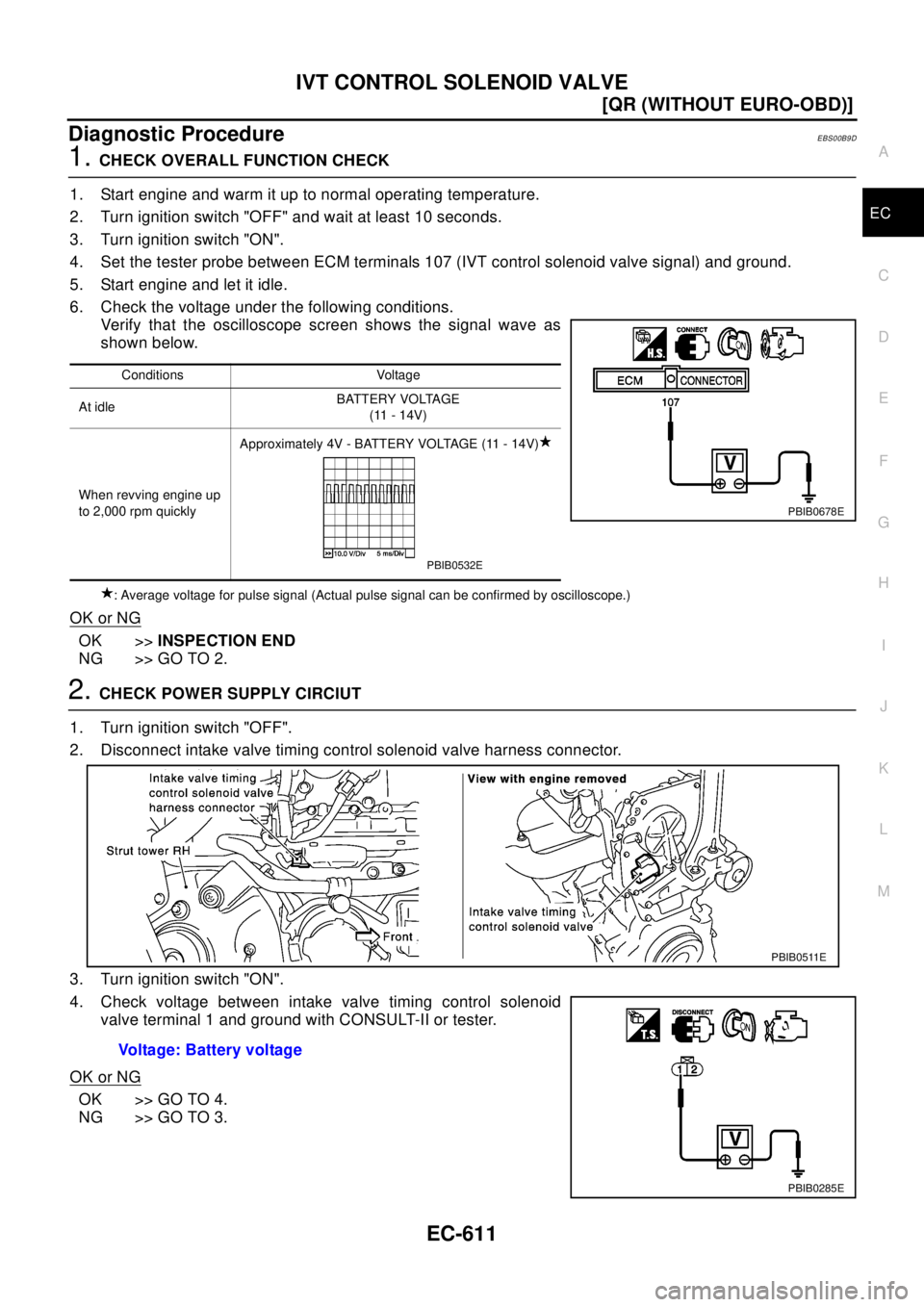

4. Check voltage between intake valve timing control solenoid
valve terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
Conditions Voltage
At idleBATTERY VOLTAGE
(11 - 14V)
When revving engine up
to 2,000 rpm quicklyApproximately 4V - BATTERY VOLTAGE (11 - 14V)
PBIB0678E
PBIB0532E
Voltage: Battery voltage
PBIB0511E
PBIB0285E

EC-612
[QR (WITHOUT EURO-OBD)]
IVT CONTROL SOLENOID VALVE
3.DETECT MALFUNCTION PART
Check the harness for open or short between intake valve timing control solenoid valve and ECM relay.
>> Repair harness or connectors.
4.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Turn ignition switch "OFF".
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 107 and intake valve timing control solenoid valve termi-
nal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer toEC-613, "
Component Inspection".
OK or NG
OK >> GO TO 6.
NG >> Replace intake valve timing control solenoid valve.
6.CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer toEC-505, "
Component Inspection".
OK or NG
OK >> GO TO 7.
NG >> Replace crankshaft position sensor (POS).
7.CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer toEC-512, "
Component Inspection".
OK or NG
OK >> GO TO 8.
NG >> Replace camshaft position sensor (PHASE).

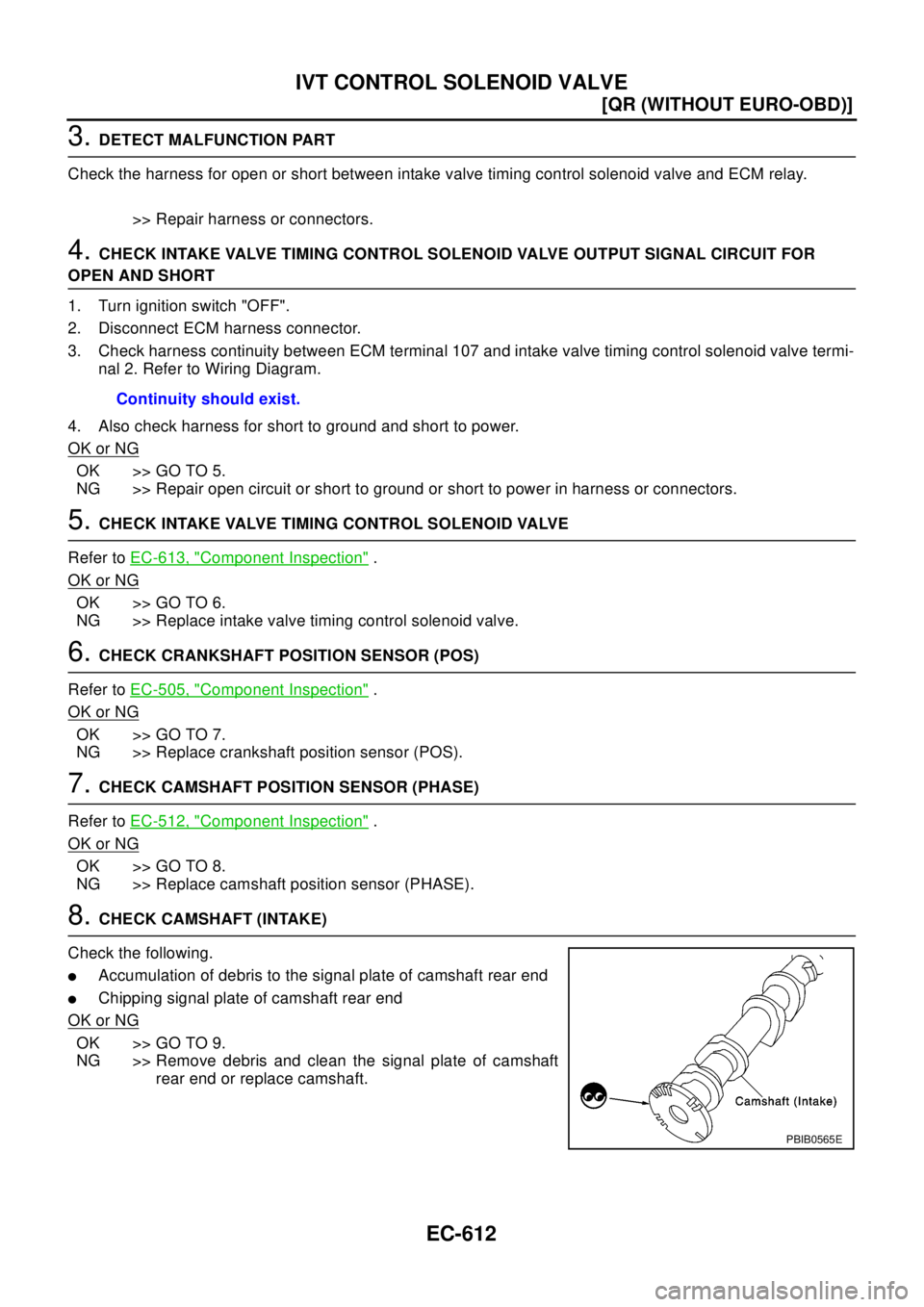

8.CHECK CAMSHAFT (INTAKE)
Check the following.
lAccumulation of debris to the signal plate of camshaft rear end
lChipping signal plate of camshaft rear end
OK or NG
OK >> GO TO 9.
NG >> Remove debris and clean the signal plate of camshaft
rear end or replace camshaft. Continuity should exist.
PBIB0565E

IVT CONTROL SOLENOID VALVE
EC-613
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
9.CHECK INTERMITTENT INCIDENT
Refer toEC-453, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
Component InspectionEBS00B9E
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
1. Disconnect intake valve timing control solenoid valve harness connector.

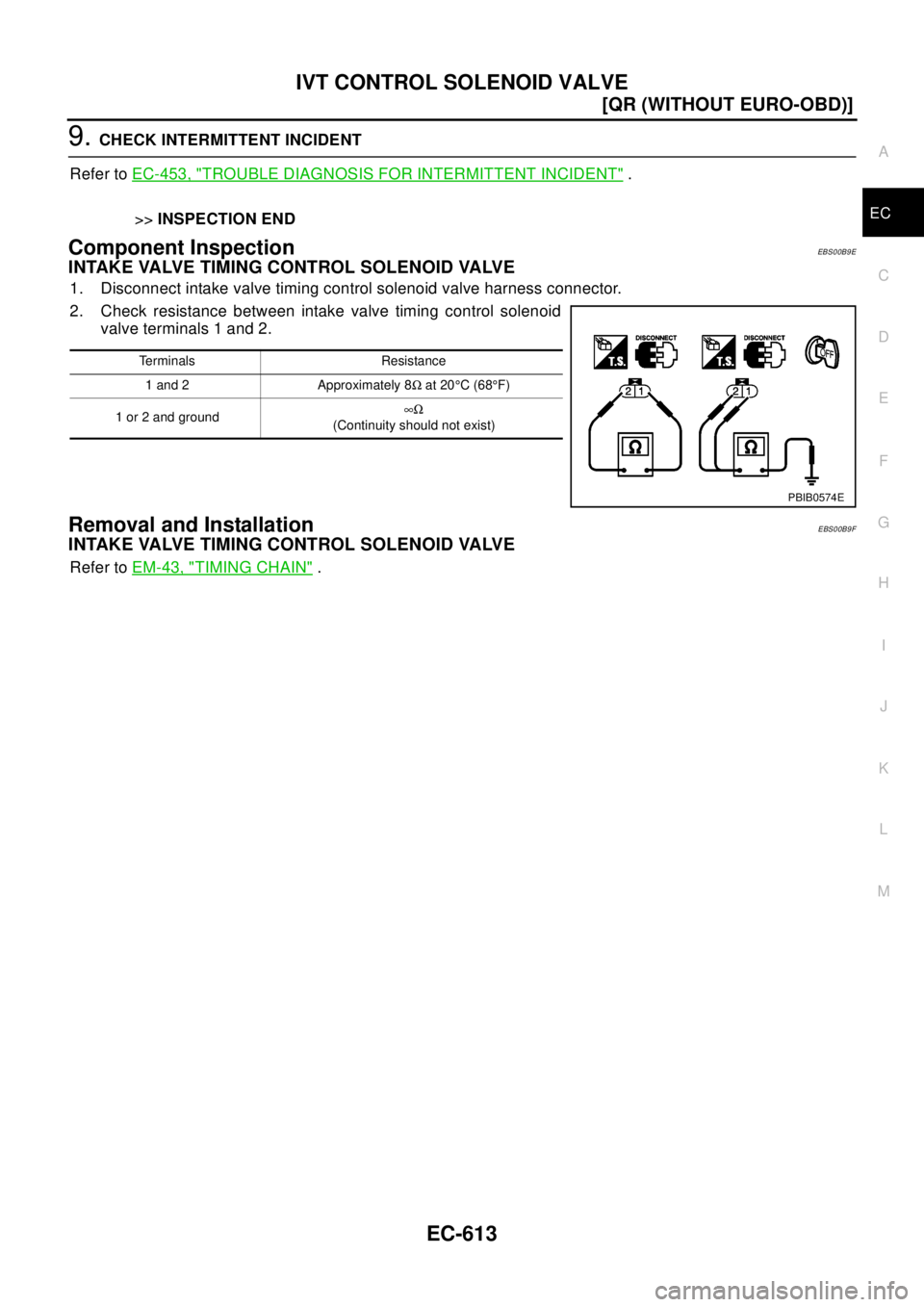

2. Check resistance between intake valve timing control solenoid
valve terminals 1 and 2.
Removal and InstallationEBS00B9F
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer toEM-43, "TIMING CHAIN".
Terminals Resistance
1 and 2 Approximately 8Wat 20°C(68°F)
1or2andground¥W
(Continuity should not exist)
PBIB0574E

EC-614
[QR (WITHOUT EURO-OBD)]
PNP SWITCH
PNP SWITCH
PFP:32006
Component DescriptionEBS00B9G
When the gear position is “P” (A/T models only) or “N”, park/neutral position (PNP) switch is “ON”.
ECM detects the position because the continuity of the line (the “ON” signal) exists.
CONSULT-II Reference Value in Data Monitor ModeEBS00B9H
Specification data are reference values.
ECM Terminals and Reference ValueEBS00B9I
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW
lIgnition switch: ONShift lever:
P or N (A/T model)
Neutral (M/T model)ON
Shift lever: Except above OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
43 G/OR PNP switch[Ignition switch “ON”]
lGear position is “P” or “N”.Approximately 0V
[Ignition switch “ON”]
lExcept the above gear positionA/T model
BATTERY VOLTAGE
(11 - 14v)
M/T model
Approximately 5V

PNP SWITCH
EC-615
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

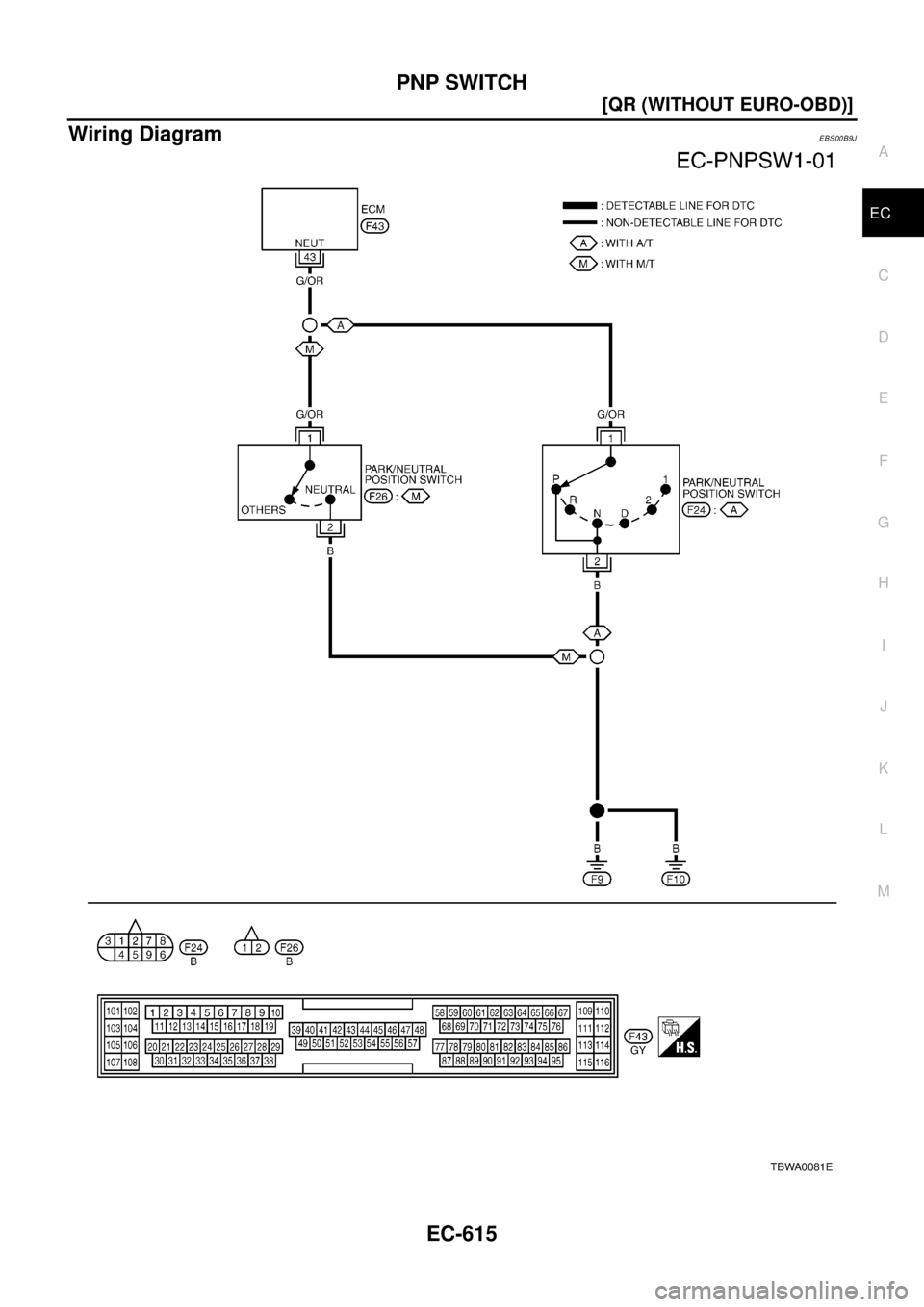

Wiring DiagramEBS00B9J
TBWA0081E

EC-616
[QR (WITHOUT EURO-OBD)]
PNP SWITCH
Diagnostic Procedure
EBS00B9K
1.CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch "ON".

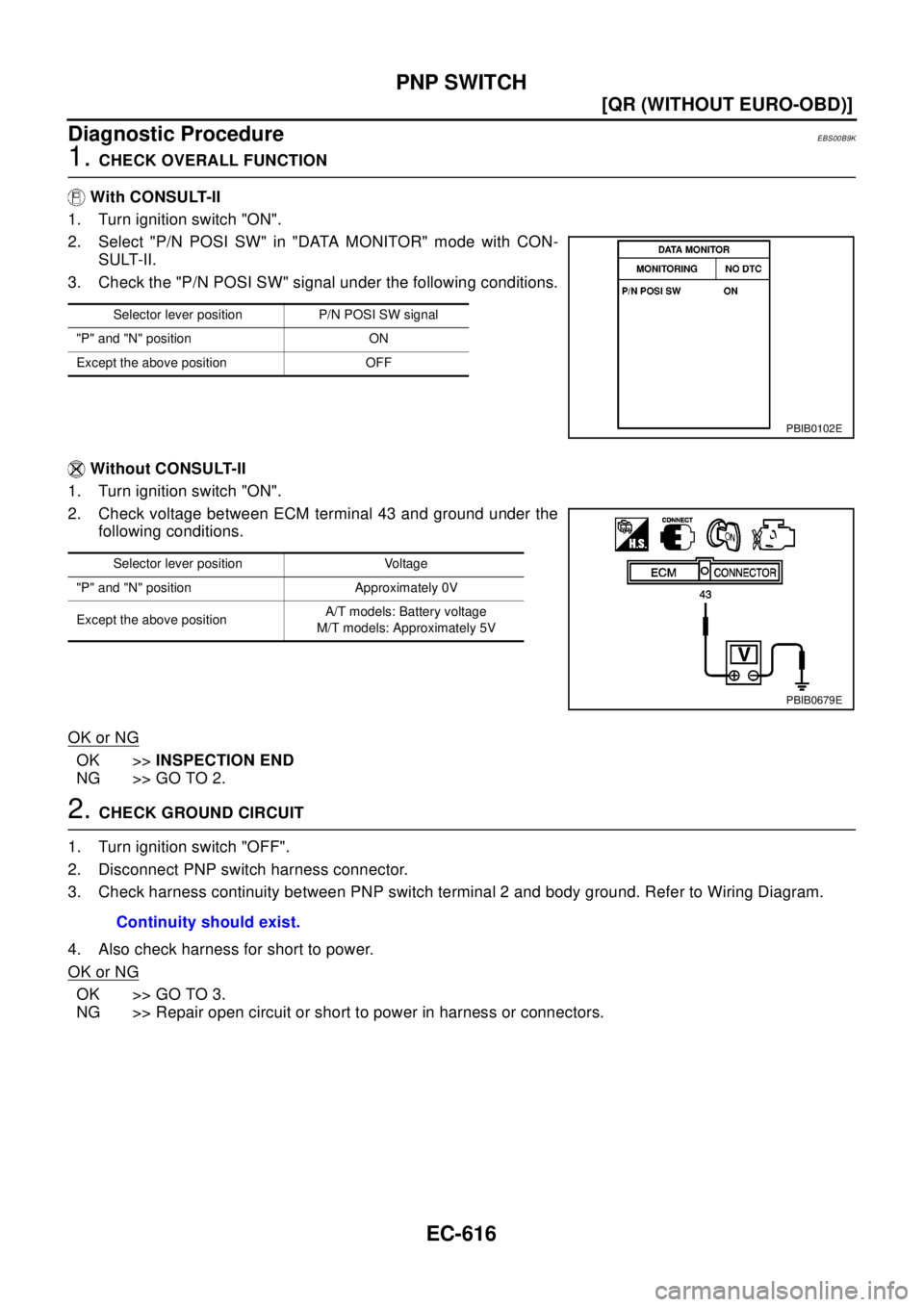

2. Select "P/N POSI SW" in "DATA MONITOR" mode with CON-
SULT-II.
3. Check the "P/N POSI SW" signal under the following conditions.
Without CONSULT-II
1. Turn ignition switch "ON".
2. Check voltage between ECM terminal 43 and ground under the
following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2.CHECK GROUND CIRCUIT
1. Turn ignition switch "OFF".
2. Disconnect PNP switch harness connector.
3. Check harness continuity between PNP switch terminal 2 and body ground. Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to power in harness or connectors.
Selector lever position P/N POSI SW signal
"P" and "N" position ON
Except the above position OFF
PBIB0102E
Selector lever position Voltage
"P" and "N" position Approximately 0V
Except the above positionA/T models: Battery voltage
M/T models: Approximately 5V
PBIB0679E
Continuity should exist.
