4.CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between refrigerant pressure sensor terminal 1 and engine ground. Refer to
Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors E61, F38
lHarness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 83 and refrigerant pressure sensor terminal 2. Refer to
Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors E61, F38
lHarness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK INTERMITTENT INCIDENT
Refer toEC-453, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
OK or NG
OK >> Replace refrigerant pressure sensor.
NG >> Repair or replace.
Removal and InstallationEBS00BA7
REFRIGERANT PRESSURE SENSOR
Refer toATC-123, "REFRIGERANT LINES". Continuity should exist.
Continuity should exist.

EC-638
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL
ELECTRICAL LOAD SIGNAL
PFP:25350
CONSULT-II Reference Value in Data Monitor ModeEBS00BA8
Specification data are reference values.
ECM Terminals and Reference ValueEBS00BA9
Specification data are reference values and are measured between each terminal and body ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL
lIgnition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2nd.ON
Rear window defogger switch is OFF
and lighting switch is OFF.OFF
HEATER FAN SW
lEngine: After warming up, idle
the engineHeater fan is operating. ON
Heater fan is not operating OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
52 R/WElectrical load signal
(Rear window defog-
ger signal)[Ignition switch "ON"]
lRear window defogger switch is "ON"BATTERY VOLTAGE
(11 - 14V)
[Ignition switch "ON"]
lRear window defogger switch is "OFF"Approximately 0V
53 R/YElectrical load signal
(Headlamp signal)[Ignition switch "ON"]
lLighting switch is "2ND" positionBATTERY VOLTAGE
(11 - 14V)
[Ignition switch "ON"]
lLighting switch is "OFF"Approximately 0V
55 LG/BHeater fan switch sig-
nal[Ignition switch "ON"]
lHeater fan control switch is "ON"Approximately 0V
[Ignition switch "ON"]
lHeater fan control switch is "OFF"Approximately 5V

ELECTRICAL LOAD SIGNAL
EC-639
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00BAA

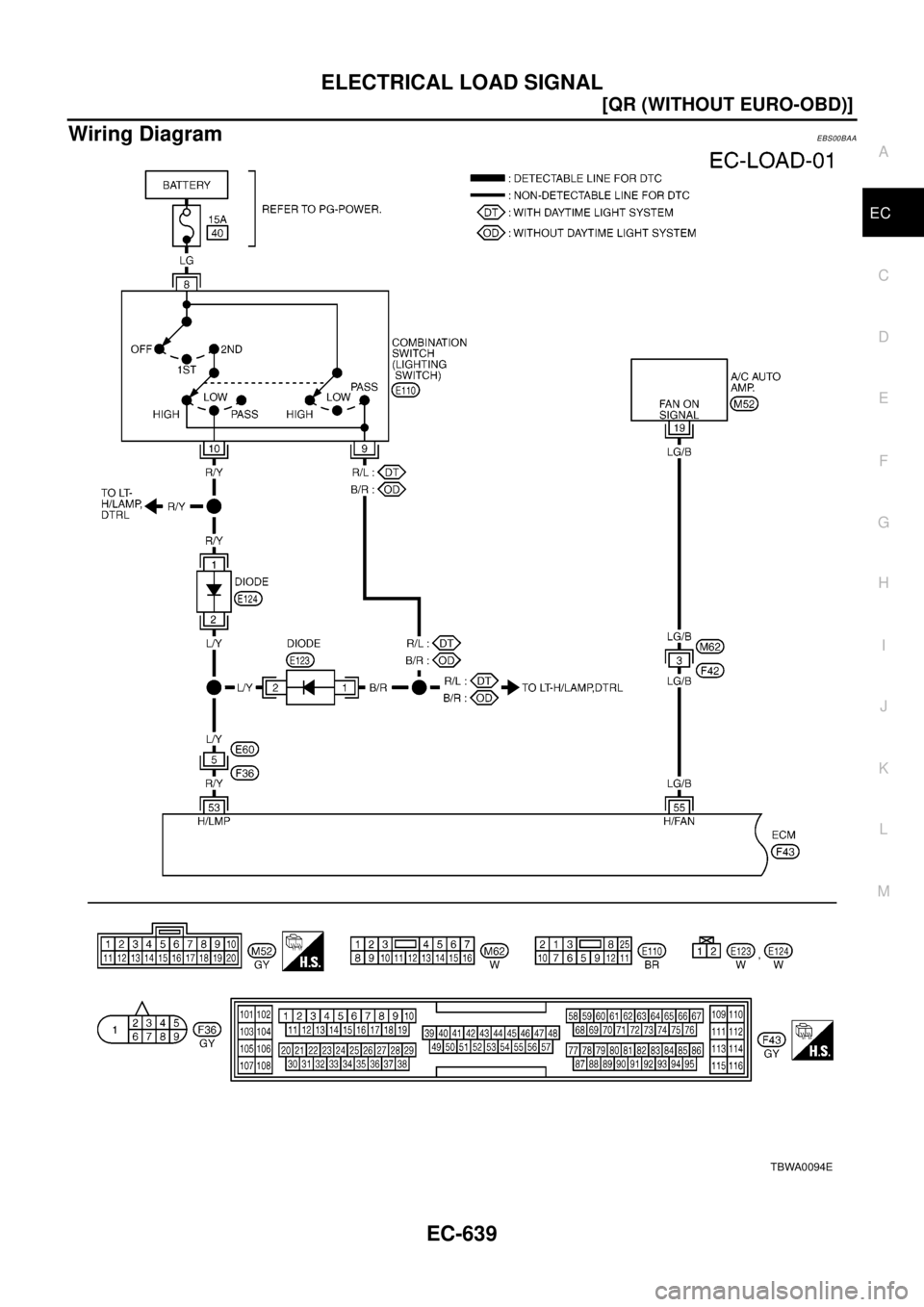

TBWA0094E

EC-640
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL

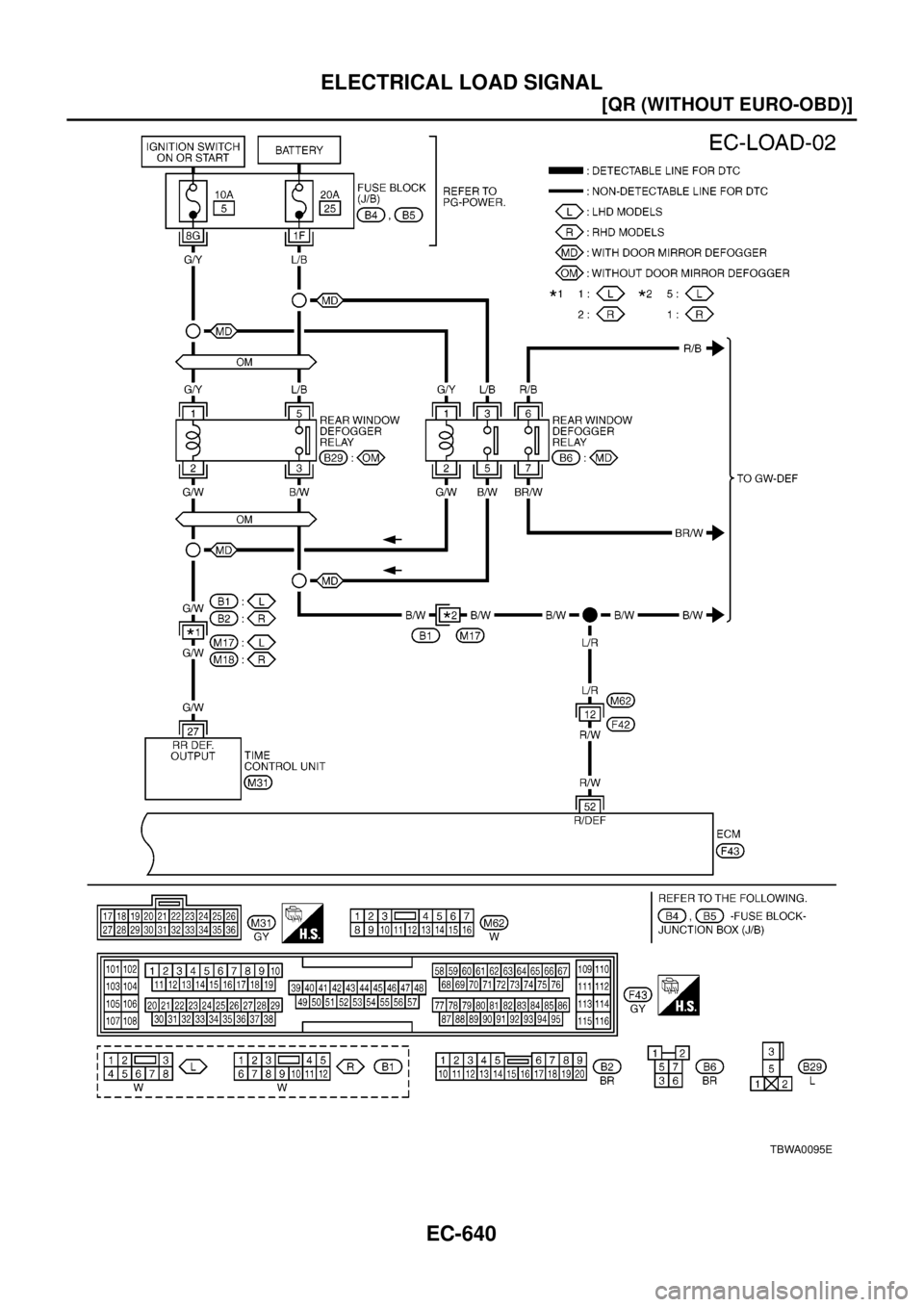

TBWA0095E

ELECTRICAL LOAD SIGNAL
EC-641
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS00BAB
1.INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >>GOTO2.
No >> GO TO 5.

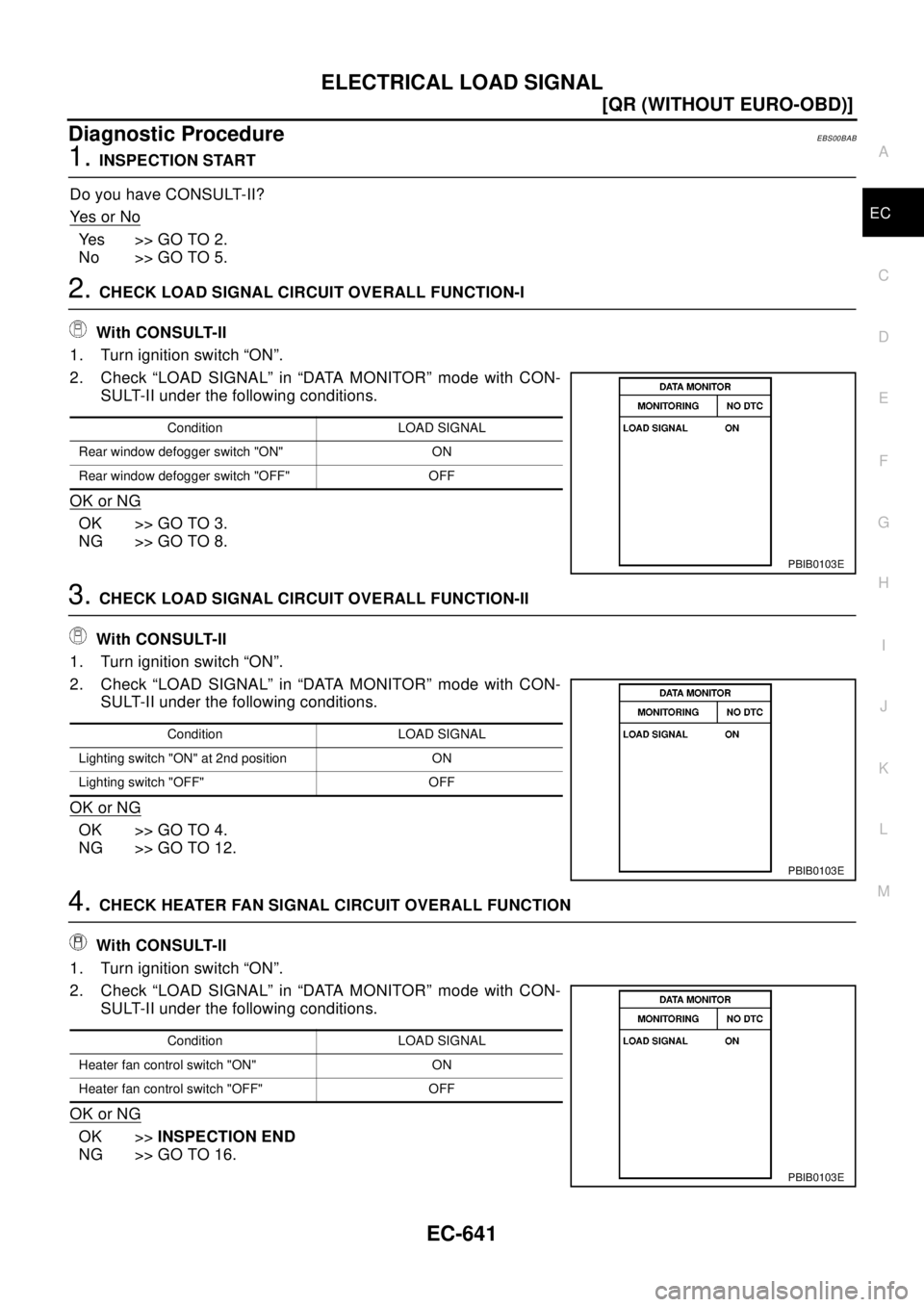

2.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch “ON”.
2. Check “LOAD SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >> GO TO 3.
NG >> GO TO 8.
3.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
With CONSULT-II
1. Turn ignition switch “ON”.
2. Check “LOAD SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >> GO TO 4.
NG >> GO TO 12.
4.CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch “ON”.
2. Check “LOAD SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 16.
Condition LOAD SIGNAL
Rear window defogger switch "ON" ON
Rear window defogger switch "OFF" OFF
PBIB0103E
Condition LOAD SIGNAL
Lighting switch "ON" at 2nd position ON
Lighting switch "OFF" OFF
PBIB0103E
Condition LOAD SIGNAL
Heater fan control switch "ON" ON
Heater fan control switch "OFF" OFF
PBIB0103E

EC-642
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL

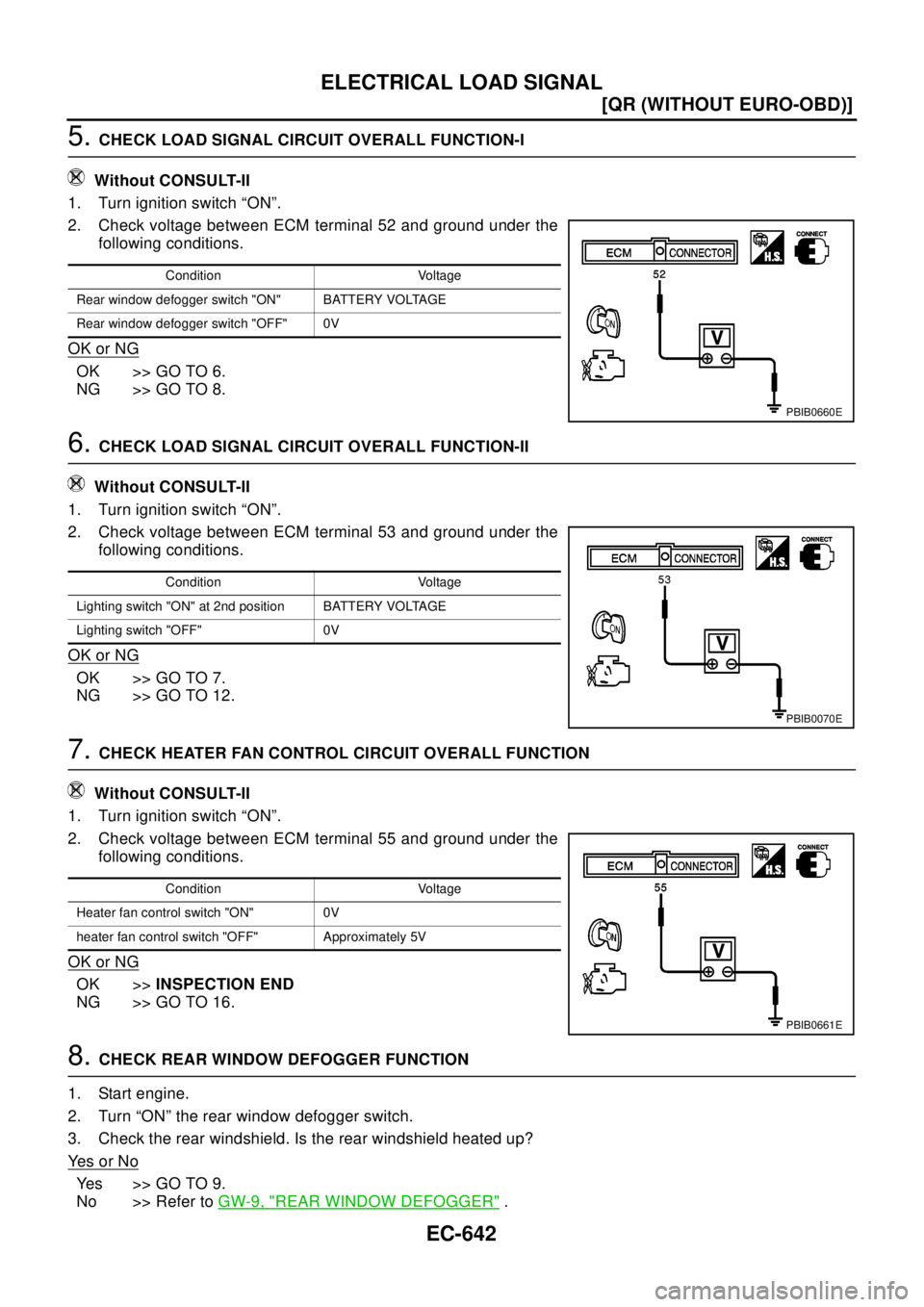

5.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 52 and ground under the
following conditions.
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 53 and ground under the
following conditions.
OK or NG
OK >> GO TO 7.
NG >> GO TO 12.
7.CHECK HEATER FAN CONTROL CIRCUIT OVERALL FUNCTION
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 55 and ground under the
following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 16.
8.CHECK REAR WINDOW DEFOGGER FUNCTION
1. Start engine.
2. Turn “ON” the rear window defogger switch.
3. Check the rear windshield. Is the rear windshield heated up?
Ye s o r N o
Yes >>GOTO9.
No >> Refer toGW-9, "
REAR WINDOW DEFOGGER".
Condition Voltage
Rear window defogger switch "ON" BATTERY VOLTAGE
Rear window defogger switch "OFF" 0V
PBIB0660E
Condition Voltage
Lighting switch "ON" at 2nd position BATTERY VOLTAGE
Lighting switch "OFF" 0V
PBIB0070E
Condition Voltage
Heater fan control switch "ON" 0V
heater fan control switch "OFF" Approximately 5V
PBIB0661E

ELECTRICAL LOAD SIGNAL
EC-643
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
9.CHECK REAR WINDOW DEFOGGER INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect rear window defogger relay.
4. Check harness continuity between ECM terminal 52 and harness connector M17 terminal 1 (RHD mod-
els), 5 (LHD models).
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors M62, F42
lHarness for open and short between ECM and harness connector M17
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 .CHECK INTERMITTENT INCIDENT
PerformEC-453, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
12.CHECK HEADLAMP FUNCTION
1. Start engine.
2. Turn the lighting switch “ON” at 2nd position.
3. Check that headlamps are illuminated.
OK or NG
OK >> GO TO 13.
NG >> Refer toLT- 4 , "
HEADLAMP"orLT- 9 , "HEADLAMP - DAYTIME LIGHT SYSTEM -". Continuity should exist.

EC-644
[QR (WITHOUT EURO-OBD)]
ELECTRICAL LOAD SIGNAL

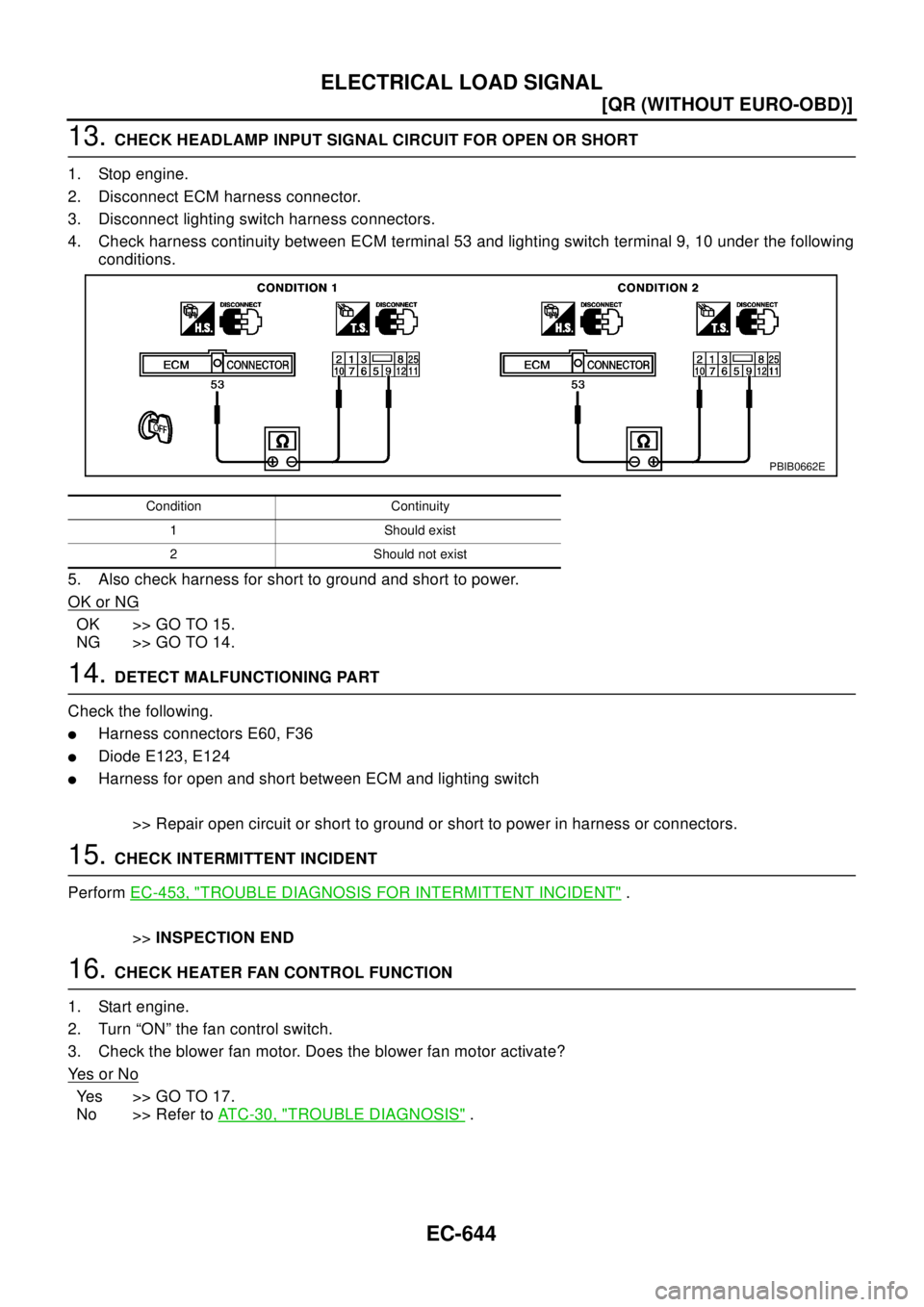

13.CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect lighting switch harness connectors.
4. Check harness continuity between ECM terminal 53 and lighting switch terminal 9, 10 under the following
conditions.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 15.
NG >> GO TO 14.
14.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors E60, F36
lDiode E123, E124
lHarness for open and short between ECM and lighting switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
15.CHECK INTERMITTENT INCIDENT
PerformEC-453, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END
16.CHECK HEATER FAN CONTROL FUNCTION
1. Start engine.
2. Turn “ON” the fan control switch.
3. Check the blower fan motor. Does the blower fan motor activate?
Ye s o r N o
Yes >>GOTO17.
No >> Refer toAT C - 3 0 , "
TROUBLE DIAGNOSIS".
Condition Continuity
1 Should exist
2 Should not exist
PBIB0662E

ELECTRICAL LOAD SIGNAL
EC-645
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
17.CHECK HEATER FAN SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect A/C AUTO AMP. harness connector.
4. Check harness continuity between ECM terminal 55 and A/C AUTO AMP. terminal 19.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 19.
NG >> GO TO 18.
18.DETECT MALFUNCTIONING PART
Check the following.
lHarness connectors M62, F42
lHarness for open and short between ECM and A/C AUTO AMP.
>> Repair open circuit or short to ground or short to power in harness or connectors.
19.CHECK INTERMITTENT INCIDENT
PerformEC-453, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT".
>>INSPECTION END Continuity should exist.

EC-646
[QR (WITHOUT EURO-OBD)]
DATA LINK CONNECTOR
DATA LINK CONNECTOR
PFP:24814

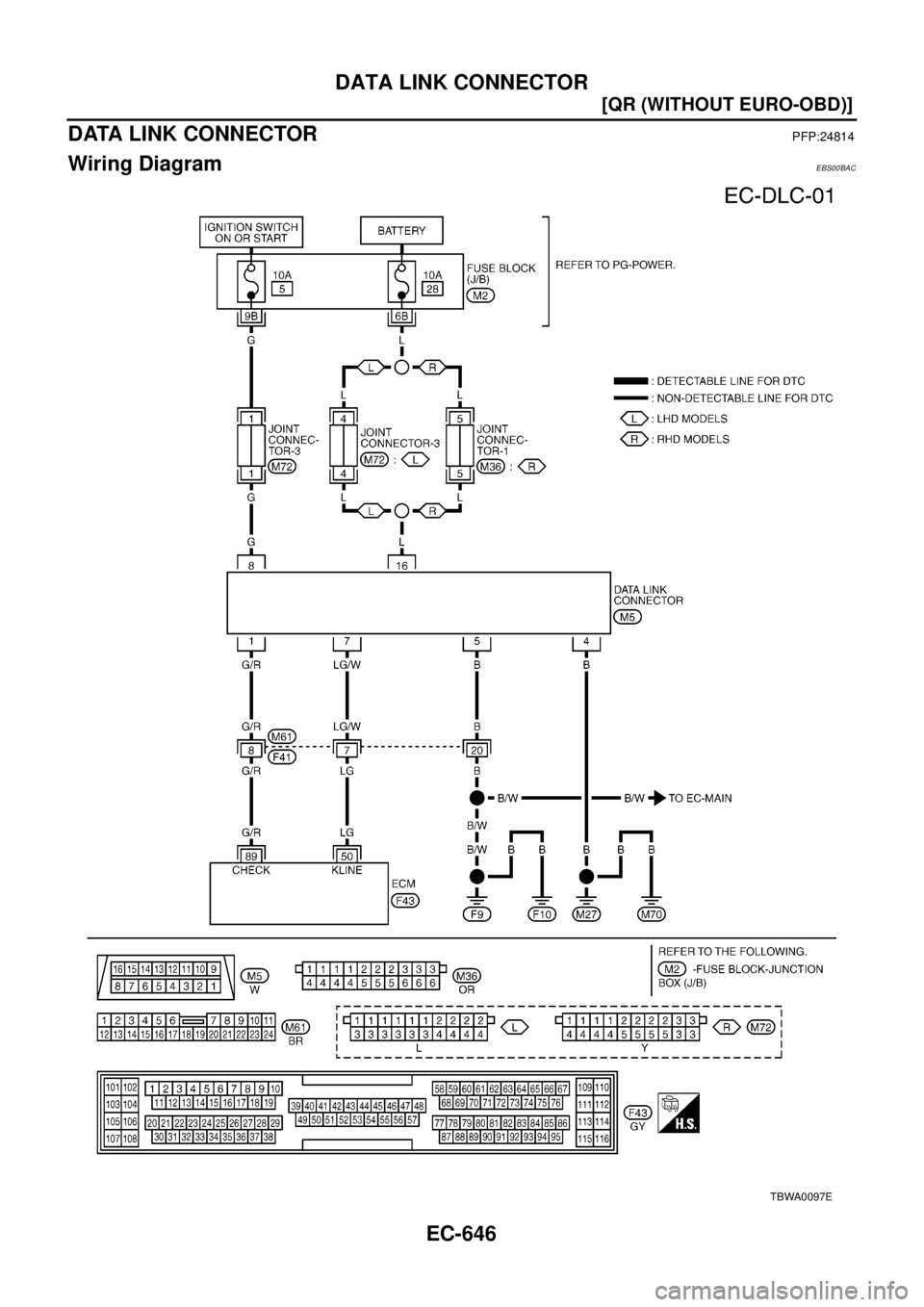

Wiring DiagramEBS00BAC
