ROOF SPOILER
EI-21
C
D
E
F
G
H
J
K
L
MA
B
EI
ROOF SPOILERPFP:96030
Removal and InstallationEIS000N7
REMOVAL
1. Remove headlining. Refer toEI-29, "Removal and Installation".
2. Remove covers (left and right).
3. Remove roof spoiler mounting nuts (upper and lower roof surfaces).
4. Pull roof spoiler upwards. Remove tabs (1 each on left/right) which are engaged with the roof rails.
Remove roof spoiler.
INSTALLATION
Installation is in the reverse order of removal.

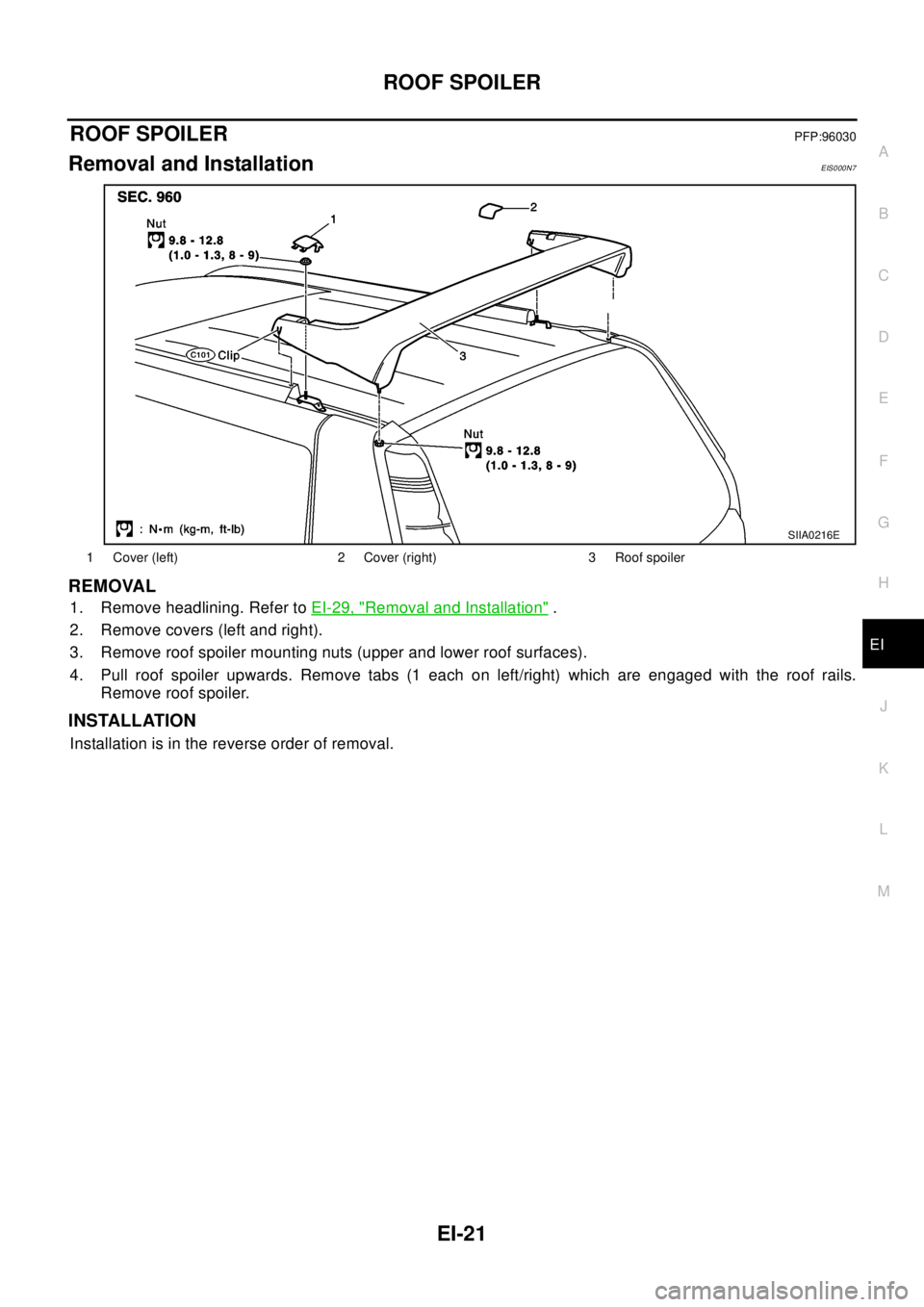

1 Cover (left) 2 Cover (right) 3 Roof spoiler
SIIA0216E

EI-22
LICENSE LAMP FINISHER
LICENSE LAMP FINISHER
PFP:84810
Removal and InstallationEIS001NV
REMOVAL
1. Remove back door finisher. Refer toEI-25, "Removal and Installation"
2. Remove license plate lamp. Refer toLT-32, "LICENSE PLATE LAMP".
3. Remove license lamp finisher mounting nuts and clips. Then remove finisher.
INSTALLATION
Installation is in the reverse order of removal.

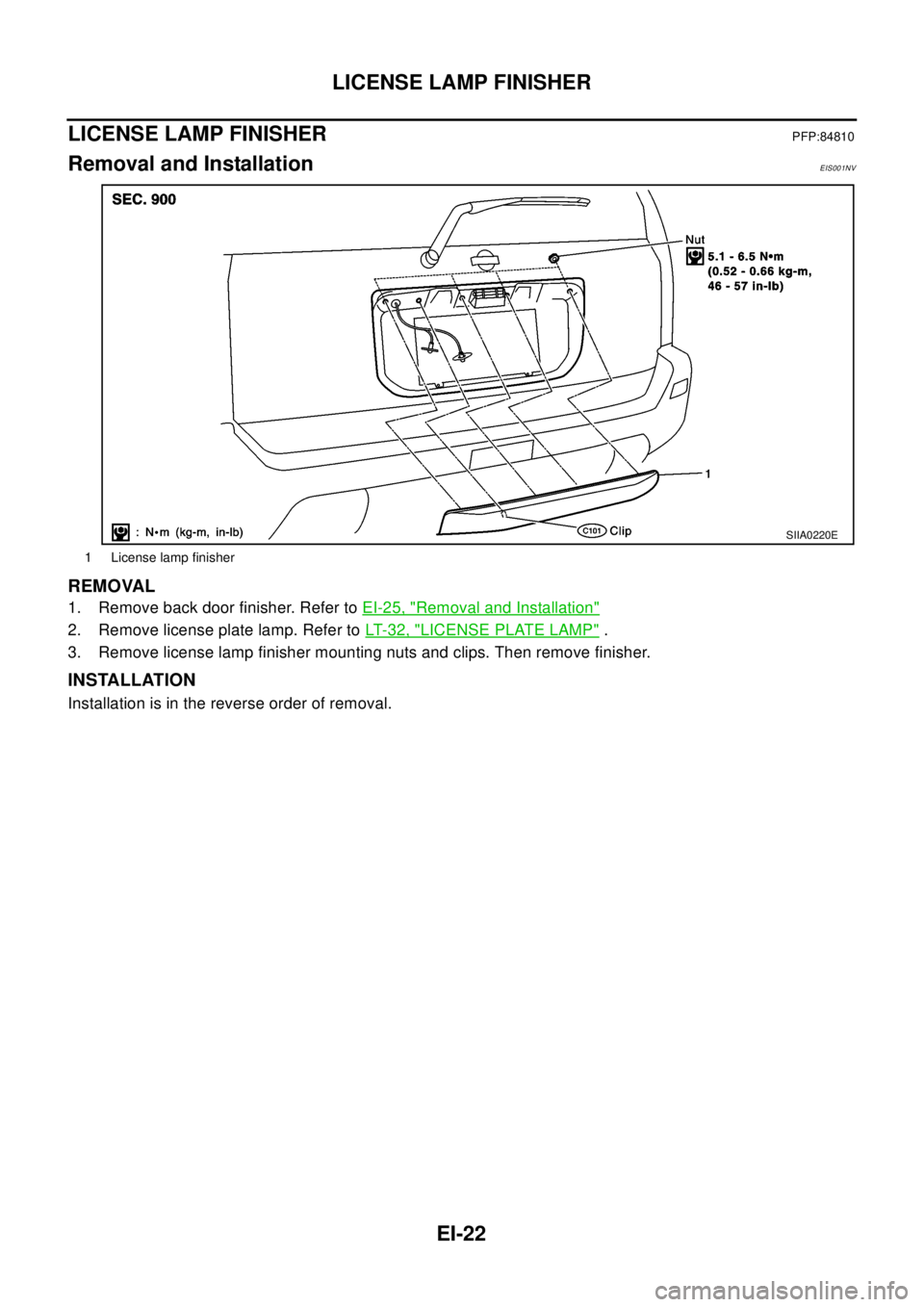

1 License lamp finisher
SIIA0220E

DOOR FINISHER
EI-23
C
D
E
F
G
H
J
K
L
MA
B
EI
DOOR FINISHERPFP:80900
Removal and InstallationEIS000N9
FRONT AND REAR
1. Insert a screwdriver, wrapped with a shop cloth, into door trim
cutout on the inside handle escutcheon. Disengage the taps on
the front, upper side (2) and lower side (2). Slide rearwards and
disengage the rear-side pawls to remove.
SIIA0203E

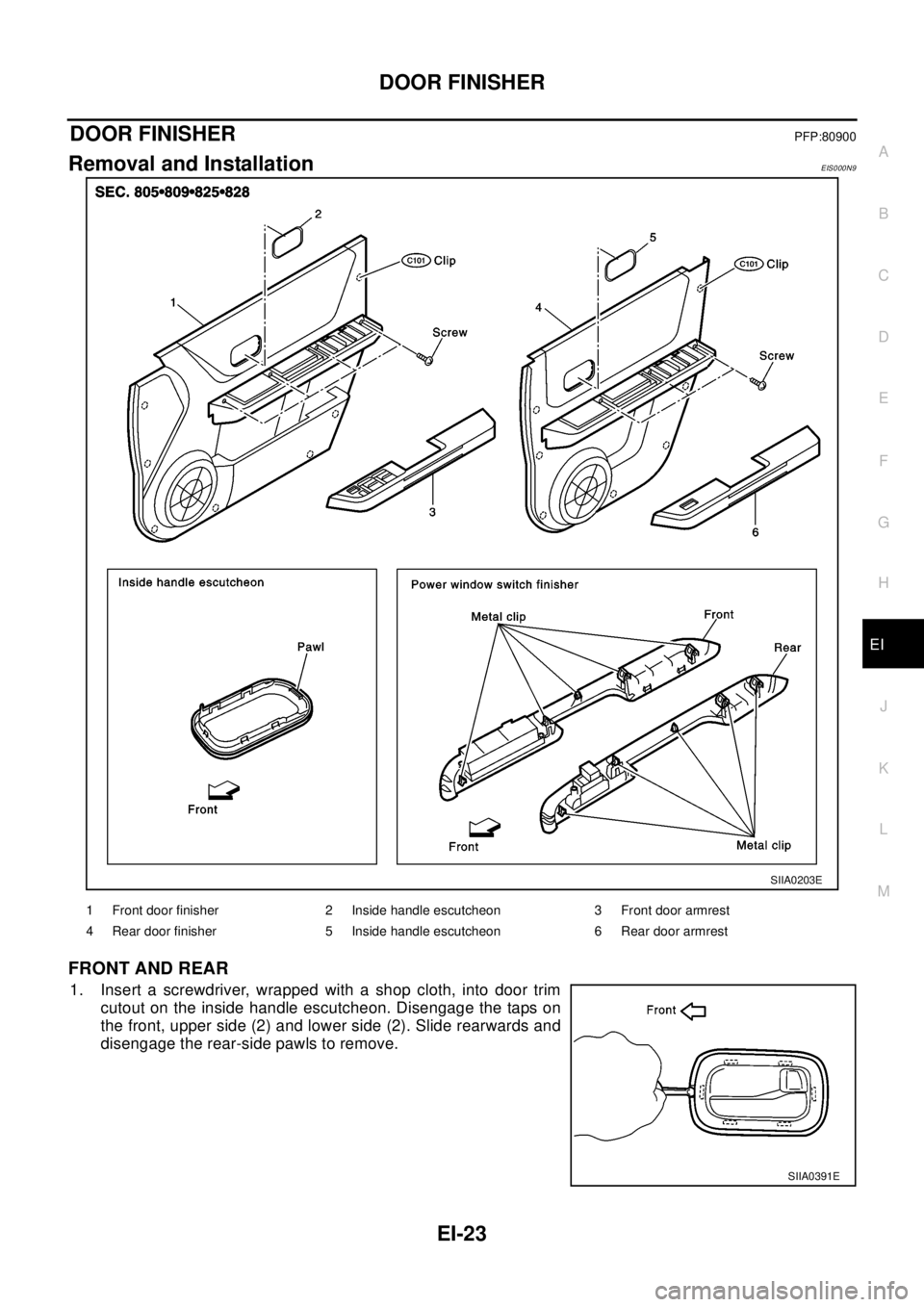

1 Front door finisher 2 Inside handle escutcheon 3 Front door armrest
4 Rear door finisher 5 Inside handle escutcheon 6 Rear door armrest
SIIA0391E

EI-24
DOOR FINISHER

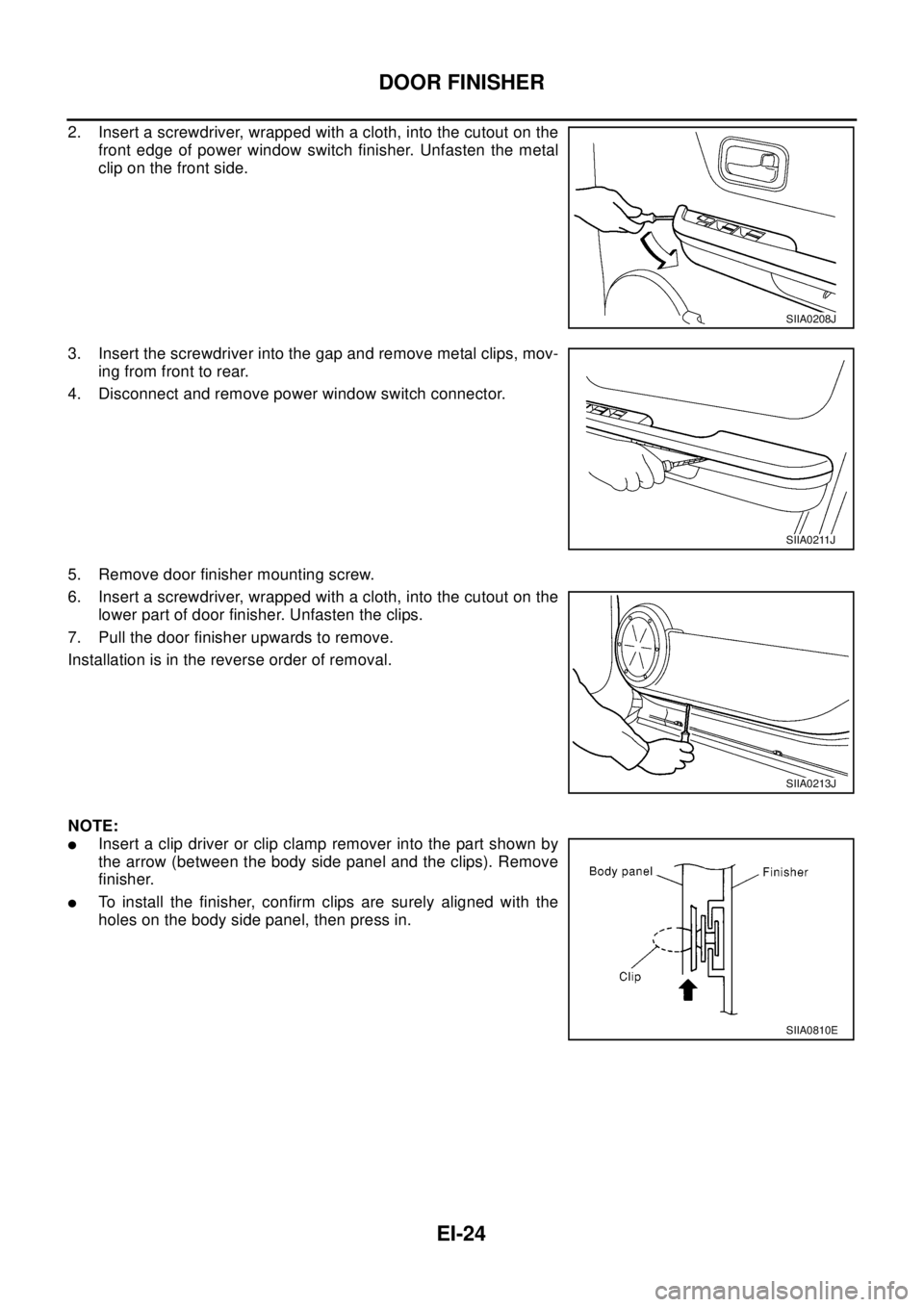

2. Insert a screwdriver, wrapped with a cloth, into the cutout on the
front edge of power window switch finisher. Unfasten the metal
clip on the front side.
3. Insert the screwdriver into the gap and remove metal clips, mov-
ing from front to rear.
4. Disconnect and remove power window switch connector.
5. Remove door finisher mounting screw.
6. Insert a screwdriver, wrapped with a cloth, into the cutout on the
lower part of door finisher. Unfasten the clips.
7. Pull the door finisher upwards to remove.
Installation is in the reverse order of removal.
NOTE:
lInsert a clip driver or clip clamp remover into the part shown by
the arrow (between the body side panel and the clips). Remove
finisher.
lTo install the finisher, confirm clips are surely aligned with the
holes on the body side panel, then press in.
SIIA0208J
SIIA0211J
SIIA0213J
SIIA0810E

BACK DOOR TRIM
EI-25
C
D
E
F
G
H
J
K
L
MA
B
EI
BACK DOOR TRIMPFP:90900
Removal and InstallationEIS000NA

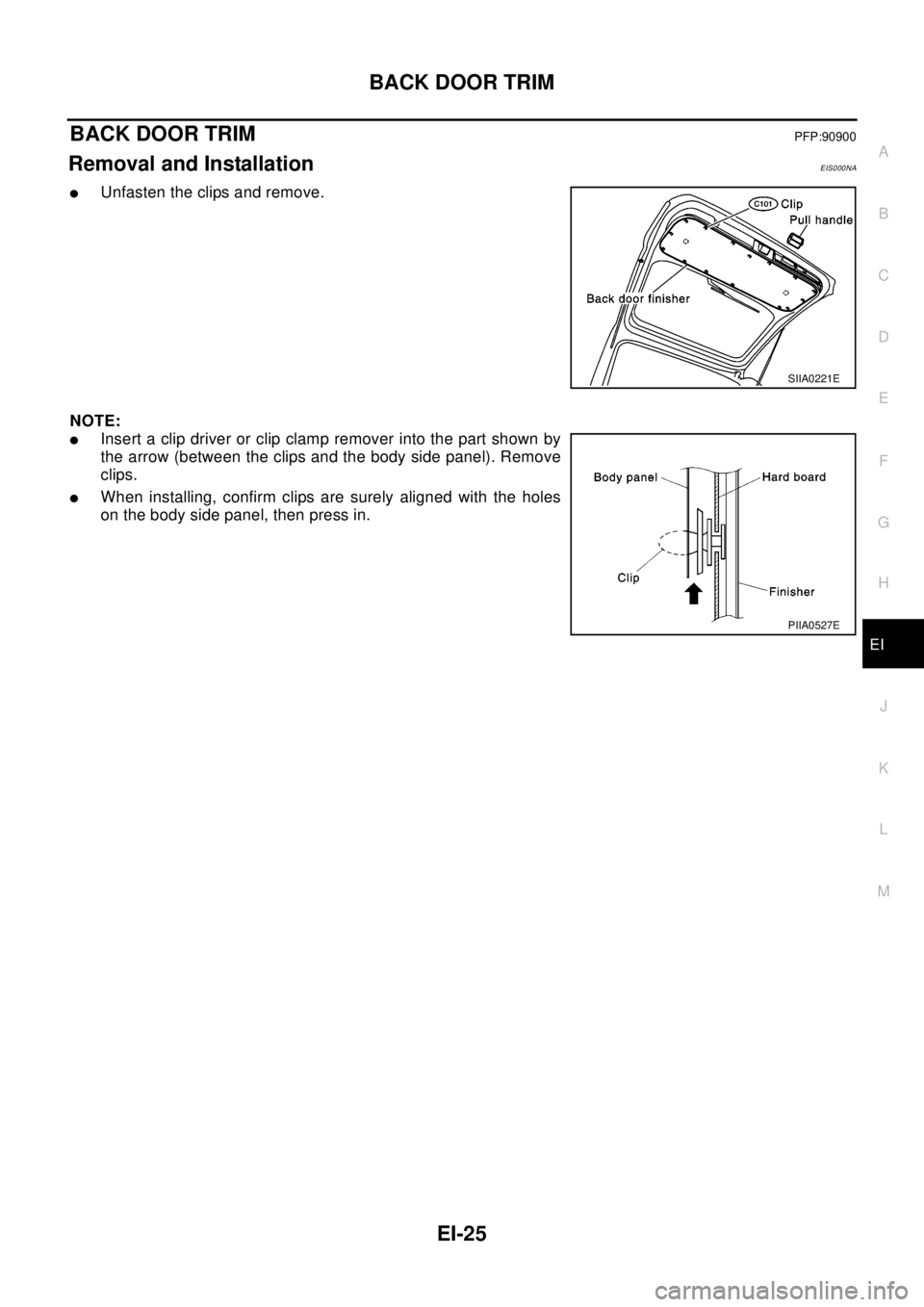

lUnfasten the clips and remove.
NOTE:
lInsert a clip driver or clip clamp remover into the part shown by
the arrow (between the clips and the body side panel). Remove
clips.
lWhen installing, confirm clips are surely aligned with the holes
on the body side panel, then press in.
SIIA0221E
PIIA0527E

EI-26
BODY SIDE TRIM
BODY SIDE TRIM
PFP:76913
Removal and InstallationEIS000NB
SIIA0217E

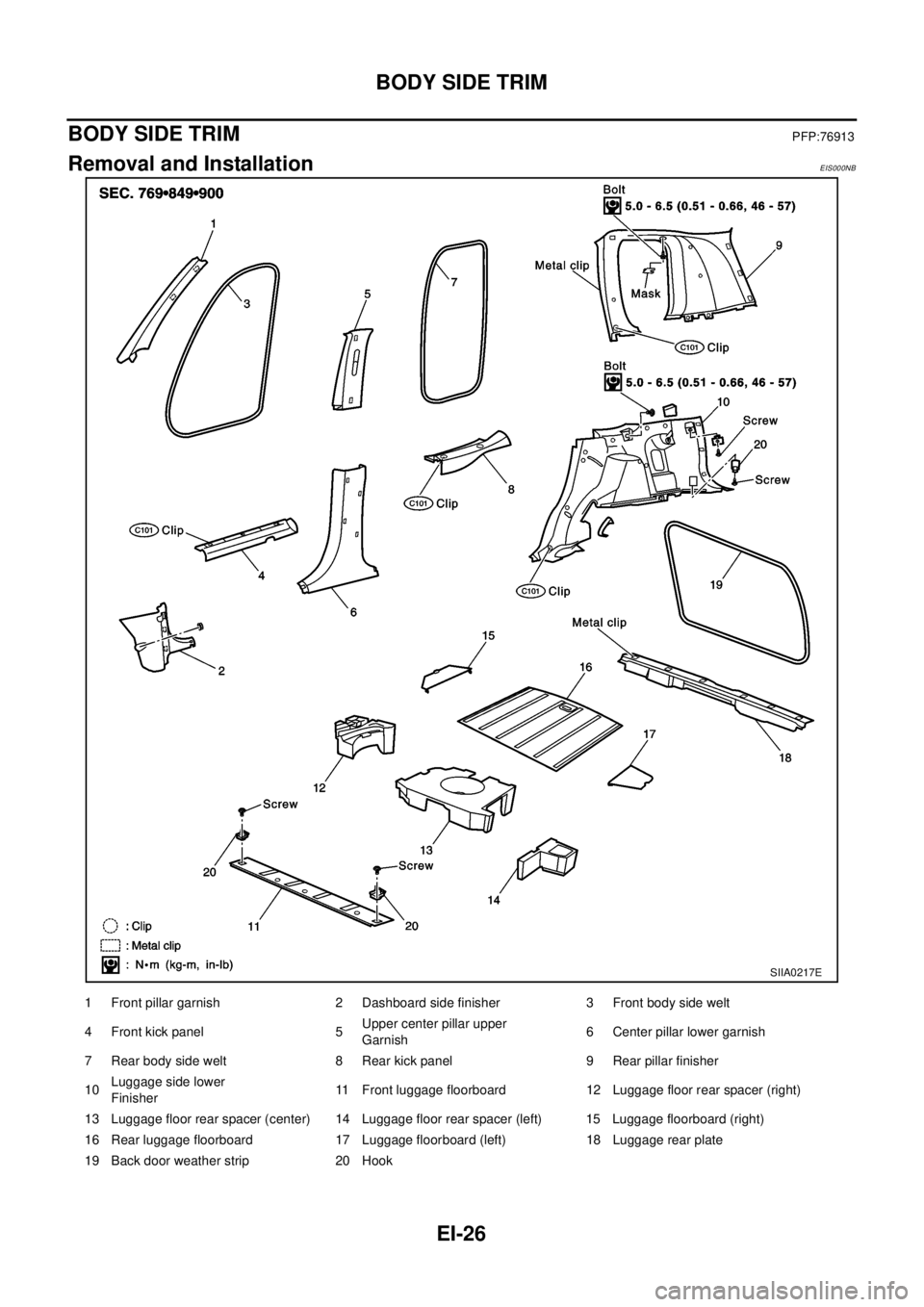

1 Front pillar garnish 2 Dashboard side finisher 3 Front body side welt
4 Front kick panel 5Upper center pillar upper
Garnish6 Center pillar lower garnish
7 Rear body side welt 8 Rear kick panel 9 Rear pillar finisher
10Luggage side lower
Finisher11 Front luggage floorboard 12 Luggage floor rear spacer (right)
13 Luggage floor rear spacer (center) 14 Luggage floor rear spacer (left) 15 Luggage floorboard (right)
16 Rear luggage floorboard 17 Luggage floorboard (left) 18 Luggage rear plate
19 Back door weather strip 20 Hook

BODY SIDE TRIM
EI-27
C
D
E
F
G
H
J
K
L
MA
B
EI
CENTER PILLAR LOWER GARNISH
lRemoving and installing front and rear kick panels
CENTER PILLAR UPPER GARNISH
lRemoving and installing the seat belt shoulder anchor. Refer toSB-3, "Removal and Installation of Front
Seat Belt"
lRemoving and installing front and rear kick panels
lRemoval and installation of center pillar lower garnish
LUGGAGE SIDE LOWER FINISHER
lRemoval and installation of luggage floorboards and luggage floor spacers
lRemoval and installation of luggage rear plate
lRemoval and installation of rear kick panel
NOTE:

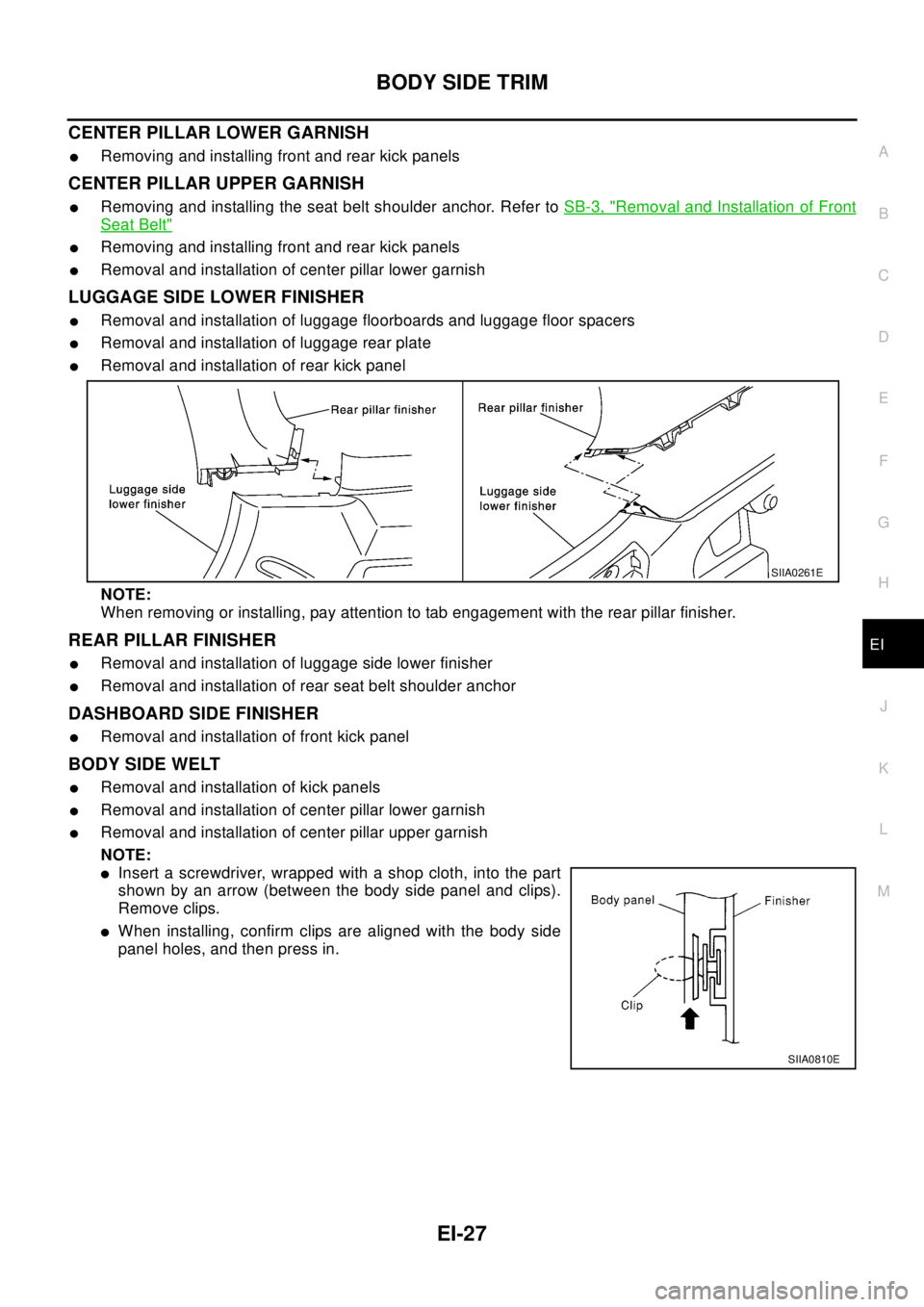

When removing or installing, pay attention to tab engagement with the rear pillar finisher.
REAR PILLAR FINISHER
lRemoval and installation of luggage side lower finisher
lRemoval and installation of rear seat belt shoulder anchor
DASHBOARD SIDE FINISHER
lRemoval and installation of front kick panel
BODY SIDE WELT
lRemoval and installation of kick panels
lRemoval and installation of center pillar lower garnish
lRemoval and installation of center pillar upper garnish
NOTE:
lInsert a screwdriver, wrapped with a shop cloth, into the part
shown by an arrow (between the body side panel and clips).
Remove clips.
lWhen installing, confirm clips are aligned with the body side
panel holes, and then press in.
SIIA0261E
SIIA0810E

EI-28
FLOOR TRIM
FLOOR TRIM
PFP:74902
Removal and InstallationEIS000NC
REMOVAL
1. Remove front seat and rear seat cushions. Refer toSE-8, "Removal and Installation"in the front seat
section, and toSE-13, "
Removal and Installation"in the rear seat section.
2. Remove clips and remove rear floor carpet.
3. Remove center console.
4. Remove lower instrument cover.
5. Remove lower instrument center panel.
6. Remove floor anchor bolt of front seat belt. Refer toSB-3, "
Removal and Installation of Front Seat Belt".
7. Remove front and rear kick panels.
8. Remove center pillar lower garnish.
9. Remove front and rear body-side welts.
10. Remove the dashboard side finisher.
11. Remove footrest.
12. Remove carpet hooks and clips.
13. Remove carpet from the carpet anchor clips.
14. Remove floor carpet.
NOTE:
lFor steps 3-5, refer toIP-5, "Removal and Installation".
lFor steps 7-10, refer toEI-26, "Removal and Installation".
INSTALLATION
Installation is in the reverse order of removal.
SIIA0222E

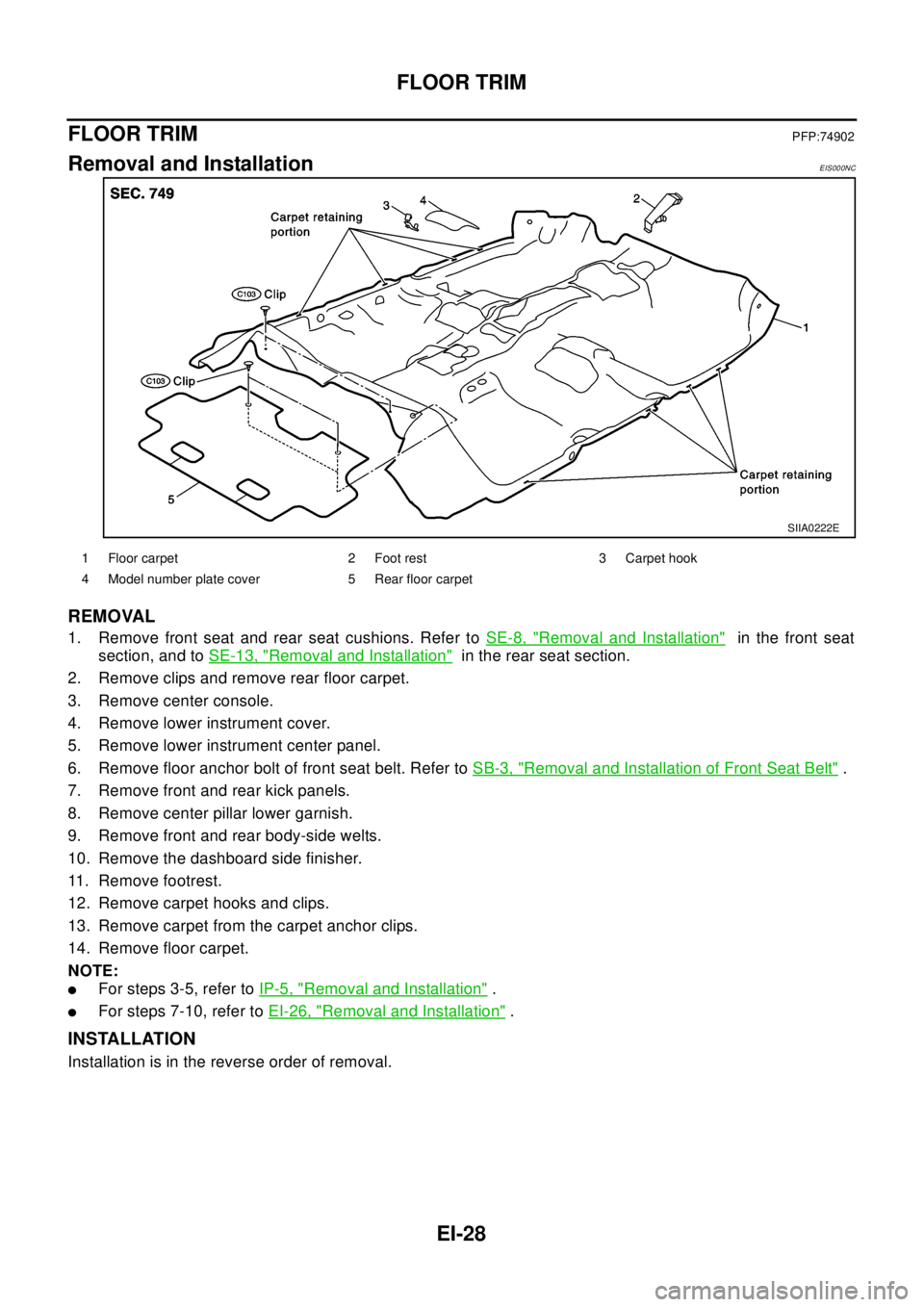

1 Floor carpet 2 Foot rest 3 Carpet hook
4 Model number plate cover 5 Rear floor carpet

HEADLINING
EI-29
C
D
E
F
G
H
J
K
L
MA
B
EI
HEADLININGPFP:73910
Removal and InstallationEIS000ND
REMOVAL
1. Remove front pillar and center pillar garnishes. Refer toEI-26, "Removal and Installation".
2. Remove body side welt. Refer toEI-26, "
Removal and Installation".
SIIA0223E
1 Headliner (standard) 2 Sun visor (left) 3 Sun visor (right)
4 Sun visor holder 5 Inside mirror 6 Inside mirror cover
7 Map lamp 8 Interior lamp 9 Assistance grip (fixed type)
10 Luggage compartment lamp 11 Headliner (sunroof) 12 Sunroof switch and map lamp
13Assistance grip (retractable
type)14 Sunroof welt

EI-30
HEADLINING
3. Remove rear pillar finisher. Refer toEI-26, "Removal and Installation".
4. Remove assistance grip.
NOTE:
When removing the assistant's grip cover from a car with a sun-
roof, use a clip clamp tool to disengage the upper and lower
tabs, then slide inwards and remove screws (1 each on left/
right).
5. Remove map lamp, interior lamp, and luggage compartment lamp. Refer toLT-64, "
INTERIOR ROOM
LAMP",LT-66, "SPOT LAMP (WITHOUT SUNROOF)",LT- 6 6 , "SPOT LAMP (WITH SUNROOF)"and
LT-64, "
LUGGAGE ROOM LAMP".
6. Remove inside mirror cover.
7. Remove mounting screw on inside mirror.
8. Remove sun visors (driver side and passenger side).
9. Remove headliner rear clips.
10. Remove sun visor holder.
NOTE:
Insert a screwdriver into the cutout and rotate 90°to remove.
11. Remove headliner through the back door opening.
NOTE:
lRemoval and installation must be performed by 2 persons.
lDo not strongly bend the headliner.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
When installing, insert the protrusions on the headliner into the holes
in the upper part of center pillar.
SIIA0052E
SIIA0224J
PIIA0561E
