PEUGEOT 108 2015 User Guide

9
108_en_Chap00c_eco-conduite_ed01-2015
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance
(roof bars, roof rack...). u
s
e a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations on
maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-

b
efore a long journey,
-

a
t each change of season,
-

a
fter a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the warranty and maintenance record.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3
000 kilometres) that you will see the fuel consumption settle down to
a consistent average.
.
eco-driving

10

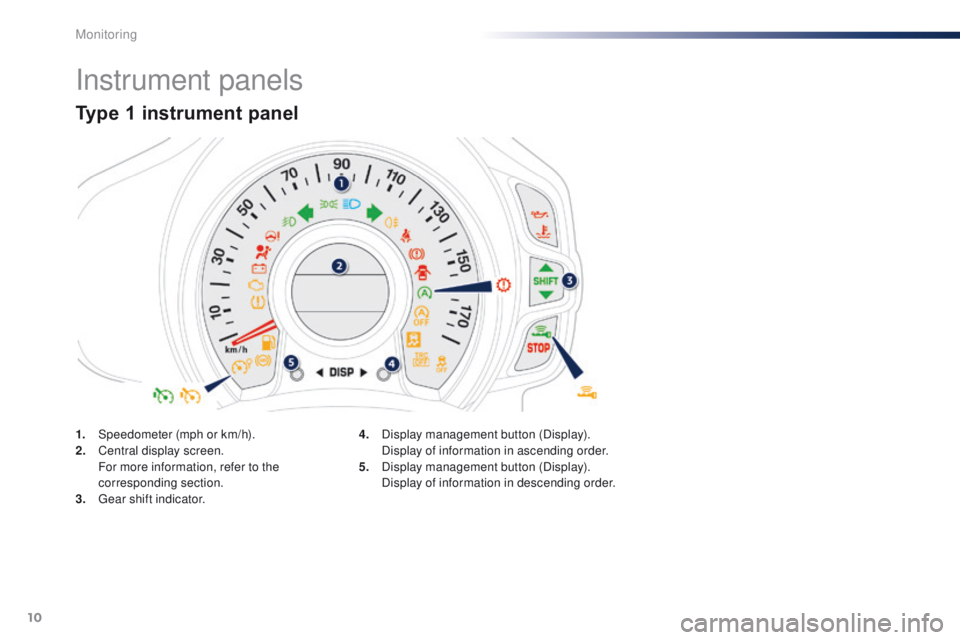

Instrument panels
Type 1 instrument panel
1. Speedometer (mph or km/h).
2. Central display screen.
F

or more information, refer to the
corresponding section.
3.


g
e
ar shift indicator. 4. D
isplay management button (Display). D
isplay of information in ascending order.
5.
D

isplay management button (Display).
D

isplay of information in descending order.
Monitoring

11
108_en_Chap01_controle-de-marche_ed01-2015
1. Speedometer (mph or km/h).
2. Central display screen.
F

or more information, refer to the
corresponding section.
3.


g
e
ar shift indicator.
4.
D

isplay management button (Display).
D

isplay of information in ascending order.

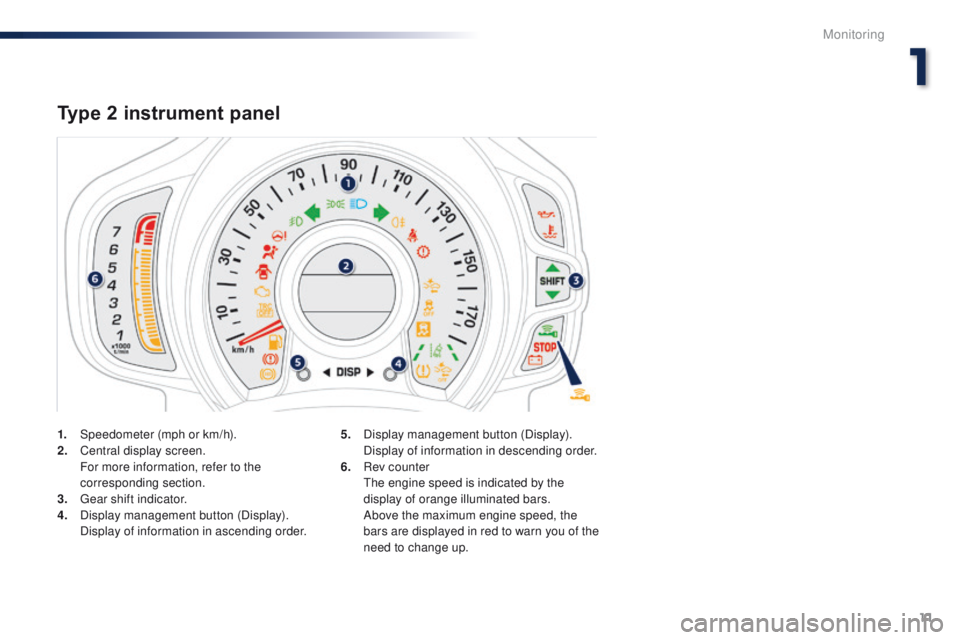

Type 2 instrument panel
5. Display management button (Display). D isplay of information in descending order.
6.
R

ev counter


t
h
e engine speed is indicated by the
display of orange illuminated bars.
A

bove the maximum engine speed, the
bars are displayed in red to warn you of the
need to change up.
1
Monitoring

12

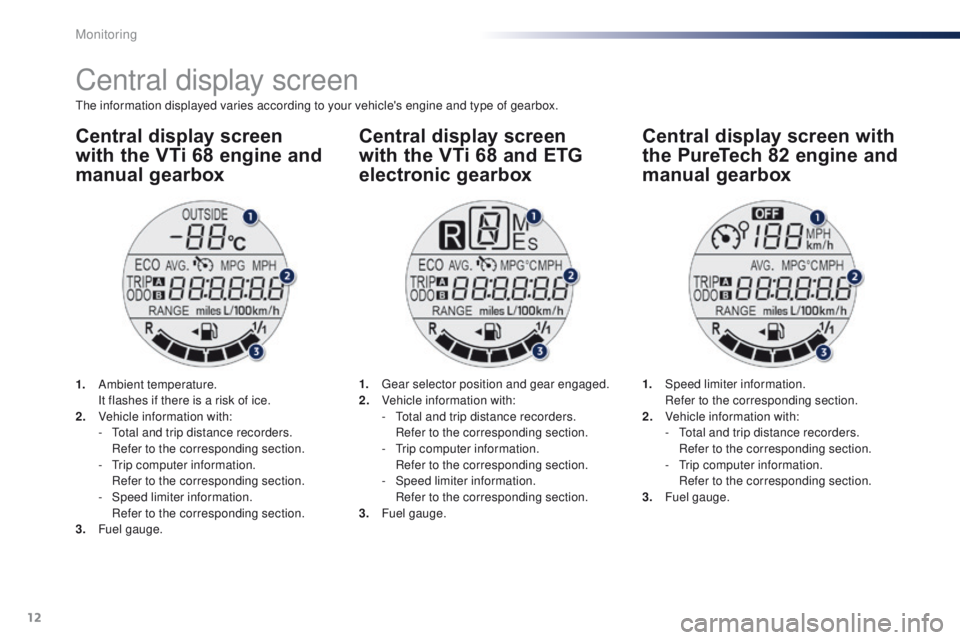

Central display screen
the information displayed varies according to your vehicle's engine and type of gearbox.
Central display screen
with the VTi 68 engine and
manual gearboxCentral display screen
with the VTi 68 and ETG
electronic gearboxCentral display screen with
the PureTech 82 engine and
manual gearbox
1. Ambient temperature. I
t flashes if there is a risk of ice.
2.
V

ehicle information with:
-
t
o
tal and trip distance recorders.
R

efer to the corresponding section.
-
t
r
ip computer information.
R

efer to the corresponding section.
-
S

peed limiter information.
R

efer to the corresponding section.
3.
F

uel gauge. 1.
gea r selector position and gear engaged.
2. V ehicle information with:
-
t
o
tal and trip distance recorders.
R

efer to the corresponding section.
-
t
r
ip computer information.
R

efer to the corresponding section.
-
S

peed limiter information.
R

efer to the corresponding section.
3.
F

uel gauge.1. S
peed limiter information. R
efer to the corresponding section.
2.
V

ehicle information with:
-
t
o
tal and trip distance recorders.
R

efer to the corresponding section.
-
t
r
ip computer information.
R

efer to the corresponding section.
3.
F

uel gauge.
Monitoring

13
108_en_Chap01_controle-de-marche_ed01-2015

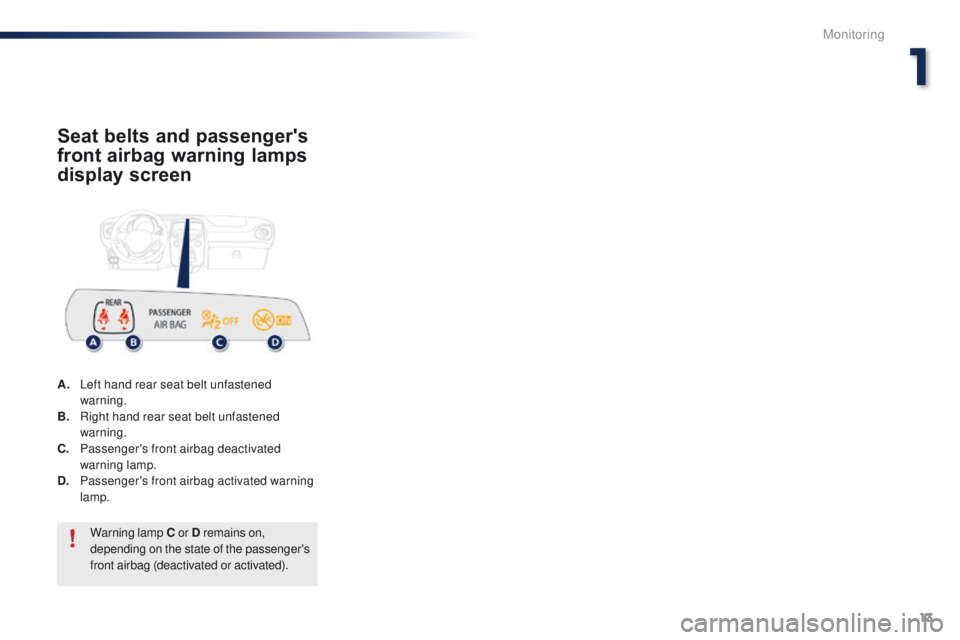

Seat belts and passenger's
front airbag warning lamps
display screen
A. Left hand rear seat belt unfastened warning.
B.
R

ight hand rear seat belt unfastened
warning.
C.
P

assenger's front airbag deactivated
warning lamp.
D.
P

assenger's front airbag activated warning
lamp.
Warning lamp C or D remains on,
depending on the state of the passenger's
front airbag (deactivated or activated).
1
Monitoring

14

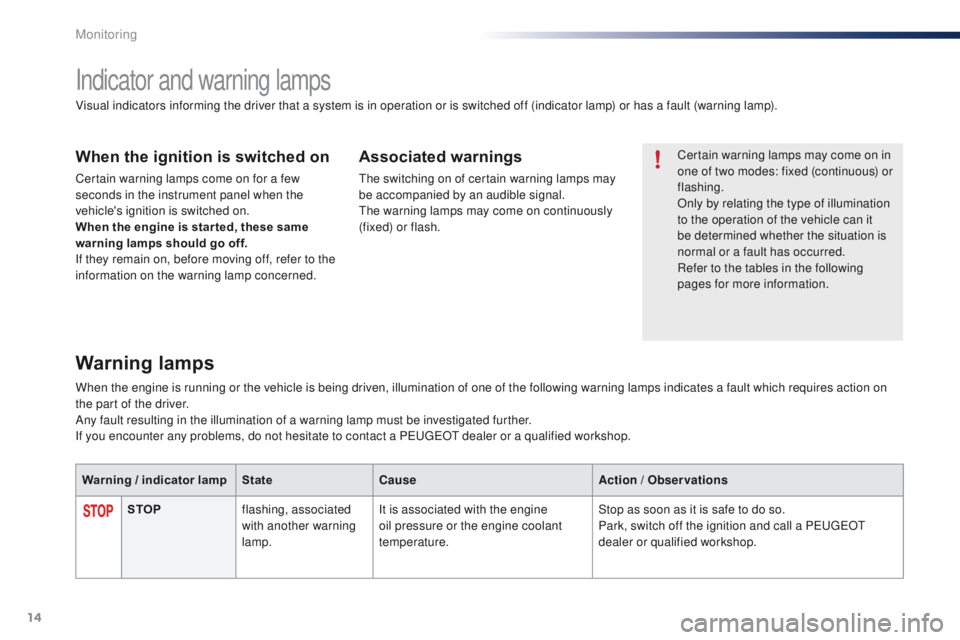

Indicator and warning lamps
Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred.
Refer to the tables in the following
pages for more information.
Visual indicators informing the driver that a system is in operation or is switched off (indicator lamp) or has a fault (warning lamp).When the ignition is switched on
Certain warning lamps come on for a few
seconds in the instrument panel when the
vehicle's ignition is switched on.
When the engine is star ted, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
the switching on of certain warning lamps may
be accompanied by an audible signal.
th

e warning lamps may come on continuously
(fixed) or flash.
Warning lamps
STOP flashing, associated
with another warning
lamp. It is associated with the engine
oil pressure or the engine coolant
temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a Pe
ugeOt
dealer or qualified workshop.
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further.
If you encounter any problems, do not hesitate to contact a P
e

uge
Ot
dealer or a qualified workshop.
Warning / indicator lamp StateCause Action / Observations
Monitoring

15
108_en_Chap01_controle-de-marche_ed01-2015
Brakingfixed.th e braking system fluid level has
dropped significantly.to p up with brake fluid recommended by Pe ugeOt.
I f the problem persists, have the system checked by a
P
e

uge
Ot
dealer or a qualified workshop.
th

e braking system has a fault. Stop as soon as it is safe to do so.Park, switch off the ignition and contact a P
e

uge
Ot

dealer or a qualified workshop.
Warning / indicator lamp
StateCause Action / Observations
Engine oil
pressure fixed, associated with
the S
tO

P warning
lamp.
th

e engine oil pressure is too low. Stop as soon it is safe to do so.Park, switch off the ignition and contact a P
e

uge
Ot

dealer or a qualified workshop.
Coolant
temperature flashing (V
ti 6

8
e
ngine
only).
the

temperature of the engine
coolant is increasing. Drive gently.
fixed.
the

temperature of the engine
coolant is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
checking up the level; top up if necessary.
If the problem persists, contact a P
e

uge
Ot
dealer or
qualified workshop.
Anti-lock
Braking System
(ABS) fixed.
th

e anti-lock braking system has a
fault.
th

e vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
P
e

uge
Ot
dealer or a qualified workshop without
d e l ay.
1
Monitoring

16

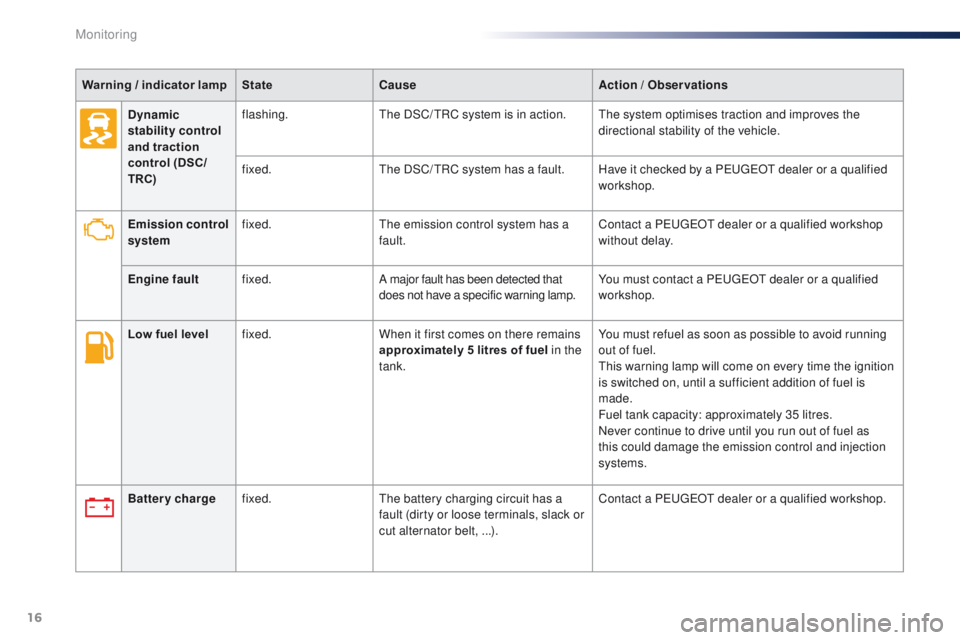

Low fuel levelfixed. When it first comes on there remains
approximately 5 litres of fuel in the
tank. You must refuel as soon as possible to avoid running
out of fuel.
th

is warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity: approximately 35 litres.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Battery charge fixed.
th

e battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...). Contact a P
e

uge
Ot
dealer or a qualified workshop.
Emission control
system
fixed.
th
e emission control system has a
fault. Contact a P
e
uge
Ot
dealer or a qualified workshop
without delay.
Engine fault fixed. A major fault has been detected that
does not have a specific warning lamp. You must contact a P
e
uge
Ot
dealer or a qualified
workshop.
Dynamic
stability control
and traction
control (DSC/
TRC)
flashing.
th
e DSC/
tR
C system is in action.
th
e system optimises traction and improves the
directional stability of the vehicle.
fixed.
th
e DSC/
tR
C system has a fault. Have it checked by a P
e
uge
Ot
dealer or a qualified
workshop.
Warning / indicator lamp
StateCause Action / Observations
Monitoring

17
108_en_Chap01_controle-de-marche_ed01-2015
Front seat beltsflashing accompanied
by an audible signal.th e driver has not fastened or has
unfastened their seat belt.
the

front passenger has unfastened
their seat belt. Pull the strap then insert the tongue in the buckle.
Warning / indicator lamp
StateCause Action / Observations
Electric power
steering flashing or fixed,
accompanied by an
audible signal.
th

e electric power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a P
e

uge
Ot
dealer or qualified
workshop.
Airbags
fixed. One of the airbags or seat belt
pretensioners has a fault. Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
ETG electronic
gearbox fixed.
th

e etg electronic gearbox has a
fault. Contact a P
e

uge
Ot
dealer or a qualified workshop
without delay.
Clutch flashing, accompanied
by an audible signal.
th

e clutch temperature is too high. Stop as soon as it is safe to do so, place the etg
electronic gearbox selector in position N , and wait
about 15 minutes for the clutch to cool down.
1
Monitoring

18
Stop & Star t
(VTi 68 S&S
engine)flashing.th
e Stop & Start system has a fault. Have the system checked by a Pe ugeOt dealer or a
qualified workshop.
Speed limiter fixed.
th

e speed limiter has a fault.Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
Door(s) open /
Boot open fixed, accompanied by
an audible signal. A door or the boot is still open. Close the door or boot.
Warning / indicator lamp
StateCause Action / Observations
Under-inflation fixed.
th
e pressure in one or more wheels
is too low. Check the pressure of the tyres as soon as possible.
th
is check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information, refer to the "
un
der-inflation
detection" section.
Monitoring
