PEUGEOT 108 2015 Service Manual

39
108_en_Chap02_ouvertures_ed01-2015

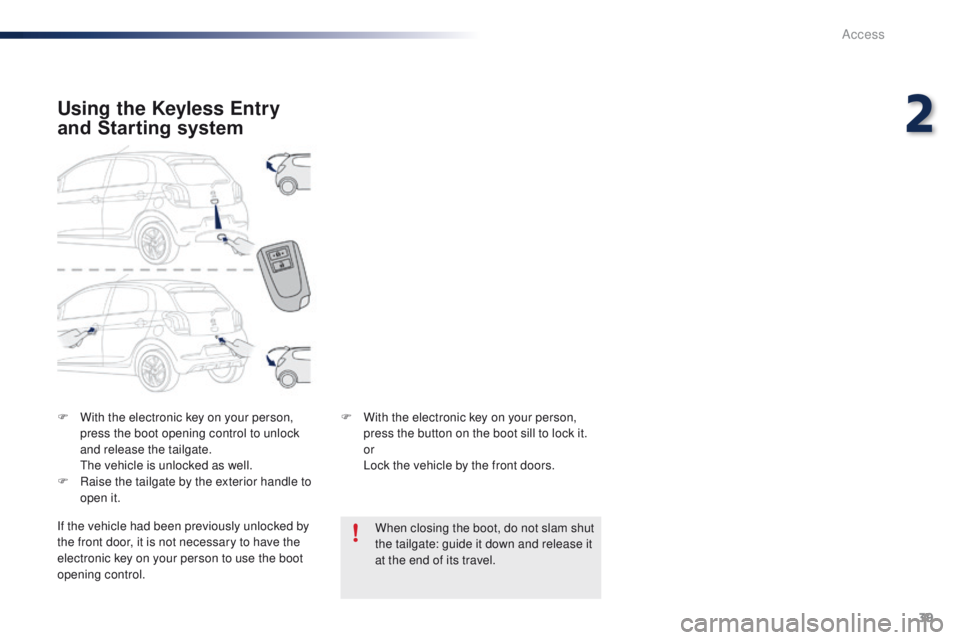

F With the electronic key on your person, press the boot opening control to unlock
and release the tailgate.


t
h
e vehicle is unlocked as well.
F

R
aise the tailgate by the exterior handle to
open it.
Using the Keyless Entry
and Starting system
If the vehicle had been previously unlocked by
the front door, it is not necessary to have the
electronic key on your person to use the boot
opening control. F

W
ith the electronic key on your person,
press the button on the boot sill to lock it.

or
L

ock the vehicle by the front doors.
When closing the boot, do not slam shut
the tailgate: guide it down and release it
at the end of its travel.
2
Access

40
108_en_Chap02_ouvertures_ed01-2015

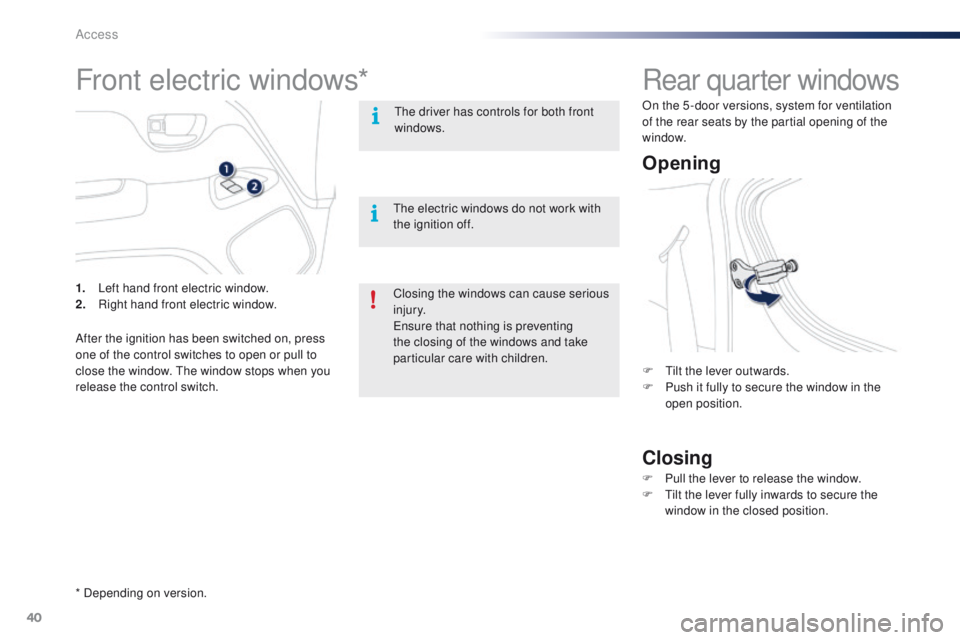

Rear quarter windows
Opening
Closing
F tilt the lever outwards.
F P ush it fully to secure the window in the
open position.
F

P
ull the lever to release the window.
F
t
i
lt the lever fully inwards to secure the
window in the closed position.
On the 5 -door versions, system for ventilation
of the rear seats by the partial opening of the
window.
Front electric windows*
the driver has controls for both front
windows.
th

e electric windows do not work with
the ignition off.
1.
L

eft hand front electric window.
2.
R

ight hand front electric window.
After the ignition has been switched on, press
one of the control switches to open or pull to
close the window.
t
he

window stops when you
release the control switch.
* Depending on version. Closing the windows can cause serious
injury.
en

sure that nothing is preventing
the closing of the windows and take
particular care with children.
Access

41
108_en_Chap02_ouvertures_ed01-2015
* Depending on version. Your vehicle may be fitted with an electrically operated fabric roof.
electric fabric roof*
Electric opening and closing
the roof is opened and closed by pressing
the control at the interior lamp, in the opening
direction 1 and in the closing direction 2.In order to maintain the state of charge
of the battery, it is recommended that the
roof be operated with the engine running
.
Operation of the roof is possible with
the ignition on and when driving.
Operation of the roof could cause
serious injuries: before operating the
roof, ensure that no occupant of the
vehicle or person outside the vehicle
could be subject to any risk related
to the movement of the roof and that
no object could inter fere with the
operation. During operation of the roof with just
the ignition on, starting the engine may
cause the roof to stop, depending on
the state of charge of the battery.
t
o
h

ave the roof continue the operation,
operate the control again after the
engine has started.
th

e asymmetric shape of the opening
control avoids closing the roof by
mistake.
Position of the roof
Position 0 : Roof completely closed.
Position 1 : Automatic stop position for the roof.
Position 2 : Roof completely open.
2
Access

42
108_en_Chap02_ouvertures_ed01-2015

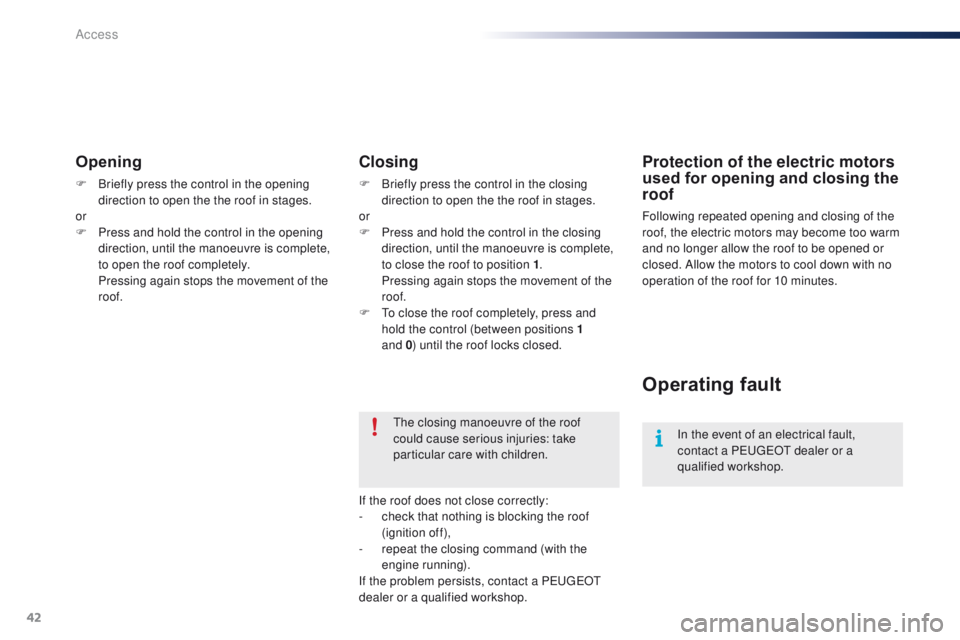

Opening
F Briefly press the control in the opening direction to open the the roof in stages.
or
F

P
ress and hold the control in the opening
direction, until the manoeuvre is complete,
to open the roof completely.
P

ressing again stops the movement of the
roof.
Closing
F Briefly press the control in the closing direction to open the the roof in stages.
or
F

P
ress and hold the control in the closing
direction, until the manoeuvre is complete,
to close the roof to position 1 .
P

ressing again stops the movement of the
roof.
F
t
o c
lose the roof completely, press and
hold the control (between positions 1
and
0) until the roof locks closed.
th

e closing manoeuvre of the roof
could cause serious injuries: take
particular care with children.
If the roof does not close correctly:
-

c
heck that nothing is blocking the roof
(ignition off),
-

r
epeat the closing command (with the
engine running).
If the problem persists, contact a P
e

uge
Ot

dealer or a qualified workshop.
Operating fault
In the event of an electrical fault,
contact a Pe ugeOt dealer or a
qualified workshop.
Protection of the electric motors
used for opening and closing the
roof
Following repeated opening and closing of the
roof, the electric motors may become too warm
and no longer allow the roof to be opened or
closed. Allow the motors to cool down with no
operation of the roof for 10 minutes.
Access

43
108_en_Chap02_ouvertures_ed01-2015

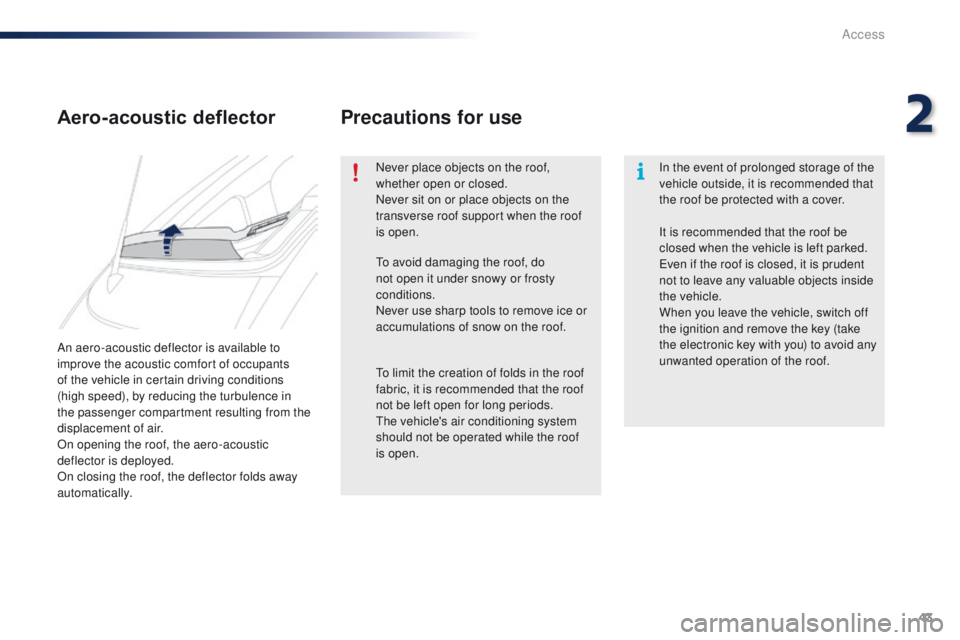

An aero-acoustic deflector is available to
improve the acoustic comfort of occupants
of the vehicle in certain driving conditions
(high speed), by reducing the turbulence in
the passenger compartment resulting from the
displacement of air.
On opening the roof, the aero-acoustic
deflector is deployed.
On closing the roof, the deflector folds away
automatically.
Aero-acoustic deflector Precautions for use
Never place objects on the roof,
whether open or closed.
Never sit on or place objects on the
transverse roof support when the roof
is open. In the event of prolonged storage of the
vehicle outside, it is recommended that
the roof be protected with a cover.
to a

void damaging the roof, do
not open it under snowy or frosty
conditions.
Never use sharp tools to remove ice or
accumulations of snow on the roof.
to l

imit the creation of folds in the roof
fabric, it is recommended that the roof
not be left open for long periods.
th

e vehicle's air conditioning system
should not be operated while the roof
is open. It is recommended that the roof be
closed when the vehicle is left parked.
ev

en if the roof is closed, it is prudent
not to leave any valuable objects inside
the vehicle.
When you leave the vehicle, switch off
the ignition and remove the key (take
the electronic key with you) to avoid any
unwanted operation of the roof.
2
Access

44
108_en_Chap02_ouvertures_ed01-2015
Recommendations on care of your vehicle
the general recommendations on the care of your vehicle are given in the warranty and maintenance record.
Fabric roof
to avoid damaging the roof.
- n ever use a high pressure jet wash,
-

n
ever wash your vehicle in an
automatic roller-brush car wash. Remove bird droppings or tree resins as
their acidity may damage the roof. Never use chemical products,
detergents, stain removers, solvents,
alcohol, petrol,
wdt. to clean the roof.
We recommend that you clean the
aero-acoustic defector with care using
a soft brush.
Before washing the fabric roof, first
remove as much dirt as possible from
the sur face using a soft brush or a
vacuum cleaner.to w
aterproof the roof, use only special
waterproofing products for fabric roofs.
to r
emove marks, sponge them (but
never rub them) using soapy water, then
immediately rinse with clean water.
Allow the vehicle to dry in a shaded
area and avoid direct exposure to the
sun. For the regular maintenance of the
fabric roof and to conserve its original
appearance, we recommend an
ecological "Fly remover - Fabric roof
cleaner" from the "
t

e
C
HNA
t
u
Re"
r

ange. t
o o
btain this product go to a
P
e

uge
Ot d
ealer.
Aero-acoustic deflector
Access

45
108_en_Chap03_confort_ed01-2015

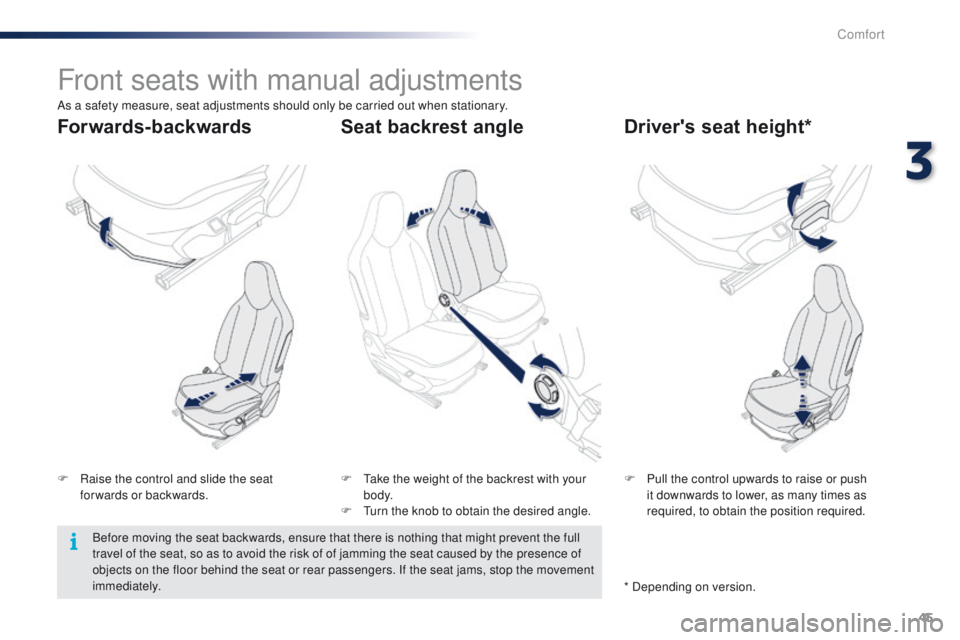

Front seats with manual adjustments
F Raise the control and slide the seat forwards or backwards. F
P ull the control upwards to raise or push
it downwards to lower, as many times as
required, to obtain the position required.
F
ta ke the weight of the backrest with your
b o dy.
F
t
u
rn the knob to obtain the desired angle.
Forwards-backwards Driver's seat height*
Seat backrest angle
As a safety measure, seat adjustments should only be carried out when stationary.
Before moving the seat backwards, ensure that there is nothing that might prevent the full
travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of
objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement
immediately. * Depending on version.
3
Comfort

46
108_en_Chap03_confort_ed01-2015

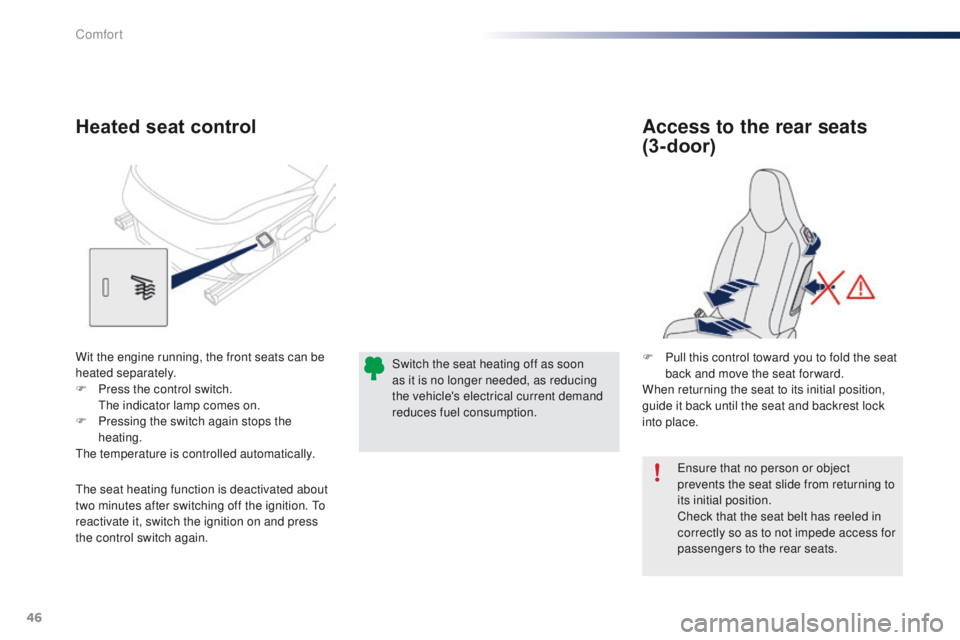

ensure that no person or object
prevents the seat slide from returning to
its initial position.
Check that the seat belt has reeled in
correctly so as to not impede access for
passengers to the rear seats.
Heated seat controlAccess to the rear seats
(3-door)
F Pull this control toward you to fold the seat
back and move the seat for ward.
When returning the seat to its initial position,
guide it back until the seat and backrest lock
into place.
Wit the engine running, the front seats can be
heated separately.
F

P

ress the control switch.


t
h

e indicator lamp comes on.
F

P

ressing the switch again stops the
heating.
the

temperature is controlled automatically.
the

seat heating function is deactivated about
two minutes after switching off the ignition.
t
o
r

eactivate it, switch the ignition on and press
the control switch again. Switch the seat heating off as soon
as it is no longer needed, as reducing
the vehicle's electrical current demand
reduces fuel consumption.
Comfort

47
108_en_Chap03_confort_ed01-2015

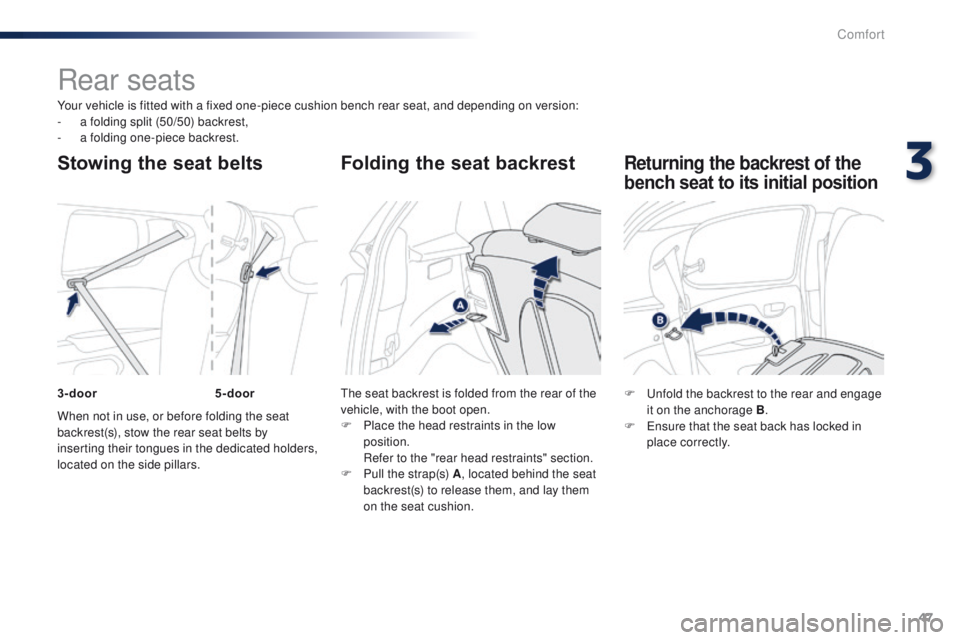

Your vehicle is fitted with a fixed one-piece cushion bench rear seat, and depending on version:
- a f olding split (50/50) backrest,
-

a f
olding one-piece backrest.
When not in use, or before folding the seat
backrest(s), stow the rear seat belts by
inserting their tongues in the dedicated holders,
located on the side pillars.
th

e seat backrest is folded from the rear of the
vehicle, with the boot open.
F

P
lace the head restraints in the low
position.
R

efer to the "rear head restraints" section.
F

P
ull the strap(s) A, located behind the seat
backrest(s) to release them, and lay them
on the seat cushion.
Rear seats
Stowing the seat belts Folding the seat backrest
F unfold the backrest to the rear and engage it on the anchorage B .
F
e
n
sure that the seat back has locked in
place correctly.
Returning the backrest of the
bench seat to its initial position
3-door 5-door
3
Comfort

48
108_en_Chap03_confort_ed01-2015

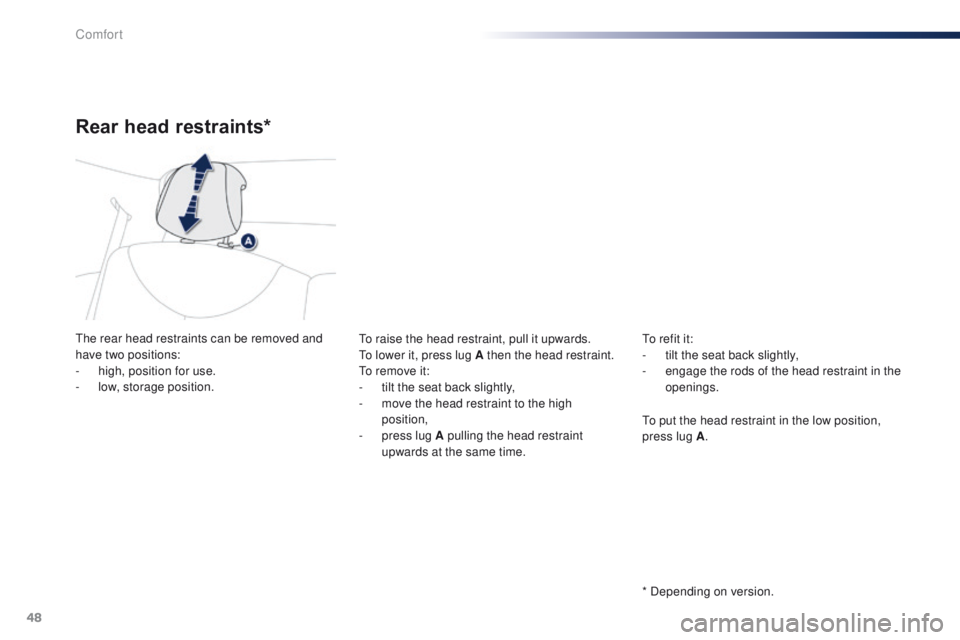

Rear head restraints*
the rear head restraints can be removed and
have two positions:
-
h
igh, position for use.
-
lo

w, storage position.to r aise the head restraint, pull it upwards.
to l

ower it, press lug A then the head restraint.
to r

emove it:
-

t
ilt the seat back slightly,
-

m
ove the head restraint to the high
position,
-

p
ress lug A pulling the head restraint
upwards at the same time.to refit it:
-

t
ilt the seat back slightly,
-

e
ngage the rods of the head restraint in the
openings.
* Depending on version.
to p
ut the head restraint in the low position,
press lug A .
