PEUGEOT 108 2015 Owner's Manual

19
108_en_Chap01_controle-de-marche_ed01-2015
Warning / indicator lampStateCause Action / Observations
Keyless Entr y
and Starting
system flashing quickly.
th

e steering column has not been
unlocked. Change to "
OFF" mode, then " ON" mode and turn the
wheel slightly to unlock the steering column.
flashing, accompanied
by an audible signal.
th

e battery in the electronic key is
discharged. Replace the battery.
Refer to the corresponding section.
You are leaving the vehicle without
activating " OFF" mode. With the electronic key on your person, press the
S
tA

R
t/
S
tO
P button to change to "OFF" mode.
th

e electronic key has not been
detected. Check that you have the electronic key with you.
th

e Keyless e
n
try and Starting
system has a fault. Have the system checked by a P
e

uge
Ot
dealer or a
qualified workshop.
Lane depar ture
warning system flashing (orange),
accompanied by an
audible signal. A lane marking is being crossed, on
the right.
tu

rn the wheel in the other direction to return to the
correct trajectory.
For more information, refer to the corresponding
section.
A lane marking is being crossed, on
the left.
fixed.
th

e lane departure warning system
has a fault. Have the system checked by a P
e

uge
Ot
dealer or a
qualified workshop.
Active City
Brake flashing, accompanied
by an audible signal.
th

e Active City Brake system is in
action.
th

e system optimises braking to avoid a collision.
For more information, refer to the corresponding
section.
flashing.
th

e Active City Brake system has a
fault. Have the system checked by a P
e

uge
Ot
dealer or a
qualified workshop.
1
Monitoring

20
Operation indicator lamps
Left-hand direction
indicatorflashing with buzzer.th e lighting stalk is pushed down.
Right-hand
direction indicator flashing with buzzer.
th

e lighting stalk is pushed up.
Sidelamps or
dipped beam
headlamps fixed.
th

e sidelamps or dipped beam
headlamps are on.
Main beam
headlamps fixed.
th

e lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Warning / indicator lamp
StateCause Action / Observations
Illumination of one of the following indicator lamps confirms that the corresponding system has been switched on.
It may be accompanied by an audible signal.
Rear foglamp fixed.
th

e rear foglamp has been switched
on using the ring on the lighting
control stalk.
tu

rn the ring on the lighting control stalk to the rear to
switch off the rear foglamp.
Front foglamps
fixed.
th

e front foglamps (if your vehicle
has them) are switched on.
tu

rn the ring on the stalk rear wards twice to switch off
the front foglamps.
Please note : if front foglamps have been fitted as an
accessory, the control may be different.
Monitoring

21
108_en_Chap01_controle-de-marche_ed01-2015
Parking brakefixed, accompanied by
an audible signal.th e parking brake is applied or not
properly released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the parking brake, refer to the
corresponding section.
Warning / indicator lamp
StateCause Action / Observations
Passenger's
front airbag fixed in the seat belt
and passenger's front
airbag warning lamps
display.
th

e control switch, located in the
glove box, has been placed in the
"ON" position.
the

passenger's front airbag is activated.
In this case, do not install a rear ward facing child seat.
Stop & Star t
(VTi 68 S&S
engine) fixed.
When the vehicle stops (red lights,
traffic jams...) the Stop & Start system
has put the engine into S
tO

P mode.
th
e indicator lamp goes off and the engine restarts
automatically in S
tA

R
t
mode, as soon as you want to
move off.
Keyless Entr y
and Starting
system fixed.
th

e conditions for starting are met. For more information, refer to the "Starting - switching off the engine with the Keyless
e
n
try and Starting
system" section.
flashing slowly.
th

e vehicle is in "ACC" mode.
th

e accessories (audio system,
12V socket...) can be used.
1
Monitoring

22
Warning / indicator lampStateCause Action / Observations
Gear shift
indicator fixed.
You can change up. For more information, refer to the corresponding
section.
You can change down (only for the
V
ti 6

8 engine).
Speed limiter
(VTi 68 engine) fixed.
th

e speed limiter is active.
Lane depar ture
warning system fixed.
th

e button has been pressed.
th
e lane departure warning system has been
activated.
For more information, refer to the corresponding
section.
fixed.
th

e system is operational: it has detected road
markings to the left and /or right.
For more information, refer to the corresponding
section.
Active City
Brake fixed.
th

e button has been pressed.
th
e Active City Brake system has been activated.
For more information, refer to the corresponding
section.
Monitoring

23
108_en_Chap01_controle-de-marche_ed01-2015

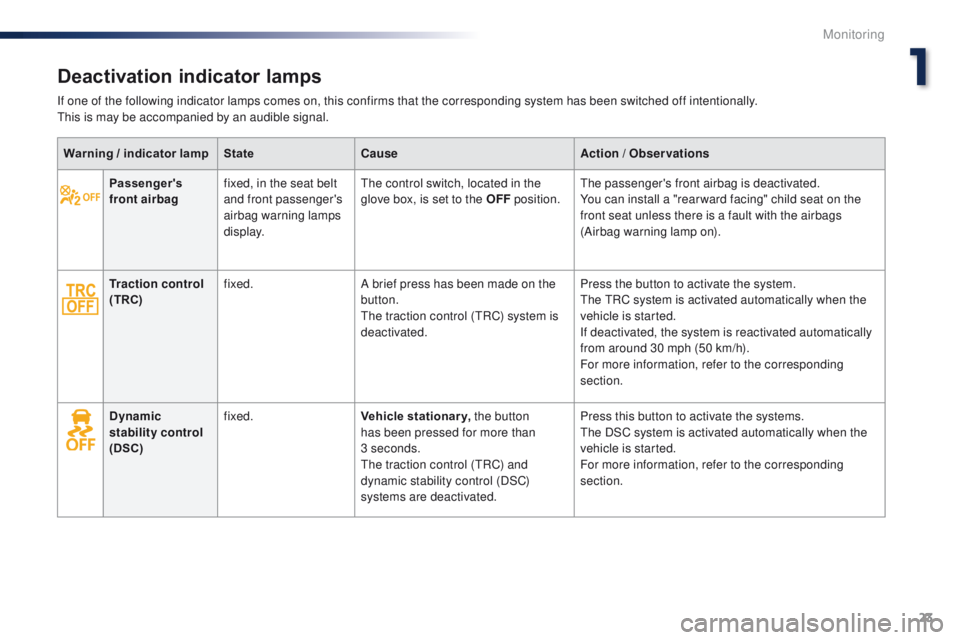

Passenger's
front airbagfixed, in the seat belt
and front passenger's
airbag warning lamps
display.th
e control switch, located in the
glove box, is set to the OFF position.the passenger's front airbag is deactivated.
You can install a "rear ward facing" child seat on the
front seat unless there is a fault with the airbags
(Airbag warning lamp on).
Traction control
(TRC) fixed.
A brief press has been made on the
button.
th

e traction control (
tR
C) system is
deactivated. Press the button to activate the system.
th

e t
R
C system is activated automatically when the
vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
For more information, refer to the corresponding
section.
Dynamic
stability control
(DSC) fixed.
Vehicle stationary, the button
has been pressed for more than
3


seconds.
th

e traction control (
tR
C) and
dynamic stability control (DSC)
systems are deactivated. Press this button to activate the systems.
th

e DSC system is activated automatically when the
vehicle is started.
For more information, refer to the corresponding
section.
Warning / indicator lamp
StateCause Action / Observations
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.th
is is may be accompanied by an audible signal.
1
Monitoring

24
Warning / indicator lampStateCause Action / Observations
Stop & Star t
( VTi 68 S&S
engine) fixed.
th

e Stop & Start system has been
deactivated. Reactivate the system by pressing the button again.
For more information, refer to the corresponding
section.
Active City
Brake fixed.
th

e Active City Brake system has
been deactivated. Reactivate the system by pressing the button again.
For more information, refer to the corresponding
section.
Monitoring

25
108_en_Chap01_controle-de-marche_ed01-2015
Indicators
Total/trip distance recorder
Press one of the buttons 1 to alternate the
distance display:
-
t
otal with "ODO" (odometer) displayed,
-

t
rip with "TRIP" displayed.
to r

eset the trip recorder to zero, when
it is displayed, press and hold one of the
two
buttons 1 .
When the ignition is switched on, the distance
recorder selected when the engine was
switched off is displayed.th
is indicates the quantity of fuel available:
- 1/ 1 and six bars, the fuel tank is full.
-

R
and one bar flashing, the fuel tank is on
the reserve.
Low fuel level
When the low level in the fuel tank is reached,
the last bar flashes accompanied by an audible
signal.
You have approximately 5 litres remaining.
When the frequency of the flashing increases,
you have approximately 3 litres remaining .
Fuel gauge
At least 5 litres must be added after
running out of fuel.
1
Monitoring

26
tr i p c o m p u t e r
System that gives you information on the journey in progress (range, fuel consumption…).
Information display
F Press one of theses buttons to display the various trip computer tabs in turn:
-
t
h
e total distance.
-
t
h
e trip "A".
-
t
h
e trip "B" .
-
t
h
e Stop & Start partial time counter*.
-
t
h
eStop & Start global time counter*.
-


t
h
e ambient temperature*.
-
t
h
e current fuel consumption.
-


t
h
e average fuel consumption.
-


t
he
remaining range.
-


t
h
e average speed.
-
t
h
e lighting dimmer.
Trip reset
F When the trip required is displayed, press one of the two buttons for more than
two


seconds.
t

r i p s "A" and "B" are independent but their
use is identical.
For example, trip "A" can be used for daily
figures, and trip "B" for monthly figures.
* Depending on version.
Lighting dimmer
When driving at night, this function allows
certain displays in the instrument panel to be
switched off to reduce visual fatigue for the
driver.
It operates only when the sidelamps are on.
F
W
hen the "Lighting dimmer" menu is
displayed, press and hold one of the
buttons for access to the adjustment.
F
t
h
en make repeated presses on one of
the two buttons to increase or reduce the
brightness.


t
h
e display flashes to show you the
brightness chosen.
Monitoring

27
108_en_Chap01_controle-de-marche_ed01-2015
With the touch screen
From the Menu page in the touch screen:
F Sel ect the " Vehicle information " tab.
th

e " Trip information " window is displayed
with the following information:
-
"Average speed ",
-
"Elapsed time ",
-
"Range ",
-

t
he current fuel consumption, presented in
graphical form.
th

e " Erase " button resets the fuel consumption
data in the touch screen and the instrument
panel. If your vehicle has a touch screen, you can
view information on the current journey.
Trip computer, a few definitions
Range
(miles or km)th e distance which can still be travelled with
the fuel remaining in the tank (related to the
average fuel consumption over the last few
miles (kilometres) travelled).
th

is value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
When the fuel level is low, the message "Lo
F
u

e
L
" is displayed.
If only a small amount of fuel is added, the
range may not be recalculated.
Current fuel consumption
(mpg or l/100 km or km/l)
Calculated over the last few seconds.
Stop & Start time counter
(minutes / seconds or hours / minutes)
If your vehicle is fitted with Stop & Start,
a
time counter calculates the time spent in
S
tO

P mode during a journey.
It resets to zero every time the ignition is
switched on.
Average fuel consumption
(mpg or l/100 km or km/l)
Calculated since the last trip computer reset.
Average speed
(mph or km/h)
Calculated since the last trip computer reset.
1
Monitoring

28

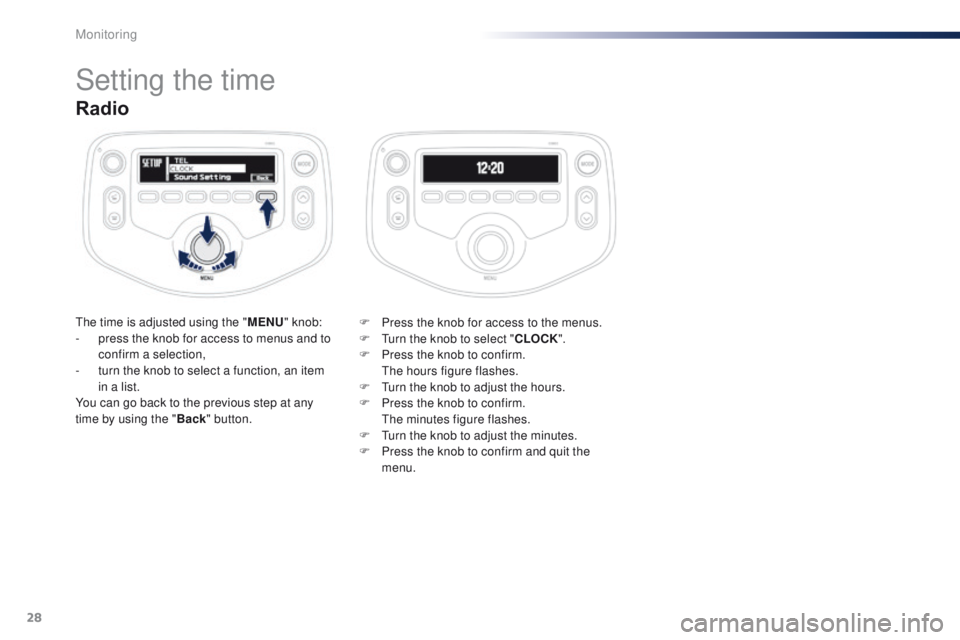

Radio
the time is adjusted using the "MENU" knob:
- p ress the knob for access to menus and to
confirm a selection,
-

t
urn the knob to select a function, an item
in a list.
You can go back to the previous step at any
time by using the " Back" button. F
P ress the knob for access to the menus.
F
t
u
rn the knob to select "CLOCK".
F

P
ress the knob to confirm.


t
h
e hours figure flashes.
F
t
u
rn the knob to adjust the hours.
F

P
ress the knob to confirm.


t
h
e minutes figure flashes.
F
t
u
rn the knob to adjust the minutes.
F

P
ress the knob to confirm and quit the
menu.
Setting the time
Monitoring
