Peugeot 3008 Hybrid 4 2012 Owner's Manual - RHD (UK. Australia)

FITTINGS

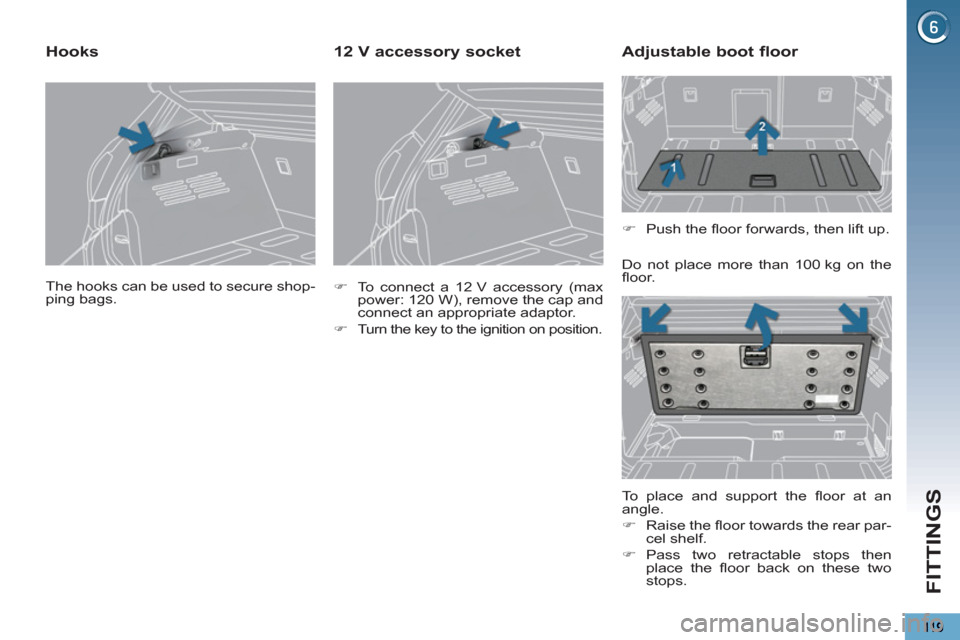

The hooks can be used to secure shop-
ping bags.







Hooks



)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.

)

Turn the key to the ignition on position.








12 V accessory socket





Adjustable boot floor




)
Push the fl oor forwards, then lift up.


To place and support the fl oor at an
angle.


)
Raise the fl oor towards the rear par-
cel shelf.

)
Pass two retractable stops then
place the fl oor back on these two
stops.


Do not place more than 100 kg on the
fl oor.

FITTINGS

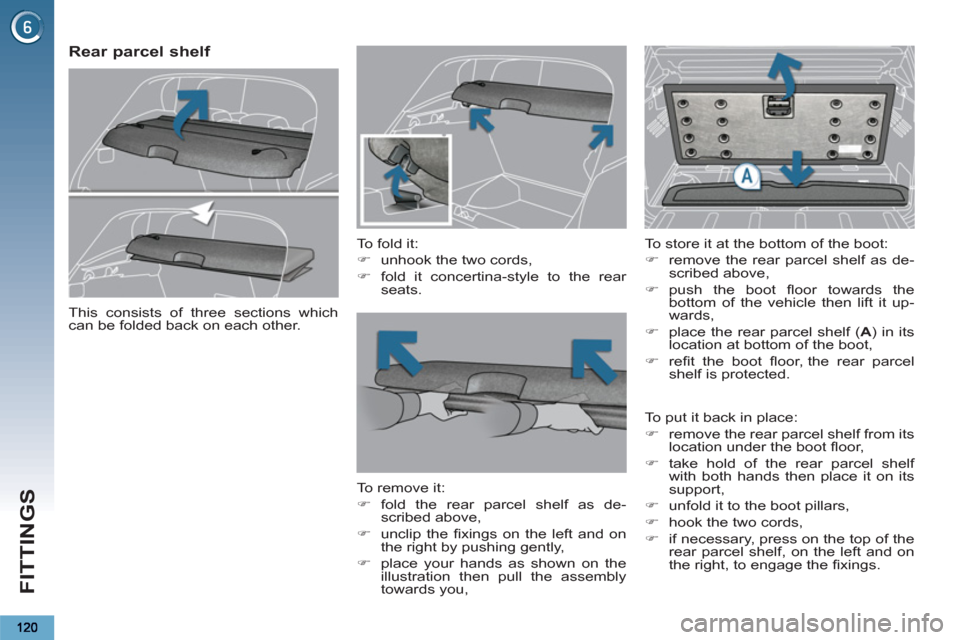

Rear parcel shelf


To fold it:


)
unhook the two cords,

)
fold it concertina-style to the rear
seats.


To remove it:


)
fold the rear parcel shelf as de-
scribed above,

)
unclip the fi xings on the left and on
the right by pushing gently,

)
place your hands as shown on the
illustration then pull the assembly
towards you,

To store it at the bottom of the boot:


)
remove the rear parcel shelf as de-
scribed above,

)
push the boot fl oor towards the
bottom of the vehicle then lift it up-
wards,

)
place the rear parcel shelf ( A
) in its
location at bottom of the boot,

)
refi t the boot fl oor, the rear parcel
shelf is protected.
This consists of three sections which
can be folded back on each other.

To put it back in place:


)
remove the rear parcel shelf from its
location under the boot fl oor,

)
take hold of the rear parcel shelf
with both hands then place it on its
support,

)
unfold it to the boot pillars,

)
hook the two cords,

)
if necessary, press on the top of the
rear parcel shelf, on the left and on
the right, to engage the fi xings.

FITTINGS
121


)

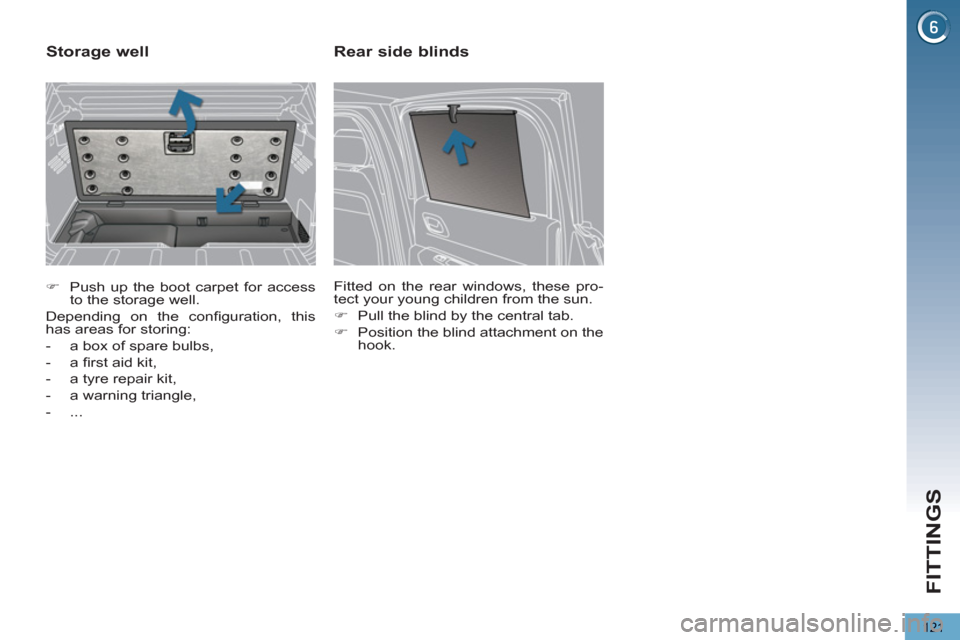

Push up the boot carpet for access
to the storage well.
Depending on the confi guration, this
has areas for storing:


- a box of spare bulbs,

- a fi rst aid kit,

- a tyre repair kit,

- a warning triangle,

- ...








Storage well








Rear side blinds

Fitted on the rear windows, these pro-
tect your young children from the sun.


)
Pull the blind by the central tab.

)
Position the blind attachment on the
hook.

CHILD SAFETY
122

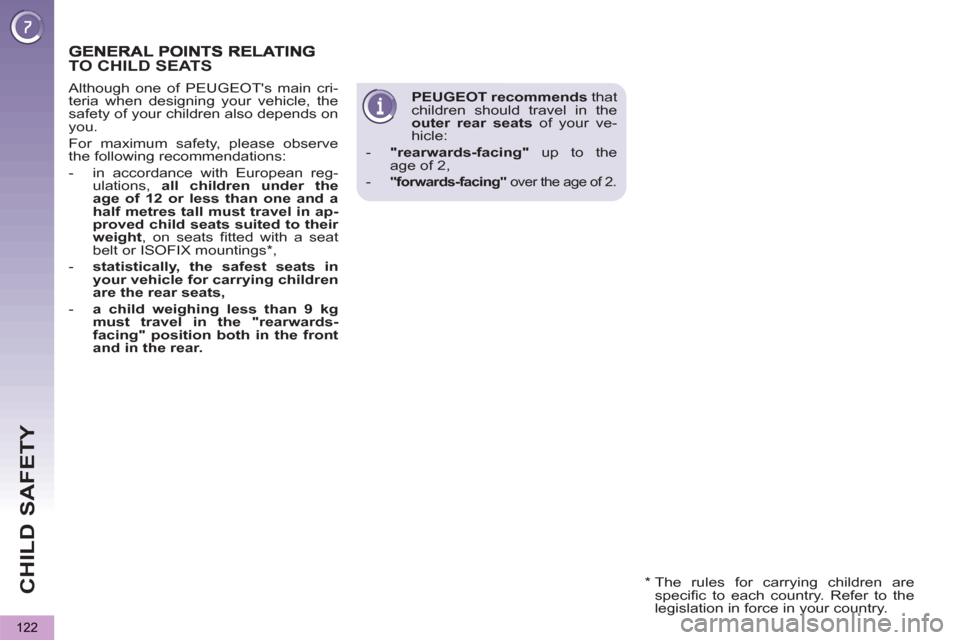

PEUGEOT recommends
that
children should travel in the
outer
rear seats
of your ve-
hicle:


- "rearwards-facing"
up to the
age of 2,

-

"forwards-facing"
over the age of 2.
TO CHILD SEATS


*
The rules for carrying children are
specifi c to each country. Refer to the
legislation in force in your country. Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:


- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.

CHILD SAFETY
123

"Forwards-facing"

"Rearwards-facing"

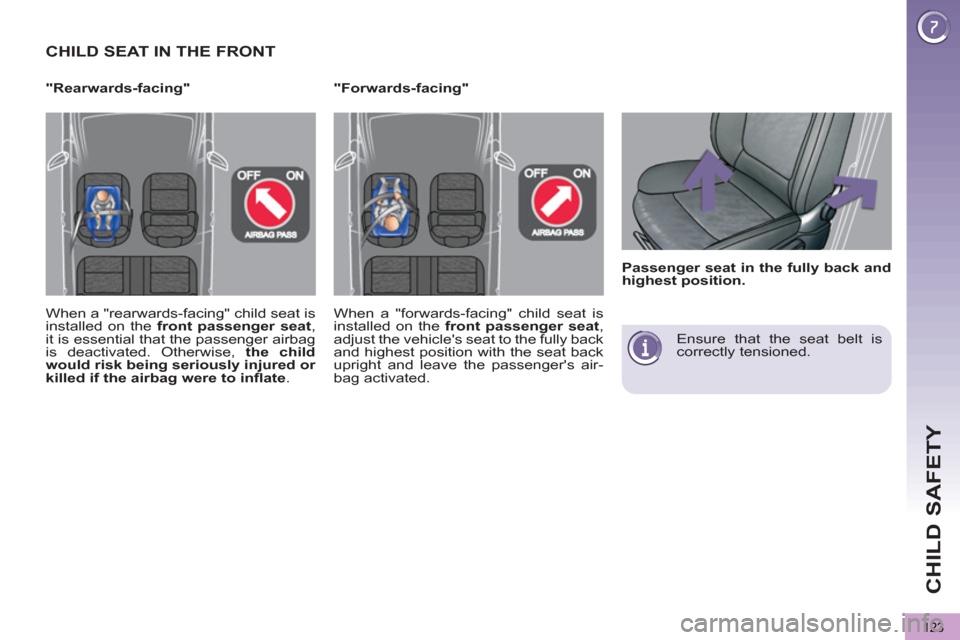

CHILD SEAT IN THE FRONT



Passenger seat in the fully back and
highest position.




Ensure that the seat belt is
correctly tensioned. When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
. When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the fully back
and highest position with the seat back
upright and leave the passenger's air-
bag activated.

CHILD SAFETY
124

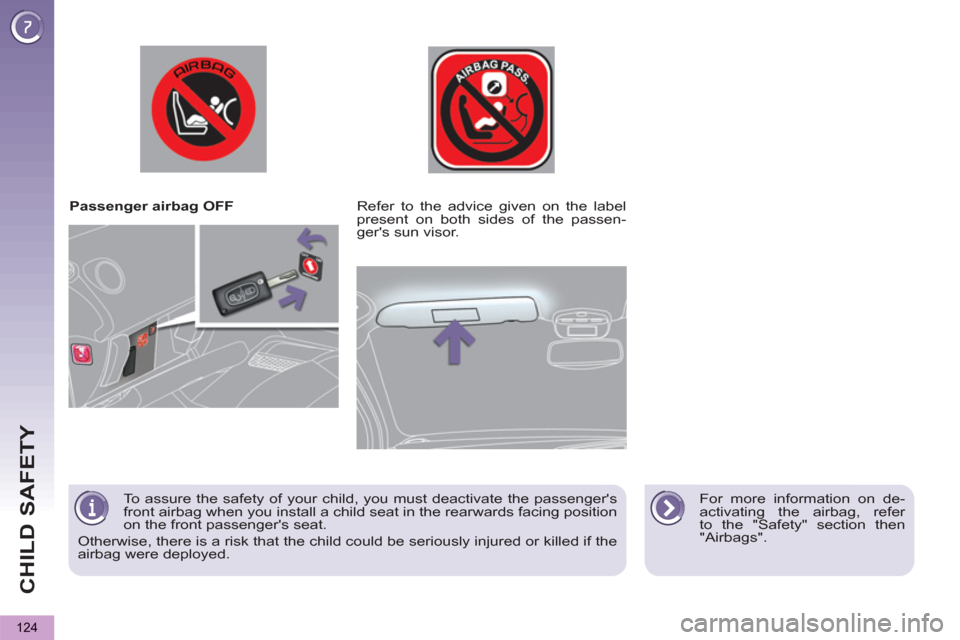

Passenger airbag OFF

For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".
Refer to the advice given on the label
present on both sides of the passen-
ger's sun visor.

To assure the safety of your child, you must deactivate the passenger's
front airbag when you install a child seat in the rearwards facing position
on the front passenger's seat.
Otherwise, there is a risk that the child could be seriously injured or killed if the
airbag were deployed.

CHILD SAFETY
125

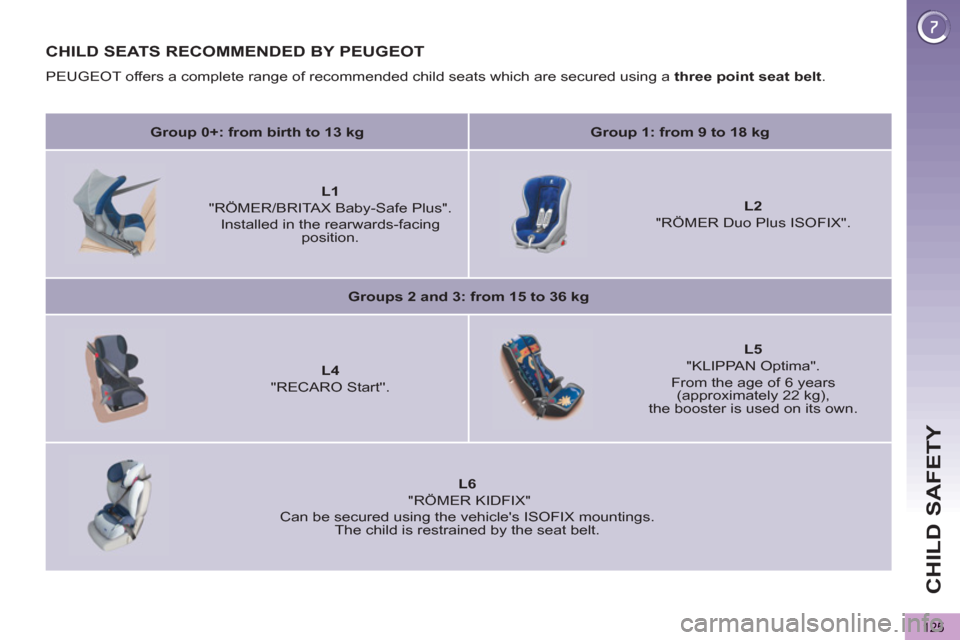

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured using a three point seat belt
.


Group 0+: from birth to 13 kg



Group 1: from 9 to 18 kg






L1

"RÖMER/BRITAX Baby-Safe Plus".
Installed in the rearwards-facing
position.



L2

"RÖMER Duo Plus ISOFIX".


Groups 2 and 3: from 15 to 36 kg






L4

"RECARO Start''.



L5

"KLIPPAN Optima".
From the age of 6 years
(approximately 22 kg),
the booster is used on its own.




L6

"RÖMER KIDFIX"
Can be secured using the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

CHILD SAFETY
126

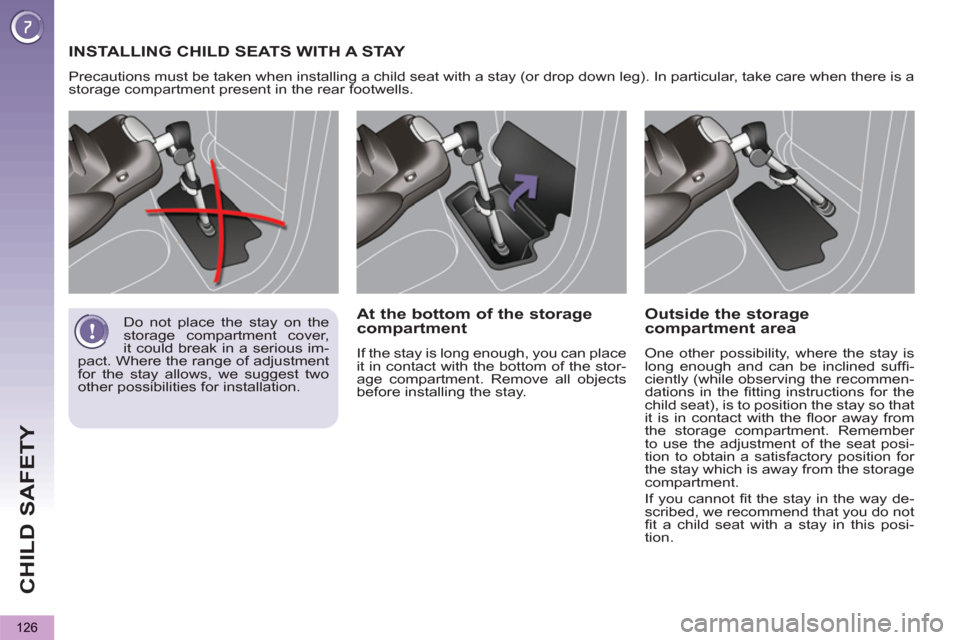

INSTALLING CHILD SEATS WITH A STAY

Precautions must be taken when installing a child seat with a stay (or drop down leg). In particular, take care when there is a
storage compartment present in the rear footwells.

At the bottom of the storage
compartment
If the stay is long enough, you can place
it in contact with the bottom of the stor-
age compartment. Remove all objects
before installing the stay.


Outside the storage
compartment area
One other possibility, where the stay is
long enough and can be inclined suffi -
ciently (while observing the recommen-
dations in the fi tting instructions for the
child seat), is to position the stay so that
it is in contact with the fl oor away from
the storage compartment. Remember
to use the adjustment of the seat posi-
tion to obtain a satisfactory position for
the stay which is away from the storage
compartment.
If you cannot fi t the stay in the way de-
scribed, we recommend that you do not
fi t a child seat with a stay in this posi-
tion. Do not place the stay on the
storage compartment cover,
it could break in a serious im-
pact. Where the range of adjustment
for the stay allows, we suggest two
other possibilities for installation.

CHILD SAFETY
127

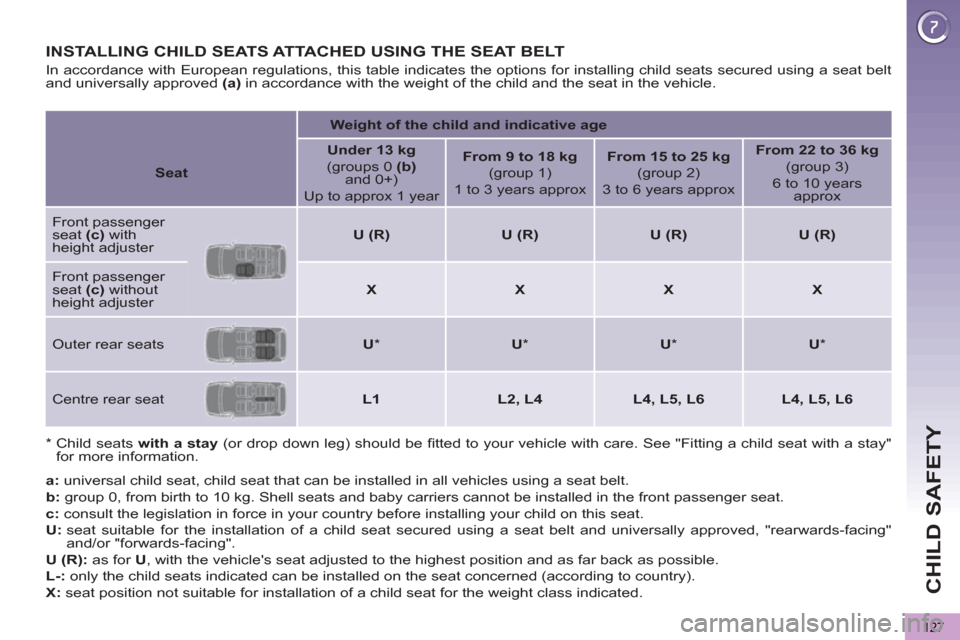

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT

*
Child seats with a
stay
(or drop down leg) should be fi tted to your vehicle with care. See "Fitting a child seat with a stay"
for more information.
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved (a)
in accordance with the weight of the child and the seat in the vehicle.


Weight of the child and indicative age




Seat



Under 13 kg

(groups 0 (b)

and 0+)
Up to approx 1 year

From 9 to 18 kg

(group 1)
1 to 3 years approx

From 15 to 25 kg

(group 2)
3 to 6 years approx

From 22 to 36 kg

(group 3)
6 to 10 years
approx
Front passenger
seat (c)
with
height adjuster




U (R)



U (R)



U (R)



U (R)


Front passenger
seat (c)
without
height adjuster

X



X



X



X


Outer rear seats



U

*


U

*


U

*


U

*

Centre rear seat



L1



L2, L4



L4, L5, L6



L4, L5, L6




a:
universal child seat, child seat that can be installed in all vehicles using a seat belt.

b:
group 0, from birth to 10 kg. Shell seats and baby carriers cannot be installed in the front passenger seat.

c:
consult the legislation in force in your country before installing your child on this seat.

U:
seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rearwards-facing"
and/or "forwards-facing".

U (R):
as for U
, with the vehicle's seat adjusted to the highest position and as far back as possible.

L-:
only the child seats indicated can be installed on the seat concerned (according to country).

X:
seat position not suitable for installation of a child seat for the weight class indicated.

CHILD SAFETY
128

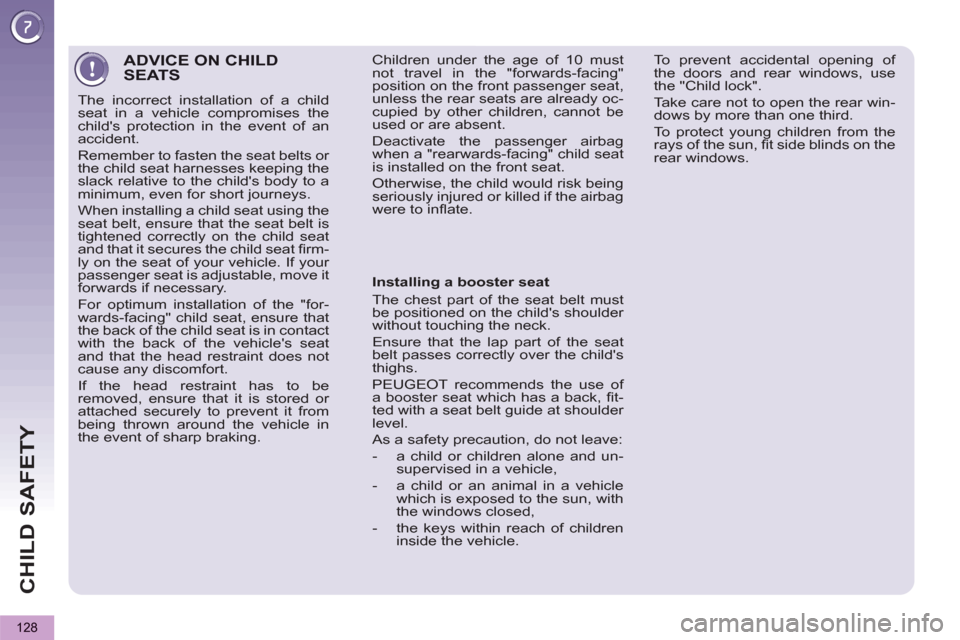

ADVICE ON CHILD SEATS
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat fi rm-
ly on the seat of your vehicle. If your
passenger seat is adjustable, move it
forwards if necessary.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be
removed, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:


- a child or children alone and un-
supervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle. To prevent accidental opening of
the doors and rear windows, use
the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
Children under the age of 10 must
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already oc-
cupied by other children, cannot be
used or are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.
