Peugeot 3008 Hybrid 4 2012 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2012, Model line: 3008 Hybrid 4, Model: Peugeot 3008 Hybrid 4 2012Pages: 284, PDF Size: 55.64 MB
Page 271 of 284
269
FREQUENTLY ASKED QUESTIONS
QUESTION
ANSWER
SOLUTION
There is a difference in
sound quality between
the different audio
sources (radio, CD...). For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "None" and
set the loudness correction to the "Active" position
in CD mode or to the "Inactive" position in radio
mode.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.
- Check that the CD is inserted in the player the
right way up.
- Check the condition of the CD: the CD cannot
be played if it is too damaged.
- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not
play DVDs.
- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The message "USB
peripheral error" is
displayed on the screen.
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
Page 272 of 284
270

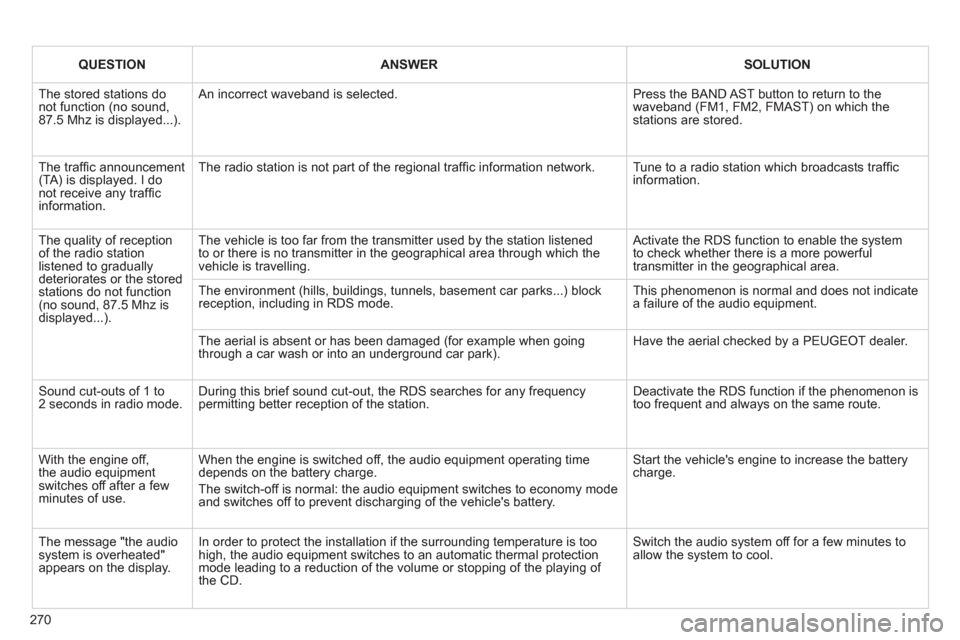

QUESTION
ANSWER
SOLUTION
The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected. Press the BAND AST button to return to the
waveband (FM1, FM2, FMAST) on which the
stations are stored.
The traffi c announcement
(TA) is displayed. I do
not receive any traffi c
information. The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c
information.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipment operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stopping of the playing of
the CD. Switch the audio system off for a few minutes to
allow the system to cool.
Page 273 of 284
271
Page 274 of 284
ALPHABETICAL INDEX
272
Accessories ........................194, 195
Accessory socket,
12 volt ...................... 107, 109, 115
Adjusting headlamps ..................100
Adjusting head
restraints ....................................75
Adjusting seat belt
height .......................................132
Adjusting the steering
wheel .........................................79
Airbags .........................................53
Airbags, curtain...................137, 138
Airbags, front ......................135, 138
Airbags, lateral....................137, 138
Air conditioning .............................37
Air conditioning, digital............69, 70
Air conditioning, manual ...............69
Air fi lter .......................................164
Air fl ow ..........................................37
Air vents........................................68
Alarm ............................................87
Anti-pinch.............................. 89, 113
Anti-theft .......................................84
Armrest .......................................107
Armrest, front ..............................109
Armrest, rear ............................... 112
Assistance call ............................202
Audible warning ..........................129
Audio/video sockets....................232
Audio streaming
(Bluetooth) ...............................261
Audio systems ..............................64
Automatic illumination
of headlamps .....................97, 100
Automatic operation of hazard
warning lamps .........................129
Automatic rain sensitive
windscreen wipers ...........101, 103
Auxiliary
sockets ................... 232, 256, 258Battery ................... 40, 79, 164, 186
Battery, charging .........................186
Battery, remote control ...........85, 86
Blind for panoramic sunroof........ 113
Blinds .......................................... 117
Bluetooth
(hands-free) ............. 233-235, 259
Bluetooth (telephone) ......... 233-235
Bonnet ........................................160
Bonnet stay.................................160
Boot fl oor, adjustable .................. 115
Boot lamp ...................................106
Boot lid..........................................94
Brake discs .................................165
Brake lamps................................177
Brake pads .................................165
Brakes ........................................165
Capacity, fuel tank ........................95
CD MP3 ......................................255
Central locking ........................83, 92
Changing a bulb ........ 175, 177, 178
Changing a fuse .........................179
Changing a wheel .......................172
Changing a wiper blade ......103, 190
Changing the date ..............238, 263
Changing the remote
control battery ............................85
Changing the time ..............238, 263
Checking levels ..................163, 164
Checking the engine oil level ........57
Checking tyre pressures
(using the kit) ...........................166
Checks....................... 162, 164, 165
Child lock ....................................128
Children ..................... 123, 126, 127
Child seats .......................... 118, 124Child seats, conventional....121, 123
Child seats, Isofi x .......................127
Closing the boot................83, 93, 94
Closing the doors....................83, 91
Cold climate screen ....................193
Colour screen, retractable ......62, 64
Connectors,
audio ............... 108, 109, 256, 258
Control for panoramic
sunroof blind ............................ 113
Coolant level .........................54, 163
Coolant temperature indicator ......54
Courtesy lamps...........................104
Courtesy mirror ...........................108
Cruise control .............................151
Cup holder ..................................107
AB
C
Date (setting) ............. 238, 262, 263
Daytime running lamps .................99
Deactivating ESP ........................131
Deactivating
the passenger airbag ...............135
Deadlocking ..................................83
Defrosting ...............................69, 80
Dials and gauges ..........................44
Diesel............................................36
Diesel additive level ....................164
Dimensions .................................199
Dipped beam ........................97, 175
Dipstick .................................57, 163
Direction indicators .............129, 177
Doors ............................................91
Doors emergency control .............93
Door trays ...................................107
Dynamic emergency braking ......142
Dynamic stability control
(DSC) ...................................49, 52
D
Page 275 of 284
ALPHABETICAL INDEX
273
G.P.S. .........................................216
Gearbox, electronic gear
control ..............................153, 165
Gear lever .....................................37
Gear lever, electronic gear
control gearbox ........................153
Glove box ...................................108
Grab handle on console .............107
Grab handles ..............................107
Guidance ....................................216
Guide-me-home..........................100 Eco-driving....................................37
Economical driving .......................37
Economy mode...........................189
Electric window controls ...............89
Electronic engine immobiliser ....84, 86
Electronic stability control (ESC) ...130
Emergency call ...................202, 203
Emergency warning lamps .........129
Energy economy mode...............189
Engine,
Diesel ........ 96, 161, 162, 197, 198
Engine compartment ............42, 162
Engine compartment fusebox .....179
Engine oil level indicator .......57, 163
Engines...............................196, 197
Environment .......................8, 37, 86
ESC/ASR ....................................130
ESP/ASR ....................................131Identifi cation plates .....................200
Indicator lamps, status..................48
Indicators, direction ....................129
Infl ating accessories
(using the kit) ...........................166
Infl ating tyres ................................37
Inputs for audio
system .................... 232, 256, 258
Instrument panel lighting ..............58
Instrument panels ...................44, 45
Instrument panel screen ...............44
Interior fi ttings .............................107
Interior mood lighting ..................105
ISOFIX child seats ..............125, 126
ISOFIX mountings ......................125
G
E
I
Filling with fuel ........................95, 96
Fitting a wheel ............................173
Fitting roof bars...........................193
Fittings, boot ............................... 114
Flashing indicators......................129
Foglamps, rear .............................98
Folding the rear seats ...................77
Front foglamps......................98, 176
Front seats........................73, 74, 76
Fuel...................................37, 95, 96
Fuel consumption .........................37
Fuel fi ller cap ................................95
Fuel fi ller fl ap ..........................95, 96
Fuel gauge....................................95
Fuel tank .................................95, 96
Fusebox, dashboard ...................179
Fuses ..........................................179
F
Halogen headlamps....................175
Hands-free kit .............................259
Hazard warning
lamps .......................................129
Head-up display......... 147, 149, 151
Headlamp adjustment.................100
Headlamp wash ..........................102
Headlamp wash reservoir ...........163
Head restraints,
front ...........................................75
Head restraints,
rear ............................................77
Heated seats ................................75
Heating .........................................37
Height and reach adjustment,
steering wheel ...........................79
High
voltage ........ 40, 41, 134, 160, 187
Hill start assist ............................144
Hooks ......................................... 115
Horn ............................................129
Hybrid .......................... 4, 6, 26, 186
Hybrid selector..............................31
Hybrid system ............. 4, 26, 27, 211
H
Jack ............................................172
JACK socket .......................256, 258
Jukebox (copy) ...........................230
Jukebox (playing) .......................231
J
Keeping children
safe .................. 118, 126, 127, 135
Key with remote control .... 82-84, 86
K
Labels, identifi cation ...................200
Lamps, warning and
indicator .........................46, 49, 50
L
Page 276 of 284
ALPHABETICAL INDEX
274
Main beam ....................................97
Maintenance .................................37
Map reading lamps .....................104
Markings, identifi cation ...............200
Mat.............................................. 110
Menu, main .................................252
Mini fuel level ................................95
Mirror, rear view ............................81
Mirrors, door .................................80
Misfuel prevention ........................96
Motorway function
(direction indicators) ................129
Mountings for ISOFIX seats .......125
MP3 CD ......................................255
Multimedia, rear .......................... 111
Music media players ...................228Oil fi lter .......................................164
Oil level .................................57, 163
Opening the bonnet ....................160
Opening the boot ....................82, 93
Opening the doors ..................82, 91
Opening the panoramic
sunroof blind ............................ 113
Opening the retractable
screen ........................................64
Opening
the tailgate ...........................93, 94
Operation indicator
lamps ...................... 46, 48, 49, 51 Navigation...................................216
Niveau mini carburant...................52
Number plate lamps ...................178
Radio ..................................227, 253
RCA sockets ...............................232
Reading lamps, rear ...................104
Rear foglamp ......................177, 178
Rear screen (demisting) .........69, 80
Recharging the battery ...............186
Reduction of electrical load ........189
Reinitialising the electric windows ...89
Reinitialising the remote control ...85
Remote control .................82, 83, 86
Removable screen
(snow shield) ...........................193
Removing a wheel ......................173
Removing the mat ...................... 110
Repair kit, puncture ....................166
Replacing bulbs ......... 175, 177, 178
Replacing fuses ..........................179
Replacing the air fi lter .................164
Replacing the oil fi lter .................164
Replacing the particle emission fi lter ...165 Level, brake fl uid ........................163
Level, headlamp wash ........102, 163
Level, power steering
fl uid ..........................................163
Levels and checks .............. 162-164
Lighting .......................................106
Lighting, guide-me home ......99, 100
Lighting, interior ..................104, 105
Lighting bulbs
(replacement) ......... 175, 177, 178
Lighting control stalk .....................97
Lighting dimmer ............................58
Loading .................................37, 193
Load reduction mode ..................189
Load space cover ....................... 116
Locating your vehicle ....................83
Locking from the inside.................92
Long objects, transporting .... 76, 112
Luggage retaining strap .............. 114Peugeot Connect Media
Navigation (NG4 3D) ....45, 62, 65,
205, 208, 211, 239
Peugeot Connect Sound
(RD5) ................ 59, 249, 264, 266
PEUGEOT services ....................203
PIN code .....................................236
Player,
CD MP3 ...................................255
POIs (updating) ..........................223
Port, USB................... 109, 256, 258
Priming the fuel
system .....................................161
Protecting
children .....118, 123, 125-127, 135
Puncture .....................................166
MON
R
Paint colour code ........................200
Panoramic glass
sunroof ..................................... 113
Parking brake .............................165
Parking brake, electric ........139, 142
Parking sensors,
front .........................................158
Parking sensors,
rear ..........................................157
Particle emission
fi lter ..................................164, 165
Passenger compartment
fi lter ..........................................164
PEUGEOT call button .................203
P
Page 277 of 284
ALPHABETICAL INDEX
275
Replacing the passenger
compartment fi lter ....................164
Replacing wiper blades ......103, 190
Resetting the service indicator .....56
Resetting the trip recorder ............58
Rev counter ..................................44
Reversing lamp...........................177
Risk areas (update) ....................223
Roof bars ....................................193
Routine checks ...................164, 165
Running out of fuel (Diesel) ........161
Safety for children........ 89, 123, 128
Screen, colour 16/9 ............ 211, 239
Screen, monochrome 252, 264, 266
Screen, monochrome C................65
Screen, multifunction
(with audio equipment) .....59, 62, 64
Screen-wash reservoir................163
Screen menu map ..... 239, 264, 266
Screenwash, front.......................102
Screenwash fl uid level ........102, 163
Seat adjustment......................73, 74
Seat belts............................ 132-134
Seats, electric ...............................74
Seats, rear ....................................77
Serial number, vehicle ................200
Service indicator ...........................55
Servicing .......................................37
Setting the clock ........ 238, 262, 263
Short-cut menus .........................212
Sidelamps .............................97, 177
Side repeater ..............................176
SIM card .............................108, 236
Ski fl ap ........................................ 112
Spare wheel................................172Under fl oor storage ..................... 117
Unlocking ......................................82
Unlocking from the inside .............92
Update risk areas .......................223
Updating POIs ............................223
Updating the date ...... 238, 262, 263
Updating the time ...... 238, 262, 263
USB (Peugeot Connect) .......109, 256
Vehicle identifi cation ...................200
Ventilation .................. 40, 68, 69, 79
Voice commands ........................208 Traction control (ASR) ... 49, 52, 131
Traffi c information (TA) .......226, 254
Traffi c information (TMC) ....225, 226
Trip computer .........................65, 67
Trip distance recorder ...................58
Tyre pressures ............................200
Tyres .............................................37
SU
V
Spectacles storage .....................107
Speed limiter...............................149
Speedometer ..........................33, 44
Spotlamps, side ..........................105
Stability control (ESP).................131
Starting the vehicle ...............84, 153
Steering mounted controls,
audio ................................210, 251
Stopping the vehicle .............84, 153
Stop & Start ... 70, 160, 161, 163, 164
Storage ............... 107, 109, 112, 114
Storage box ................................108
Storage wells .............................. 114
Stowing rings .............................. 114
Sun visor............................. 108, 117
Synchronising the remote control ....85
System, navigation .....................216
Systems, ASR and ESP .............131
Table of weights ..........................198
Tables of engines................196, 197
Tables of fuses............................179
Tank, fuel ......................................96
Technical data..................... 196-198
Telephone ................... 203, 233-235
Telephone, hands-free ........ 233-235
Temperature, coolant ....................54
Temperature control
for heated seats .........................75
Temporary tyre repair kit .............166
Third brake lamp.........................178
TMC (Traffi c info) ........................225
Tools ...........................................172
Total distance recorder .................58
Towbar ........................................192
Towed loads................................198
Towing another vehicle ... 43, 190, 191
T
Warning lamps ..................48, 50, 51
Wash-wipe, rear .........................102
Weights .......................................198
Welcome lighting ..................99, 105
Window controls ...........................89
Wiper, rear ..................................102
Wiper control stalk .............. 101-103
Wipers ................................101, 103
W
Page 278 of 284
VISUAL SEARCH
276
EXTERIOR
Exterior welcome lighting.............. 99
Door mirror
spotlamps ................................. 105
Lighting .................................. 97-100
Headlamp height adjustment ...... 100
Very cold climate screen...... 193-194
Changing bulbs.................... 175-176
- front lamps
- foglamps
- direction indicator repeaters
Wiper ................................... 101-103
Changing a wiper blade ...... 103, 190
Boot, tailgate............................ 93-94
- opening/closing
- emergency release
Temporary puncture
repair kit ............................ 166-171
Changing a wheel ................ 172-174
- tools
- removing
Remote control key.................. 82-86
- opening/closing
- anti-theft protection
- starting
- battery
Parking sensors ................... 157-158
Towbar ........................................ 192
Recovery on a fl atbed.......... 190-191
Changing bulbs.................... 177-178
- rear lamps
- 3rd brake lamp
- number plate lamps
- foglamps
Accessories ......................... 194-195
Roof bars .................................... 193
Panoramic sunroof ..................... 113
Fuel tank .................................. 95-96
Misfuel prevention ........................ 96
Door mirrors .................................. 80
Doors ....................................... 91-93
- opening/closing
- central locking
- emergency control
Alarm ....................................... 87-88
Electric windows ...................... 89-90
ESC: ABS,
EBA, ASR, CDS ................ 130-131
Tyre pressures ............................ 200
Page 279 of 284
VISUAL SEARCH
277
Seat belts............................. 132-134

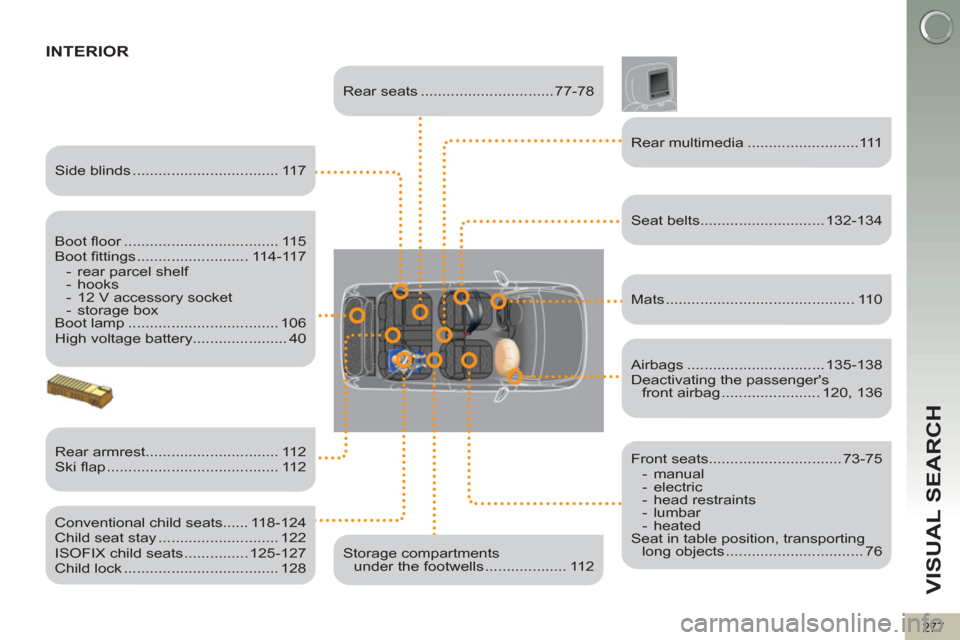

INTERIOR
Boot fl oor .................................... 115
Boot fi ttings .......................... 114-117
- rear parcel shelf
- hooks
- 12 V accessory socket
- storage box
Boot lamp ................................... 106
High voltage battery...................... 40
Conventional child seats...... 118-124
Child seat stay ............................ 122
ISOFIX child seats ............... 125-127
Child lock .................................... 128
Front seats............................... 73-75
- manual
- electric
- head restraints
- lumbar
- heated
Seat in table position, transporting
long objects ................................ 76
Airbags ................................ 135-138
Deactivating the passenger's
front airbag ....................... 120, 136
Side blinds .................................. 117
Storage compartments
under the footwells ................... 112
Rear seats ............................... 77-78
Mats ............................................ 110
Rear armrest............................... 112
Ski fl ap ........................................ 112
Rear multimedia ..........................111
Page 280 of 284
VISUAL SEARCH
278
Courtesy lamps................... 104, 105
Seat belt/passenger's front airbag
warning lamps display ...... 133, 136
Rear view mirror ........................... 81

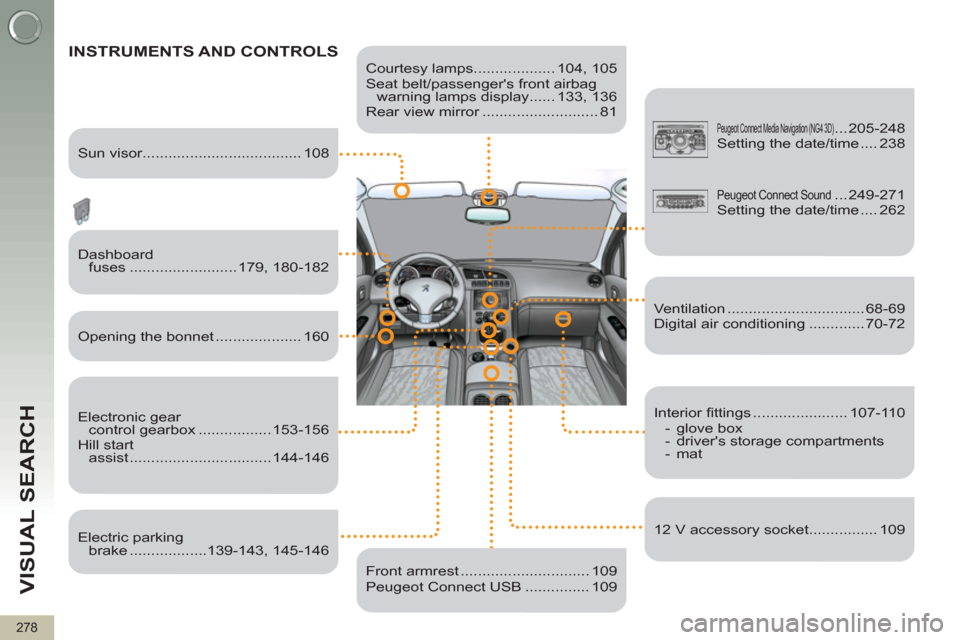

INSTRUMENTS AND CONTROLS
Dashboard
fuses ......................... 179, 180-182
Electronic gear
control gearbox ................. 153-156
Hill start
assist ................................. 144-146
Peugeot Connect Sound ... 249-271
Setting the date/time .... 262
Sun visor..................................... 108
Opening the bonnet .................... 160
Electric parking
brake ..................139-143, 145-146
Interior fi ttings ...................... 107-110
- glove box
- driver's storage compartments
- mat
12 V accessory socket................ 109
Peugeot Connect Media Navigation (NG4 3D) ... 205-248
Setting the date/time .... 238
Ventilation ................................ 68-69
Digital air conditioning ............. 70-72
Front armrest .............................. 109
Peugeot Connect USB ............... 109
