Peugeot 3008 Hybrid 4 2012 Owner's Manual

249





PEUGEOT CONNECT SOUND (RD5)


Your Peugeot Connect Sound (RD5) is coded in such
a way that it will only operate in your vehicle. If it is to
be installed in another vehicle, contact your PEUGEOT
dealer for confi guration of the system.

For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the audio equipment may
switch off after a few minutes.



AUDIO SYSTEM/BLUETOOTH

01 First steps

02 Steering mounted controls

03 Main menu

04 Audio

05 Peugeot Connect USB

06 Bluetooth

07 Configuration

08 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p. 250
251
252
253
256
259
262
264
269
CONTENTS

250

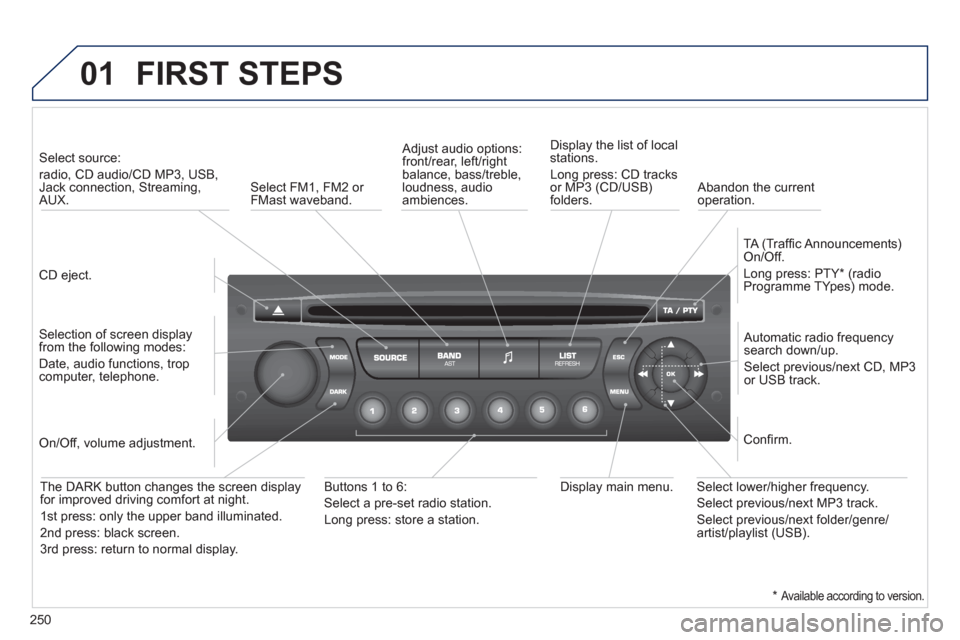

01 FIRST STEPS


CD eject.


Select source:
radio, CD audio/CD MP3, USB,
Jack connection, Streaming,
AUX.

Selection of screen display
from the following modes:
Date, audio functions, trop
computer, telephone.
Automatic radio frequency
search down/up.
Select previous/next CD, MP3
or USB track.
Adjust audio options:
front/rear, left/right
balance, bass/treble,
loudness, audio
ambiences.
Display the list of local
stations.
Long press: CD tracks
or MP3 (CD/USB)
folders.

TA (Traffi c Announcements)
On/Off.
Long press: PTY * (radio
Programme TYpes) mode.

Display main menu.

The DARK button changes the screen display
for improved driving comfort at night.
1 st press: only the upper band illuminated.
2 nd press: black screen.
3 rd press: return to normal display.
On/Off, volume adjustment.

Buttons 1 to 6:
Select a pre-set radio station.
Long press: store a station.
Select lower/higher frequency.
Select previous/next MP3 track.
Select previous/next folder/genre/
artist/playlist (USB).
Confi rm.
Select FM1, FM2 or
FMast waveband.
Abandon the current
operation.

*

Available according to version.

251

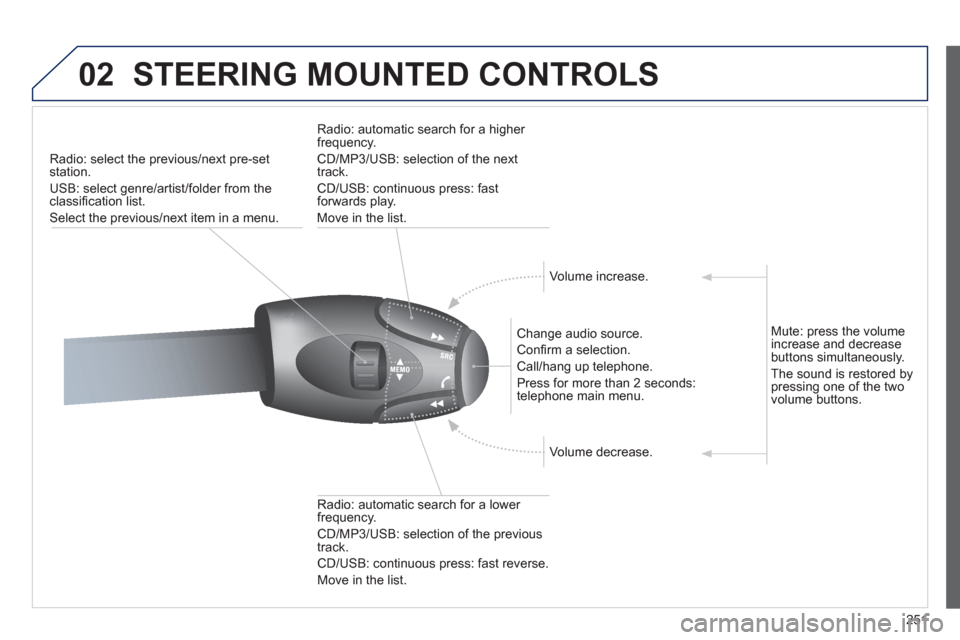

02 STEERING MOUNTED CONTROLS








Radio: select the previous/next pre-set
station.
USB: select genre/artist/folder from the
classifi cation list.
Select the previous/next item in a menu.

Change audio source.
Confi rm a selection.
Call/hang up telephone.
Press for more than 2 seconds:
telephone main menu.

Radio: automatic search for a lower
frequency.
CD/MP3/USB: selection of the previous
track.
CD/USB: continuous press: fast reverse.
Move in the list.

Radio: automatic search for a higher
frequency.
CD/MP3/USB: selection of the next
track.
CD/USB: continuous press: fast
forwards play.
Move in the list.

Volume increase.

Volume decrease.
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.

252

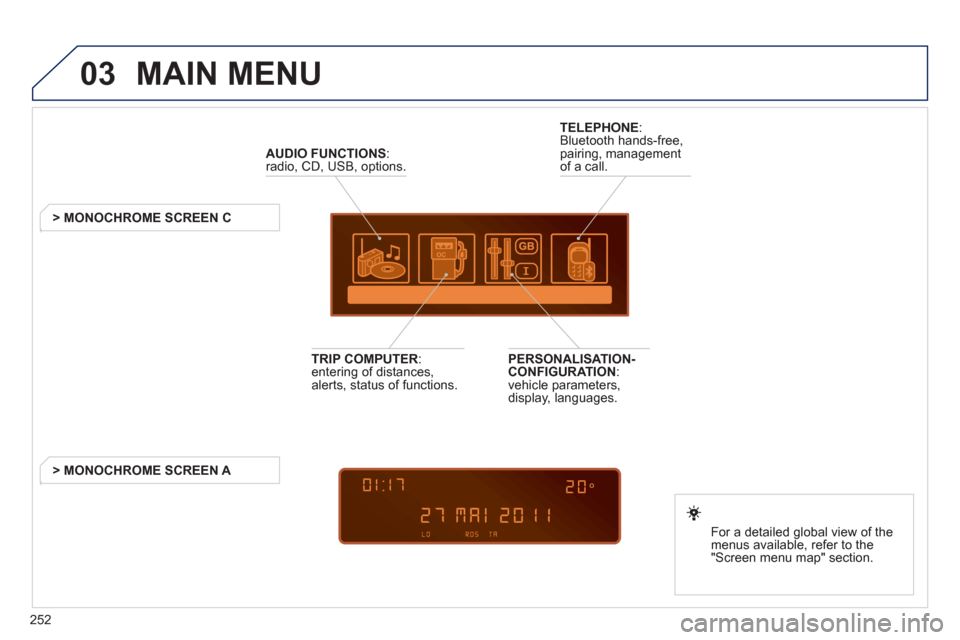

03 MAIN MENU



AUDIO FUNCTIONS
:
radio, CD, USB, options.








> MONOCHROME SCREEN C

For a detailed global view of the
menus available, refer to the
"Screen menu map" section.


TELEPHONE
:
Bluetooth hands-free,
pairing, management
of a call.


PERSONALISATION-
CONFIGURATION
:
vehicle parameters,
display, languages.

TRIP COMPUTER
:
entering of distances,
alerts, status of functions.










> MONOCHROME SCREEN A

253
04
1
2
3
4
1
2
3
4

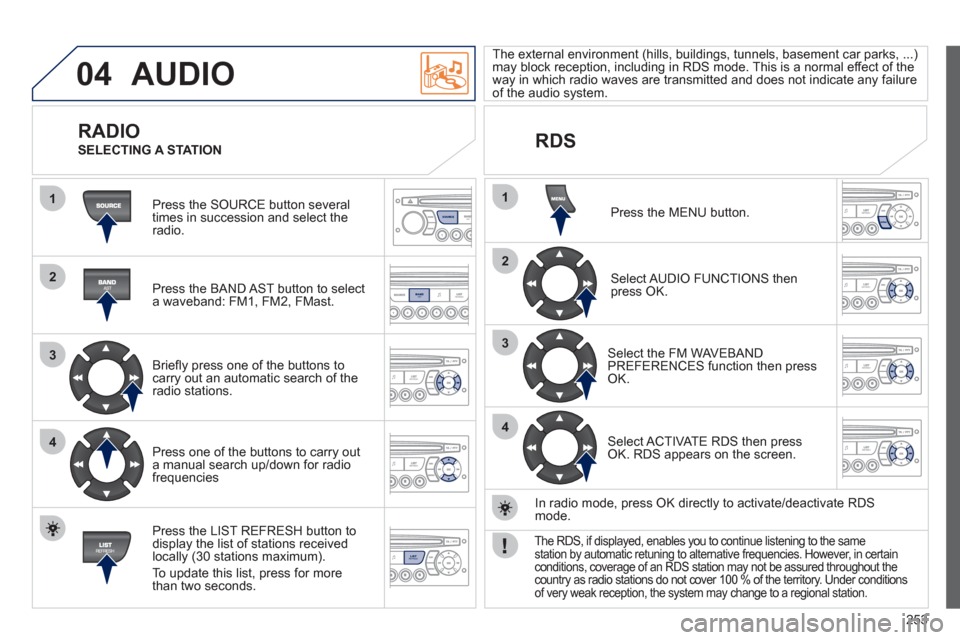

SOURCE
BANDAST
LISTREFRESH
MENU
AUDIO

Press the SOURCE button several
times in succession and select the
radio.

Press the BAND AST button to select
a waveband: FM1, FM2, FMast.

Briefl y press one of the buttons to
carry out an automatic search of the
radio stations.

Press one of the buttons to carry out
a manual search up/down for radio
frequencies

Press the LIST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more
than two seconds.


The external environment (hills, buildings, tunnels, basement car parks, ...)
may block reception, including in RDS mode. This is a normal effect of the
way in which radio waves are transmitted and does not indicate any failure
of the audio system.



RDS





RADIO

SELECTING A STATION

Press the MENU button.

Select AUDIO FUNCTIONS then
press OK.

Select the FM WAVEBAND
PREFERENCES function then press
OK.

Select ACTIVATE RDS then press
OK. RDS appears on the screen.

In radio mode, press OK directly to activate/deactivate RDS
mode.
The RDS, if displayed, enables you to continue listening to the same
station by automatic retuning to alternative frequencies. However, in certain
conditions, coverage of an RDS station may not be assured throughout the
country as radio stations do not cover 100 % of the territory. Under conditions
of very weak reception, the system may change to a regional station.

254
04
1
2
3
1
SOURCE
AUDIO

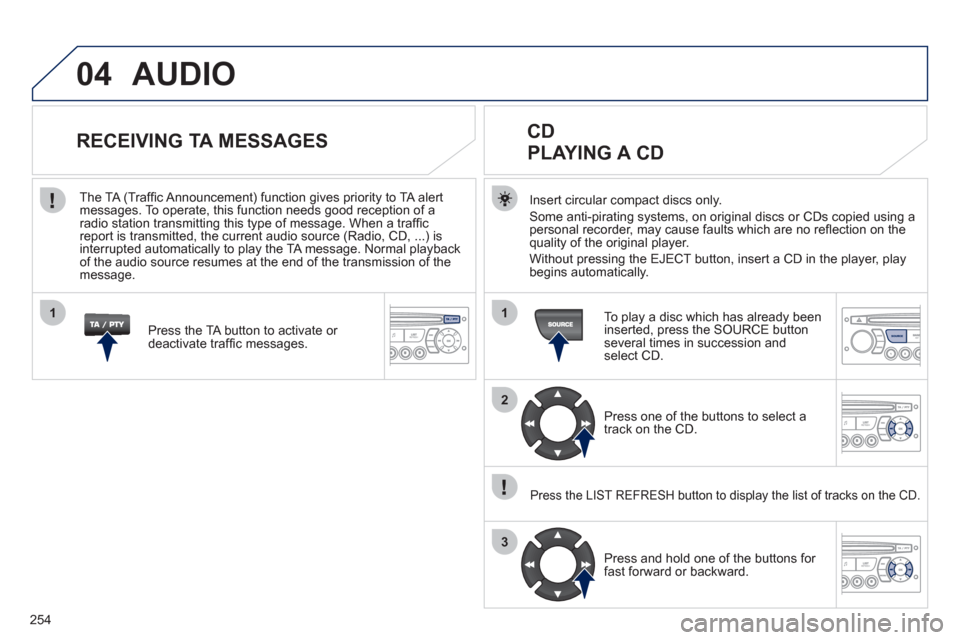

Insert circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no refl ection on the
quality of the original player.
Without pressing the EJECT button, insert a CD in the player, play
begins automatically.


CD
PLAYING A CD


To play a disc which has already been
inserted, press the SOURCE button
several times in succession and
select CD.

Press one of the buttons to select a
track on the CD.


Press the LIST REFRESH button to display the list of tracks on the CD.


Press and hold one of the buttons for
fast forward or backward.








RECEIVING TA MESSAGES


Press the TA button to activate or
deactivate traffi c messages.

The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD, ...) is
interrupted automatically to play the TA message. Normal playback
of the audio source resumes at the end of the transmission of the
message.

255
04
1
2
3
SOURCE

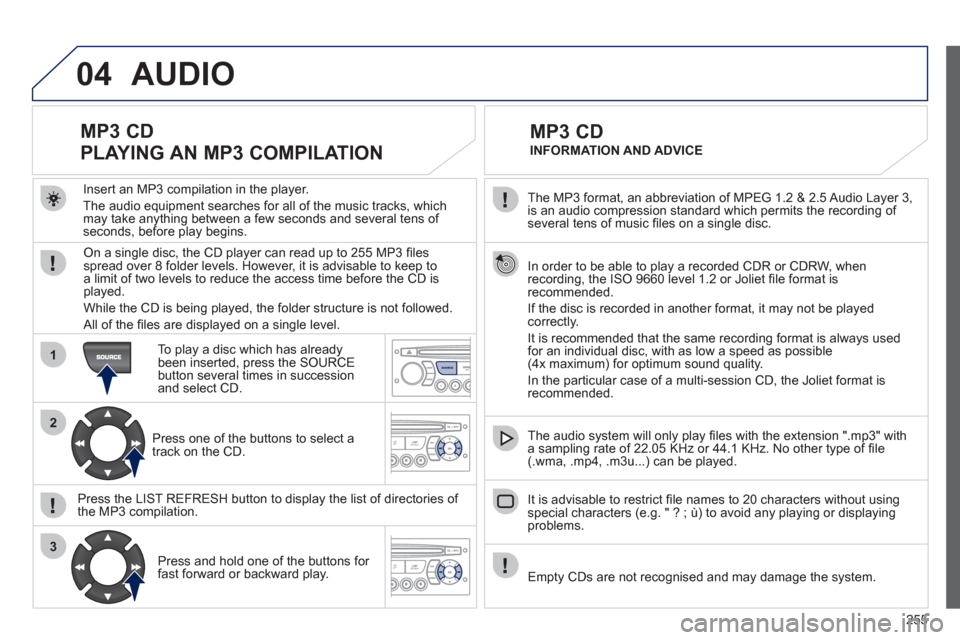

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,
is an audio compression standard which permits the recording of
several tens of music fi les on a single disc.

In order to be able to play a recorded CDR or CDRW, when
recording, the ISO 9660 level 1.2 or Joliet fi le format is
recommended.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording format is always used
for an individual disc, with as low a speed as possible
(4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet format is
recommended.

The audio system will only play fi les with the extension ".mp3" with
a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le
(.wma, .mp4, .m3u...) can be played.

It is advisable to restrict fi le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displaying
problems.













MP3 CD


INFORMATION AND ADVICE

AUDIO


Empty CDs are not recognised and may damage the system.

Insert an MP3 compilation in the player.
The audio equipment searches for all of the music tracks, which
may take anything between a few seconds and several tens of
seconds, before play begins.










MP3 CD
PLAYING AN MP3 COMPILATION


On a single disc, the CD player can read up to 255 MP3 fi les
spread over 8 folder levels. However, it is advisable to keep to
a limit of two levels to reduce the access time before the CD is
played.
While the CD is being played, the folder structure is not followed.
All of the fi les are displayed on a single level.

To play a disc which has already
been inserted, press the SOURCE
button several times in succession
and select CD.

Press one of the buttons to select a
track on the CD.

Press the LIST REFRESH button to display the list of directories of
the MP3 compilation.

Press and hold one of the buttons for
fast forward or backward play.

256
05
1
1
2
3

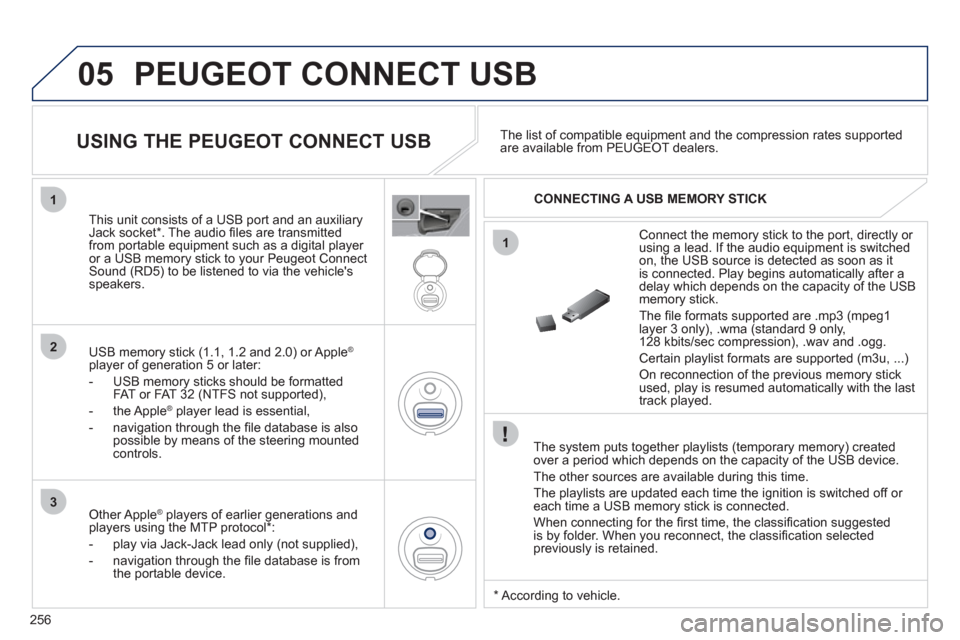

PEUGEOT CONNECT USB


The system puts together playlists (temporary memory) created
over a period which depends on the capacity of the USB device.
The other sources are available during this time.
The playlists are updated each time the ignition is switched off or
each time a USB memory stick is connected.
When connecting for the fi rst time, the classifi cation suggested
is by folder. When you reconnect, the classifi cation selected
previously is retained.
Connect the memory stick to the port, directly or
using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it
is connected. Play begins automatically after a
delay which depends on the capacity of the USB
memory stick.
The fi le formats supported are .mp3 (mpeg1
layer 3 only), .wma (standard 9 only,
128 kbits/sec compression), .wav and .ogg.
Certain playlist formats are supported (m3u, ...)
On reconnection of the previous memory stick
used, play is resumed automatically with the last
track played.
This unit consists of a USB port and an auxiliary
Jack socket * . The audio fi les are transmitted
from portable equipment such as a digital player
or a USB memory stick to your Peugeot Connect
Sound (RD5) to be listened to via the vehicle's
speakers.

USB memory stick (1.1, 1.2 and 2.0) or Apple
®

player of generation 5 or later:


- USB memory sticks should be formatted
FAT or FAT 32 (NTFS not supported),

- the Apple
®
player lead is essential,

- navigation through the fi le database is also
possible by means of the steering mounted
controls.

The list of compatible equipment and the compression rates supported
are available from PEUGEOT dealers.






















USING THE PEUGEOT CONNECT USB


CONNECTING A USB MEMORY STICK

Other Apple
®
players of earlier generations and
players using the MTP protocol * :


- play via Jack-Jack lead only (not supplied),

- navigation through the fi le database is from
the portable device.


*
According to vehicle.

257
3
4
05
2
1
LISTREFRESH
LISTREFRESH

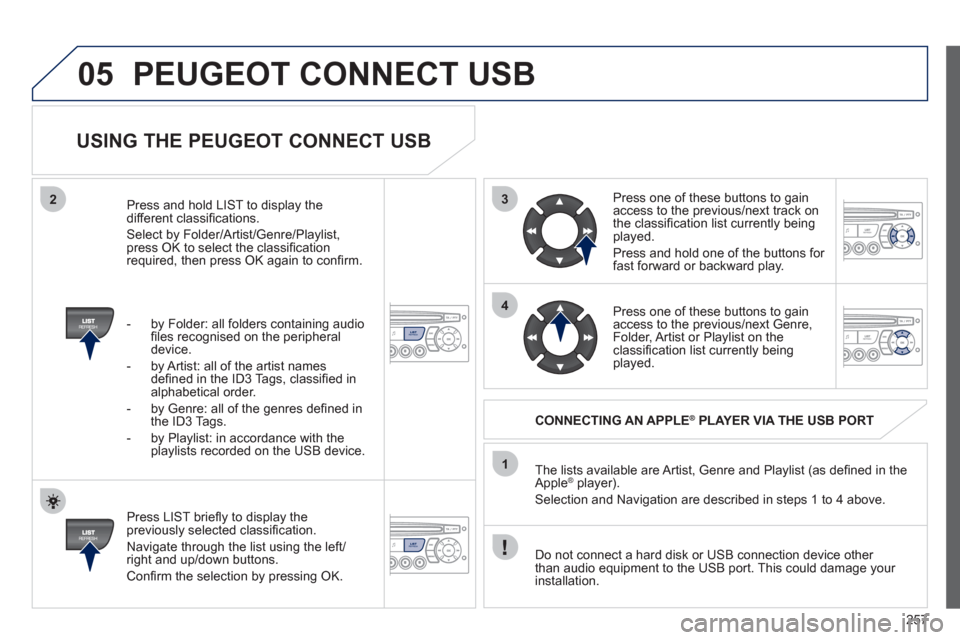

PEUGEOT CONNECT USB


USING THE PEUGEOT CONNECT USB


Press LIST briefl y to display the
previously selected classifi cation.
Navigate through the list using the left/
right and up/down buttons.
Confi rm the selection by pressing OK. The lists available are Artist, Genre and Playlist (as defi ned in the
Apple
® player).
Selection and Navigation are described in steps 1 to 4 above.

Do not connect a hard disk or USB connection device other
than audio equipment to the USB port. This could damage your
installation.

CONNECTING AN APPLE
®
PLAYER VIA THE USB PORT
Press one of these buttons to gain
access to the previous/next track on
the classifi cation list currently being
played.
Press and hold one of the buttons for
fast forward or backward play.

Press one of these buttons to gain
access to the previous/next Genre,
Folder, Artist or Playlist on the
classifi cation list currently being
played.
Press and hold LIST to display the
different classifi cations.
Select by Folder/Artist/Genre/Playlist,
press OK to select the classifi cation
required, then press OK again to confi rm.


- by Folder: all folders containing audio
fi les recognised on the peripheral
device.

- by Artist: all of the artist names
defi ned in the ID3 Tags, classifi ed in
alphabetical order.

- by Genre: all of the genres defi ned in
the ID3 Tags.

- by Playlist: in accordance with the
playlists recorded on the USB device.

258
05
1
21
2
SOURCE The display and control is via the portable device. First adjust the volume of your portable device.
Then adjust the volume of your audio
system.

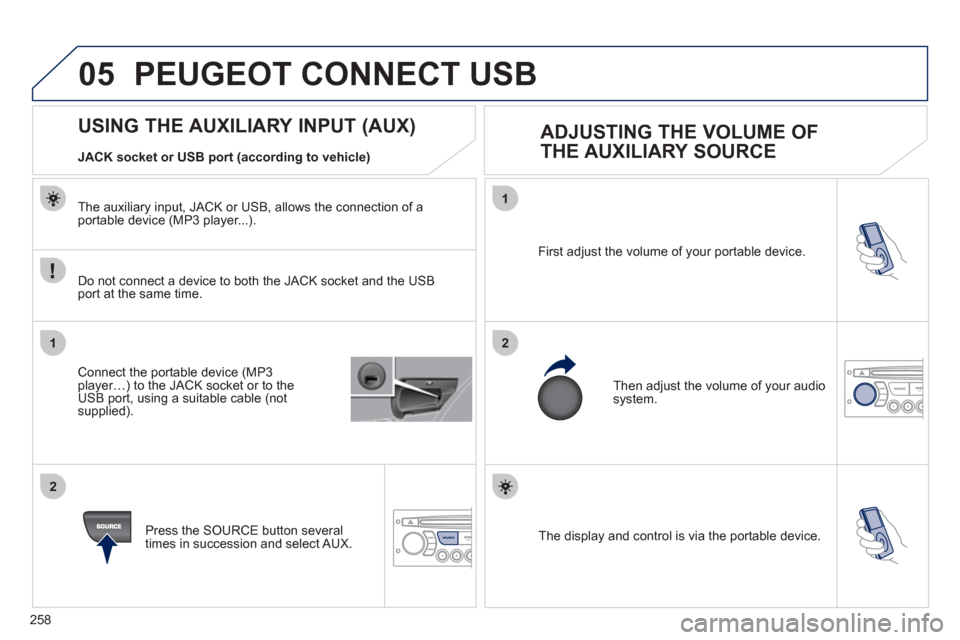

USING THE AUXILIARY INPUT (AUX)

ADJUSTING THE VOLUME OF
THE AUXILIARY SOURCE
PEUGEOT CONNECT USB


JACK socket or USB port (according to vehicle)

Do not connect a device to both the JACK socket and the USB
port at the same time.

Connect the portable device (MP3
player…) to the JACK socket or to the
USB port, using a suitable cable (not
supplied).

Press the SOURCE button several
times in succession and select AUX.

The auxiliary input, JACK or USB, allows the connection of a
portable device (MP3 player...).
