Peugeot 3008 Hybrid 4 2012 Owner's Manual

239
10
MEDIA
TRAFFIC
SCREEN MENU MAP













MAIN FUNCTION


OPTION A

OPTION B...

option A1



option A2


1
2
3
2
3


"Traffic" Menu


Messages on route



Select preferred list
1
2
3

Deactivate PIN 4


Only warnings on route
3


All warning messages
3


All messages
3


Geo. Filter
3

Within 2 miles (3 km) 4

Within 3 miles (5 km) 4

Within 6 miles (10 km) 4

Within 30 miles (50 km) 4


On confi rmation

Read out settings
2
3


Incoming messages

3


TMC station information
2


"Media" Menu


Audio CD/MP3-Disc
/ DVD-Audio
/ DVD-Video


Select media
1
2
3


Jukebox (Folders & Files)
3


SD-Card
3


USB
3


External device (audio/AV)

3


Add fi les

Jukebox management
2
3

Folders & Files 4


Create folder
3


Modify content
3


Edit playlist
3


Play options
3

Playlists 4


Memory capacity

3


Refer to the "
Sound settings
"
menu details
of which are shown on the next page.

Sound settings
2
3


Aspect ratio

Video settings
2
3


Menu language
3


Display
3

Brightness 4

Contrast 4

Colour 4

240
NAV
RADIO

AUX standard
3


Reset video settings

3


Off/Audio/Audio and Video (AV)



Ext. Device (Aux) management
2
3


"Radio" Menu


FM
1
2


Manual tune 2


Refer to the "

Sound settings

" menu
below.



Sound settings
2
3


"Sound settings" Menu


Balance/Fader
1
2


Bass/Treble 2


Equalizer 2


Linear
3


Classic
3


Jazz
3


Rock/Pop
3


Techno
3


Vocal

3


Mute rear speakers 2


Loudness 2


Speed dependent volume 2


Reset sound settings
2


"Navigation" Menu


Abort guidance/Resume guidance
1
2


Destination input 2


Address input
3

Country 4

City 4

Street 4

House number 4

Start route guidance 4

Postal code 4

Save to address book 4

Intersection 4

City district 4

Geo position 4

Map 4


Navigate HOME
3


Choose from last destinations
3


Choose from address book

3


Stopovers 2


Add stopover
3

Address input 4

Navigate HOME 4

Choose from address book 4

Choose from last destinations 4


Rearrange route
3


Replace stopover
3


Delete stopover
3

241
ADDR
BOOK

Recalculate
3

Fast route 4

Short route 4

Optimized route 4


POI nearby

POI search
2
3


POI near destination
3


POI in city
3


POI in country
3


POI near route

3


Route type

Route options
2
3

POI near destination 4

Short route 4

Optimized route 4

Subscr. service 4


Route dynamics

Settings
2
3

Traffi c independent 4

Semi-dynamic 4

Dynamic 4


Avoidance criteria
3

Avoid motorways 4

Avoid toll roads 4

Avoid tunnels 4

Avoid ferries 4


Recalculate


3


"Address book" Menu


Create new entry
1
2


Show memory status 2


Export address book 2


Delete all voice entries 2


Delete all entries 2


Delete folder "My Addresses"
2


"Phone" menu


Dial number
1
2


Dial from address book 2


Call lists 2


Messages 2


Select phone 2

Search phone 4


Telephone off
3


Use Bluetooth phone
3


Use internal phone
3


Connect Bluetooth phone
3

Disconnect phone 5

Rename phone 5

Delete pairing 5

Delete all pairings 5

Show details 5

242
SETUP

Settings 2


Automatic answering system
3


Select ring tone
3


Phone/Ring tone volume
3


Enter mailbox number
3


Internal phone settings
3


Automatically accept call
3


Signal waiting call (?)
3


Show status
3


Activate waiting call
3


Deactivate waiting call
3


Call forward (?)
3


Show status
3


Activate call forward
3


Deactivate call forward
3


Suppress own number
3


Select network
3


Set network automatically
3


Set network manually
3


Search for networks
3


PIN settings
3


Change PIN
3

Activate PIN 4

Deactivate PIN 4


Remember PIN
3


SIM-card memory status


3


"SETUP" Menu


Menu language



Language & Speech
1
2
3

Deutsch 4

English 4

Español 4

Français 4

Italiano 4

Nederlands 4

Polski 4


Voice control
3

Voice control active 4

Tutorial 4

Portuguese 4

Basics 5

Examples 5

Tips 5

Speaker adaptation 4

New speaker adaptation 5

Delete speaker adaptation 5


Voice output volume

3


Date & Time 2


Set date & time
3


Date format
3


Time format

3

243

Display 2


Brightness
3


Colour
3

Steel 4

blue light (only in day mode) 4

Orange Ray 4

Blue Flame 4


Map colour
3

Day mode for map 4

Night mode for map 4

Auto. Day/Night for map 4


Units 2


Temperature
3

Celsius 4

Fahrenheit 4


Metric/Imperial
3

km 4

Miles 4


System 2


Factory reset
3


Software version
3


Automatic scrolling


3

244

The table below groups together the answers to the most frequently asked questions concerning the Peugeot Connect Media Navigation (NG4 3D).

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION




There is a difference in
sound quality between
the different audio
sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble,
Ambience, Loudness) can be adapted to the different sound sources,
which may result in audible differences when changing source (radio,
CD...).
Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Balance, Left-Right Balance) to the middle
position, select the musical ambience "Linear" and
set the loudness correction to the "Active" position
in CD mode or to the "Inactive" position in radio
mode.
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player the
right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to inadequate quality, certain recorded
CDs will not be played by the audio system.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.

245



QUESTION





ANSWER





SOLUTION

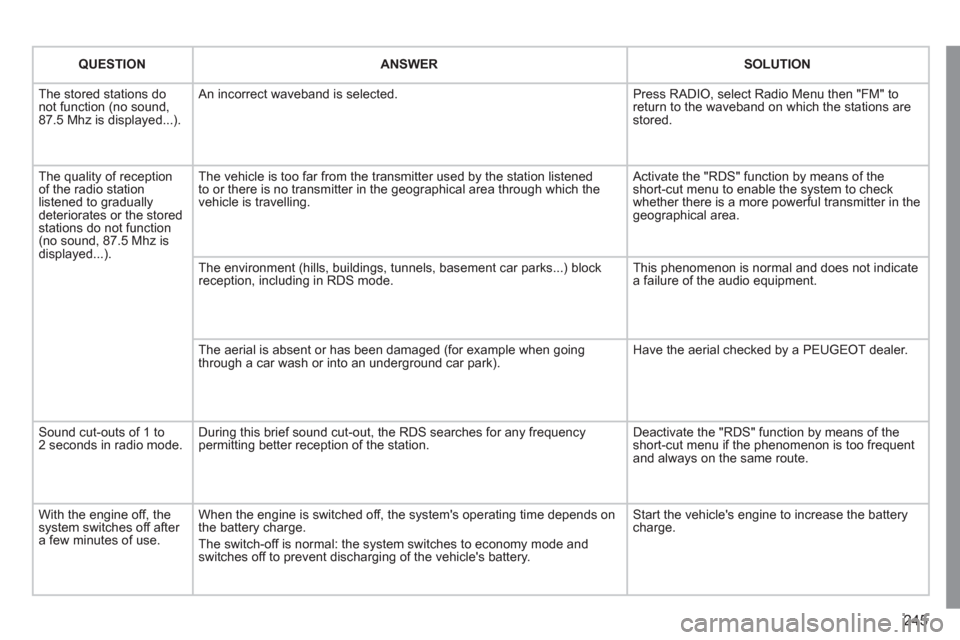

The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected. Press RADIO, select Radio Menu then "FM" to
return to the waveband on which the stations are
stored.
The quality of reception
of the radio station
listened to gradually
deteriorates or the stored
stations do not function
(no sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling. Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in the
geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block
reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park). Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to
2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the "RDS" function by means of the
short-cut menu if the phenomenon is too frequent
and always on the same route.
With the engine off, the
system switches off after
a few minutes of use. When the engine is switched off, the system's operating time depends on
the battery charge.
The switch-off is normal: the system switches to economy mode and
switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.

246


QUESTION



ANSWER



SOLUTION

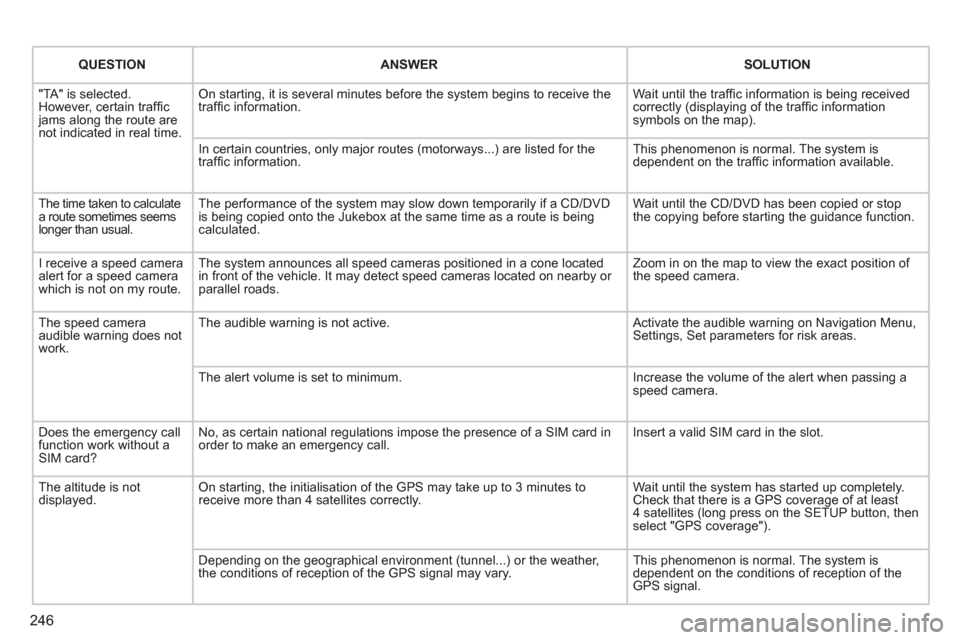

"TA" is selected.
However, certain traffi c
jams along the route are
not indicated in real time. On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received
correctly (displaying of the traffi c information
symbols on the map).
In certain countries, only major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
The time taken to calculate
a route sometimes seems
longer than usual. The performance of the system may slow down temporarily if a CD/DVD
is being copied onto the Jukebox at the same time as a route is being
calculated. Wait until the CD/DVD has been copied or stop
the copying before starting the guidance function.
I receive a speed camera
alert for a speed camera
which is not on my route. The system announces all speed cameras positioned in a cone located
in front of the vehicle. It may detect speed cameras located on nearby or
parallel roads. Zoom in on the map to view the exact position of
the speed camera.
The speed camera
audible warning does not
work. The audible warning is not active. Activate the audible warning on Navigation Menu,
Settings, Set parameters for risk areas.
The alert volume is set to minimum. Increase the volume of the alert when passing a
speed camera.
Does the emergency call
function work without a
SIM card? No, as certain national regulations impose the presence of a SIM card in
order to make an emergency call. Insert a valid SIM card in the slot.
The altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 4 satellites correctly. Wait until the system has started up completely.
Check that there is a GPS coverage of at least
4 satellites (long press on the SETUP button, then
select "GPS coverage").
Depending on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS signal.

247


QUESTION



ANSWER



SOLUTION

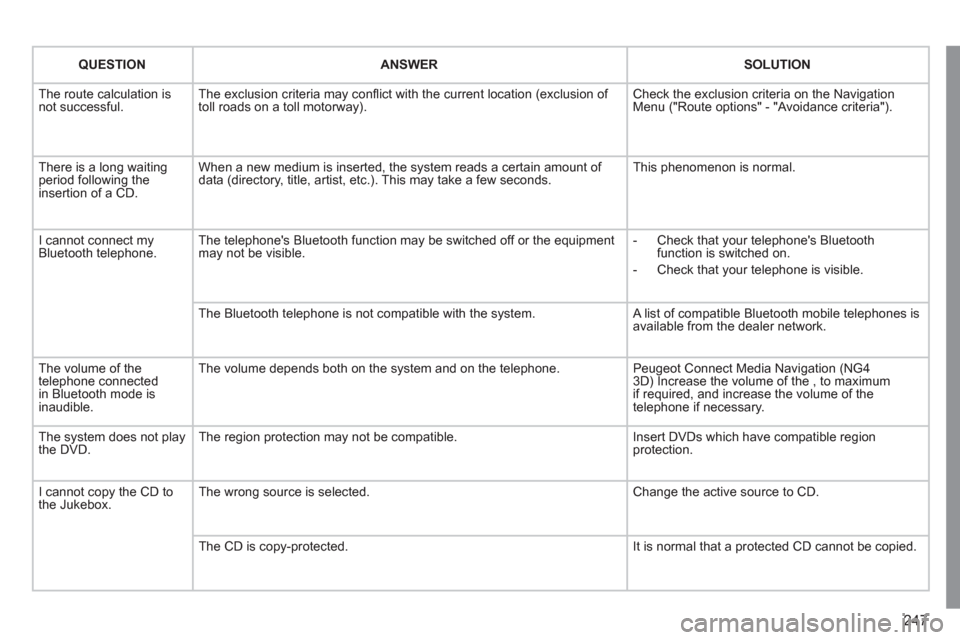

The route calculation is
not successful. The exclusion criteria may confl ict with the current location (exclusion of
toll roads on a toll motorway). Check the exclusion criteria on the Navigation
Menu ("Route options" - "Avoidance criteria").
There is a long waiting
period following the
insertion of a CD. When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be switched off or the equipment
may not be visible.

- Check that your telephone's Bluetooth
function is switched on.

- Check that your telephone is visible.
The Bluetooth telephone is not compatible with the system. A list of compatible Bluetooth mobile telephones is
available from the dealer network.
The volume of the
telephone connected
in Bluetooth mode is
inaudible. The volume depends both on the system and on the telephone. Peugeot Connect Media Navigation (NG4
3D) Increase the volume of the , to maximum
if required, and increase the volume of the
telephone if necessary.
The system does not play
the DVD. The region protection may not be compatible. Insert DVDs which have compatible region
protection.
I cannot copy the CD to
the Jukebox. The wrong source is selected. Change the active source to CD.
The CD is copy-protected. It is normal that a protected CD cannot be copied.

248

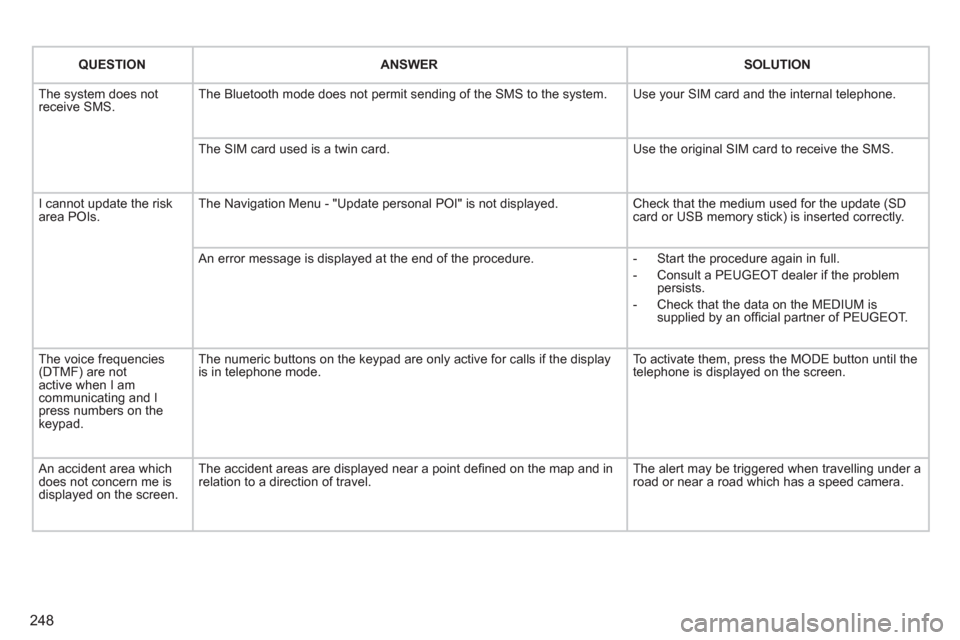

QUESTION



ANSWER



SOLUTION


The system does not
receive SMS. The Bluetooth mode does not permit sending of the SMS to the system. Use your SIM card and the internal telephone.
The SIM card used is a twin card. Use the original SIM card to receive the SMS.
I cannot update the risk
area POIs. The Navigation Menu - "Update personal POI" is not displayed. Check that the medium used for the update (SD
card or USB memory stick) is inserted correctly.
An error message is displayed at the end of the procedure.

- Start the procedure again in full.

- Consult a PEUGEOT dealer if the problem
persists.

- Check that the data on the MEDIUM is
supplied by an offi cial partner of PEUGEOT.
The voice frequencies
(DTMF) are not
active when I am
communicating and I
press numbers on the
keypad. The numeric buttons on the keypad are only active for calls if the display
is in telephone mode. To activate them, press the MODE button until the
telephone is displayed on the screen.
An accident area which
does not concern me is
displayed on the screen. The accident areas are displayed near a point defi ned on the map and in
relation to a direction of travel. The alert may be triggered when travelling under a
road or near a road which has a speed camera.
