Peugeot 3008 Hybrid 4 2012 Service Manual HYBRID SYSTEM
39

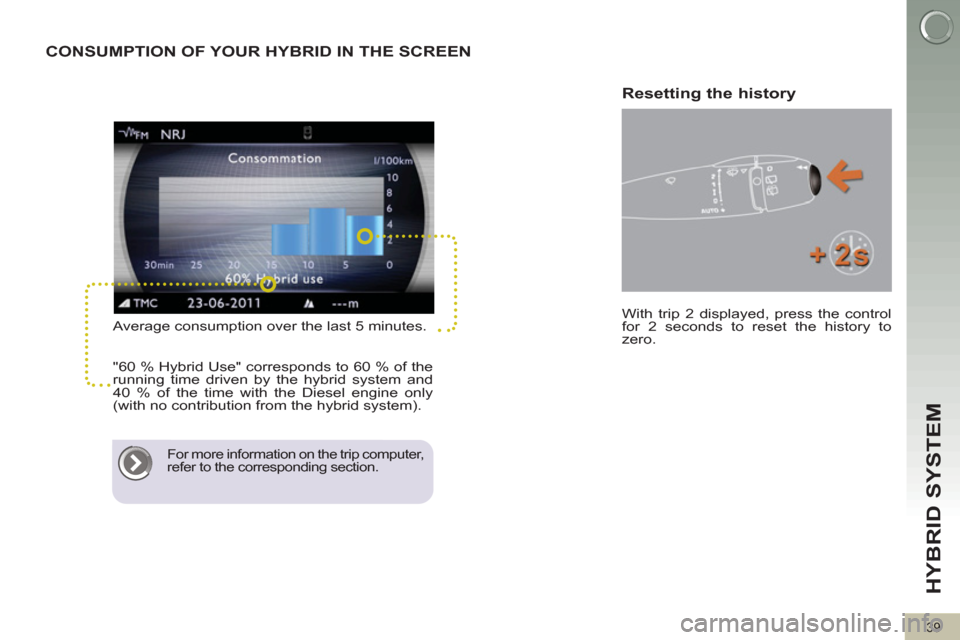

  CONSUMPTION OF YOUR HYBRID IN THE SCREEN


Average consumption over the last 5 minutes.
  "60 % Hybrid Use" corresponds to 60 % of the
running time driven by the hybrid system

Page 42 of 284

Peugeot 3008 Hybrid 4 2012 Service Manual HYBRID SYSTEM
40







200 V HIGH VOLTAGE
BATTERY

The Ni-MH (Nickel Metal Hydride) type
200 V high voltage battery is located
below the boot fl oor, close to the electric
motor. I

Page 43 of 284

Peugeot 3008 Hybrid 4 2012 Service Manual HYBRID SYSTEM
41

The high voltage battery must not in any
circumstances be charged from an ex-
ternal source and must only be handled
by a workshop technician.
  There is the risk of serious b

Page 44 of 284

Peugeot 3008 Hybrid 4 2012 Service Manual HYBRID SYSTEM
42

Also ensure that the ignition is
switched off when refuelling to
avoid the engine restarting.

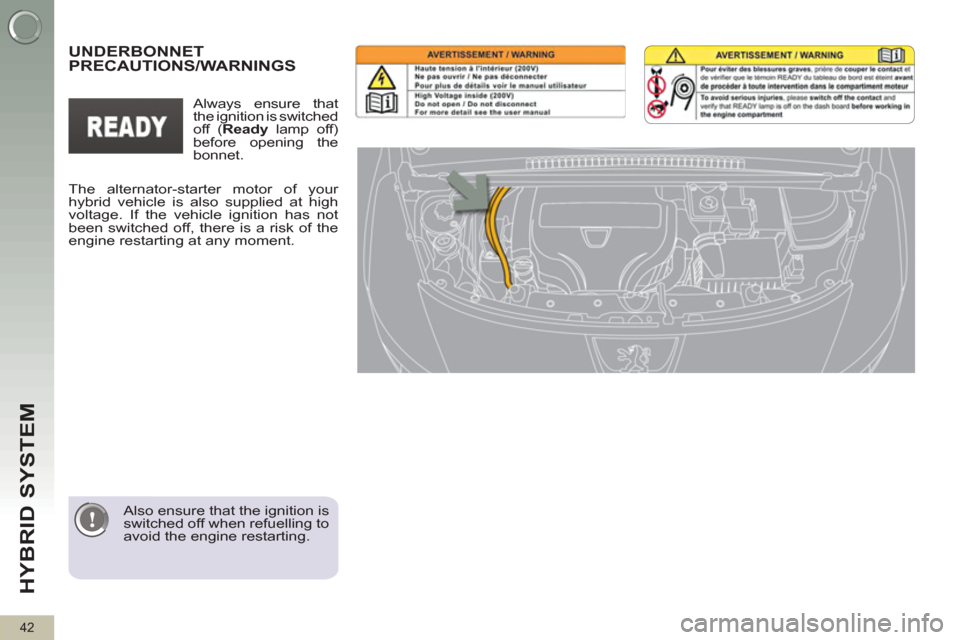

UNDERBONNET
PRECAUTIONS/WARNINGS

The alternator-starter motor

Page 45 of 284

Peugeot 3008 Hybrid 4 2012 Service Manual HYBRID SYSTEM
43

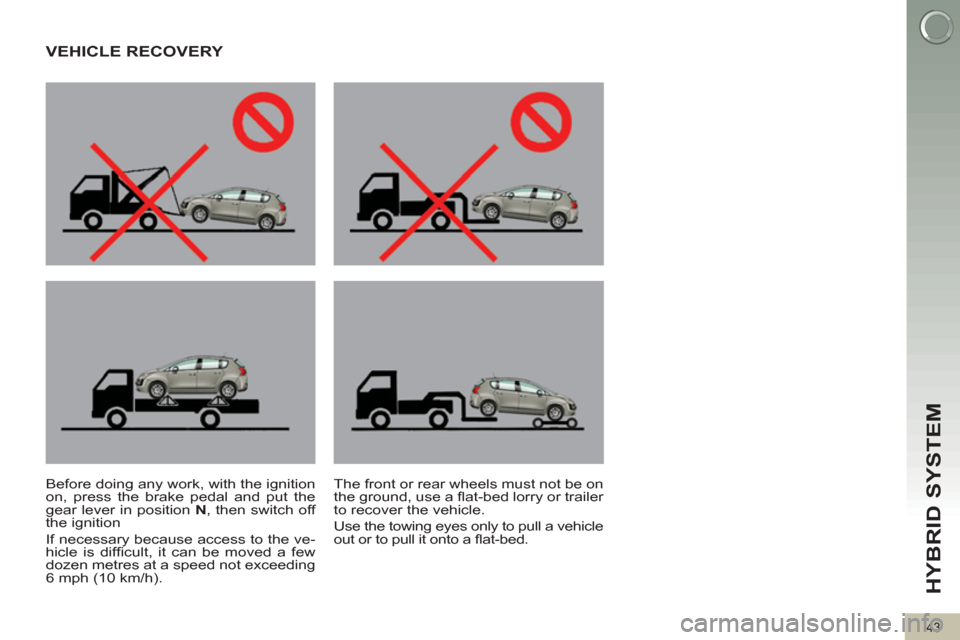

VEHICLE RECOVERY


Before doing any work, with the ignition
on, press the brake pedal and put the
gear lever in position  N
, then switch off
the ignition
  If n

Page 46 of 284

Peugeot 3008 Hybrid 4 2012 Service Manual 44
INSTRUMENTS and CONTROLS

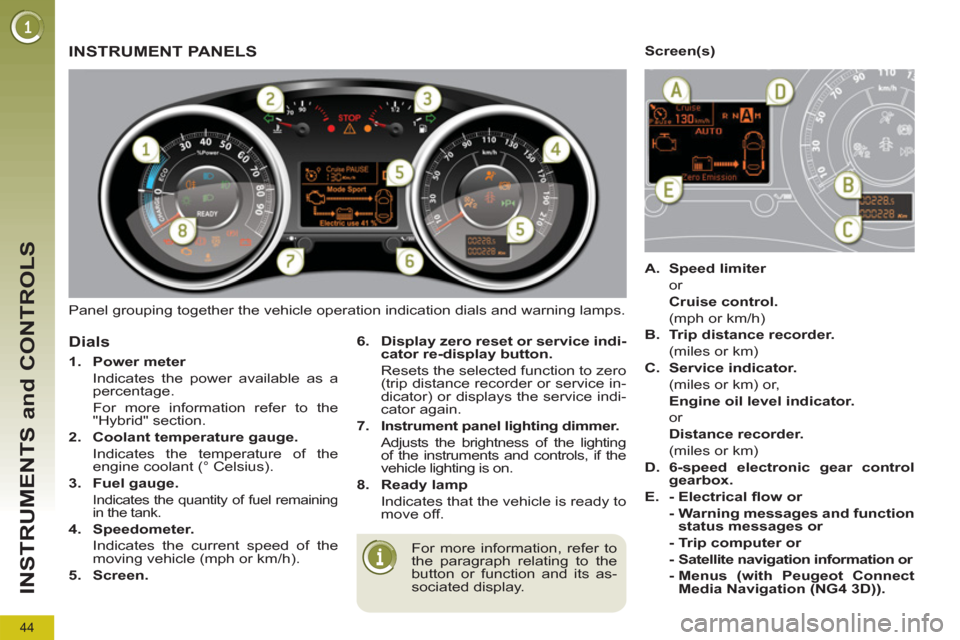

  Panel grouping together the vehicle operation indication dials and warning lamps.


















INSTRUMENT PANELS

For more information, refer to

Page 47 of 284

Peugeot 3008 Hybrid 4 2012 Service Manual 45
INSTRUMENTS and CONTROLS
  The main menu and its asso-
ciated functions can only be
accessed when stationary, via
buttons  1
 to  4
.
A message appears on the screen,
above a certain speed t

Page 48 of 284

Peugeot 3008 Hybrid 4 2012 Service Manual 46
INSTRUMENTS and CONTROLS

Vehicle parameters
  This menu allows you to activate or
deactivate certain driving and comfort
equipment (according to country):


-   wiper linked with revers

Page 49 of 284

Peugeot 3008 Hybrid 4 2012 Service Manual
47
INSTRUMENTS and CONTROLS

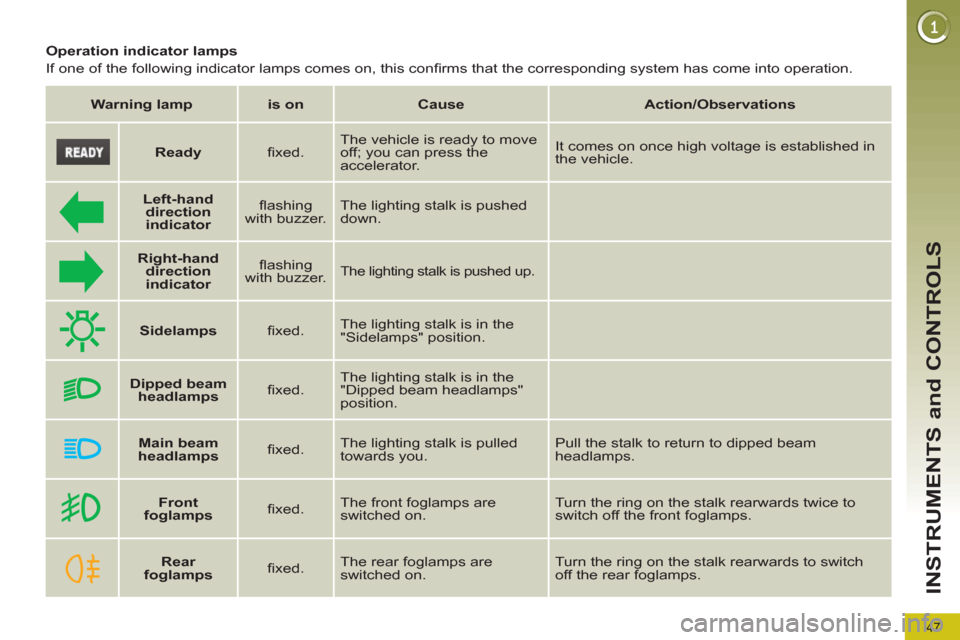

Operation indicator lamps
  If one of the following indicator lamps comes on, this confi rms that the corresponding system has come into operation.



Warnin

Page 50 of 284

Peugeot 3008 Hybrid 4 2012 Service Manual 48
INSTRUMENTS and CONTROLS


Warning lamp



is on



Cause



Action/Observations






Diesel engine
pre-heating


fi xed.    The ignition switch is at the
