Peugeot 3008 Hybrid 4 2012 User Guide

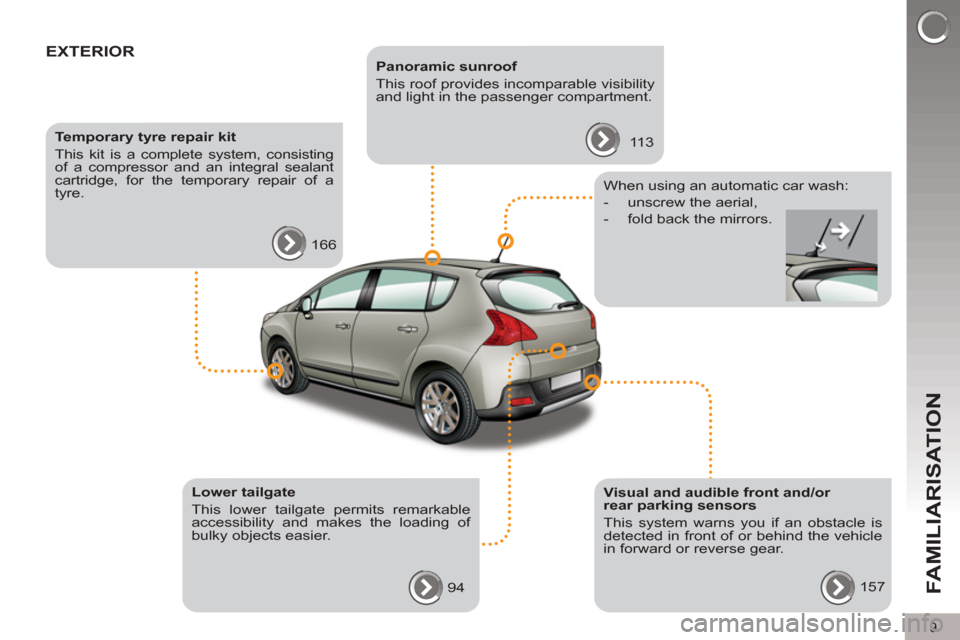

9
FAMILIARISATION
EXTERIOR

Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
113
Temporary tyre repair kit
This kit is a complete system, consisting
of a compressor and an integral sealant
cartridge, for the temporary repair of a
tyre.
166

Lower tailgate
This lower tailgate permits remarkable
accessibility and makes the loading of
bulky objects easier.
94
Visual and audible front and/or
rear parking sensors
This system warns you if an obstacle is
detected in front of or behind the vehicle
in forward or reverse gear.
157

When using an automatic car wash:


- unscrew the aerial,

- fold back the mirrors.

10
FAMILIARISATION
OPENING

Remote control key



A.
Unfolding/Folding the key.
Normal locking
(press once; fi xed lighting of
the direction indicators).
Deadlocking the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).
Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators). or
82 When the light is poor, detected by a sen-
sor, the remote switching on of the dipped
headlamps and sidelamps makes your
approach to the vehicle easier.
This function can be programmed via the
confi guration menu.
99
95


Fuel tank

Before refuelling, you
must
switch of the
ignition and ensure
that the Ready
lamp
is off.


1.
Open the fuel fi ller fl ap.

2.
Open and hook the fuel fi ller cap.
The type of fuel to be used is indicated
on the inner face of the fuel fi ller fl ap.
Capacity of the tank: approximately
56.5 litres.

Welcome lighting

11
FAMILIARISATION
OPENING

Boot


Opening


)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and lift the tailgate.


Closing


)
After closing the lower tailgate, pull
the handle B
downwards to guide
the tailgate.



Lower tailgate

93
Opening


)
Push the handle C
to the right and
tilt the tailgate D
.


Closing


)
Raise the tailgate D
, push it fully
to close it, check that it is locked
correctly.

94

12
FAMILIARISATION
INTERIOR


Electric parking brake
This combines the functions of automatic
application
on switching off the engine
and automatic release
on acceleration.
Manual application/release is possible.
139

Audio and communication systems
These systems benefi t from the latest
technology: MP3 compatible audio sys-
tem, USB player, Bluetooth hands-free
system, satellite navigation system with
colour screen, HiFi audio system.
205
Head-up display
This system projects certain information
into the driver's fi eld of vision: speed,
cruise control/speed limiter.
147

Dual-zone digital air conditioning
This systems allows different levels of
comfort to be set for the driver and front
passenger. It then controls these level
automatically according to the ambient
conditions.
70 Peugeot Connect
Sound (RD5) 249
109,
256 Peugeot
Connect USB

Peugeot Connect Media
Navigation (NG4 3D) Bluetooth 233,
259
Peugeot
Assistance 201

13
FAMILIARISATION
INSTRUMENTS AND CONTROLS


1.
Cruise control/speed limiter
switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
Front armrest - Peugeot Connect
USB.

9.
Bonnet release.

10.
Driver's storage compartment
(Handbook).

11 .
ECO OFF button
Alarm button.
Parking sensors button.
Dynamic stability control button
(DSC).

12.
Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media Navigation
(NG4 3D).

13.
Door mirror controls.
Electric window controls.
Child lock.

14.
Front side window demisting vent.

15.
Windscreen demisting vent.

14
FAMILIARISATION
INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Audio and telematics system
steering mounted control.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Central adjustable air vents.

5.
Head-up display.

6.
Multifunction screen.

7.
Passenger's airbag.

8.
Side adjustable air vent.

9.
Glove box - Audio/video sockets -
Passenger's airbag deactivation.

10.
Storage compartment with net.

11 .
HYbrid4 mode selector.

12.
12 V accessory socket.

13.
Grab handle.

14.
Heating/air conditioning controls.

15.
Audio and telematics system.

16.
Buttons:
- head-up display,
- hazard warning lamps,
- central locking.

15
FAMILIARISATION
SITTING COMFORTABLY

Driver's seat


Forwards-backwards
Height



Manual adjustment

73


Electric adjustment

74
Seat back angle

16
FAMILIARISATION
SITTING COMFORTABLY

Front seats


Head restraint height and angle

Lumbar
75



Steering wheel adjustment



1.
Release the adjustment mechanism.

2.
Adjust for height and reach.

3.
Lock the adjustment mechanism.
As a safety precaution, these operations
must only be carried out when stationary.
79


Table position
(front passenger seat)
To place objects on the table or to make
the loading of long objects in the vehicle
easier.
76


Front armrest

It contains the Peugeot Connect USB port.

109

17
FAMILIARISATION
SITTING COMFORTABLY

Door mirrors


Adjustment

A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.
80



Rear view mirror


Manual model


1.
Selection of the "day" position of the
mirror.

2.
Adjustment of the mirror.
81

Automatic day/night model


1.
Adjustment of the mirror.
81



Front seat belts



1.
Fastening of the buckle.
132
2.
Height adjustment.
Also...


C.
Folding/Unfolding.

18
FAMILIARISATION
SEEING CLEARLY

Lighting


Ring A
Lighting off.

Ring B Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Automatic illumination of
headlamps.
97, 98



Direction indicators

Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash for as long
as the stalk remains in this position.

"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.
129



Wipers


Stalk A: windscreen wipers

Switching on "AUTO"


)
Press the stalk down and release it.


Switching off "AUTO"


)
Push the stalk up and return it to
position "0"
.
101

Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
102
