Peugeot 307 CC 2003 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2003, Model line: 307 CC, Model: Peugeot 307 CC 2003Pages: 173, PDF Size: 2.12 MB
Page 101 of 173
22-09-2003
YOUR 307 CC IN DETAIL97

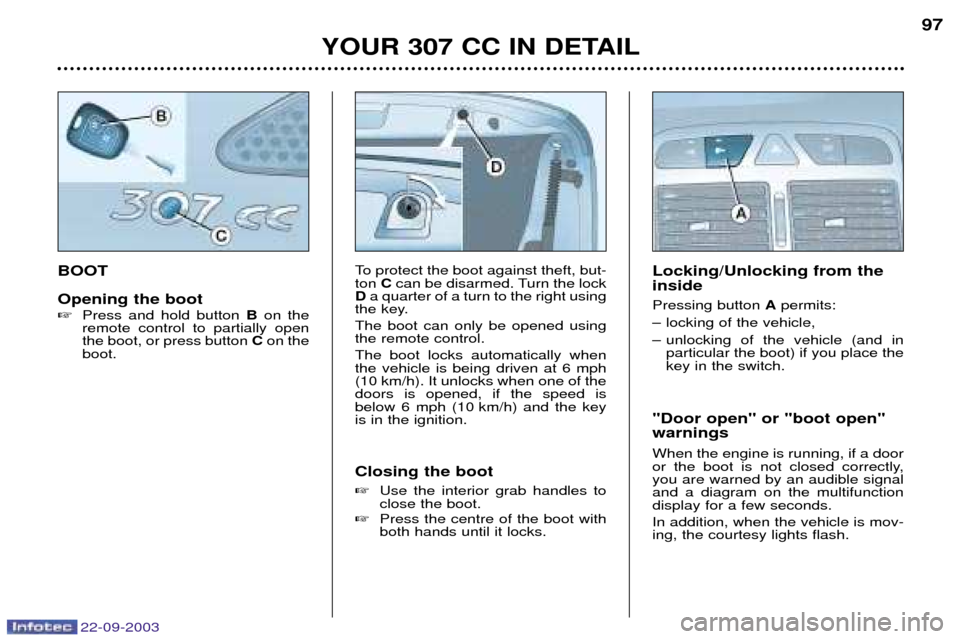

BOOT Opening the boot
Press and hold button Bon the
remote control to partially open the boot, or press button Con the
boot.Locking/Unlocking from the inside Pressing button Apermits:
Ð locking of the vehicle,
Ð unlocking of the vehicle (and in particular the boot) if you place the key in the switch.
"Door open" or "boot open" warnings When the engine is running, if a door
or the boot is not closed correctly,you are warned by an audible signaland a diagram on the multifunctiondisplay for a few seconds. In addition, when the vehicle is mov- ing, the courtesy lights flash.To protect the boot against theft, but- ton Ccan be disarmed. Turn the lock
D a quarter of a turn to the right using
the key. The boot can only be opened using the remote control. The boot locks automatically when the vehicle is being driven at 6 mph(10 km/h). It unlocks when one of thedoors is opened, if the speed is
below 6 mph (10 km/h) and the keyis in the ignition. Closing the boot Use the interior grab handles to close the boot.
Press the centre of the boot withboth hands until it locks.
Page 102 of 173
22-09-2003
YOUR 307 CC IN DETAIL97
BOOT Opening the boot
Press and hold button Bon the
remote control to partially open the boot, or press button Con the
boot.Locking/Unlocking from the inside Pressing button Apermits:
Ð locking of the vehicle,
Ð unlocking of the vehicle (and in particular the boot) if you place the key in the switch.
"Door open" or "boot open" warnings When the engine is running, if a door
or the boot is not closed correctly,you are warned by an audible signaland a diagram on the multifunctiondisplay for a few seconds. In addition, when the vehicle is mov- ing, the courtesy lights flash.To protect the boot against theft, but- ton Ccan be disarmed. Turn the lock
D a quarter of a turn to the right using
the key. The boot can only be opened using the remote control. The boot locks automatically when the vehicle is being driven at 6 mph(10 km/h). It unlocks when one of thedoors is opened, if the speed is
below 6 mph (10 km/h) and the keyis in the ignition. Closing the boot Use the interior grab handles to close the boot.
Press the centre of the boot withboth hands until it locks.
Page 103 of 173
22-09-2003
YOUR 307 CC IN DETAIL
98

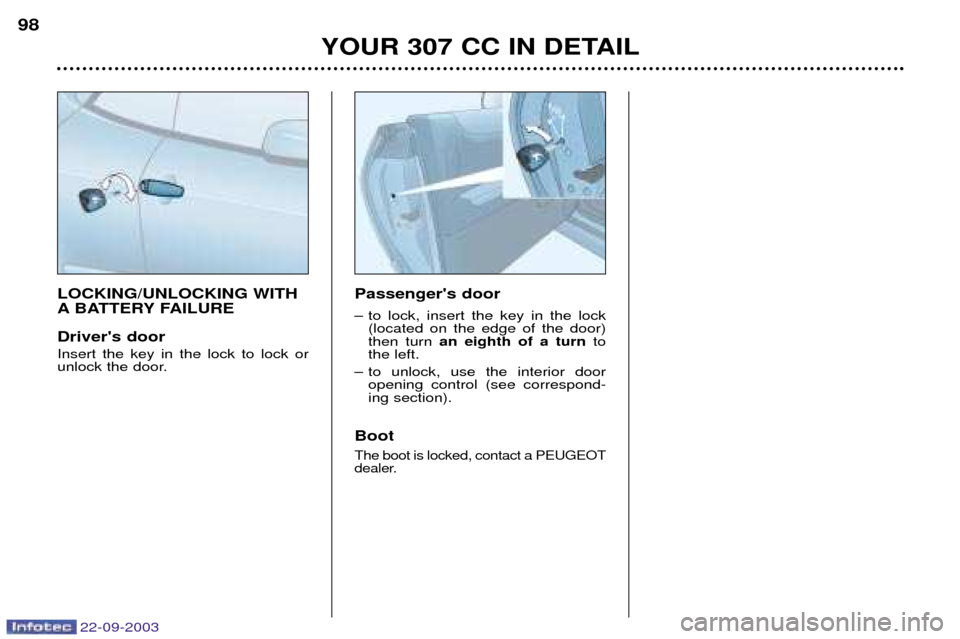

LOCKING/UNLOCKING WITH
A BATTERY FAILURE Driver's door Insert the key in the lock to lock or
unlock the door.Passenger's door
Ð to lock, insert the key in the lock
(located on the edge of the door) then turn an eighth of a turn to
the left.
Ð to unlock, use the interior door opening control (see correspond-ing section).
Boot
The boot is locked, contact a PEUGEOT
dealer.
Page 104 of 173
22-09-2003
YOUR 307 CC IN DETAIL
100

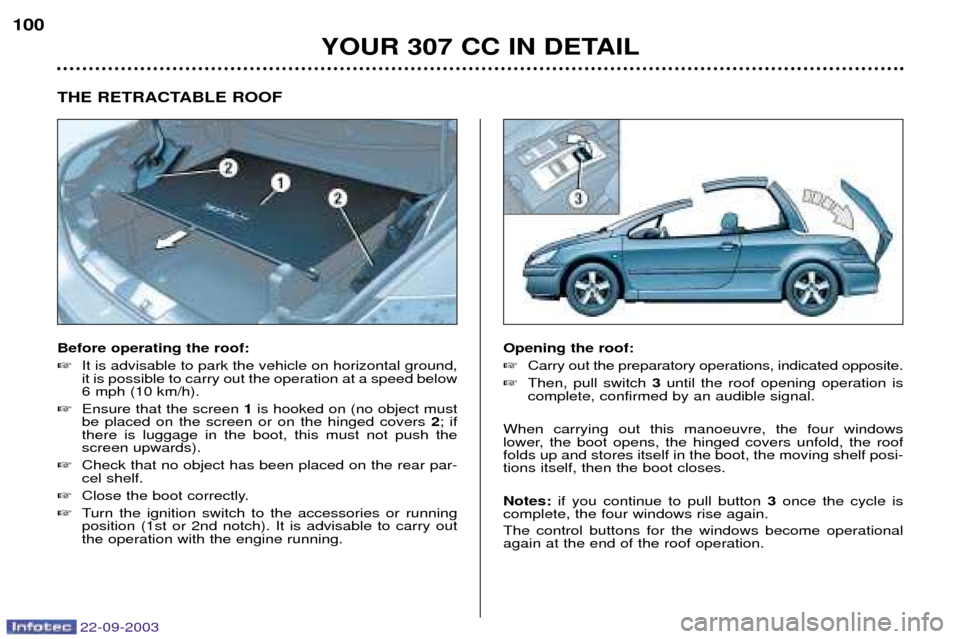

THE RETRACTABLE ROOF Before operating the roof:
It is advisable to park the vehicle on horizontal ground, it is possible to carry out the operation at a speed below
6 mph (10 km/h).
Ensure that the screen 1is hooked on (no object must
be placed on the screen or on the hinged covers 2; if
there is luggage in the boot, this must not push thescreen upwards).
Check that no object has been placed on the rear par-cel shelf.
Close the boot correctly.
Turn the ignition switch to the accessories or runningposition (1st or 2nd notch). It is advisable to carry outthe operation with the engine running. Opening the roof:
Carry out the preparatory operations, indicated opposite.
Then, pull switch 3until the roof opening operation is
complete, confirmed by an audible signal.
When carrying out this manoeuvre, the four windows
lower, the boot opens, the hinged covers unfold, the rooffolds up and stores itself in the boot, the moving shelf posi-tions itself, then the boot closes. Notes: if you continue to pull button 3once the cycle is
complete, the four windows rise again. The control buttons for the windows become operational again at the end of the roof operation.
Page 105 of 173
22-09-2003
YOUR 307 CC IN DETAIL101

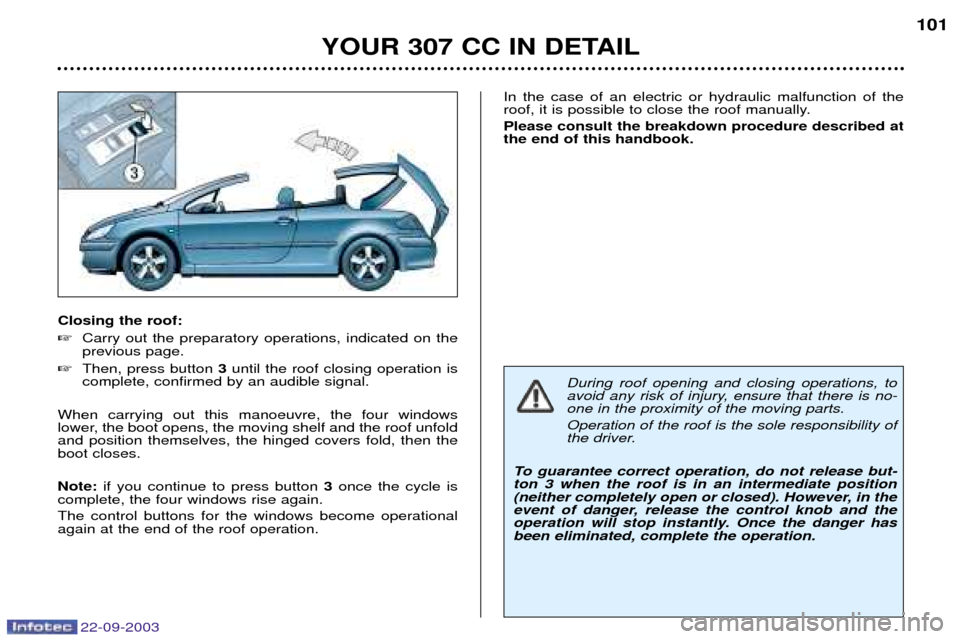

Closing the roof:
Carry out the preparatory operations, indicated on the previous page.
Then, press button 3until the roof closing operation is
complete, confirmed by an audible signal.
When carrying out this manoeuvre, the four windows
lower, the boot opens, the moving shelf and the roof unfoldand position themselves, the hinged covers fold, then theboot closes. Note: if you continue to press button 3once the cycle is
complete, the four windows rise again. The control buttons for the windows become operational again at the end of the roof operation. In the case of an electric or hydraulic malfunction of the
roof, it is possible to close the roof manually. Please consult the breakdown procedure described at the end of this handbook.
During roof opening and closing operations, to
avoid any risk of injury, ensure that there is no-one in the proximity of the moving parts.
Operation of the roof is the sole responsibility of
the driver.
To guarantee correct operation, do not release but-ton 3 when the roof is in an intermediate position
(neither completely open or closed). However, in the
event of danger, release the control knob and the
operation will stop instantly. Once the danger hasbeen eliminated, complete the operation.
Page 106 of 173
22-09-2003
YOUR 307 CC IN DETAIL99
OPENING THE BONNET From inside:
push the handle on the
left-hand side under the fascia. From outside: lift the catch and
raise the bonnet. Bonnet strut Secure the strut to hold the bonnet open. Before closing the bonnet, replace the strut in its housing.
To close Lower the bonnet and release it at the end of its travel. Check that thebonnet is properly locked. "Bonnet open" warning With the engine running or the vehi- cle moving, flashing of the central
"STOP"
warning light accompanied
by an audible signal and a diagram
on the multi-function display, warnsyou that the bonnet is not properlyclosed. FILLING WITH FUEL Low fuel level
When the minimum fuel level in the tank isreached, this warninglight comes on.
You can still drive approximately30 miles (50 km). Flashing of the warning light indi-cates a malfunction of the fuelgauge.
Contact a PEUGEOT dealer. The engine must be switched off when filling with fuel.
Open the fuel filler flap.
Insert the key then turn it to the left.
Remove the cap and hang it onthe hook located on the inside ofthe flap.
A label affixed to the inside of the fuelfiller flap indicates which type of fuelto use. When you fill your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicleto malfunction. The capacity of the tank is approxi- mately 60 litres. After filling the tank, lock the cap and close the fuel filler flap.
Page 107 of 173
22-09-2003
YOUR 307 CC IN DETAIL
102

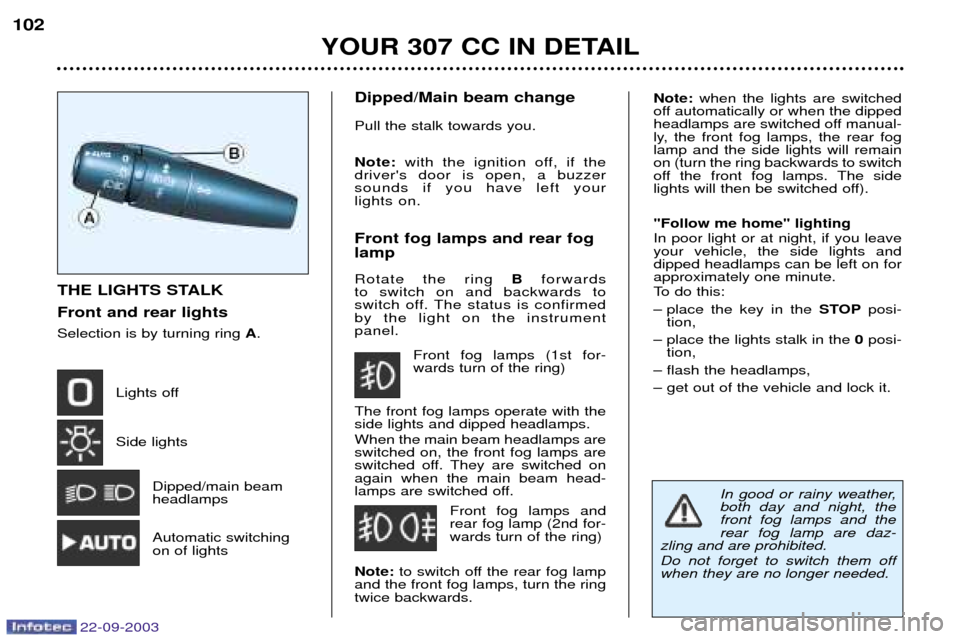

THE LIGHTS STALK Front and rear lights Selection is by turning ring
A.
Lights off Side lights Dipped/main beam headlamps Automatic switching on of lights Dipped/Main beam change Pull the stalk towards you. Note:
with the ignition off, if the
driver's door is open, a buzzer sounds if you have left your lights on. Front fog lamps and rear fog lamp Rotate the ring Bforwards
to switch on and backwards to
switch off. The status is confirmedby the light on the instrumentpanel.
Front fog lamps (1st for-wards turn of the ring)
The front fog lamps operate with theside lights and dipped headlamps. When the main beam headlamps are switched on, the front fog lamps are
switched off. They are switched onagain when the main beam head-
lamps are switched off. Front fog lamps andrear fog lamp (2nd for-wards turn of the ring)
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ringtwice backwards.
Note: when the lights are switched
off automatically or when the dipped
headlamps are switched off manual-
ly, the front fog lamps, the rear foglamp and the side lights will remainon (turn the ring backwards to switch
off the front fog lamps. The side
lights will then be switched off). "Follow me home" lighting In poor light or at night, if you leave your vehicle, the side lights anddipped headlamps can be left on forapproximately one minute.
To do this:
Ð place the key in the STOPposi-
tion,
Ð place the lights stalk in the 0posi-
tion,
Ð flash the headlamps,Ð get out of the vehicle and lock it.
In good or rainy weather, both day and night, thefront fog lamps and therear fog lamp are daz-
zling and are prohibited. Do not forget to switch them off when they are no longer needed.
Page 108 of 173
22-09-2003
YOUR 307 CC IN DETAIL103
AUTOMATIC SWITCHING ON OF LIGHTS The side lights and dipped beam headlamps switch on automatically ifthe light is poor and when the wind-
screen wipers operate continuously.
They switch off when the light becomes bright enough or the wind-
screen wipers are switched off. This function is active when the vehi-
cle is supplied to the customer.
To disarm or activate the function:
Ð Place the key in the accessories
position (1st notch),
Ð Press the end of the lights stalk for more than four seconds.
Note: In foggy weather or in snow,
the brightness sensor can detect suf-
ficient light. As a result, the lights will
not come on automatically.
The brightness sensor, coupled
with the rain sensor, is located inthe centre of the windscreen,
behind the interior mirror. It isused for automatic switching onof the lights. Operating check ActivationActivation of this function is accom- panied by an audible signal and themessage
"Automatic lighting
active" on the multifunction display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily
disarmed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audi-ble signal, accompanied by the mes-sage "Auto lighting fault" on the
multifunction display.
Contact a PEUGEOT dealer to have the system checked.
Direction indicators (flashers)
Left: downwards.
Right: upwards.
Page 109 of 173
22-09-2003
YOUR 307 CC IN DETAIL103
AUTOMATIC SWITCHING ON OF LIGHTS The side lights and dipped beam headlamps switch on automatically ifthe light is poor and when the wind-
screen wipers operate continuously.
They switch off when the light becomes bright enough or the wind-
screen wipers are switched off. This function is active when the vehi-
cle is supplied to the customer.
To disarm or activate the function:
Ð Place the key in the accessories
position (1st notch),
Ð Press the end of the lights stalk for more than four seconds.
Note: In foggy weather or in snow,
the brightness sensor can detect suf-
ficient light. As a result, the lights will
not come on automatically.
The brightness sensor, coupled
with the rain sensor, is located inthe centre of the windscreen,
behind the interior mirror. It isused for automatic switching onof the lights. Operating check ActivationActivation of this function is accom- panied by an audible signal and themessage
"Automatic lighting
active" on the multifunction display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily
disarmed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audi-ble signal, accompanied by the mes-sage "Auto lighting fault" on the
multifunction display.
Contact a PEUGEOT dealer to have the system checked.
Direction indicators (flashers)
Left: downwards.
Right: upwards.
Page 110 of 173
22-09-2003
YOUR 307 CC IN DETAIL
104
After the ignition has been switched off, if the stalk was in awipe position, you must reactivatethis function:
Ð move the stalk to any position,
Ð then move it back to the required
position.
Special position of the front windscreen wiper
In the minute following switching off of the ignition, any action on the stalkpositions the wipers in the centre ofthe windscreen. This action enables you to position the wiper blades for winter parking,cleaning or replacement (See sec-tion "Practical information -Changing a wiper blade").
To park the wipers after this has been done, switch on the ignitionand operate the stalk.
Windscreen wash Pull the wipers stalk towards you. The windscreen wash, then the windscreen wipers, operate for afixed period.

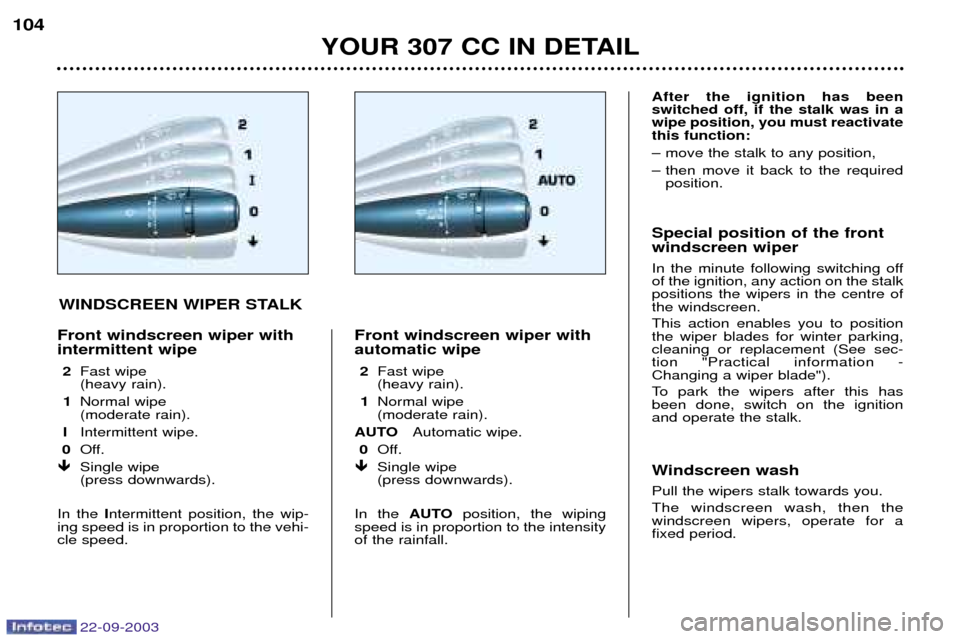

WINDSCREEN WIPER STALK
Front windscreen wiper with intermittent wipe 2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe (press downwards).
In the Intermittent position, the wip-
ing speed is in proportion to the vehi-cle speed. Front windscreen wiper with automatic wipe
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe.
0 Off.
Single wipe (press downwards).
In the AUTOposition, the wiping
speed is in proportion to the intensityof the rainfall.
