Peugeot 307 CC 2003 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2003, Model line: 307 CC, Model: Peugeot 307 CC 2003Pages: 173, PDF Size: 2.12 MB
Page 111 of 173
22-09-2003
YOUR 307 CC IN DETAIL105
Automatic windscreen wipers In the
AUTOposition, the wind-
screen wipers operate automatically and adapt their speed to the inten-
sity of the rainfall.
Operating check ActivationWhen the function is activated, the message "Automatic wiping
active" appears on the multi-func-
tion display. Disarming In the event of malfunction , the dri-
ver is informed by an audible signal and the message "Auto wiper fault"
on the multi-function display. In the AUTOposition, the wind-
screen wiper will operate in intermit- tent mode.

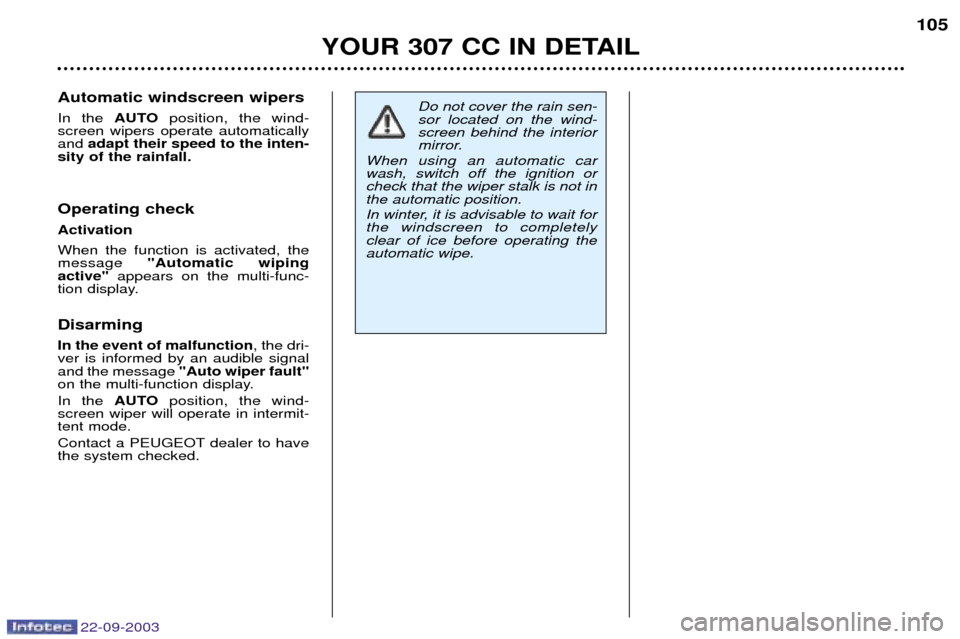

Contact a PEUGEOT dealer to have the system checked. Do not cover the rain sen-sor located on the wind-screen behind the interior
mirror.
When using an automatic carwash, switch off the ignition orcheck that the wiper stalk is not inthe automatic position.
In winter, it is advisable to wait for the windscreen to completelyclear of ice before operating theautomatic wipe.
Page 112 of 173
22-09-2003
YOUR 307 CC IN DETAIL105
Automatic windscreen wipers In the
AUTOposition, the wind-
screen wipers operate automatically and adapt their speed to the inten-
sity of the rainfall.
Operating check ActivationWhen the function is activated, the message "Automatic wiping
active" appears on the multi-func-
tion display. Disarming In the event of malfunction , the dri-
ver is informed by an audible signal and the message "Auto wiper fault"
on the multi-function display. In the AUTOposition, the wind-
screen wiper will operate in intermit- tent mode.
Contact a PEUGEOT dealer to have the system checked. Do not cover the rain sen-sor located on the wind-screen behind the interior
mirror.
When using an automatic carwash, switch off the ignition orcheck that the wiper stalk is not inthe automatic position.
In winter, it is advisable to wait for the windscreen to completelyclear of ice before operating theautomatic wipe.
Page 113 of 173
22-09-2003
YOUR 307 CC IN DETAIL
106
Colour screen DT
Ð the
"Current information" with:
¥ the range,
¥ the current consumption,
¥ the distance still to be driven.
Ð "Route 1" with:
¥ the distance travelled,
¥ the average consumption,
¥ the average speed,
Ð "Route 2" with the same features.
It also permits access to the warn-
ing log information and to the
Excess Speed Warning* function.
Zero re-setWhen the required route is dis- played, press the button for morethan two seconds.

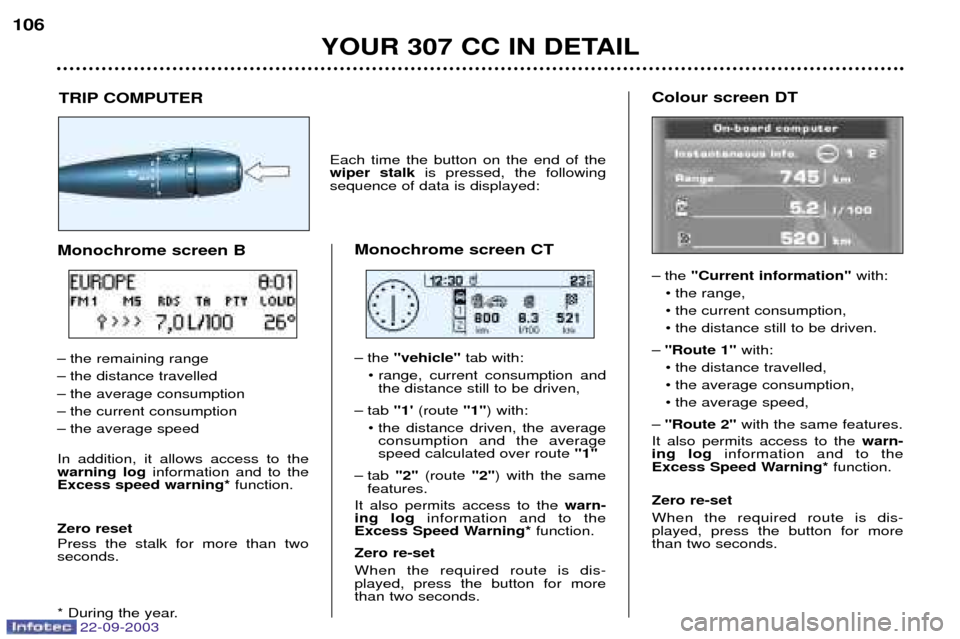

TRIP COMPUTER
Each time the button on the end of the wiper stalk
is pressed, the following
sequence of data is displayed:
Monochrome screen CT
Ð the "vehicle" tab with:
¥ range, current consumption and the distance still to be driven,
Ð tab "1'(route "1") with:
¥ the distance driven, the average consumption and the average speed calculated over route "1"
Ð tab "2"(route "2") with the same
features.
It also permits access to the warn-
ing log information and to the
Excess Speed Warning* function.
Zero re-set When the required route is dis- played, press the button for morethan two seconds.
Monochrome screen B
Ð the remaining range
Ð the distance travelled
Ð the average consumption
Ð the current consumption
Ð the average speed In addition, it allows access to the warning log
information and to the
Excess speed warning* function.
Zero reset Press the stalk for more than two seconds.
* During the year.
Page 114 of 173
22-09-2003
YOUR 307 CC IN DETAIL107

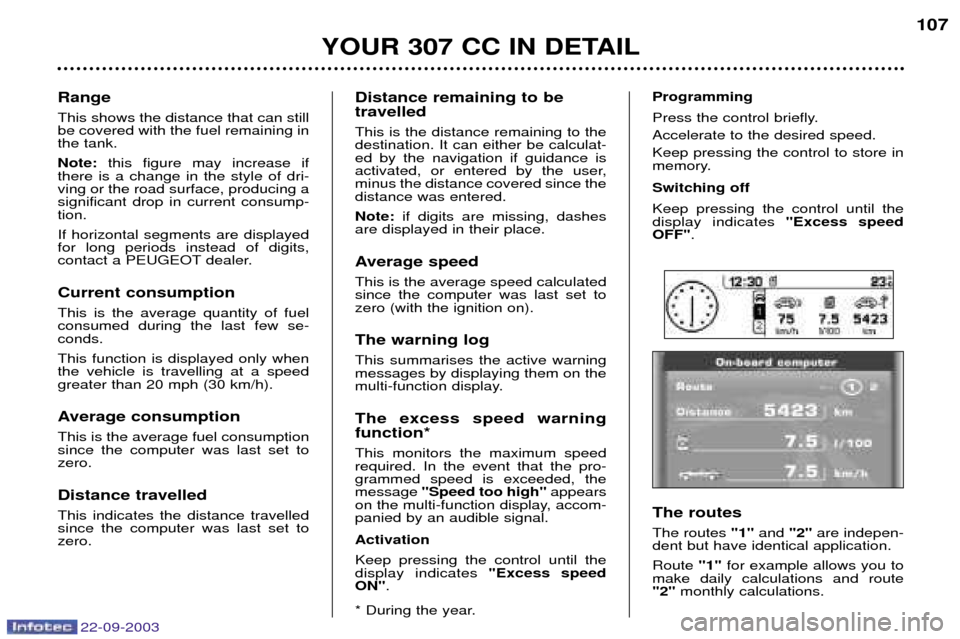

Distance remaining to be travelled This is the distance remaining to the destination. It can either be calculat-ed by the navigation if guidance is
activated, or entered by the user,minus the distance covered since thedistance was entered. Note:
if digits are missing, dashes
are displayed in their place.
Average speed This is the average speed calculated since the computer was last set tozero (with the ignition on). The warning log This summarises the active warning messages by displaying them on the
multi-function display. The excess speed warning function* This monitors the maximum speed required. In the event that the pro-grammed speed is exceeded, themessage ''Speed too high'' appears
on the multi-function display, accom-panied by an audible signal. Activation Keep pressing the control until the display indicates "Excess speed
ON" .
* During the year.
Range This shows the distance that can still be covered with the fuel remaining inthe tank. Note:
this figure may increase if
there is a change in the style of dri- ving or the road surface, producing asignificant drop in current consump-tion. If horizontal segments are displayed for long periods instead of digits,
contact a PEUGEOT dealer. Current consumption This is the average quantity of fuel consumed during the last few se-conds. This function is displayed only when the vehicle is travelling at a speedgreater than 20 mph (30 km/h).
Average consumption This is the average fuel consumption since the computer was last set tozero. Distance travelled This indicates the distance travelled since the computer was last set tozero. Programming
Press the control briefly. Accelerate to the desired speed.Keep pressing the control to store in
memory. Switching off Keep pressing the control until the display indicates
"Excess speed
OFF" .
The routes The routes "1"and "2"are indepen-
dent but have identical application.Route "1" for example allows you to
make daily calculations and route "2" monthly calculations.
Page 115 of 173
22-09-2003
YOUR 307 CC IN DETAIL
106
Colour screen DT
Ð the
"Current information" with:
¥ the range,
¥ the current consumption,
¥ the distance still to be driven.
Ð "Route 1" with:
¥ the distance travelled,
¥ the average consumption,
¥ the average speed,
Ð "Route 2" with the same features.
It also permits access to the warn-
ing log information and to the
Excess Speed Warning* function.
Zero re-setWhen the required route is dis- played, press the button for morethan two seconds.
TRIP COMPUTER
Each time the button on the end of the wiper stalk
is pressed, the following
sequence of data is displayed:
Monochrome screen CT
Ð the "vehicle" tab with:
¥ range, current consumption and the distance still to be driven,
Ð tab "1'(route "1") with:
¥ the distance driven, the average consumption and the average speed calculated over route "1"
Ð tab "2"(route "2") with the same
features.
It also permits access to the warn-
ing log information and to the
Excess Speed Warning* function.
Zero re-set When the required route is dis- played, press the button for morethan two seconds.
Monochrome screen B
Ð the remaining range
Ð the distance travelled
Ð the average consumption
Ð the current consumption
Ð the average speed In addition, it allows access to the warning log
information and to the
Excess speed warning* function.
Zero reset Press the stalk for more than two seconds.
* During the year.
Page 116 of 173
22-09-2003
YOUR 307 CC IN DETAIL107
Distance remaining to be travelled This is the distance remaining to the destination. It can either be calculat-ed by the navigation if guidance is
activated, or entered by the user,minus the distance covered since thedistance was entered. Note:
if digits are missing, dashes
are displayed in their place.
Average speed This is the average speed calculated since the computer was last set tozero (with the ignition on). The warning log This summarises the active warning messages by displaying them on the
multi-function display. The excess speed warning function* This monitors the maximum speed required. In the event that the pro-grammed speed is exceeded, themessage ''Speed too high'' appears
on the multi-function display, accom-panied by an audible signal. Activation Keep pressing the control until the display indicates "Excess speed
ON" .
* During the year.
Range This shows the distance that can still be covered with the fuel remaining inthe tank. Note:
this figure may increase if
there is a change in the style of dri- ving or the road surface, producing asignificant drop in current consump-tion. If horizontal segments are displayed for long periods instead of digits,
contact a PEUGEOT dealer. Current consumption This is the average quantity of fuel consumed during the last few se-conds. This function is displayed only when the vehicle is travelling at a speedgreater than 20 mph (30 km/h).
Average consumption This is the average fuel consumption since the computer was last set tozero. Distance travelled This indicates the distance travelled since the computer was last set tozero. Programming
Press the control briefly. Accelerate to the desired speed.Keep pressing the control to store in
memory. Switching off Keep pressing the control until the display indicates
"Excess speed
OFF" .
The routes The routes "1"and "2"are indepen-
dent but have identical application.Route "1" for example allows you to
make daily calculations and route "2" monthly calculations.
Page 117 of 173
22-09-2003
YOUR 307 CC IN DETAIL
108
Trip computer configuration This function allows the distance to the destination to be input (whenguidance is not activated; otherwisethis information is given by the navi-gation system) and also changing of
the units of measurement (¡C or ¡F,km and litres or miles and gallons). Distance to destination When guidance is not activated, this enables an approximate value to beentered to make all the trip computercalculations possible.
Specific features of the monochrome screen CT and the colour screen DT General menu Press the
"MENU" button to access
the general menu.Select the icon "Trip computer"
using the dial, then validate to
access the ''Trip computer'' menu.
The ''trip computer'' menu offers var- ious choices:
Ð Trip computer configuration,
Ð Warning log.
"Trip computer" context menu The context menu associated with the "Trip Computer" application
appears as a superimposed display
when the Trip Computer is the appli-cation currently being used in the
main screen window. Briefly press the continuous applica-
tion "Trip computer" button to selectone of the following functions:
Ð Warning log,
Ð Distance to destination.
Page 118 of 173
22-09-2003
YOUR 307 CC IN DETAIL109

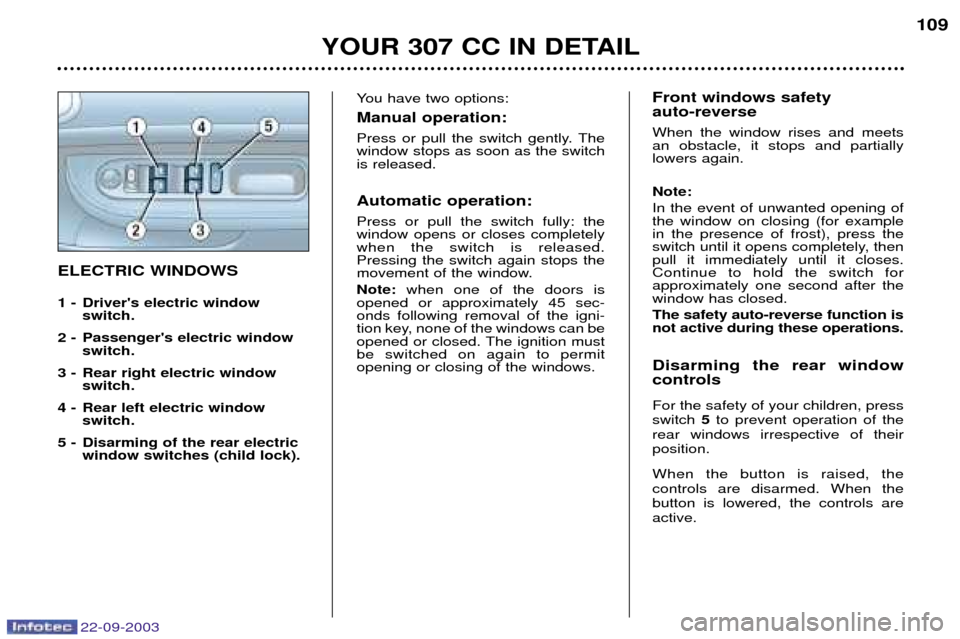

ELECTRIC WINDOWS
1 - Driver's electric window
switch.
2 - Passenger's electric window switch.
3 - Rear right electric window switch.
4 - Rear left electric window switch.
5 - Disarming of the rear electric window switches (child lock). Front windows safety auto-reverse When the window rises and meets an obstacle, it stops and partiallylowers again. Note: In the event of unwanted opening of the window on closing (for examplein the presence of frost), press the
switch until it opens completely, thenpull it immediately until it closes.Continue to hold the switch forapproximately one second after thewindow has closed. The safety auto-reverse function is not active during these operations. Disarming the rear window controls For the safety of your children, press switch
5to prevent operation of the
rear windows irrespective of theirposition. When the button is raised, the controls are disarmed. When thebutton is lowered, the controls areactive.
You have two options: Manual operation:
Press or pull the switch gently. The window stops as soon as the switchis released. Automatic operation: Press or pull the switch fully: the window opens or closes completelywhen the switch is released.Pressing the switch again stops the
movement of the window. Note: when one of the doors is
opened or approximately 45 sec- onds following removal of the igni-
tion key, none of the windows can be
opened or closed. The ignition mustbe switched on again to permitopening or closing of the windows.
Page 119 of 173
22-09-2003
YOUR 307 CC IN DETAIL
110

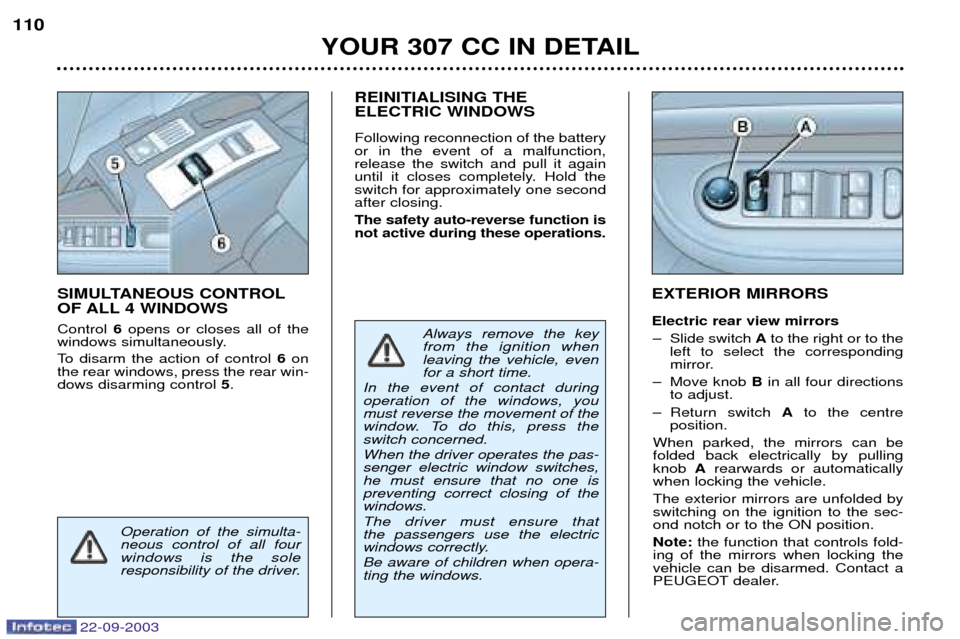

EXTERIOR MIRRORS Electric rear view mirrors
Ð Slide switch Ato the right or to the
left to select the corresponding
mirror.
Ð Move knob Bin all four directions
to adjust.
Ð Return switch Ato the centre
position.
When parked, the mirrors can be folded back electrically by pullingknob Arearwards or automatically
when locking the vehicle.
The exterior mirrors are unfolded by switching on the ignition to the sec-ond notch or to the ON position.
Note: the function that controls fold-
ing of the mirrors when locking thevehicle can be disarmed. Contact a
PEUGEOT dealer.SIMULTANEOUS CONTROL
OF ALL 4 WINDOWS Control 6opens or closes all of the
windows simultaneously.
To disarm the action of control 6on
the rear windows, press the rear win- dows disarming control 5.
Operation of the simulta- neous control of all fourwindows is the sole
responsibility of the driver.
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
In the event of contact duringoperation of the windows, youmust reverse the movement of the
window. To do this, press theswitch concerned. When the driver operates the pas- senger electric window switches,he must ensure that no one is preventing correct closing of thewindows. The driver must ensure that the passengers use the electric
windows correctly. Be aware of children when opera- ting the windows.
REINITIALISING THE ELECTRIC WINDOWS Following reconnection of the battery or in the event of a malfunction,release the switch and pull it again
until it closes completely. Hold theswitch for approximately one secondafter closing. The safety auto-reverse function is not active during these operations.
Page 120 of 173
22-09-2003
YOUR 307 CC IN DETAIL111

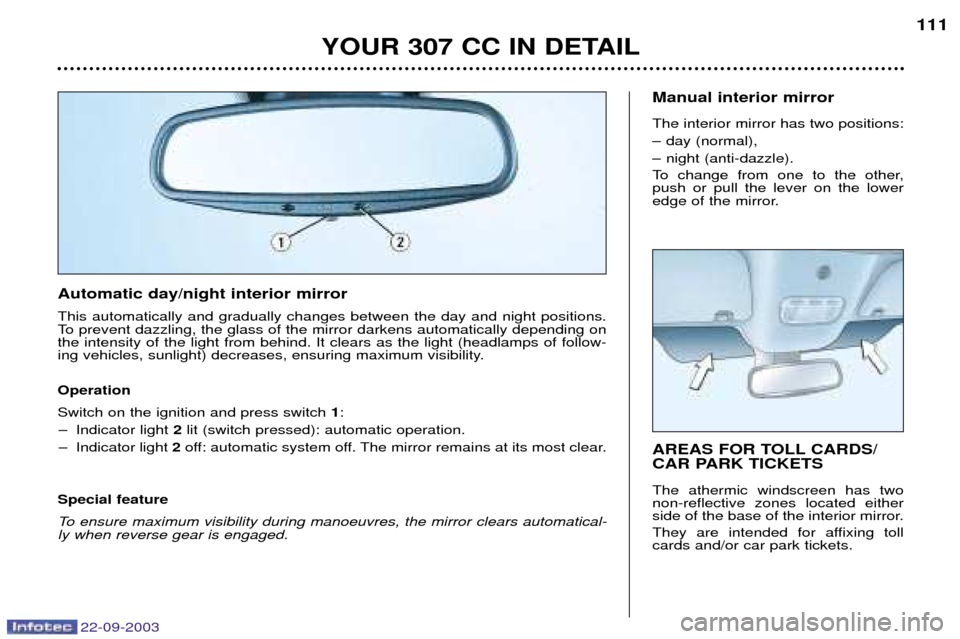

AREAS FOR TOLL CARDS/
CAR PARK TICKETS The athermic windscreen has two non-reflective zones located either
side of the base of the interior mirror.
They are intended for affixing toll cards and/or car park tickets.
Manual interior mirror The interior mirror has two positions:
Ð day (normal),
Ð night (anti-dazzle).
To change from one to the other, push or pull the lever on the lower
edge of the mirror.
Automatic day/night interior mirror This automatically and gradually changes between the day and night positions.
To prevent dazzling, the glass of the mirror darkens automatically depending onthe intensity of the light from behind. It clears as the light (headlamps of follow-
ing vehicles, sunlight) decreases, ensuring maximum visibility. Operation Switch on the ignition and press switch
1:
Ð Indicator light 2lit (switch pressed): automatic operation.
Ð Indicator light 2off: automatic system off. The mirror remains at its most clear.
Special feature
To ensure maximum visibility during manoeuvres, the mirror clears automatical- ly when reverse gear is engaged.
