Peugeot 307 CC 2003 Owner's Manual

22-09-2003
YOUR 307 CC IN DETAIL
112
HEADLAMP ADJUSTMENT Depending on the load in your vehi- cle, adjusting the beam of the head-lamps is recommended as follows.
0-
1 or 2 people in the front seats.
Ð- 3 people.
1- 4 people.
2- 4 people + maximum authorised load.
3- Driver + maximum authorisedload.
Initial setting is position 0. HAZARD WARNING LIGHTS Press the button, the direction indi- cators flash. They can operate with the ignition
off. Automatic lighting of hazard warning lights*
When braking in an emergency, depending on the force of decelera-tion, the hazard warning lights come
on automatically. They switch offautomatically the first time you accel-erate.
It is also possible to switch them off by pressing the button.
* According to destination.STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT
When the vehicle is stationary, unlock the steering wheel by pullinghandle
A.
Adjust the height and depth of thesteering wheel, then lock it by push-ing handle Adown fully.
HORN Press one of the spokes or the centre of the steering wheel.

YOUR 307 CC IN DETAIL113
SUN VISOR WITH
ILLUMINATED COURTESYMIRROR With the ignition on, the mirror is automatically lit up when the flap isopened.COURTESY LIGHTS
1 - Front courtesy light
2 - Map reading lights
3 - Rear courtesy light With the key in the accessories position (1st notch) or with the ignition on, oper- ate the relevant switch. The front and rear courtesy lights come on when the ignition key is removed, on unlocking the vehicle or on opening one of the doors.
They gradually go off after the ignition has been switched on or the vehicle is locked. In addition, when the vehicle is moving, the front and rear courtesy lights flash if
a door or the boot is not closed properly.
Pressing switch 1switches on the front and rear courtesy lights for a duration
of ten minutes.
 Pressing switch 3switches on the rear courtesy light for a duration of ten min-
utes.
Note: The courtesy lights can be deactivated by pressing switch 1for more than
three seconds. A short press on switch 1switches the courtesy lights on and off.
The map reading lights are not affected by this and may be switched on. To re-activate the lights, press switch 1for more than three seconds.
22-09-2003

22-09-2003
YOUR 307 CC IN DETAIL
114

22-09-2003
YOUR 307 CC IN DETAIL115

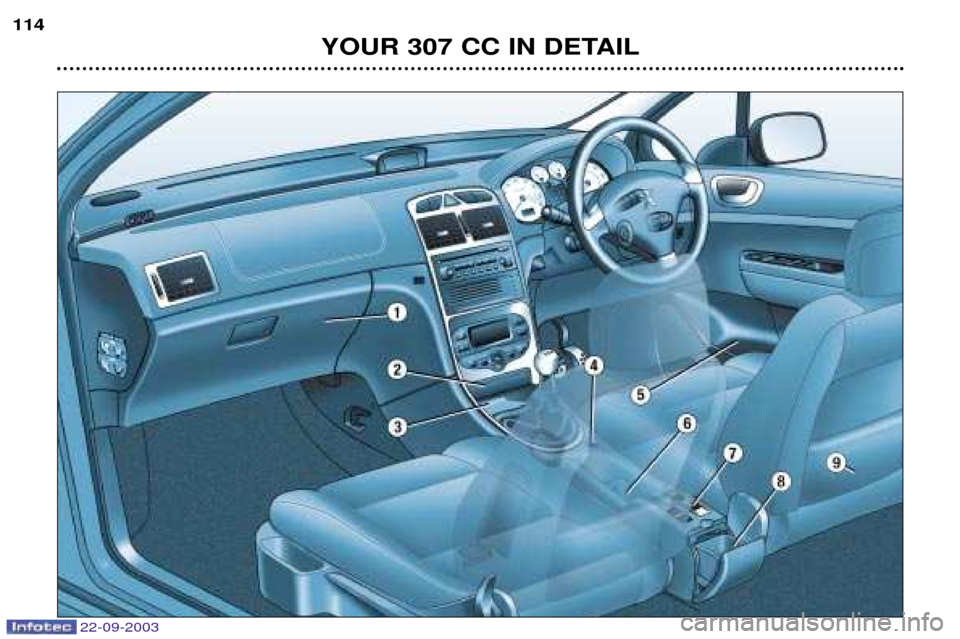

INTERIOR LAYOUT
1 - Glove box with cooling facility This is fitted with a lock.
To open the glove box, lift the handle.The glove box lights when the lid is opened.It contains a ventilation nozzle that can be closed, distributing the same conditioned air as the vents of the passenger compartment, and three sockets for connecting video equipment. It has a first aid kit and storage compartments for a pen, the vehicle handbook, a pair of spectacles, tokens, etc.
2 - Front ashtray Pull the lid to open the ashtray.
To empty it after opening, press the tab and extract the ashtray.
3 - Storage
4 - 12 volt accessories socket This is a lighter type socket, fitted with a cap. It is supplied with current from the accessories position (1st notch).
5 - Door tray
6 - Storage/Can holder
7 - Coin storage
8 - Storage compartment The storage compartment must not be used as an ashtray.
9 - Front seat back pockets

22-09-2003
YOUR 307 CC IN DETAIL
116

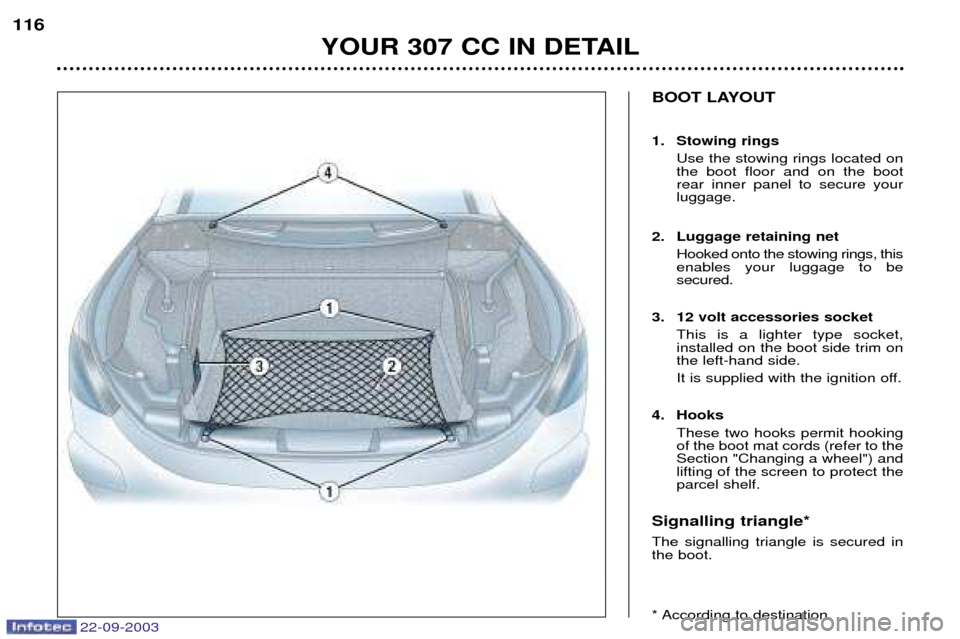

BOOT LAYOUT
1. Stowing rings
Use the stowing rings located on the boot floor and on the bootrear inner panel to secure yourluggage.
2. Luggage retaining net Hooked onto the stowing rings, thisenables your luggage to besecured.
3. 12 volt accessories socket This is a lighter type socket,installed on the boot side trim onthe left-hand side.
It is supplied with the ignition off.
4. Hooks These two hooks permit hooking of the boot mat cords (refer to theSection "Changing a wheel") andlifting of the screen to protect theparcel shelf.
Signalling triangle* The signalling triangle is secured in the boot.
* According to destination.

YOUR 307 CC IN DETAIL117
S
: sport programme


: snow programme
P ark: to immobilise the vehicle or start the engine ,
with the handbrake on or off.
R everse: to reverse(select this function with the vehi-
cle stationary, engine at idle).
N eutral: to start the engine and to park, with the hand-
brake on. Note: if function Nis engaged inadvertently while dri-
ving, allow the engine to return to idle before engaging function Dto accelerate.
D rive: for drivingin automatic mode.
M anual: for drivingin manual mode. Moving off
With the engine running, to move off from position
P:
 it is essential to press the
brake pedal to exit position P,
 select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
moves off immediately.
You can also move off from positionN :
 release the handbrake, with yourfoot on the brake,
 select function R, D or M, then
gradually release the pressureon the brake pedal; the vehicle
moves off immediately.
WARNING When the engine is at idle, brakes not applied, if function R, D or Mis
selected the vehicle moves evenwithout the accelerator beingpressed. For this reason, do not leave chil-
dren unsupervised inside the vehicle, with the engine running .
When maintenance operations needto be carried out with the engine run-ning, apply the handbrake and selectposition P.
"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX The four speed automaticgearbox offers a choice between the comfort of inte-
gral automatic operation , enhanced by a sportand a snow programme, or the
pleasure of manual gear changing .

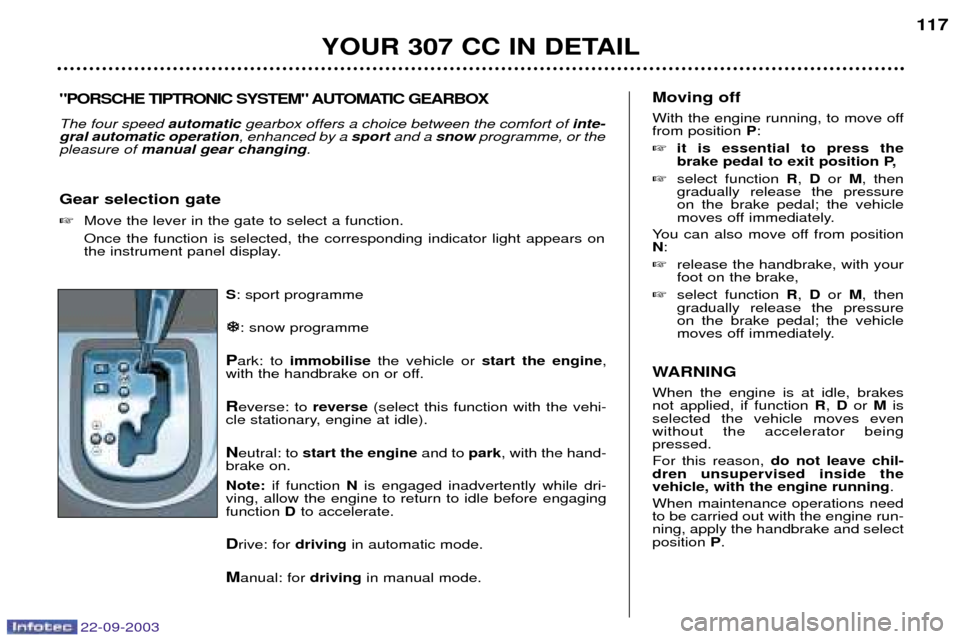

Gear selection gate  Move the lever in the gate to select a function. Once the function is selected, the corresponding indicator light appears on
the instrument panel display.
22-09-2003

22-09-2003
YOUR 307 CC IN DETAIL
118
Automatic operation Automatic changing of the
four
gears :
 select function Din the gate.
The gearbox always selects the most suitable gear according to the follow-ing parameters:
Ð the style of driving,
Ð the road profile,
Ð the vehicle load. The gearbox is then operating in auto-adaptive mode, without anyaction on your part.
WARNING Never select function Nwhen the
vehicle is moving. Never select functions Por Runless
the vehicle is stationary.Never change between functions to optimise braking on a slippery sur-face. Notes For immediate maximum acceleration
without touching the gear lever, pressthe accelerator pedal down as far as
it will go (kickdown). The gearbox willautomatically change down or main-tain the gear selected until maximumengine speed is reached. When braking, the gearbox will auto- matically change down in order to
provide efficient engine braking. If you take your foot off the accelera-
tor suddenly, the gearbox will notchange to a higher gear for reasons
of safety.
Sport and snow programme In addition to the auto-adaptive pro- gramme, there are two special pro-grammes. The programme is displayed on the instrument panel screen. Sport programme  Press button Sonce the vehicle
has been started and function D
selected.
The gearbox automatically favours sporty driving and more dynamicacceleration. Snow programme This programme improves starting
and drive when traction is poor.  Press button

once the vehicle
has been started and function D
selected.
The gearbox adapts to driving on slippery roads. Note: you can return to the auto-
adaptive programme at any time.  Press button Sor

again to
switch off the programme you are in. Manual operation Manual changing of the
four gears:
 select function Min the gate,
 push the lever to the +sign to
change to a higher gear,
 pull the lever to the Ðsign to
change to a lower gear.
You can change from position D(dri-
ving in automatic mode) to position M (driving in manual mode) at any
time. Note It is only possible to change from one gear to another if the vehicle speedand engine speed permit. If they donot, the vehicle will operate tem-porarily in automatic mode. When the vehicle is stationary or
moving very slowly, the gearboxautomatically selects gear M1.
Programme S(sport) and

(snow)
do not operate in manual mode.

22-09-2003
YOUR 307 CC IN DETAIL119
Releasing Pull on the handle and press the but- ton to release the handbrake.
Illumination of this warninglight and of the STOPwarn-
ing light, accompanied byan audible signal (while thevehicle is being driven) and
the message "handbrake on" on
the multi-function display, indicatesthat the handbrake is still on or hasnot been properly released.
Operating abnormality Any operating abnormality is indicat- ed by an audible signal, accompa-nied by the message
"Automatic
gear fault" on the multi-function dis-
play, "Ð"and flashing of the Sport
and Snow warning lights on theinstrument panel. In this situation the gearbox operates in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when changing from Pto R
and from Nto R(this will not cause
any damage to the gearbox). Do not exceed 60 mph (100 km/h), keeping within the limit of localspeed restrictions.
Contact a PEUGEOT dealer as soon as possible. HANDBRAKE Applying Pull the handbrake to immobilise your vehicle.
Warning:
when parking on a slope,
direct your wheels towards the pave- ment and pull the handbrake.
If the battery is flat and the lever is in position P, it will
be impossible to change toanother position.

22-09-2003
YOUR 307 CC IN DETAIL119
Releasing Pull on the handle and press the but- ton to release the handbrake.
Illumination of this warninglight and of the STOPwarn-
ing light, accompanied byan audible signal (while thevehicle is being driven) and
the message "handbrake on" on
the multi-function display, indicatesthat the handbrake is still on or hasnot been properly released.
Operating abnormality Any operating abnormality is indicat- ed by an audible signal, accompa-nied by the message
"Automatic
gear fault" on the multi-function dis-
play, "Ð"and flashing of the Sport
and Snow warning lights on theinstrument panel. In this situation the gearbox operates in downgrade mode (locked in 3rd
gear). You may feel a substantialknock when changing from Pto R
and from Nto R(this will not cause
any damage to the gearbox). Do not exceed 60 mph (100 km/h), keeping within the limit of localspeed restrictions.
Contact a PEUGEOT dealer as soon as possible. HANDBRAKE Applying Pull the handbrake to immobilise your vehicle.
Warning:
when parking on a slope,
direct your wheels towards the pave- ment and pull the handbrake.
If the battery is flat and the lever is in position P, it will
be impossible to change toanother position.

22-09-2003
YOUR 307 CC IN DETAIL
120
ANTI-LOCK BRAKING SYSTEM
(ABS) AND THE ELECTRONICBRAKE FORCE DISTRIBUTION(EBFD)
The ABS, in conjunction with the electronic brake force distribution,increases the stability andmanoevrability of your vehicle onbraking, in particular on poor or slip-pery road surfaces. Note:
when changing wheels (tyres
and rims), make sure that these are approved. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
Normal operation of the ABS maymake itself felt by slight vibrationsof the brake pedal. In emergency braking, press very firmly without releasingthe pressure.EMERGENCY BRAKING
ASSISTANCE SYSTEM
In an emergency, this system enables the optimum braking pres-
sure to be reached more quickly,thus reducing the stopping distance. It is triggered by the speed at which
the brake pedal is activated. The
effect of this is a reduction in theresistance of the pedal and an
increase in braking efficiency.
When this warning lightcomes on, connected to the
STOP
and ABS warning
lights, accompanied by abuzzer and the message
'Braking fault' , it indicates that there
is a malfunction of the electronicbrake force distribution, which cancause a loss of control of the vehiclewhen braking.
Stop immediately. In both cases, consult a PEUGEOT
dealer.
or
When this warning light comes on, accompanied by a buzzer and themessage "ABS fault" , it indicates
that there is a malfunction of theABS, which can cause a loss ofcontrol of the vehicle when braking.
