Peugeot 406 2002 Owners Manual

Third row seat, 7-seater estate Do not use the third row seat when the rear seat is folded down. Positioning the seat :
– remove the rear parcel shelf.
– fold down panel Ain the boot by
using the handle.
– lift the seat back Bby the head
restraints. – push the seat back firmly, keeping
the seat angled upwards.
– lower the seat and check it has engaged in the notches C. Stowage: Place the seat belt buckles in their catches. Release the seat from the notches
C.
Lower the seat back by the head restraints, keeping the seat cushioninclined. Lower the whole seat into the boot housing. Lock the boot panel Aby pressing on
the edges.
YOUR 406 IN DETAIL 119
Do not install a child seat on the third rowseat.

YOUR 406 IN DETAIL
120

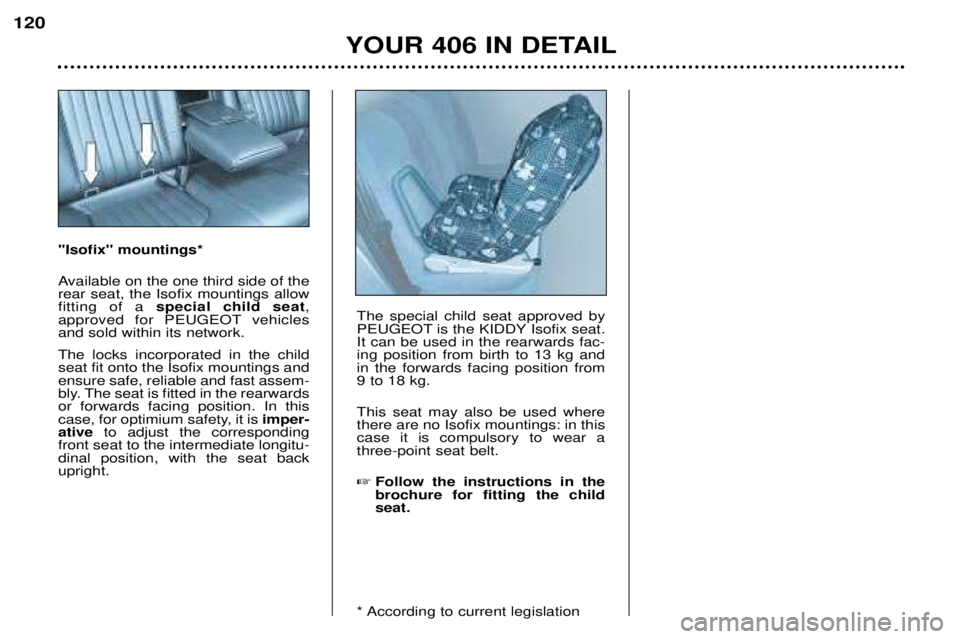

''Isofix'' mountings*
Available on the one third side of the rear seat, the Isofix mountings allowfitting of a
special child seat ,
approved for PEUGEOT vehiclesand sold within its network. The locks incorporated in the child seat fit onto the Isofix mountings andensure safe, reliable and fast assem-
bly. The seat is fitted in the rearwardsor forwards facing position. In this
case, for optimium safety, it is imper-
ative to adjust the corresponding
front seat to the intermediate longitu-dinal position, with the seat backupright.
The special child seat approved by
PEUGEOT is the KIDDY Isofix seat.It can be used in the rearwards fac-ing position from birth to 13 kg andin the forwards facing position from 9 to 18 kg. This seat may also be used where there are no Isofix mountings: in thiscase it is compulsory to wear athree-point seat belt.
 Follow the instructions in thebrochure for fitting the childseat.
* According to current legislation

YOUR 406 IN DETAIL
120
''Isofix'' mountings*
Available on the one third side of the rear seat, the Isofix mountings allowfitting of a
special child seat ,
approved for PEUGEOT vehiclesand sold within its network. The locks incorporated in the child seat fit onto the Isofix mountings andensure safe, reliable and fast assem-
bly. The seat is fitted in the rearwardsor forwards facing position. In this
case, for optimium safety, it is imper-
ative to adjust the corresponding
front seat to the intermediate longitu-dinal position, with the seat backupright.
The special child seat approved by
PEUGEOT is the KIDDY Isofix seat.It can be used in the rearwards fac-ing position from birth to 13 kg andin the forwards facing position from 9 to 18 kg. This seat may also be used where there are no Isofix mountings: in thiscase it is compulsory to wear athree-point seat belt.
 Follow the instructions in thebrochure for fitting the childseat.
* According to current legislation

CHILD SEATS Although one of PEUGEOT's main concerns when designing your vehicle, the safety of your children also depends on you.
For maximum safety, please follow these precautions:-All children under the age of 10 must travel in a special approved child seat*, adapted to their weight, in a seat fitted with a seat belt.
- Front passenger seat*: children under the age of 10 must not travel in the forwards facing position**. The rearwards facing position is permitted. In this position, it is compulsory to disarm the passenger air bag.
After carrying out numerous tests, PEUGEOT recommends the following systems: Up to 18 months (up to 13 kg)
" Römer Babysure": installed with its back to the engine in the front or in the rear using a three-point seat belt. In the front, the passenger seat must be in the 'mid-way' position on the slide.
From 9 months to 3 or 4 years (9 to 18 kg) "Römer Prince": installed in the rear using a three-point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
From 3 to 6 years (15 to 25 kg) "Römer Vario'': installed in the rear with a three point seat belt.
* According to current legislation in the country of destination.
** Unless the rear seats are already occupied by other children or the rear seats cannot be used (because they are missing or folded down). In this case, adjust the front passenger seat to the rear-most position and leave the air bag active.
YOUR 406 IN DETAIL 121
3
2
1

YOUR 406 IN DETAIL
122
Never leave a child or an animal in a vehiclewhich is exposed to thesun and has the win-dows closed.
Never leave the keys within
reach of children inside the car. Disarm the passenger air bag when installing a rearwards or for-wards* facing child seat in thefront. Observe strictly the recommenda- tions for assembling or attachingthe child seat as shown in thechild seat instructions.
From 3 to 10 years (15 to 36 kg)
''Recaro start'': installed in the rear with a three–point seat belt. The height and width of the seat back must be adjusted according to the age and build of your child. "Klippan Optima": installed in the rear with a three–point seat belt. From the age of 6 years (approximately 22 kg), the booster is used on its own.
Remember, even for short journeys, to fasten the three-point seat belts or thechild seat straps, keeping the slack in relation to the child's body to a minimum.
To prevent the doors from opening accidentally, use the child-lock. Also, do not open the rear windows more than a third.
* According to current legislation in the country of destination.4
5

SEAT BELTS

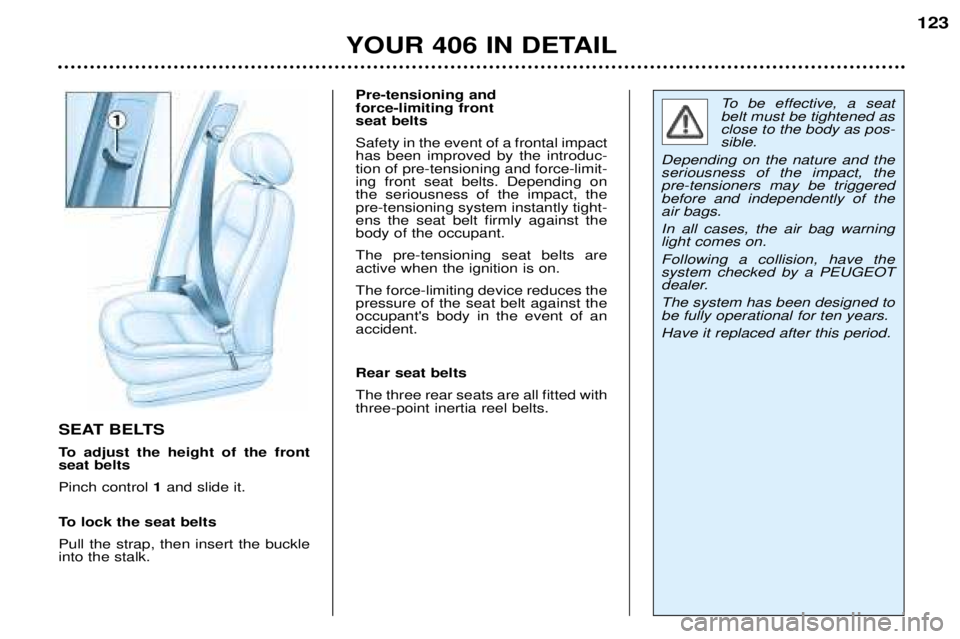

To adjust the height of the front seat belts Pinch control 1and slide it.
To lock the seat beltsPull the strap, then insert the buckle into the stalk. Pre-tensioning and force-limiting front seat belts Safety in the event of a frontal impact has been improved by the introduc-tion of pre-tensioning and force-limit-ing front seat belts. Depending onthe seriousness of the impact, thepre-tensioning system instantly tight-ens the seat belt firmly against thebody of the occupant. The pre-tensioning seat belts are active when the ignition is on. The force-limiting device reduces the pressure of the seat belt against theoccupant's body in the event of anaccident. Rear seat belts The three rear seats are all fitted with three-point inertia reel belts.
YOUR 406 IN DETAIL
123
To be effective, a seat belt must be tightened asclose to the body as pos-sible.
Depending on the nature and theseriousness of the impact, thepre-tensioners may be triggeredbefore and independently of theair bags. In all cases, the air bag warning light comes on. Following a collision, have the system checked by a PEUGEOT
dealer. The system has been designed to be fully operational for ten years. Have it replaced after this period.

THE KEYS The keys allow you to switch on the ignition and to independently operate
the locks on the front door, the glovebox and the passenger air bag dis-arming switch. Central locking
From the driver's door, the keys allow you to lock and unlock thedoors and boot/tailgate. If one of thefront or rear doors is open, the cen-tral locking does not work. The remote control performs the same functions at a distance. The remote control LockingPress button Ato lock the vehicle.
YOUR 406 IN DETAIL
108
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button
B to unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Note: do not repeatedly press the
button of your remote control out of
range of your vehicle. You risk caus-ing it not to work and the remote con-trol would have to be reprogrammed. ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possible. If the system does not function
correctly,
an audible signal sounds,
accompanied by a message on the
multi–function display.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible.
Locating your car
To locate your car, if you have locked it, in a car park:
press button A.The courtesy lights
come on and the direction indica- tors flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.

YOUR 406 IN DETAIL109
Changing the battery of the remote control The information 'battery flat'is
given by an audible signal accompa- nied by a message on the
multi–function display.
To replace the battery, unclip the casing using a coin at the ring(CR2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Programming the remote control
Switch off the ignition.
 Switch the ignition on again.
 Immediately press button A.
 Switch off the ignition and remove the remote control key
from the ignition lock. The remotecontrol is now working again.

YOUR 406 IN DETAIL
110
Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a high-performance system.
Do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge. The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogram- ming. Do not operate the deadlock if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time. Do not handle the buttons of your remote control when out of range of your vehicle as you run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: – ensure that you are in possession of the confidential card;
– have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.

THE KEYS The keys allow you to switch on the ignition and to independently operate
the locks on the front door, the glovebox and the passenger air bag dis-arming switch. Central locking
From the driver's door, the keys allow you to lock and unlock thedoors and boot/tailgate. If one of thefront or rear doors is open, the cen-tral locking does not work. The remote control performs the same functions at a distance. The remote control LockingPress button Ato lock the vehicle.
YOUR 406 IN DETAIL
108
This is confirmed by fixed lighting of the direction indicators for approxi-mately two seconds. Unlocking Press button
B to unlock the vehicle.
This is confirmed by rapid flashing of the direction indicators. Note: do not repeatedly press the
button of your remote control out of
range of your vehicle. You risk caus-ing it not to work and the remote con-trol would have to be reprogrammed. ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code. Whenthe ignition is switched on, the codeis recognised and starting is possible. If the system does not function
correctly,
an audible signal sounds,
accompanied by a message on the
multi–function display.
WARNING: your vehicle is no longer
protected in this event.
Contact a PEUGEOT dealer as soon as possible.
Locating your car
To locate your car, if you have locked it, in a car park:
press button A.The courtesy lights
come on and the direction indica- tors flash for a few seconds.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.
